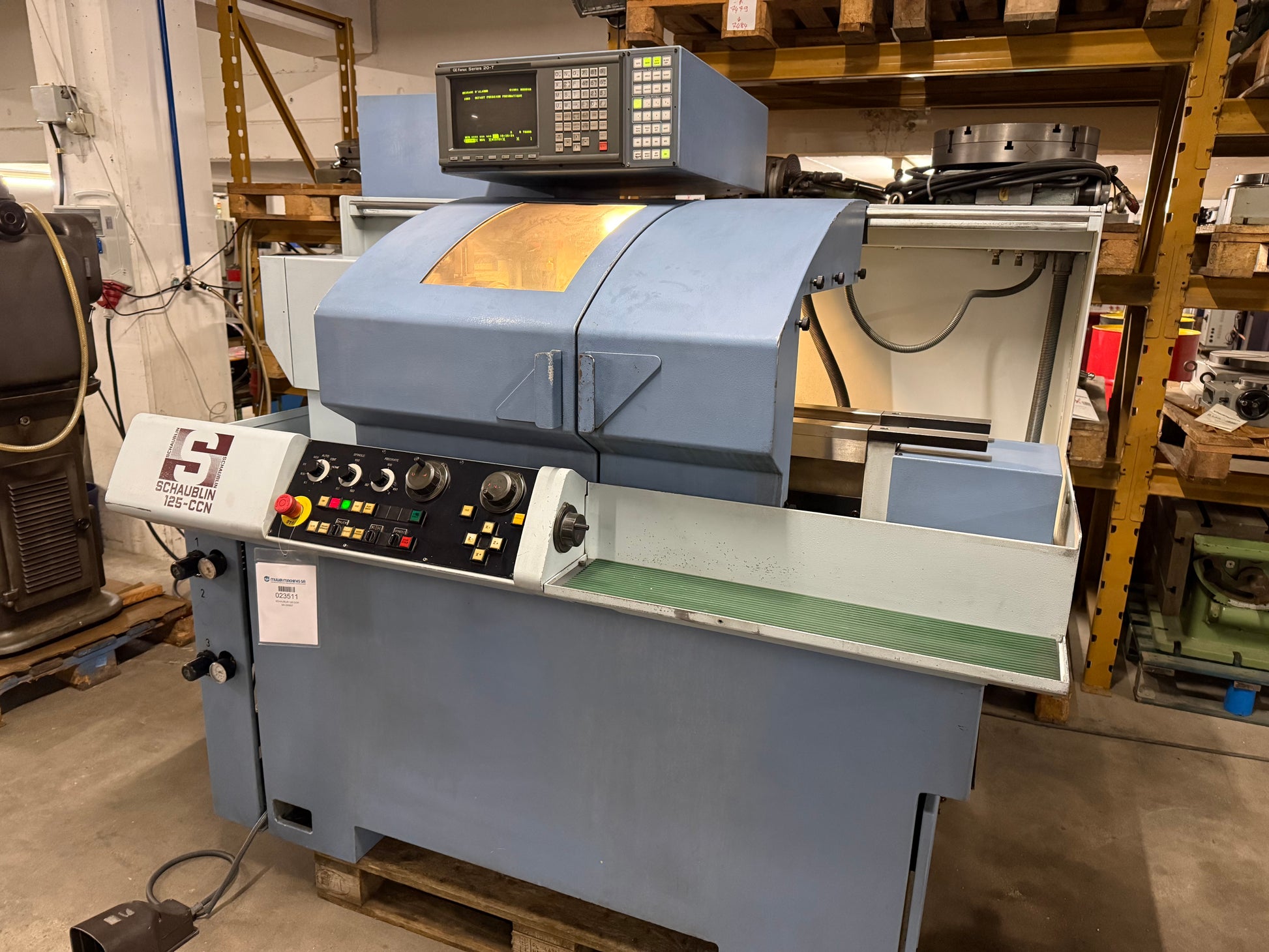

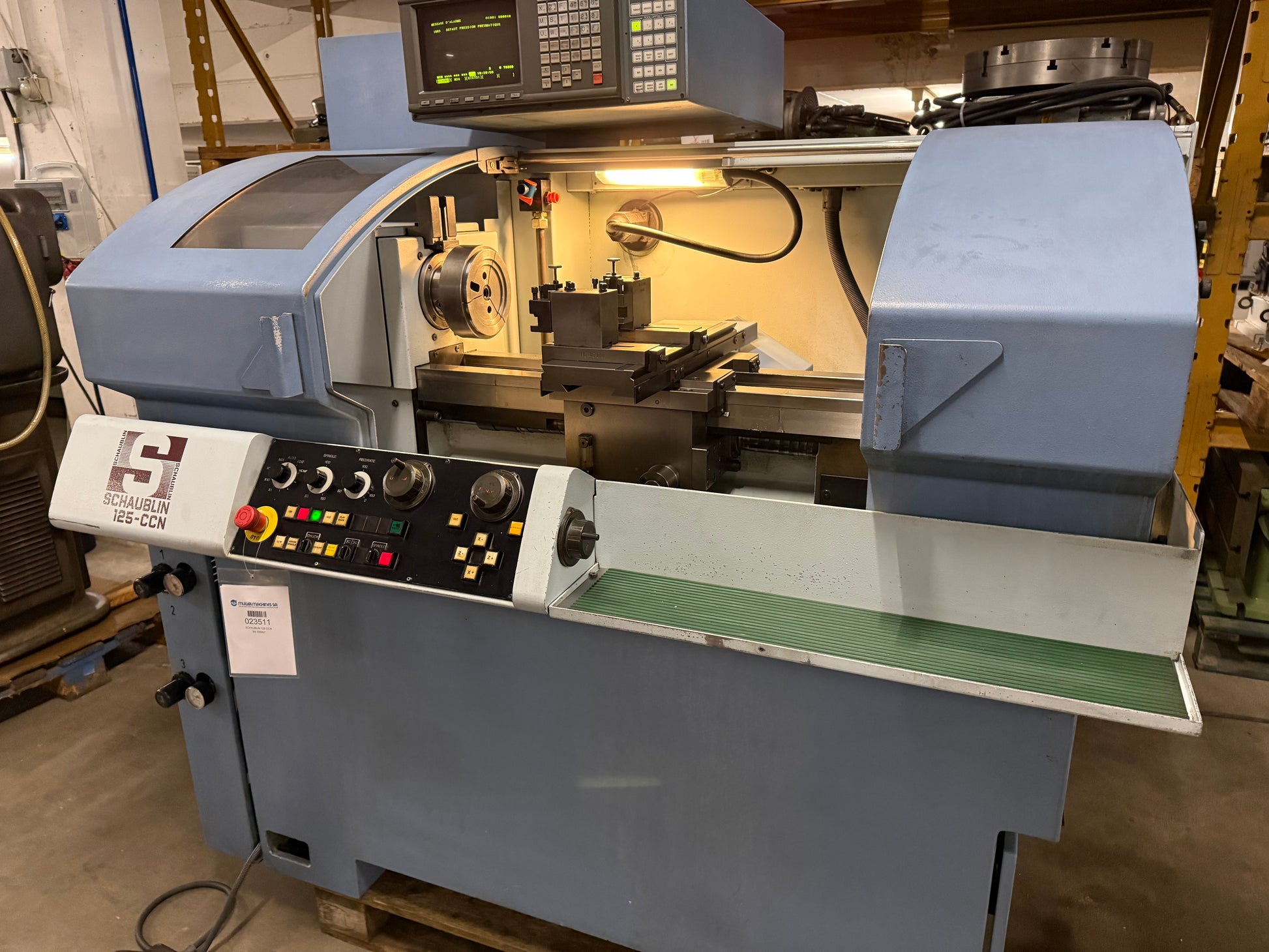

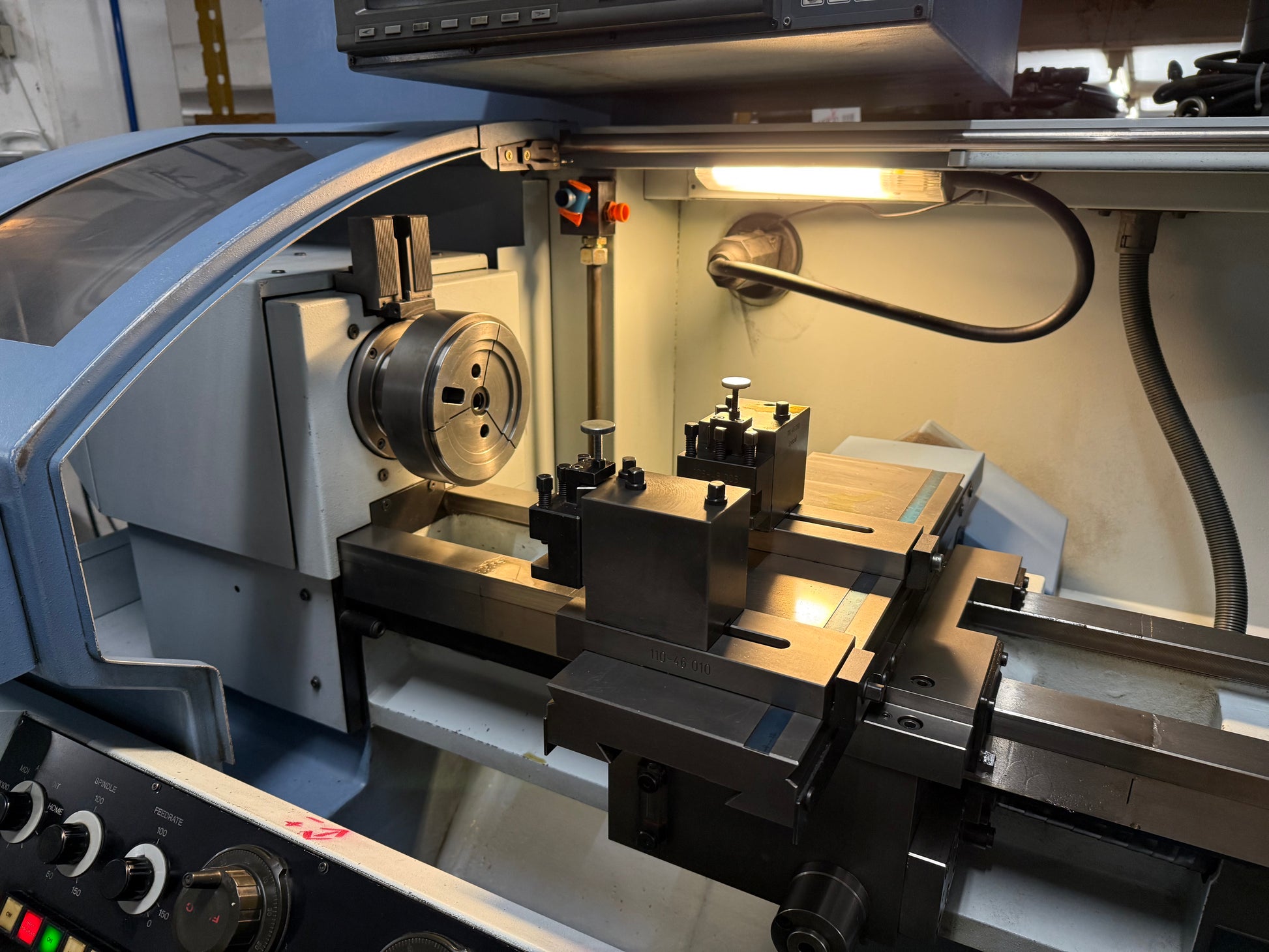

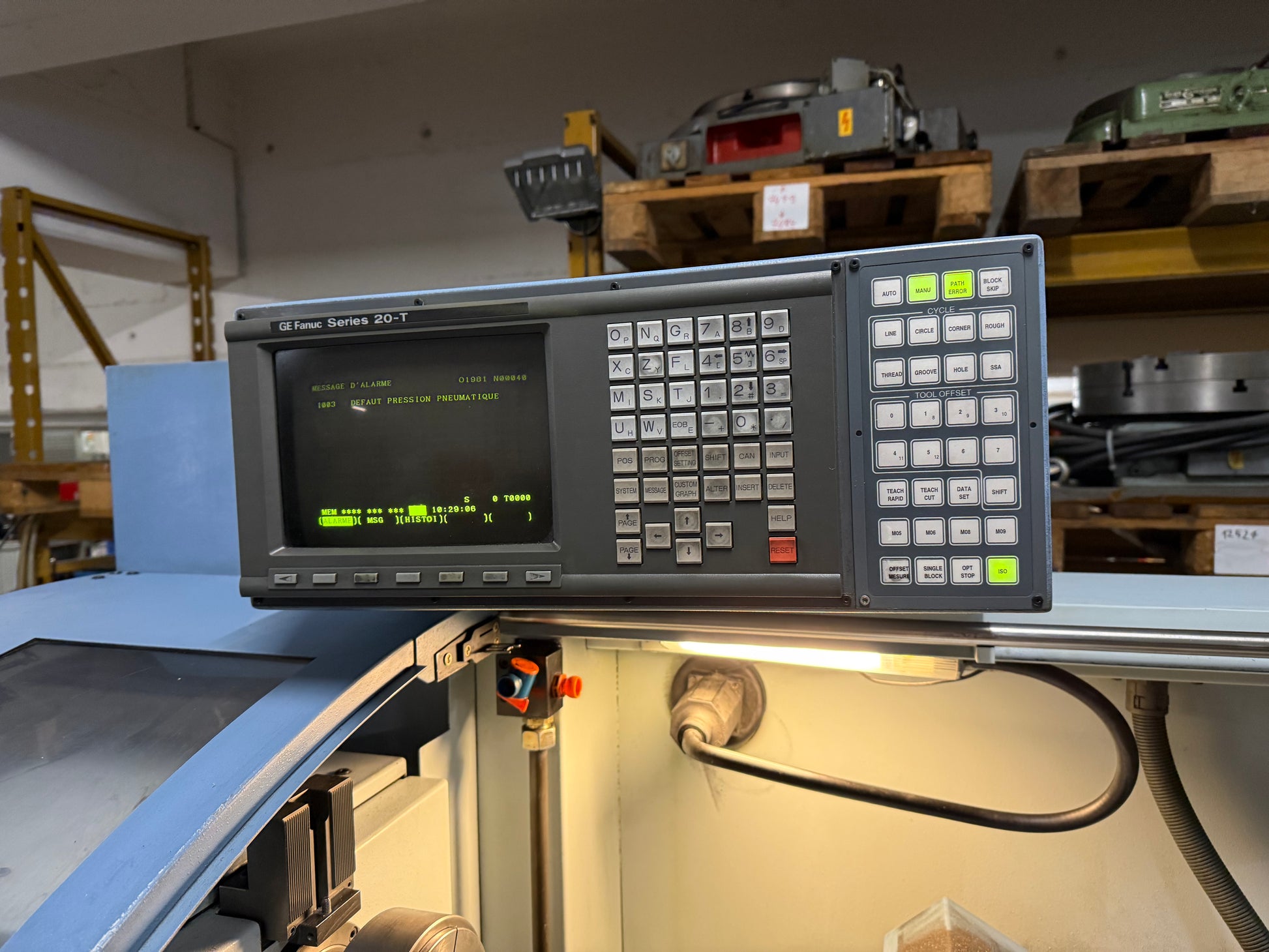

SCHAUBLIN 125 CCN is a CNC turning lathe of high precision, engineered for high accuracy and reliability. Capacities: centre height 125 mm, distance between centres 500 mm, swing over cross-slide 115 mm, swing over bed 270 mm, spindle hole 28 mm; Z travel 400 mm, X travel 180 mm; Camlock D1-3, collet type B32. Specs: speeds 0–5000 rpm (stepless), spindle power 7.5/5.5 kW, torque 58/42 Nm, Morse taper 3 CM, spindle stroke 160 mm, spindle Ø 45 mm; rapid traverse 7.5 m/min; air 5–6 bar; 3x400 V 50 Hz; total power 15 kVA; weight ~1415 kg; size 1700×1300×1700 mm. Accessories: lamp, tailstock, coolant system. Enables tight tolerances; suited to automotive, watchmaking, machine tools, aerospace and medical industries.

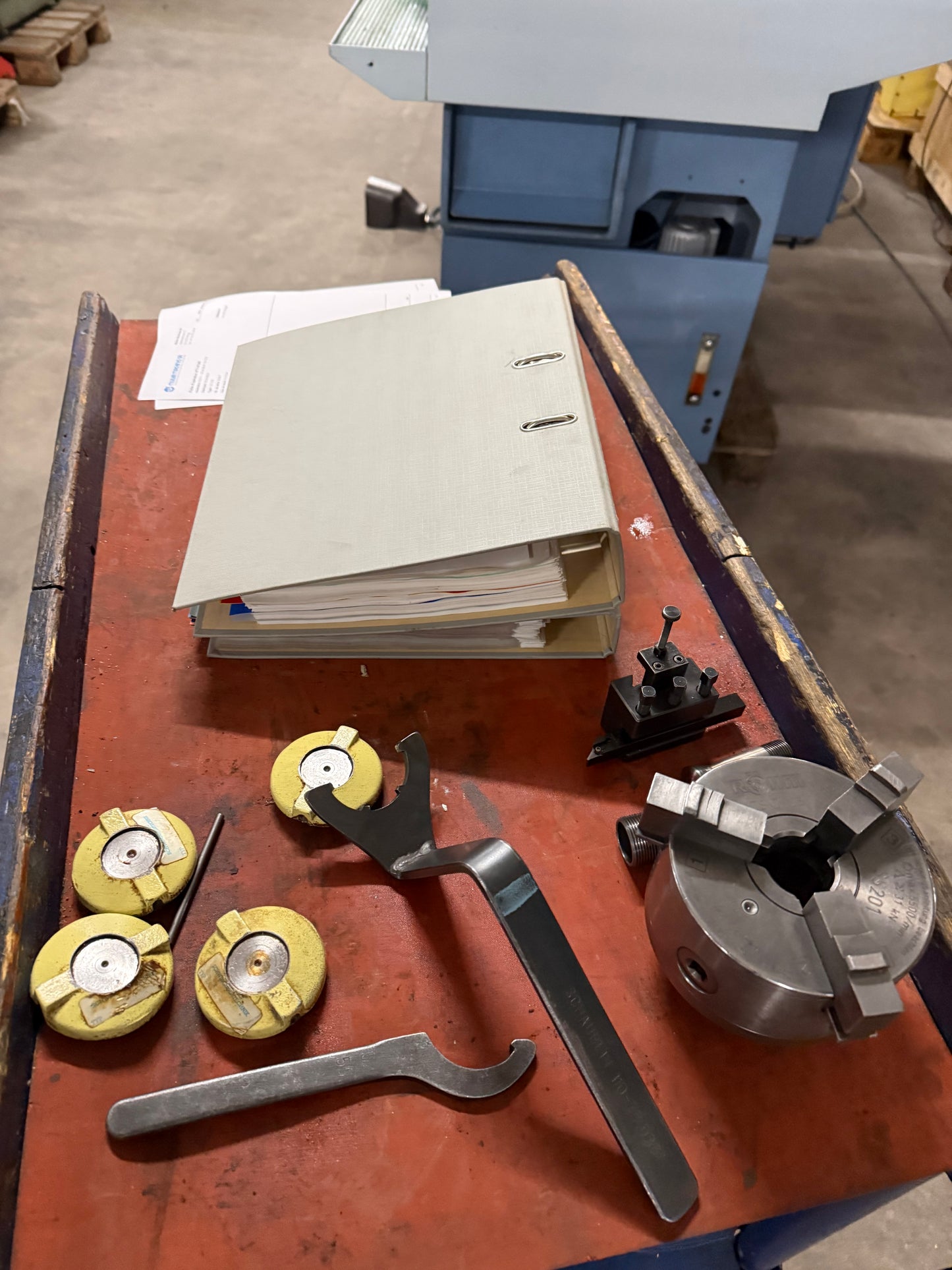

| Centre height | 125 mm |
| Distance between centres | 500 mm |
| Swing over cross-slide | 115 mm |
| Swing over bed | 270 mm |
| Spindle hole | 28 mm |
| Cross slide: | |
| Longitudinal travel (Z-axis) | 400 mm |
| Transversal strocke (X axis) | 180 mm |
| Taper in spindle: | |
| Camlock | D1-3" |
| Inner taper type | B32 |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 5000 t/min |
| Spindle power | 7.5 / 5.5 kW |
| Torque max. | 58 / 42 Nm |
| Morse taper | 3 CM |
| Spindle stroke | 160 mm |
| Spindle diameter | 45 mm |
| Feeds: | |
| longitudinal from | mm/min |
| up to | 5000 mm/min |
| transversal from | mm/min |
| up to | 5000 mm/min |
| Rapid traverse: | 7.5 m/min |
| Air connect | 5 - 6 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 15 kVA |
| Machine's weight about | 1415 kg |
| Overall dimensions machine: | |
| Length | 1700 mm |
| Width | 1300 mm |
| Height | 1700 mm |
| Various accessories: | |
| Lamp | |
| Tailstock | |
| Coolant system |
