TORNOS Micro 8 is a CNC automatic lathe designed for precision, high accuracy and reliability. Capacities: total 7 axes, max workpiece length 20 mm, max bar diameter 10 mm; spindle taper for collet W15, back spindle taper F13. Main specs: spindle and back-spindle stepless up to 12,000 rpm; rapid traverse X 20 / Y 40 / Z 20 m/min; spindle/back motor 2.2/3.7 kW; voltage 3x400 V 50 Hz; total power 8 kVA; weight ~1600 kg; footprint 1670×870×1650 mm. Accessories: bar feeder LNS TRYTON 112, lamp, coolant system, oil-mist extractor, RS232 interface, status light. Enables tight tolerances; suitable for watchmaking, automotive, medical, aerospace and machine-tool sectors.
Technical specifications are subject to change without notice
| Number of axis total | 7 |
| Workpiece length max. | 20 mm |
| Max. bar diameter | 10 mm |
| Inner taper type | W15 |
| Spindle speeds: | |
| stepless | |
| up to | 12000 t/min |
| Back spindle: | |
| speeds: | |
| up to | 12000 t/min |
| Inner taper type | F13 |
| Rapid traverse X | 20 m/min |
| Rapid traverse Y | 40 m/min |
| Rapid traverse Z | 20 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 2.2 / 3.7 kW |
| Power of back spindle | 2.2 / 3.7 kW |
| Total power required | 8 kVA |
| Machine's weight about | 1600 kg |
| Overall dimensions machine: | |
| Length | 1670 mm |
| Width | 870 mm |
| Height | 1650 mm |
| Various accessories: | |
| Bar feeder | |
| Manufacturer | LNS |
| Type | TRYTON 112 |
| Lamp | |
| Coolant system | |

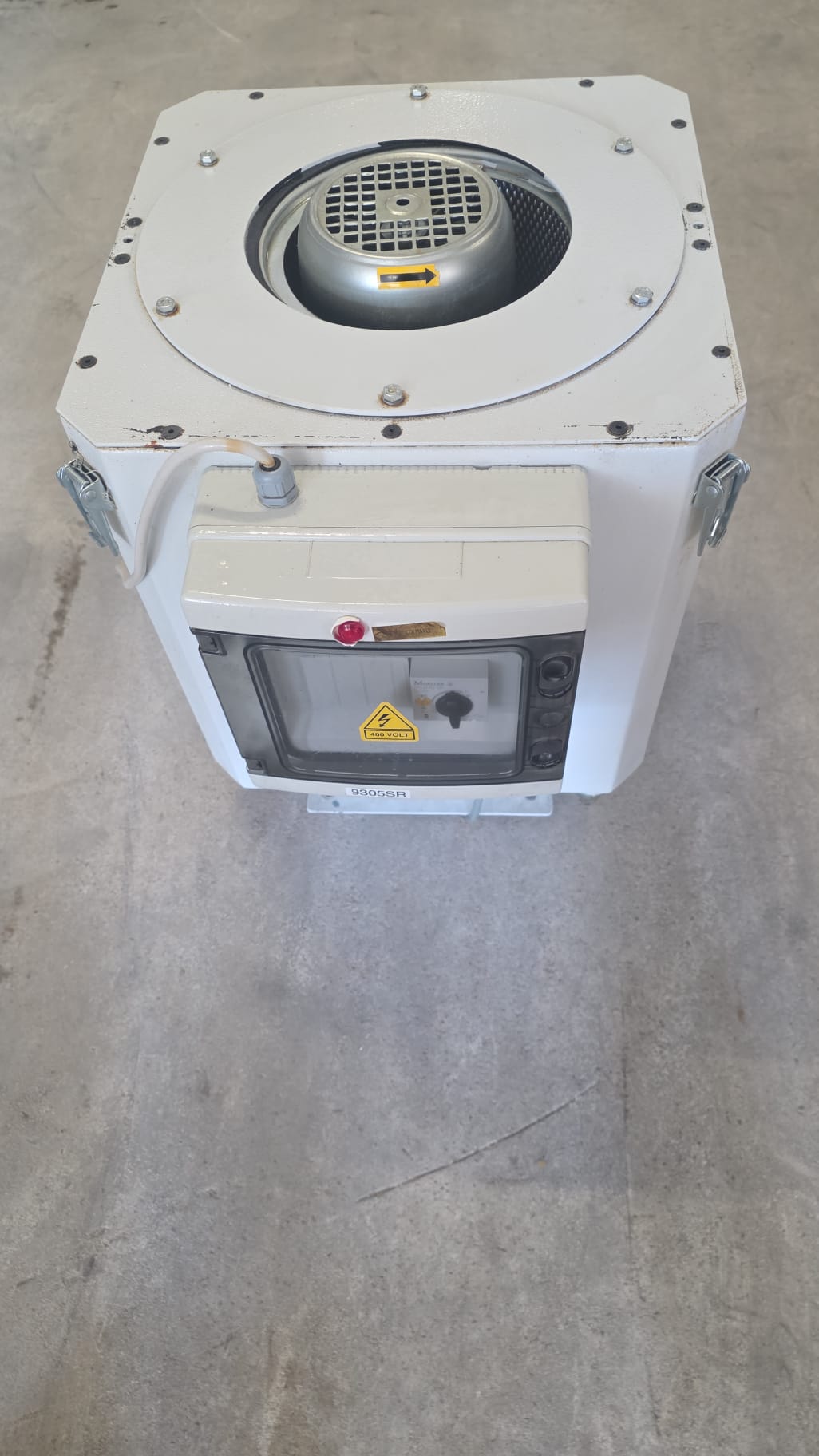

| Oil mist extractor | |
| Interface serial port RS 232 | |
| Status light |
