TORNOS Micro 8 is a CNC automatic lathe of high precision, accuracy and reliability. Capacities: 7 axes; max workpiece length 20 mm; max bar diameter 10 mm; spindle taper W15 and back spindle taper F13. Specs: stepless spindle speeds up to 12,000 t/min; rapid traverses X 20 m/min, Y 40 m/min, Z 20 m/min; spindle motors 2.2/3.7 kW; total power 8 kVA; voltage 3x400 V; weight ~1600 kg; size L1670×W870×H1650 mm. Equipment: bar feeder LNS TRYTON 112, lamp, coolant system, oil mist extractor, RS232 port, status light. Capable of tight tolerances; typical applications: automotive, watchmaking, medical, aerospace, machine tools
Technical specifications are subject to change without notice
| Number of axis total | 7 |
| Workpiece length max. | 20 mm |
| Max. bar diameter | 10 mm |
| Inner taper type | W15 |
| Spindle speeds: | |
| stepless | |
| up to | 12000 t/min |
| Back spindle: | |
| speeds: | |
| up to | 12000 t/min |
| Inner taper type | F13 |
| Rapid traverse X | 20 m/min |
| Rapid traverse Y | 40 m/min |
| Rapid traverse Z | 20 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 2.2 / 3.7 kW |
| Power of back spindle | 2.2 / 3.7 kW |
| Total power required | 8 kVA |
| Machine's weight about | 1600 kg |
| Overall dimensions machine: | |
| Length | 1670 mm |
| Width | 870 mm |
| Height | 1650 mm |
| Various accessories: | |
| Bar feeder | |
| Manufacturer | LNS |
| Type | TRYTON 112 |
| Lamp | |
| Coolant system | |

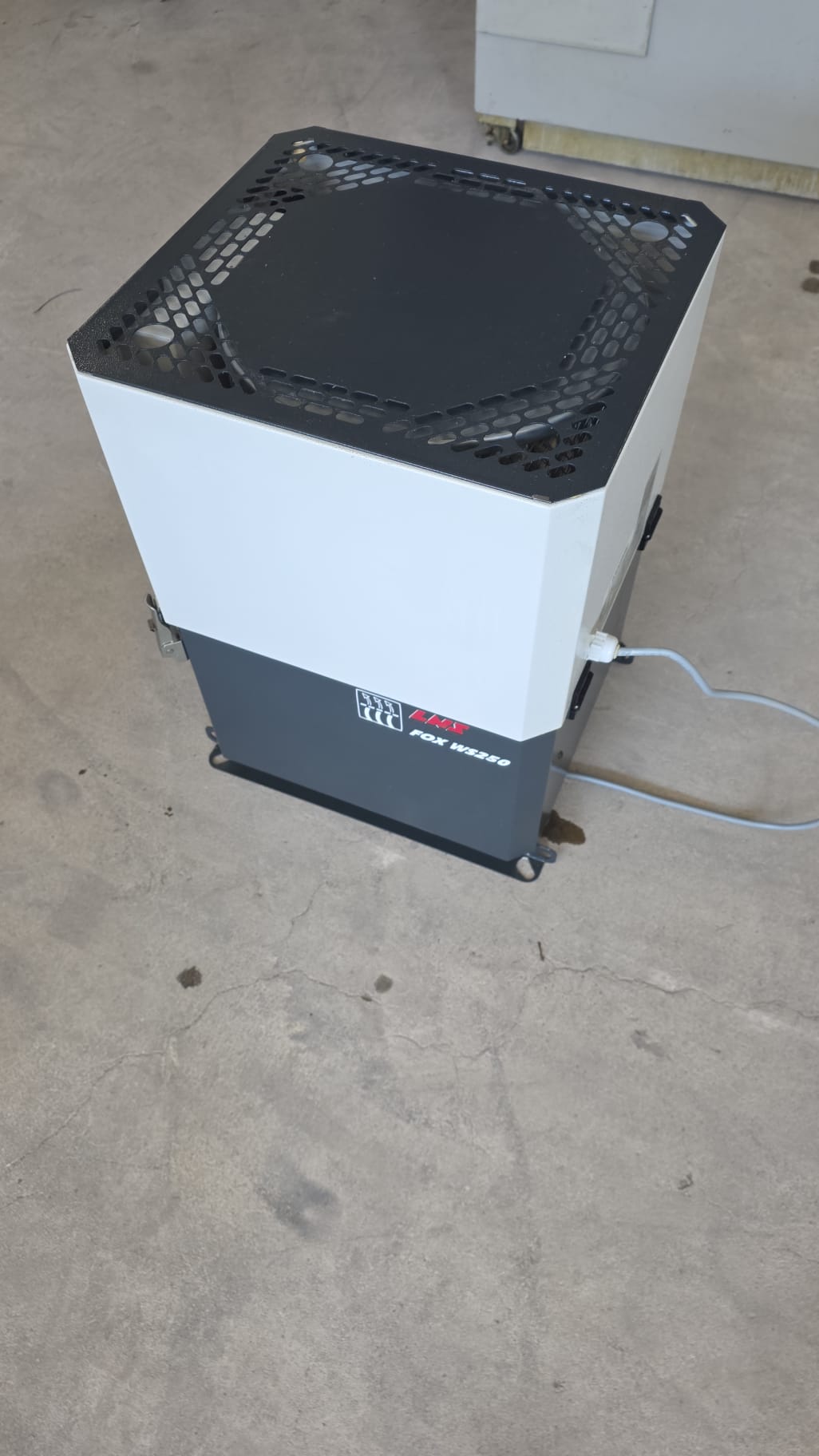

| Oil mist extractor | |
| Interface serial port RS 232 | |
| Status light |
