STRAUSAK HS 30
Type: HS 30
Manufacturer: STRAUSAK
Group: Hobbing machine
Subgroup: Hobbing machine
Year: 2011
Stock: 023348
STRAUSAK HS 30 is a Hobbing machine engineered for precision work, offering high accuracy and reliability. Workpiece Ø 0.2–35 mm; max module 1.00; max cutting length 22 mm; teeth 2–390; cutter Ø 6–24 mm. Cutter speeds stepless 400–13,000 t/min. Voltage 50 Hz, 3x380 V; weight ≈600 kg; dimensions L800×W800×H1450 mm. Fitted with PLC control, loading attachment, parts catcher, lamp and coolant system. Delivers tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
| Work-piece diameter | 0.2 - 35 mm |
| Max. module | 1.00 |
| Longueur maxi. de taillage | 22 mm |
| Pitch min. | 2 |
| Pitch max. | 390 |
| Cutter diameter | 6 - 24 mm |
| Milling cutter speeds: | |
| stepless | |
| from | 400 t/min |
| up to | 13000 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 600 kg |
| Overall dimensions machine: | |
| Length | 800 mm |
| Width | 800 mm |
| Height | 1450 mm |
| Various accessories: | |

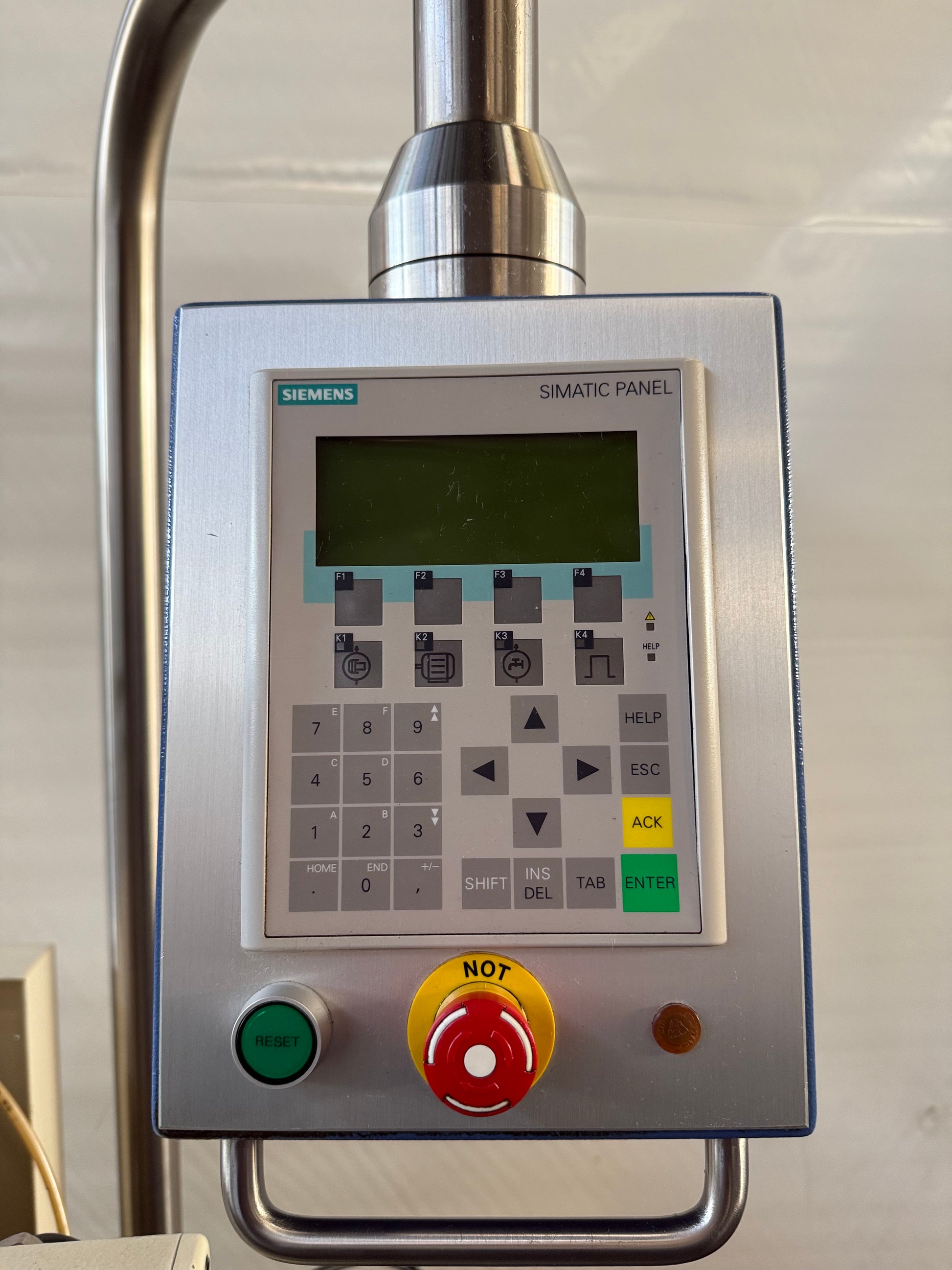

| PLC control | |
| Loading attachment | |
| Parts catcher | |
| Lamp | |
| Coolant system |
