OKUMA MAC TURN 350-W
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
OKUMA MAC TURN 350-W is a CNC Lathe-Milling Center, engineered for precision, high accuracy and reliability. Capacities: turning Ø 530 mm (over cross-slide), 550 mm (over bed); spindle hole 62 mm; turning length 1625 mm; Z 1670 mm, X 505 mm, Y ±95 mm (190 mm). Specs: 9 axes; C axis 360° res. 0.001°; B axis swivel 210° res. 1°; spindle speeds up to 5000 t/min (main and back spindle); milling cutter speeds 6000 t/min; spindle motor 22/15 kW. Equipment: 44-station tool changer, chip conveyor. Delivers tight tolerances; ideal for automotive, aerospace, medical and precision manufacturing.
Technical specifications are subject to change without notice
| Number of axis total | 9 |
| Swing over cross-slide | 530 mm |
| Swing over bed | 550 mm |
| Spindle hole | 62 mm |
| Turning diameter | 530 mm |
| Turning length | 1625 mm |
| Carriage: | |
| Longitudinal travel (Z-axis) | 1670 mm |
| Transversal strocke (X axis) | 505 mm |
| C axis (spindle,resolution) | 0.001 ° |
| C axis | 360° |
| Spindle speeds: | |
| stepless | |
| up to | 5000 t/min |
| Back spindle: | |
| max. speed | 5000 t/min |
| Milling units: | |
| Y axis | +/- 95 = 190 mm |
| Milling cutter speeds | 6000 t/min |
| B axis swivelling range | 210 ° |
| B axis resolution max. | 1 ° |
| Spindle motor | 22/15 kW |
| Various accessories: | |
| 3-jaw chuck | 2x Kitagawa B-210 |

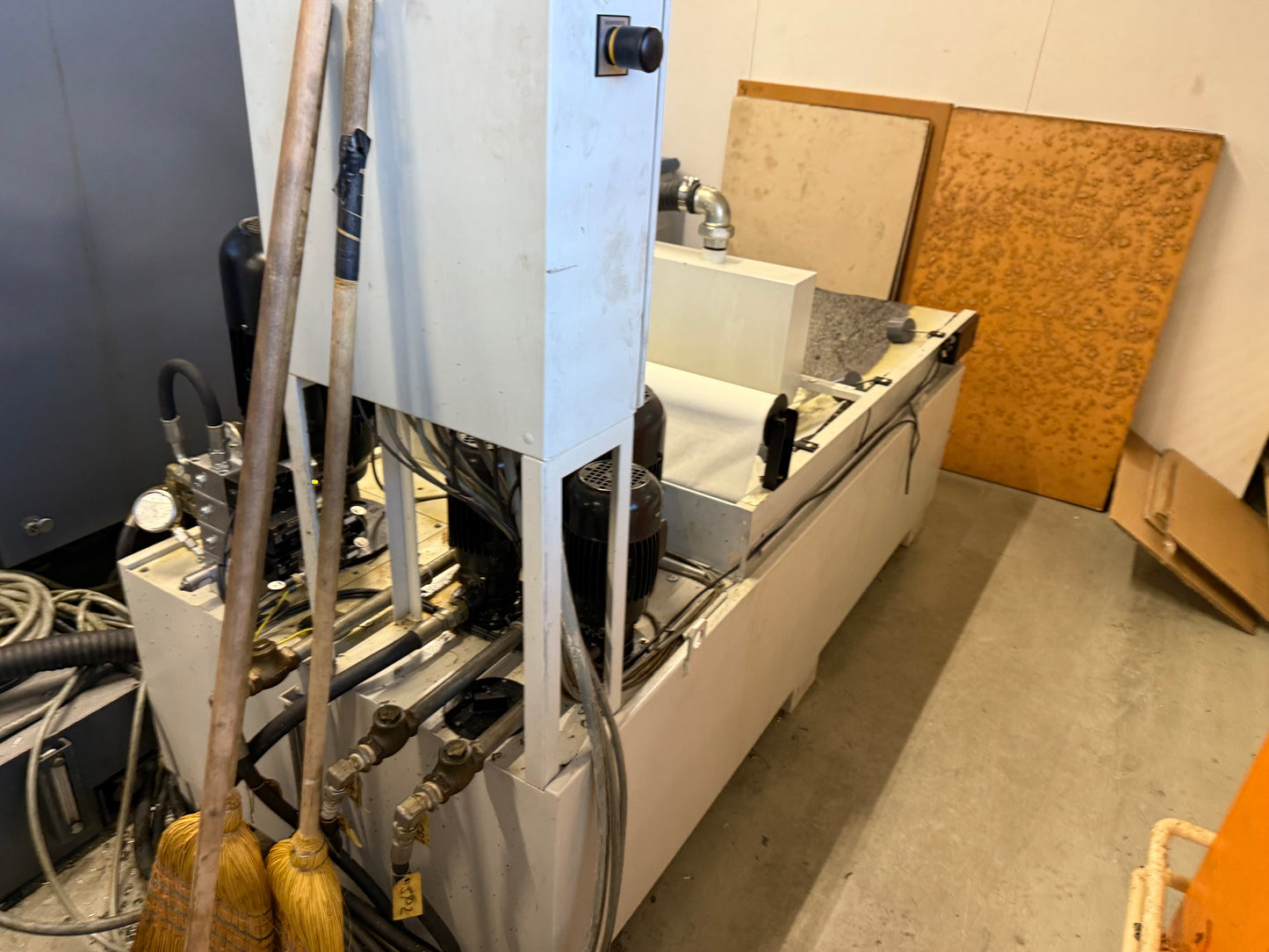

| Paper filtration system | |
| Bar feeder | |
| Type | LNS Sprint 552-565 |
| Chip conveyor | |
| Loading roboter | KUKA KR30-3 |
| Set of toolholders | ca. 110x HSK 63 |
| Measuring arm Renishaw | RMP60 |
| Tool changer: (number of tools) | 44 |
