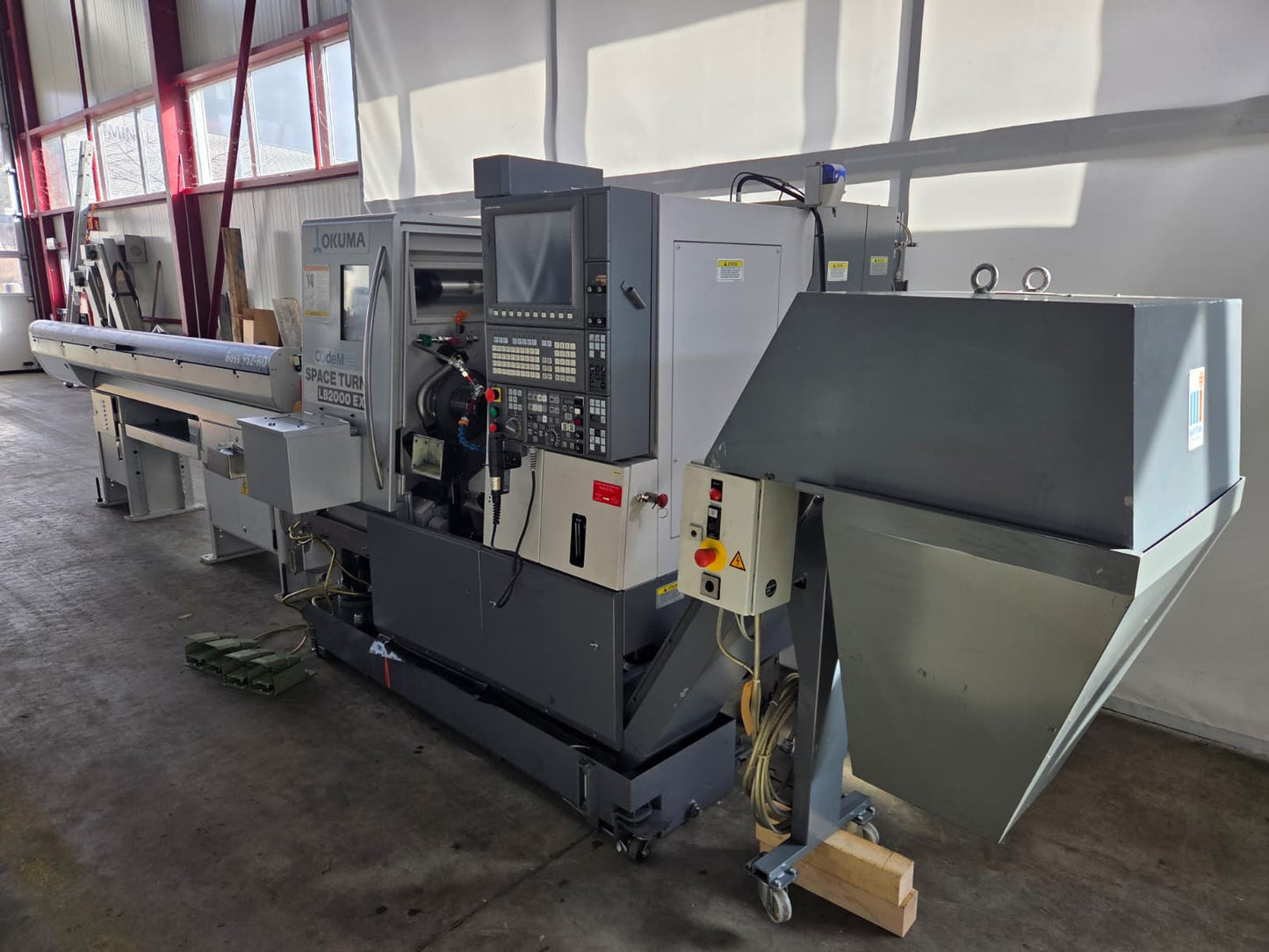

OKUMA LB 2000 EX
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
OKUMA LB 2000 EX is a CNC turning lathe designed for precision, high accuracy and reliability. Capacities: spindle hole 62 mm; max turning length 300 mm; max turning diameter 430 mm; travels Z 350 mm, X 260 mm. Specs: rapid traverse Z 30 m/min, X 25 m/min; stepless spindle 50–6000 t/min; power 50 Hz 3x 400 V; weight ≈3250 kg; dimensions L1900×W1750×H1850 mm. Equipment: 12-position turret. Capable of tight tolerances; typical applications: automotive, aerospace, medical, watchmaking, machine tools.
| Spindle hole | 62 mm |
| Maximum turning length | 300 mm |
| Max. turning diameter | 430 mm |
| Travels: | |
| Longitudinal travel (Z-axis) | 350 mm |
| Transversal strocke (X axis) | 260 mm |
| Rapid traverse Z | 30 m/min |
| Rapid traverse X | 25 m/min |
| Turret slide: | |
| Number of positions | 12 |
| Spindle speeds: | |
| stepless | |
| from | 50 t/min |
| up to | 6000 t/min |
| Spindle nose | |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 3250 kg |
| Overall dimensions machine: | |
| Length | 1900 mm |
| Width | 1750 mm |
| Height | 1850 mm |
