| Number of axis total | 3 |
| Turning diameter over cross-slide | 420 mm |
| Swing over bed | 530 mm |
| Spindle hole | 53 mm |
| Maximum turning length | 300 mm |
| Travels: | |
| Longitudinal travel (Z-axis) | 335 mm |
| Transversal strocke (X axis) | 180 mm |
| Rapid traverse X | 25 m/min |
| Rapid traverse Z | 30 m/min |
| Turret slide: | |
| Number of positions | 12 |
| Driven tools turret | 12 |
| Spindle speeds | 6000 t/min |
| Main spindle: | |
| C axis (spindle,resolution) | 0.001 ° |
| Spindle speeds: | |
| stepless | |
| from | 50 t/min |
| up to | 6000 t/min |
| Tailstock: | |
| Morse taper | 4 CM |
| Spindle stroke | 80 mm |
| Spindle diameter | 55 mm |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 16 kVA |
| Machine's weight about | 3300 kg |
| Overall dimensions machine: | |
| Length | 2035 mm |
| Width | 1720 mm |
| Height | 1700 mm |
| Various accessories: | |
| Lamp | |
| Coolant system | |
| Bar feeder | |
| Type | IEMCA BOSS 551-E |
| Chip conveyor |

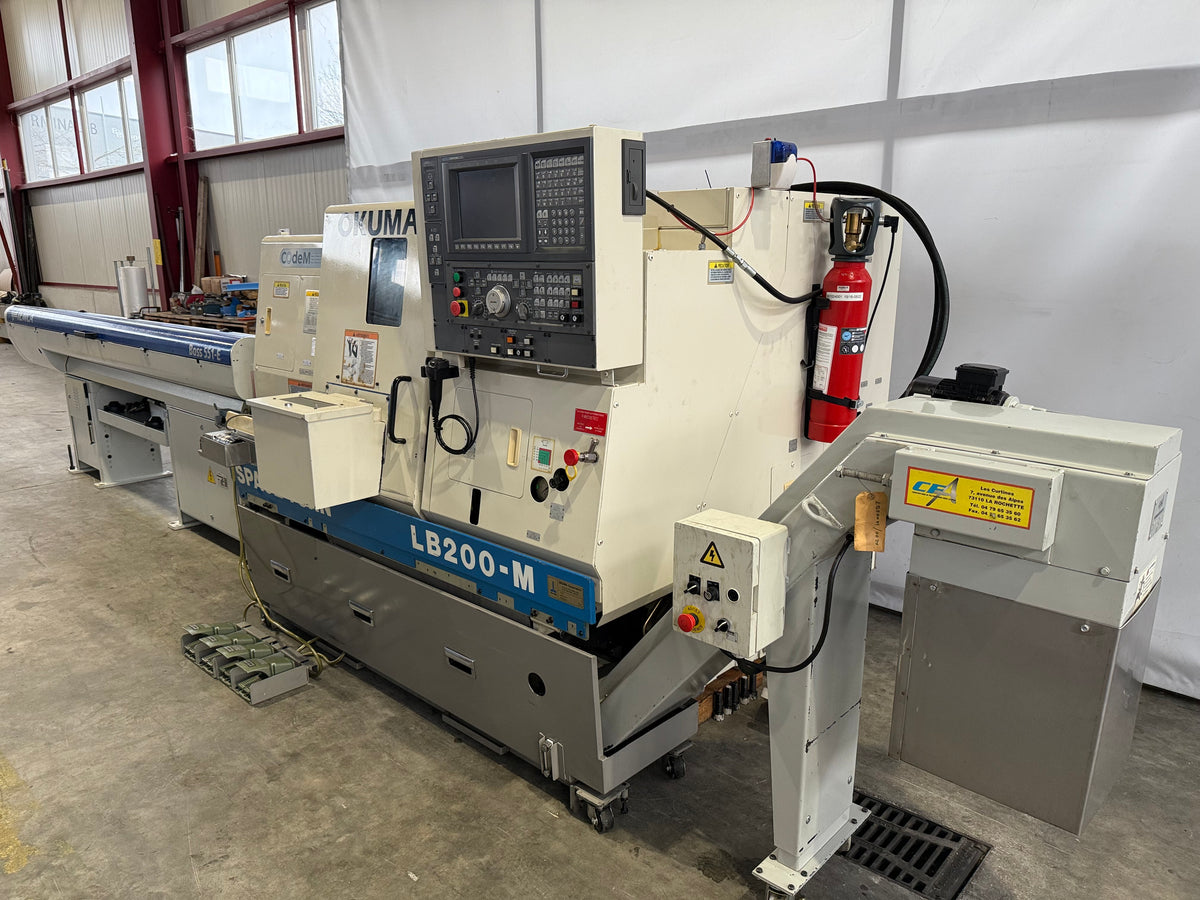

OKUMA LB 200 M is a CNC turning lathe engineered for precision, high accuracy and reliability. Working capacities: turning diameter over cross‑slide 420 mm, swing over bed 530 mm, spindle hole 53 mm, maximum turning length 300 mm; travels Z 335 mm, X 180 mm; rapid traverse X 25 m/min, Z 30 m/min. Main specs: 12‑position driven‑tools turret, C‑axis resolution 0.001°, stepless spindle drive from 50 to 6000 rpm, tailstock Morse taper 4, spindle stroke 80 mm, spindle diameter 55 mm; supply 3x400 V 50 Hz, total power 16 kVA; weight ≈3300 kg; dimensions L2035×W1720×H1700 mm. Key equipment: 12‑pos. revolver with driven tools, C‑axis, tailstock. Suited for tight tolerances in automotive, watchmaking, machine tools, aerospace and medical sectors.
Technical specifications are subject to change without notice
