MEP SHARK 281 SXI EVO
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

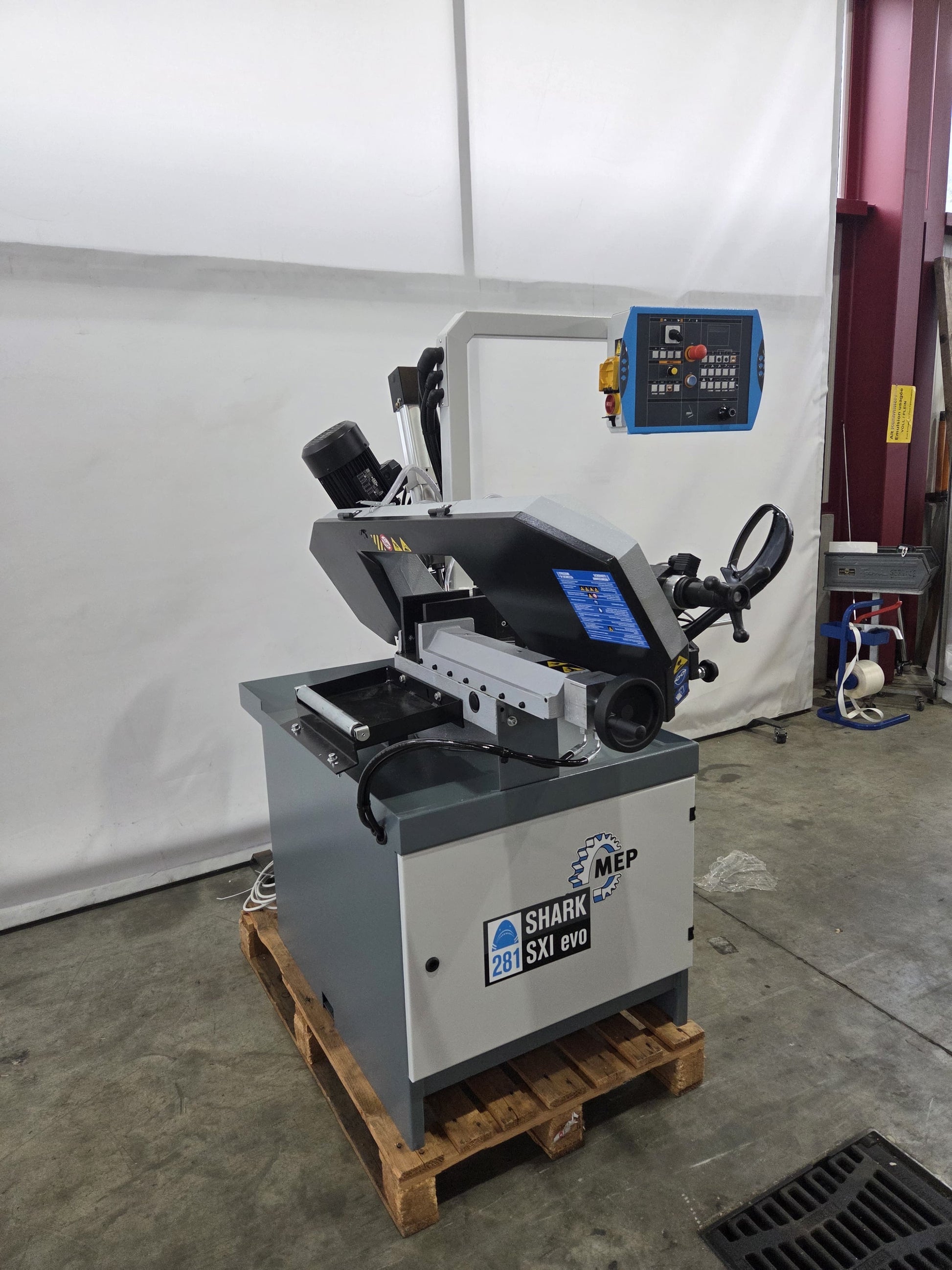

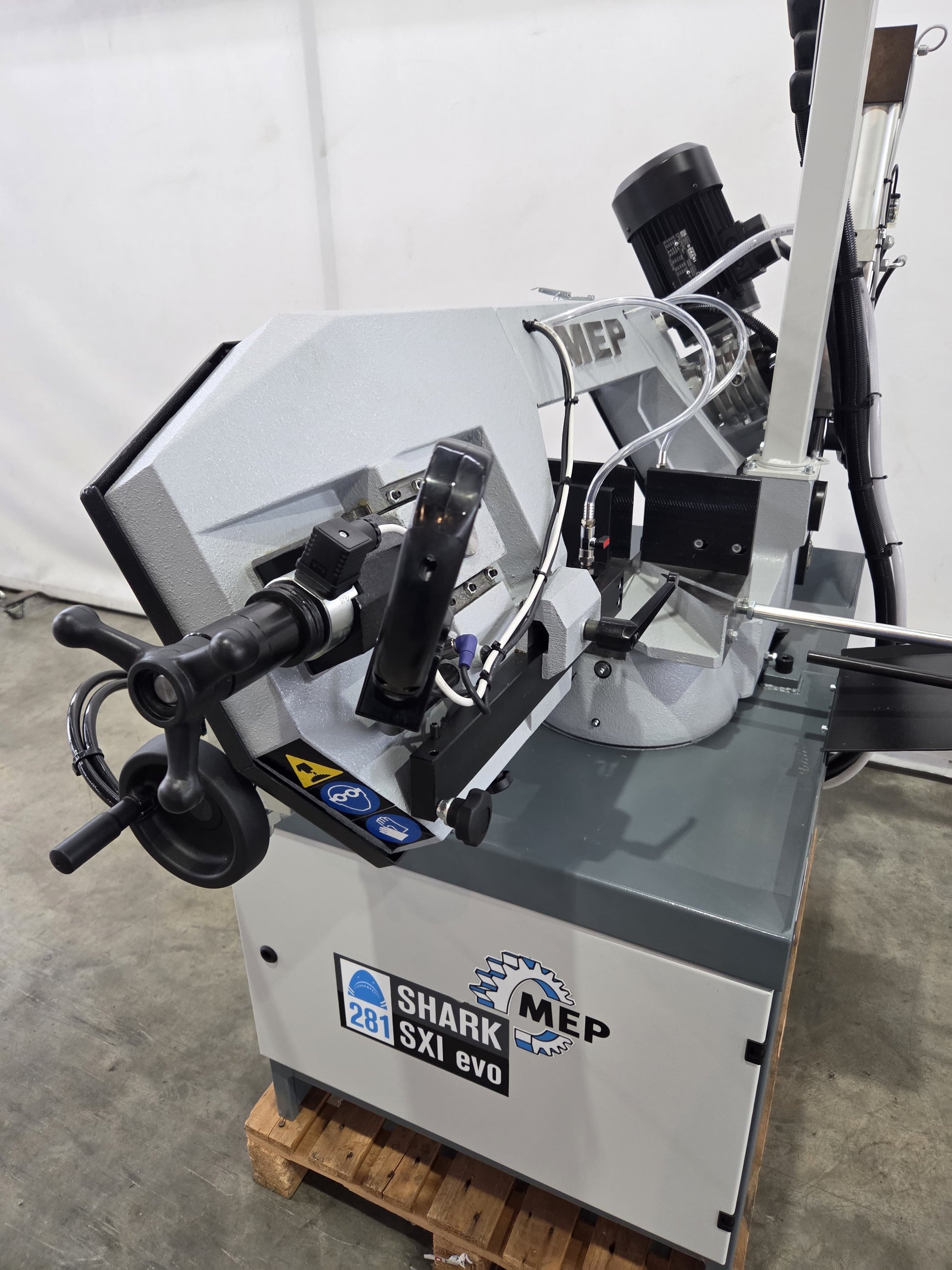

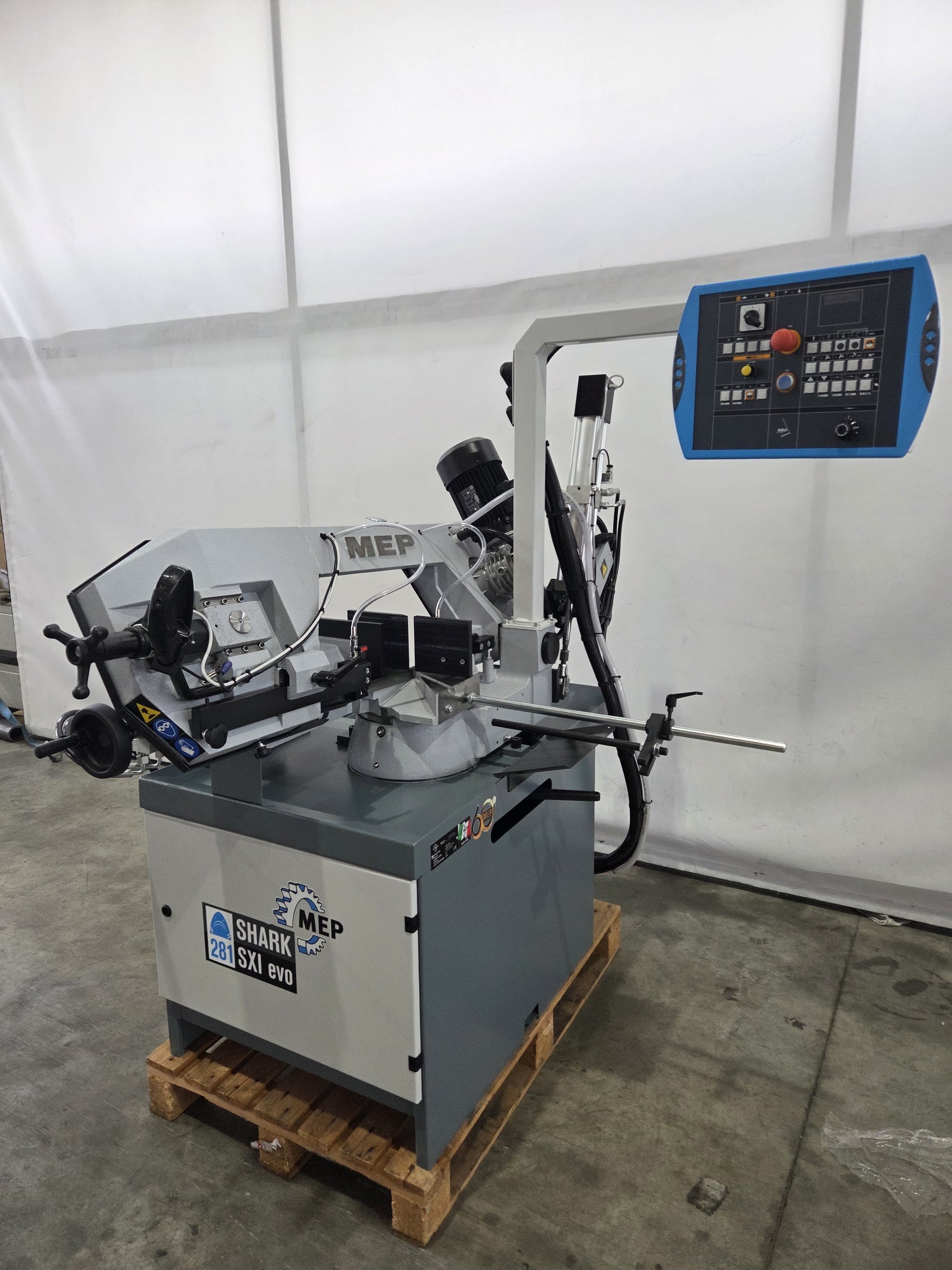

MEP SHARK 281 SXI EVO is a band saw for precision machining, providing high accuracy and reliability. Cut ranges: round 250 mm, square 230 mm, flat 280x200 mm (45°: 190/180/180x180; 60°: 120/110/110x110). Cutting speed 36–72 m/min; band 2950x27 mm (th. 0.9 mm); vice opening 285 mm; saw motor 1.8 kW; 3x400V 50Hz; weight 435 kg; dimensions 2000x1000x1840 mm; coolant system 13 l. Suited to achieve tight tolerances in automotive, precision engineering, aerospace and medical sectors.
| Cut range: | |
| Round | 250 mm |
| Square | 230 mm |
| Flat | 280 x 200 mm |
| Cutting range with mitre angle 45°: | |
| Round | 190 mm |
| Square | 180 mm |
| Flat | 180 x 180 mm |
| Cutting range with mitre angle 60°: | |
| Round | 120 mm |
| Square | 110 mm |
| Flat | 110 x 110 mm |
| semi-automatic | |
| Cutting speed: | |
| from | 36 m/min |
| up to | 72 m/min |
| Band length | 2950 mm |
| Band width | 27 mm |
| Sheet thickness | 0.9 mm |
| Vice opening | 285 mm |
| Voltage 50 Hz 3x | 400 Volt |
| Saw motor driving power | 1.8 kW |
| Machine's weight about | 435 kg |
| Overall dimensions machine: | |
| Length | 2000 mm |
| Width | 1000 mm |
| Height | 1840 mm |
| Coolant system | 13 l |
