FANUC ROBODRILL ALPHA T14i B
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

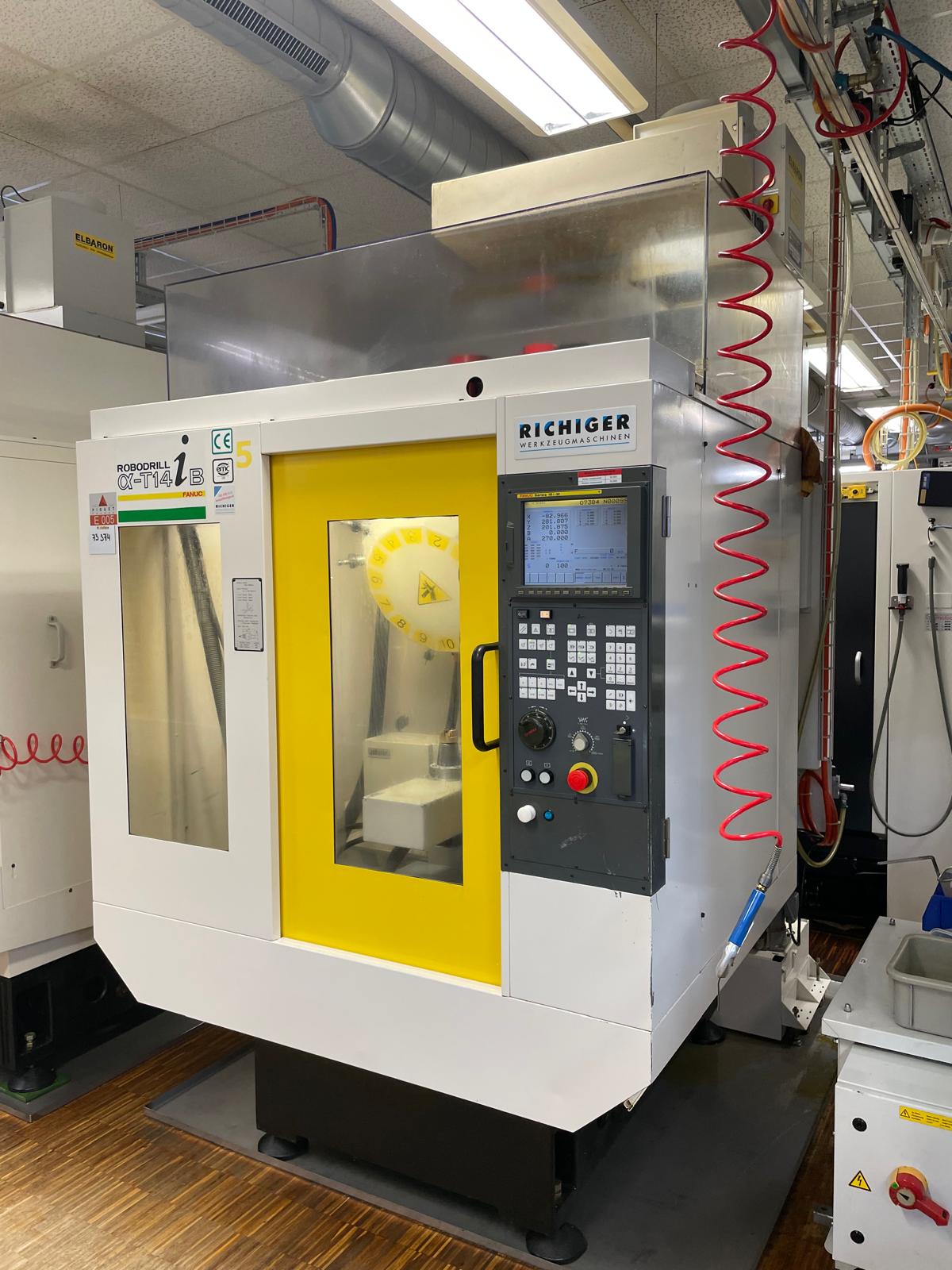

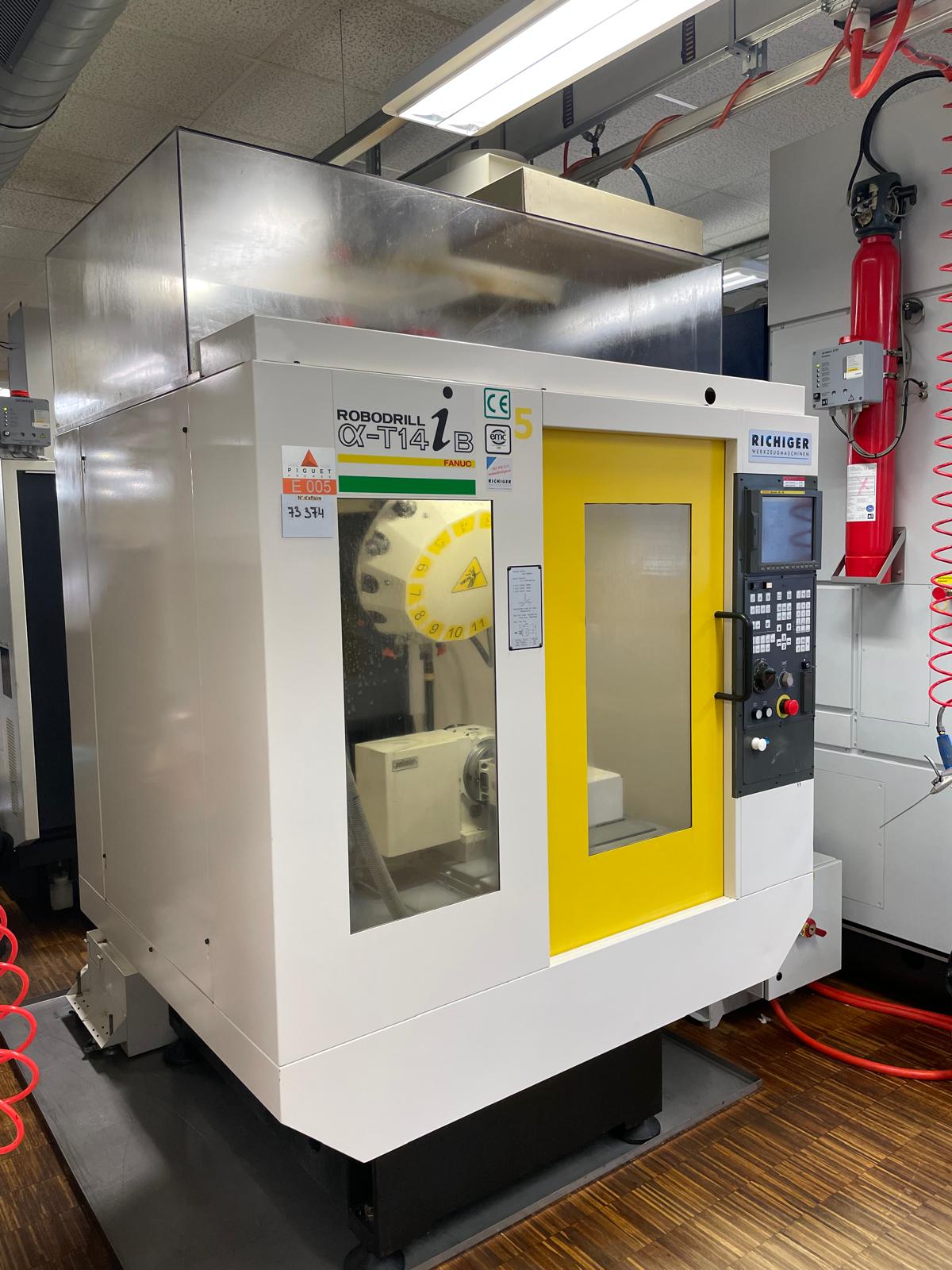

FANUC ROBODRILL ALPHA T14i B is a Vertical machining center engineered for high precision, strong accuracy and reliability. Table 550×380 mm; travels X500 Y400 Z330 mm; vertical distance 150–450 mm. Spindle 100–12,000 t/min (stepless), feed 1–15,000 mm/min, rapid 48 m/min; spindle motor 5.5 kW; 3×400 V; total power 9 kVA; weight ≈2100 kg; size 1600×2000×2200 mm. Tool magazine 14 stations; 4th-axis divider Peiseler; oil-mist extractor Elbaron. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
| Time under power | 29400 Heures |
| Table length | 550 mm |
| Table width | 380 mm |
| Longitudinal travel (X-axis) | 500 mm |
| Transversal travel (y-axis) | 400 mm |
| Vertical travel (z axis) | 330 mm |
| 4th axis | |
| Tool changer: | |

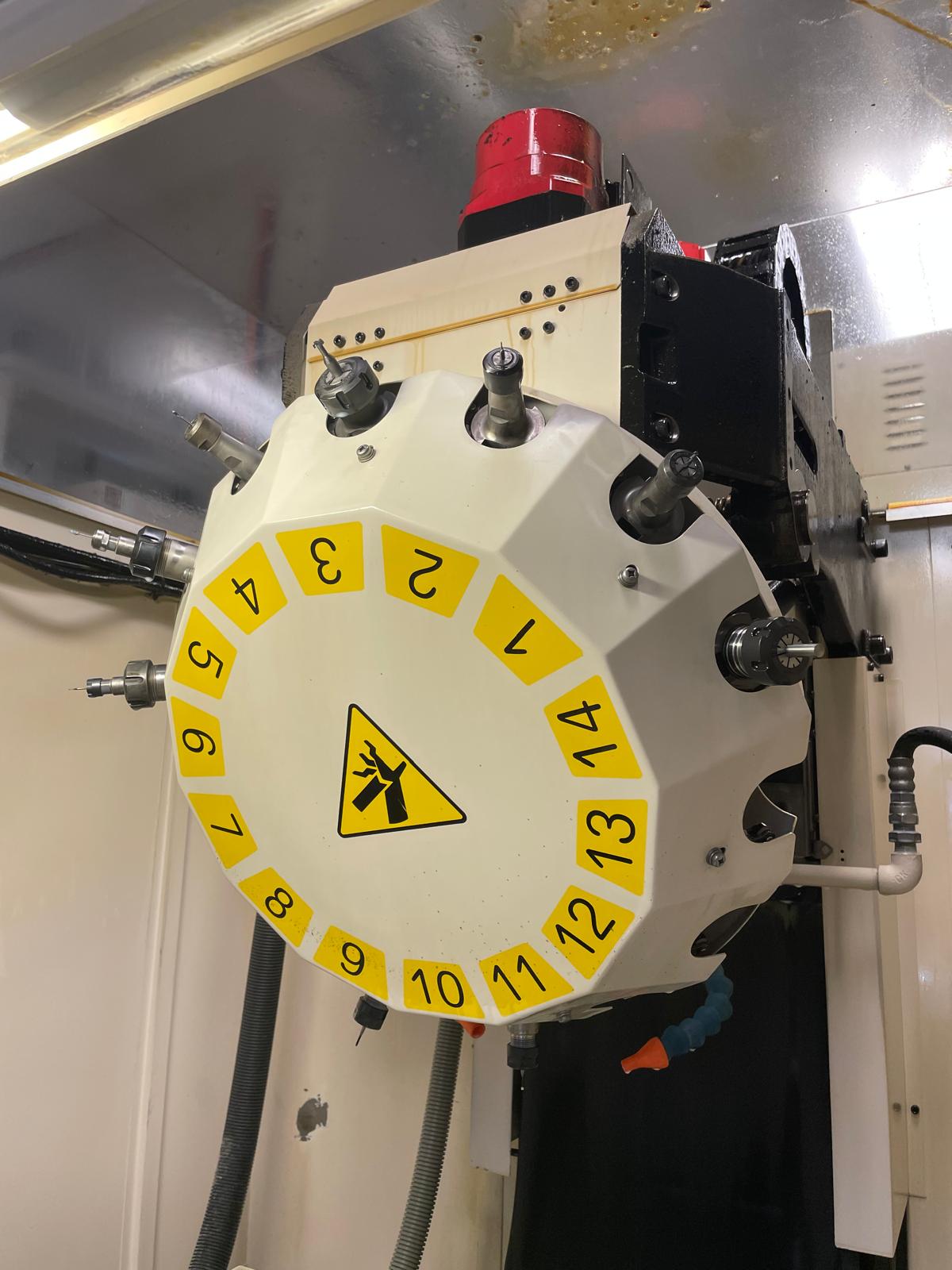

| Tool magazine number of tool places | 14 |
| Distance spindle nose to table | mm |
| Distance from vertical | 150 - 450 |
| Spindle speeds: | |
| stepless | |
| from | 100 t/min |
| up to | 12000 t/min |
| Feed range | 1 - 15'000 mm/min |
| Rapid traverse: | 48 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 5.5 kW |
| Total power required | 9 kVA |
| Machine's weight about | 2100 kg |
| Overall dimensions machine: | |
| Length | 1600 mm |
| Width | 2000 mm |
| Height | 2200 mm |
| Various accessories: | |
| Coolant system | |

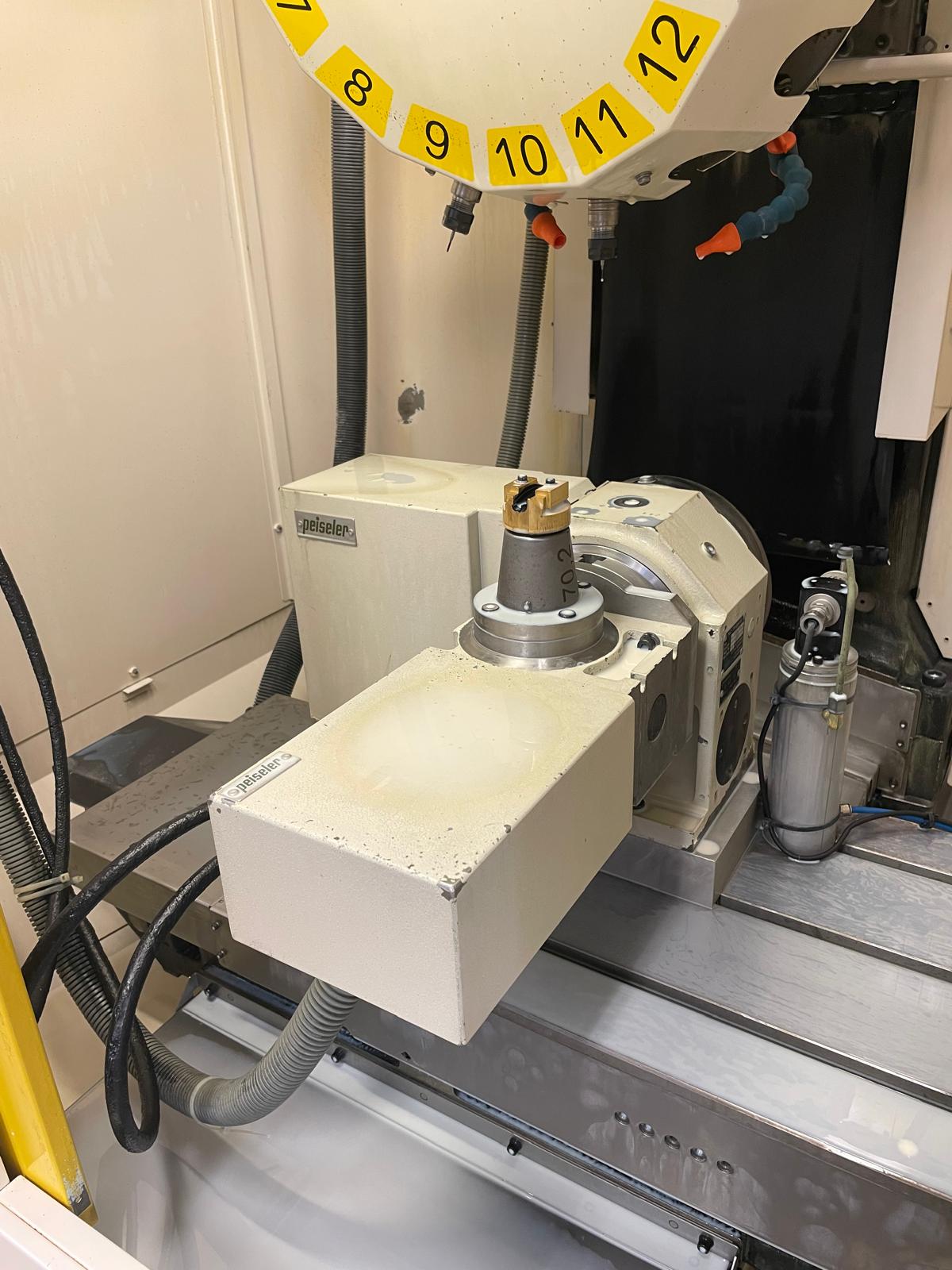

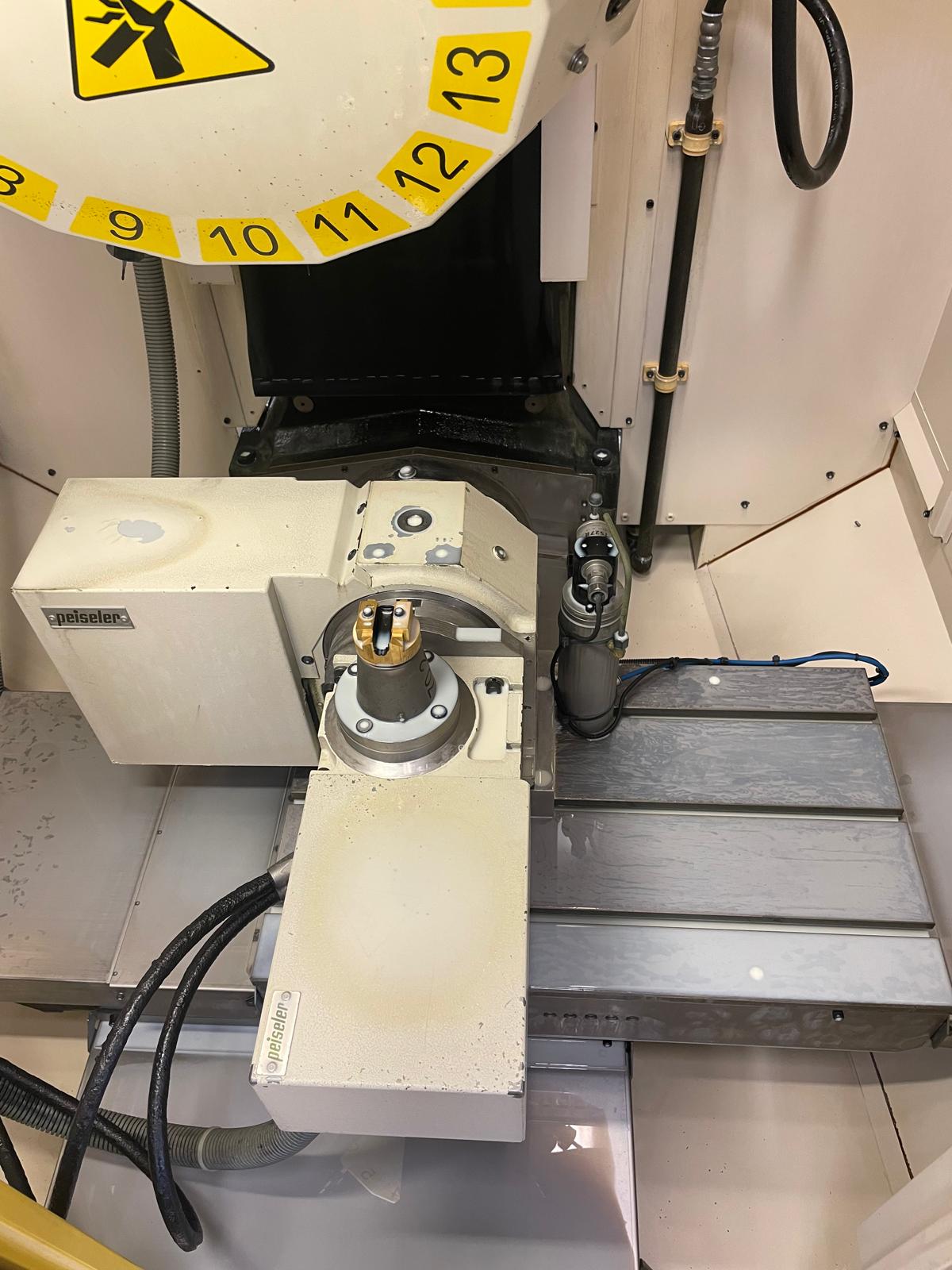

| Dividing attachment 4th axis | Peiseler |
| Oil mist extractor | Elbaron |
