023310 - ROSA ROTOR 800 CN
Type: ROTOR 800 CN
Manufacturer: ROSA
Group: CNC surface grinder
Subgroup: Rotary Table Grinding Machine
Year: 2011
Stock: 023310

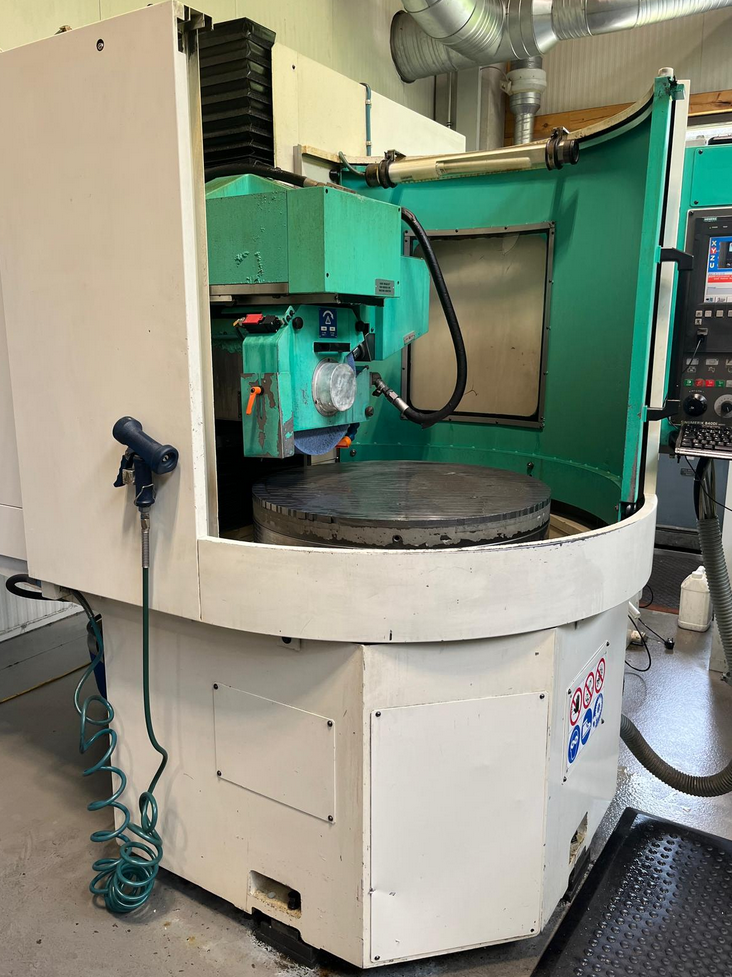

ROSA ROTOR 800 CN is a Rotary Table Grinding Machine, engineered for precision, high accuracy and reliability. Capacities: rotary table ø800 mm, max grinding ø1000 mm, table‑to‑spindle centreline 880 mm, table load 1500 kg, grinding height 680 mm. Grinding wheel: max ø400 mm, width 80 mm, speeds up to 1500 t/min. Machine weight ~6000 kg; overall dimensions L2560×W2500×H2580 mm. Enables tight tolerances; typical applications: automotive, aerospace, machine tools, medical, watchmaking.

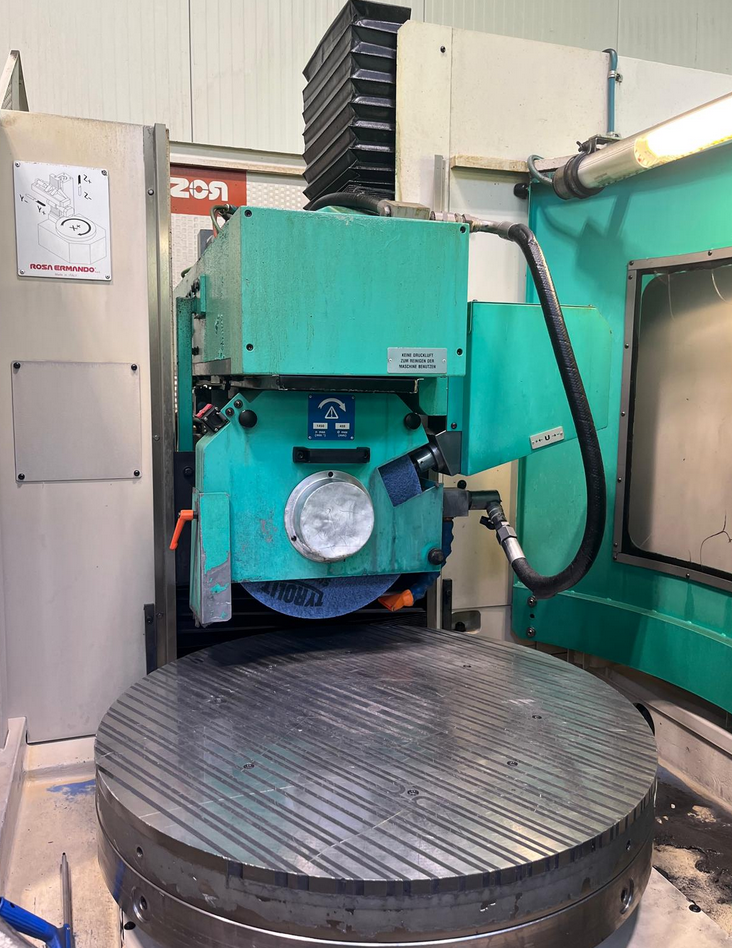

Rotary table:diameter | 800 mm |
Max. grinding diameter | 1000 mm |
Max. distance from table | |
to spindle centreline | 880 mm |
Table load max. | 1500 kg |
Grinding height over table | 680 mm |

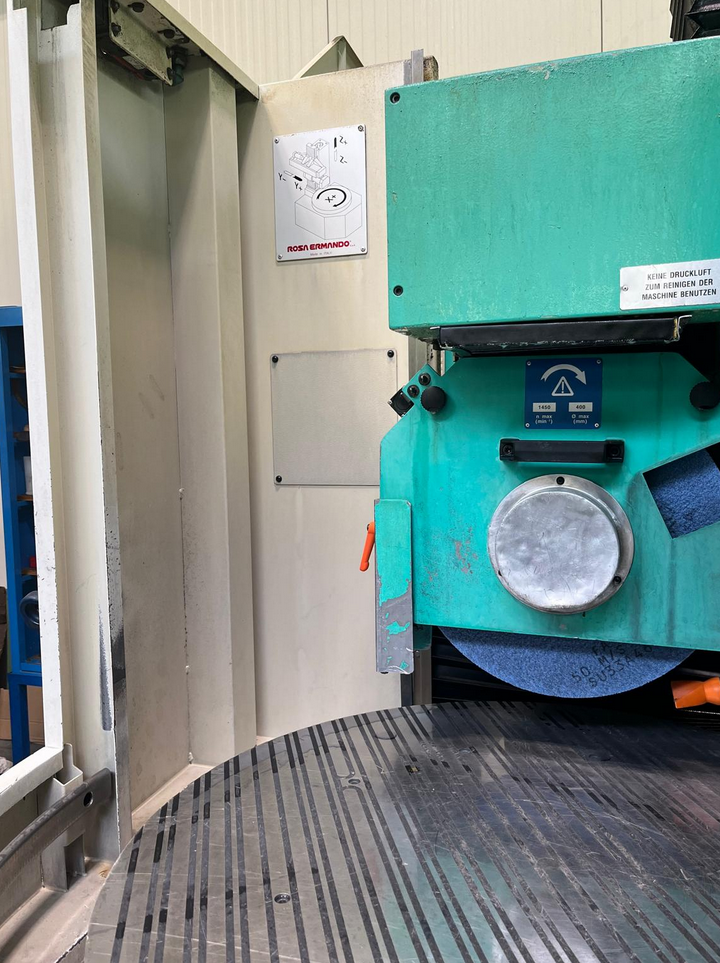

Grinding wheel: | |
max. diameter | 400 mm |
max. width | 80 mm |
Grinding wheel speeds: | |
up to | 1500 t/min |
Machine's weight about | 6000 kg |
Overall dimensions machine: | |
Length | 2560 mm |
Width | 2500 mm |
Height | 2580 mm |
