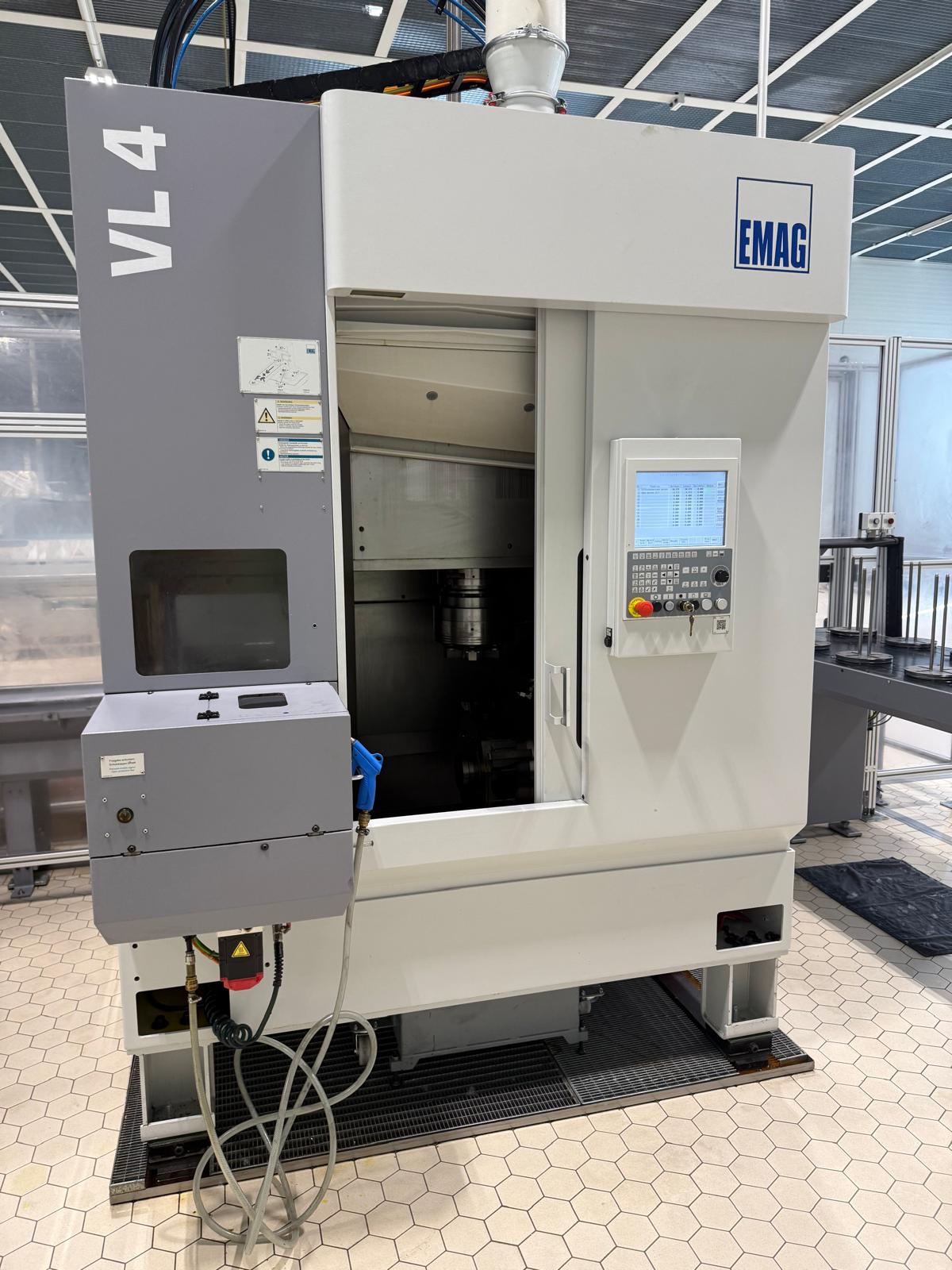

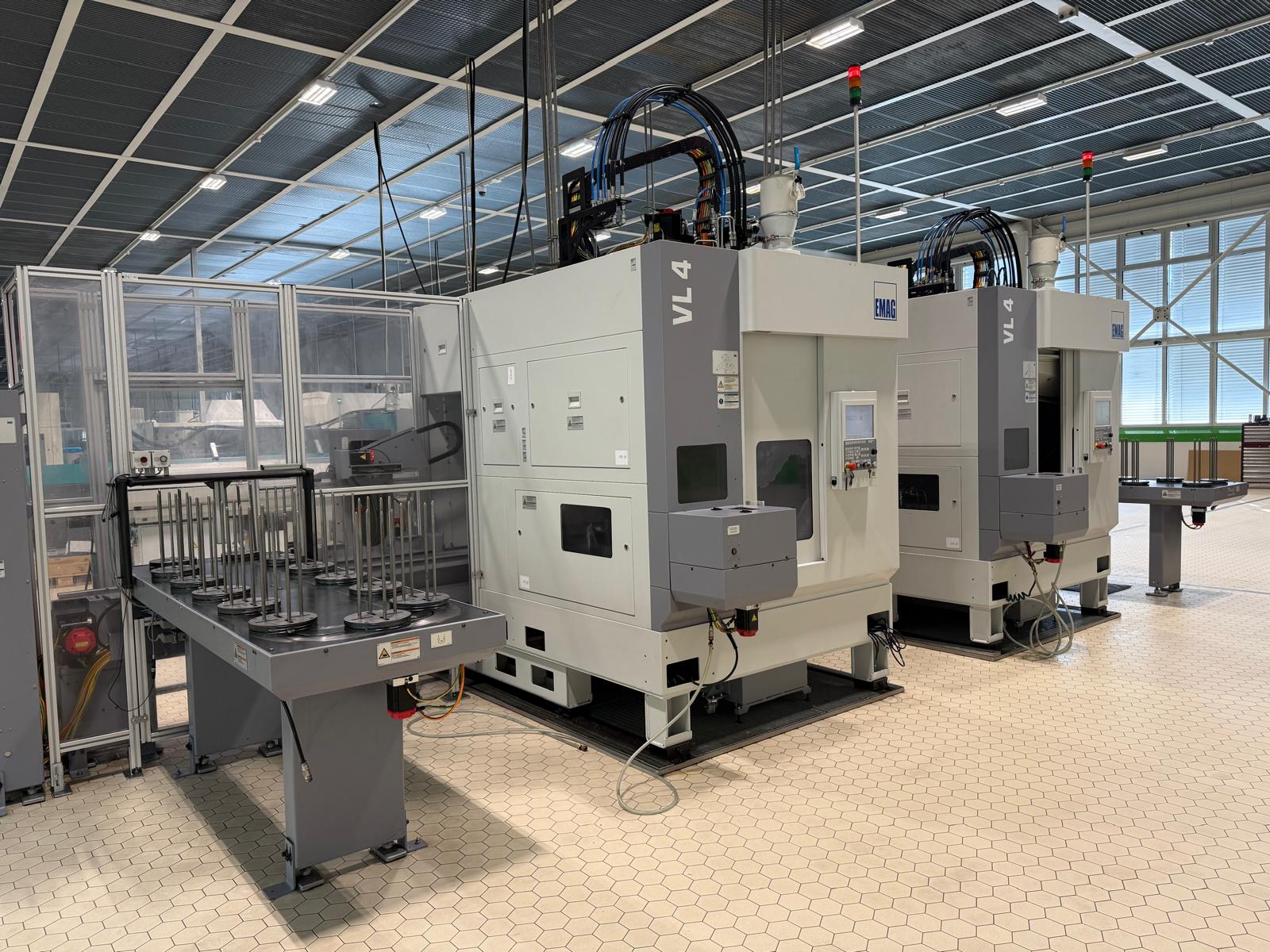

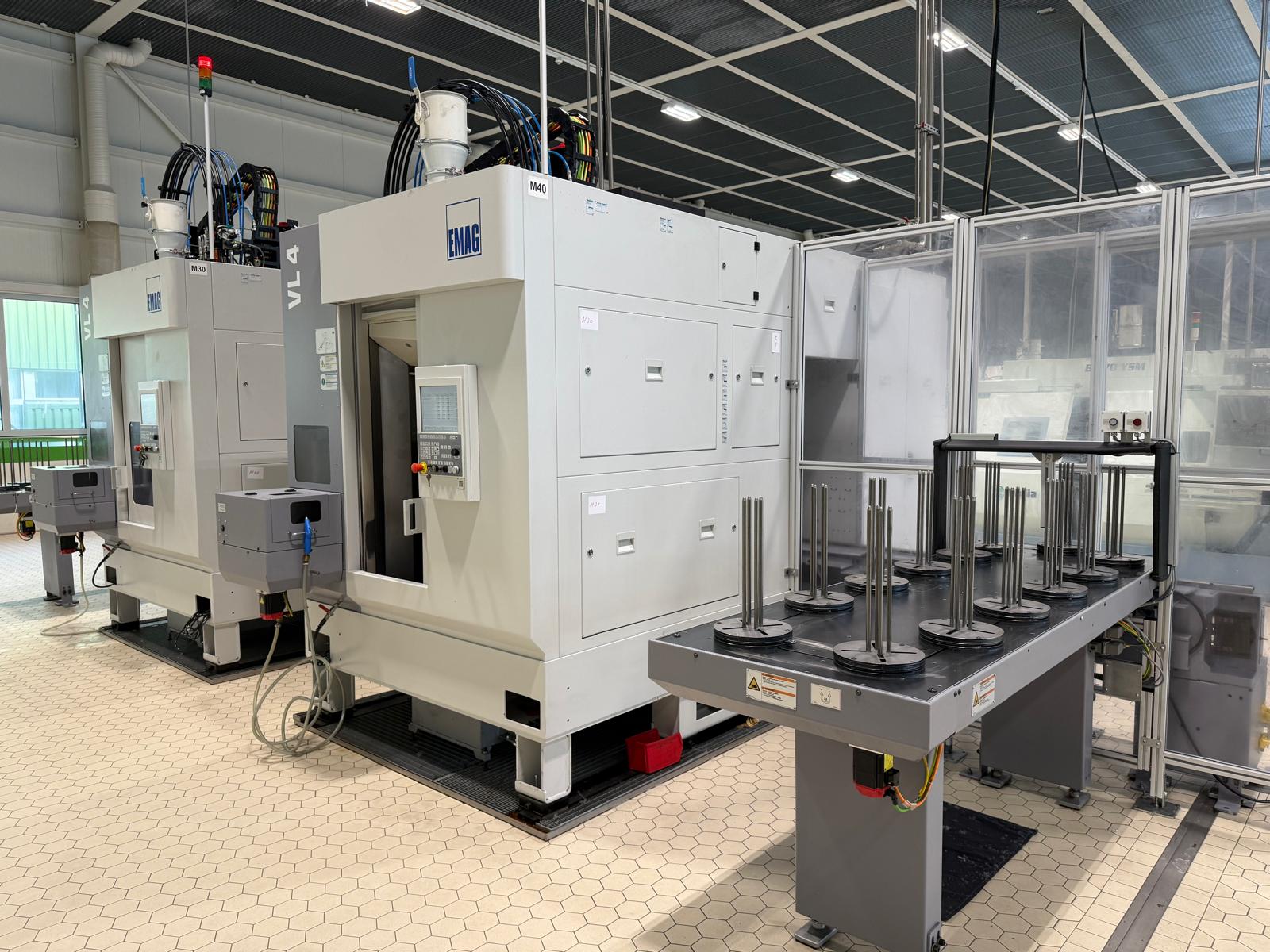

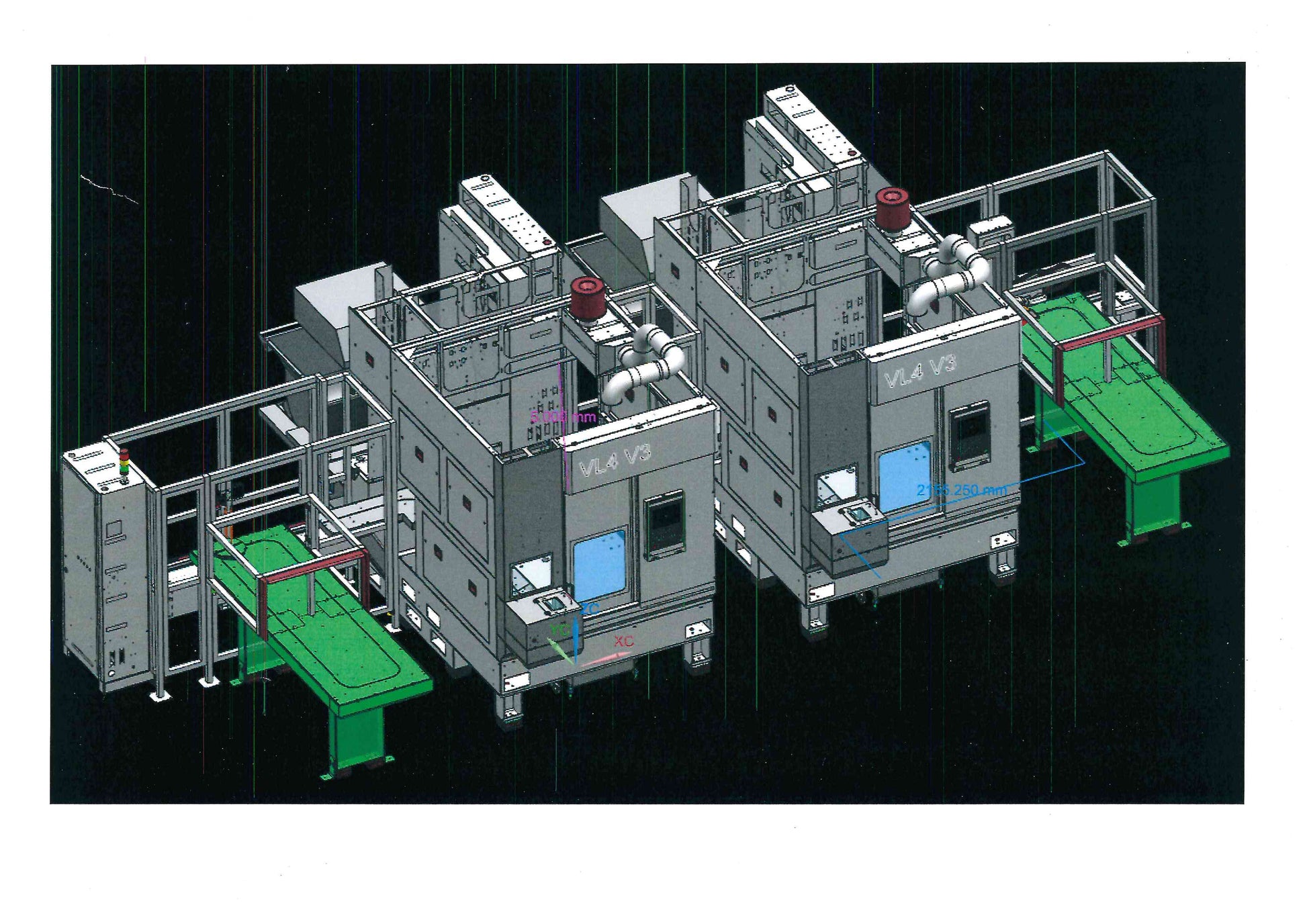

EMAG VL 4 is a machining cell / vertical lathe engineered for high-precision work, exceptional accuracy and production reliability. Capacities: 2 machines, 2 axes; max workpiece dimension 200 mm; Z travel 400 mm; X travel 750 mm; turret 12 positions with 12 driven tools. Specs: spindle speeds up to 6000 min-1 with stepless control to 4500 min-1; spindle power 25/18 kW; torque 280/202 Nm; supply 3x400V 50Hz; total power 36 kW; footprint L5300×W2300×H3650 mm. Equipment: chip conveyor, automatic loading/unloading, set of toolholders, status light, spare parts. Achieves tight tolerances; suited for automotive, aerospace, machine tools and medical.
Technical specifications are subject to change without notice
Workpiece loader TrackMotion, max 24.5kg
| Number of machines | 2 |
| Clamping chuck diameter | 260 mm |
| Max. work piece length | 200 mm |
| Max. Workpiece dimension | 200 mm |
| Travels: | |
| Longitudinal travel (Z-axis) | 415 mm |
| Transversal strocke (X axis) | 760 mm |
| Transversal travel (y-axis) | +/- 30 mm |
| Rapid traverse X | 60 m/min |
| Rapid traverse Y | 15 m/min |
| Rapid traverse Z | 30 m/min |
| Turret slide: | |
| Number of positions | 12 |

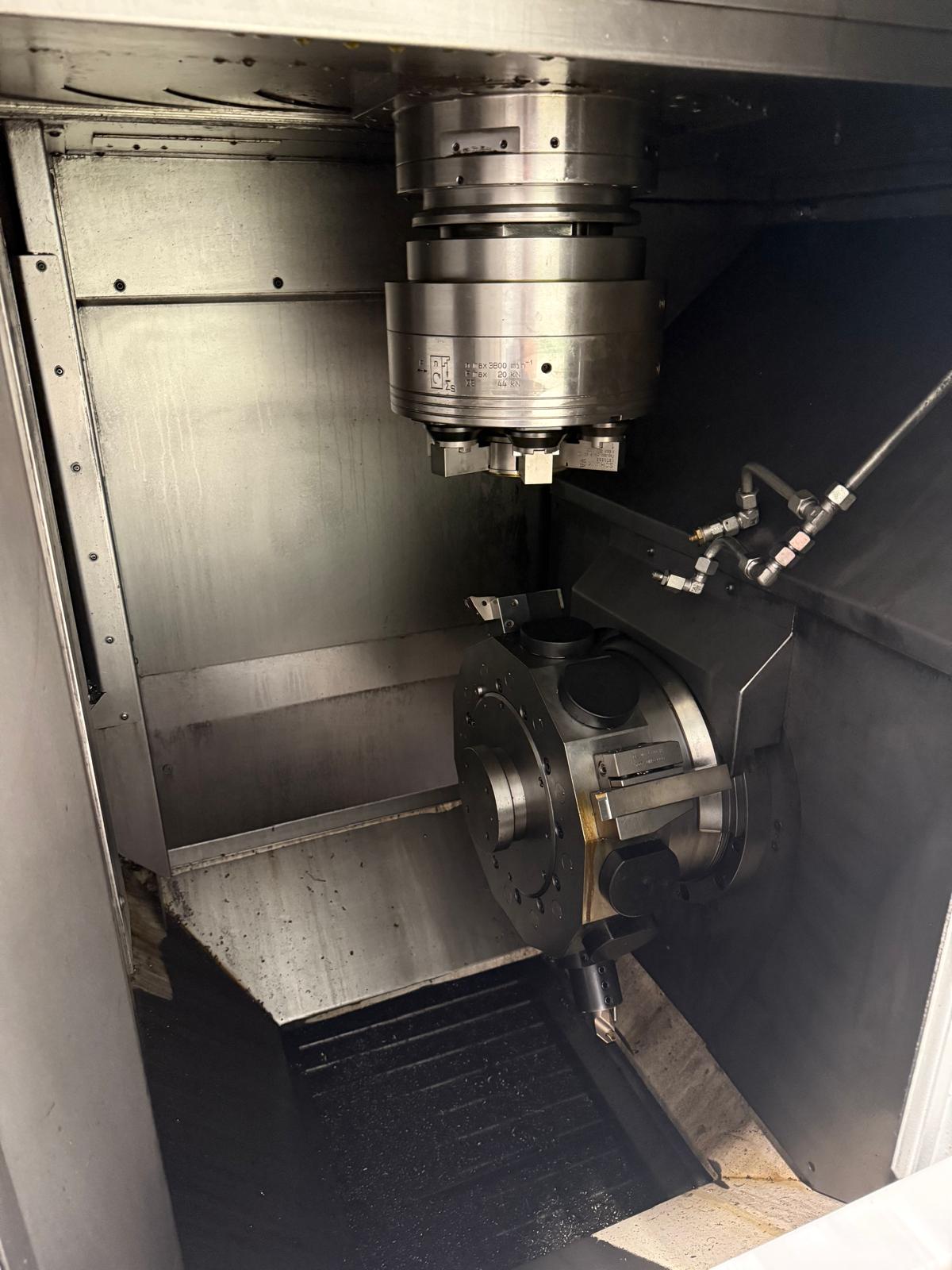

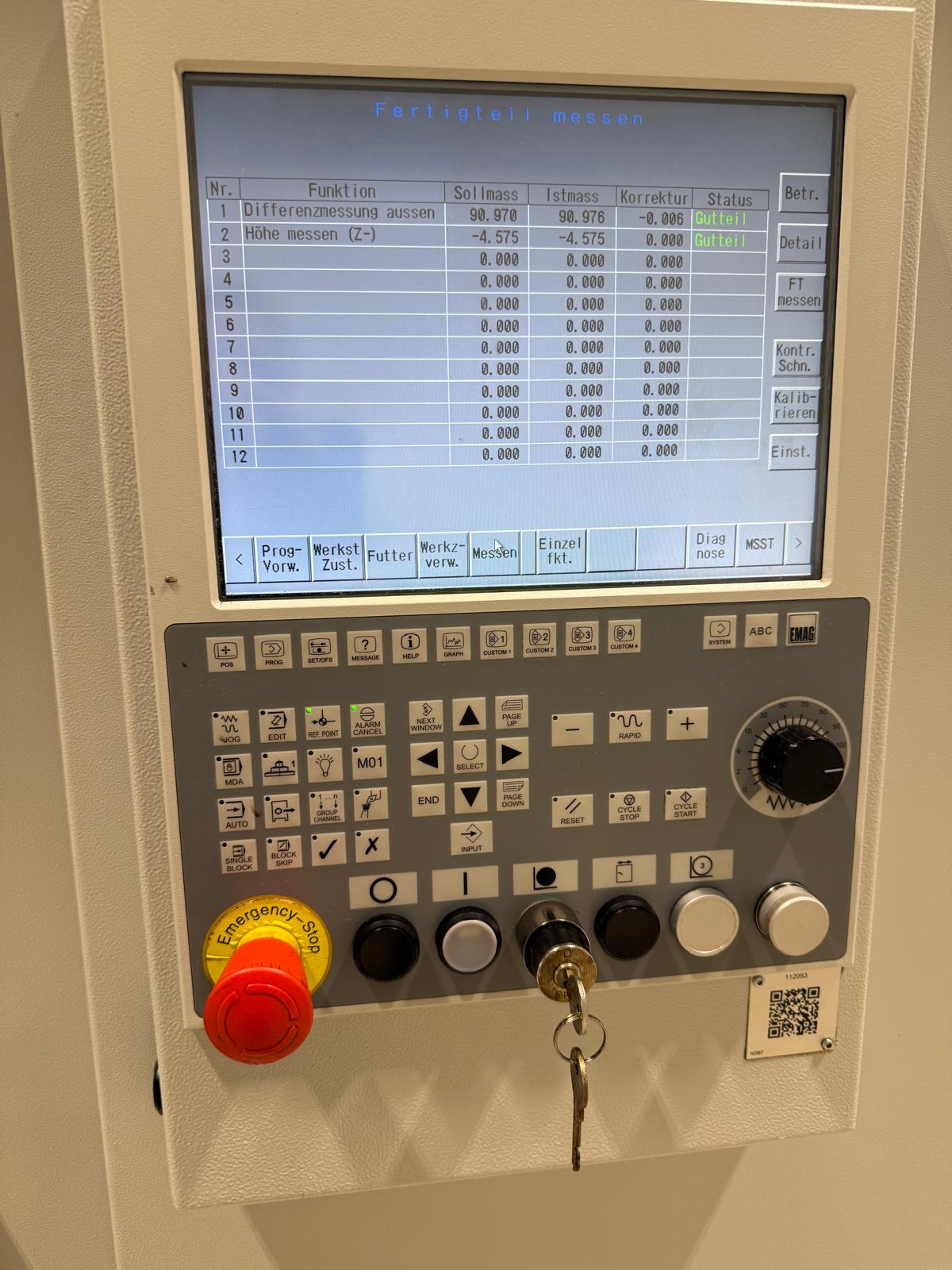

| Driven tools turret | 12 |
| Spindle speeds | 6000 t/min |
| Spindle nose: VDI | 40 |
| Spindle speeds: | |
| stepless | |
| up to | 4500 t/min |
| Spindle power | 25 / 18 kW |
| Torque max. | 280 / 200 Nm |
| Spindle motor | 2x 18 kW |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 36 kW |
| Machine's weight about | kg |
| Overall dimensions machine: | |
| Length | 9984 mm |
| Width | 4’938 mm |
| Height | 2905 mm |
| Various accessories: | |
| Coolant system | |
| Coolant through spindle (cts) | |
| Workpiece loader | |
| Tool break control | TOOLINSPECT MCU |
| Work piece magazine | |
| Chip conveyor | |
| Automatic loading and unloading unit | |
| Reversal Station | |
| Set of toolholders | |
| Tool measuring device | |
| Rinsing Guns | |
| Status light | |

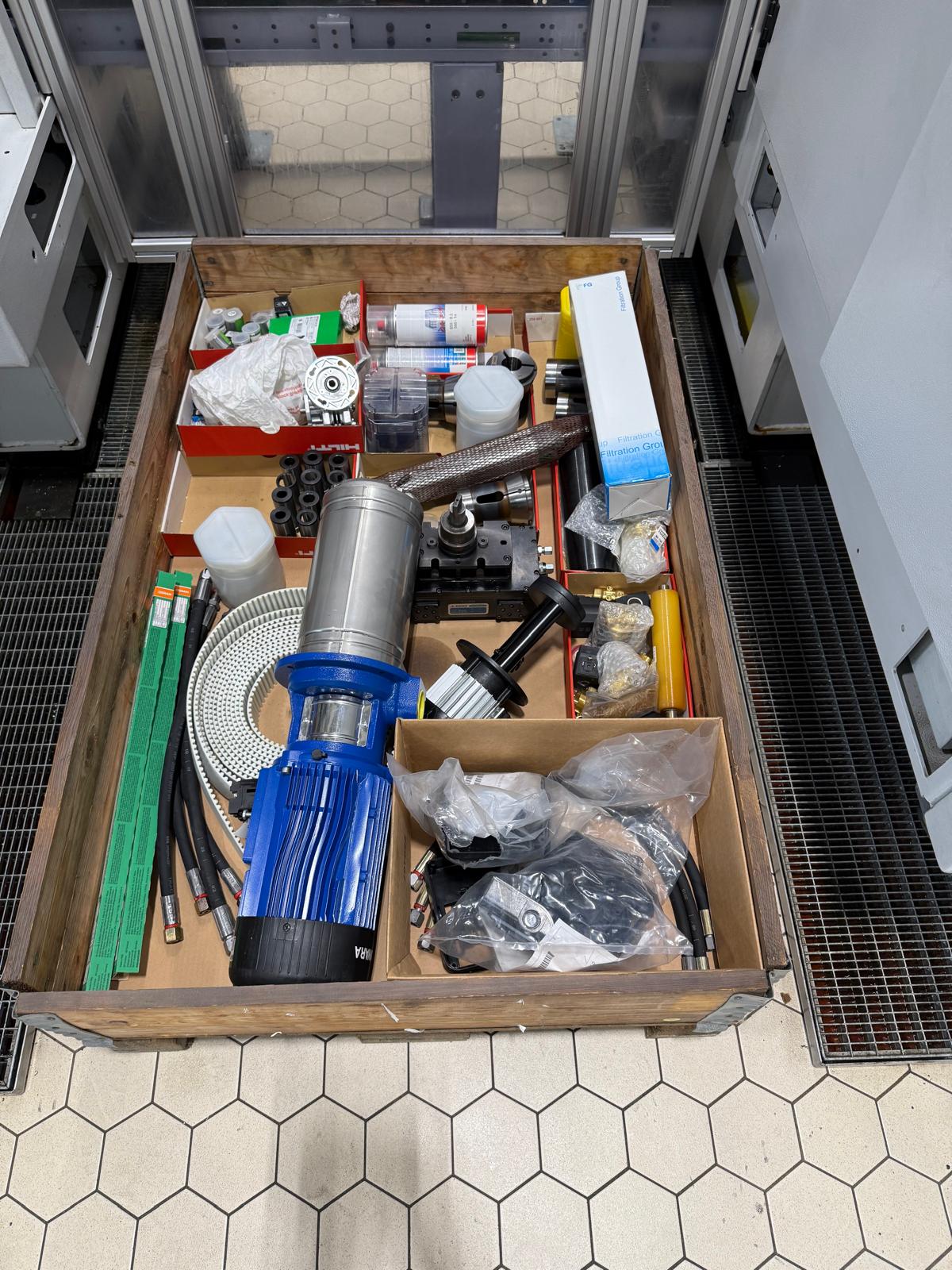

| Various spare parts |
