023301 - HERMLE C 42 U
Type: C 42 U
Manufacturer: HERMLE
Group: Machining center
Subgroup: 5-axis machining center
Control: HEIDENHAIN TNC 530
Stock: 023301
HERMLE C 42 U is a 5‑axis machining center engineered for precision, high accuracy and reliability. Capacity: rotary table Ø440 mm, 5 T‑slots 14H7, table load 450 kg; travels X800 × Y800 × Z550 mm, A ±130°, table speed 30 t/min; Key specs: spindle HSK‑A63 0–18,000 rpm, 42 kW, 148 Nm, rapid traverses 45/45/40 m/min, 3x400 V 50 Hz, air 6 bar, total power 37 kVA, weight ~13,500 kg, footprint 5000×2450×3200 mm; equipment: 42‑position tool changer, additional 160‑place magazine, coolant through spindle 80 bar, RS232/Ethernet/USB, switch‑cabinet air conditioner; ideal for tight tolerances in automotive, aerospace, medical, watchmaking and toolmaking
Number of axis total | 5 |
Circulary table diameter | 440 mm |
Number of T-channels | 5 |
T-channel width | 14H7 mm |
Table load max. | 450 kg |
Longitudinal travel (X-axis) | 800 mm |
Transversal travel (y-axis) | 800 mm |
Vertical travel (z axis) | 550 mm |
Swivel angle (a-axis) | +/- 130 ° |
Table speed | 30 t/min |
Tool changer: | |
Number of tools | 42 |
Spindle nose: HSK-A | 63 |
Spindle speeds: | |
from | 0 t/min |
up to | 18000 t/min |
Rapid traverse: long. | 45 m/min |
Rapid traverse: transversal | 45 m/min |
Rapid traverse: vertical | 40 m/min |
Air connect | 6 bar |
Voltage 50 Hz 3x | 400 Volt |
Spindle power | 42 kW |
Torque max. | 148 Nm |
Total power required | 37 kVA |
Machine's weight about | 13500 kg |
Overall dimensions machine: | |
Length | 5000 mm |
Width | 2450 mm |
Height | 3200 mm |
Various accessories: | |
Addet tool-holder magazine | |
Number of tool places | 160 |

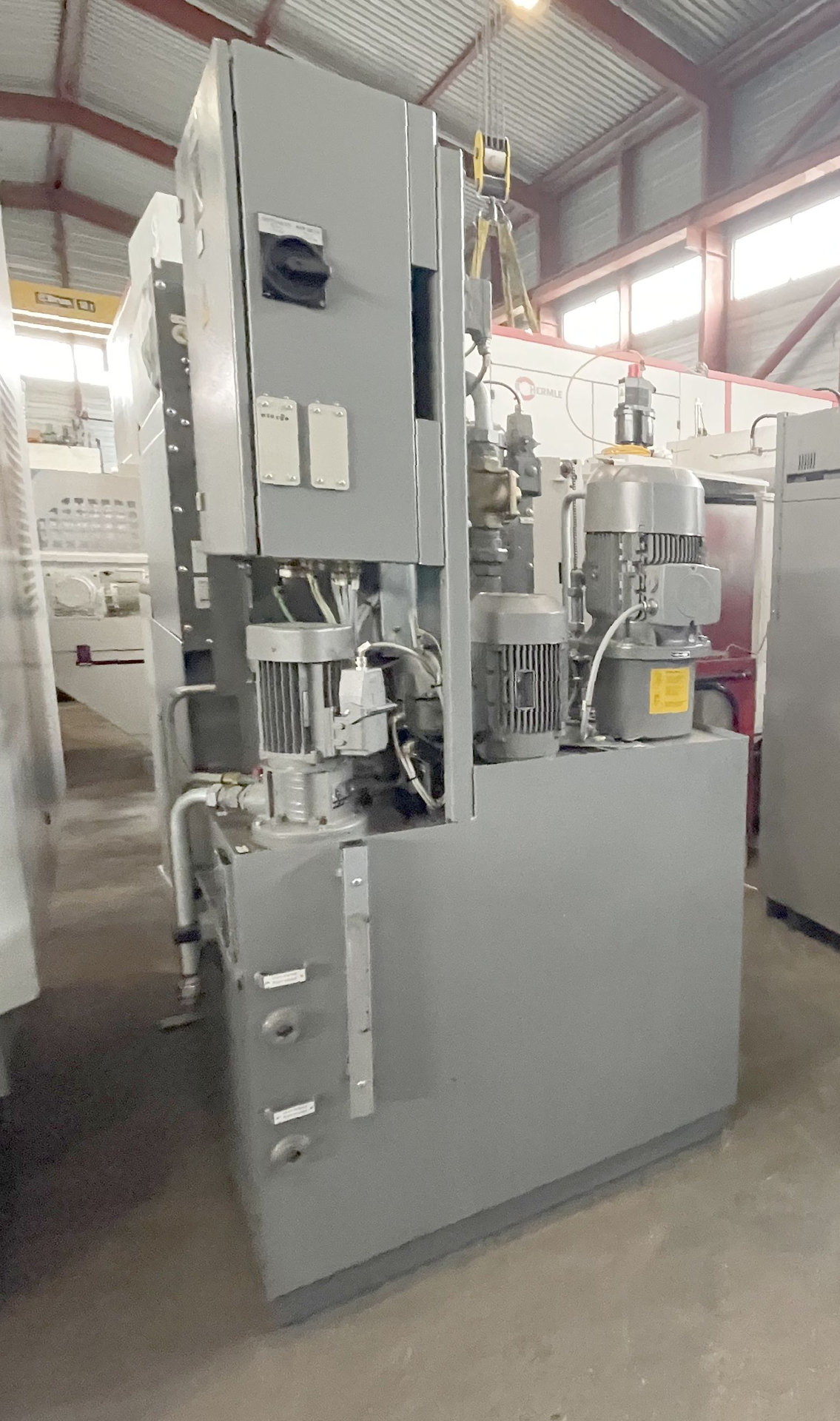

Coolant through spindle (cts) | 80 bar |
Air blast through milling spindle | |
Rotating viewing window | |
Interface serial port RS 232 | |
Interface Ethernet | |
Interface USB | |
Switch cabinet Air conditioner |
