023296 - DOOSAN Puma TT 1800 SY
Download technical sheet (PDF)
Message us on WhatsApp

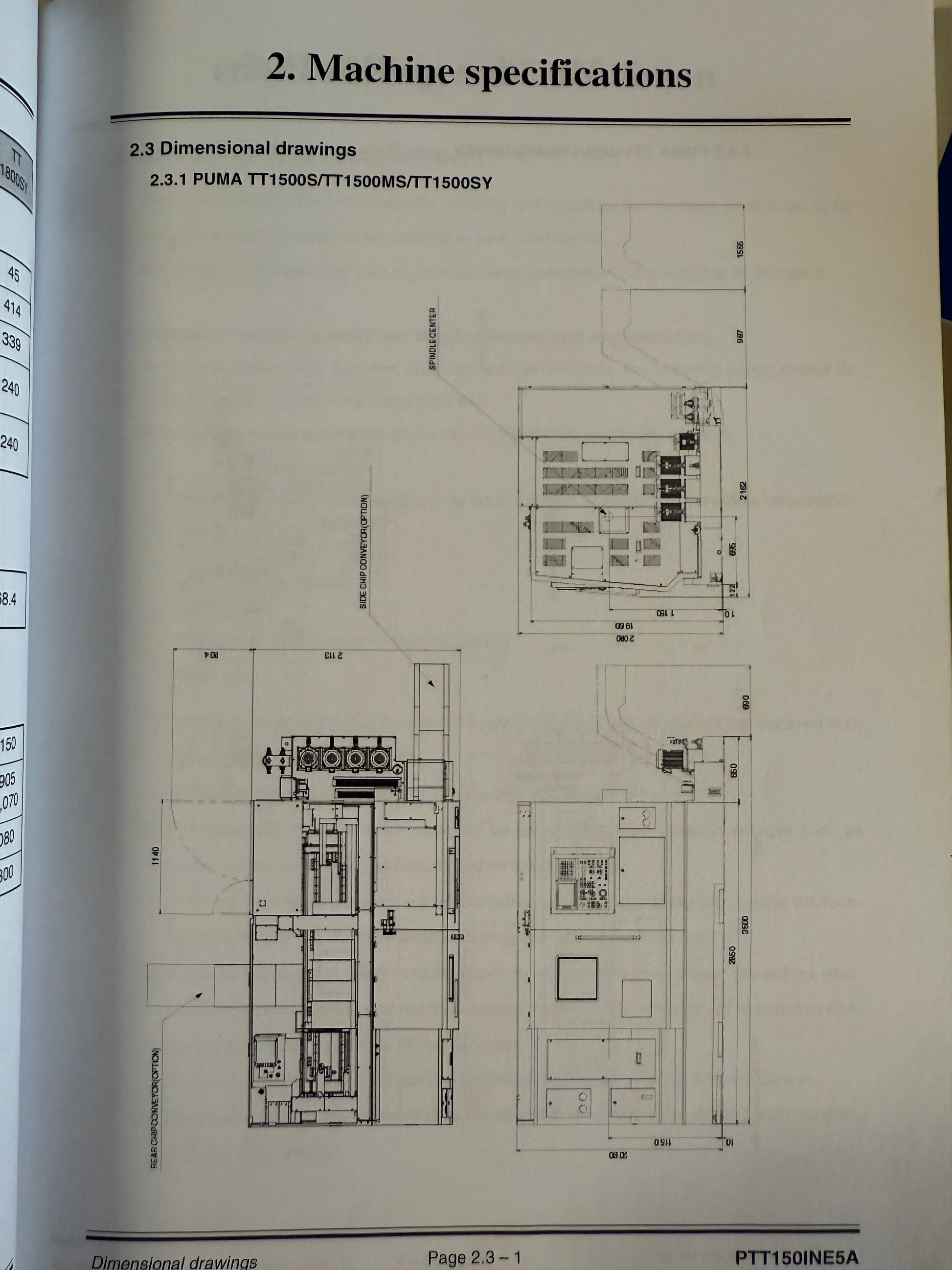

| Number of axis total | 8 |
| Number of turning spindles | 2 |
| Distance spindle nose | 980 mm |
| 10529 | 120 kg |
| Turning diameter with revolver | 230 mm |
| Swing diameter over carriage | 230 mm |
| Max. turning diameter | 230 mm |
| Spindle hole | 76 mm |
| Maximum turning length | 230 mm |
| Bar passage | 65 mm |
| Turret carriage: | 2 |
| Carriage 1: | |
| Travels: | |
| Longitudinal travel (Z-axis) | 700 mm |
| Transversal travel (y-axis) | 100 mm |
| Cross travel (x-axis) | 165 mm |
| Rapid traverse X | 20 m/min |
| Rapid traverse Y | 7.5 m/min |
| Rapid traverse Z | 40 m/min |
| Carriage 2: | |
| Longitudinal travel (Z-axis) | 720 mm |
| Transversal strocke (X axis) | 190 mm |
| Rapid traverse Z | 40 m/min |
| Rapid traverse X | 20 m/min |
| Turret slide: number | 2 |
| Number of positions turret 1 | 12 |
| Number of positions turret 2 | 12 |
| Driven tools turret 1 | 12 |
| Driven tools turret 2 | 12 |
| Spindle speeds | 5000 t/min |
| Spindle speeds | 5000 t/min |
| B axis | 770 mm |
| Spindle nose: | BMT55 |
| C axis (spindle,resolution) | 360 (0.001) ° |
| Spindle speeds: | |
| up to | 5000 t/min |
| Spindle power | 22 kW |
| Back spindle: | |
| max. speed | 5000 t/min |
| Power of back spindle | 22 kW |
| Operating time | 3003 Heures |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 75 kVA |
| Machine's weight about | 7800 kg |
| Overall dimensions machine: | |
| Length | 3905 mm |
| Width | 2’070 mm |
| Height | 2080 mm |
| Various accessories: | |

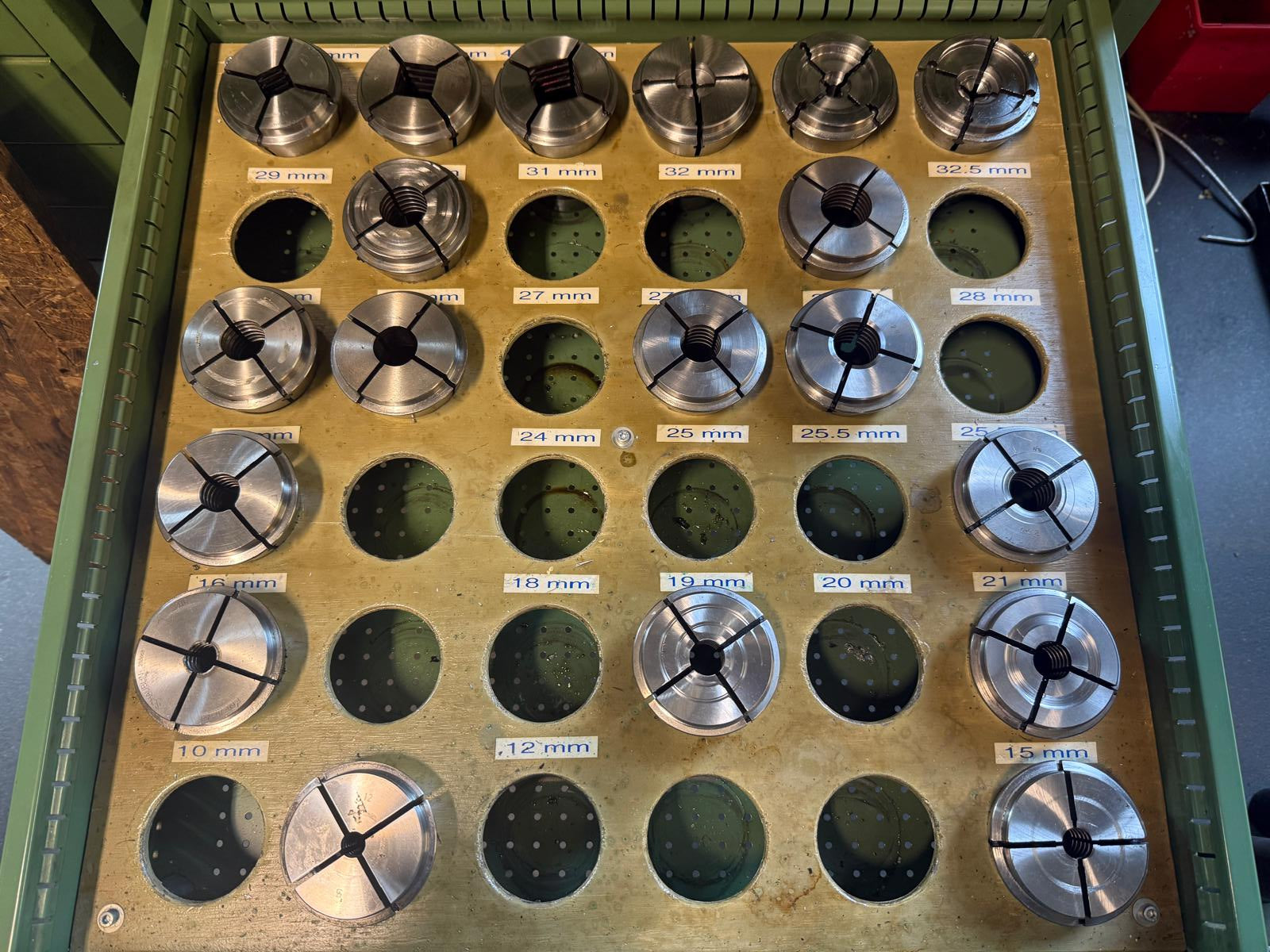

| Set of collets | |
| Lamp | |
| Coolant system | 290 l |
| Bar feeder | |
| Type | LNS SPRINT 552-565 |
| Handwheel electroinic | |
| Chip conveyor | LNS Turbo |
| Toolholders | |
| Status light |
