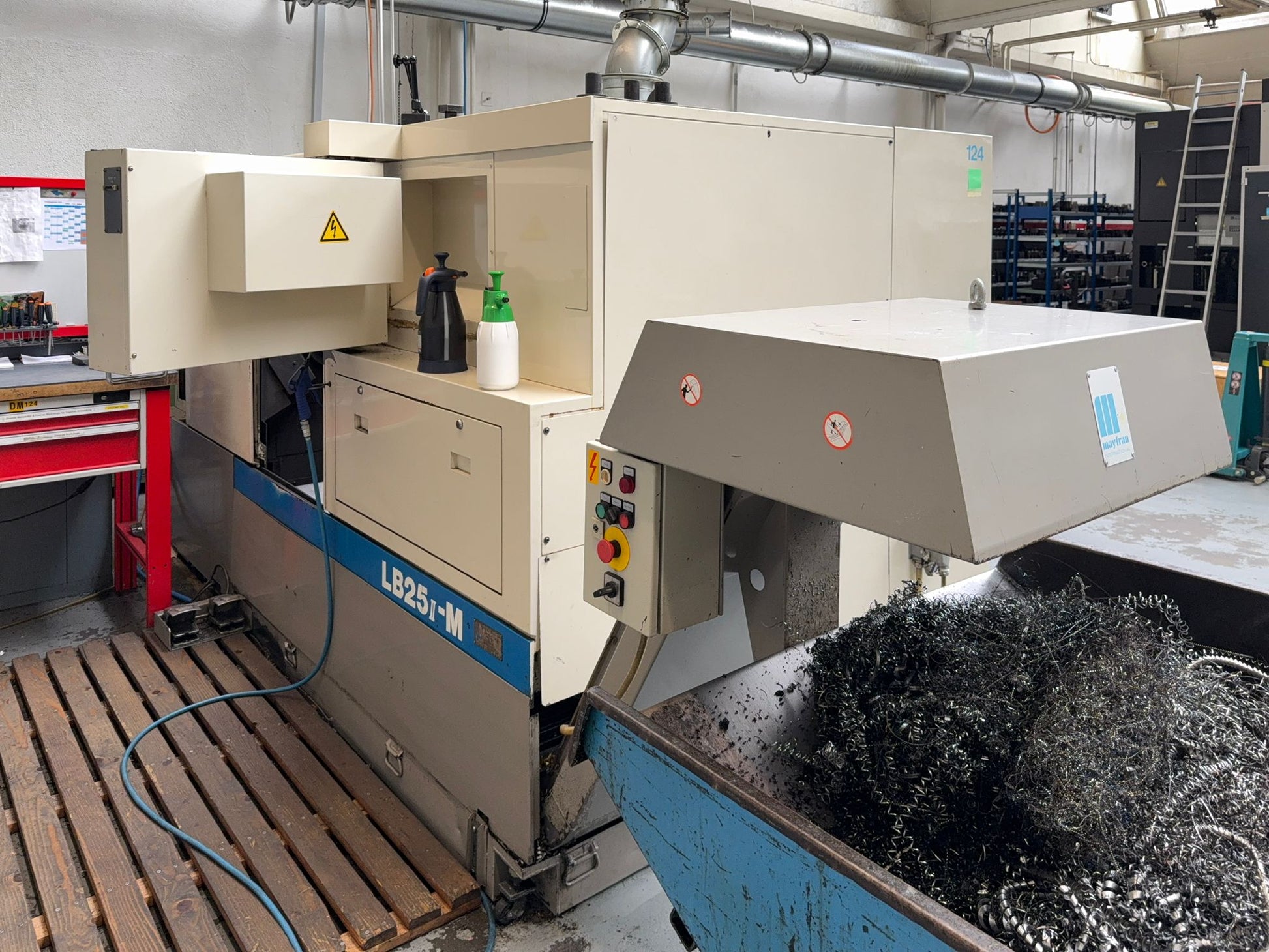

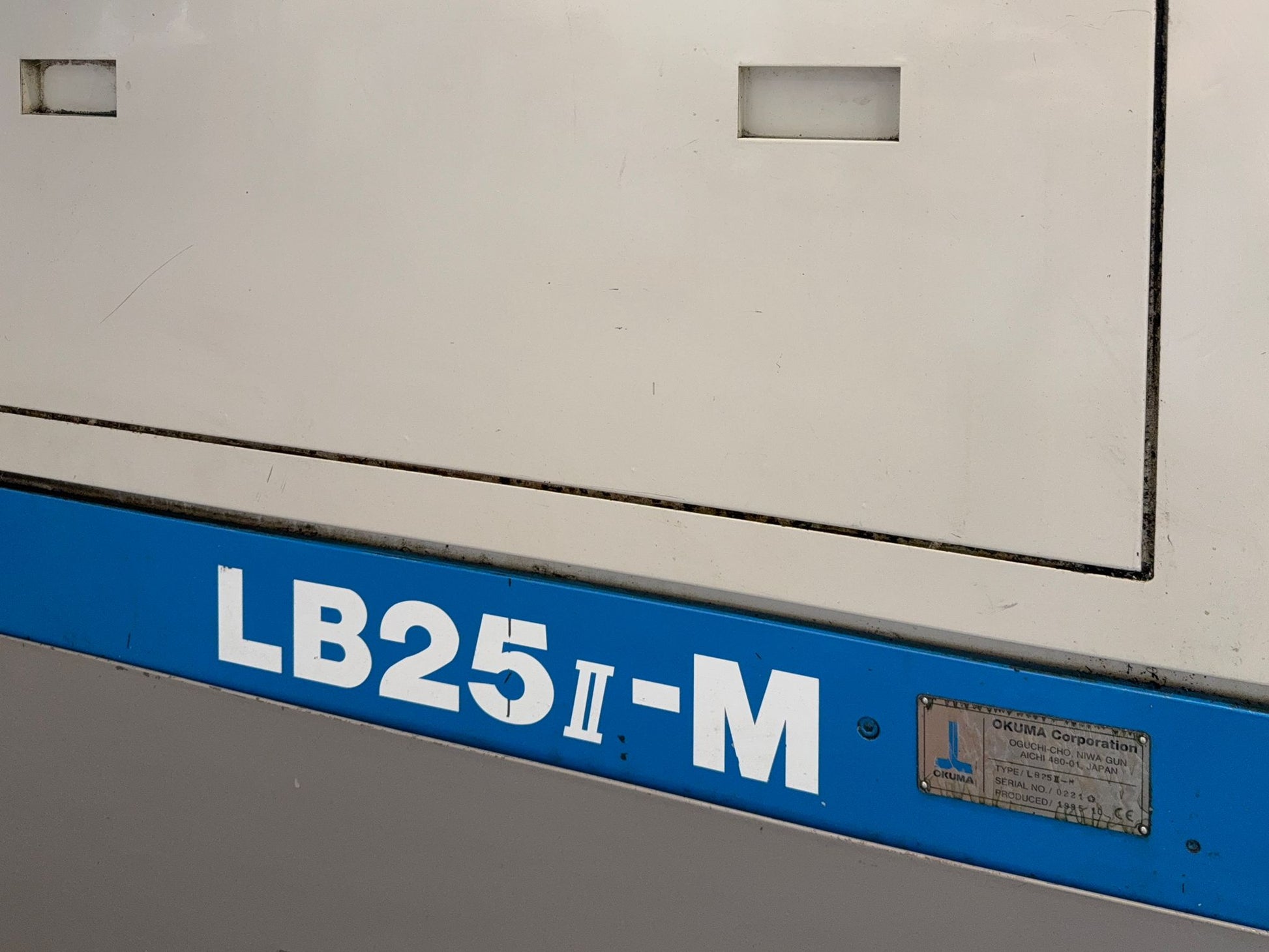

OKUMA LB 25 II
Type: LB 25 II
Manufacturer: OKUMA
Group: CNC turning lathe
Subgroup: CNC turning lathe
Stock: 023361
OKUMA LB 25 II is a high‑performance CNC turning lathe engineered for precision, high accuracy and reliability. Working capacities: spindle hole 80 mm, maximum turning length 1075 mm, max turning diameter 420 mm; longitudinal travel (Z) 1075 mm, transverse travel (X) 300 mm. Key technical specifications: stepless spindle speeds up to 3500 t/min, spindle power 15 kW, voltage 50 Hz 3x 400 V; machine weight approx. 7400 kg; overall dimensions L 4000 mm × W 2240 mm × H 2100 mm. Built to achieve tight tolerances and well suited for automotive, aerospace, medical, watchmaking and machine tool applications.
| Spindle hole | 80 mm |
| Maximum turning length | 1075 mm |
| Max. turning diameter | 420 mm |
| Longitudinal travel (Z-axis) | 1075 mm |
| Longitudinal travel (X-axis) | 300 mm |
| Spindle speeds: | |
| stepless | |
| up to | 3500 t/min |
| Spindle power | 15 kW |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 7400 kg |
| Overall dimensions machine: | |
| Length | 4000 mm |
| Width | 2’240 mm |
| Height | 2100 mm |
