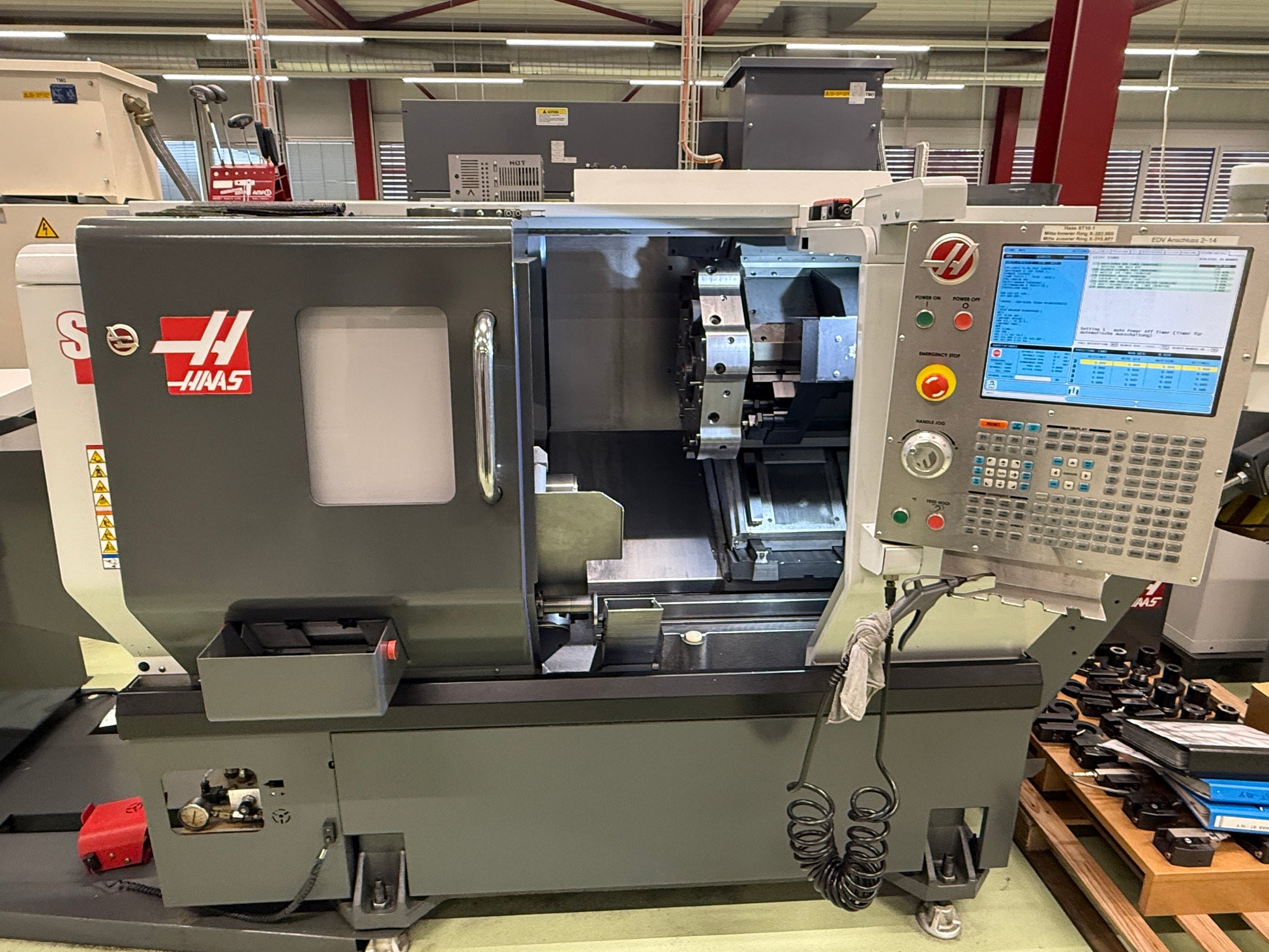

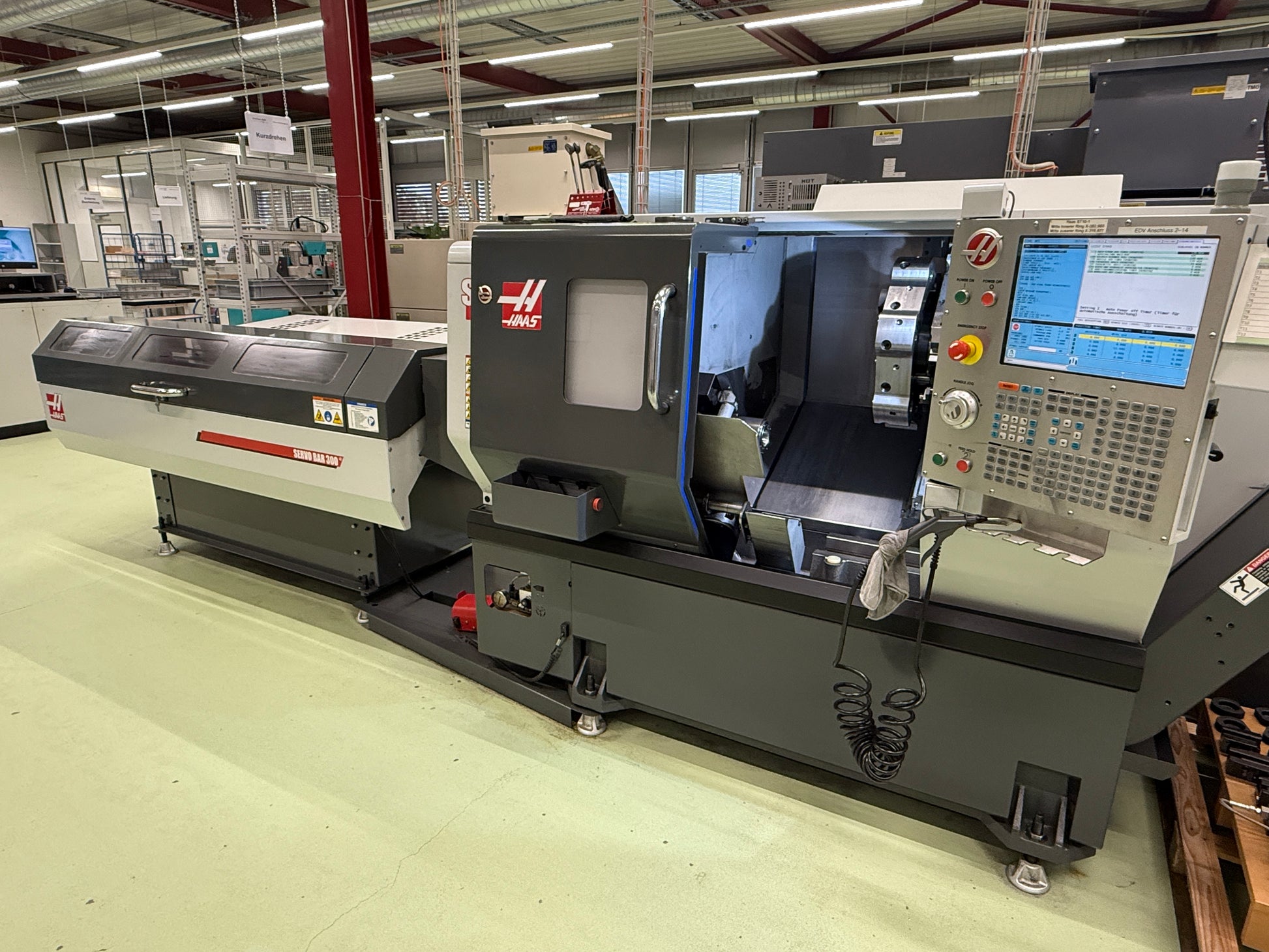

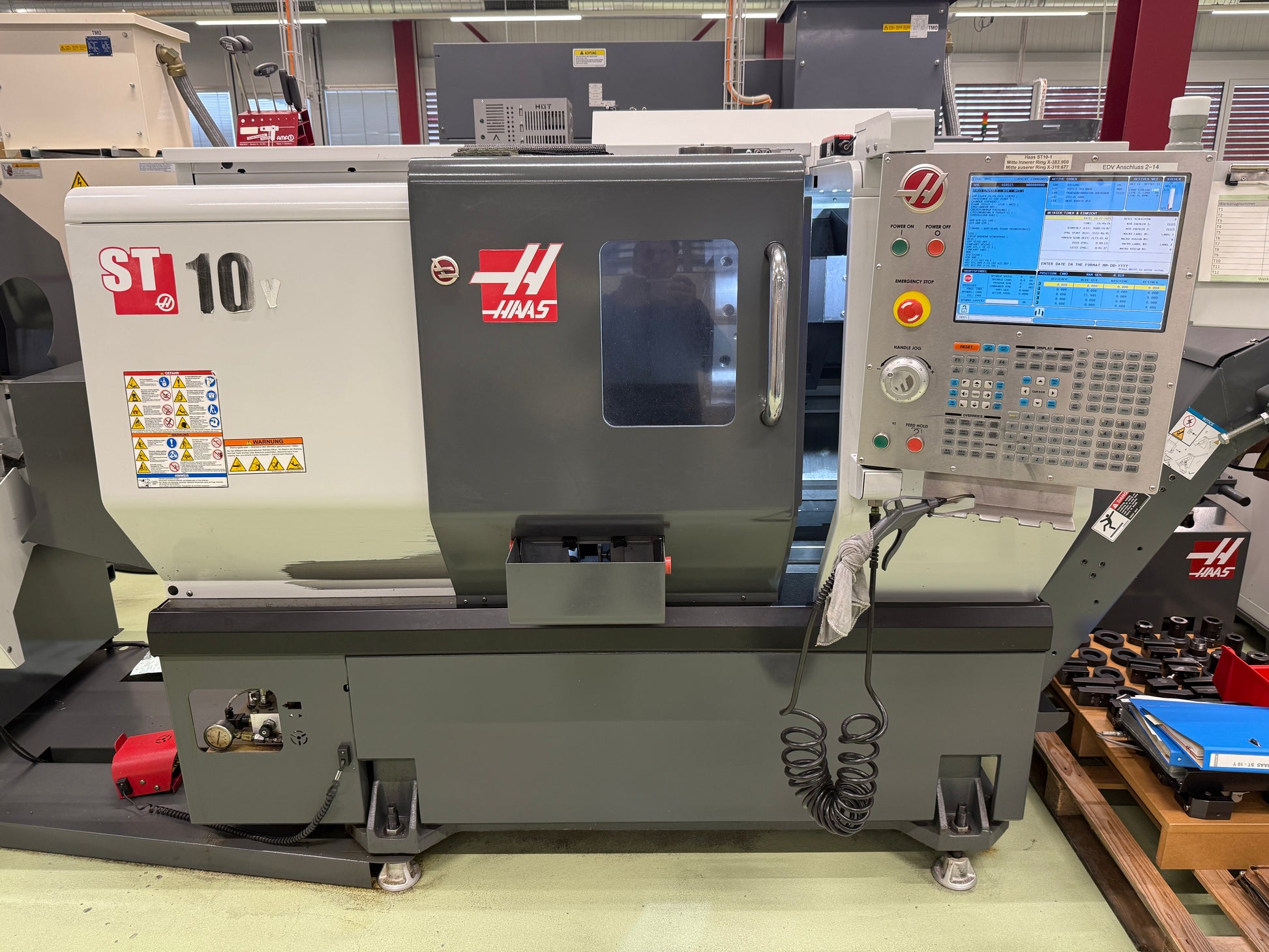

HAAS ST-10 Y is a CNC turning lathe offering high precision, superior accuracy and industrial reliability. Capacities: centre height 419 mm, distance between centres 355.6 mm, spindle hole 58.7 mm, bar passage 46 mm; travels Z 406 mm, X 200 mm, Y 51 mm. Technical specs: spindle stepless up to 6000 rpm, spindle motor 11.2 kW; rapid traverse X/Y 12 m/min, Z 30.5 m/min; voltage 50 Hz 3x 360–480 V; machine weight ~3600 kg; dimensions L3210×W1780×H2060 mm; time under power 7688 h, operating time 3222 h, working time 2173 h. Accessories: 3-jaw chuck, lamp, coolant system 114 l, bar feeder SERVO BAR 300, chip conveyor, set of steel holders and toolholders. Achieves tight tolerances; suited for automotive, watchmaking, machine tools, aerospace and medical applications.
| Number of axis total | 3 |
| Number of turning spindles | 1 |
| Number of revolvers | 1 |
| Centre height | 419 mm |
| Distance between centres | 355.6 mm |
| Spindle nose | A2-5 |
| Spindle hole | 58.7 mm |
| Bar passage | 46 mm |
| Travels: | |
| Longitudinal travel (Z-axis) | 406 mm |
| Transversal strocke (X axis) | 200 mm |
| Transversal travel (y-axis) | 51 mm |
| Rapid traverse X | 12 m/min |
| Rapid traverse Y | 12 m/min |
| Rapid traverse Z | 30.5 m/min |

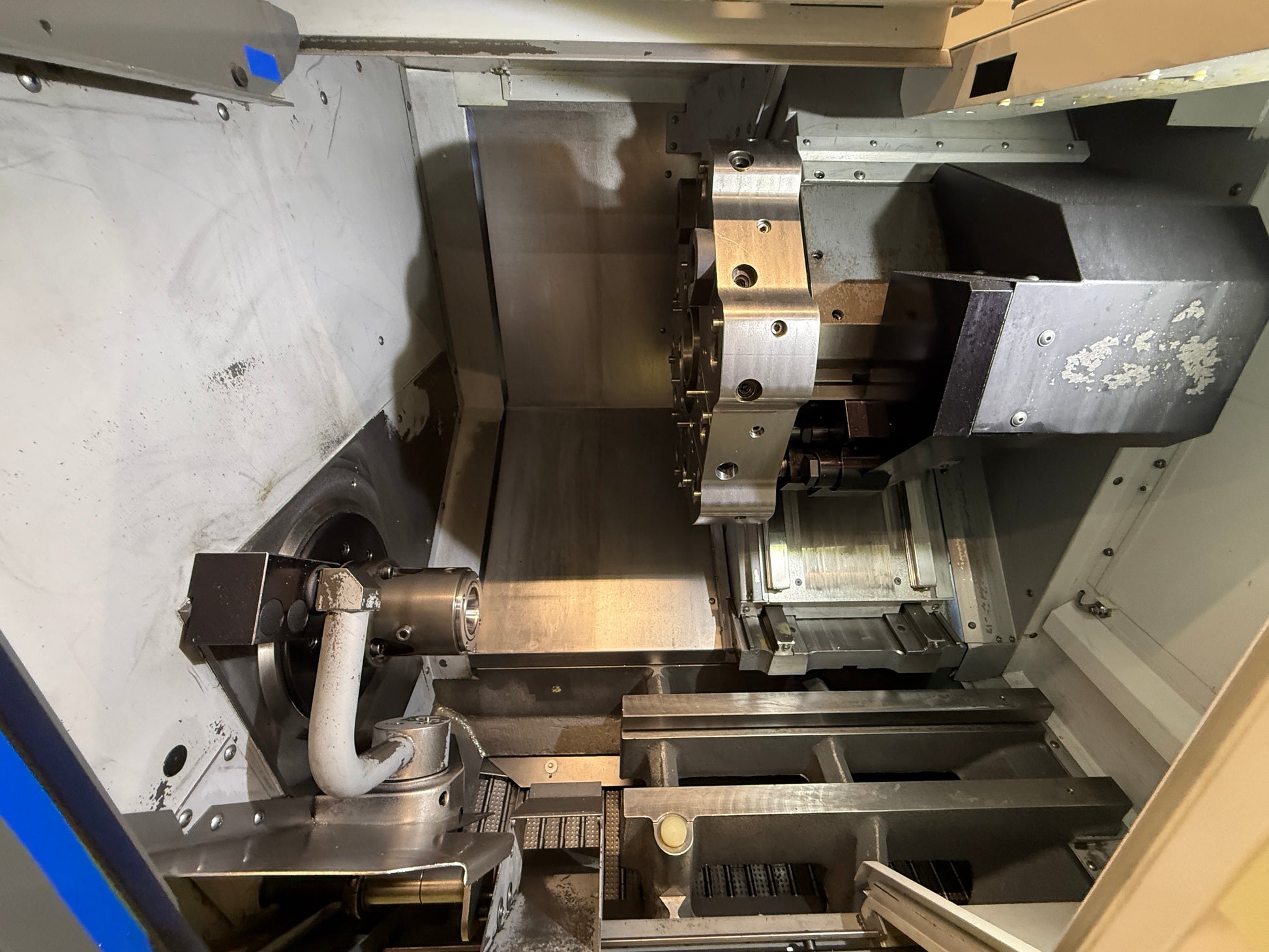

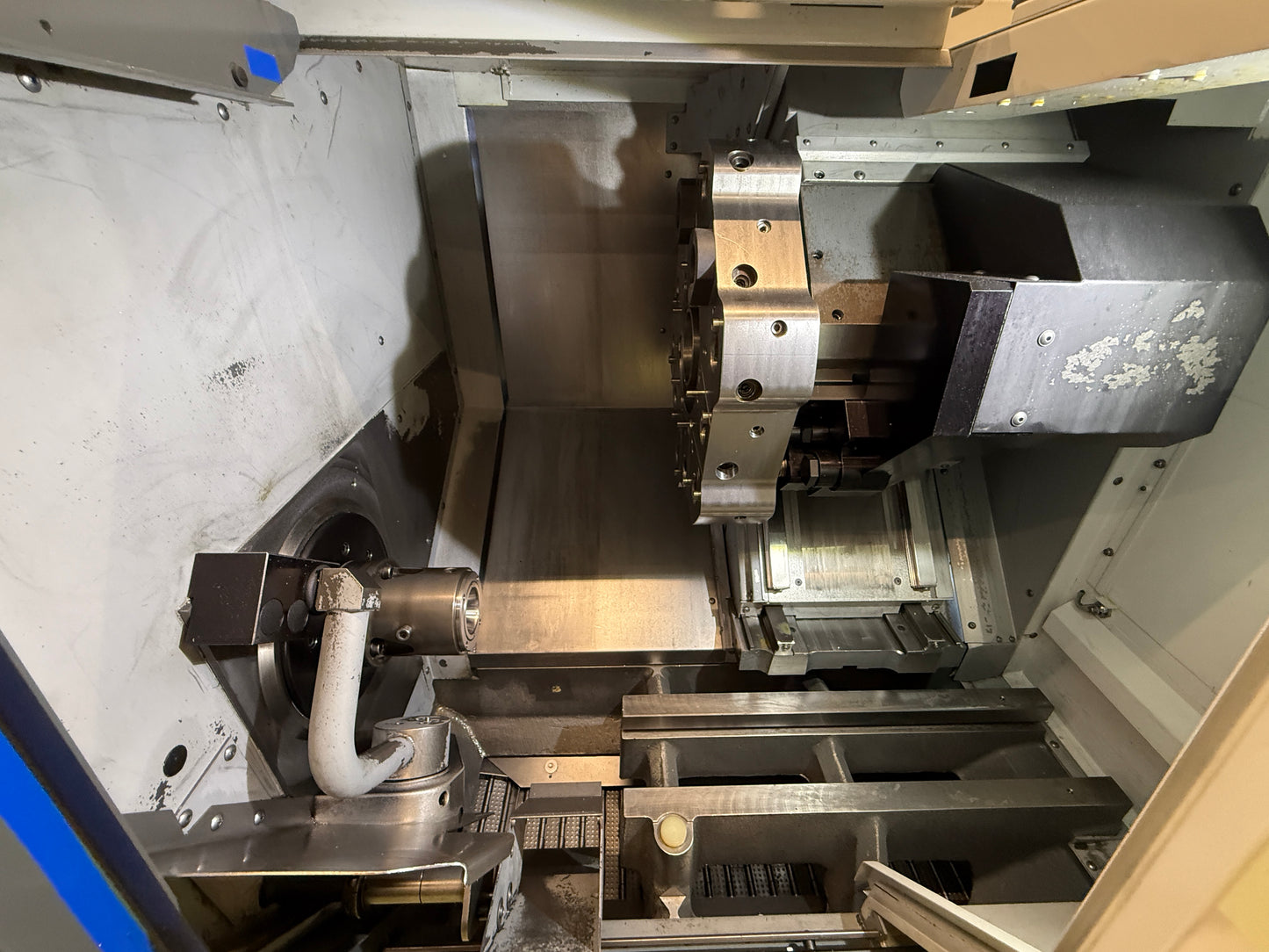

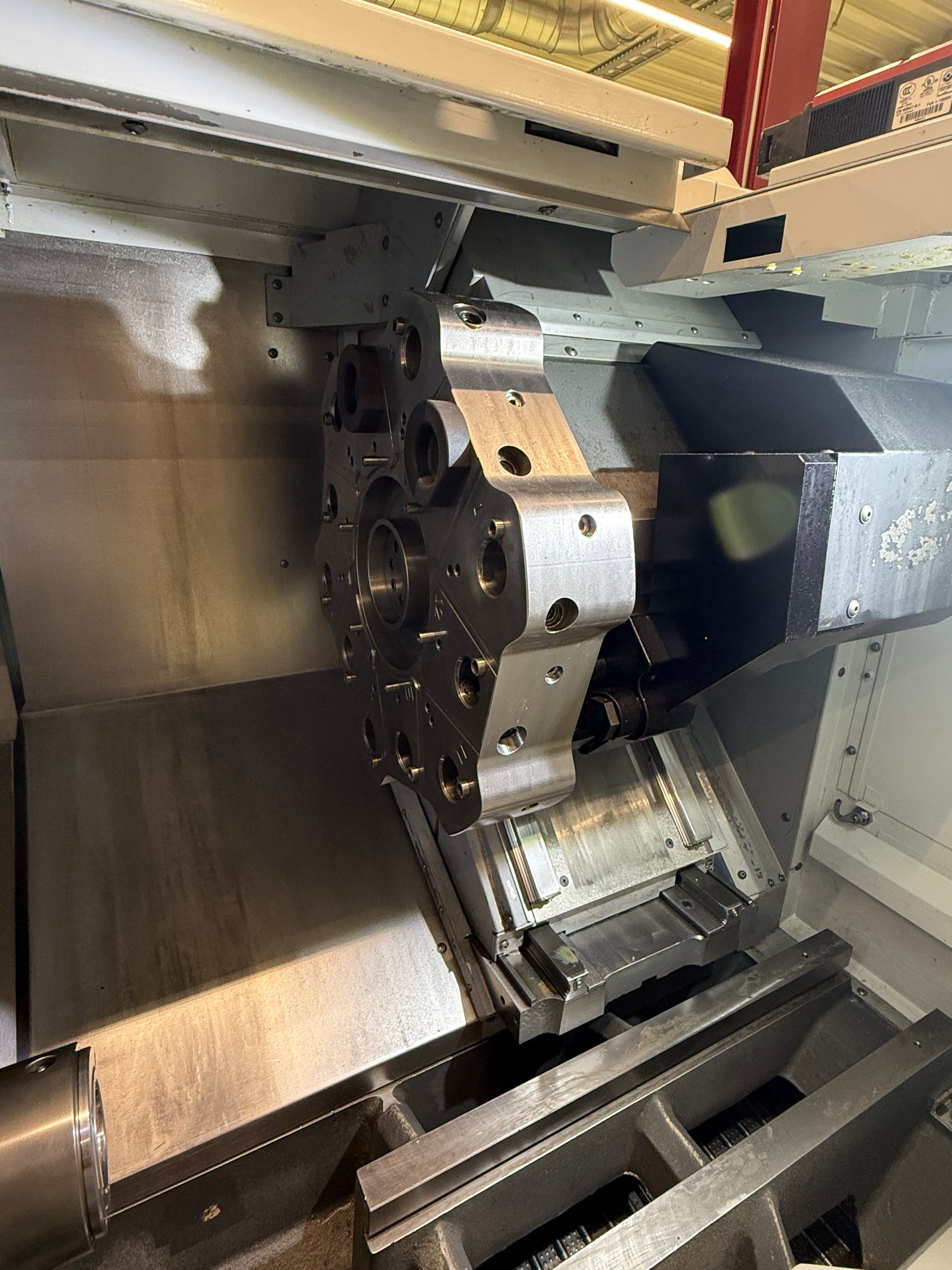

| Turret slide: | |
| Number of positions | 12 |
| Spindle speeds: | |
| stepless | |
| up to | 6000 t/min |

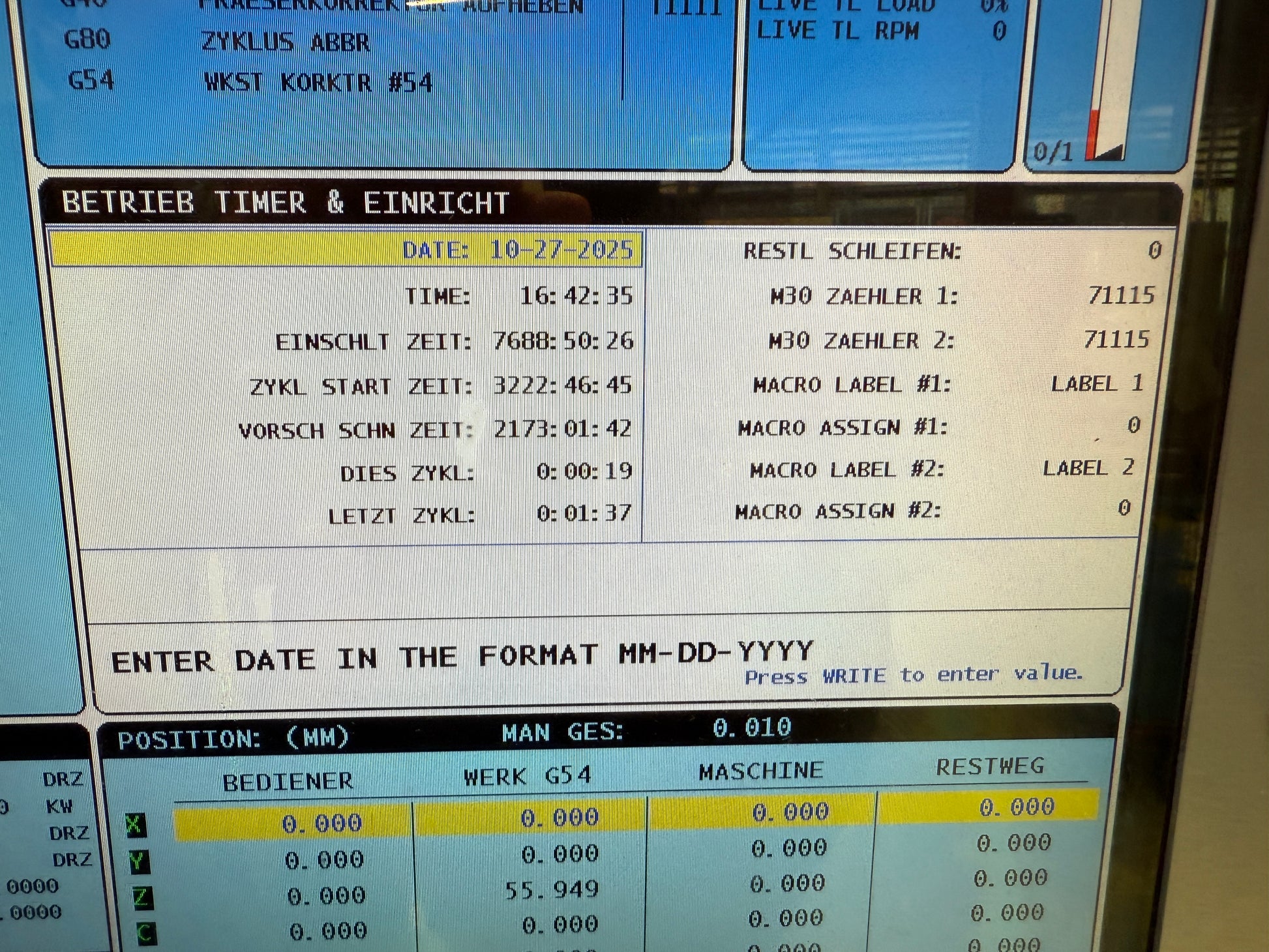

| Time under power | 7688 Heures |
| Operating time | 3222 Heures |
| Working time | 2173 Heures |
| Spindle motor | 11.2 kW |
| Voltage 50 Hz 3x | 360 - 480 Volt |
| Machine's weight about | 3600 kg |
| Overall dimensions machine: | |
| Length | 3210 mm |
| Width | 1’780 mm |
| Height | 2060 mm |
| Various accessories: | |

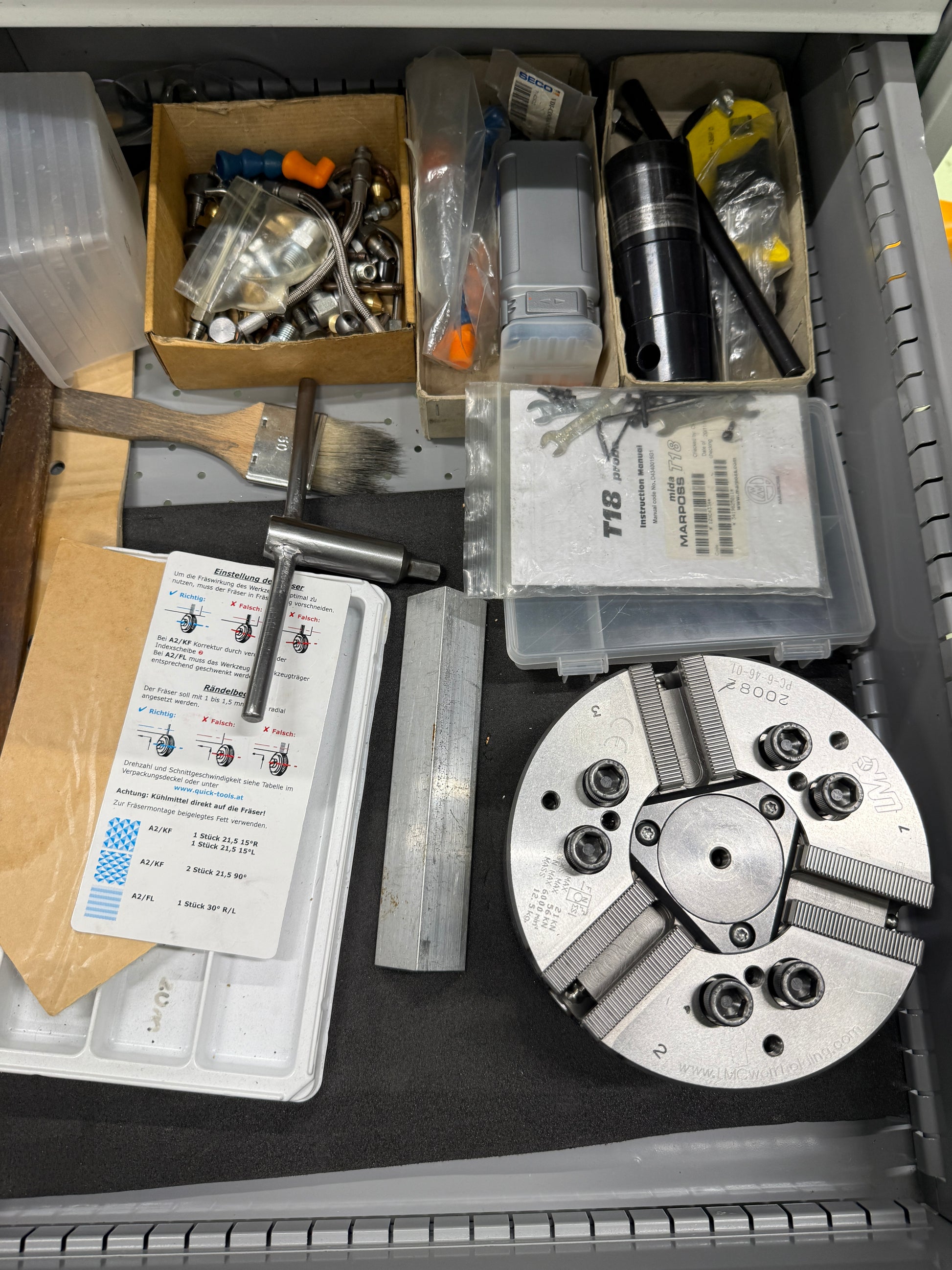

| 3-jaw chuck | |
| Lamp | |

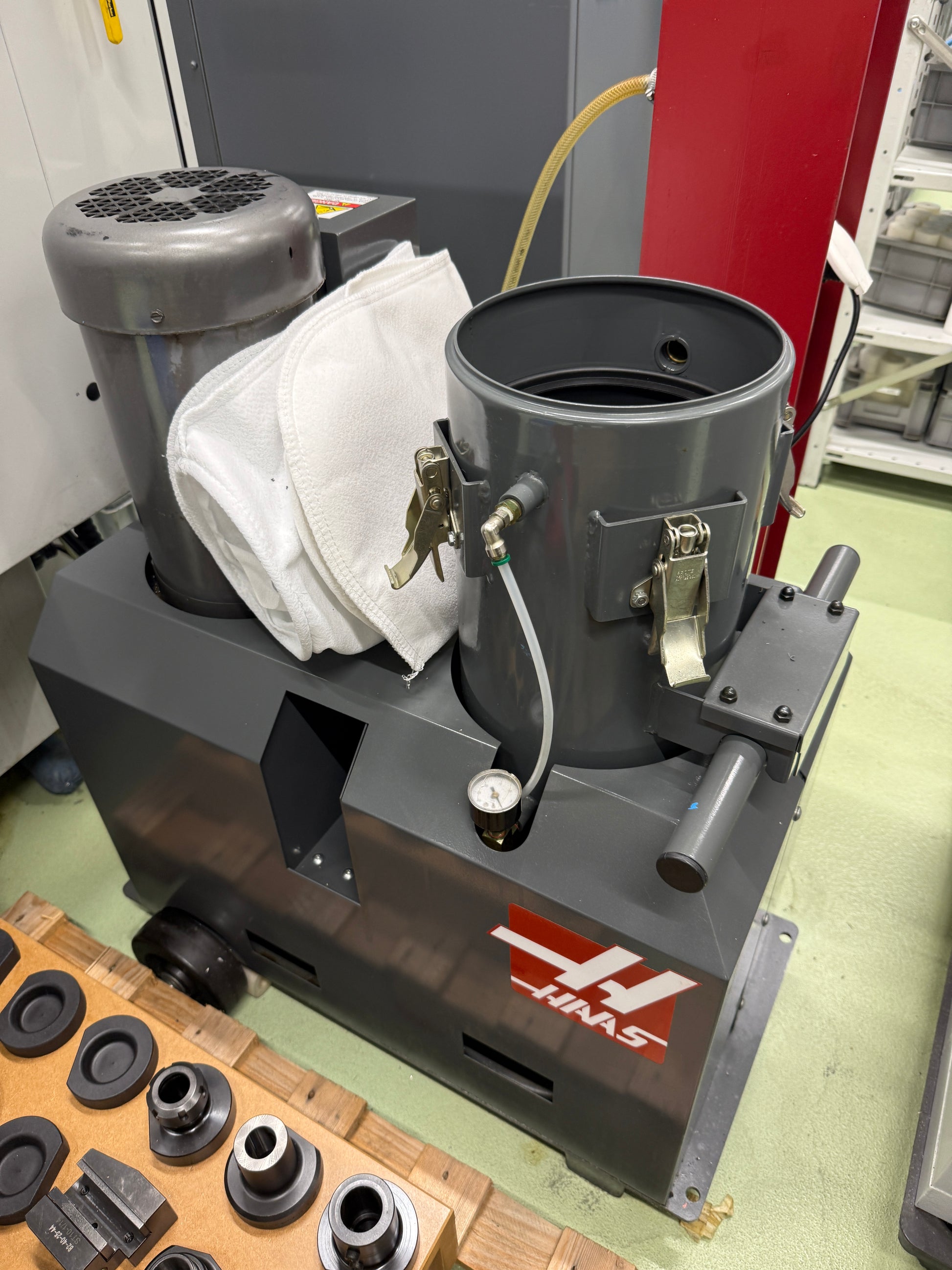

| Coolant system | 114 l |

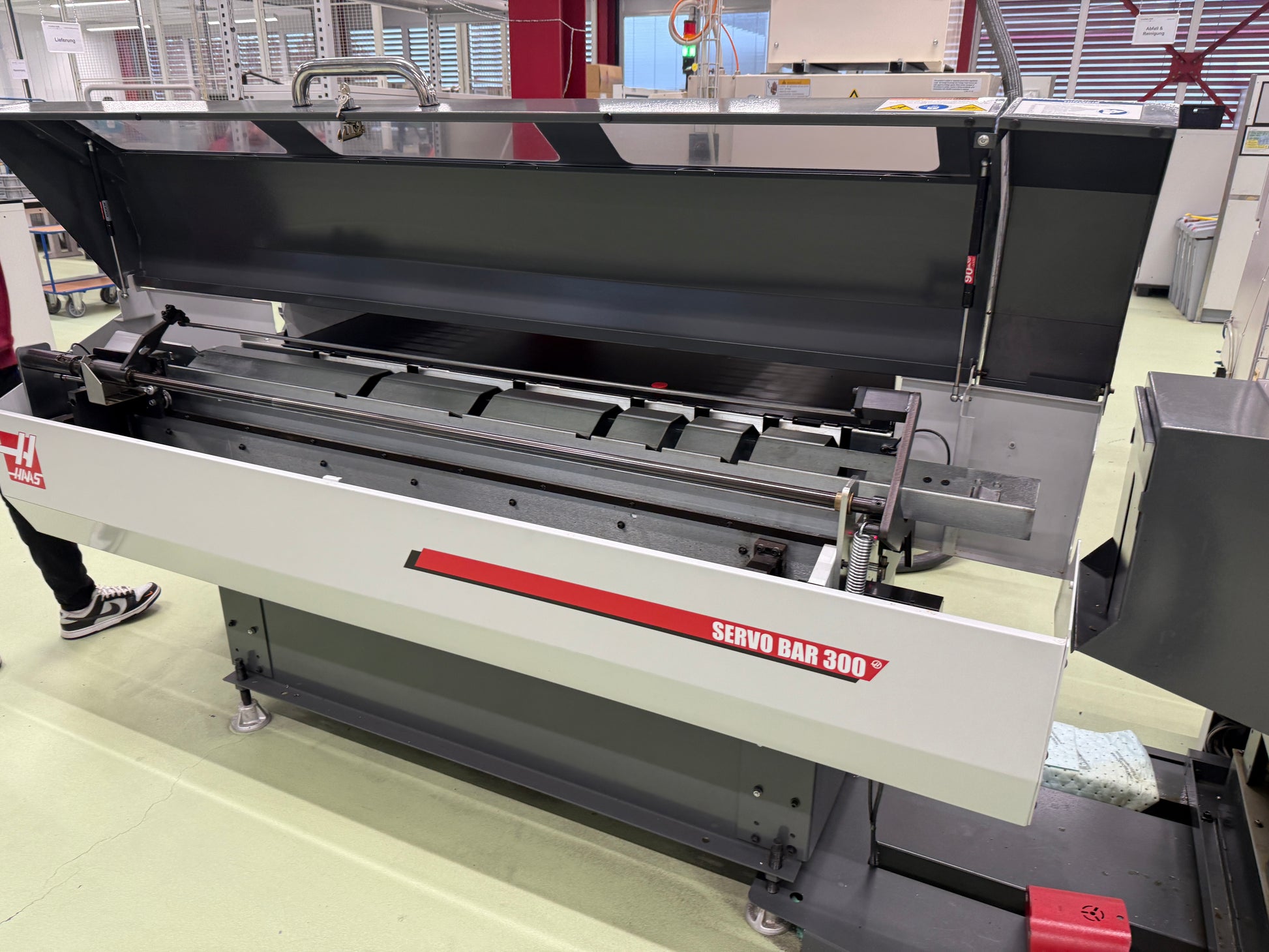

| Bar feeder | |

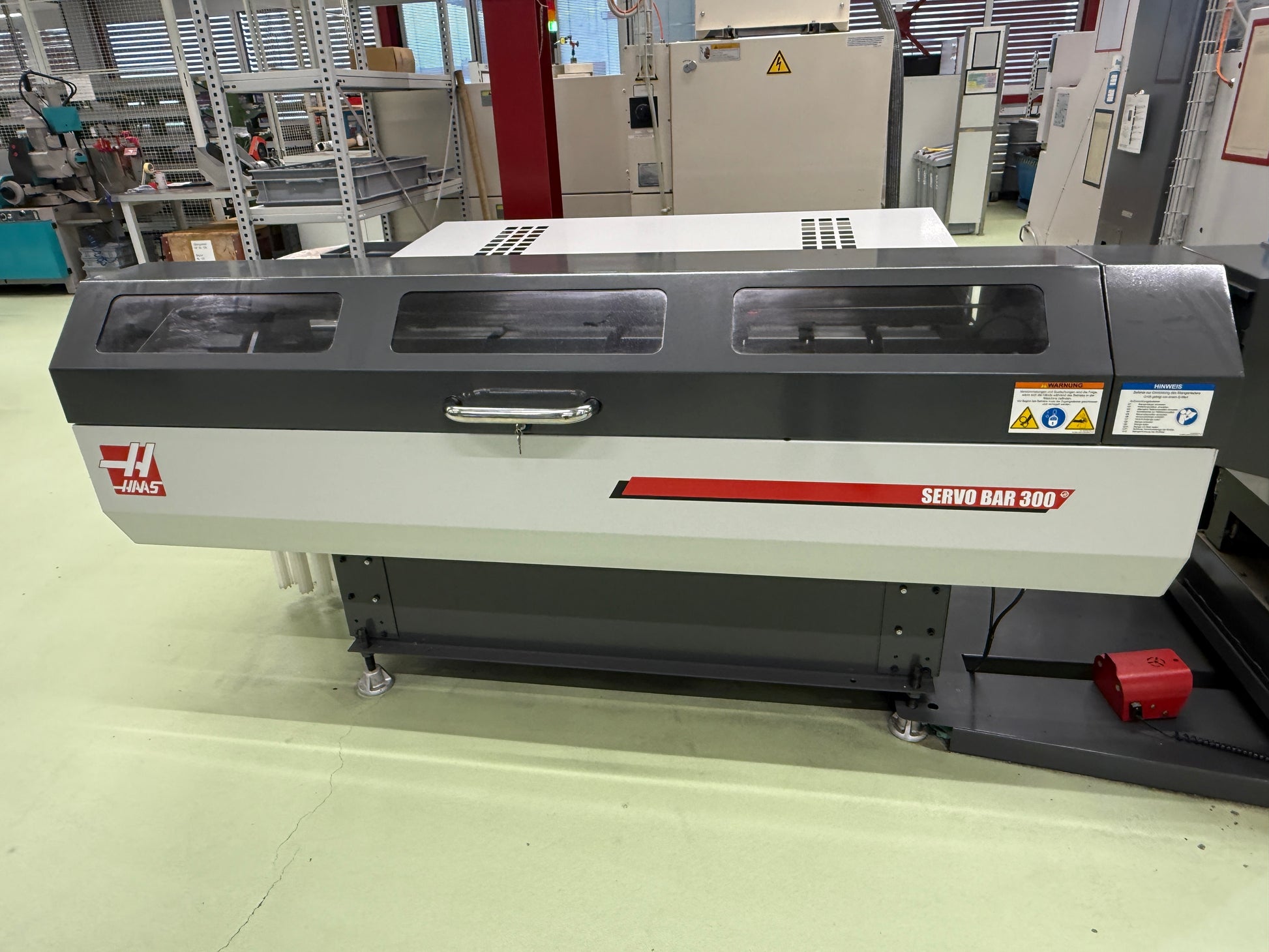

| Type | SERVO BAR 300 |

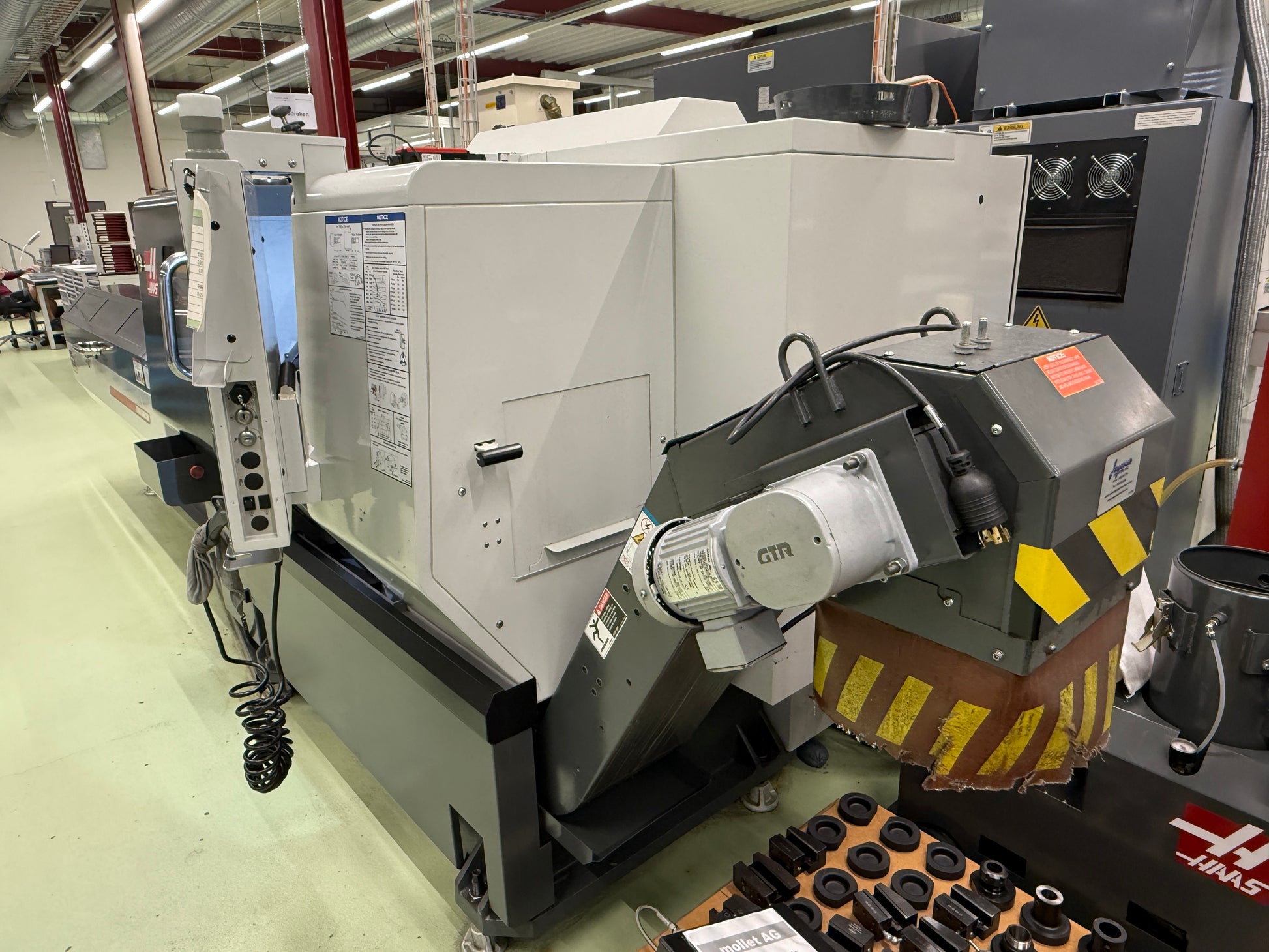

| Chip conveyor | |

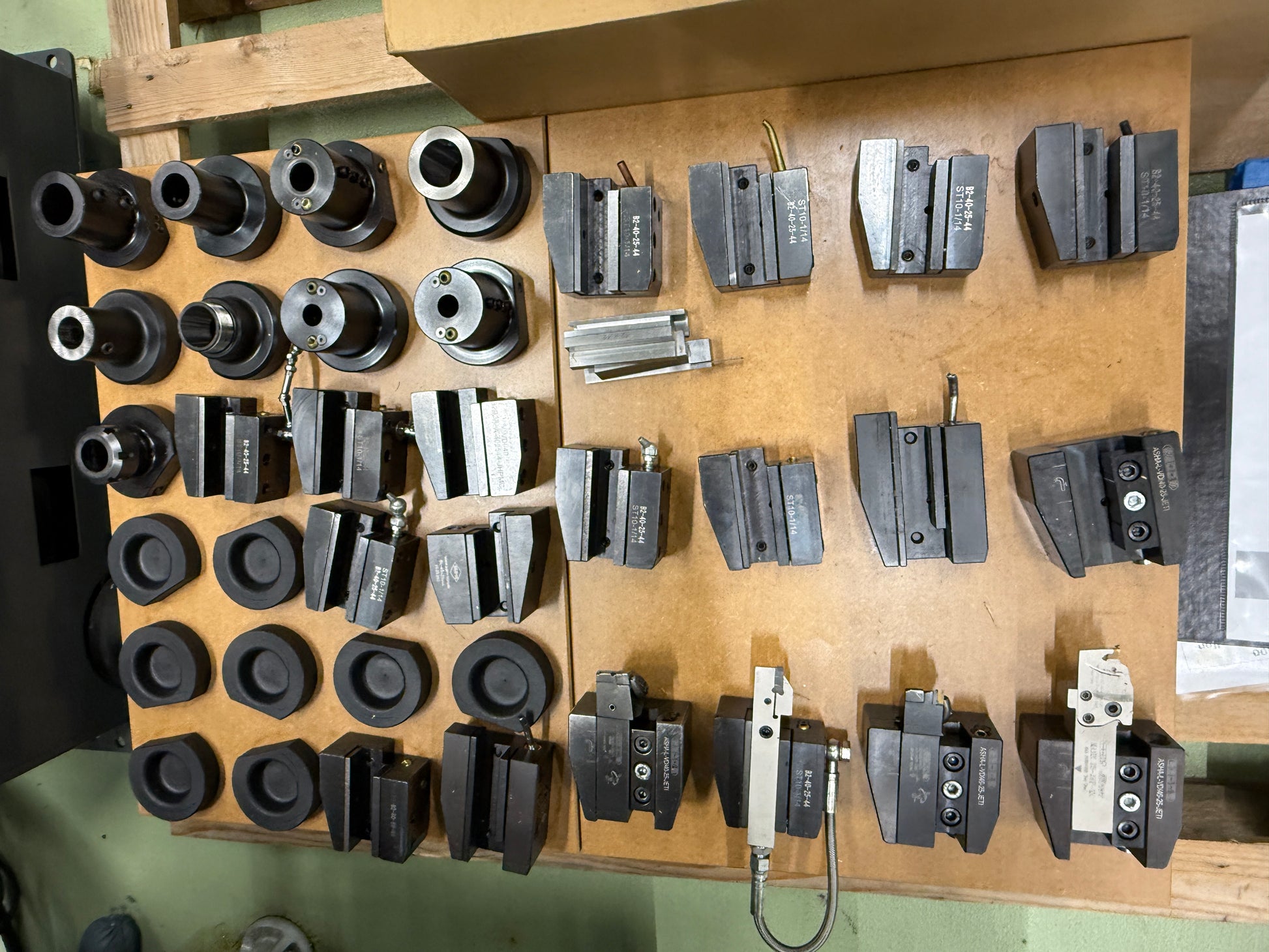

| Set of steel holders | |

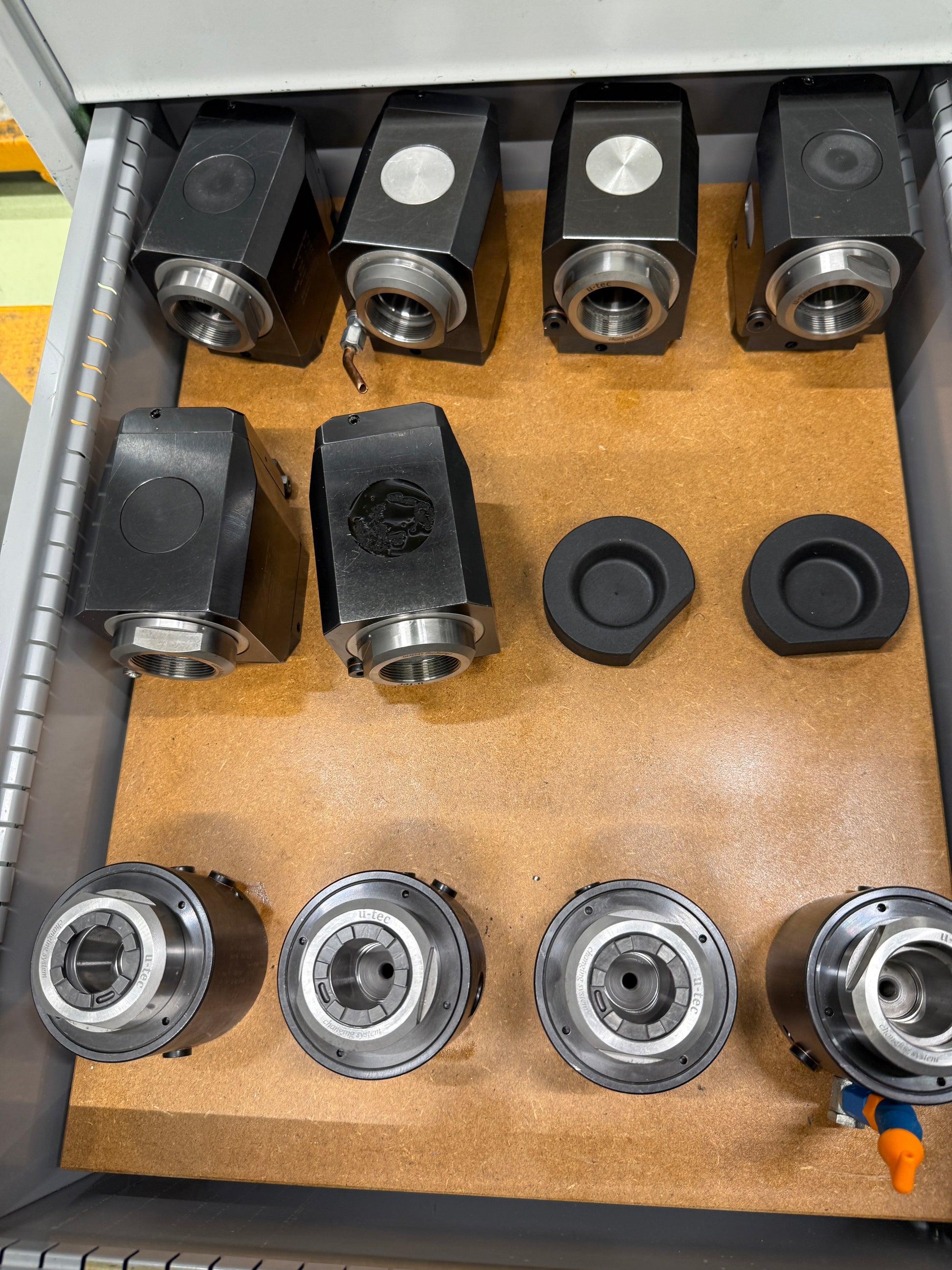

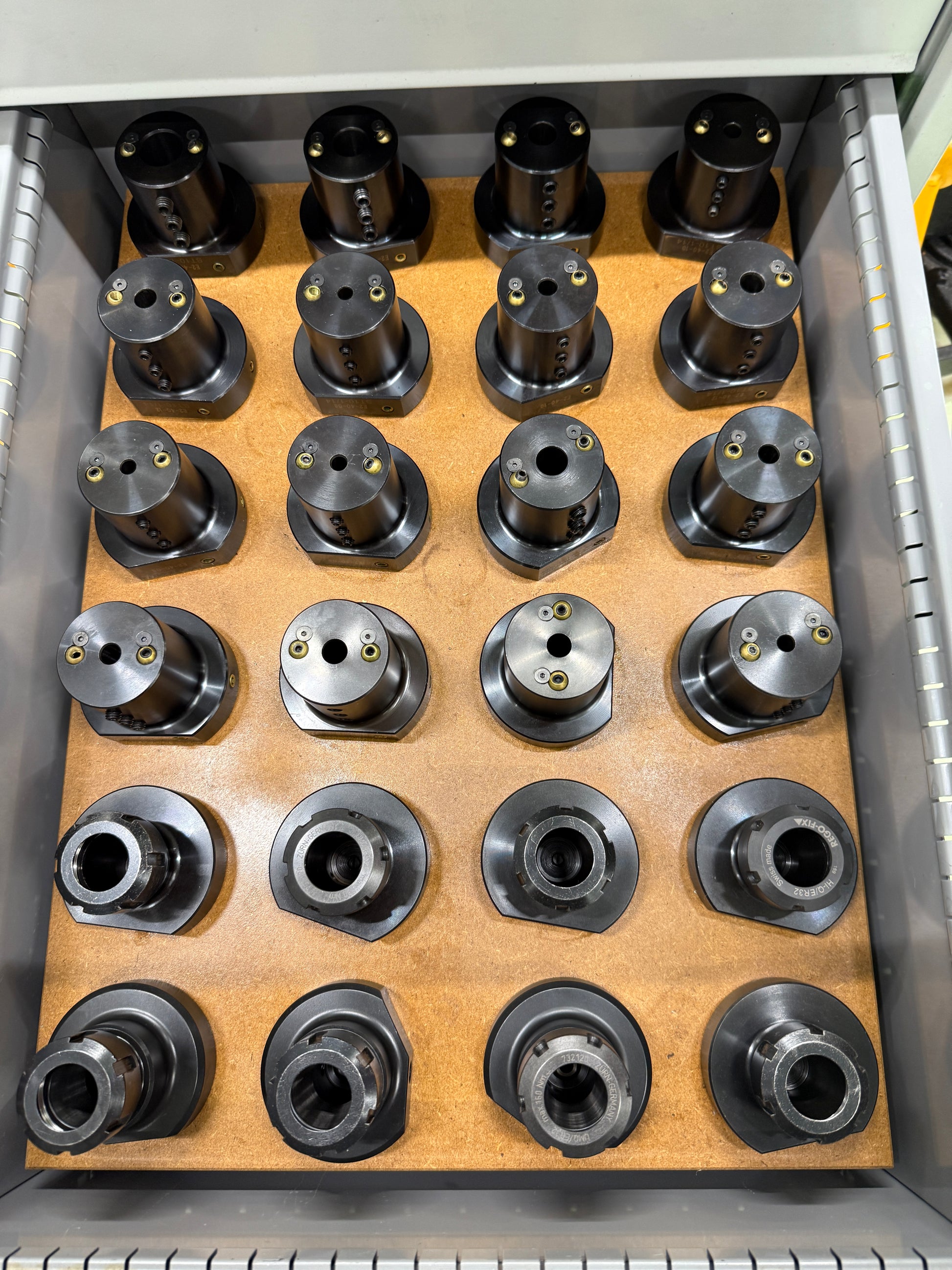

| Set of toolholders |
