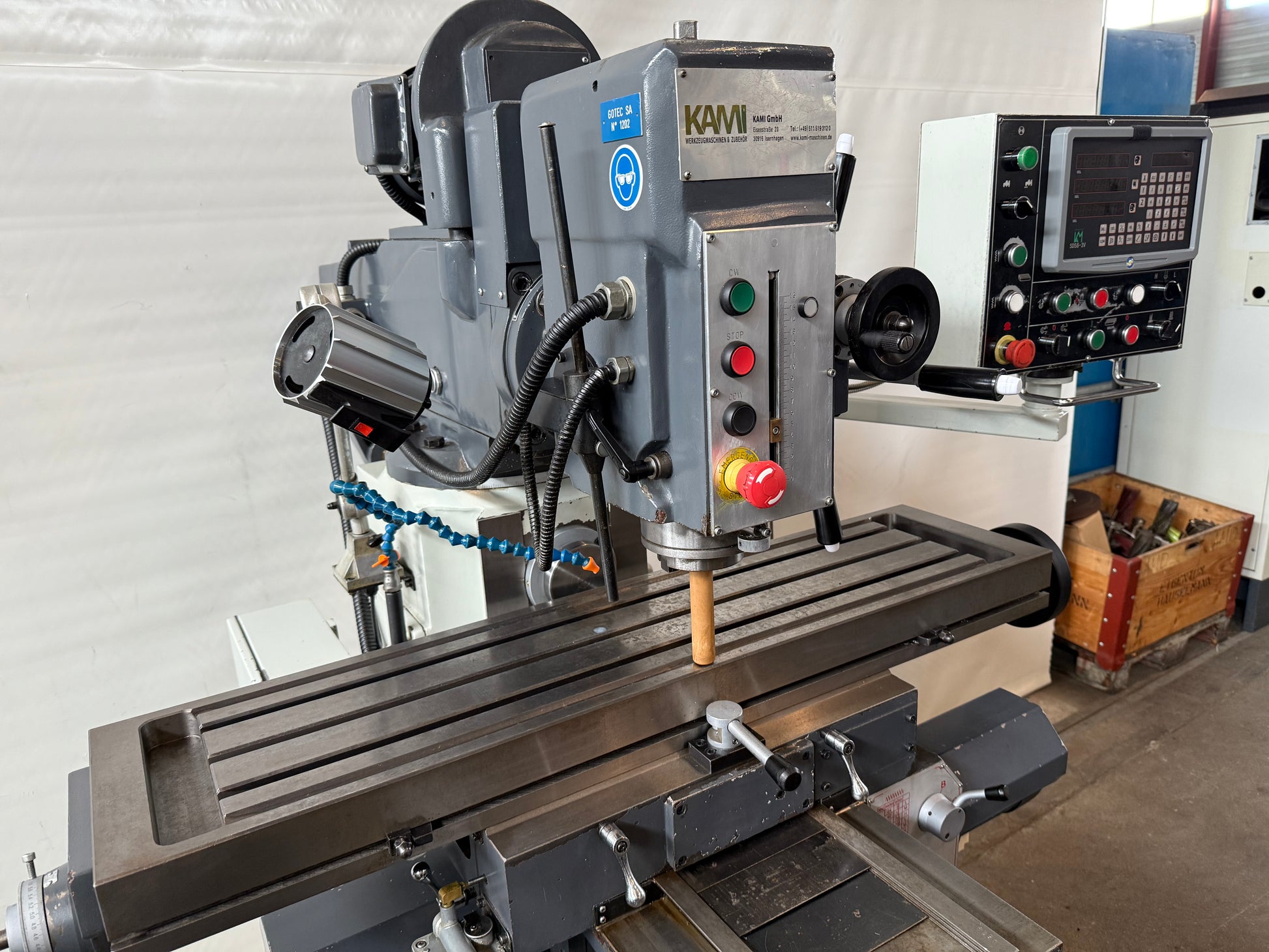

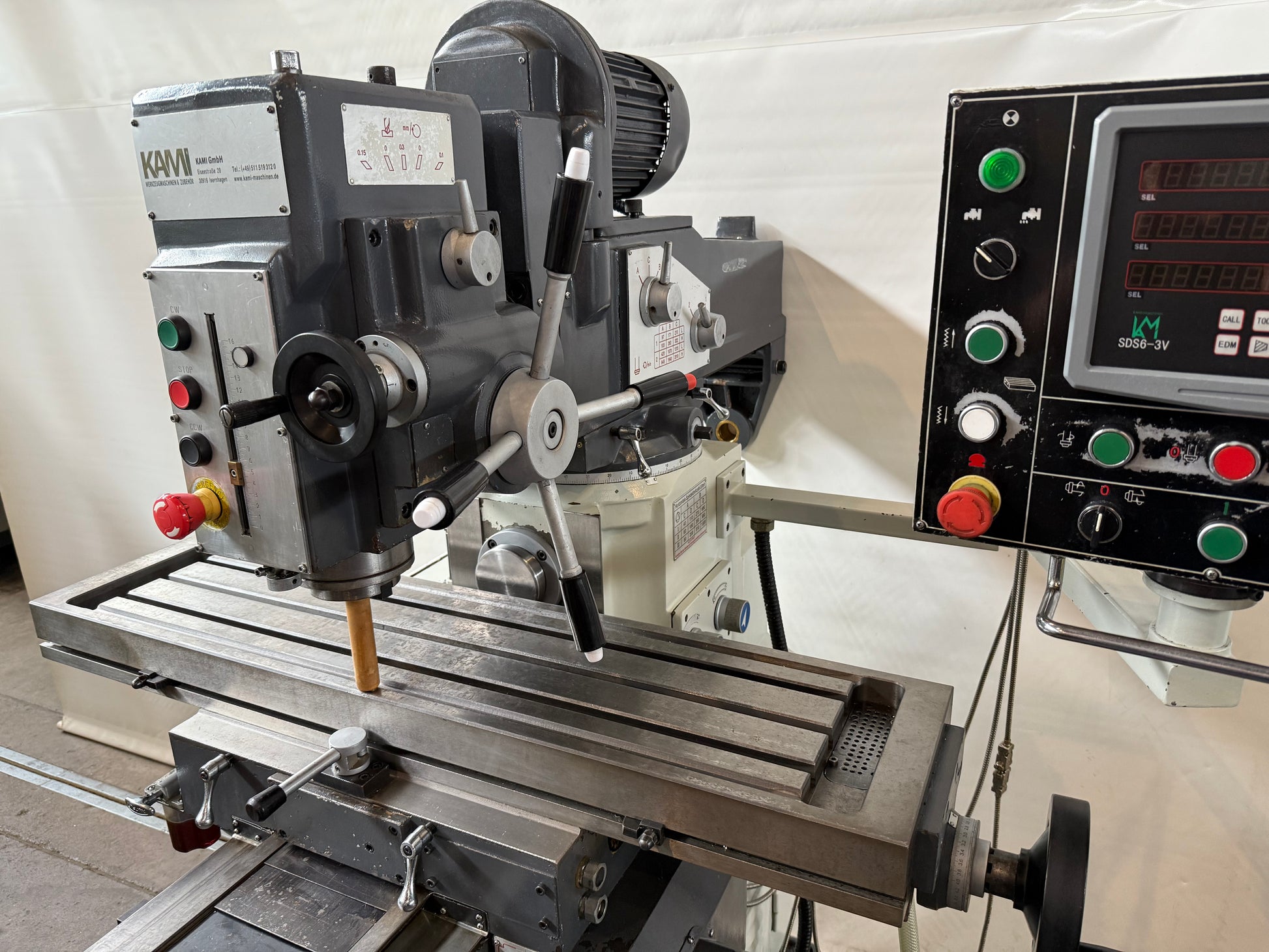

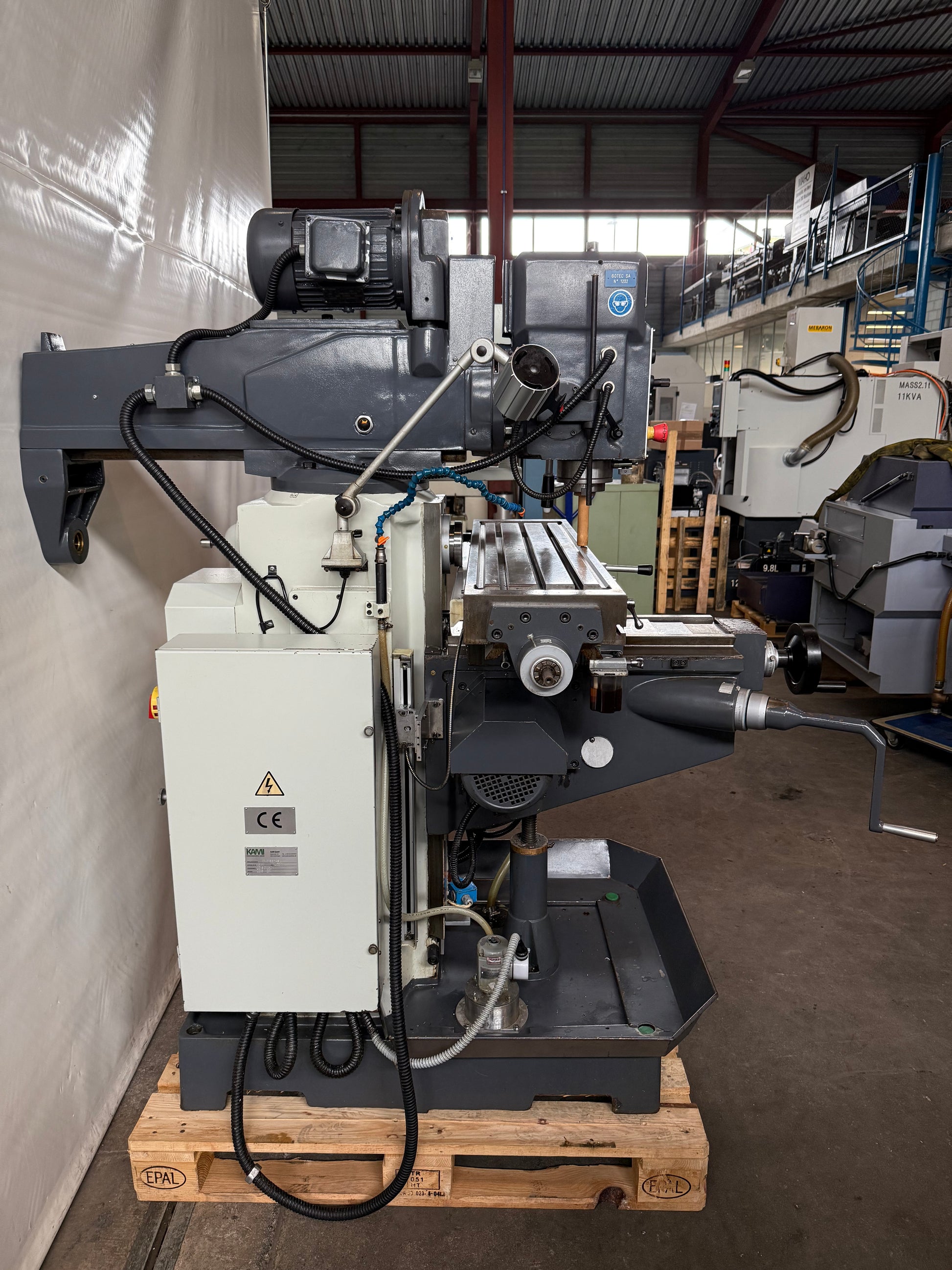

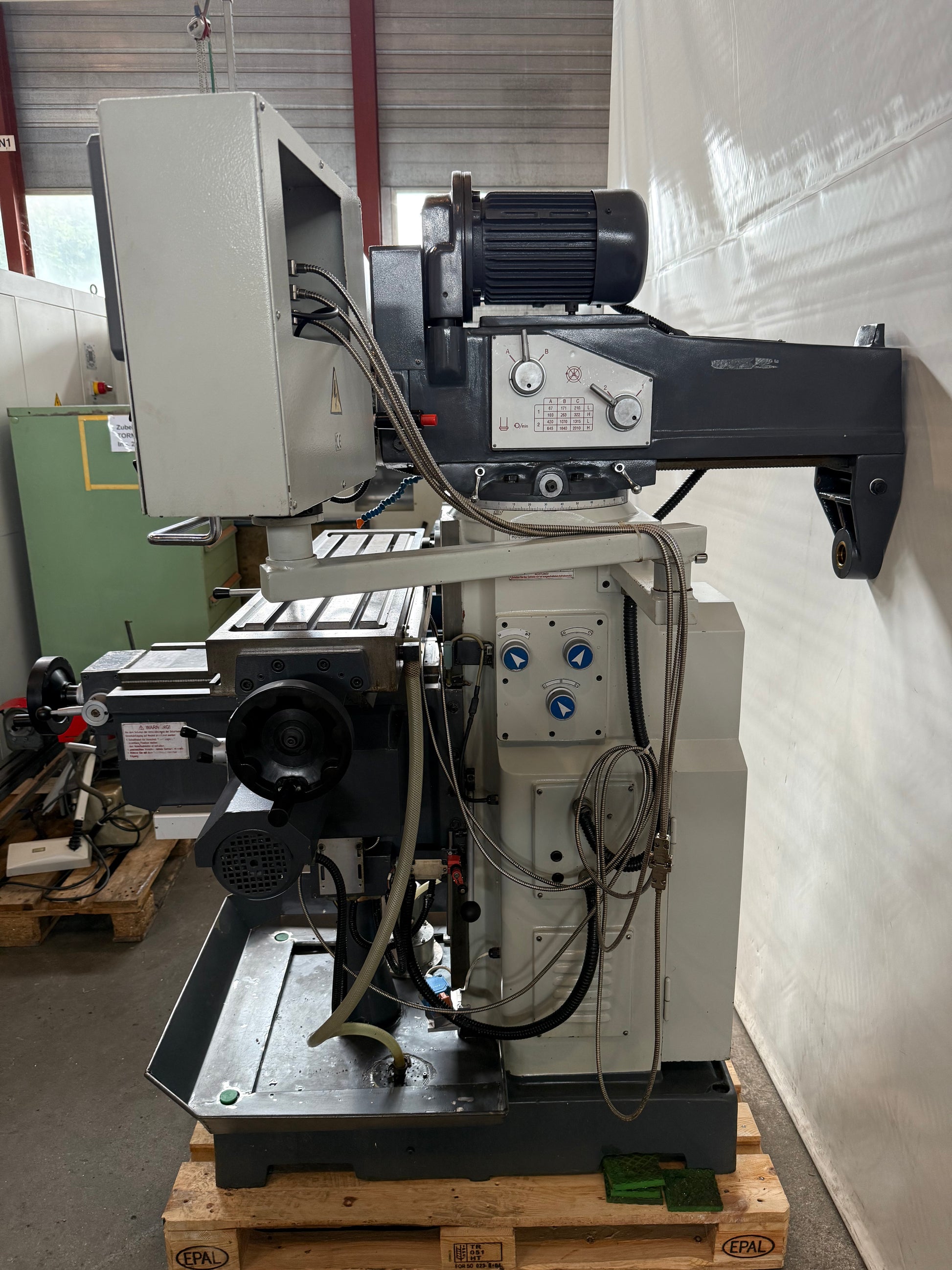

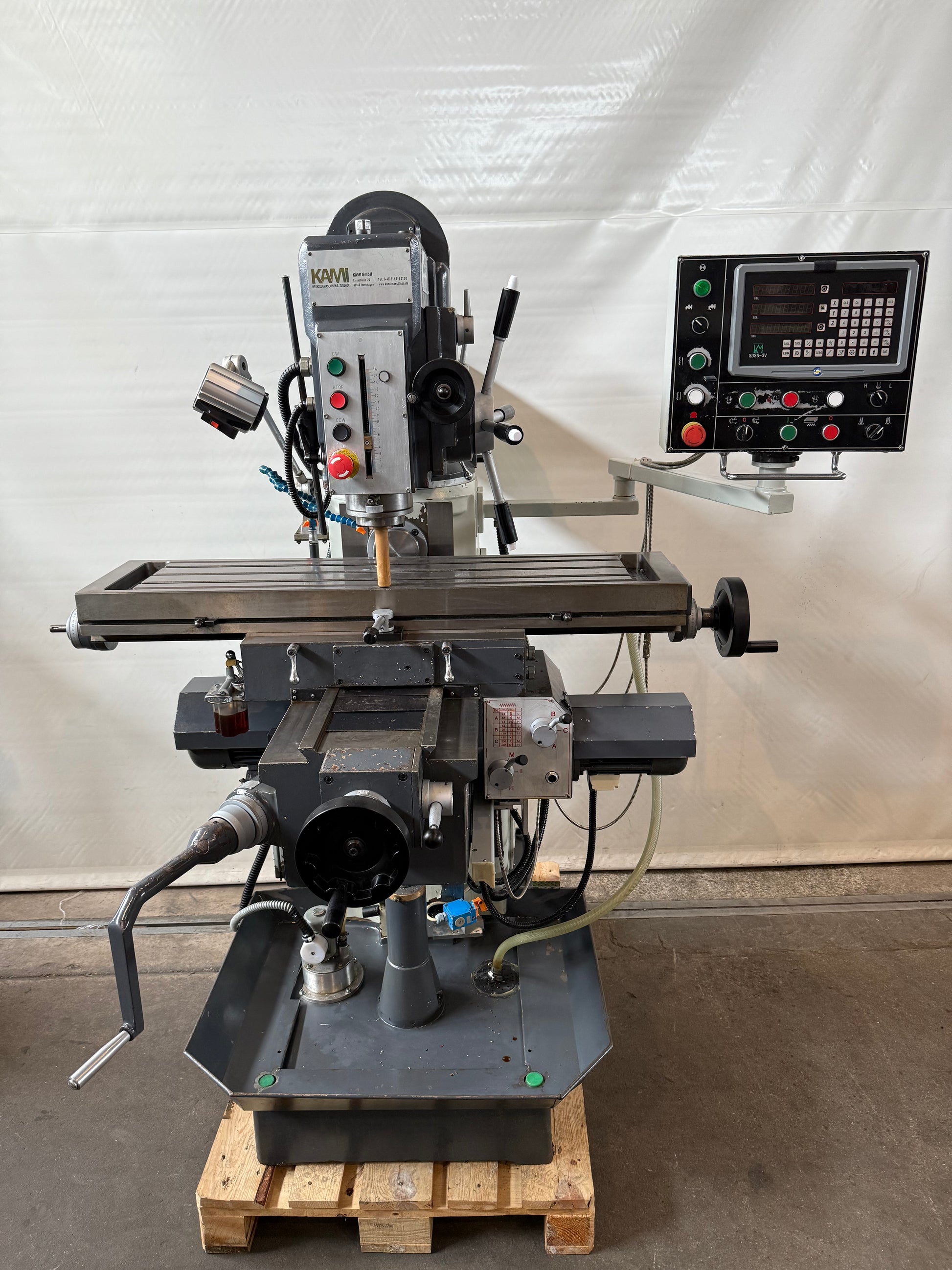

KAMI FKM 560 HSA II
Type: FKM 560 HSA II
Manufacturer: KAMI
Group: Universal milling machine
Subgroup: Universal milling machine
Year: 2013
Stock: 023293
KAMI FKM 560 HSA II is a universal milling machine engineered for high precision, excellent accuracy and reliable performance. Working capacities: table 1120×260 mm; travels X 600 mm, Y 300 mm, Z 350 mm; spindle stroke 120 mm; drilling in steel 40 mm; head tilting ±90°. Key specs: spindle taper ISO 40, speeds 67–2010 t/min; motor 2.2 kW; supply 3×400 V 50 Hz; weight ≈1300 kg; overall L1580×W1450×H2150 mm. Equipment: 3‑axis digital readout, set of collets, set of toolholders, tool cabinet and lamp. Delivers tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace and medical sectors.
| Number of axis total | 3 |
| Table length | 1120 mm |
| Table width | 260 mm |
| Longitudinal travel (X-axis) | 600 mm |
| Transversal travel (y axis) | 300 mm |
| Vertical travel (z axis) | 350 mm |
| Spindle stroke | 120 mm |
| Spindle speeds: | |
| from | 67 t/min |
| up to | 2010 t/min |
| Taper in spindle: | |
| Taper in spindle | 40 ISO |
| Head inclining + - | 90 ° |
| Voltage 50 Hz 3x | 400 Volt |
| Motor power | 2.2 kW |
| Drill capacity in steel | 40 mm |
| Machine's weight about | 1300 kg |
| Overall dimensions machine: | |
| Length | 1580 mm |
| Width | 1450 mm |
| Height | 2150 mm |
| Various accessories: | |

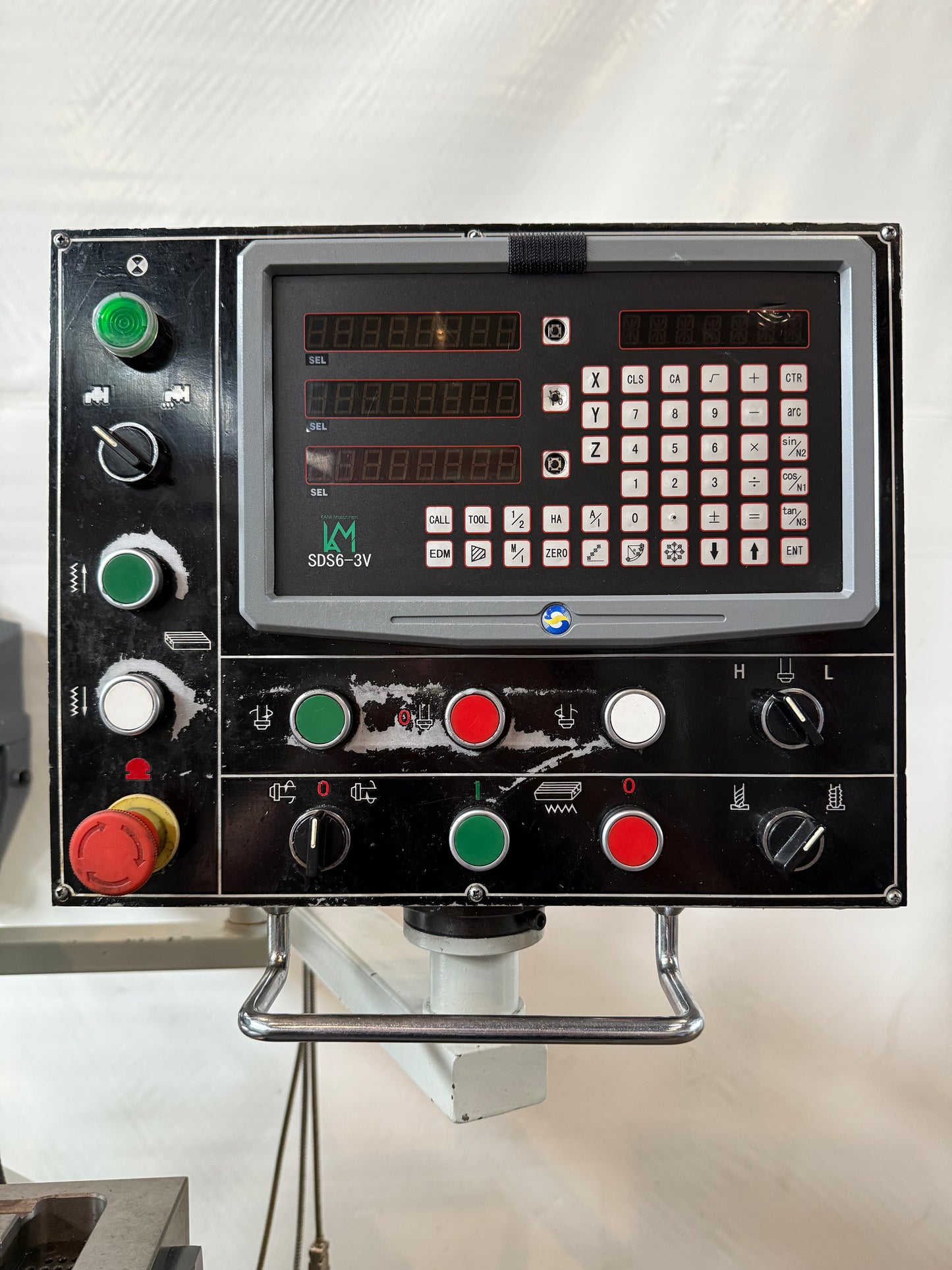

| Digital readout number of axis: | 3 |

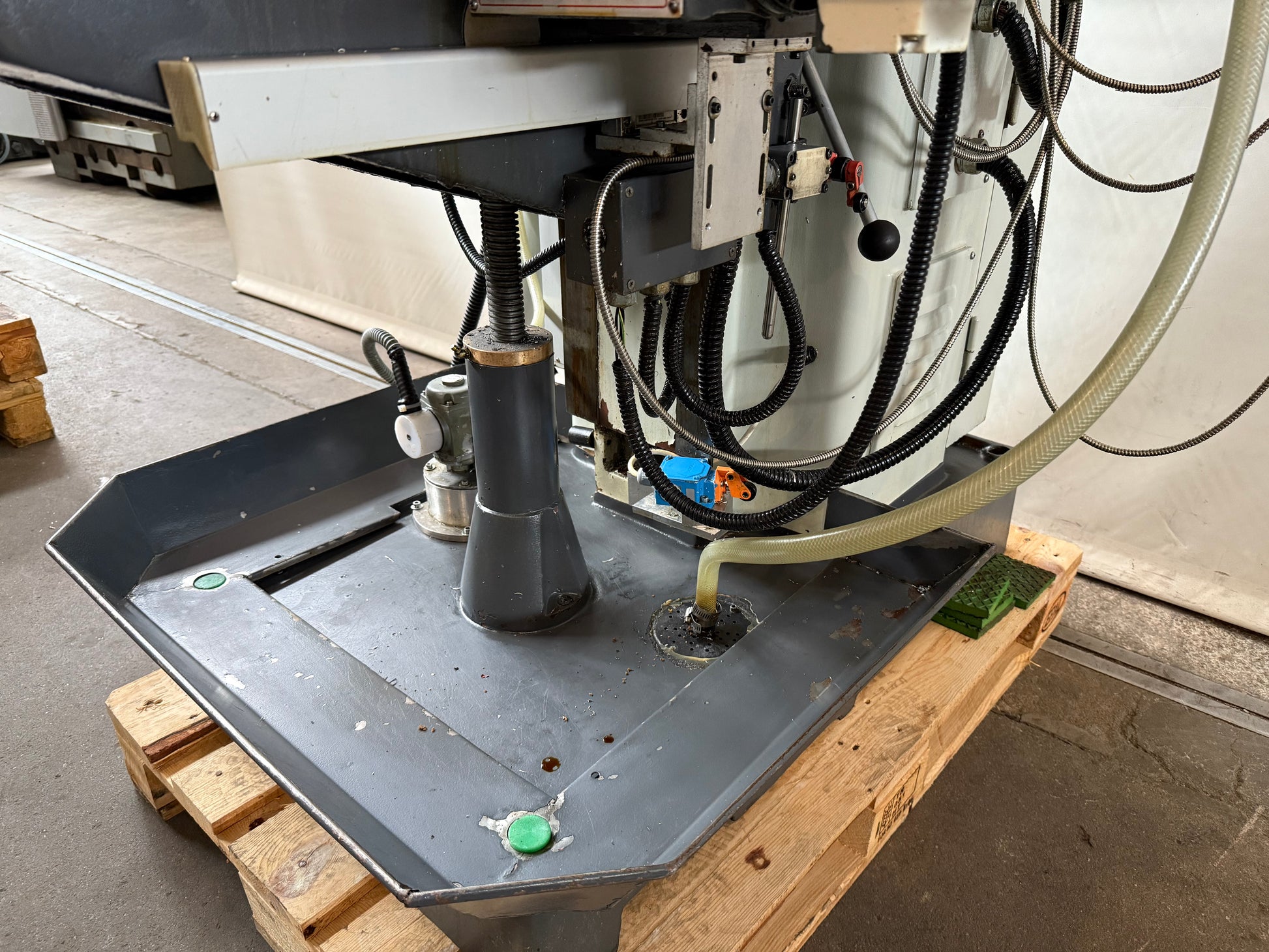

| Coolant system | |

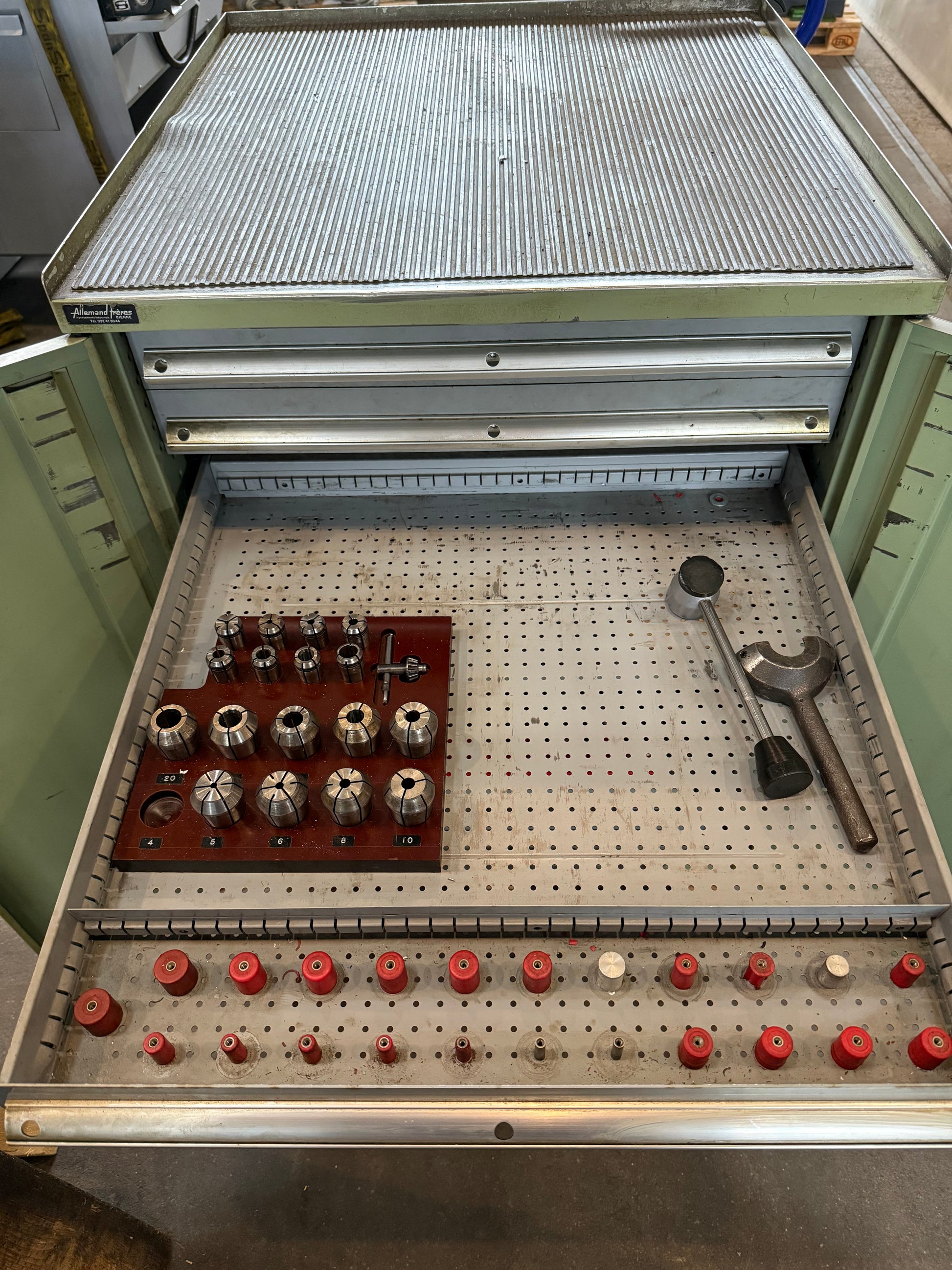

| Set of collets | |

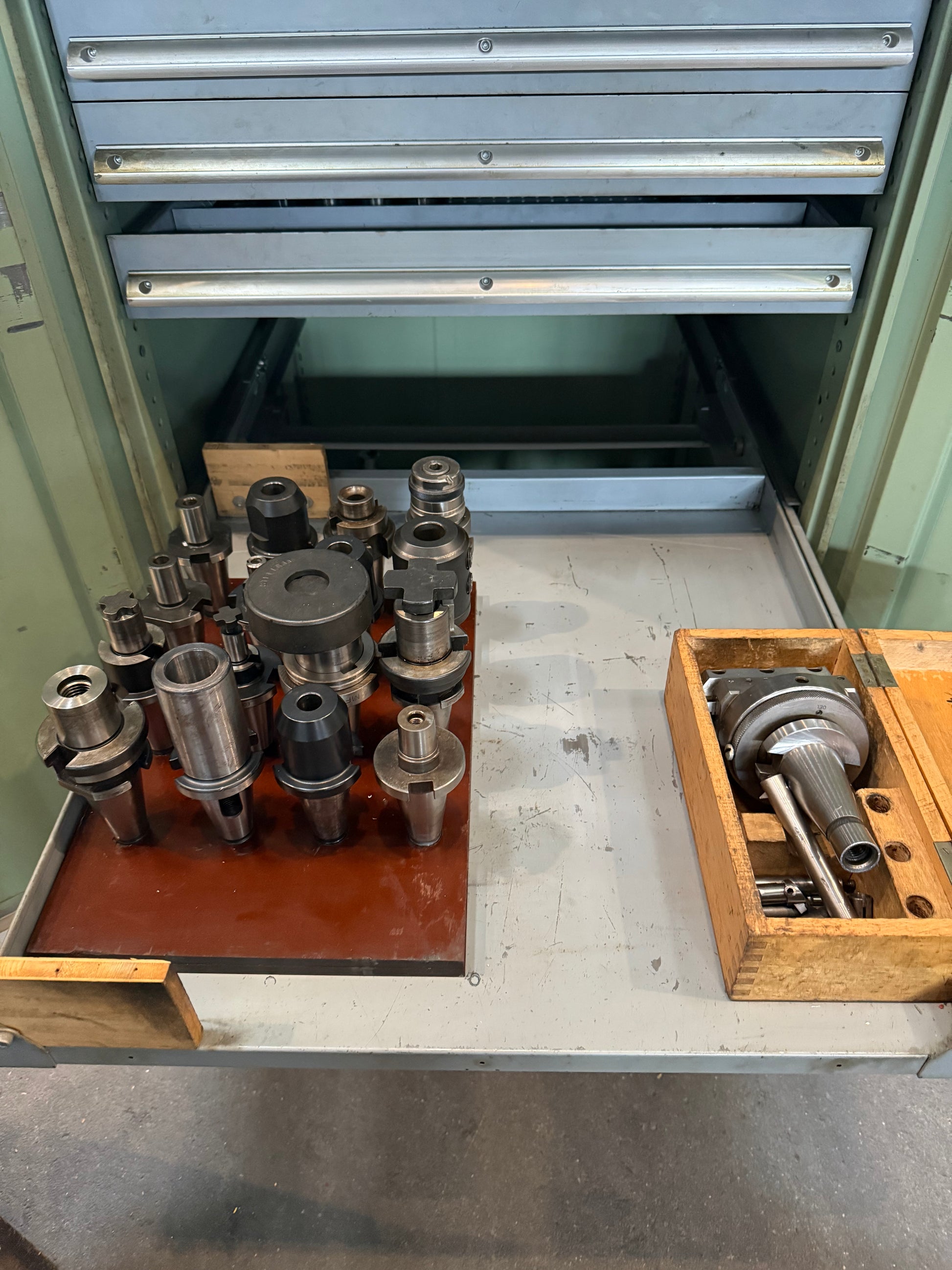

| Set of toolholders | |

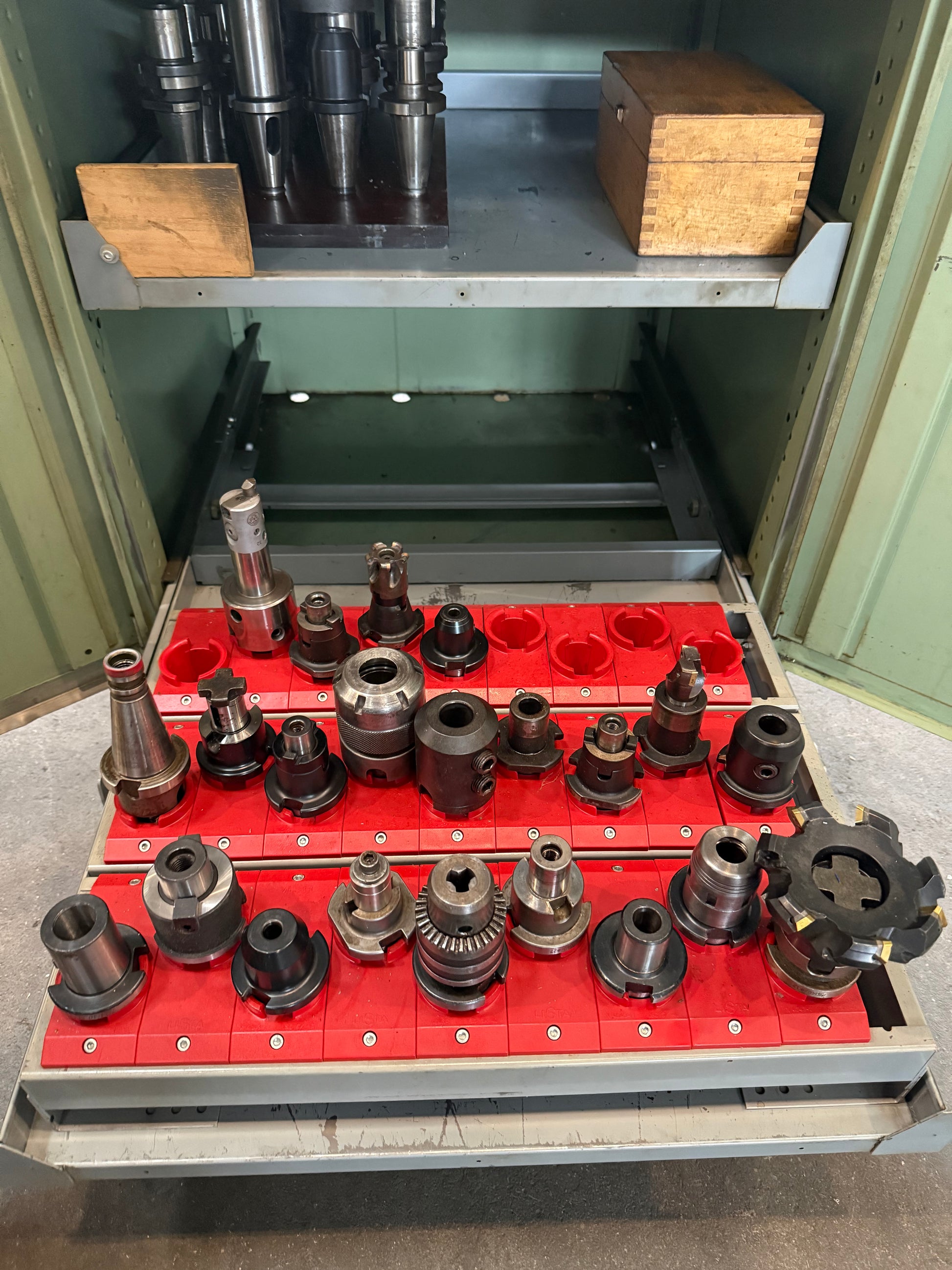

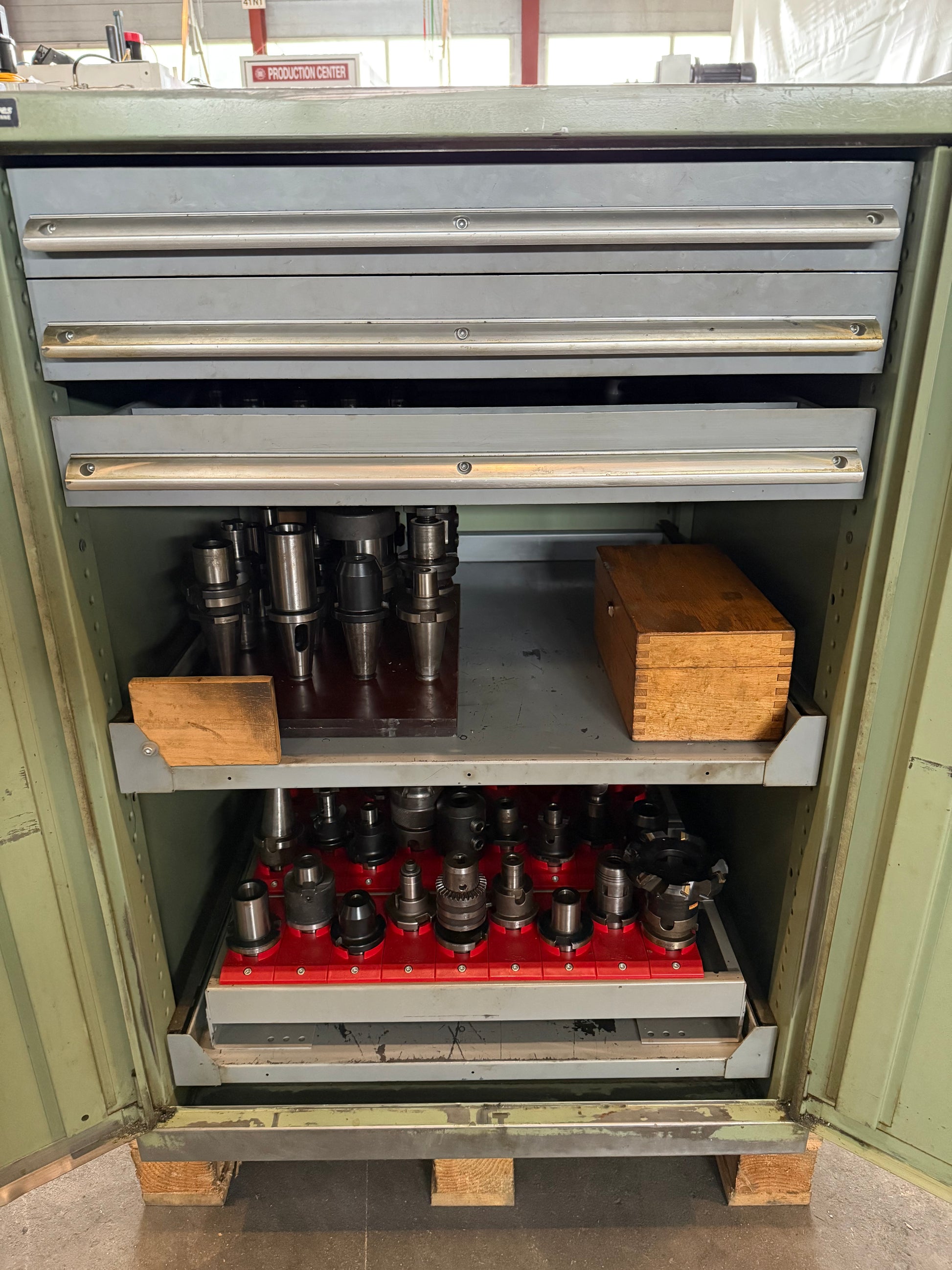

| Tool cabinet | |
| Lamp |
