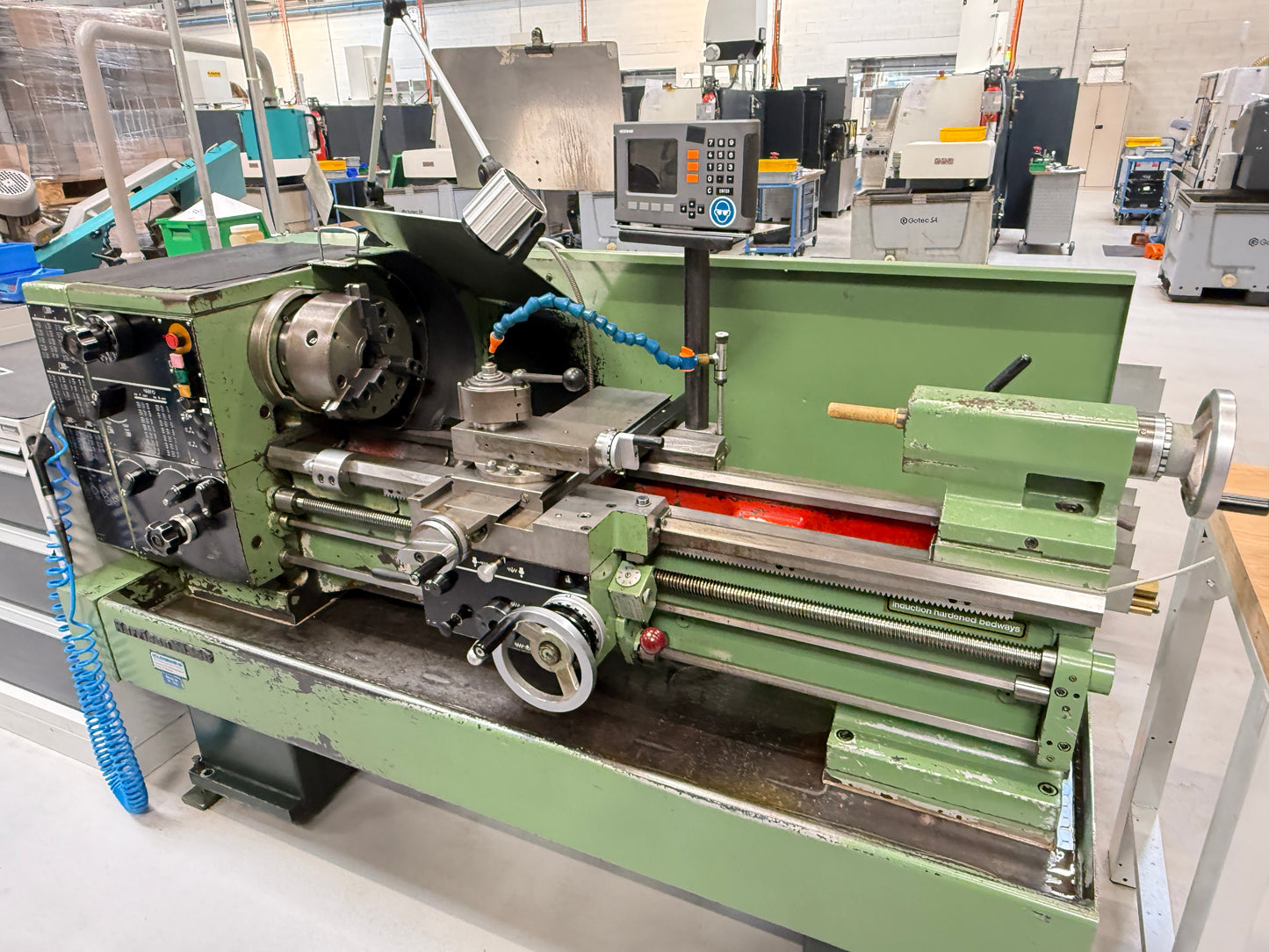

HARRISON M 350 is a Centre lathe of high precision, engineered for excellent accuracy and long-term reliability. Working capacities: centre height 190 mm, distance between centres 1000 mm, swing over cross-slide 230 mm, swing over bed 380 mm, spindle bore 54 mm, Camlock D1-6. Main specifications: 12 steps from 40 to 2250 rpm; longitudinal feeds 0.04–2.24 mm/rev, cross feeds 0.02–1.12 mm/rev; spindle motor 5.5 kW; 3x380 V 50 Hz; weight ≈1800 kg; overall 2200×1000×1400 mm; digital readout for 3 axes. Equipment: 3-jaw chuck, folding three-jaw steady, MULTIFIX quick-change toolholder. Delivers tight tolerances; suited to automotive, aerospace, watchmaking, precision engineering and medical sectors.
| Centre height | 190 mm |
| Distance between centres | 1000 mm |
| Swing over cross-slide | 230 mm |
| Swing over bed | 380 mm |
| Spindle hole | 54 mm |
| Taper in spindle: | |
| Camlock | D1-6 |
| Spindle speeds: | |
| number (steps) | 12 |
| from | 40 t/min |
| up to | 2250 t/min |
| Feeds: | |
| stepless | |
| length: | |
| from | 0.04 mm/t |
| up to | 2.24 mm/t |
| Frontal: | |
| from | 0.02 mm/t |
| up to | 1.12 mm/t |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 5.5 kW |
| Machine's weight about | 1800 kg |
| Overall dimensions machine: | |
| Length | 2200 mm |
| Width | 1000 mm |
| Height | 1400 mm |

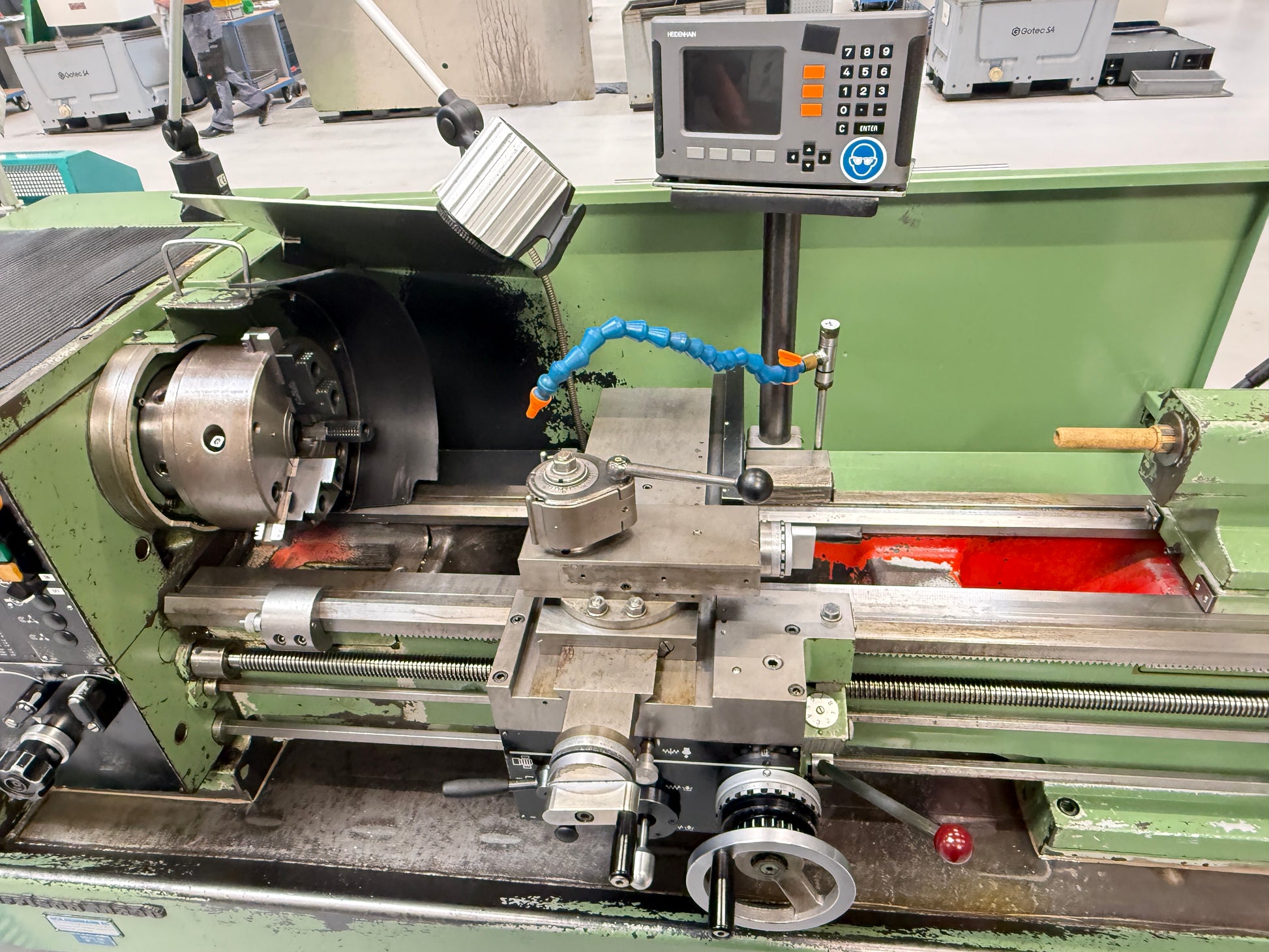

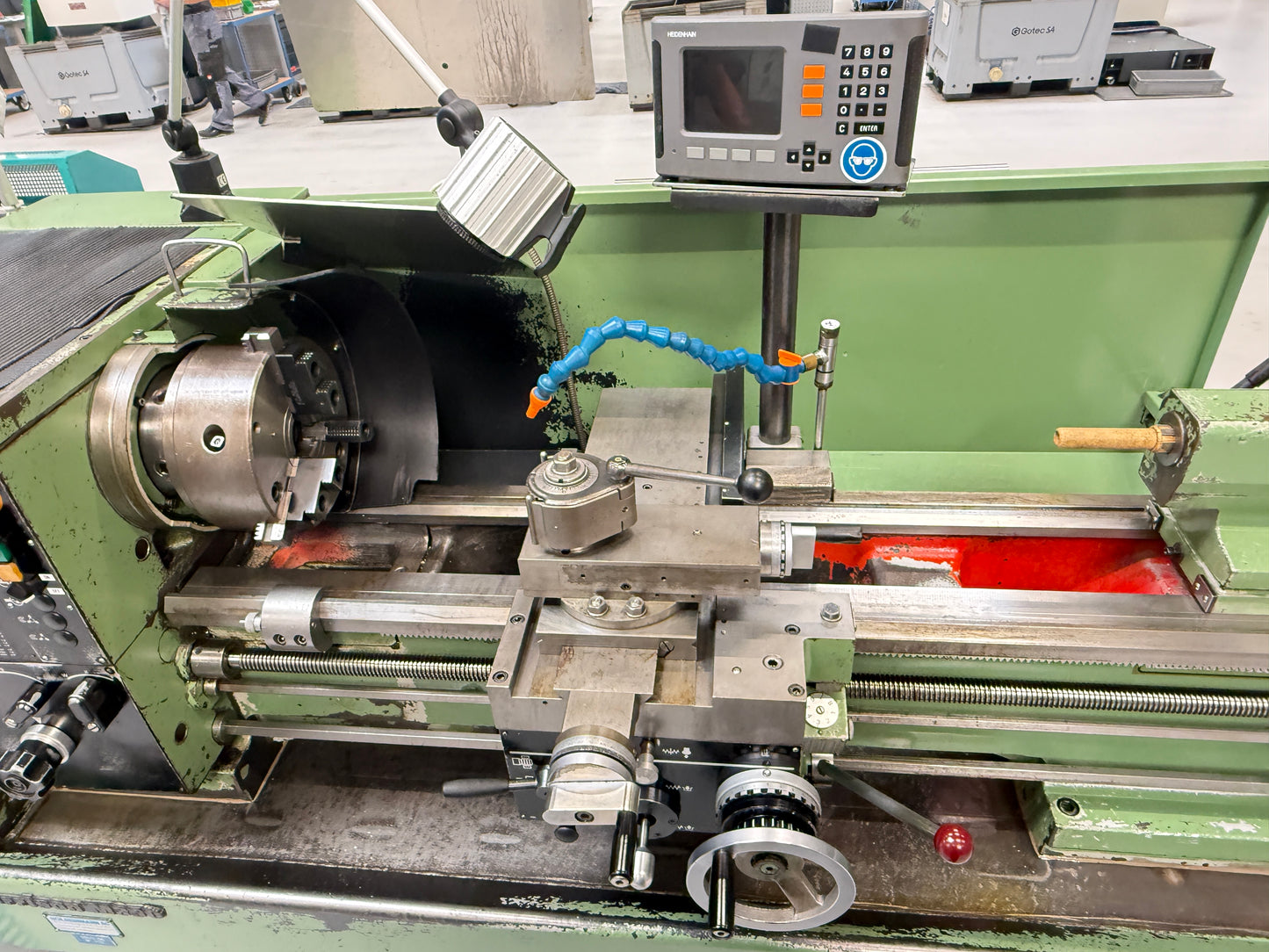

| Digital readout number of axis: | 3 |
| 3-jaw chuck | |

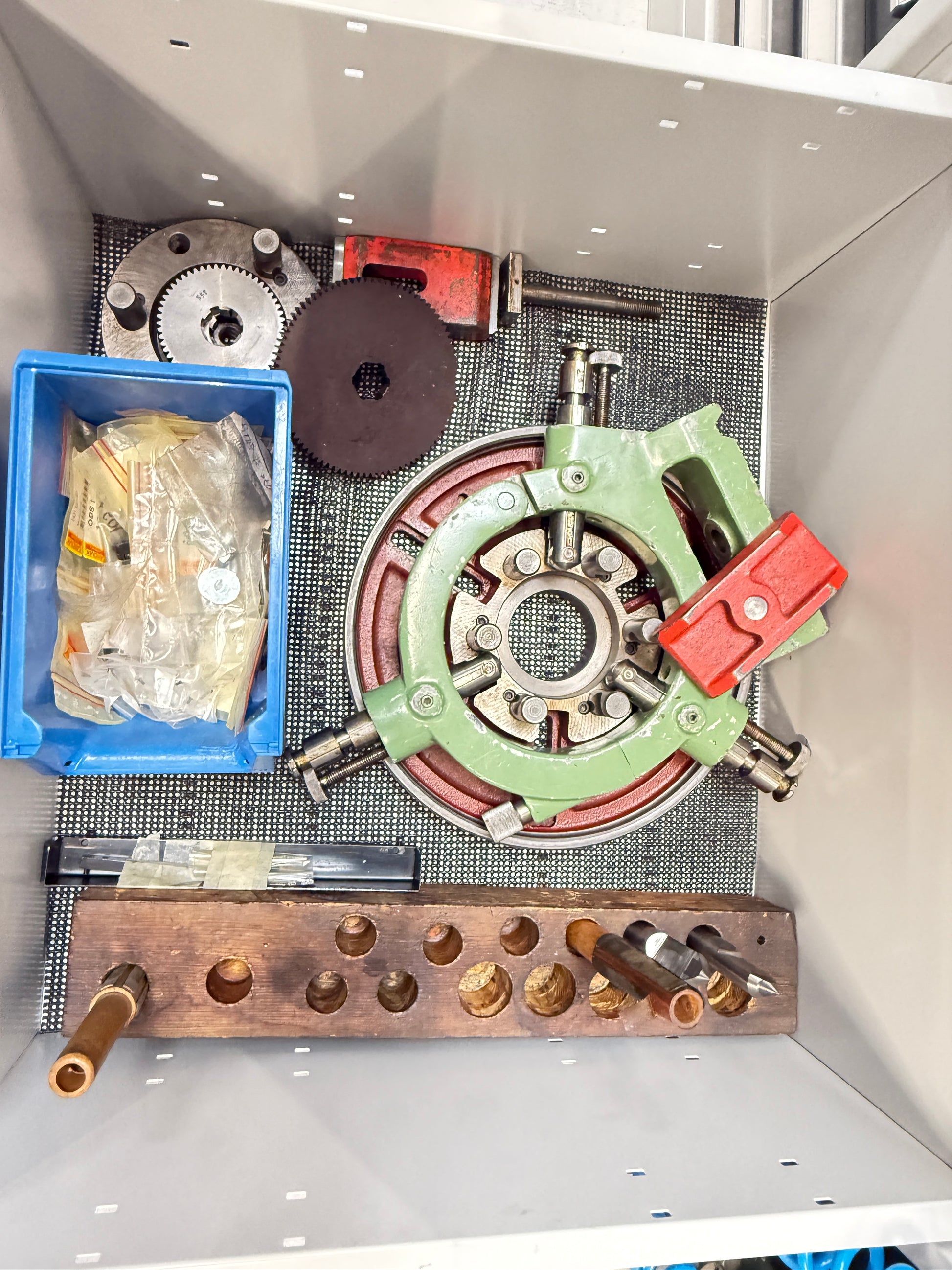

| Three-jaw bezel folds open | |

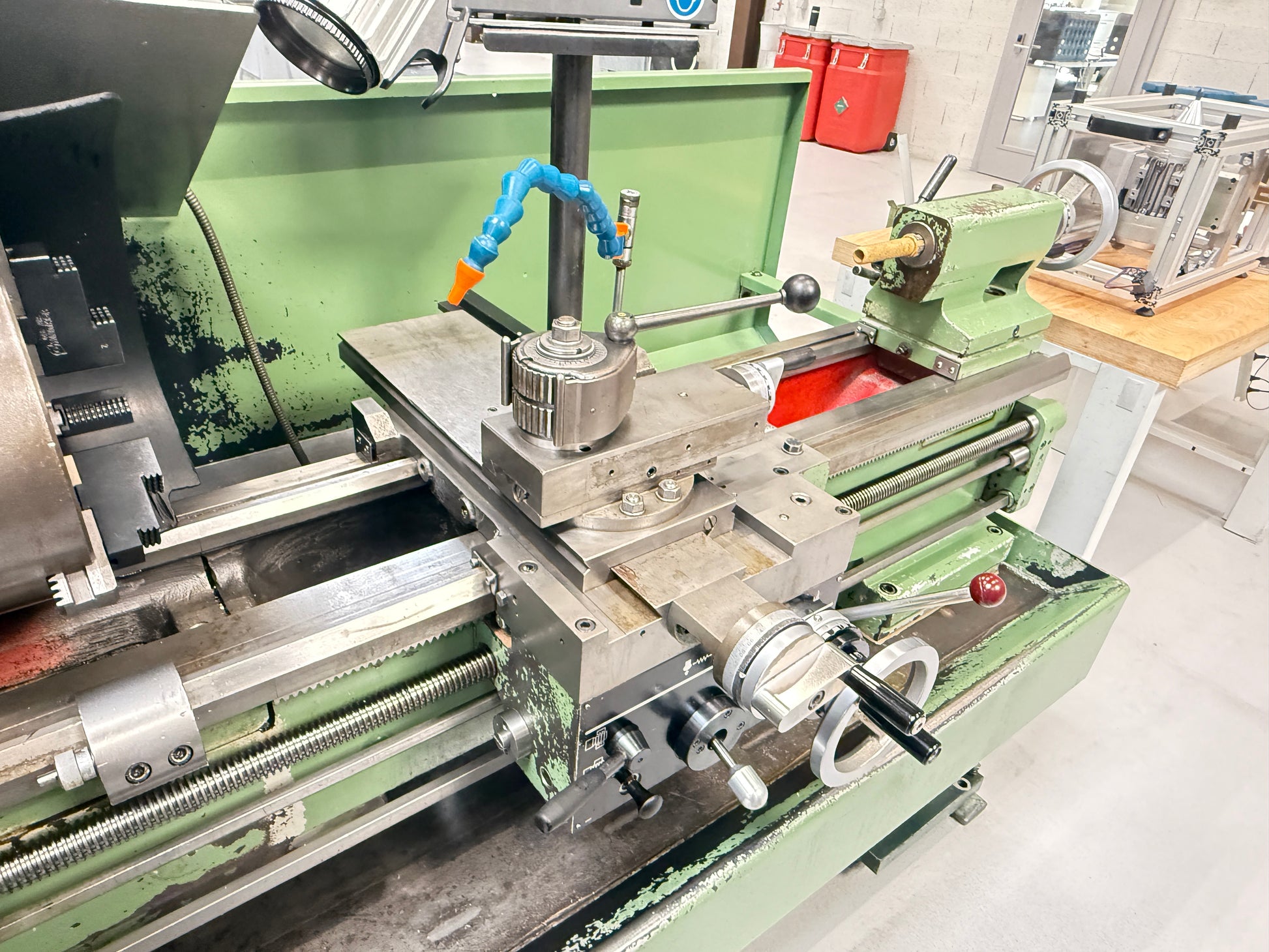

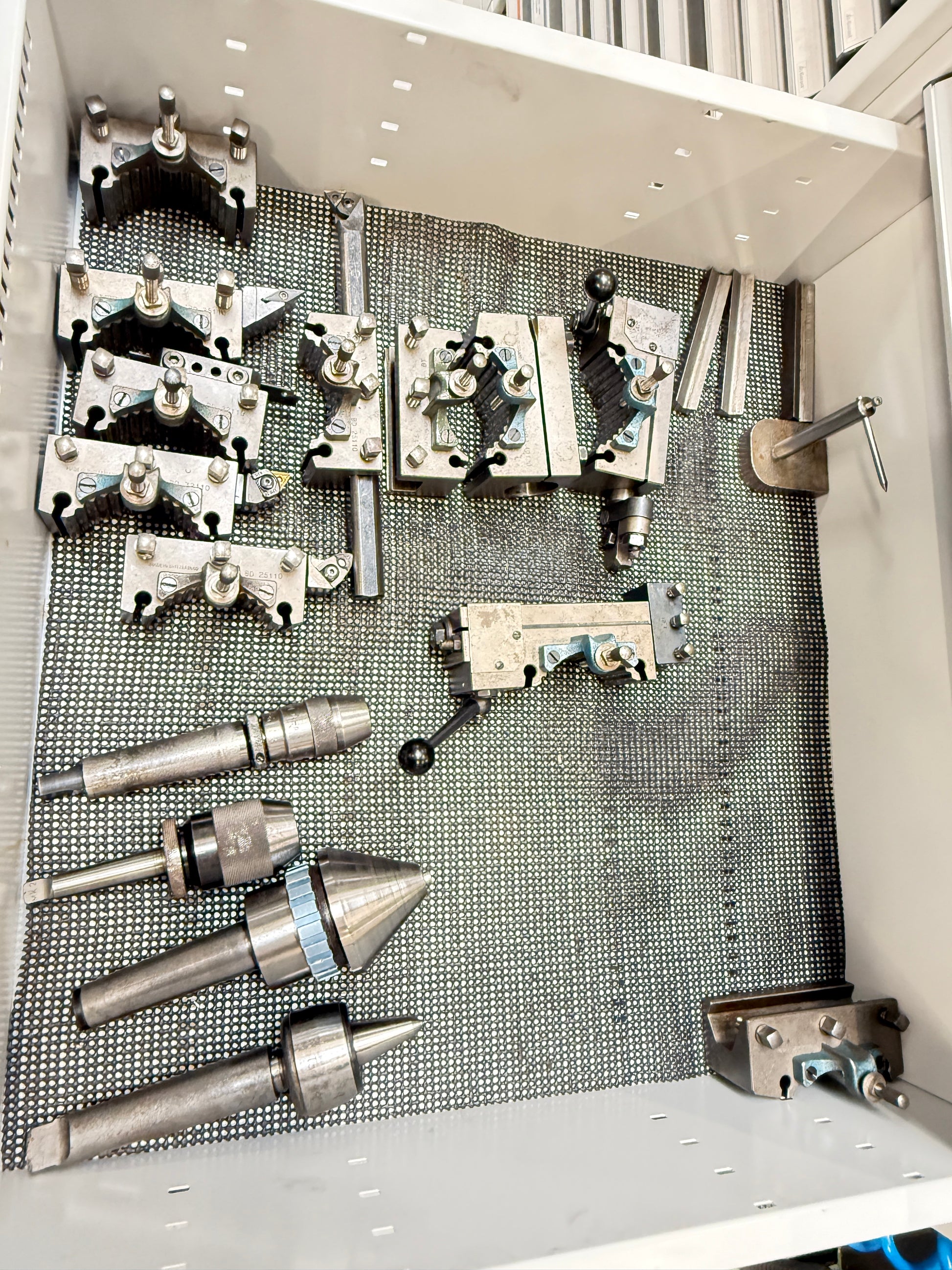

| Quick-change toolholder MULTIFIX |
