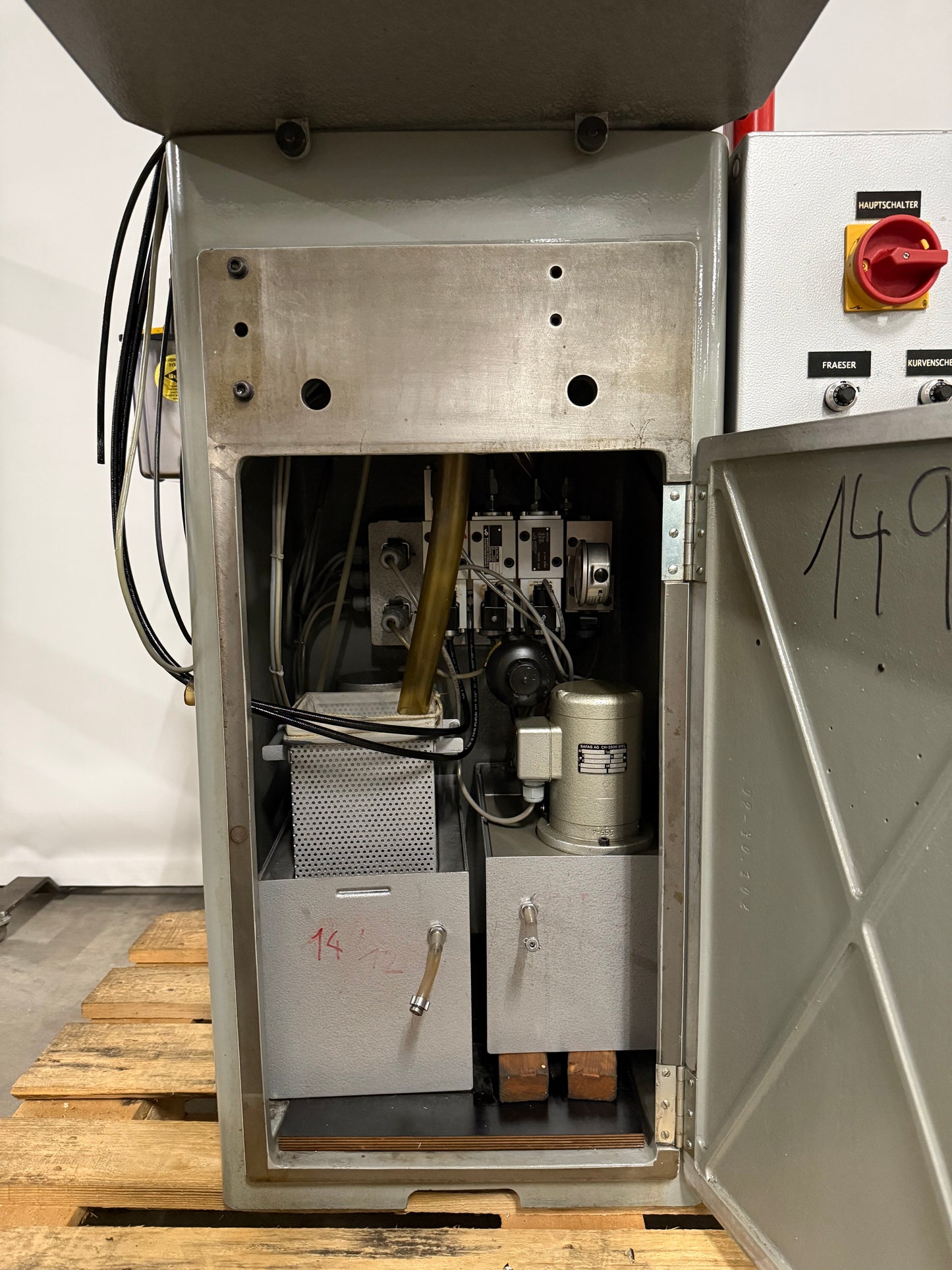

WAHLI W 92 is a Hobbing machine engineered for precision, high accuracy and reliable production. Work capacity: max Ø 10 mm, max module 0.5, workpiece length max 35 mm, gear width max 15 mm, teeth 6–180; distance piece-to-tool 0–28 mm. Gear hob Ø max 24 mm; cutter speeds: 6 steps from 850 to 4500 t/min. Voltage 50 Hz 3x 380 V, power 0.32 CV; machine weight ≈350 kg; dimensions L630×W530×H1350 mm. Accessories: PLC control, Strausak loader, deburring device, coolant system, central lubrication. Achieves tight tolerances; suited for automotive, watchmaking, machine tools, aerospace and medical.
| Work capacity:max. diameter | 10 mm |
| Max. module | 0.5 |
| Workpiece length max. | 35 mm |
| max. gear wheel width | 15 mm |
| Pitch min. | 6 |
| max. | 180 |
| Axes distance between work- | |
| piece and tool: | |
| min. | 0 mm |
| max | 28 mm |
| Gear hob: | |
| max. diameter | 24 mm |
| Milling cutter speeds: | |
| number (steps) | 6 |
| from | 850 t/min |
| up to | 4500 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 0.32 CV |
| Machine's weight about | 350 kg |
| Overall dimensions machine: | |
| Length | 630 mm |
| Width | 530 mm |
| Height | 1350 mm |
| Various accessories: | |
| PLC control | |
| Loader Strausak | |
| Deburring device | |
| Coolant system | |
| Central lubrification |
