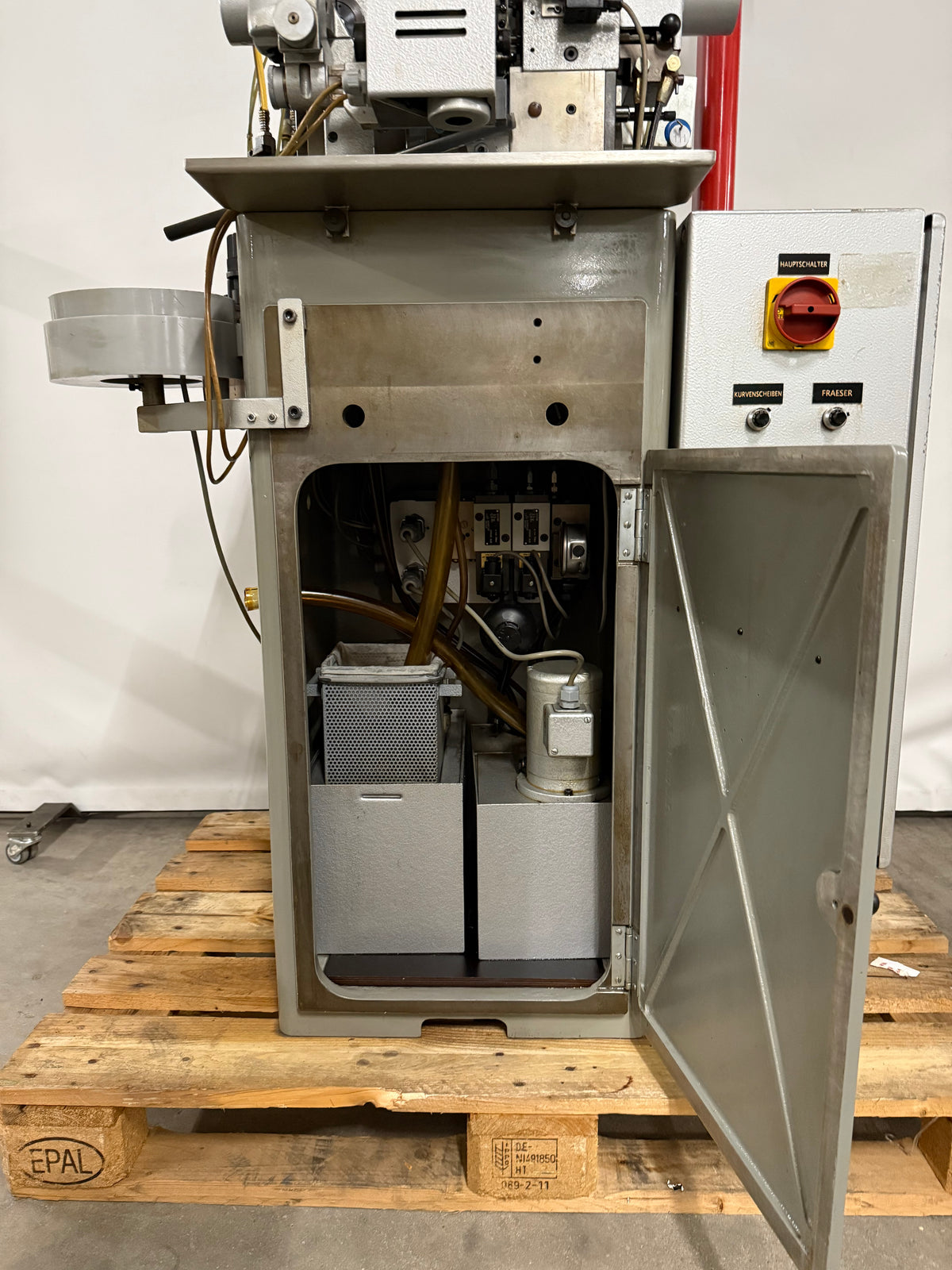

WAHLI W 92 is a Hobbing machine for precision, high accuracy and reliability. Capacity: max Ø 10 mm; max module 0.5; workpiece length 35 mm; gear width 15 mm; teeth 6–180; piece–tool distance 0–28 mm. Hob Ø24 mm, 6 speeds 850–4500 rpm. 50Hz 3×380V, 0.32 CV; ≈350 kg; 630×530×1350 mm. Accessories: PLC control, Wahli loader W20, parts catcher, deburring, coolant, central lubrication. Enables tight tolerances; sectors: automotive, watchmaking, machine tools, aerospace, medical.
| Work capacity:max. diameter | 10 mm |
| Max. module | 0.5 |
| Workpiece length max. | 35 mm |
| max. gear wheel width | 15 mm |
| Pitch min. | 6 |
| max. | 180 |
| Axes distance between work- | |
| piece and tool: | |
| min. | 0 mm |
| max | 28 mm |
| Gear hob: | |
| max. diameter | 24 mm |
| Milling cutter speeds: | |
| number (steps) | 6 |
| from | 850 t/min |
| up to | 4500 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 0.32 CV |
| Machine's weight about | 350 kg |
| Overall dimensions machine: | |
| Length | 630 mm |
| Width | 530 mm |
| Height | 1350 mm |
| Various accessories: | |
| PLC control | |
| Loader Wahli | W20 |
| Parts catcher | |
| Deburring device | |
| Coolant system | |
| Central lubrification |
