| Centre height | 230 mm |
| Distance between centres | 1500 mm |
| Max. grinding diameter | 450 mm |
| Workpiece weight on centres max. | 120 kg |
| Grinding wheel: | |
| Diameter | 508 mm |
| Width | 80 mm |
| Bore | 203.2 mm |
| max. grinding wheel width | 100 mm |
| Rotatable grinding spindle head (b-axis) | -15 / +195 ° |
| Peripheral speed | 50 m/s |
| Max. table angular displacement | 7 ° |
| Air connect | bar |
| Grinding spindle motor | 8.2 kW |
| Total power required | 30 kW |
| Machine's weight about | 6500 kg |
| Overall dimensions machine: | |
| Length | 3000 mm |
| Width | 1800 mm |
| Height | 2500 mm |

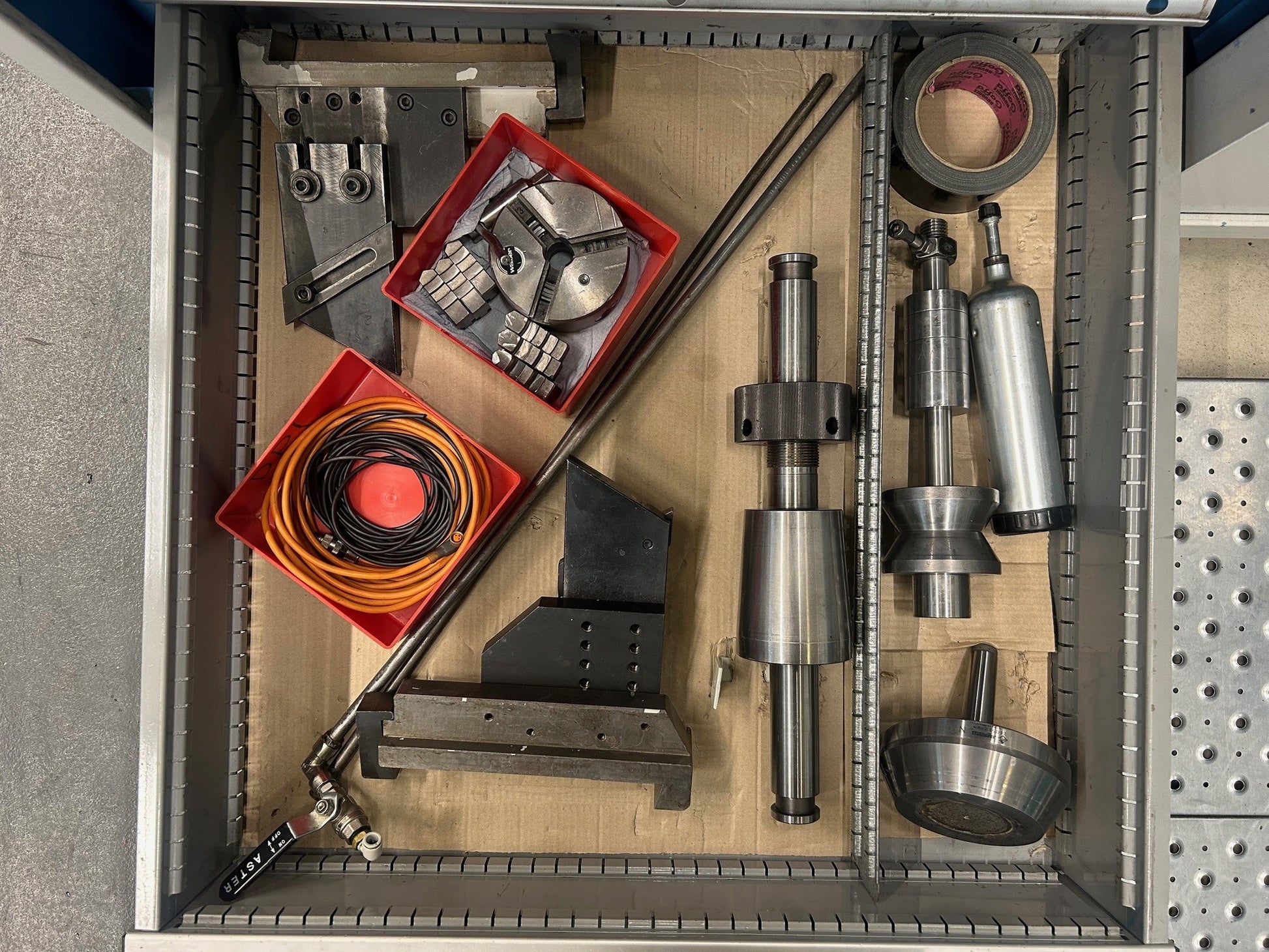

| Various accessories: | |
| Coolant system | |
| Measuring head MARPOSS | |
| Redressing device | |
| Spindlecooling | |

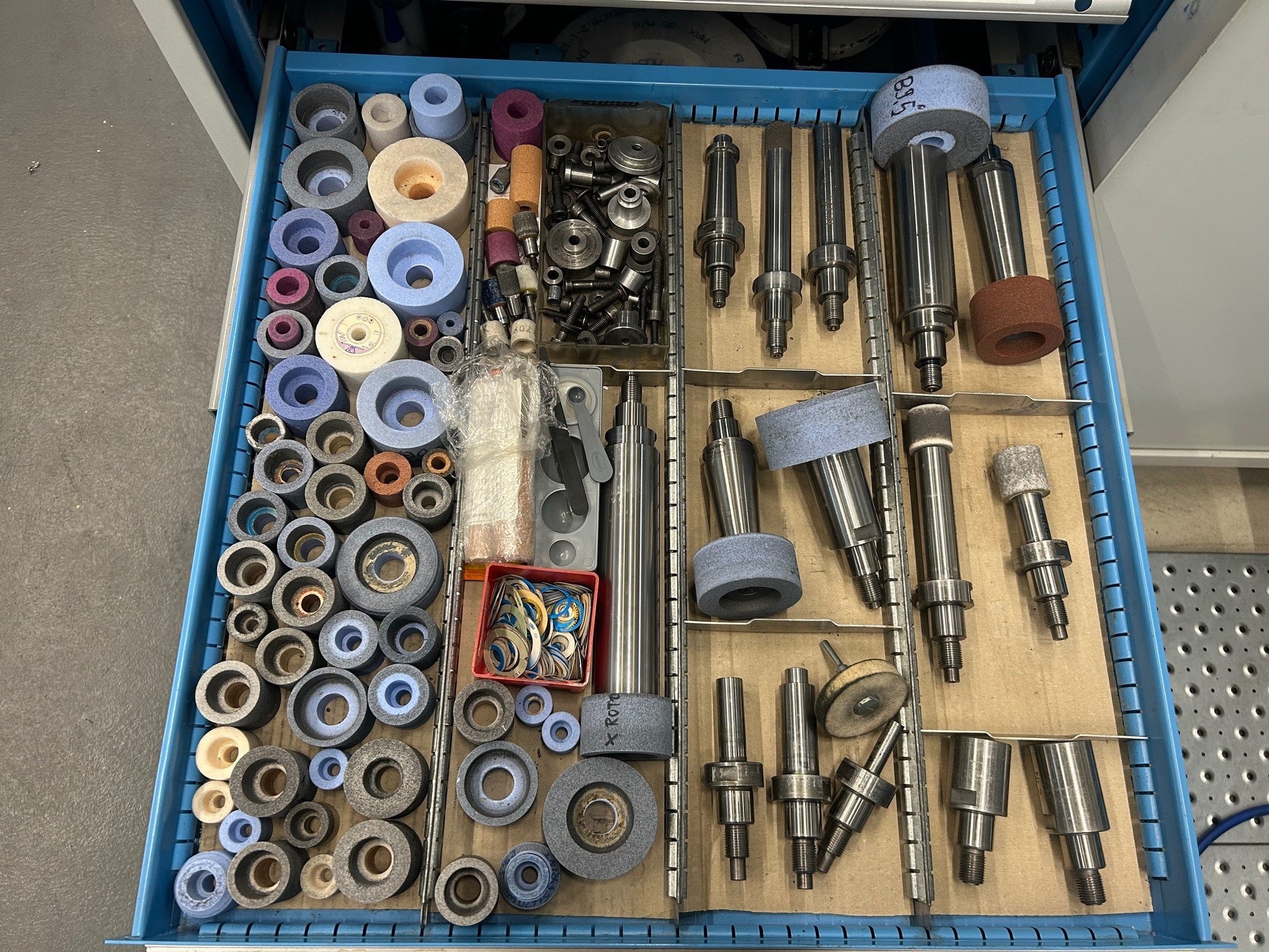

| Set of flanges for internal grinding | |
| Flange for grinding wheel | 3 |

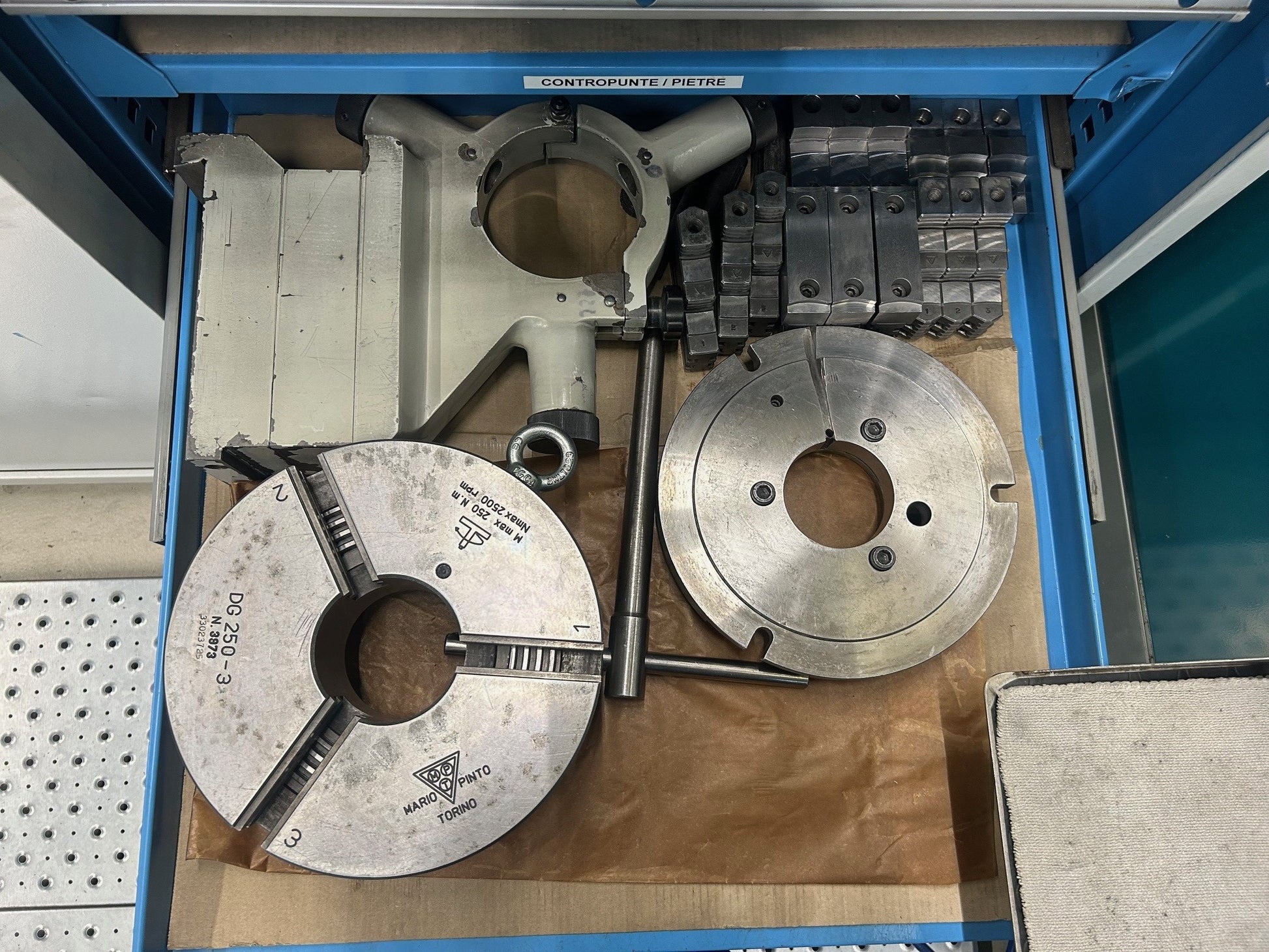

| 3-jaw chuck | |
| Lamp | |
| Interface Ethernet | |
| Quick closing attachment | |

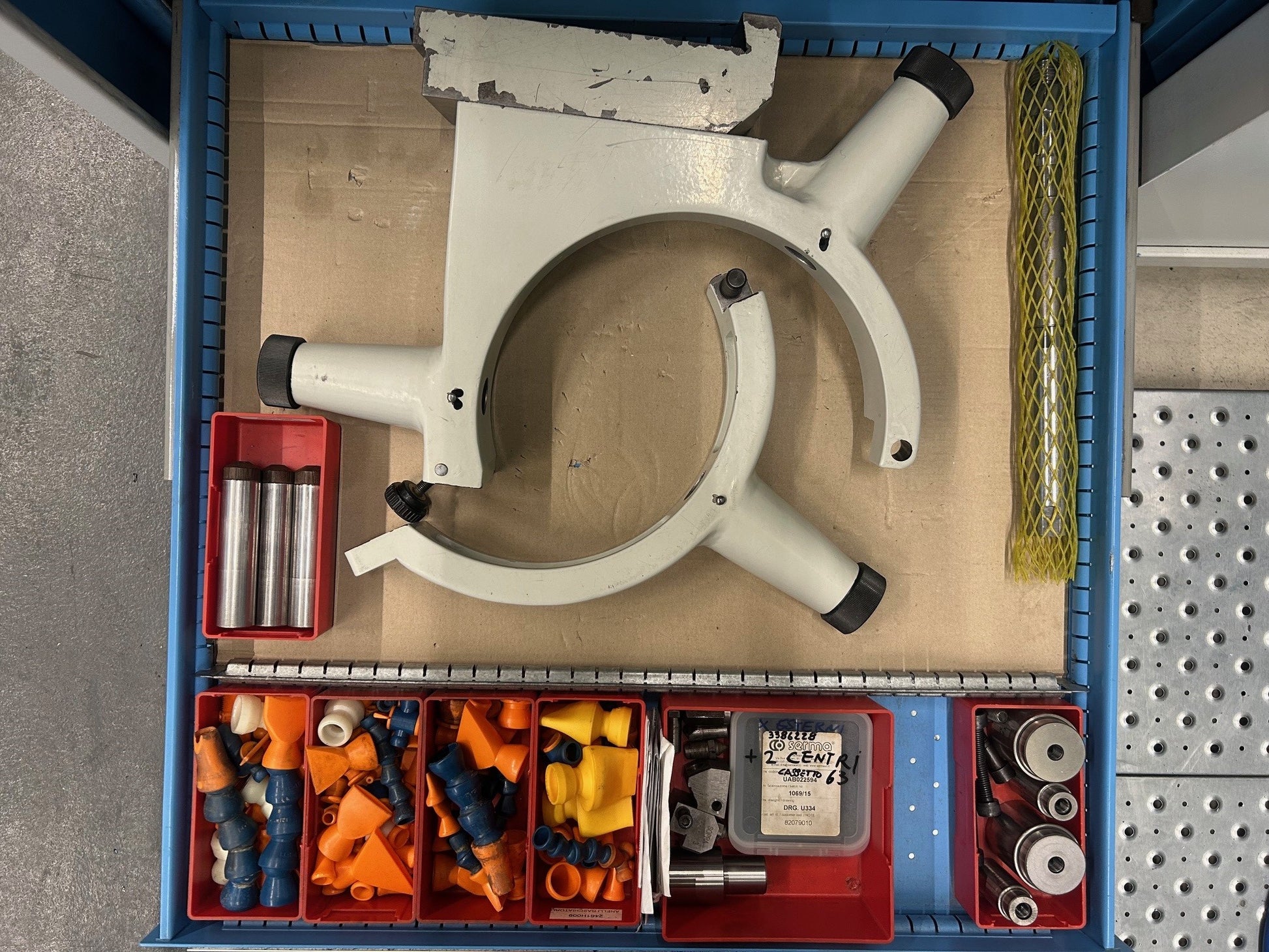

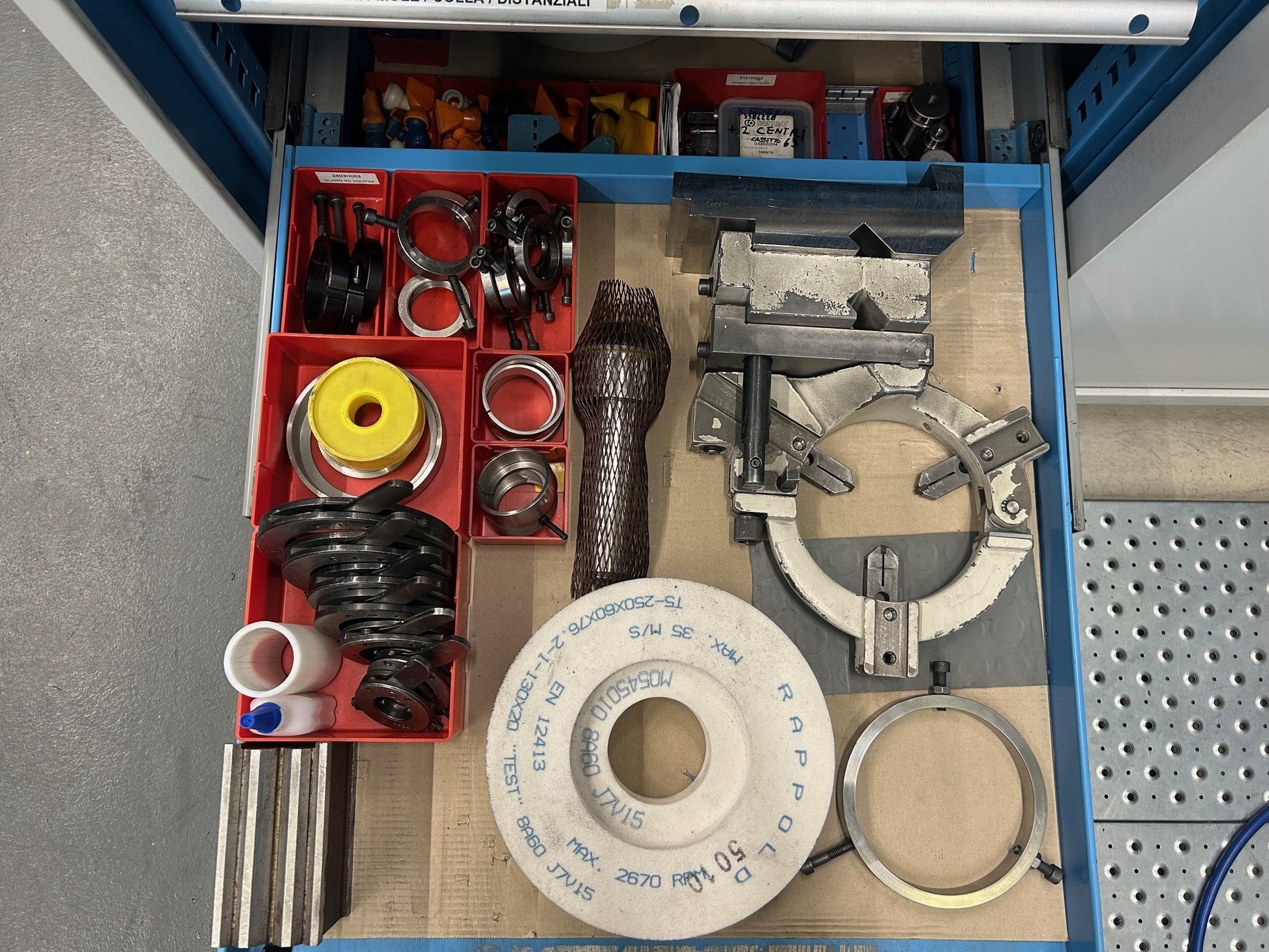

| Closed steady for diameter | 6 - 100 / 99 - 175 mm |
| Workpiece counter | |
