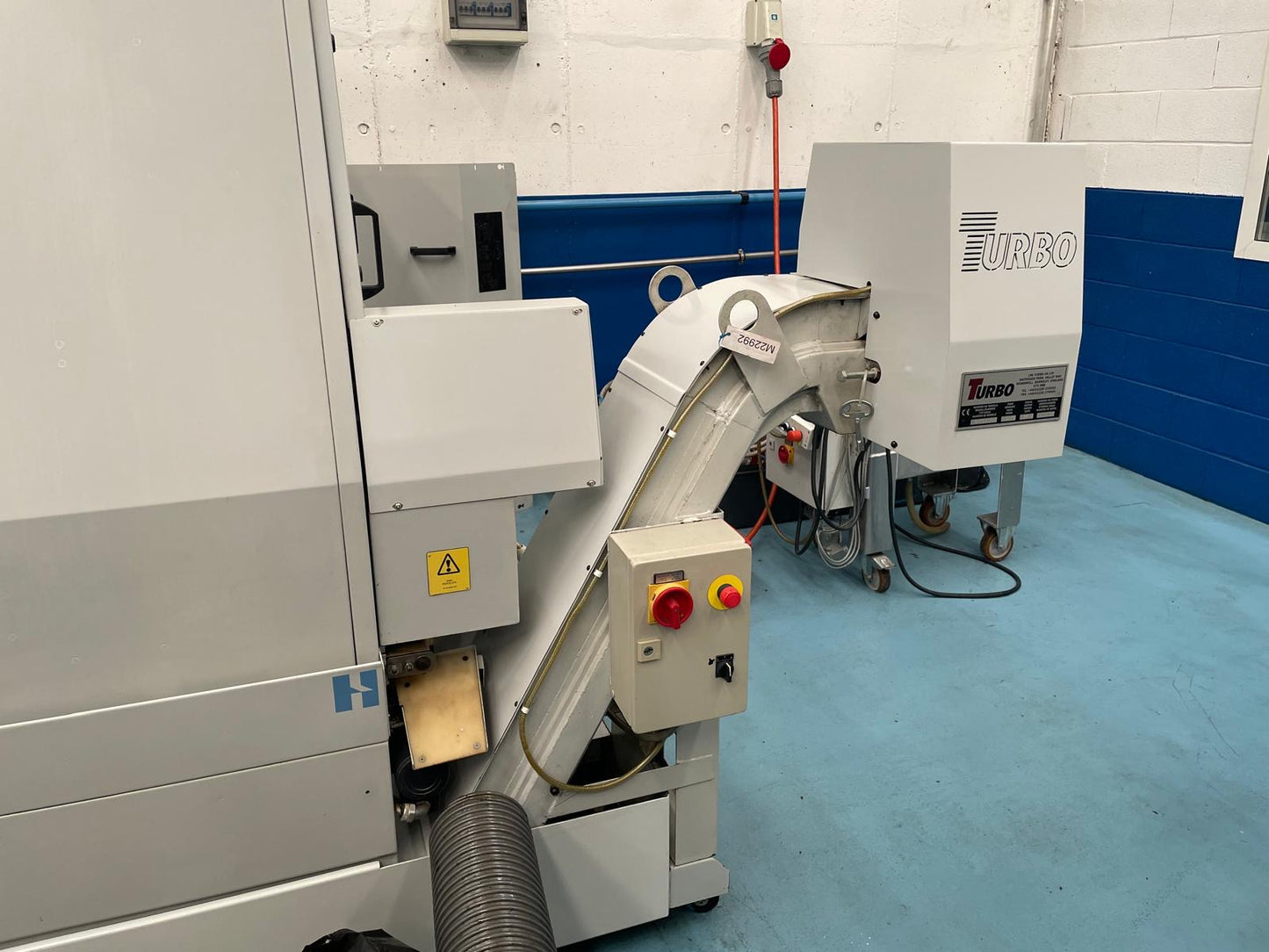

HARDINGE QUEST 65 SP is a CNC turning lathe engineered for high precision, accuracy and reliability. Swing over bed 519 mm; spindle hole 74.5 mm; bar passage 65 mm; max turning length 609.6 mm; max turning diameter 228.6 mm. Travels Z 609.6 mm, X 86.2 mm; rapid traverse Z 38 m/min, X 28 m/min; turret 12 positions. Spindle speeds 60–6000 t/min; spindle power 26 kW, torque 290 Nm; back spindle bore 42 mm, 7.5 kW, 47 Nm. Supply 50 Hz 3x 230 V; weight ≈5552 kg; dimensions L3844.3 x W943.1 x H905 mm. Accessories: 3-jaw chuck, coolant system, chip conveyor. Delivers tight tolerances; ideal for automotive, aerospace, medical, watchmaking and machine-tool sectors.

Technical specifications are subject to change without notice
