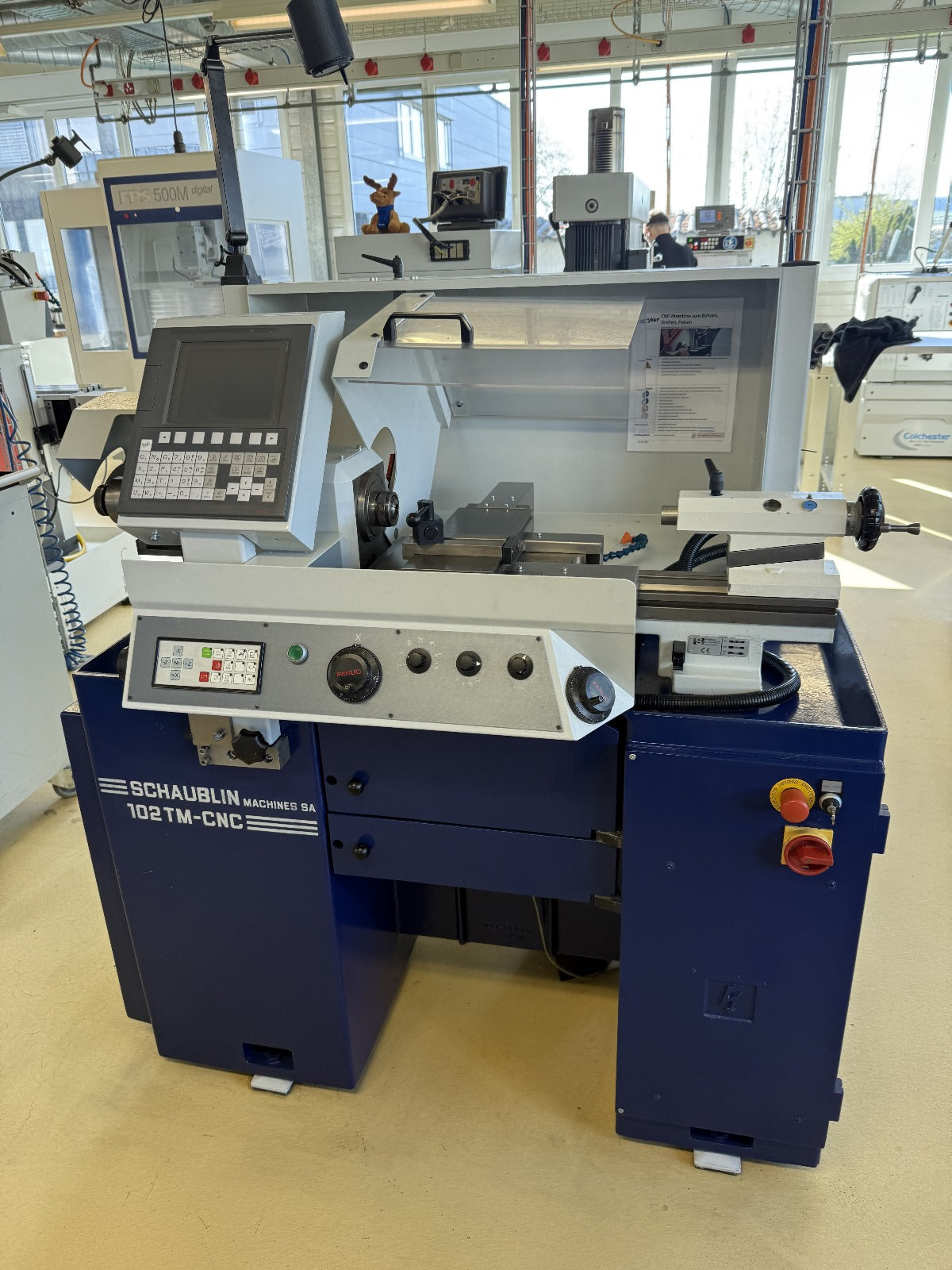

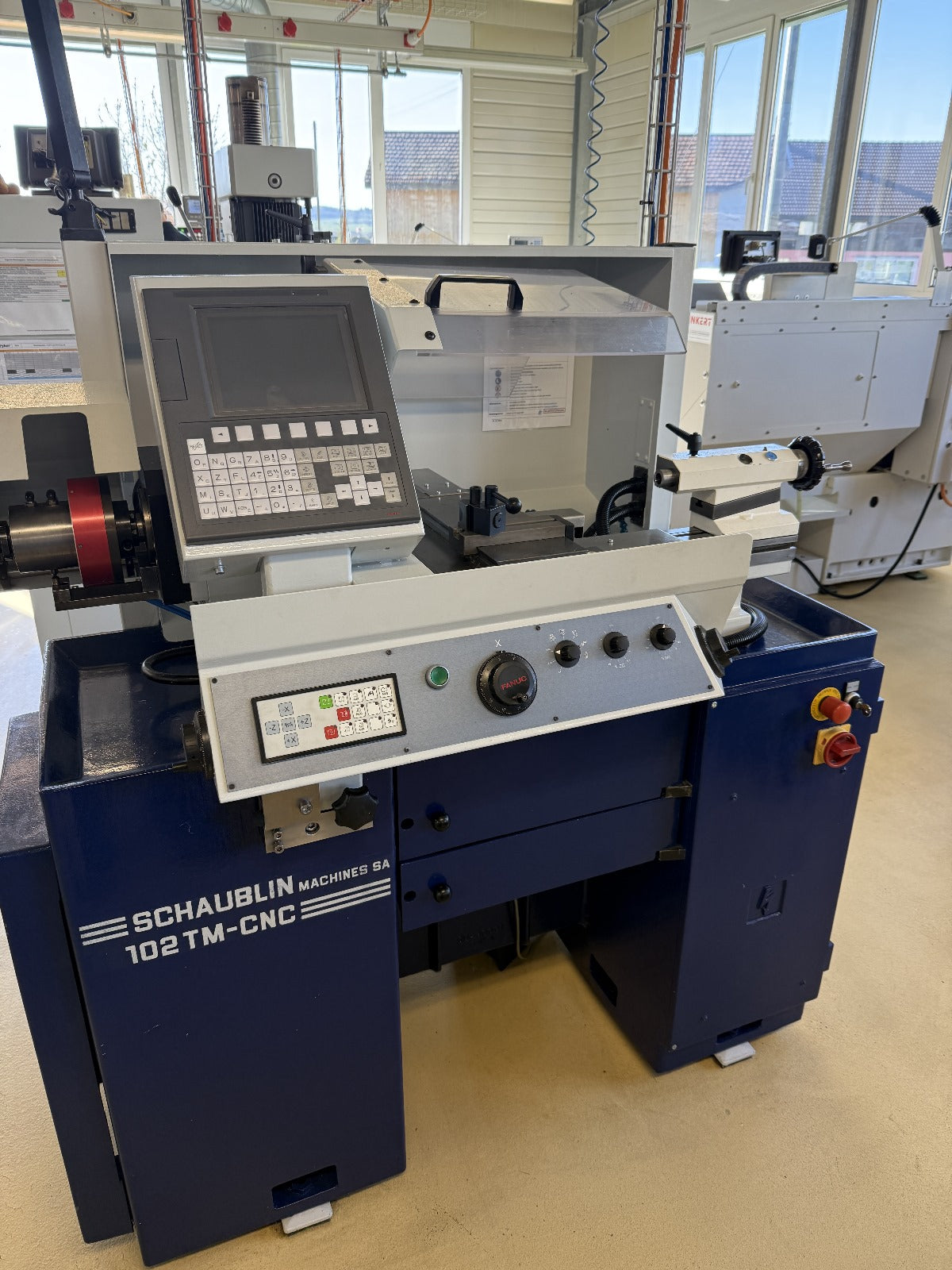

023241 - SCHAUBLIN 102 TM CNC
Manufacturer: SCHAUBLIN
Group: CNC turning lathe
Subgroup: CNC turning lathe
Type: 102 TM CNC

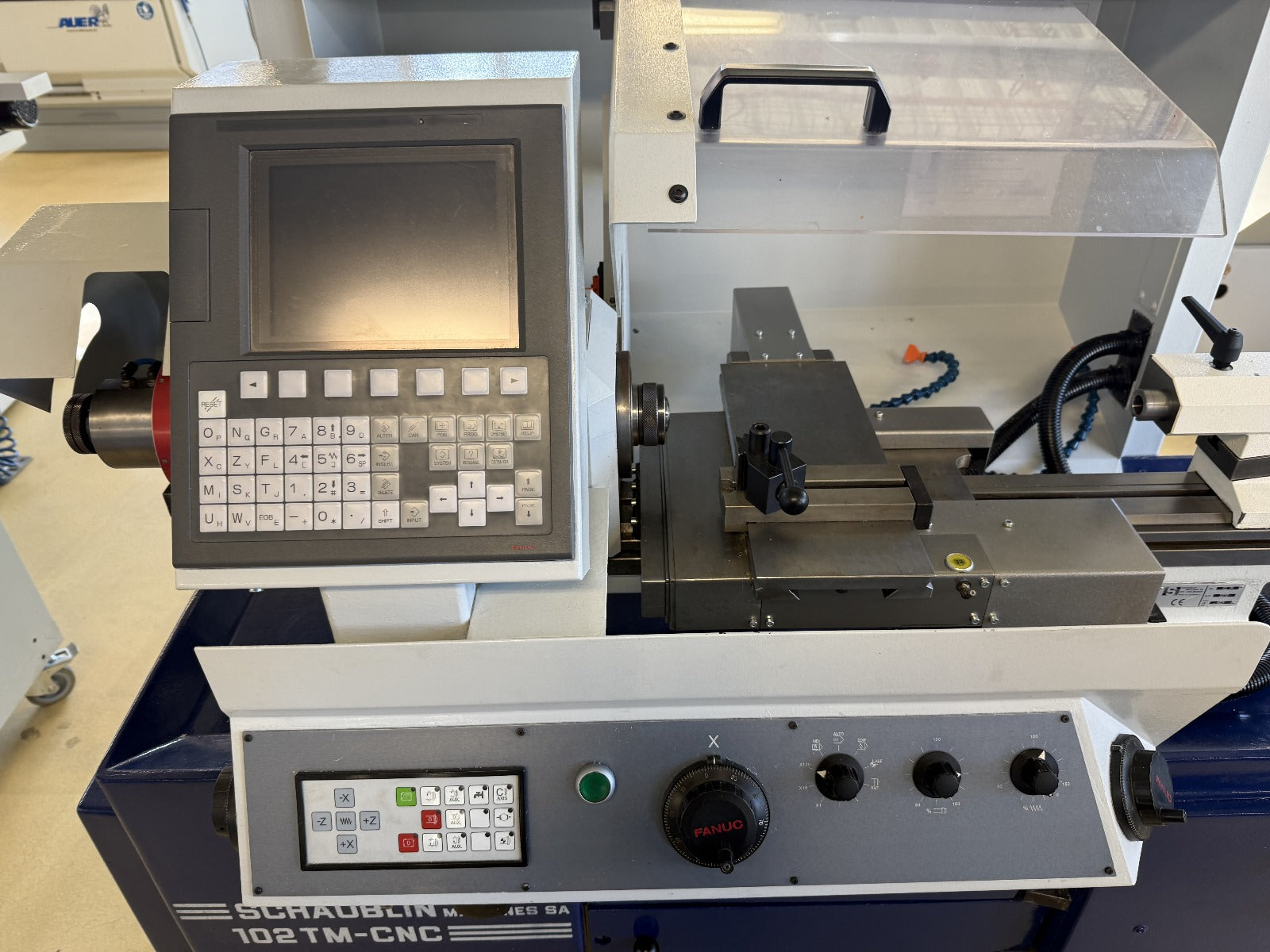

Control: GE FANUC Series Oi Mate-TO
Stock: 023241
Year: 2008
Number of axis total | 3 |
Centre height | 102 mm |
Swing over cross-slide | 75 mm |
Swing over bed | 125 mm |
Max. turning diameter | 19 mm |
Taper in spindle | W25 |
Spindle hole | 28.6 mm |
Turning length | 100 mm |

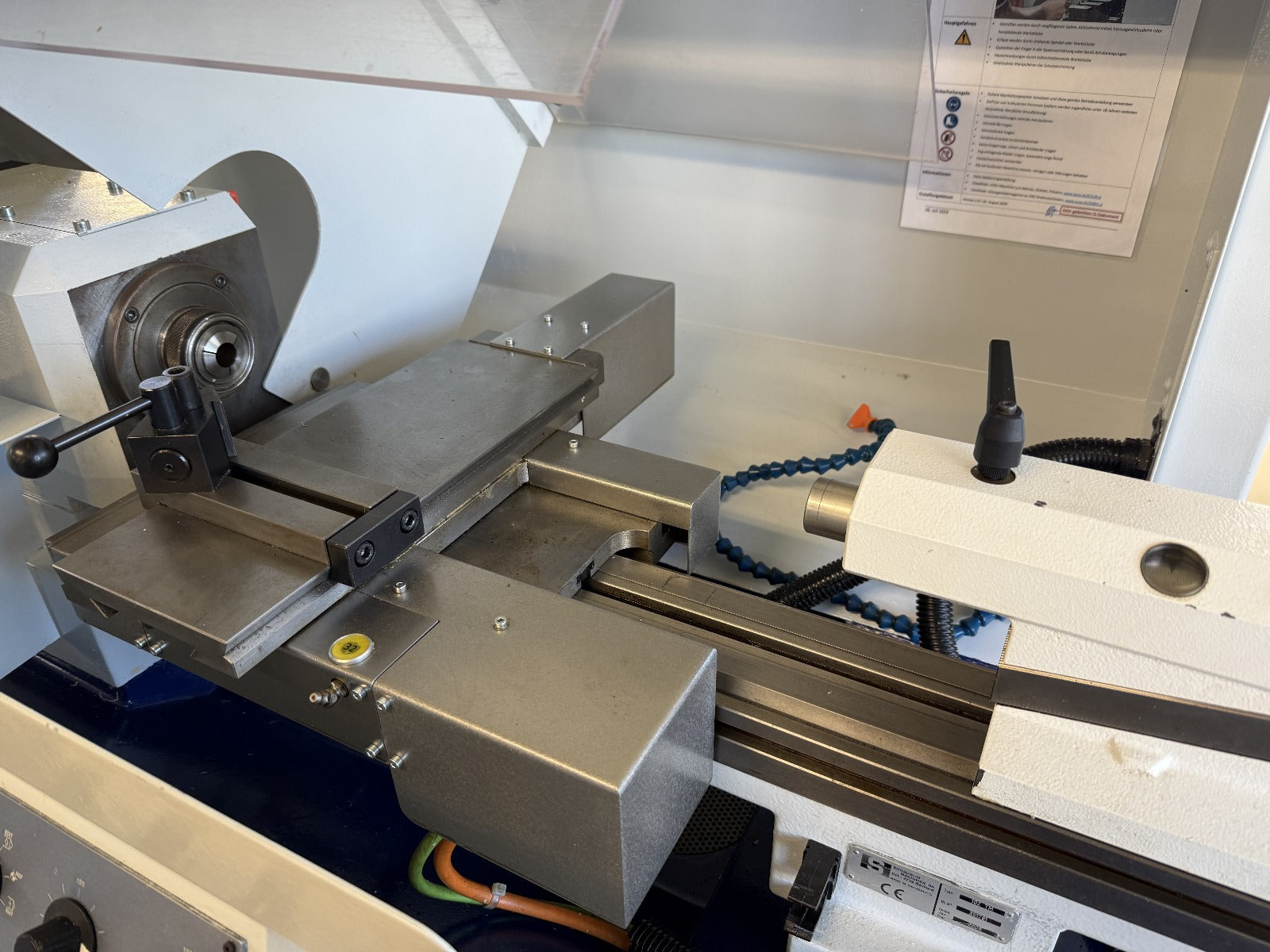

Carriage: | |
Longitudinal travel (Z-axis) | 100 mm |
Cross travel (x-axis) | 120 mm |
Main spindle: | |
C axis (spindle,resolution) | 0.0015 ° |
Spindle speeds: | |
stepless | |
from | 50 t/min |
up to | 8000 t/min |
Tailstock: | |
Morse taper | 2 CM |
Feeds: | |
longitudinal from | mm/min |
up to | 5000 mm/min |
transversal from | mm/min |
up to | 5000 mm/min |
Rapid traverse: | 7 m/min |
Spindle motor | 2.2 kW |
Voltage 50 Hz 3x | 380 Volt |
Total power required | 8 kVA |
Machine's weight about | 650 kg |
Overall dimensions machine: | |
Length | 1400 mm |
Width | 800 mm |
Height | 1470 mm |

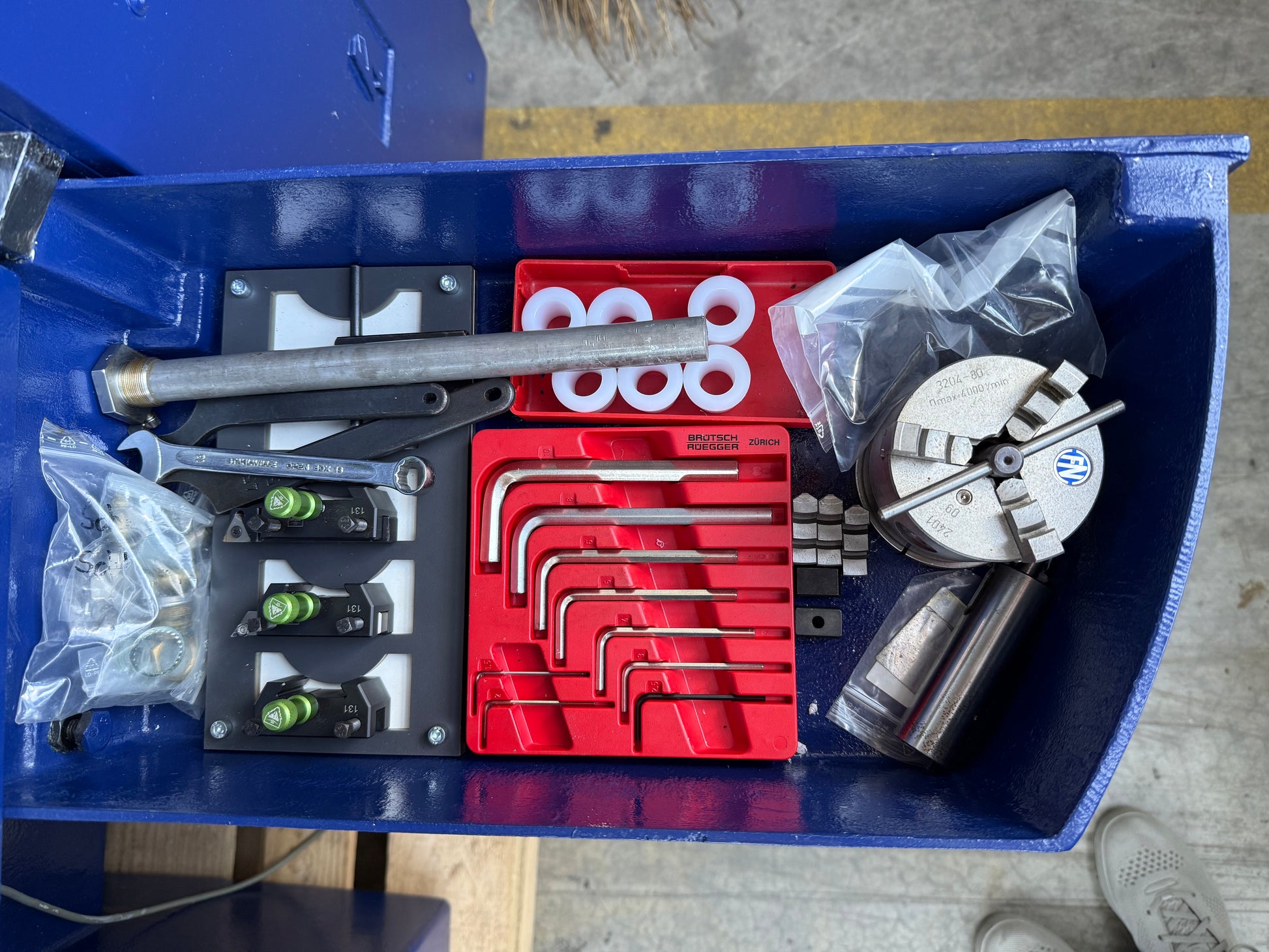

3-jaw chuck | |
Coolant system | |

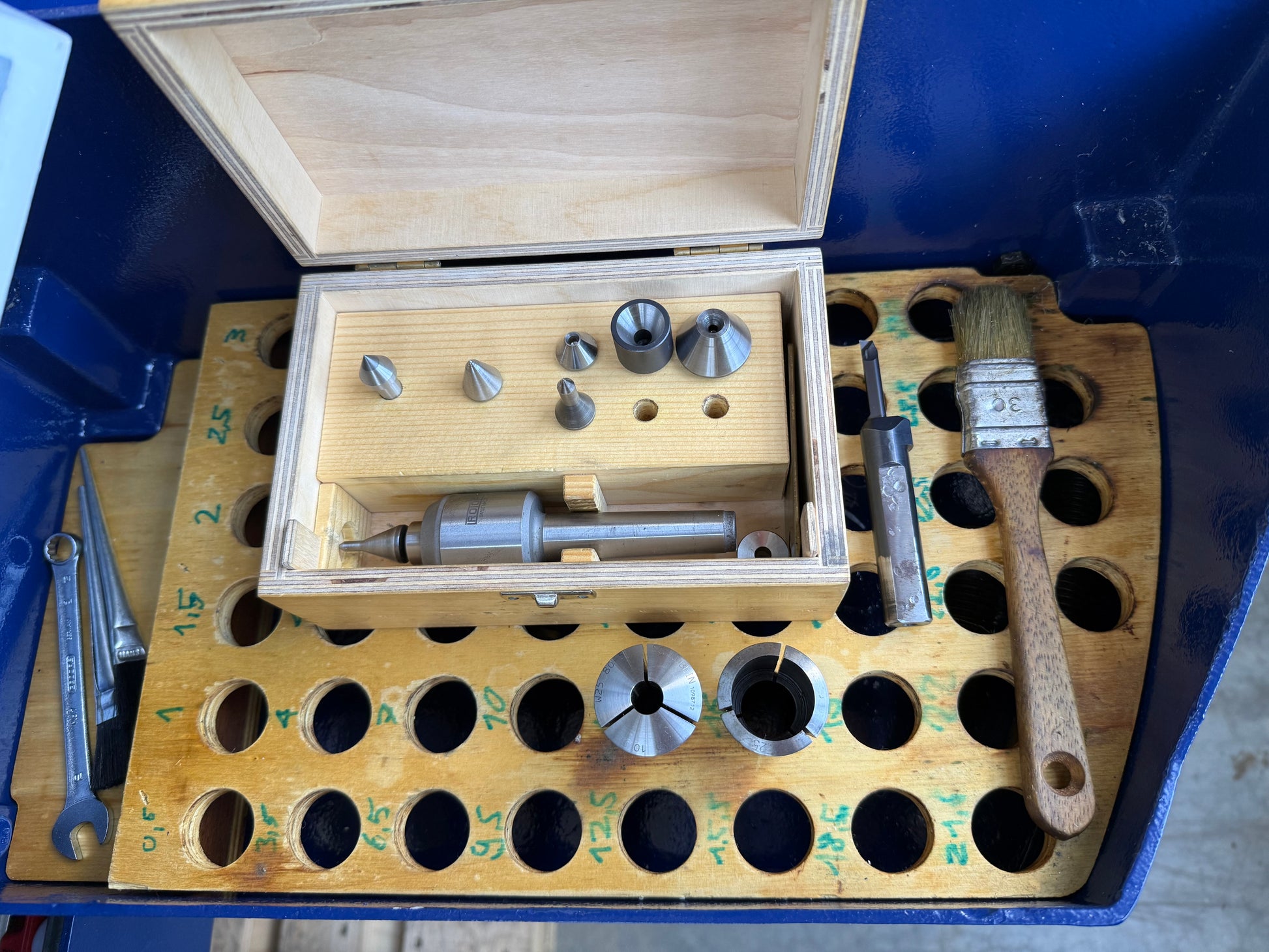

Set of centers | |
Quick change tool | TRIPAN |
Set of steel holders |
