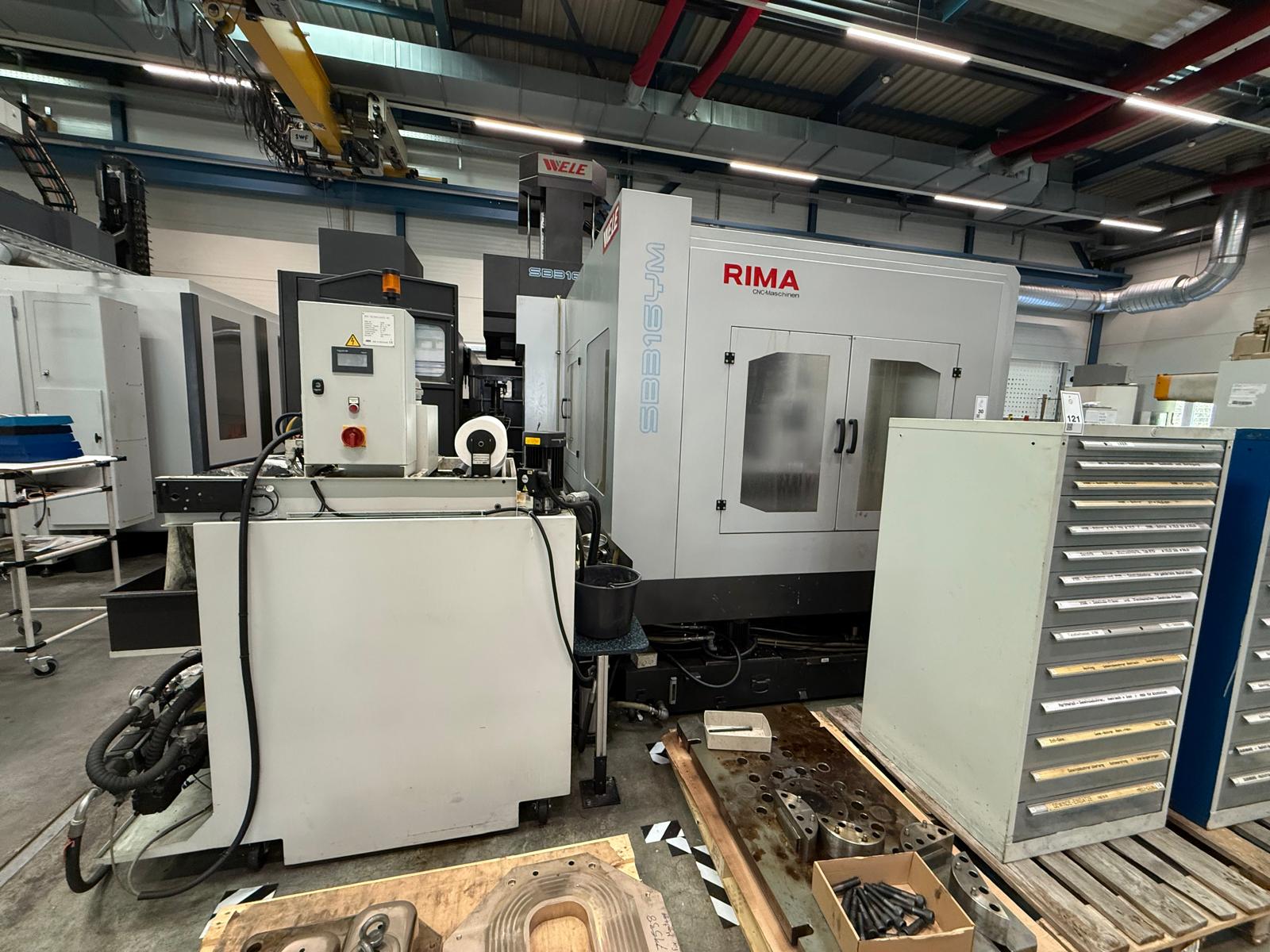

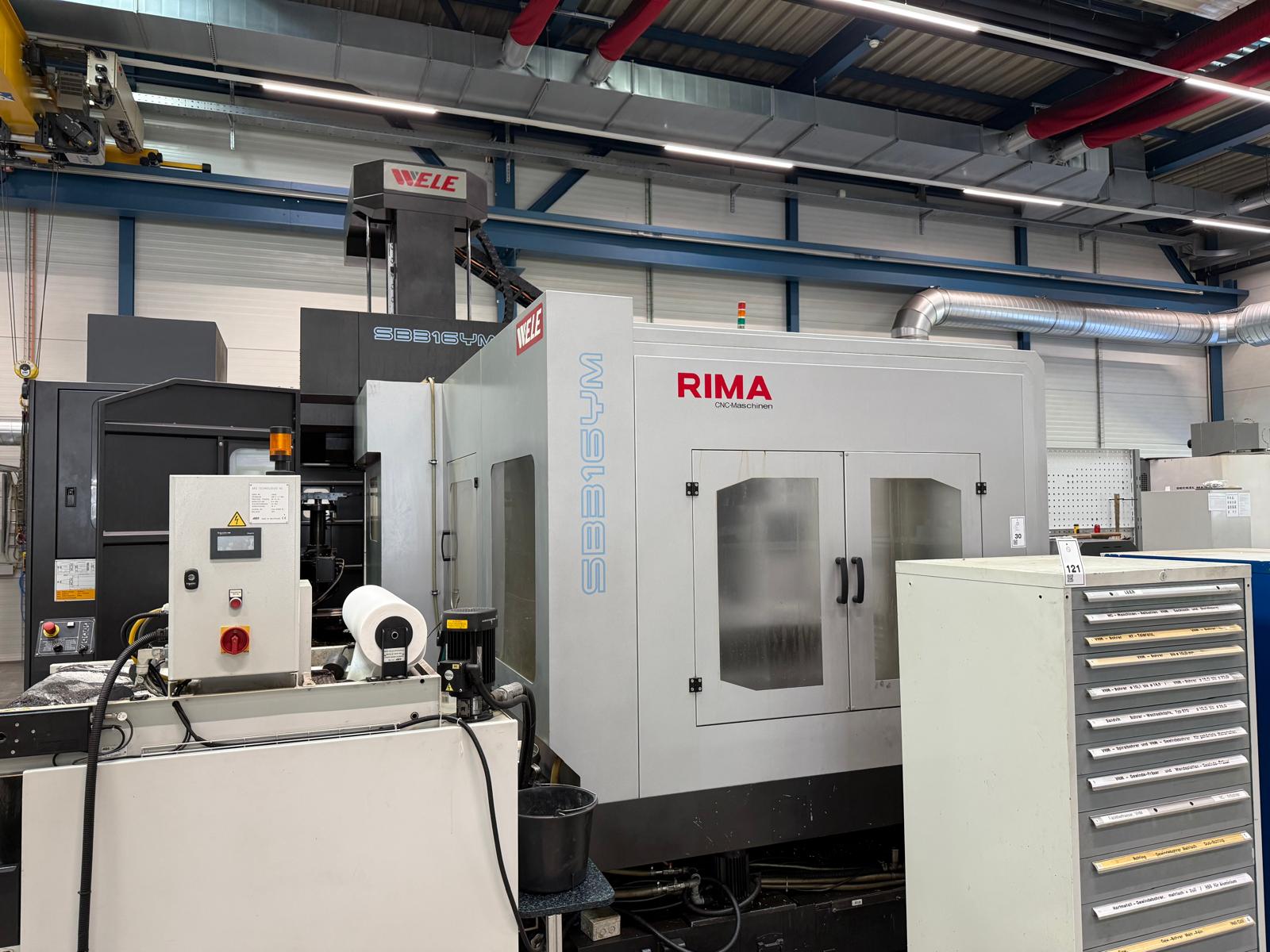

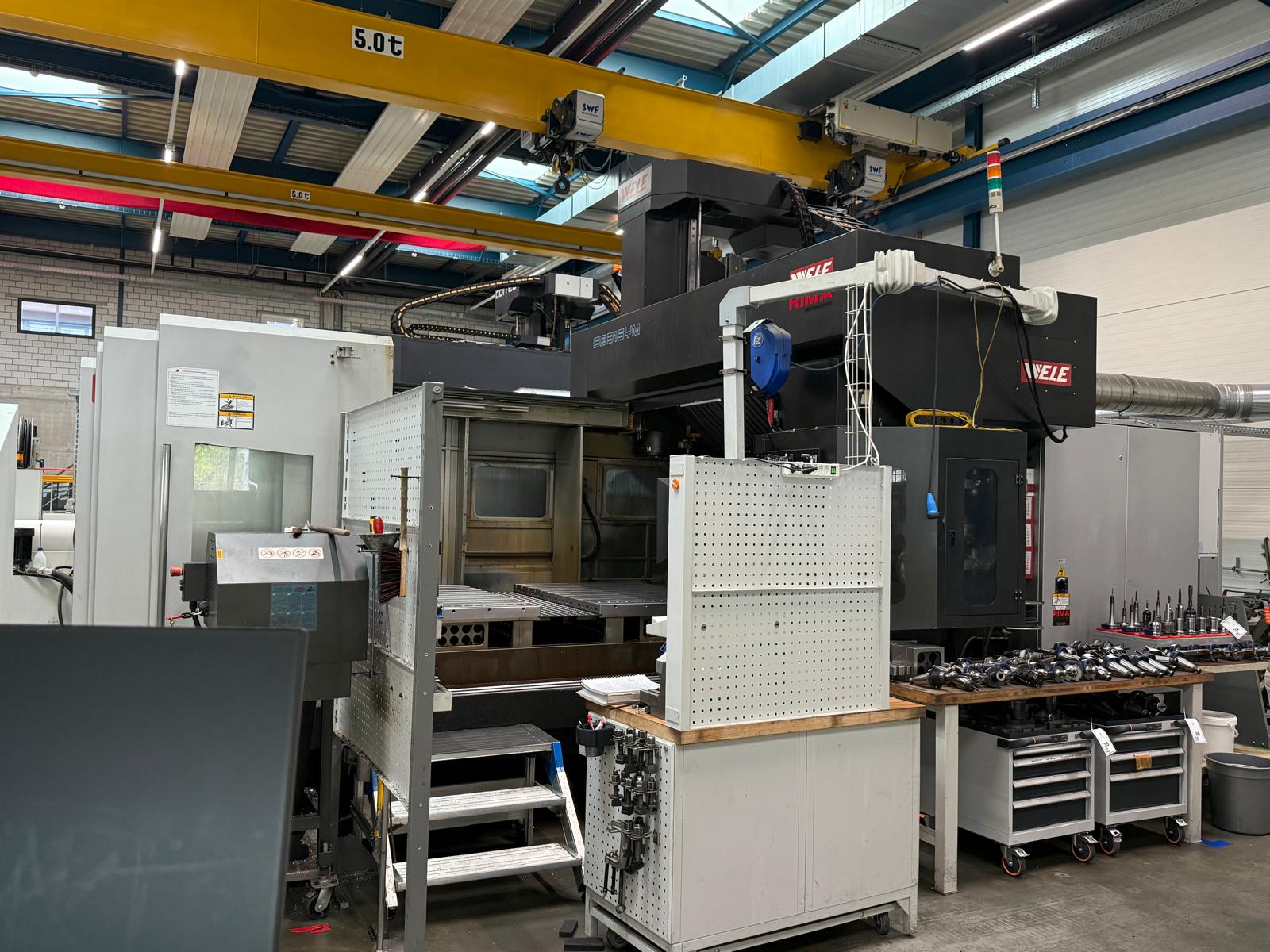

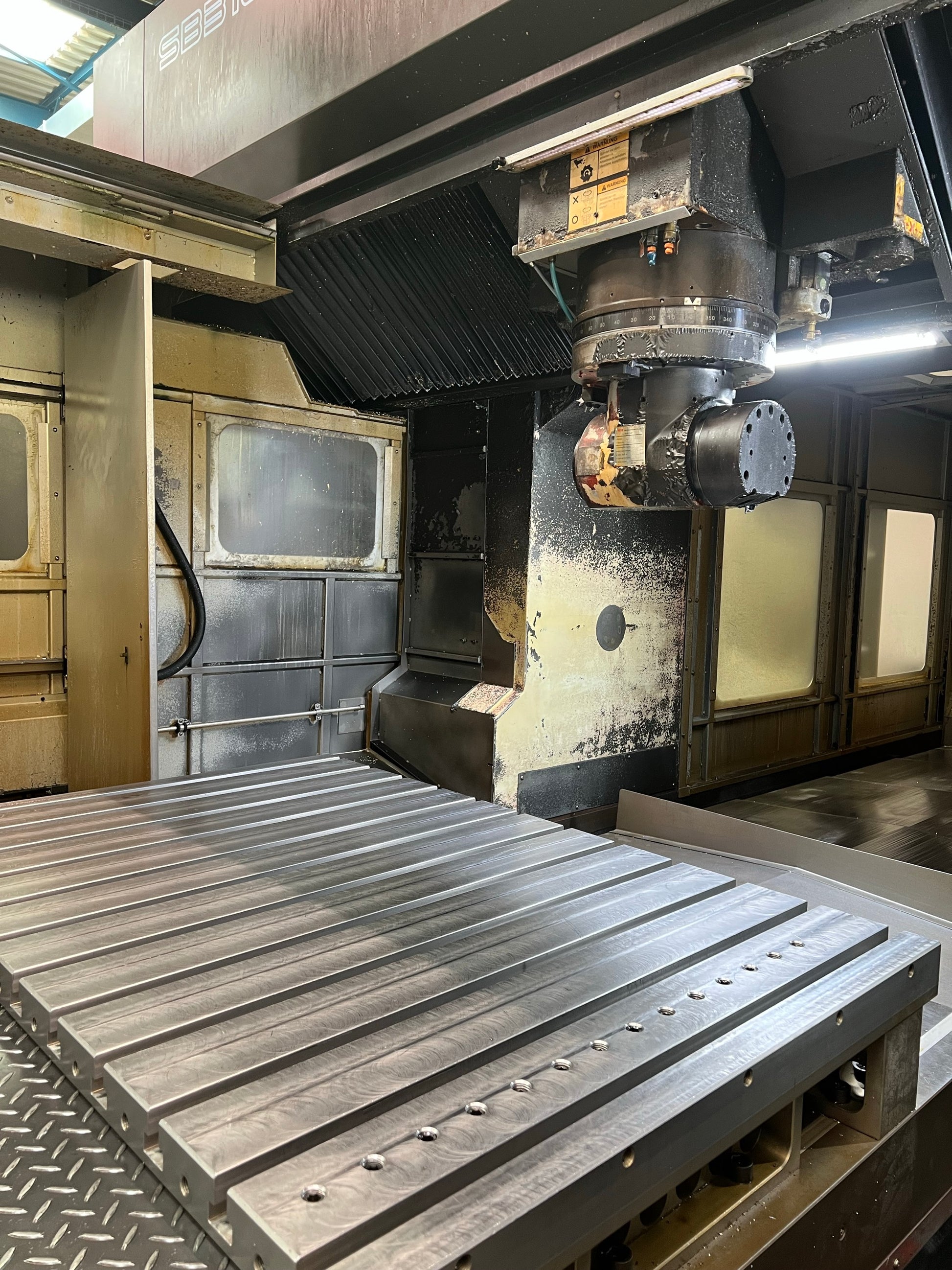

WELE SB-316YM is a Vertical Double Column machining center designed for precision, high accuracy and reliability. Working capacities: table 3000×1500 mm, X travel 3060 mm, Y 2300 mm, Z 800 mm, table load up to 10000 kg, distance between columns 1700 mm, 90 tool positions. Main specs: spindle stepless up to 10000 t/min, spindle motor 22/30 kW, supply 3×400 V 50 Hz, total power 60 kVA, machine weight ~27000 kg, dimensions 8300×4650×4350 mm. Accessories: 90‑pos tool magazine, tool changer with double gripper, closed roof section, tool blow-off device. Suited to achieve tight tolerances in automotive, aerospace, medical, tooling and watchmaking.
| Number of axis total | 3 |

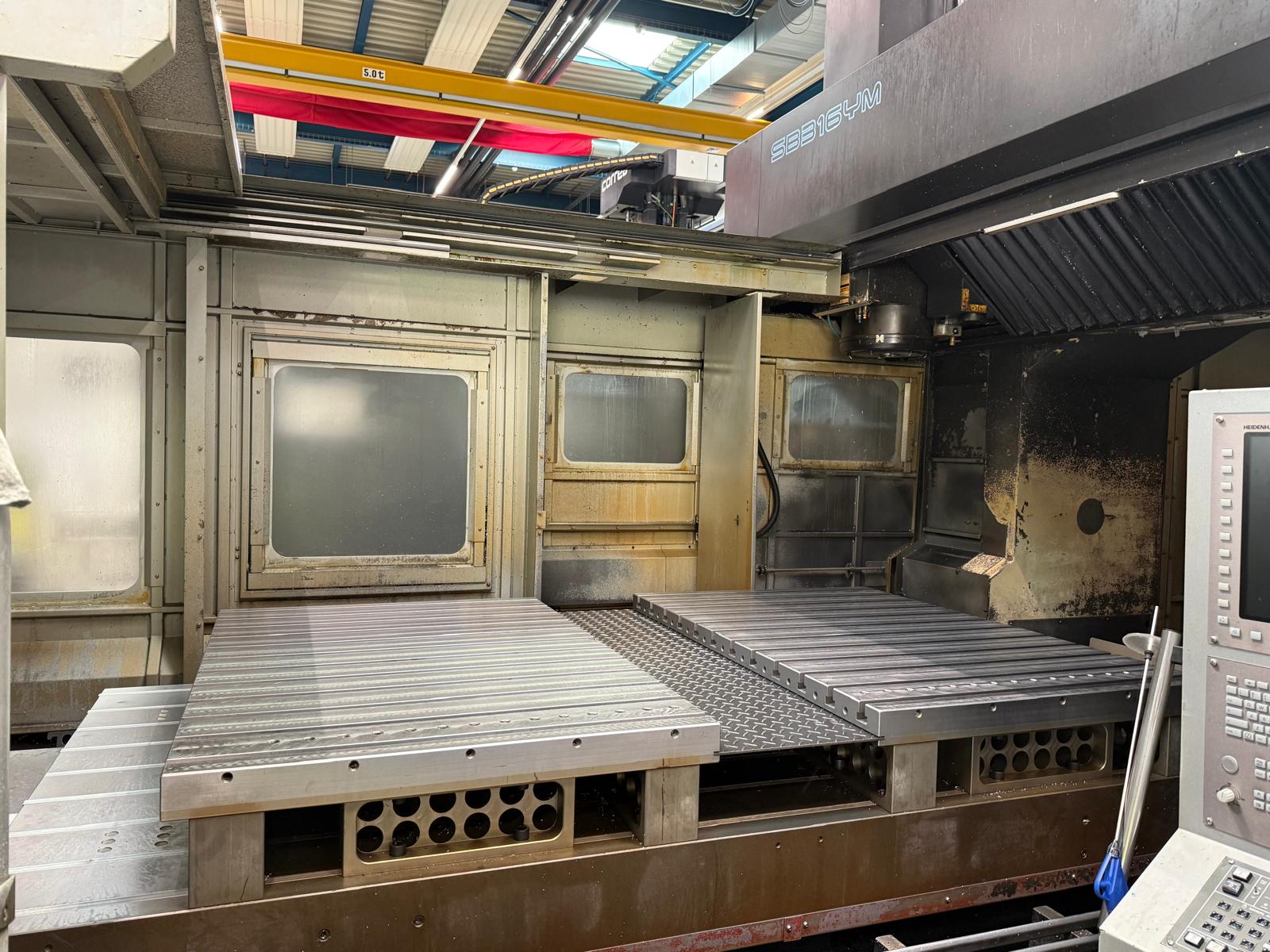

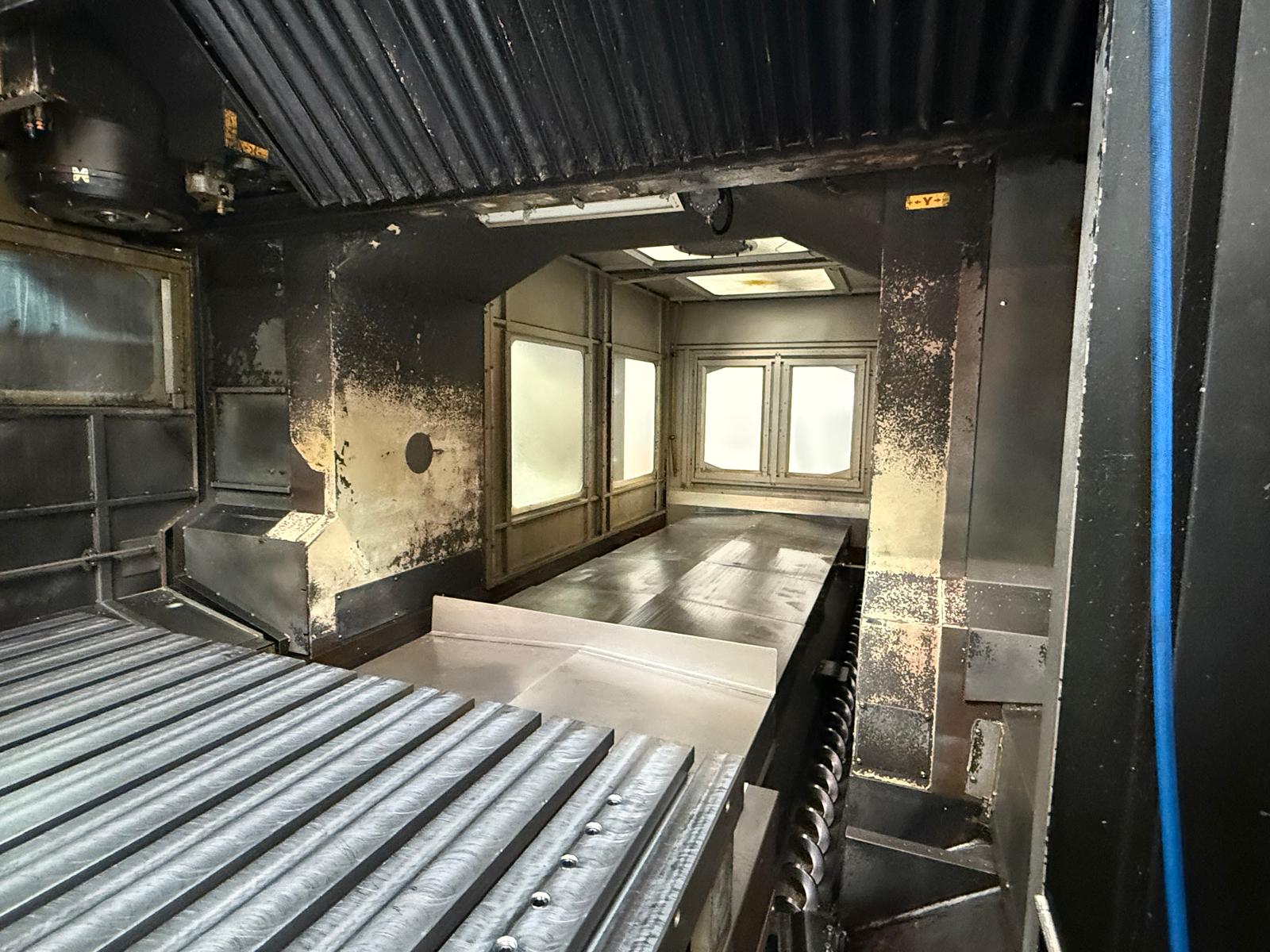

| Table length | 3000 mm |
| Table width | 1500 mm |
| Longitudinal travel (X-axis) | 3060 mm |
| Transversal travel (y-axis) | 2300 mm |
| Vertical travel (z axis) | 800 mm |
| Table load max. | 10000 kg |

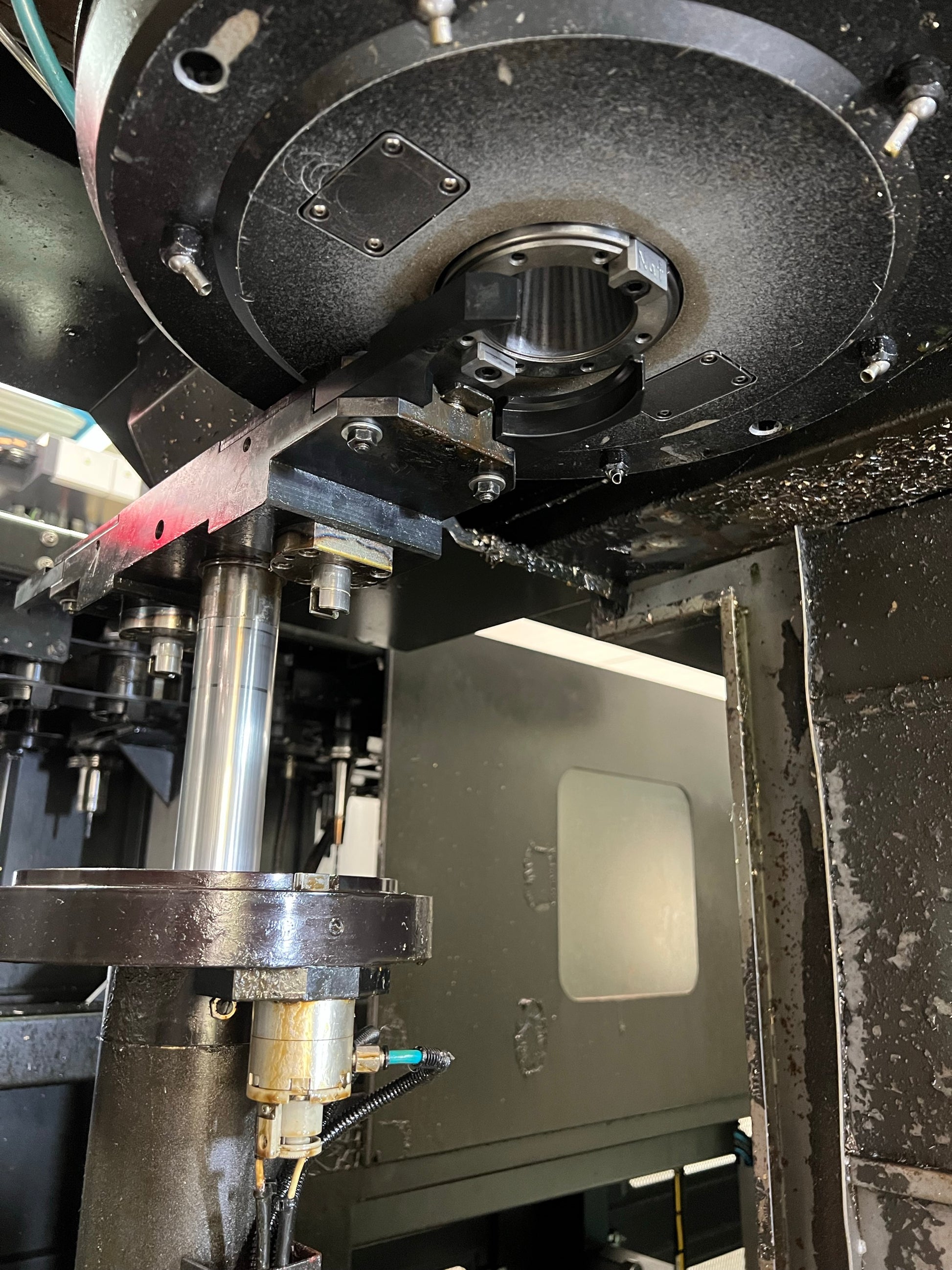

| Tool changer: | |
| with double gripper | |
| Tool magazine number of tool places | 90 |

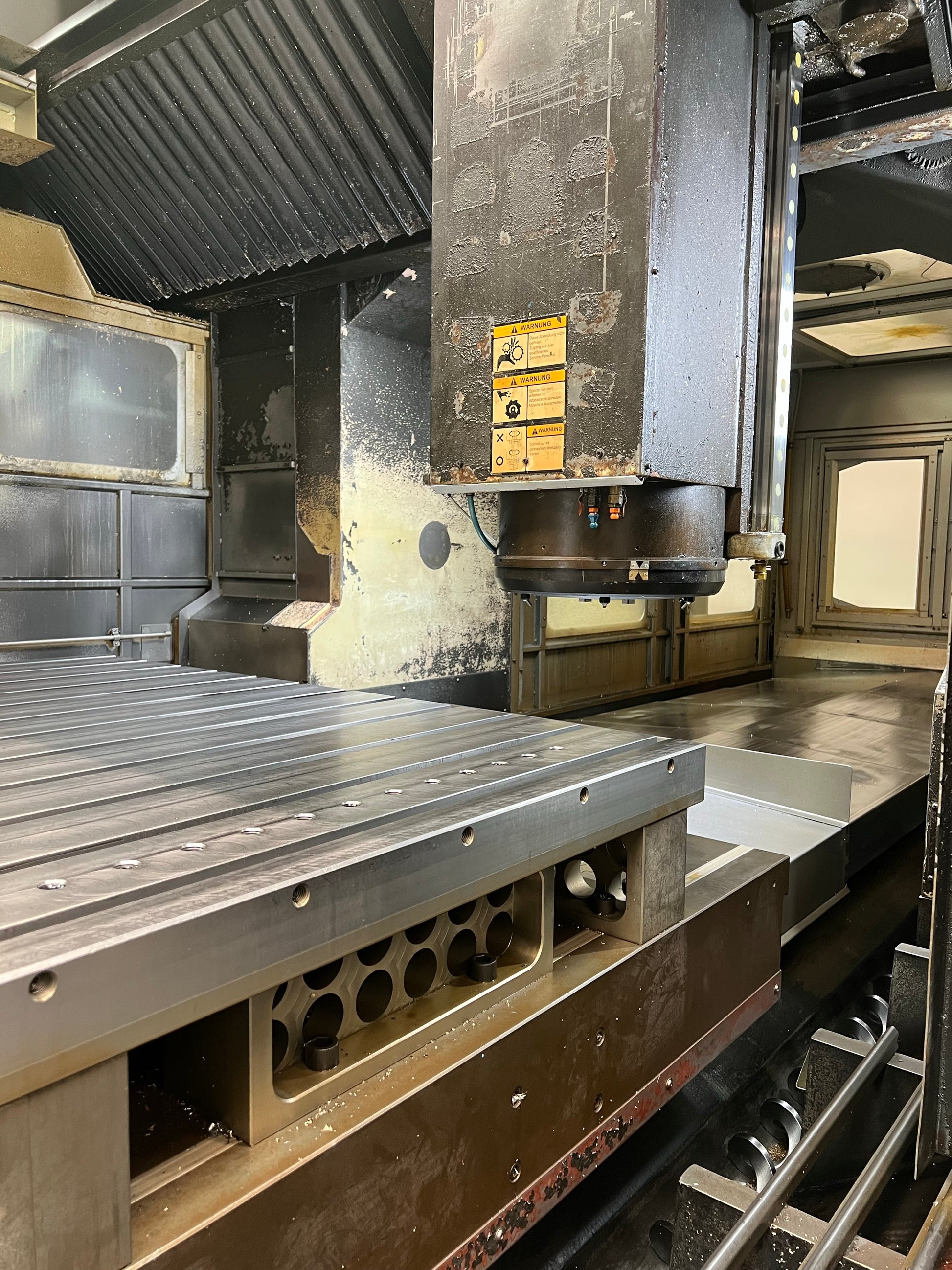

| Spindle nose: | |
| Spindle nose: BT | 50 |
| Distance from vertical | |
| spindle to table | 1200 mm |
| Distanz zwischen Säulen | 1700 mm |
| Spindle speeds: | |
| stepless | |
| up to | 10000 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 22 / 30 kW |
| Total power required | 60 kVA |
| Machine's weight about | 27000 kg |
| Overall dimensions machine: | |
| Length | 8300 mm |
| Width | 4650 mm |
| Height | 4350 mm |
| Various accessories: | |
| Addet tool-holder magazine | |
| with double gripper | |
| Number of tools | 90 |
| Closed roof section | |
| Tool blow-off device |
