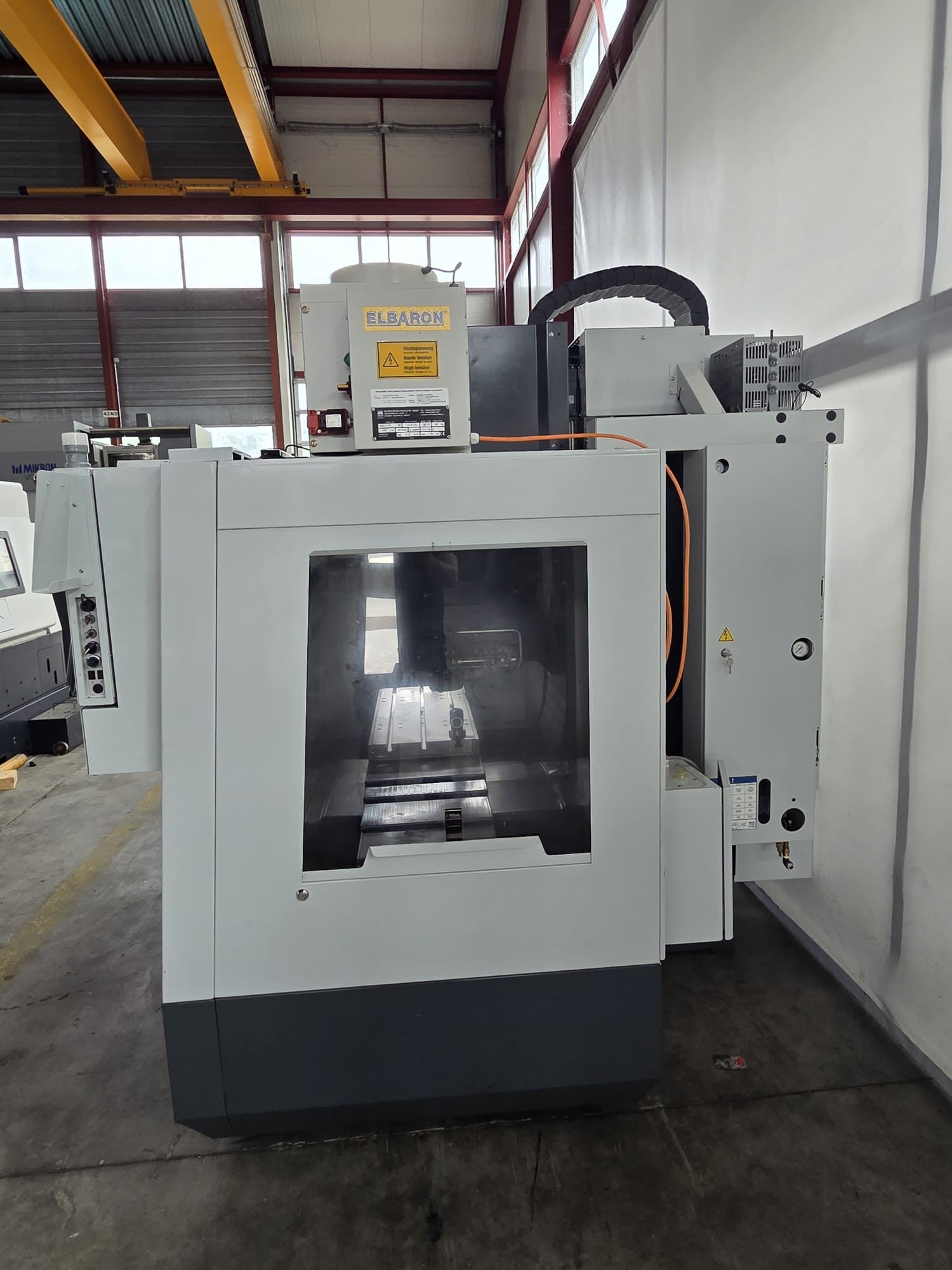

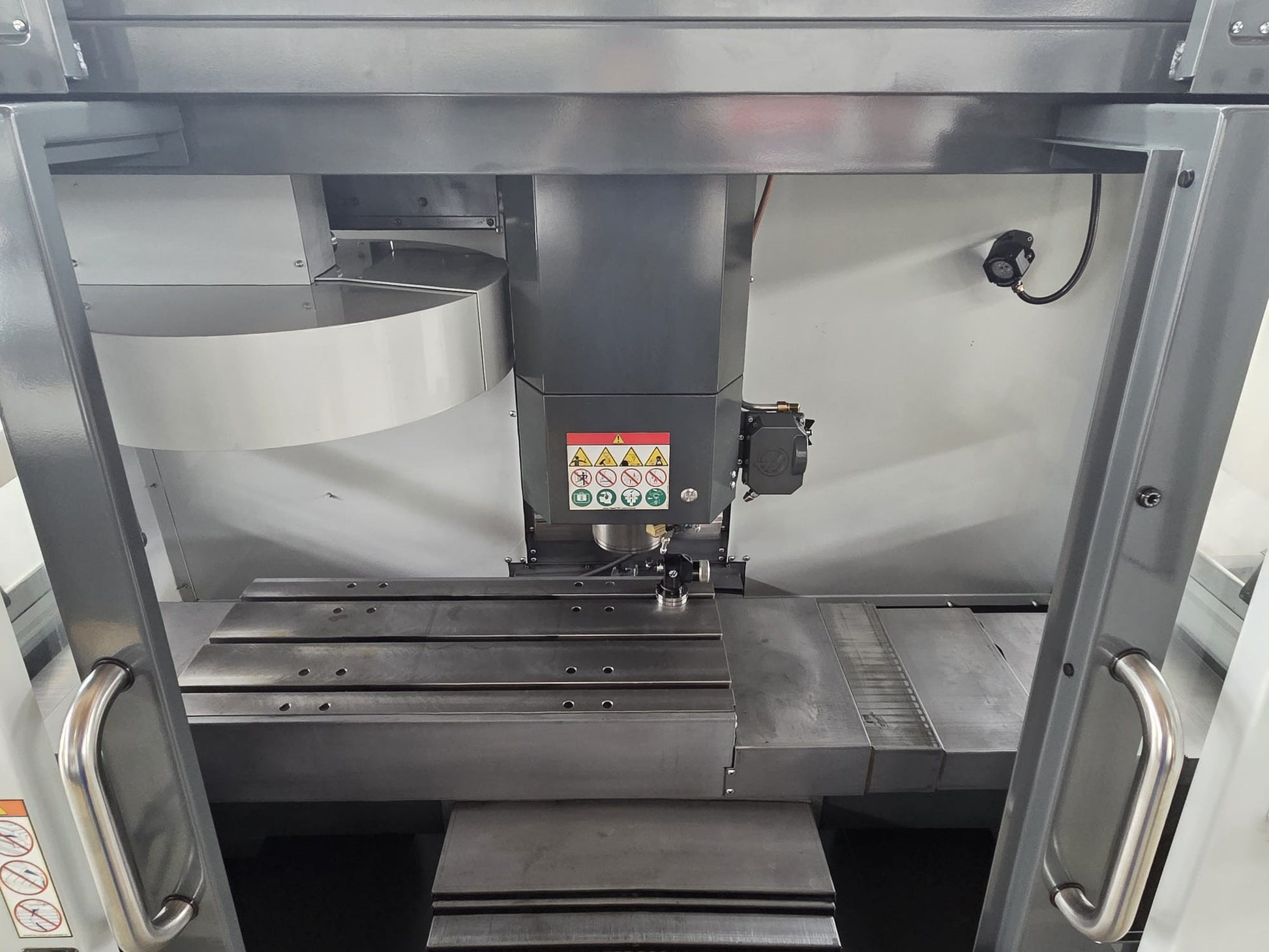

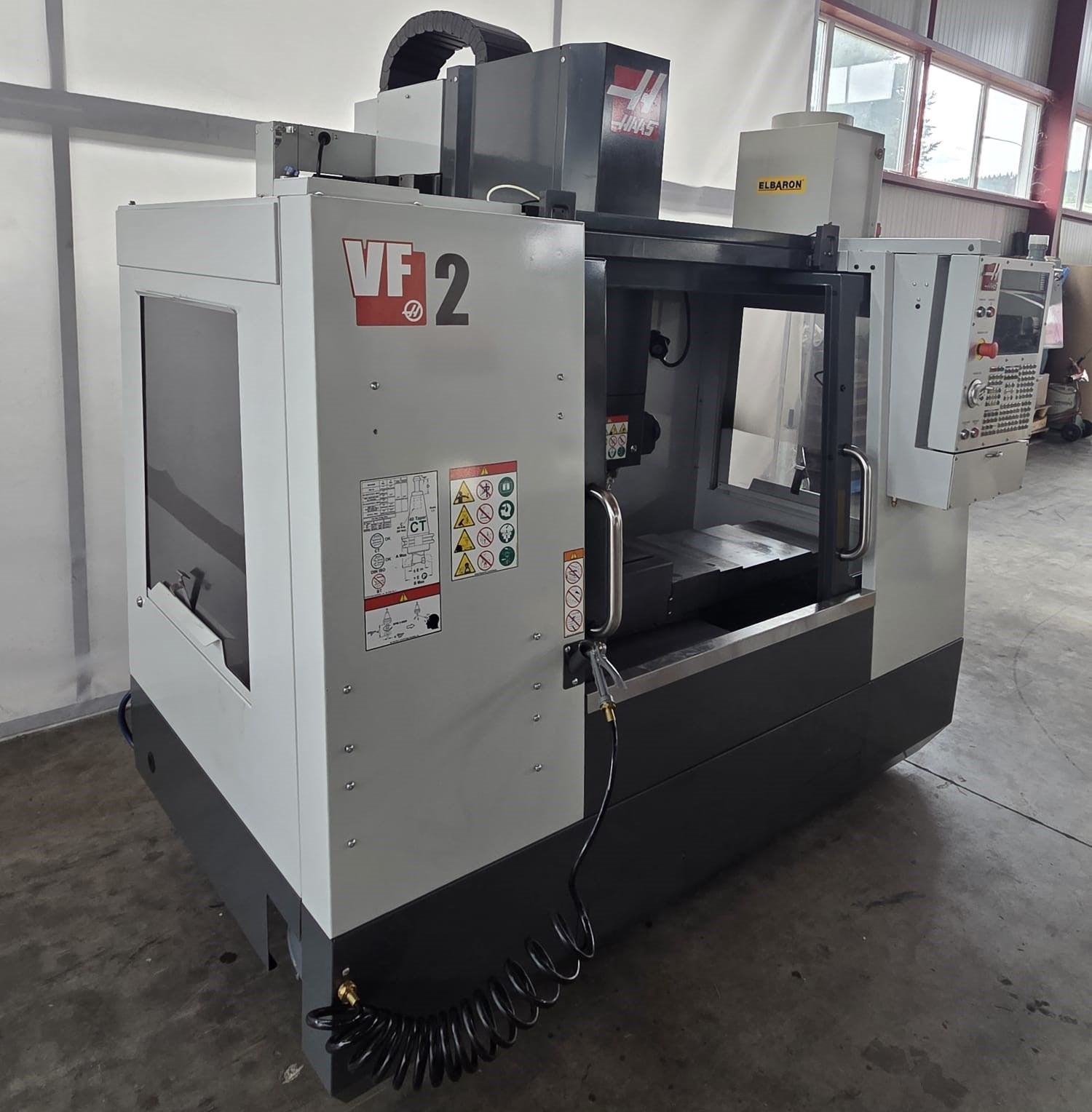

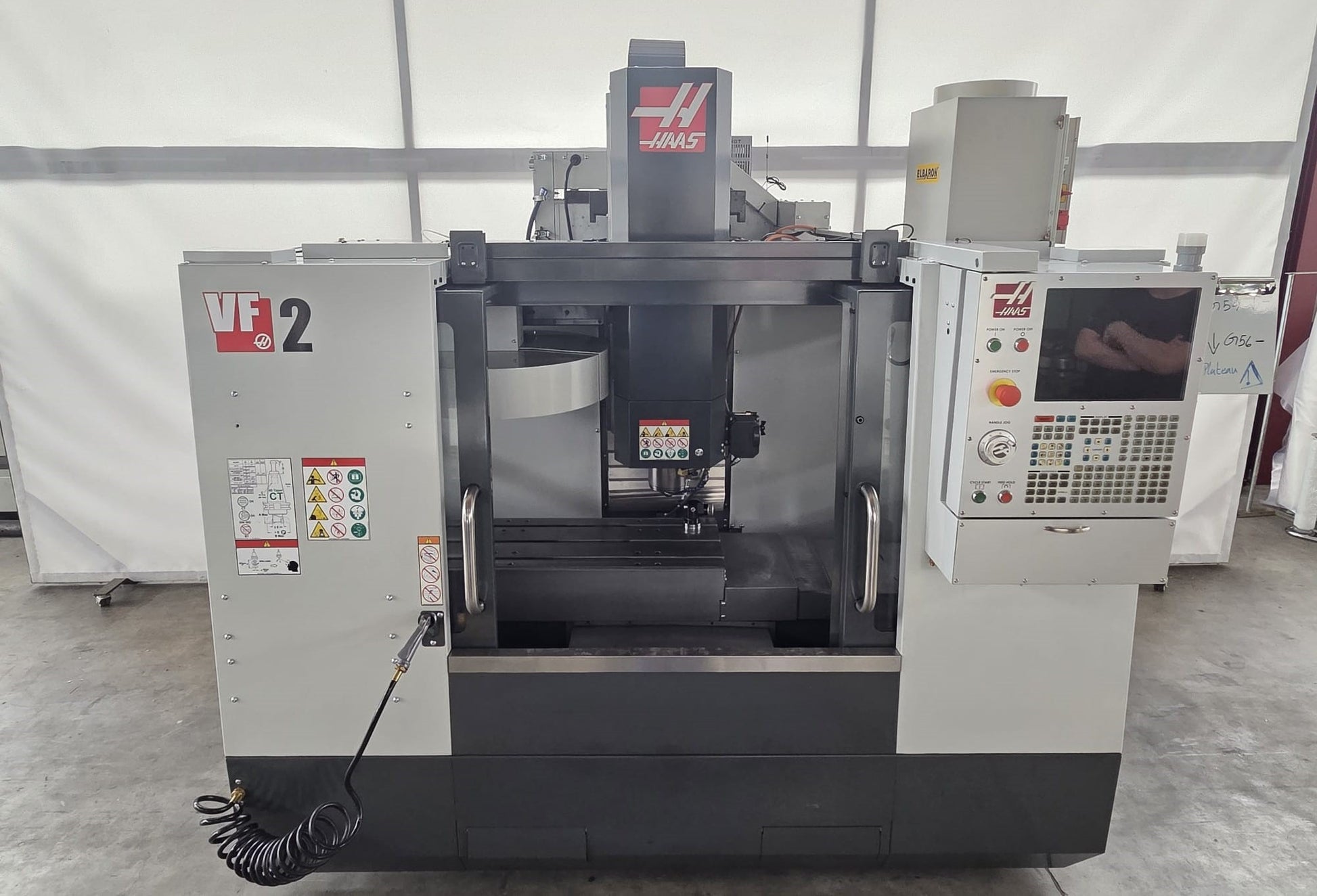

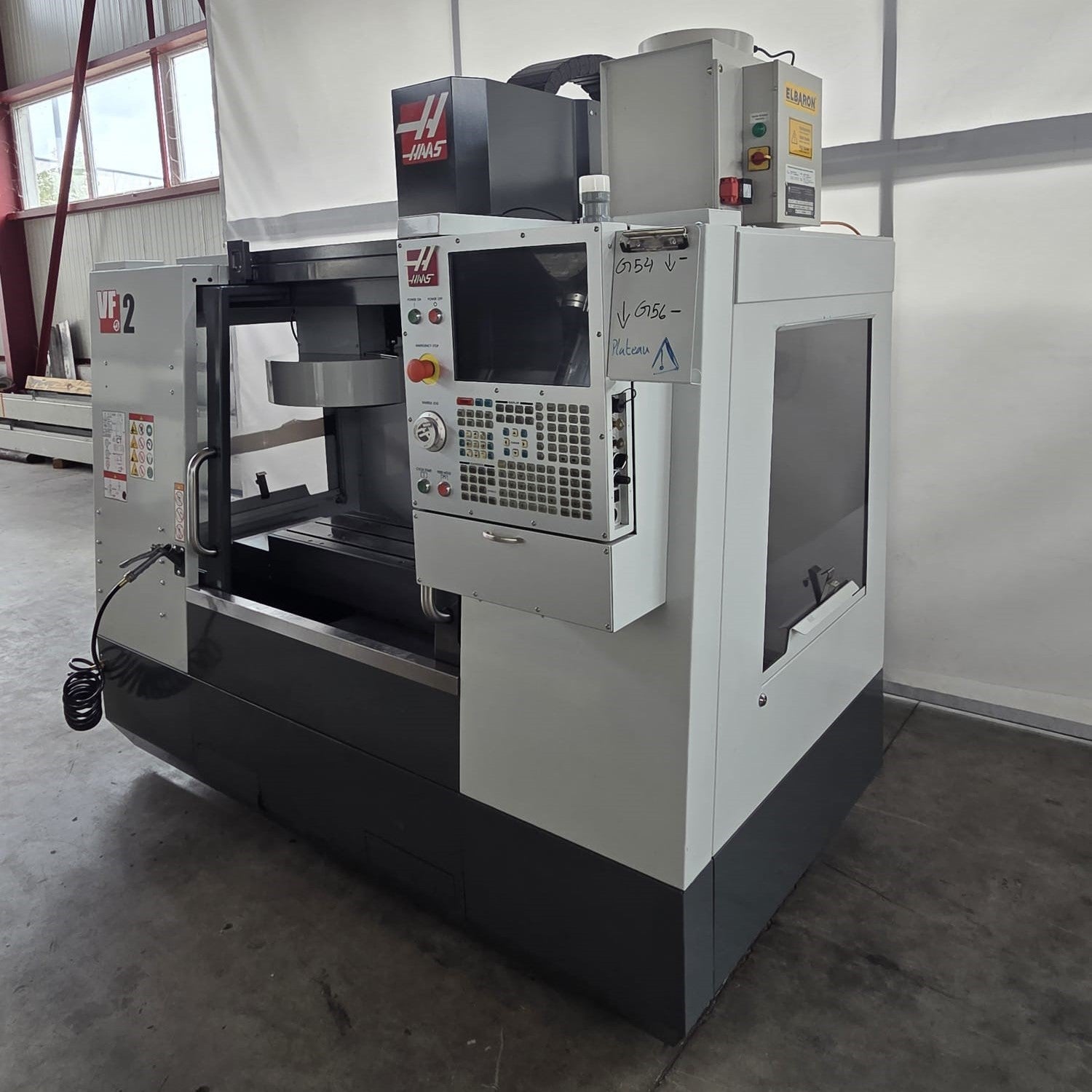

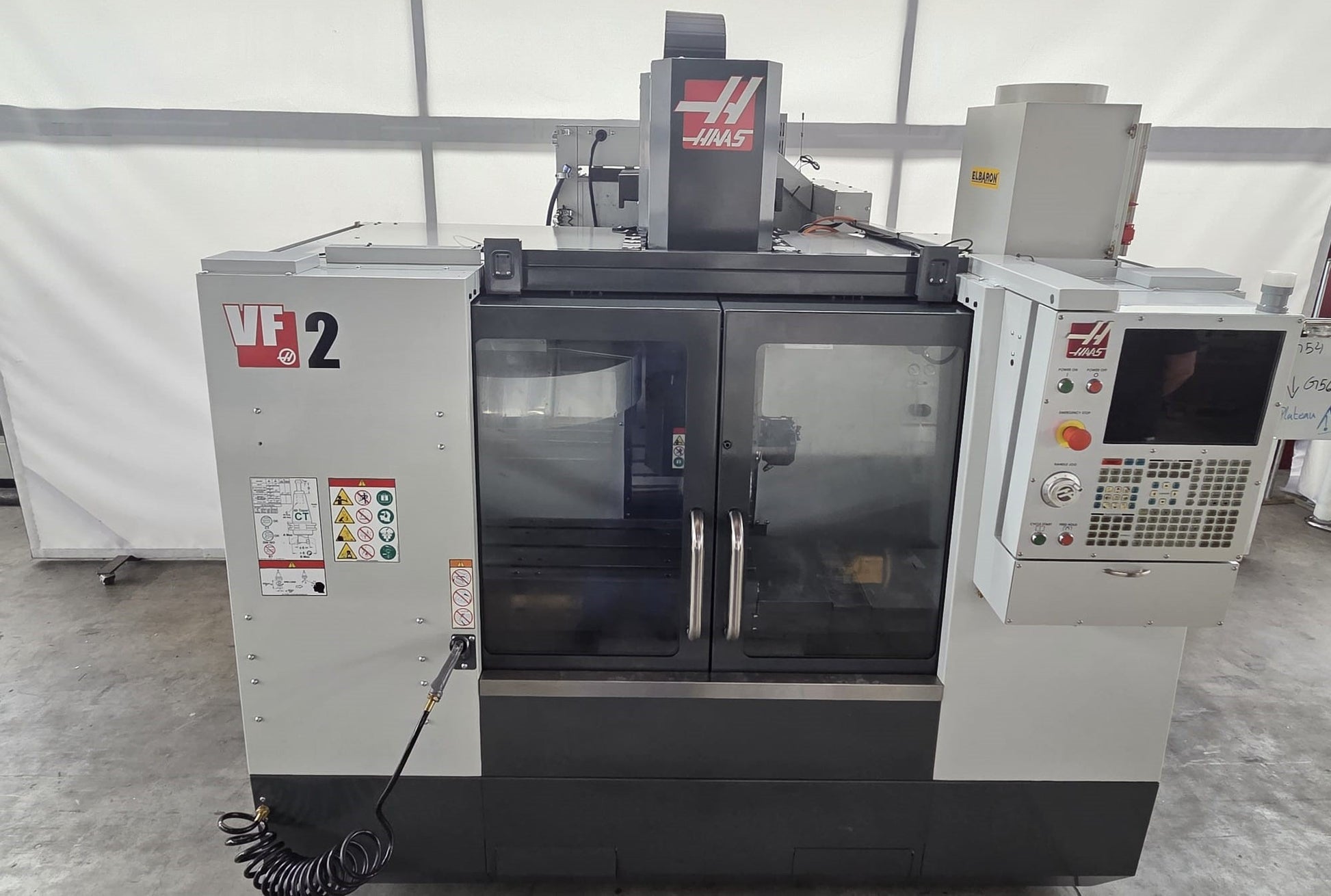

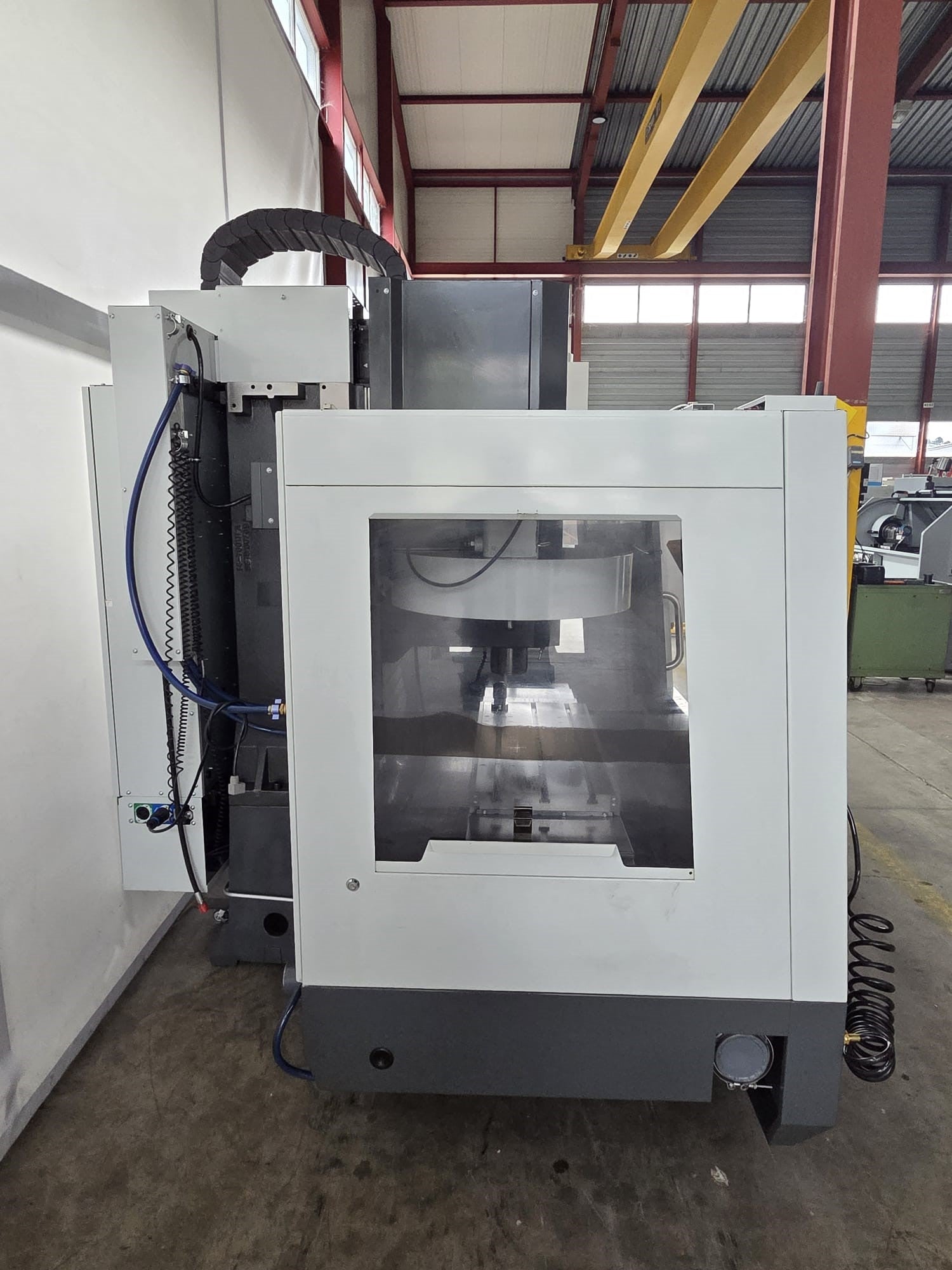

HAAS VF-2 is a 3-axis machining center, engineered for precision, high accuracy and reliability. Table 914×356 mm; travels X 750 mm, Y 406 mm, Z 508 mm; table load max. 680 kg. Tool changer 20 tools, spindle nose CT40, stepless spindle up to 8100 rpm, spindle power 22.4 kW, rapid traverse 25.4 m/min; machine weight approx. 3447 kg; overall dims L2464×W2337×H2578 mm. Accessories: set of toolholders, preparation for coolant device, Renishaw probe, lamp, oil mist extractor, rinsing guns. Enables tight tolerances; typical applications: automotive, aerospace, medical, watchmaking, toolmaking.
| Number of axis total | 3 |
| Table length | 914 mm |
| Table width | 356 mm |
| Longitudinal travel (X-axis) | 750 mm |
| Transversal travel (y-axis) | 406 mm |
| Vertical travel (z axis) | 508 mm |
| Table load max. | 680 kg |

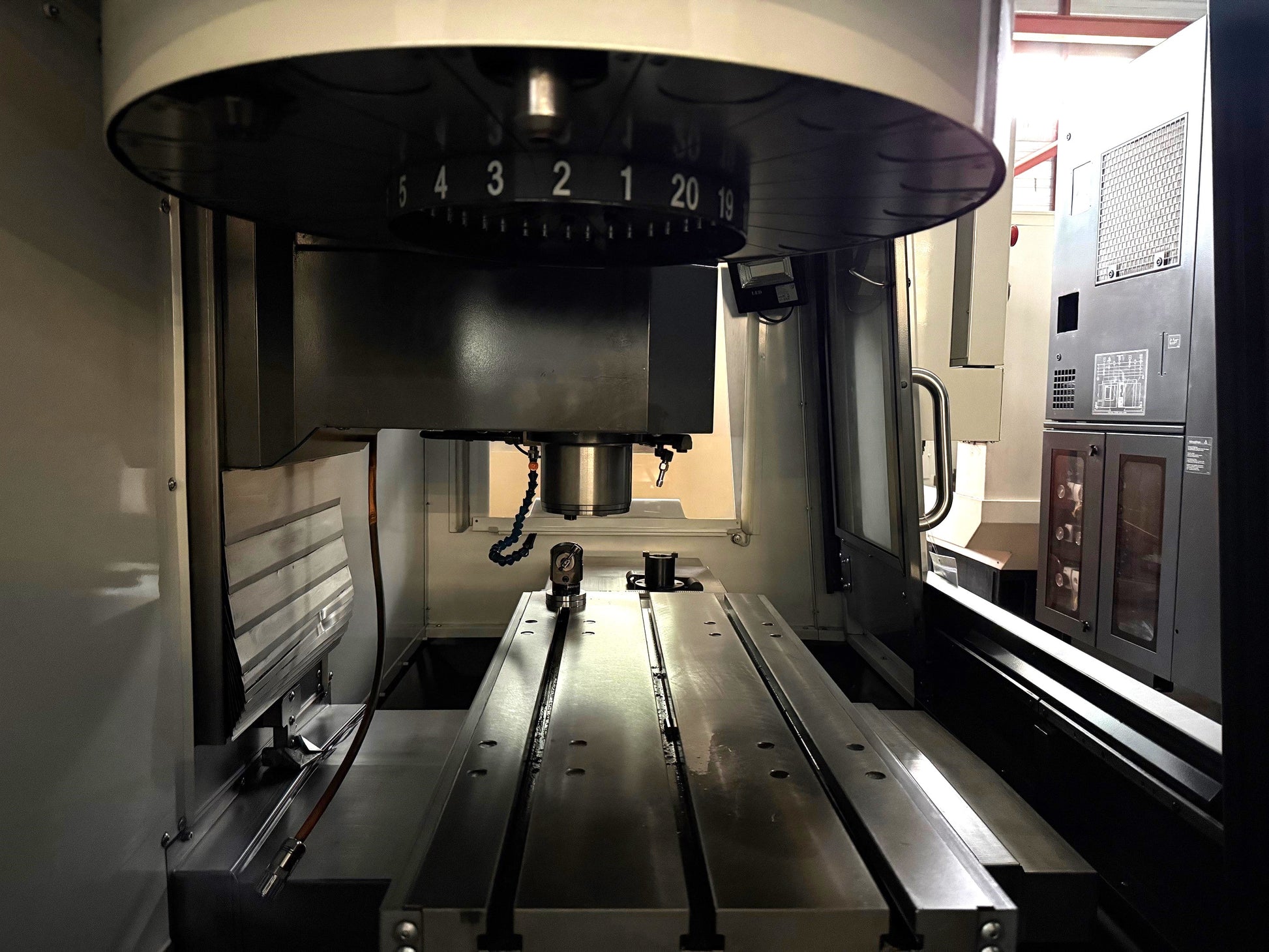

| Tool changer: | |
| Number of tools | 20 |
| Spindle nose: | CT 40 |
| Spindle speeds: | |
| stepless | |
| up to | 8100 t/min |
| Rapid traverse: | 25.4 m/min |
| Spindle power | 22.4 kW |
| Machine's weight about | 3447 kg |
| Overall dimensions machine: | |
| Length | 2464 mm |
| Width | 2337 mm |
| Height | 2578 mm |
| Various accessories: | |
| Set of toolholders | |
| Preparation for coolant device | |
| Feeler Renishaw | |
| Lamp | |

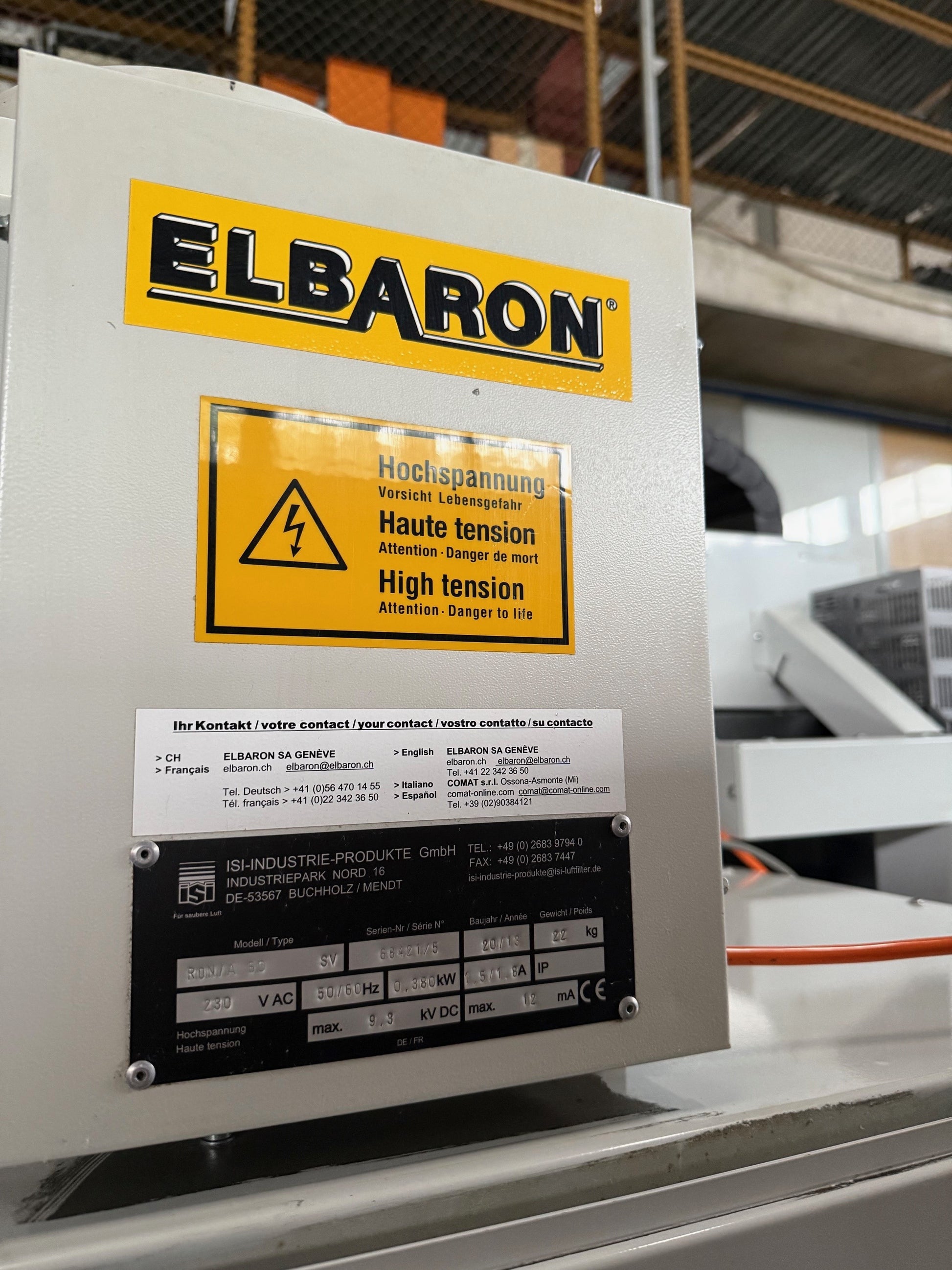

| Oil mist extractor | |
| Rinsing Guns |
