GOODWAY SW 42 is a high‑precision CNC automatic lathe designed for superior accuracy and reliable performance. Working capacities: max turning diameter 42 mm, max workpiece length 110 mm. Main technical specifications: stepless spindle range 500–6000 t/min, C‑axis (spindle) resolution 0.01°, back spindle 500–6000 t/min; tool‑holder with 5 tools, 4 driven tools at 5000 t/min, driven tool power 1.4 kW; max drilling Ø13 mm, thread up to M10; rapid traverse 30 m/min. Power supply 3x 400 V 50 Hz; machine weight about 3300 kg; dimensions L2880×W1375×H1940 mm. Accessories: LNS bar feeder, chip conveyor, coolant system, LNS oil mist extractor, RS232 interface, fire extinguishing system. Engineered for tight tolerances; ideal for automotive, watchmaking, toolmaking, aerospace and medical sectors.
| Max. turning diameter | 42 mm |
| Workpiece length max. | 110 mm |
| stepless | |
| from | 500 t/min |
| up to | 6000 t/min |
| C axis (spindle,resolution) | 0.01 ° |
| Back spindle: | |
| from | 500 t/min |
| up to | 6000 t/min |
| Tool-holder: | |
| number of tools | 5 |
| number of driven tools | 4 |
| Spindle speeds (turning tools) | 5000 t/min |
| Power of driven tools | 1.4 kW |
| Max. drilling diameter | 13 mm |
| Thread drill diameter | 10 M |
| Rapid traverse: | 30 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 3300 kg |
| Overall dimensions machine: | |
| Length | 2880 mm |
| Width | 1375 mm |
| Height | 1940 mm |
| Various accessories: | |
| Bar feeder | LNS |
| Chip conveyor | |
| Coolant system | |
| Oil mist extractor | LNS |
| Interface serial port RS 232 | |

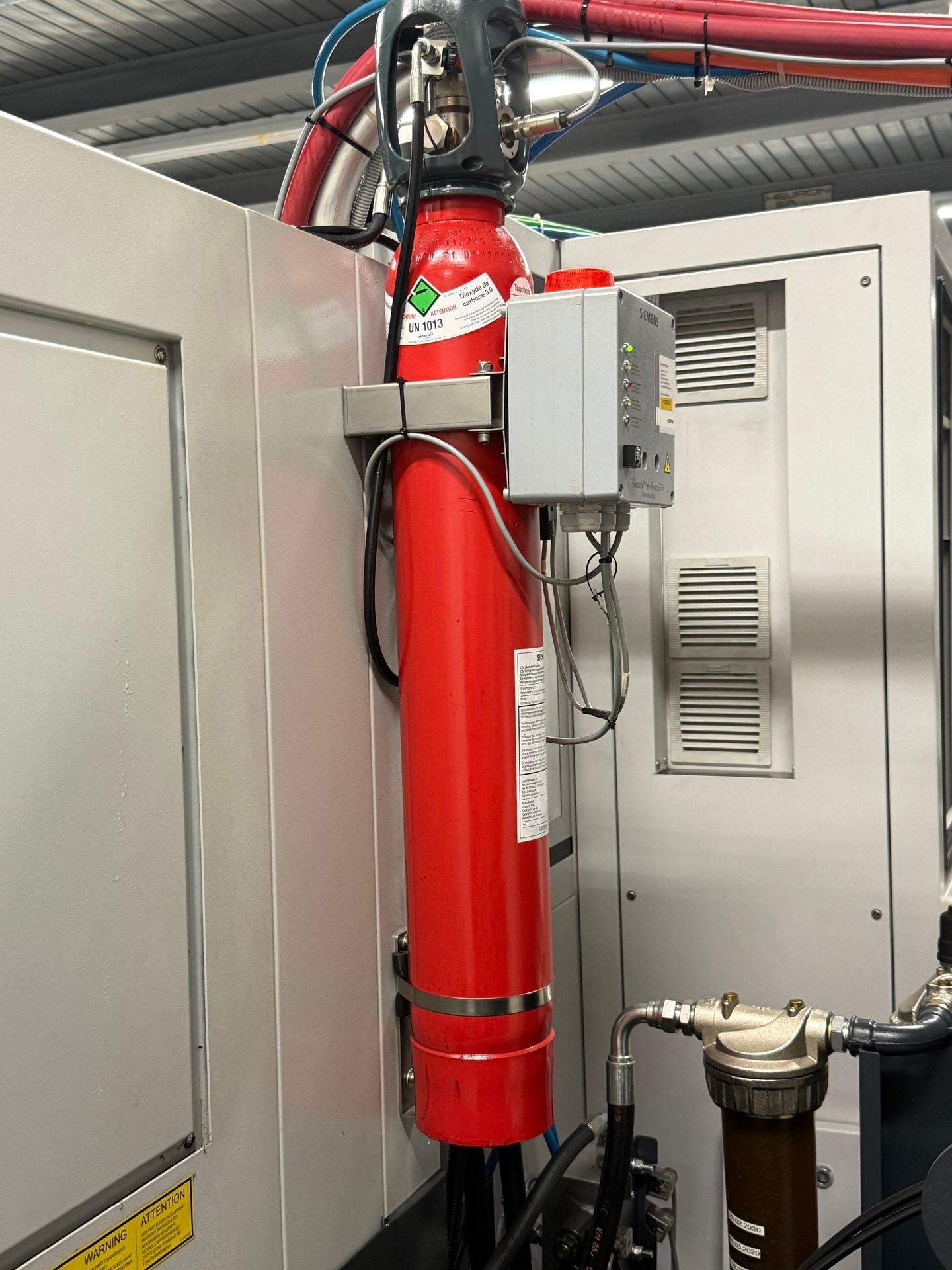

| Fire extinguishing system |
