SOMAB TRANSMAB 200
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
| Swing over bed | 260 mm |
| Taper in spindle | A2 4" |
| Spindle hole | 35 mm |
| Turret carriage: | DUPLOMATIC |
| Travels: | |
| Longitudinal travel (Z-axis) | 300 mm |
| Transversal strocke (X axis) | 125 mm |

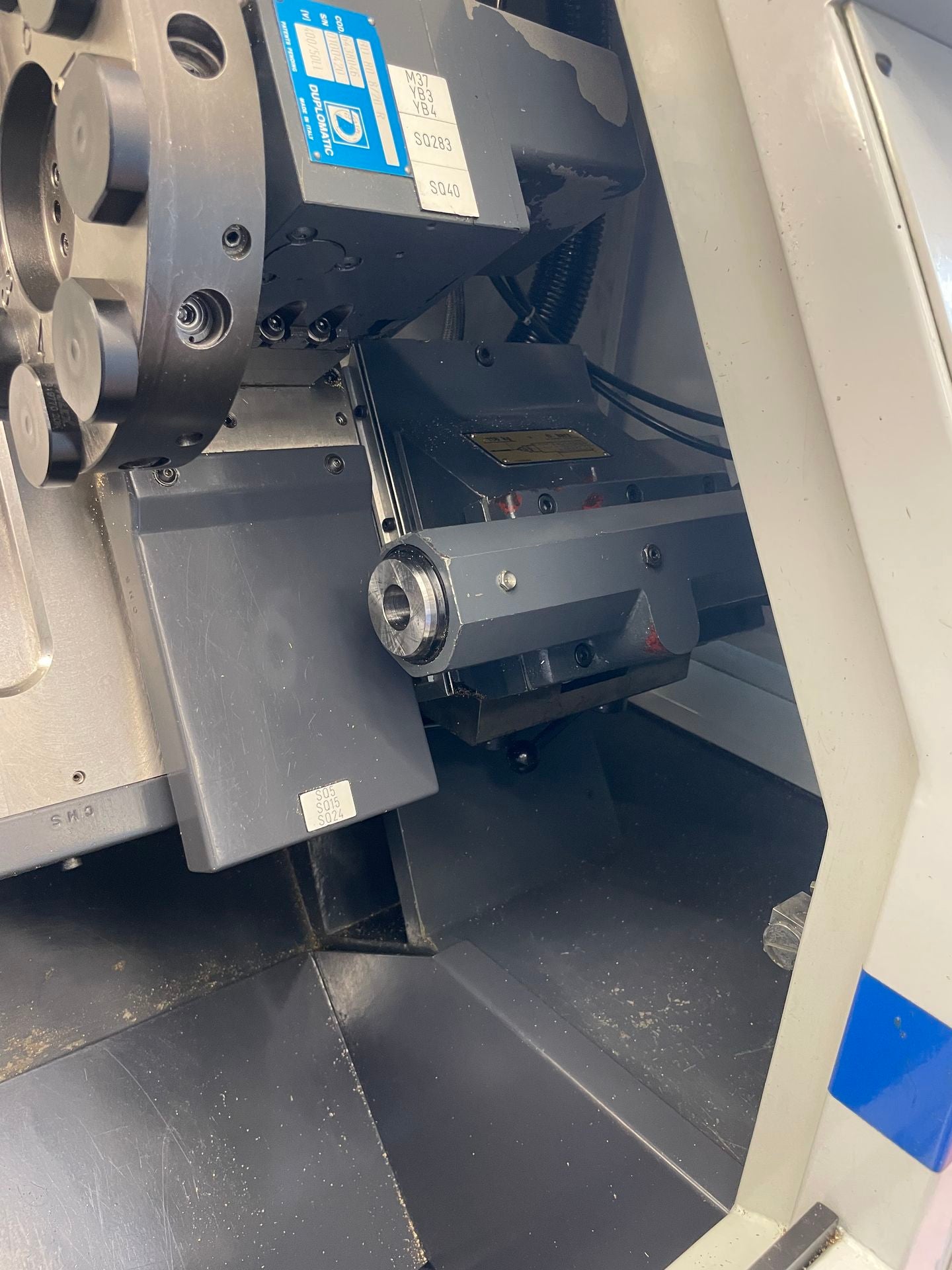

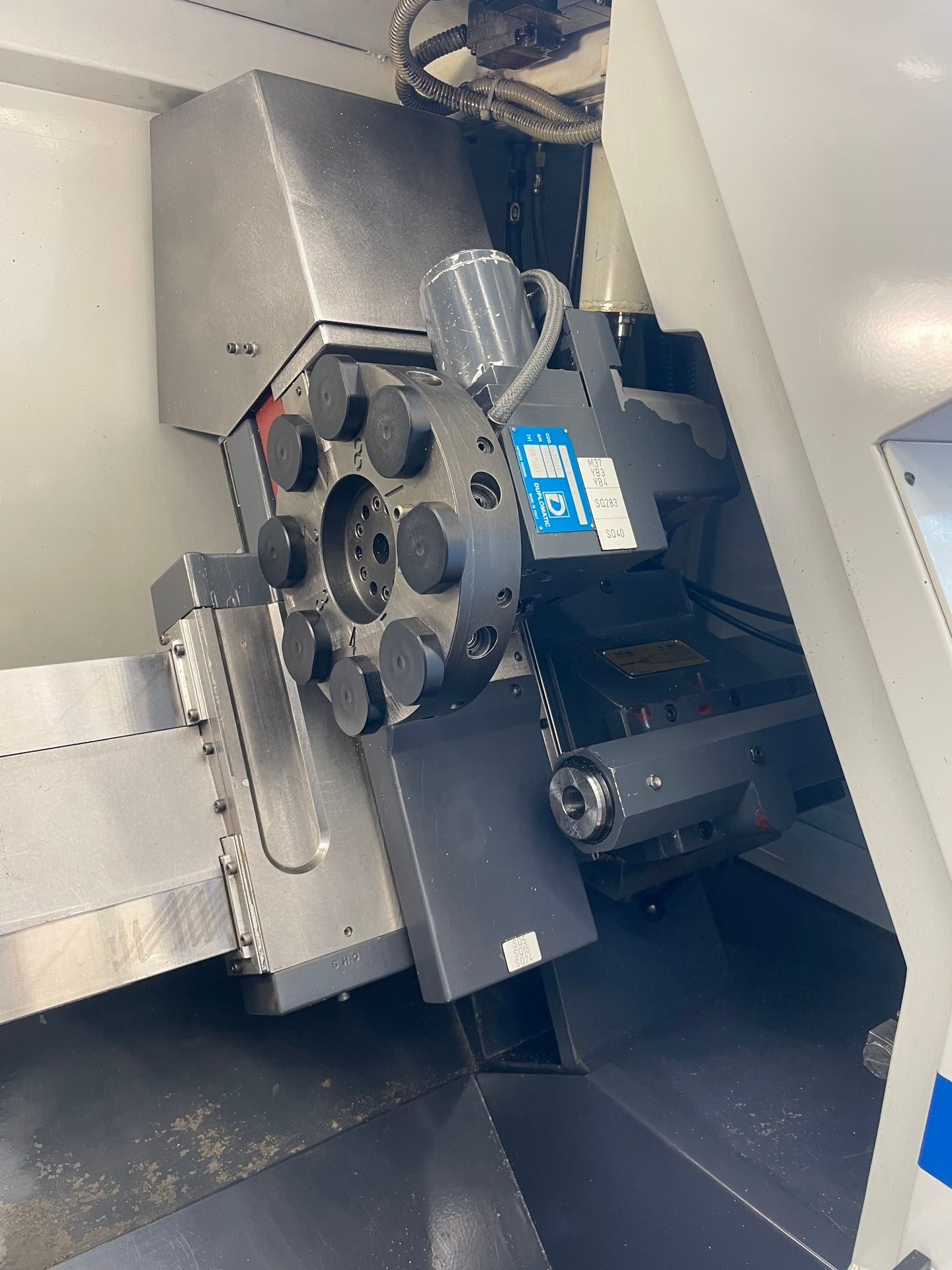

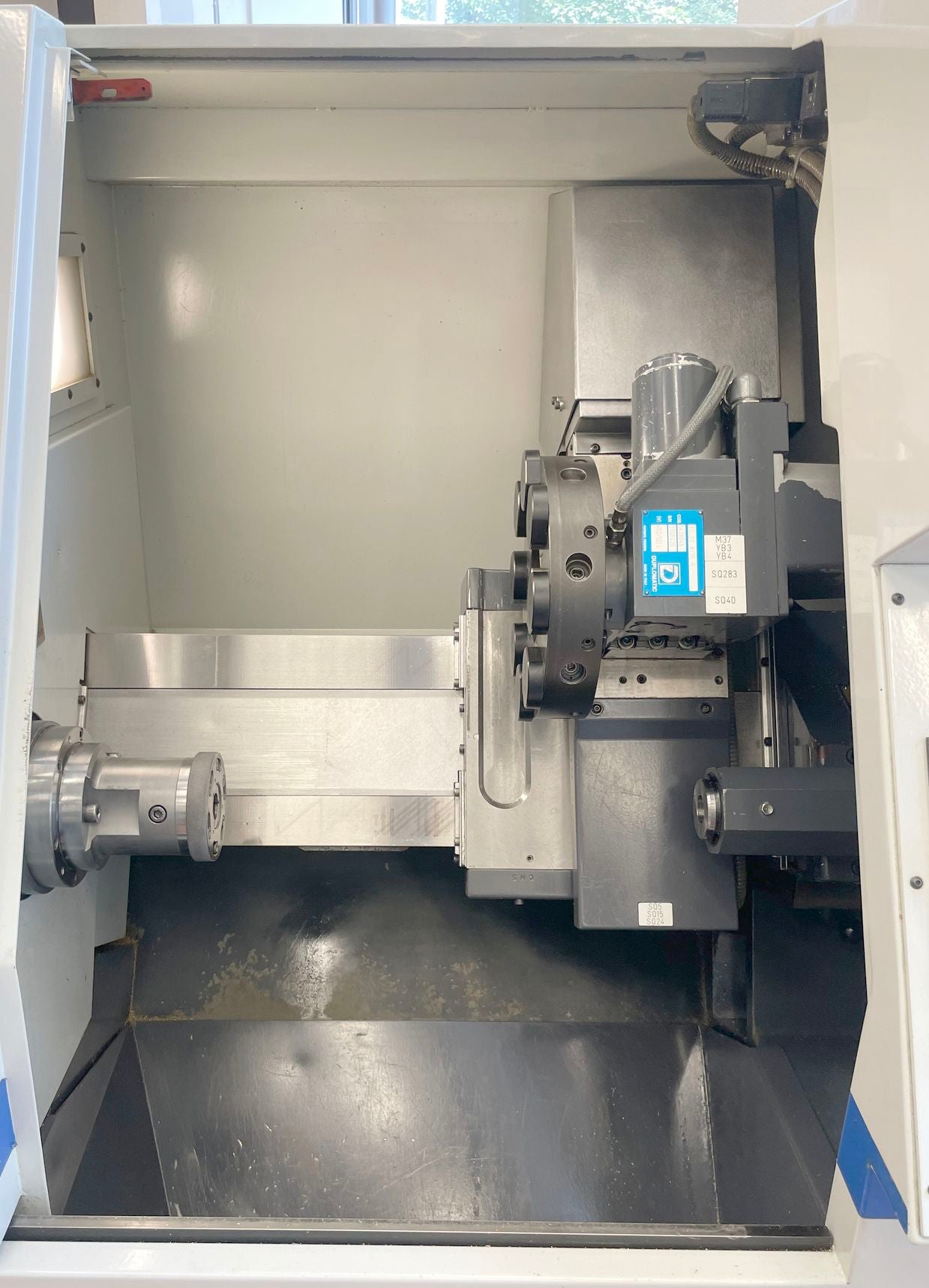

| Turret slide: | |
| Number of positions | 8 |
| Fixed tools turret | 8 |
| Tool shank cross section | 16 mm |

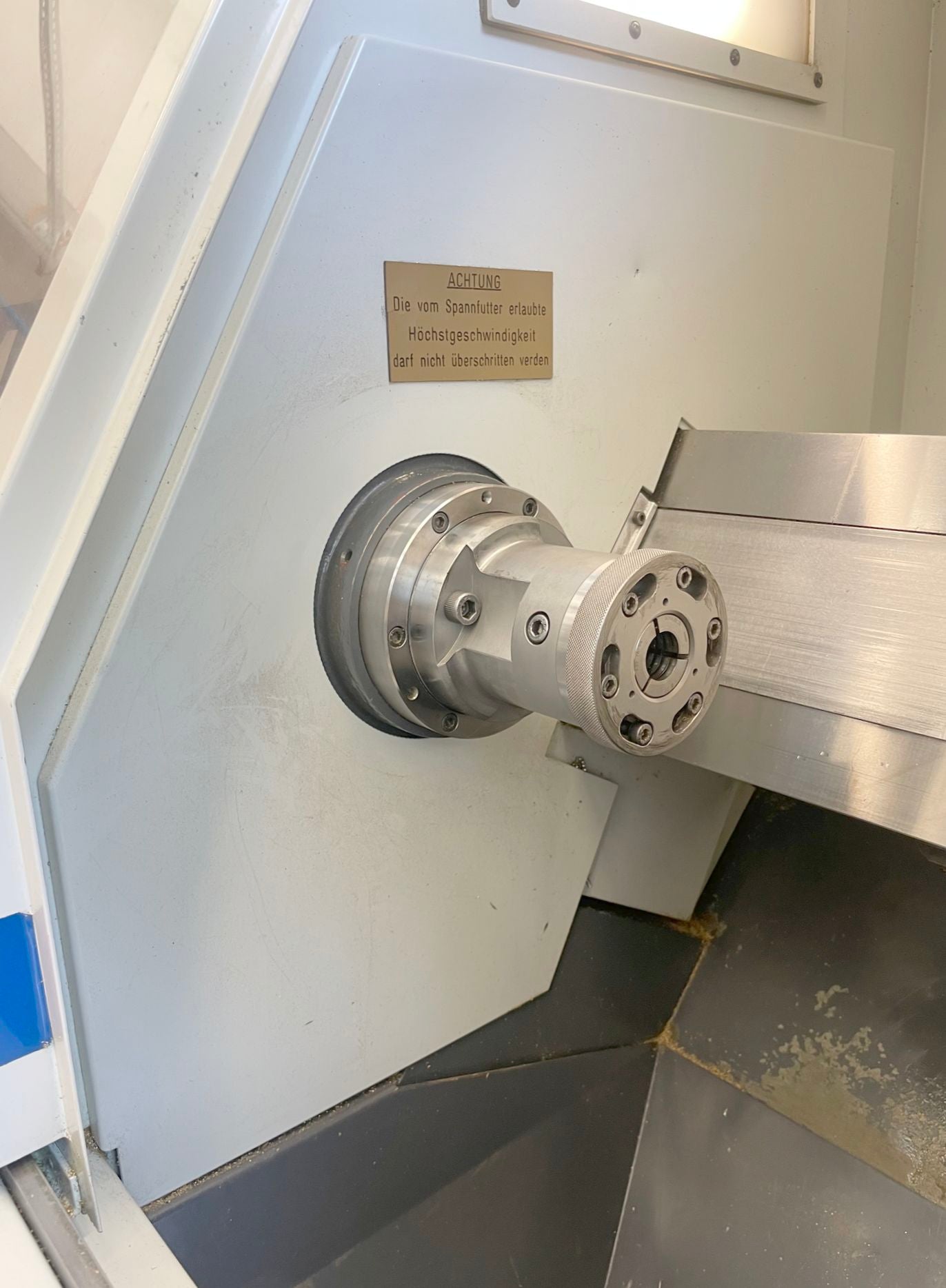

| Spindle nose: | |
| Inner cone diameter | 20 mm |
| Main spindle: | |
| Spindle speeds: | |
| stepless | |
| from | 200 t/min |
| up to | 5000 t/min |
| Tailstock: | |
| Morse taper | 3 CM |
| Spindle stroke | 80 mm |
| Spindle diameter | 52 mm |
| Pressure | kN |
| Pressure | 1200 N |
| Inner taper type | F38 |
| Spindle motor | 4 kW |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 2500 kg |
| Overall dimensions machine: | |
| Length | 1900 mm |
| Width | 1400 mm |
| Height | 1980 mm |
| Various accessories: | |
| Collet device | |

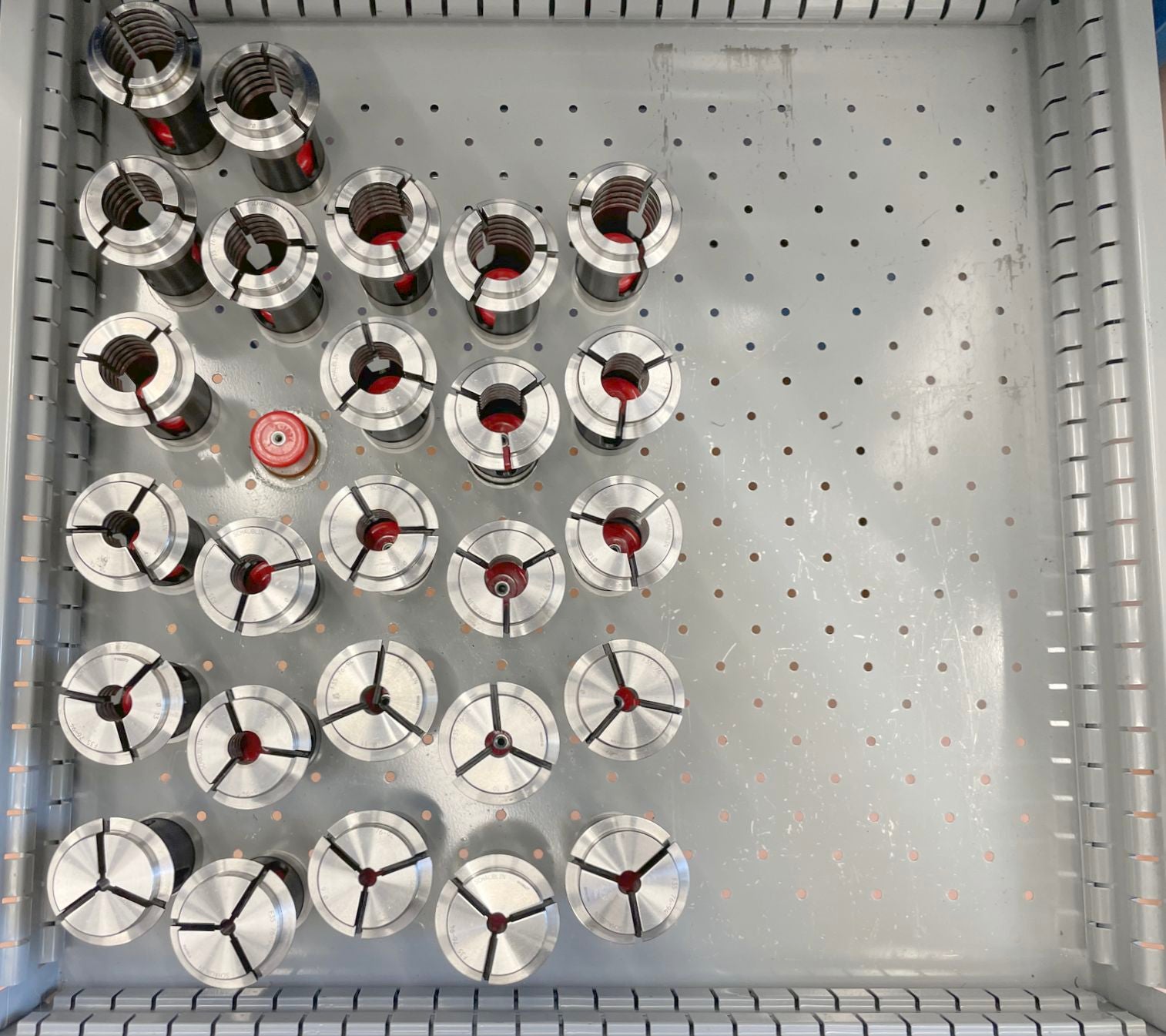

| Set of collets | |
| Lamp | |
| Tailstock | |
| Tool cabinet | |
| Interface serial port RS 232 | |
| Foot pedal | |

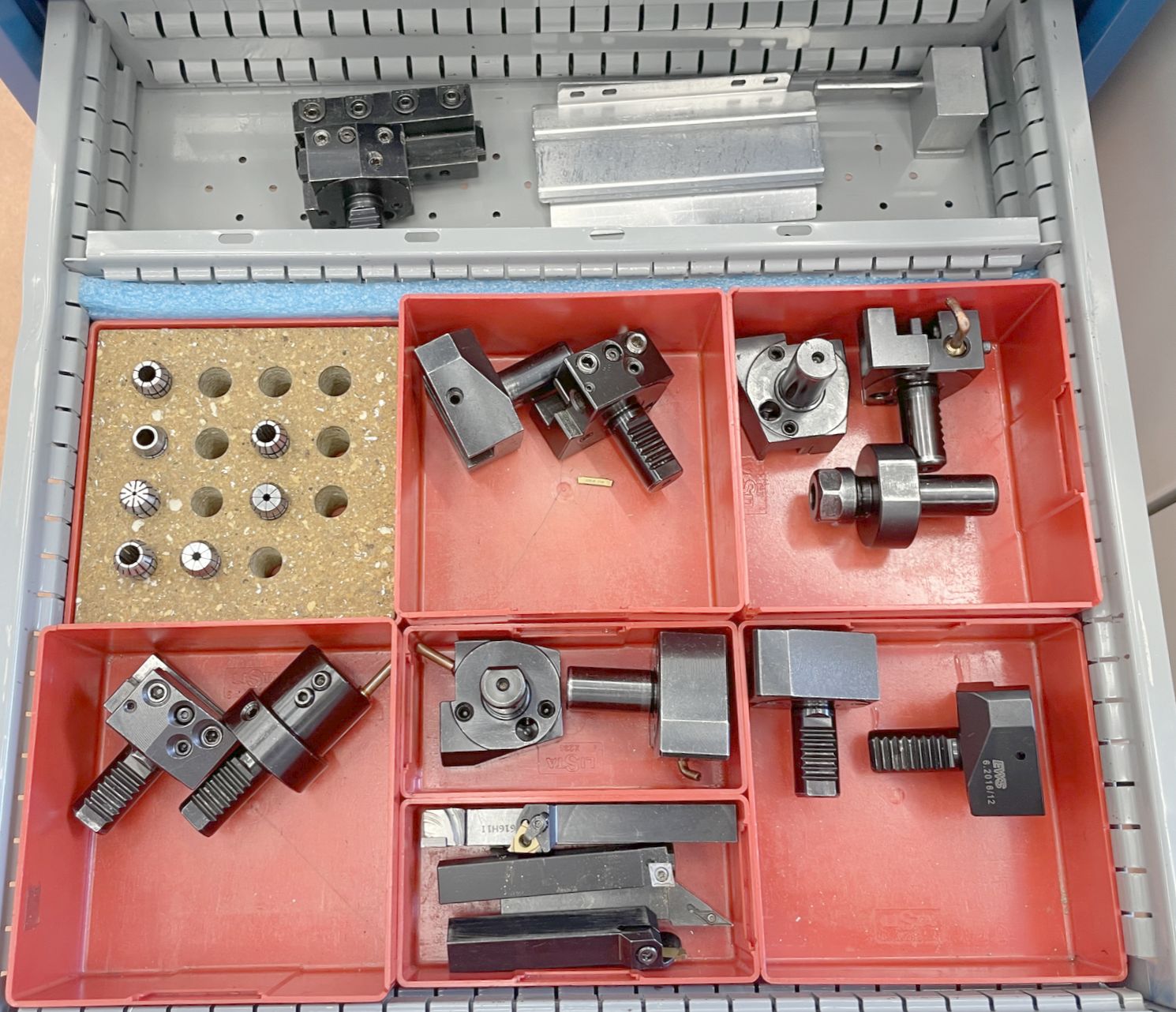

| Set of toolholders |

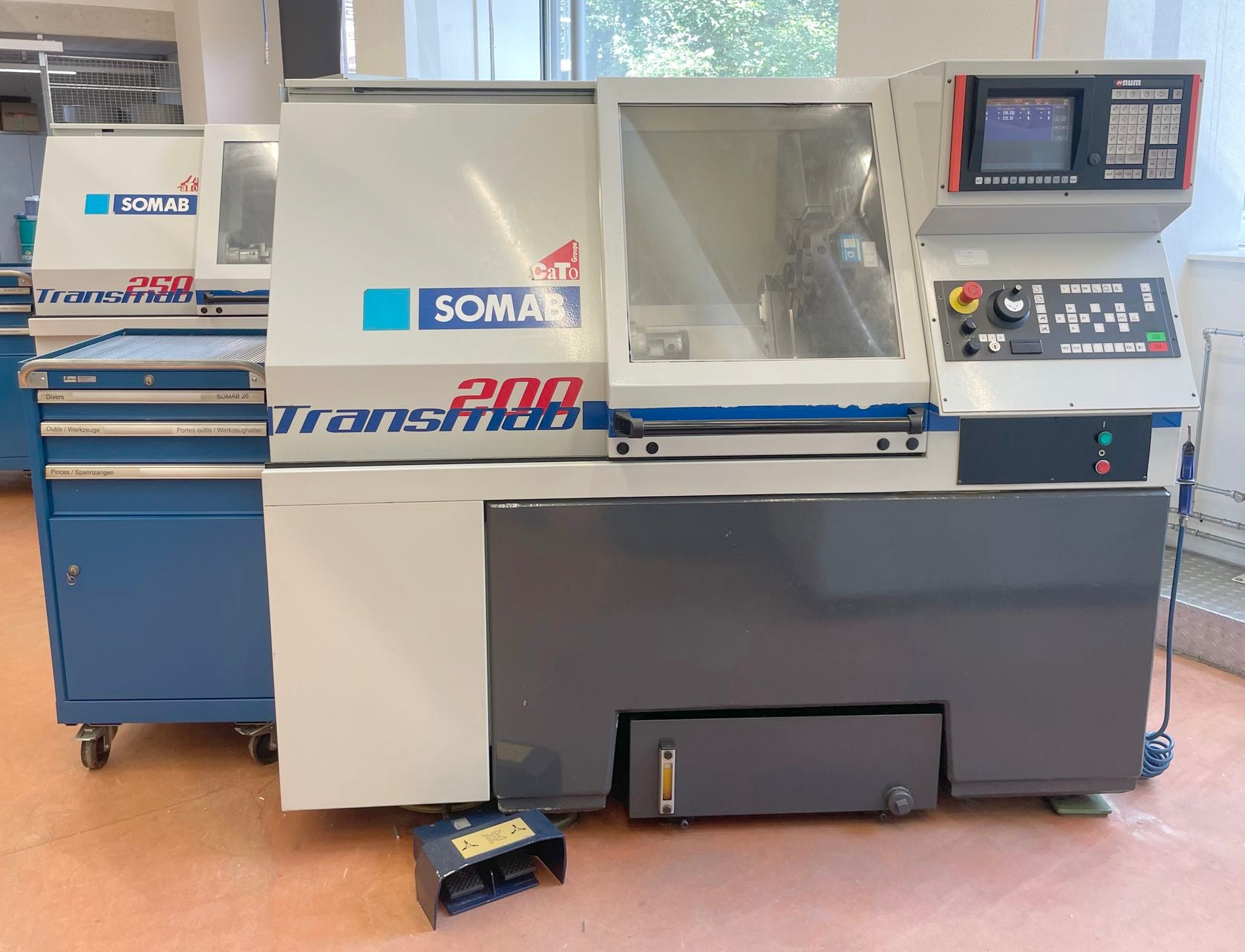

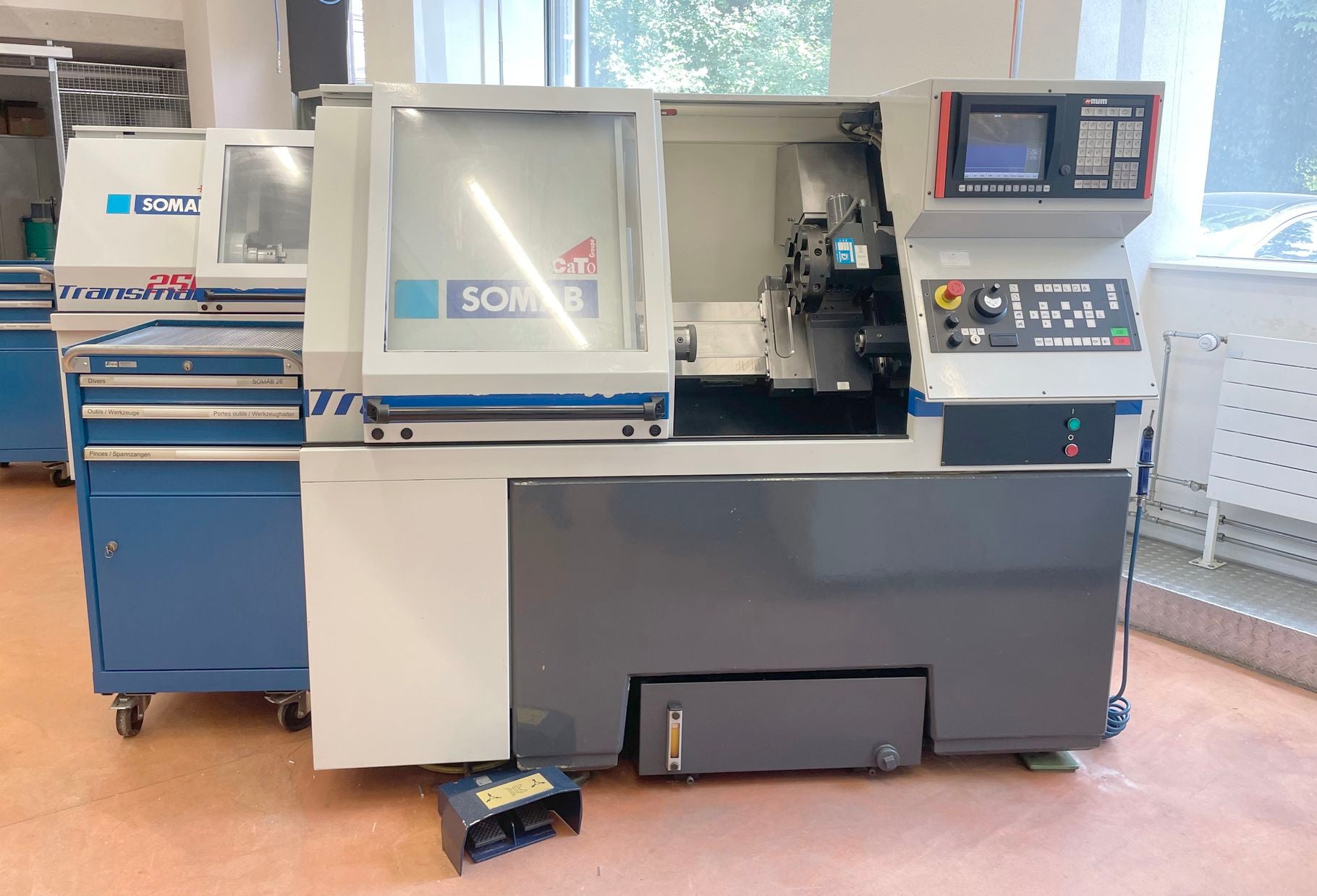

SOMAB TRANSMAB 200 is a CNC turning lathe with slant bed for precision machining, high accuracy and reliability. Capacities: swing over bed 260 mm, spindle hole 35 mm, travels Z 300 mm and X 125 mm, turret 8 pos., tool shank 16 mm, tailstock stroke 80 mm (Ø52 mm). Specs: spindle taper A2‑4", inner cone 20 mm, 200–5000 rpm (stepless), 4 kW spindle motor, 3x400 V, weight ~2500 kg, dims 1900×1400×1980 mm. Accessories: collet set, lamp, tailstock, tool cabinet, RS232, foot pedal. Suited to tight tolerances in automotive, aerospace and medical sectors.
Technical specifications are subject to change without notice
