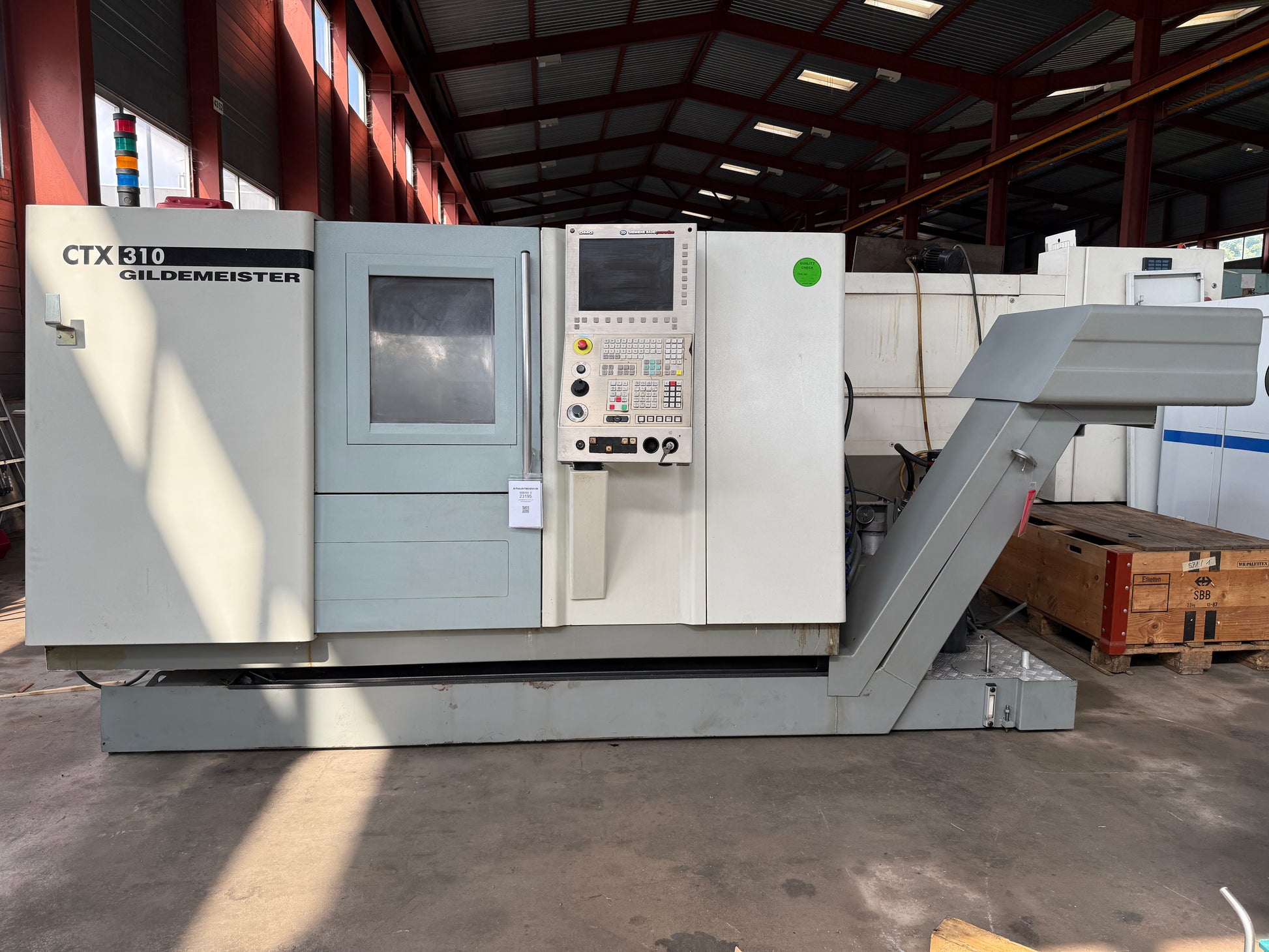

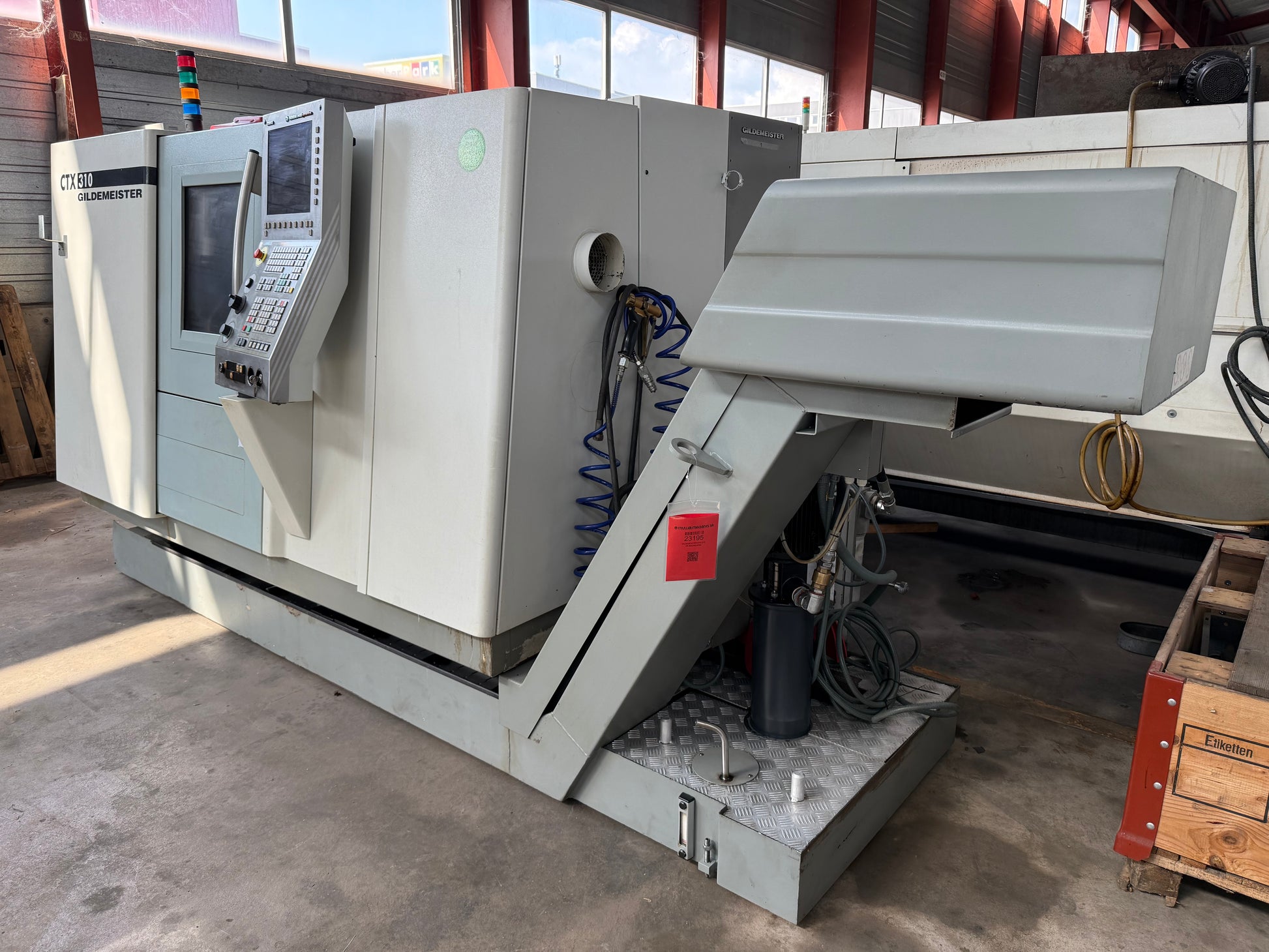

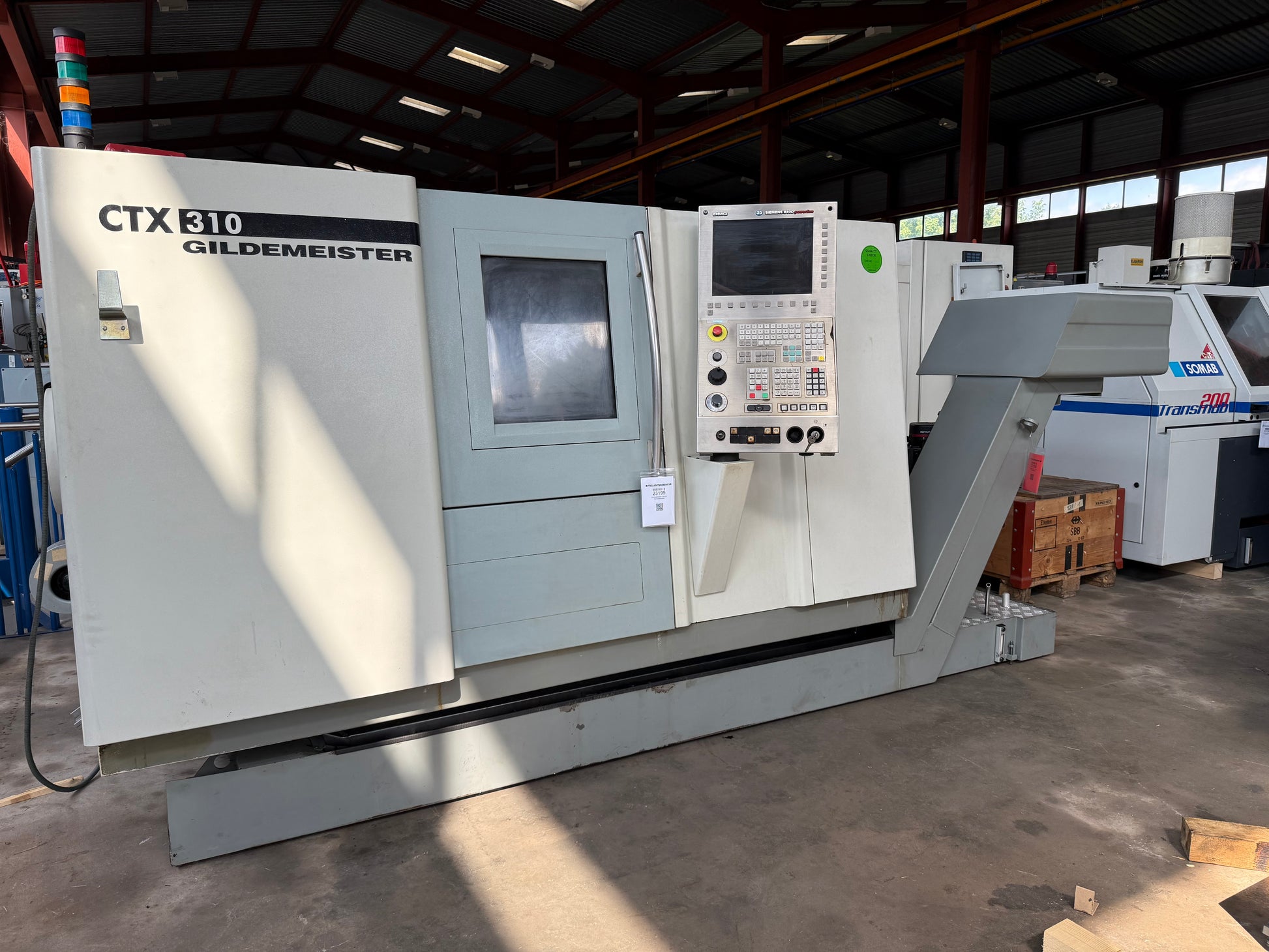

023195 - GILDEMEISTER CTX 310
Download technical sheet (PDF)
Message us on WhatsApp
| Number of spindles | 1 |
| Number of revolvers | 1 |
| Max. turning diameter | 200 mm |
| Maximum turning length | 450 mm |
| Bar passage | 51 mm |
| Rapid traverse X | 185 m/min |
| Rapid traverse Z | 450 m/min |

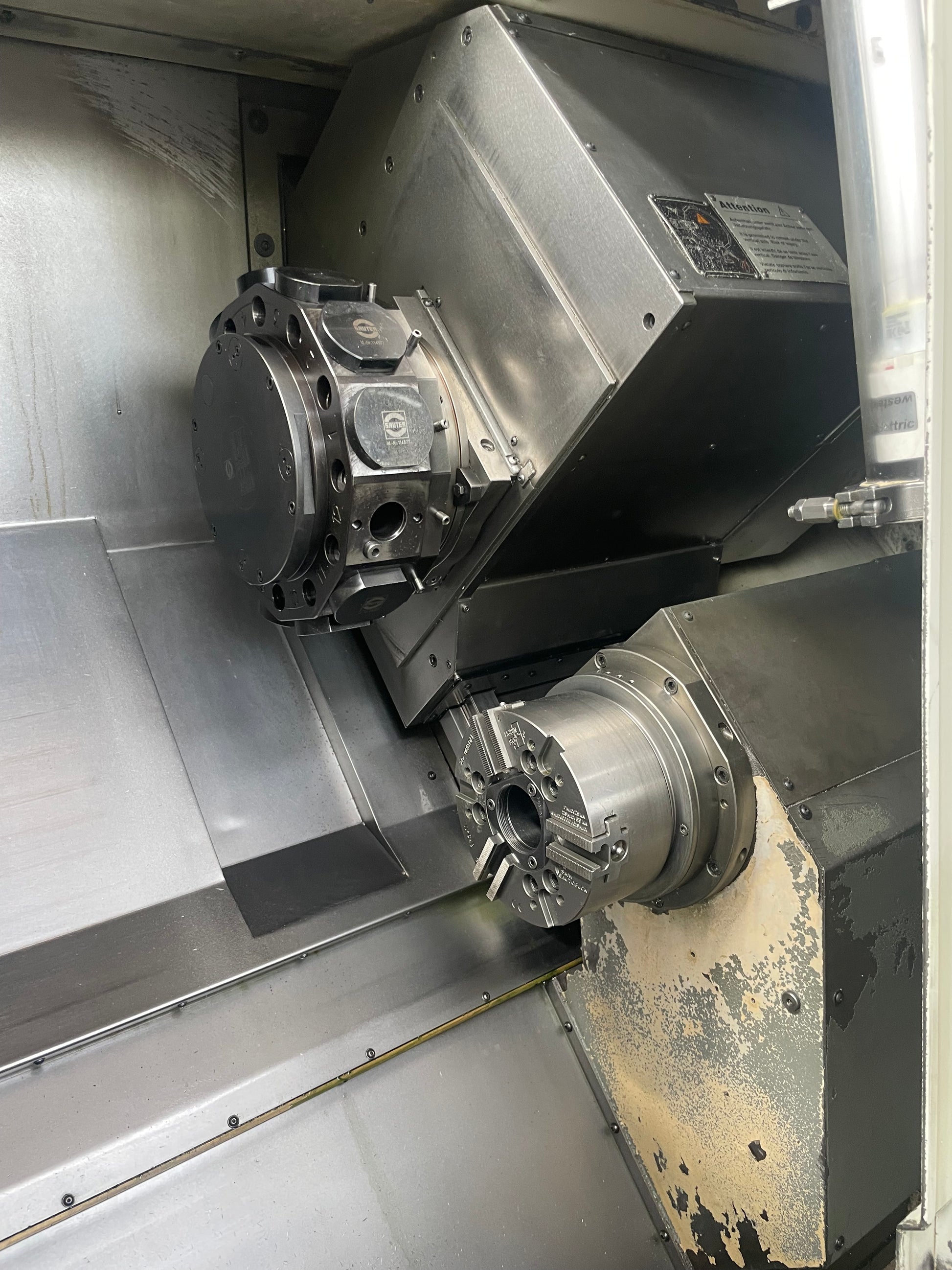

| Turret slide: | SAUTER |
| Number of positions | 12 |
| Fixed tools turret | 6 |

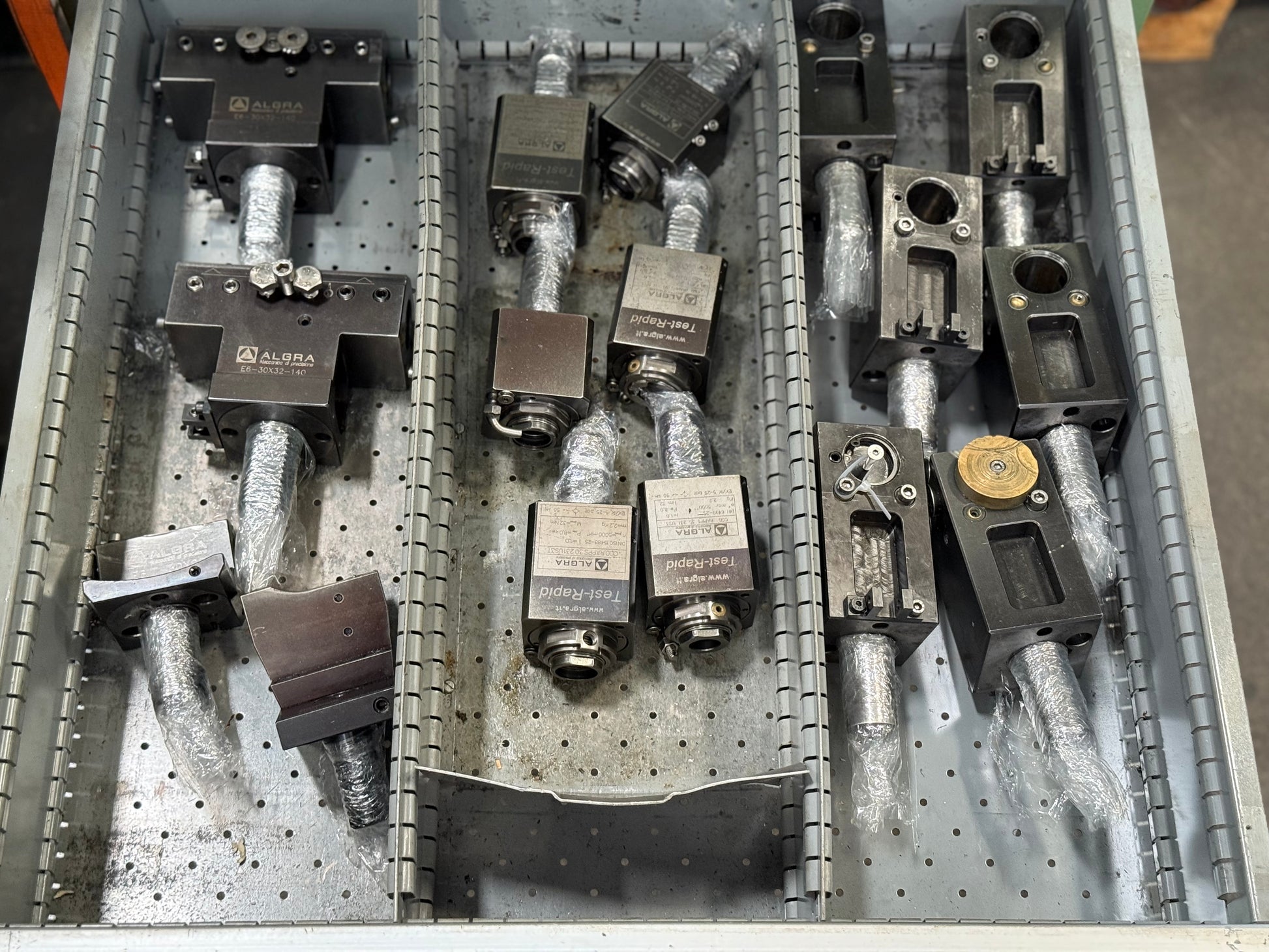

| Driven tools turret | 6 |
| Spindle speeds | 4000 t/min |
| Spindle nose: VDI | 30 |

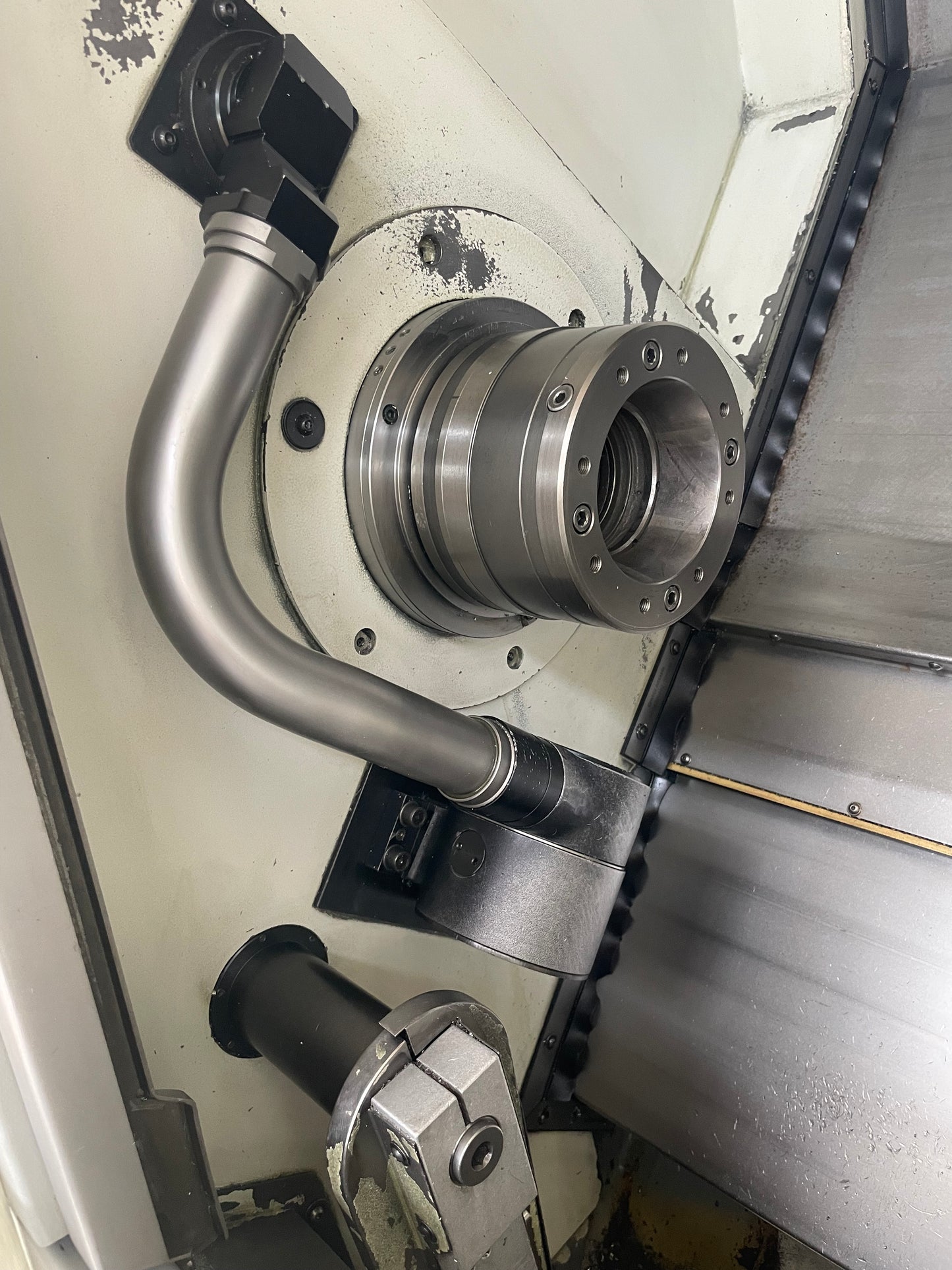

| Main spindle: | |
| C axis | |
| Spindle speeds: | |
| stepless | |
| from | 50 t/min |
| up to | 5000 t/min |
| Time under power | 48925 Heures |
| Operating time | 26486 Heures |
| Spindle motor | 7.5 kW |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 21 kVA |
| Machine's weight about | 3200 kg |
| Overall dimensions machine: | |
| Length | 3100 mm |
| Width | 1600 mm |
| Height | 1730 mm |

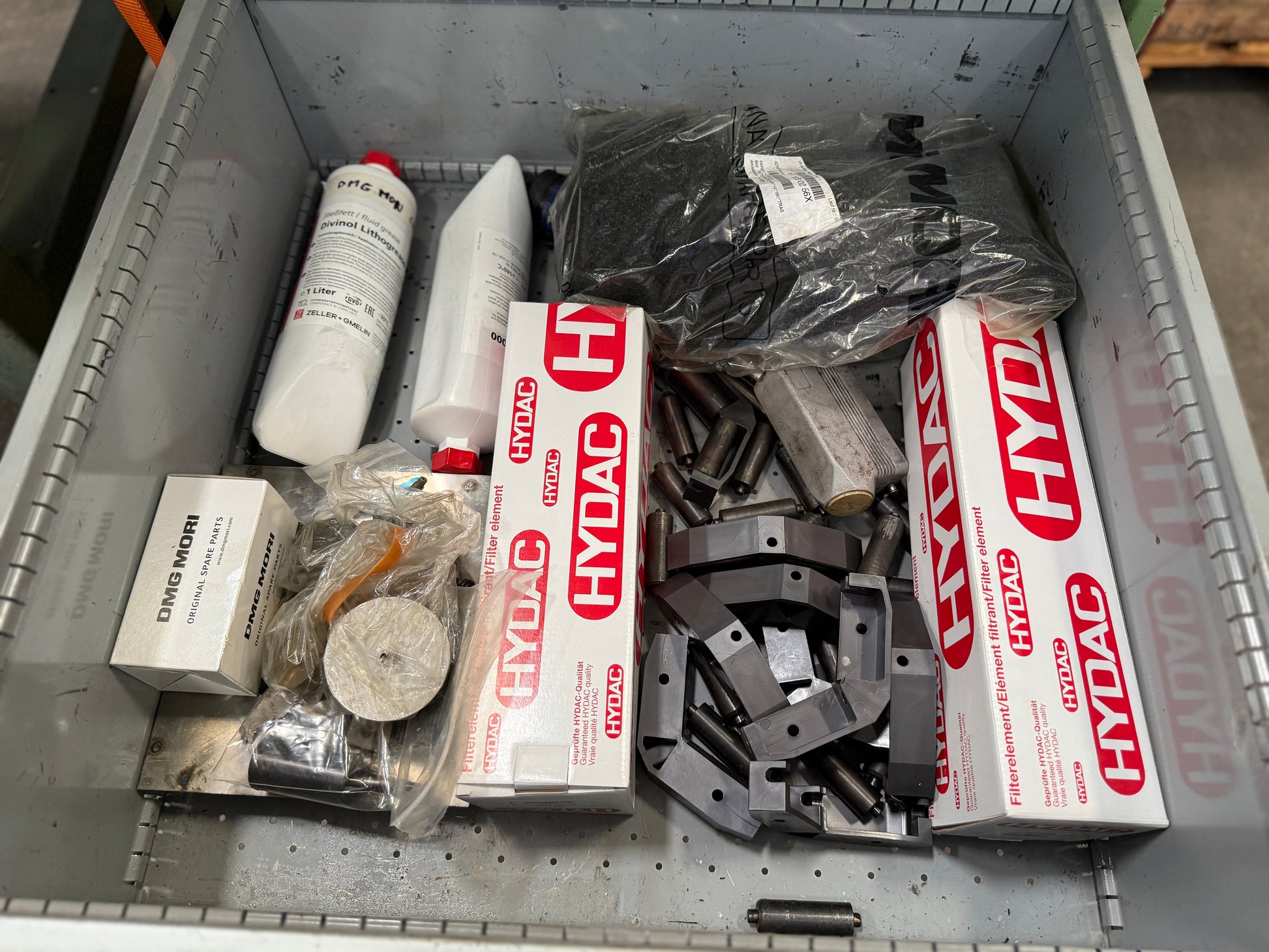

| Various accessories: | |

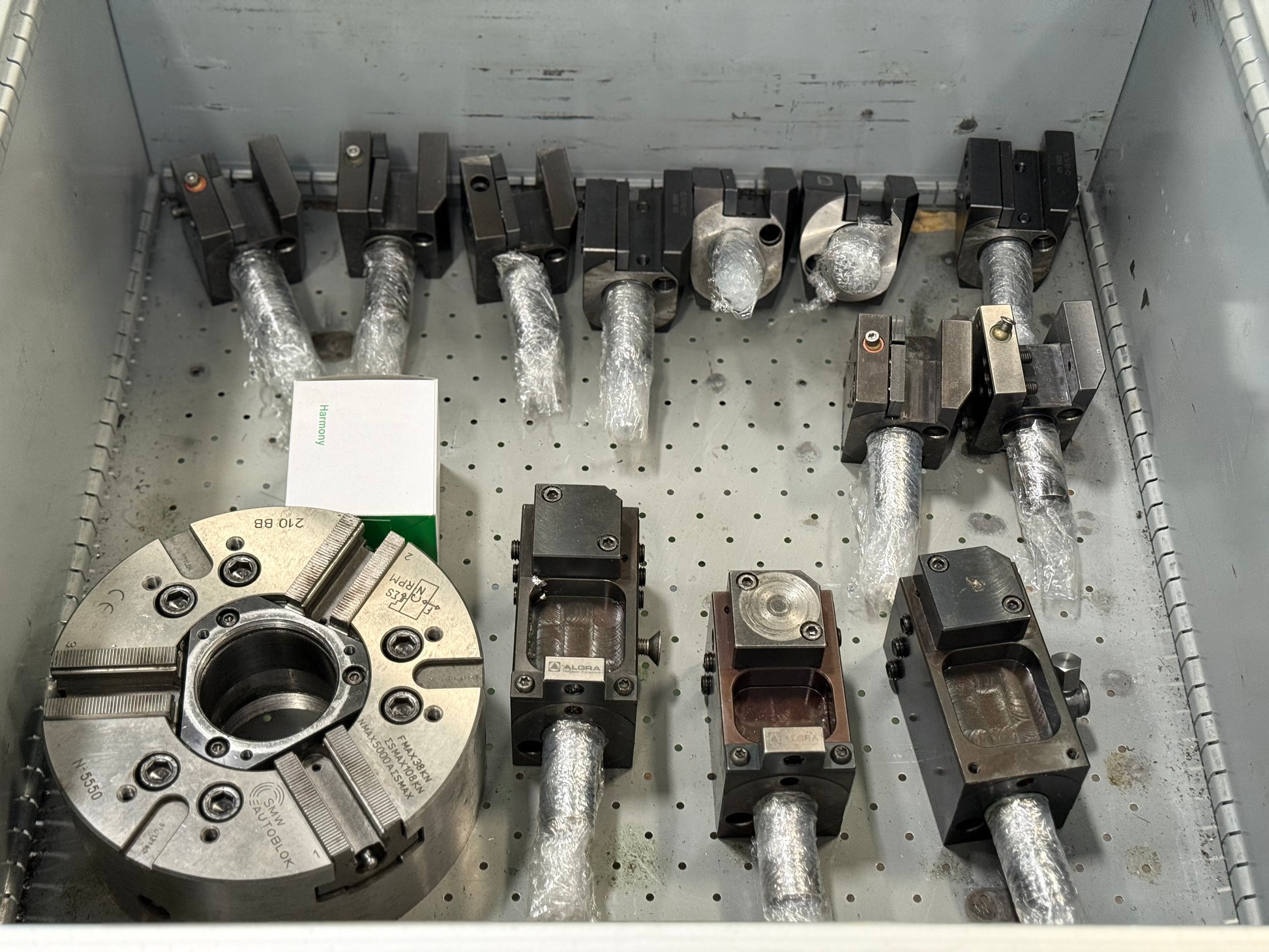

| 3-jaw chuck | |

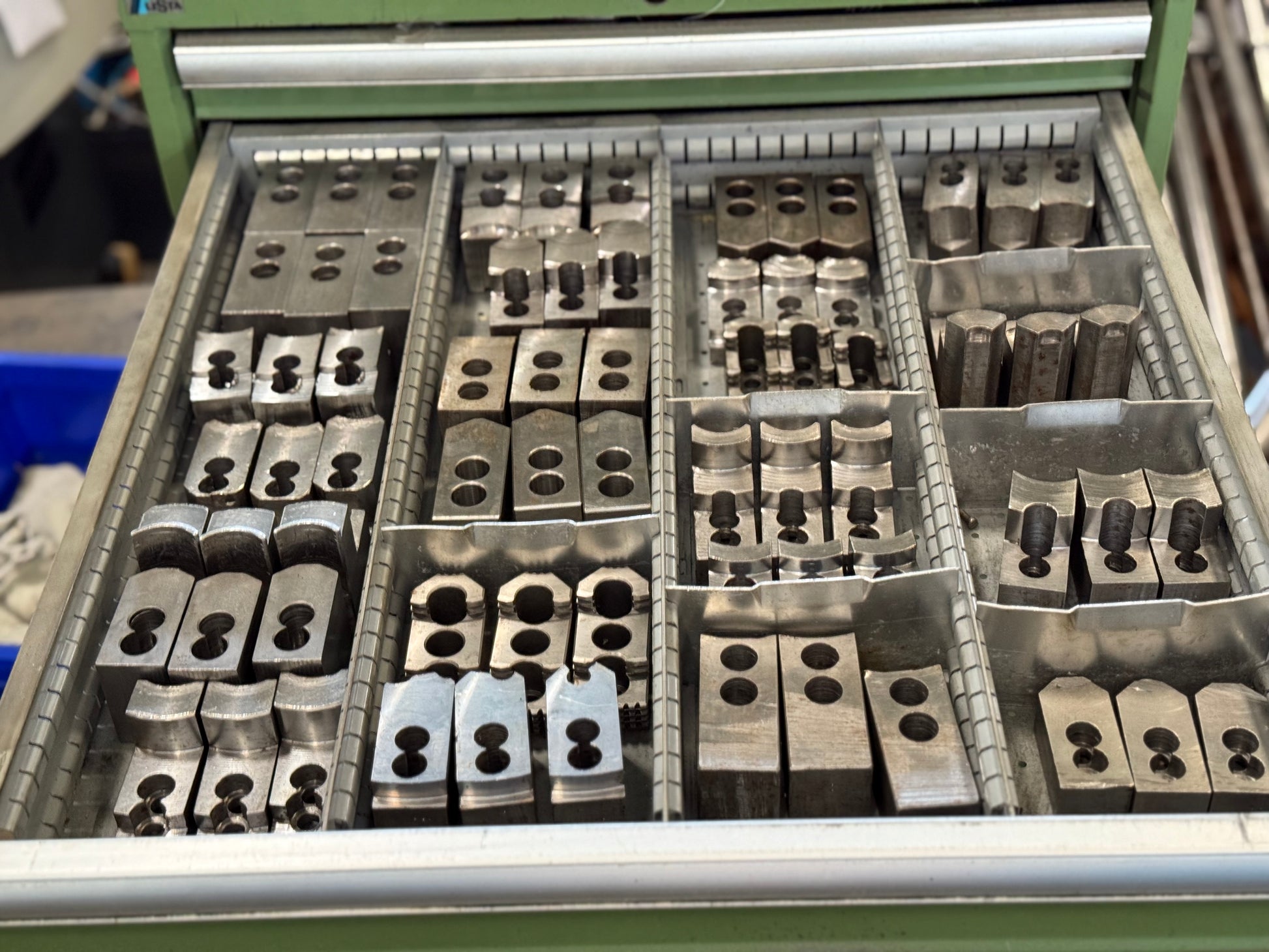

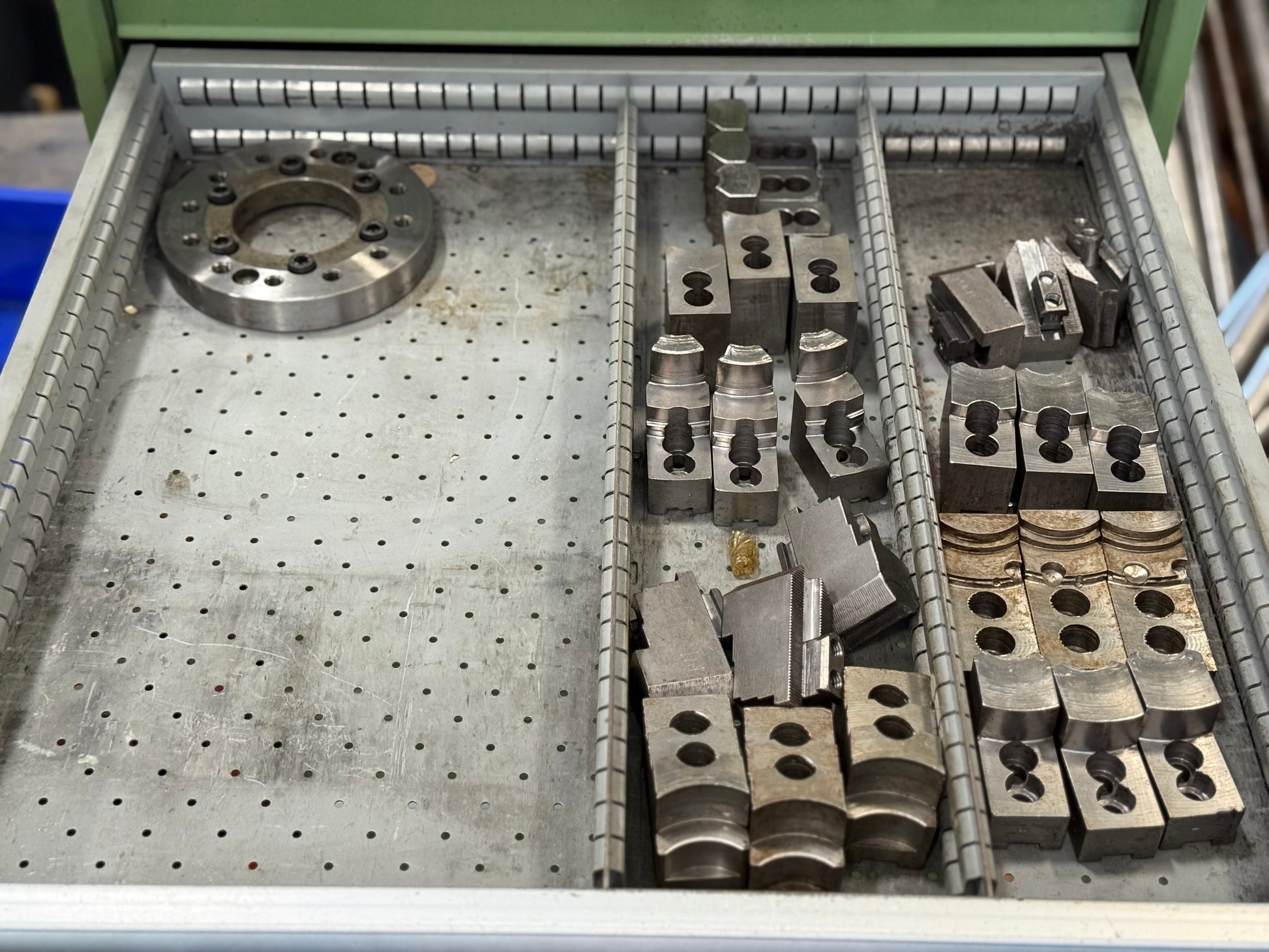

| Set of soft jaws | |
| Set of hard jaws | |
| Lamp | |
| Tailstock | |
| Coolant system | |
| Oil mist extractor | ELBARON |
| Chip conveyor | |

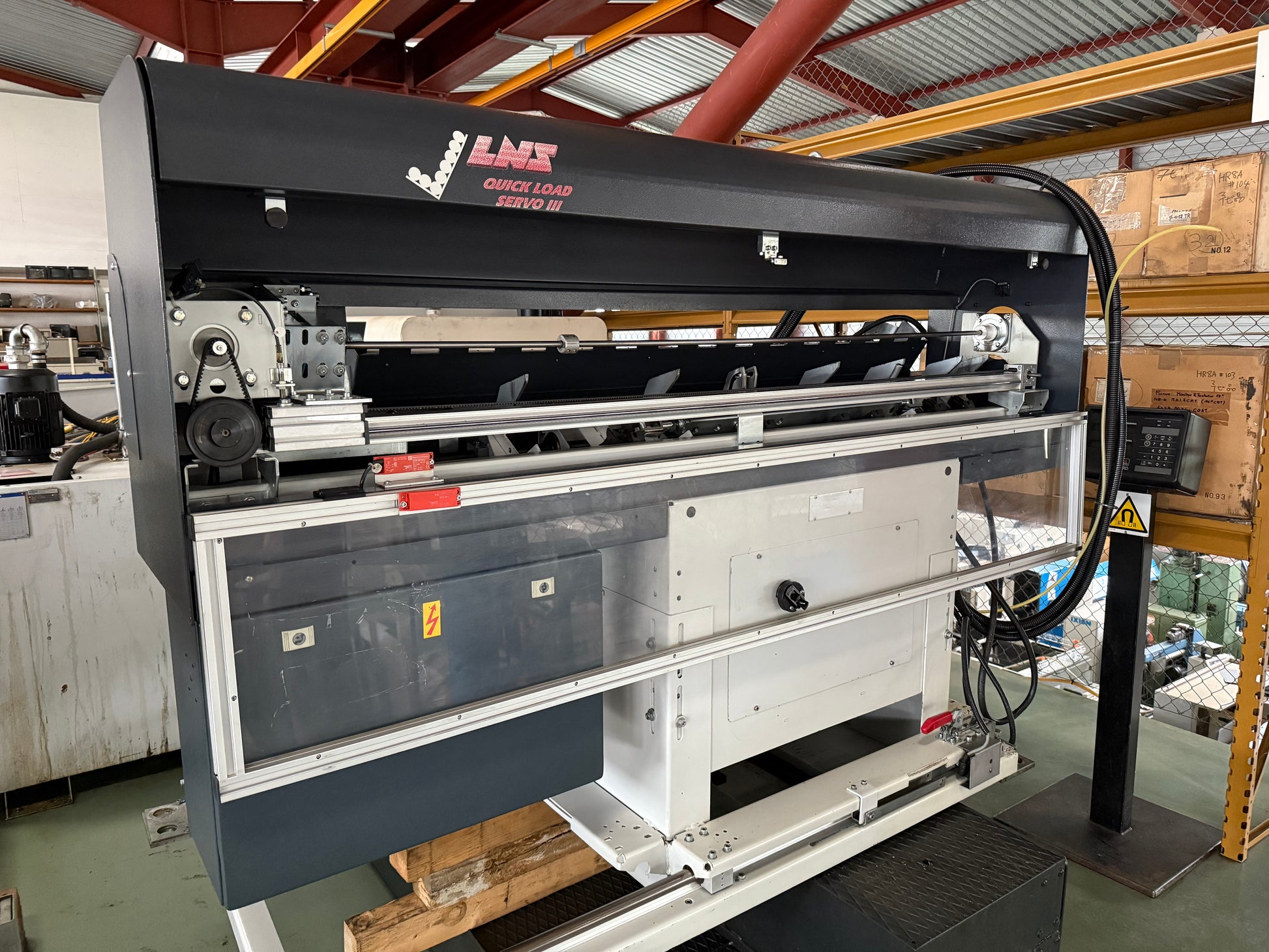

| Loader | LNS QUICK LOAD SERVO III |
| Foot pedal | |
| Measuring arm Renishaw | |
| Rinsing Guns | |
| Switch cabinet Cooling unit |
