| Table length | 1100 mm |
| Table width | 842 mm |
| Table load max. | 800 kg |
| Longitudinal travel (X-axis) | 1000 mm |
| Transversal travel (y-axis) | 795 mm |
| Vertical travel (z axis) | 800 mm |
| Drill capacity in steel | 55 mm |
| Taper in spindle: MT | 4 |
| Stroke of drilling spindle (Z-axis) | 250 mm |
| Bore diameter max. | 300 mm |
| Spindle speeds: | |
| number (steps) | 18 |
| from | 40 t/min |
| up to | 2000 t/min |
| Feeds: | |
| Table: | |
| stepless | |
| up to | 300 mm/min |
| Drill spindle slide: | |
| number (steps) | 6 |
| from | mm/t |
| up to | mm/t |
| Rapid traverse: | |
| Table:longitudinal | 2500 mm/min |
| transversal from | 2500 mm/min |
| Distance between columns | 1100 mm |
| Distance between spindle | |
| and table | 900 mm |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 4 CV |
| Total power required | 8 CV |
| Machine's weight about | 7500 kg |
| Overall dimensions machine: | |
| Length | 3220 mm |
| Width | 2335 mm |
| Height | 3205 mm |
| Various accessories: | |
| Slide way reshaved | |
| Digital readout number of axis: | |
| Manufacturer | HEIDENHAIN |

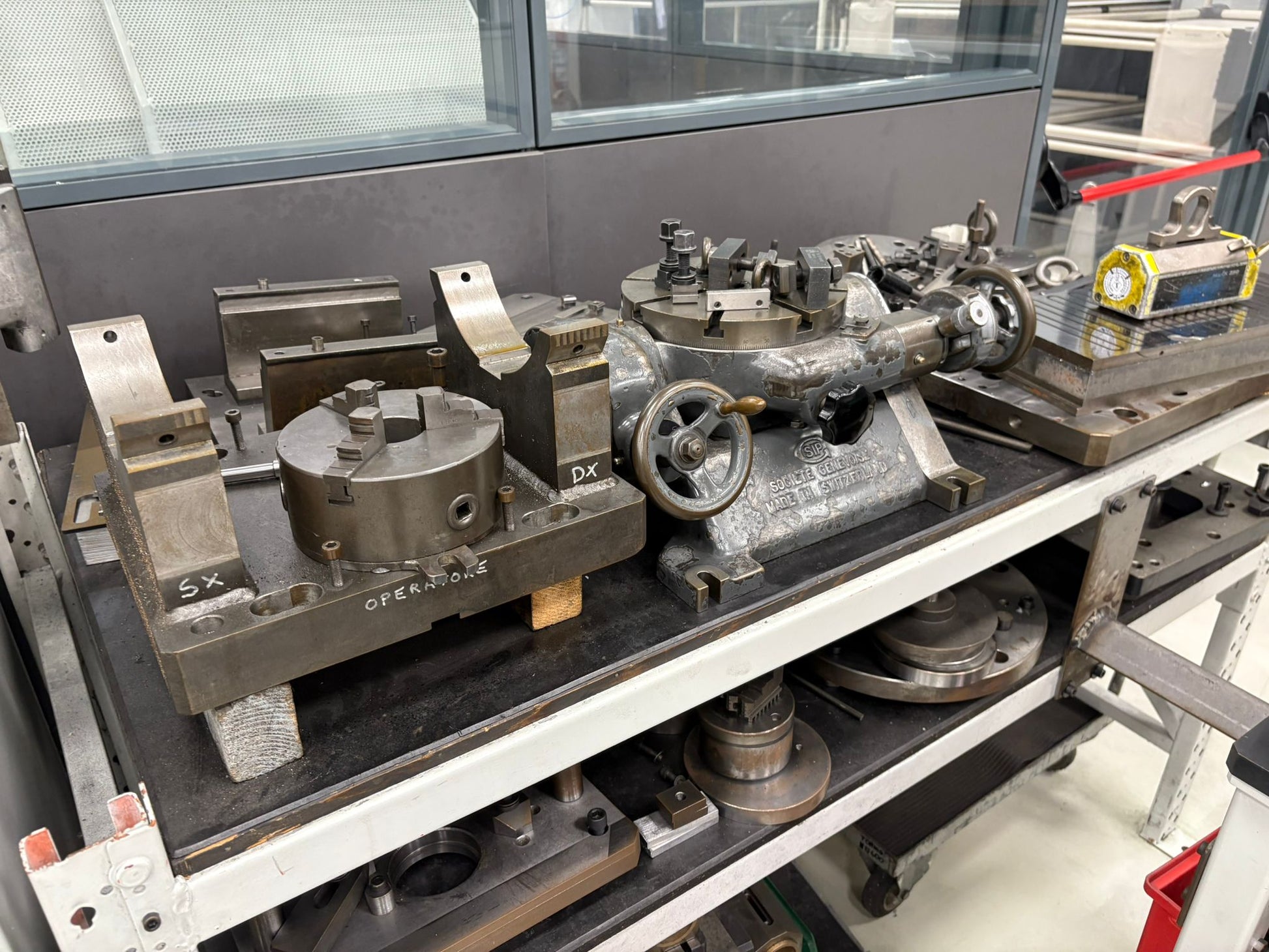

| Set of boring head | |
| Centering device | |
| Screen | |
| Notes: | |
| Machine refurbished | 2020 |
