TORNOS MULTISWISS 6x14
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

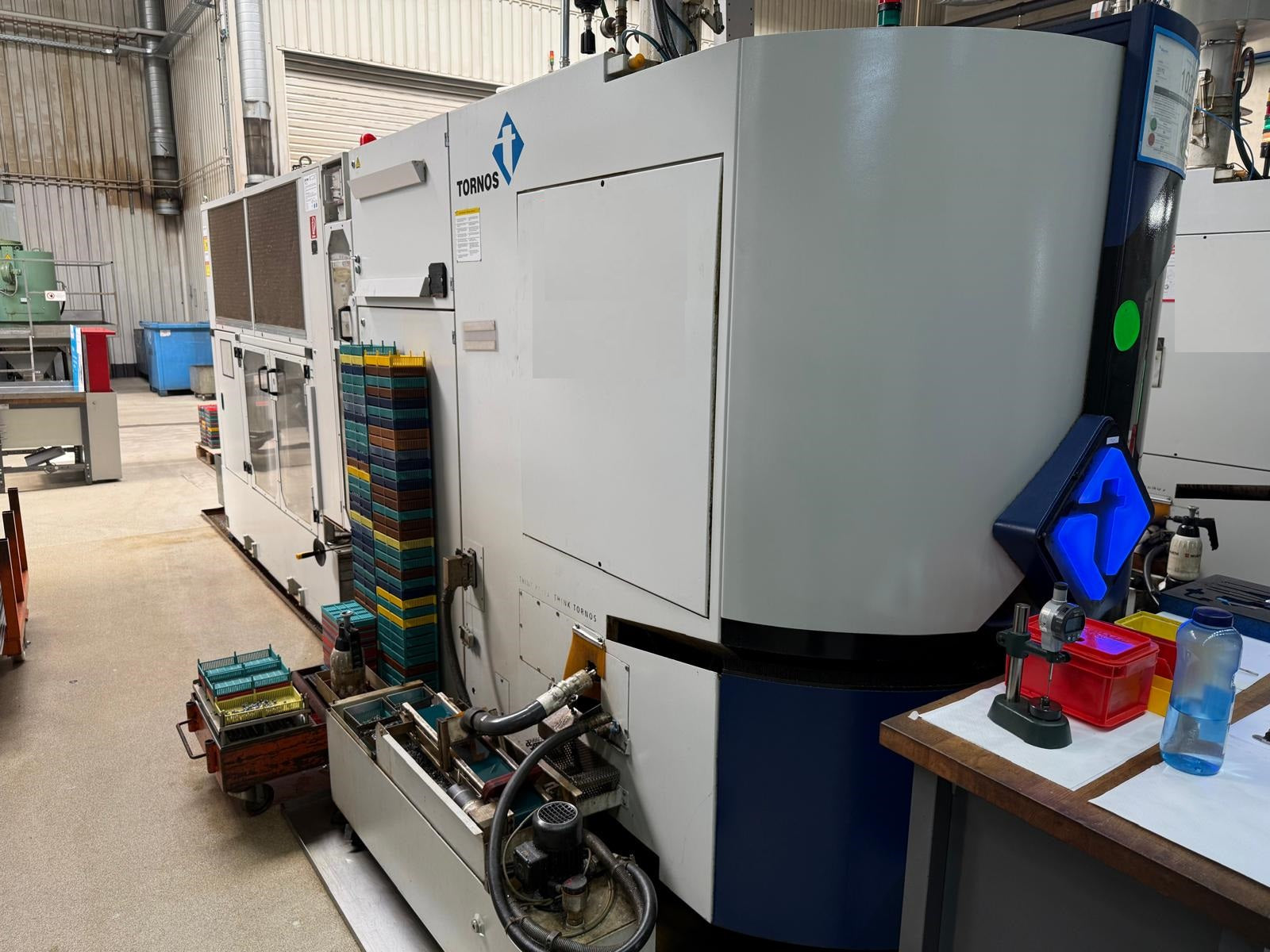

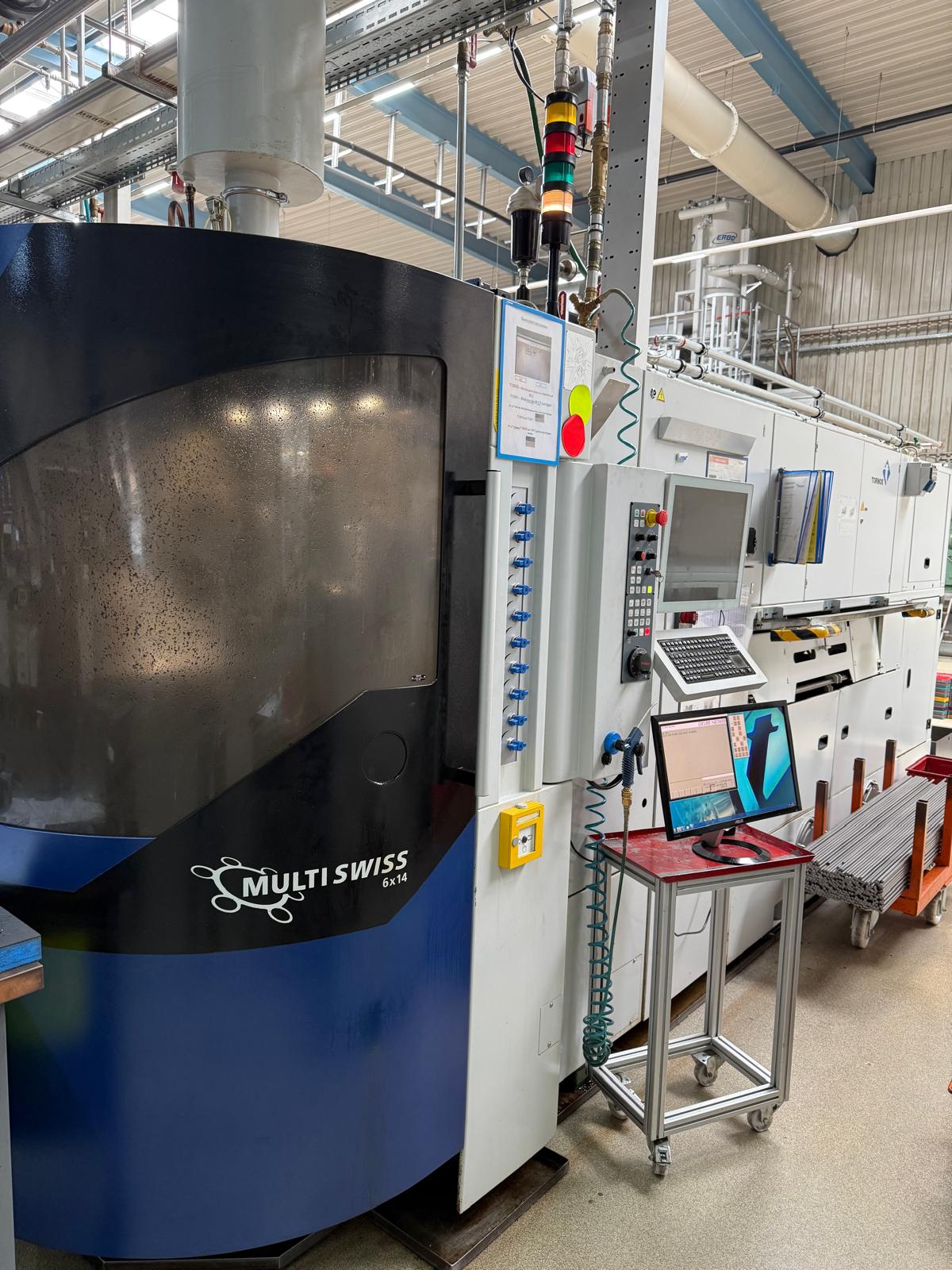

TORNOS MULTISWISS 6x14 is a CNC multi-spindle turning lathe built for high precision, accuracy and reliability. Capacity: bar Ø 4–14 mm; workpiece length max 40 mm; outstanding length 70 mm; 6 spindles; 1 back spindle; 20 axes; 6 cross slides; up to 18 tools (2 on back spindle). Specs: 0–8000 rpm; 6 kW spindle; 3×400 V 50 Hz; 70 kVA; ~7000 kg; 5920×1440×2120 mm. Accessories: coolant system, lamp, status light. Delivers tight tolerances; typical applications: automotive, watchmaking, aerospace, medical, machine tools.
| Number of axis total | 20 |
| Number of cross slides | 6 |
| Number of spindles | 6 |
| Number back spindle | 1 |
| Number of tools max. | 18 |
| Number of tools max. back spindle | 2 |
| Capacity round bar | 4 - 14 mm |
| Workpiece length max. | 40 mm |
| Outstanding length max. | 70 mm |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 8000 t/min |
| Back spindle: | |
| Spindle speeds | 0 - 8000 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 6 kW |
| Total power required | 70 kVA |
| Machine's weight about | 7000 kg |
| Overall dimensions machine: | |
| Length | 5920 mm |
| Width | 1440 mm |
| Height | 2120 mm |
| Various accessories: | |
| Coolant system | |
| Lamp | |
| Status light |
