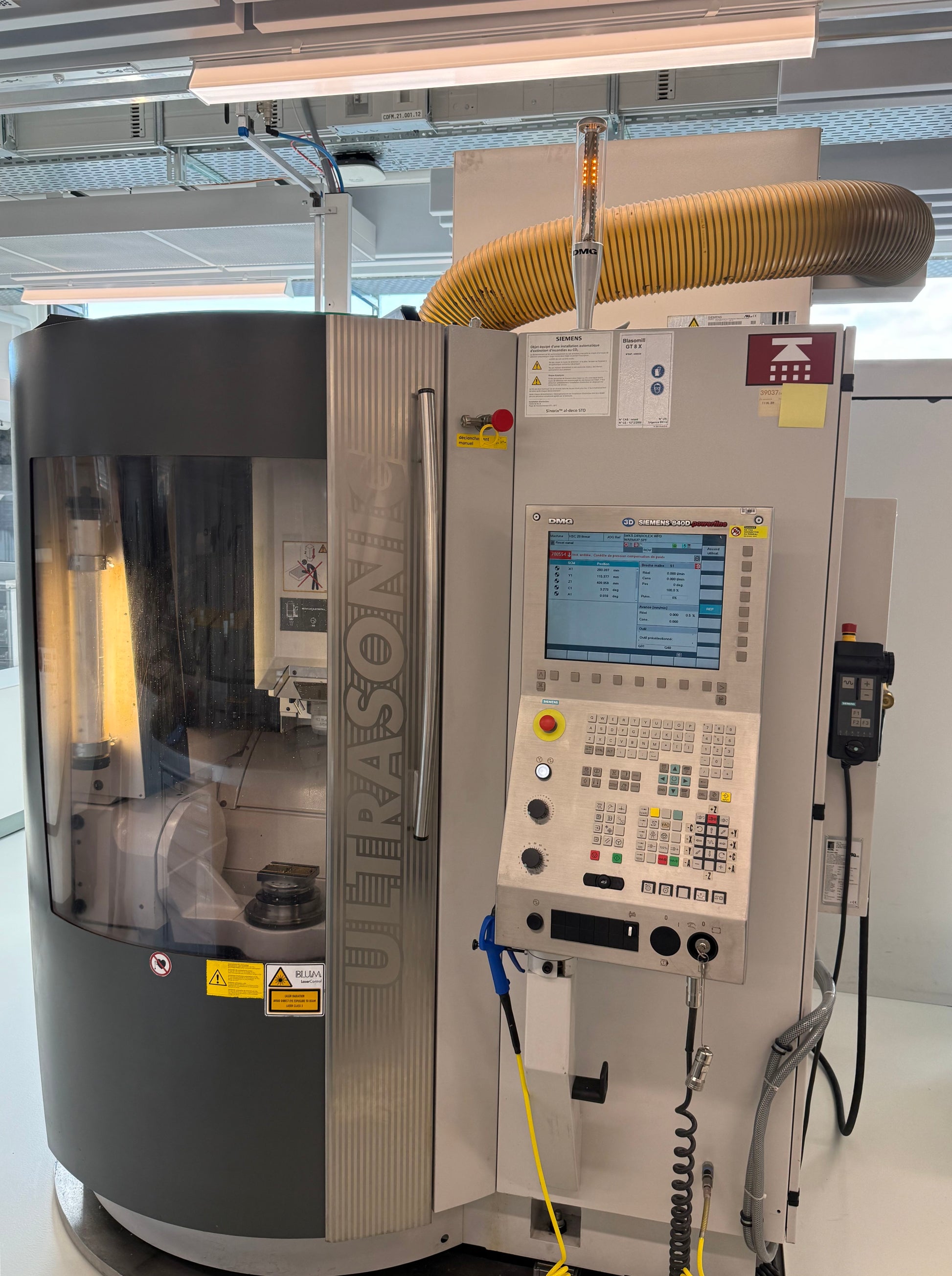

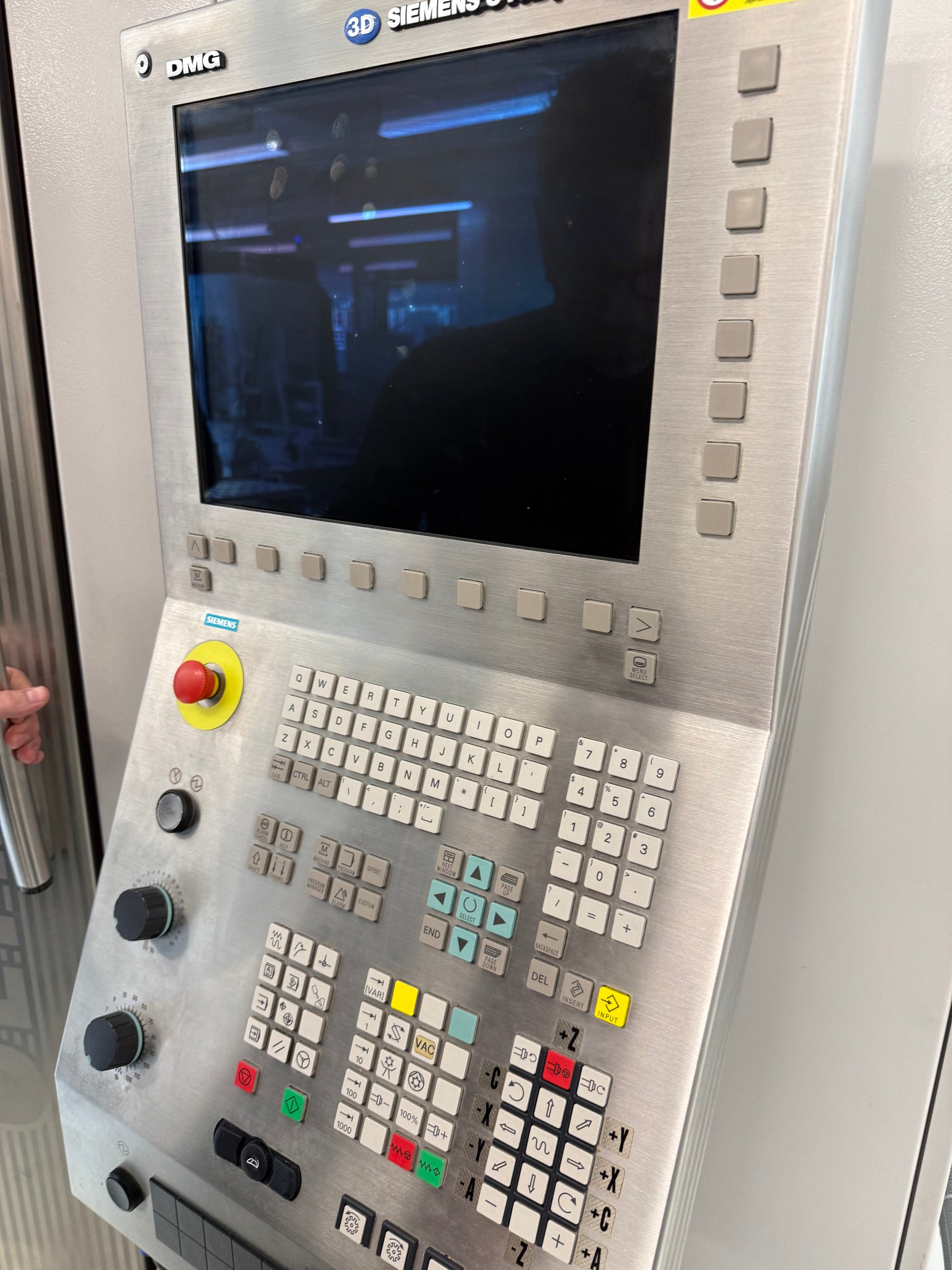

EN DMG ULTRASONIC is a 5-axis machining center for precision, high accuracy and reliability. X120 Y120 Z200 mm; rotary table Ø190 mm, load 10 kg; A -10/+120°, C 360°. Spindle HSK32 0–40,000 rpm; 60-place magazine. Feed 10,000 mm/min; 3x400 V, 25 kW; weight 1800 kg; size 2400×1600×1900 mm. Accessories: EROWA, CTS 40 bar, Renishaw probe. Achieves tight tolerances; typical sectors: automotive, aerospace, medical, watchmaking.
| Number of axis total | 5 |

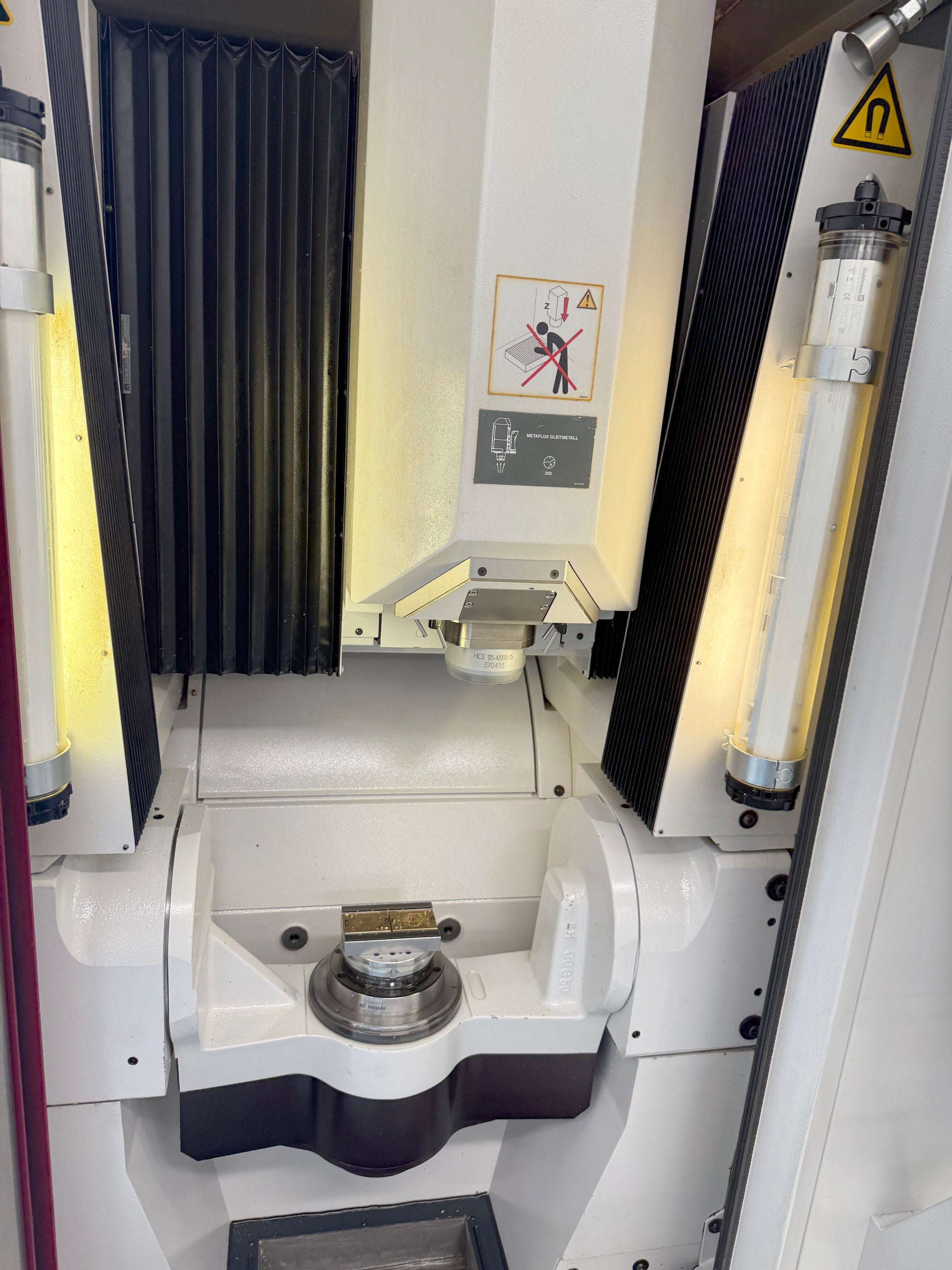

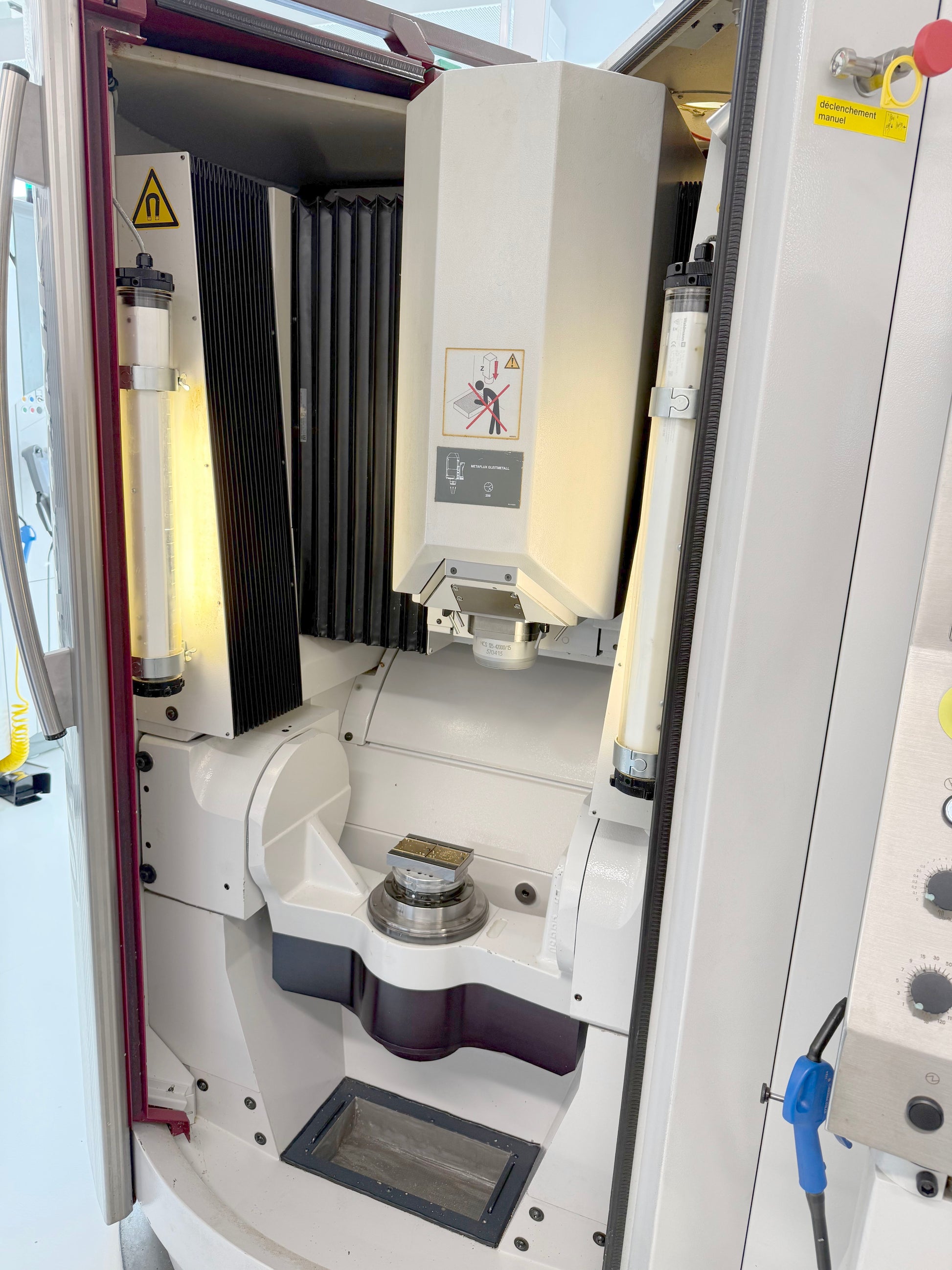

| Circulary table diameter | 190 mm |
| Table load max. | 10 kg |
| Longitudinal travel (X-axis) | 120 mm |
| Transversal travel (y-axis) | 120 mm |
| Vertical travel (z axis) | 200 mm |
| Swivel angle (a-axis) | -10 / +120 ° |
| C axis | 360 ° |
| Table speed | 150 t/min |
| Tool magazine number of tool places | 60 |
| Tool diameter max. | 30 mm |
| Tool lenght | 130 mm |
| Average chip-to-chip time | 15 s |
| Spindle nose: HSK | 32 |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 40000 t/min |
| Feed range | 10000 mm/min |
| Rapid traverse: | 10 m/min |
| Air connect | 6 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 25 kW |
| Machine's weight about | 1800 kg |
| Overall dimensions machine: | |
| Length | 2400 mm |
| Width | 1600 mm |
| Height | 1900 mm |
| Various accessories: | |
| Zero-point clamping system | EROWA |
| Set of toolholders | |

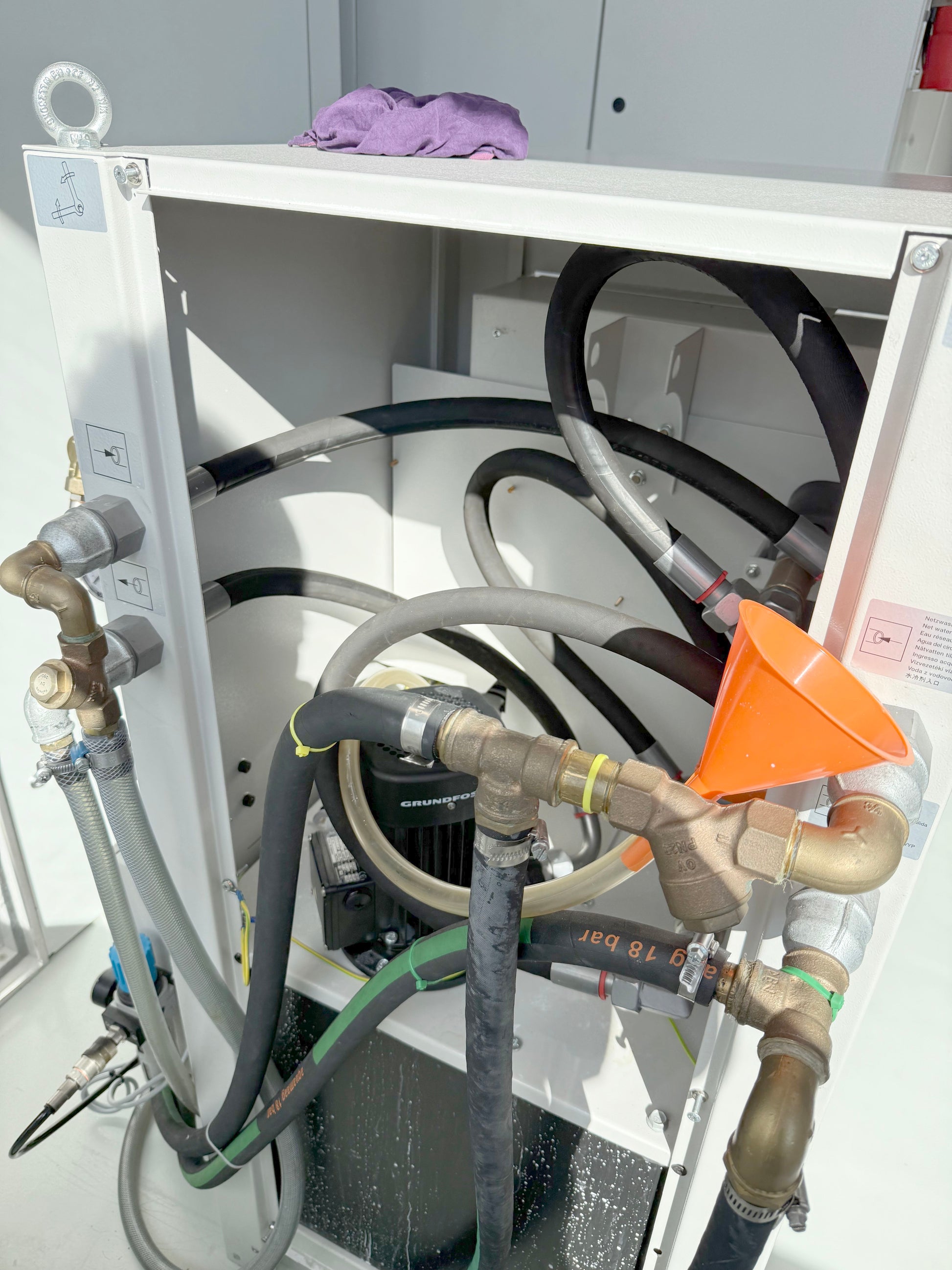

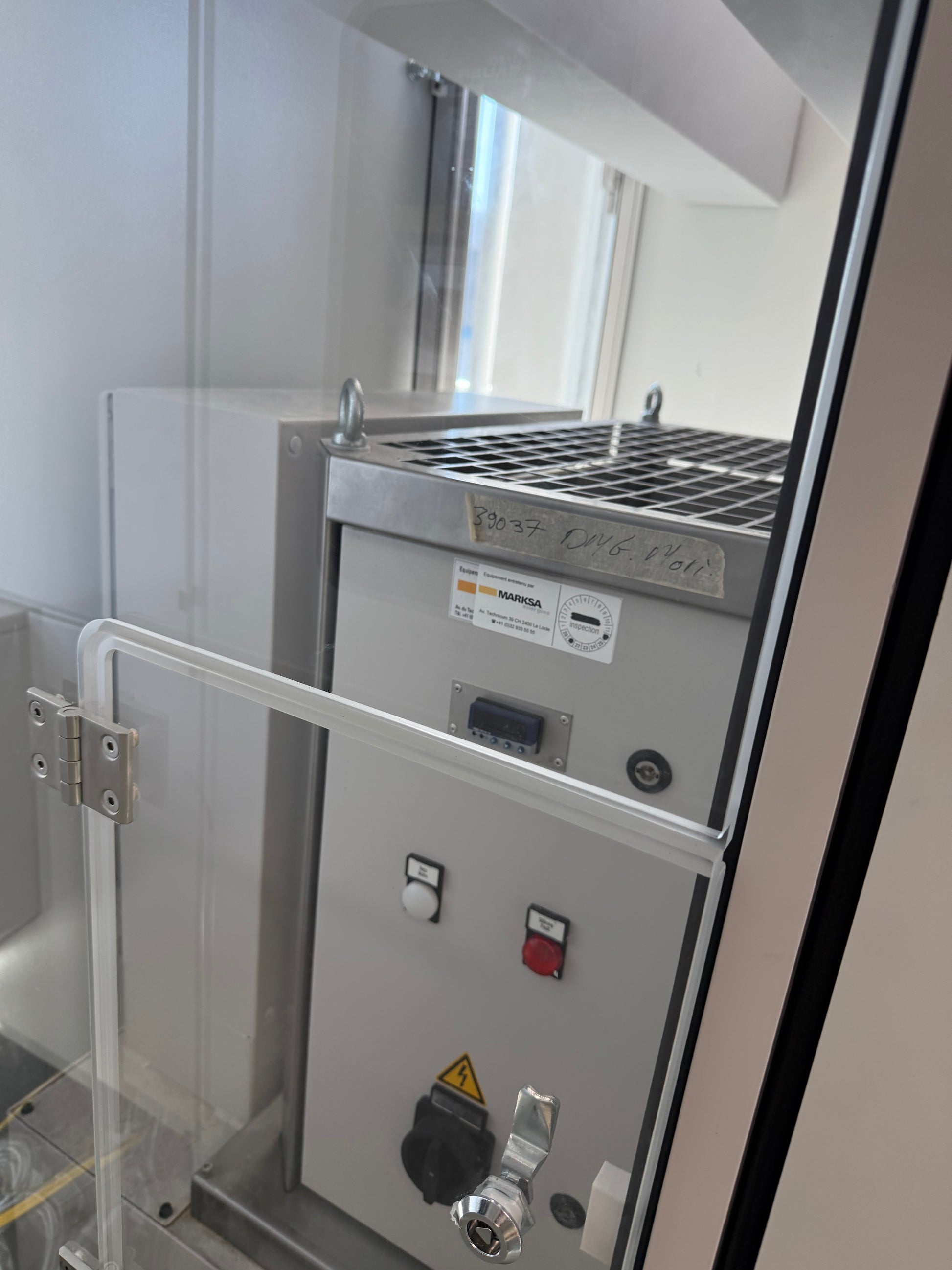

| Coolant system | |

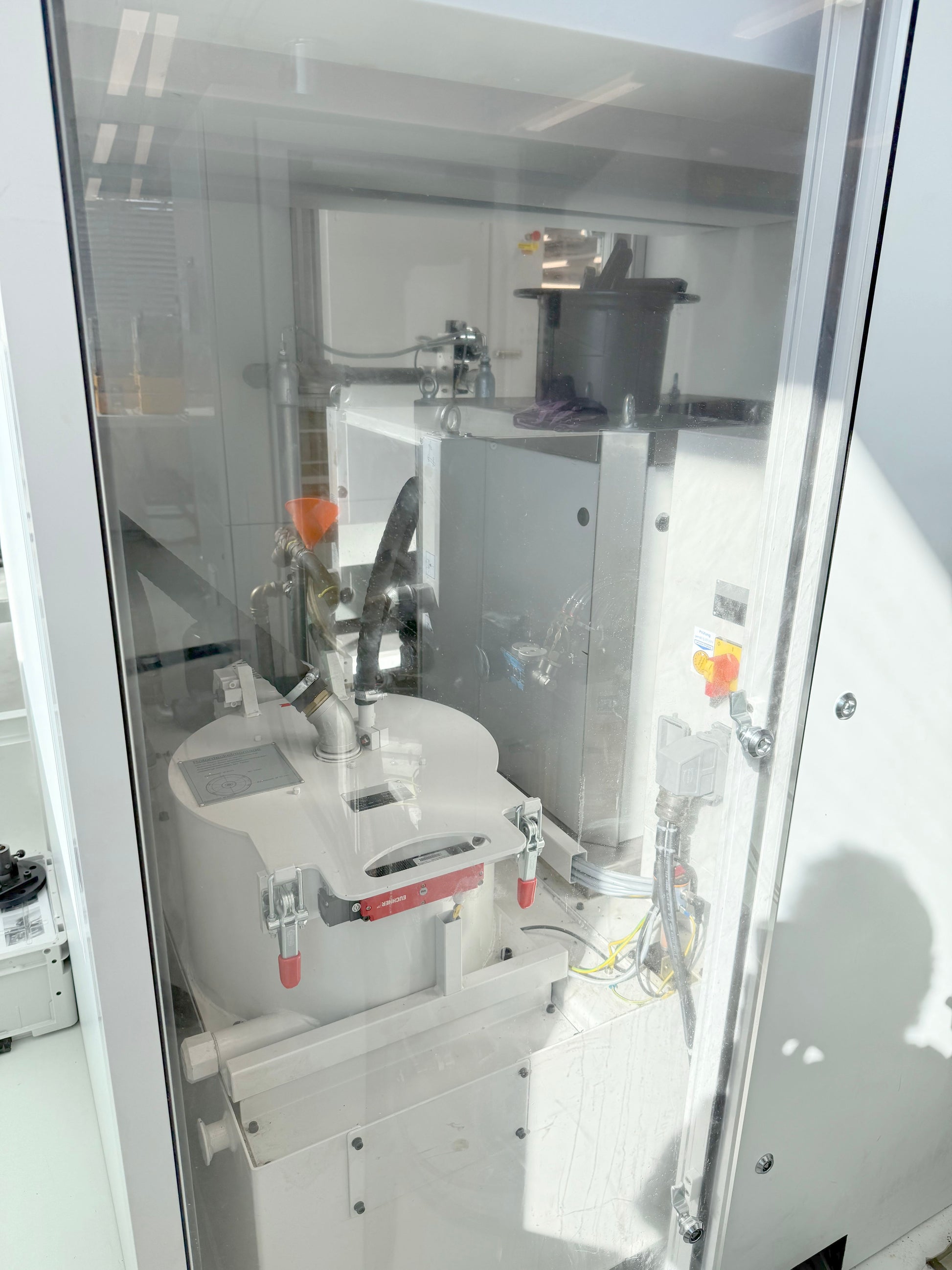

| Additional coolant filter | |
| Coolant through spindle (cts) | 40 bar |
| Touch Probe Renishaw | |

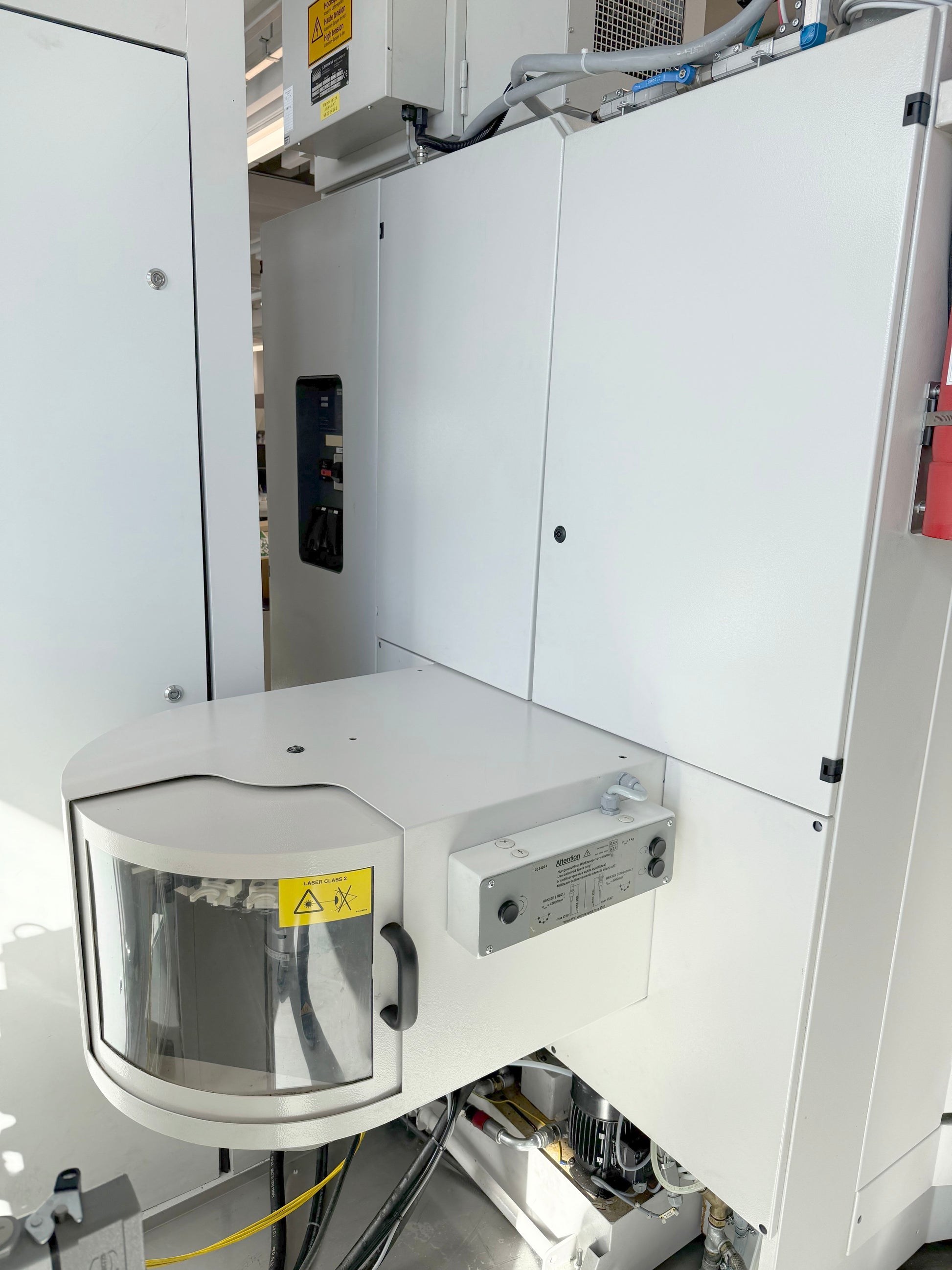

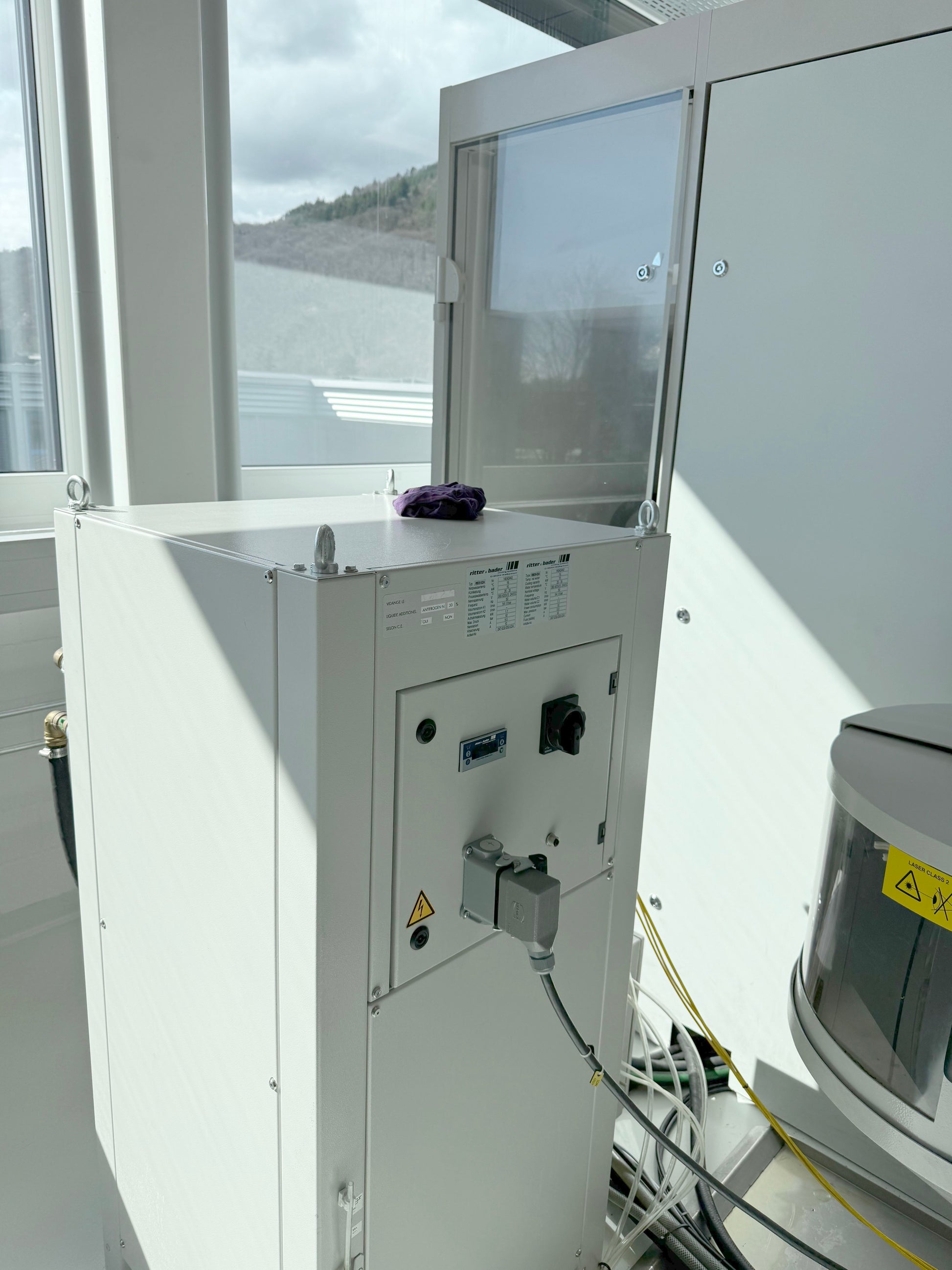

| Linear workpiece magazine | |
| Type | PH2/120 |
| Oil mist extractor | |
| Spindlecooling | |
| Laser tool measurement | BLUM |
| Fire extinguishing system | |
| Switch cabinet Air conditioner |
