ISOMA M 113 QUADRA CHECK
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

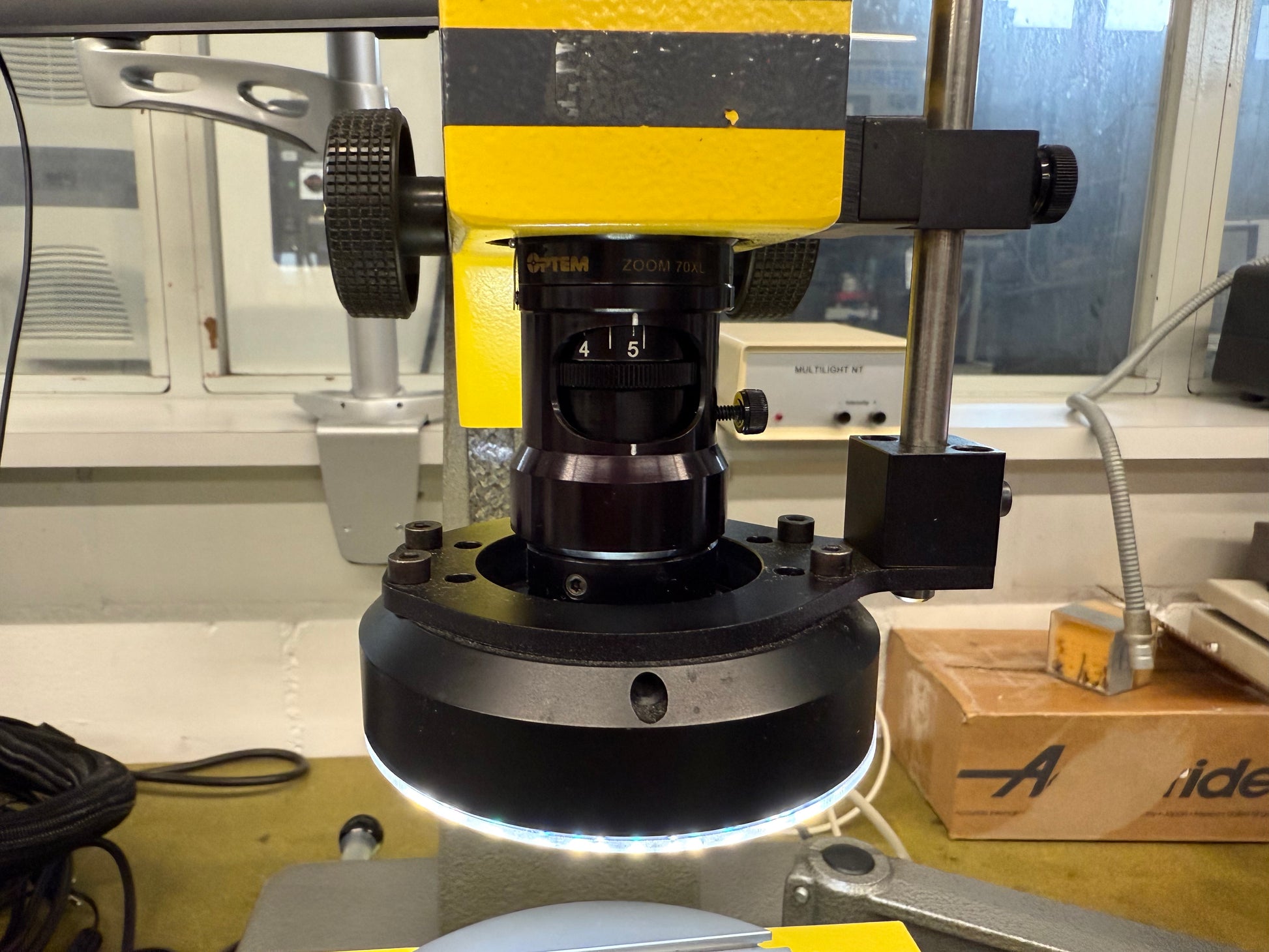

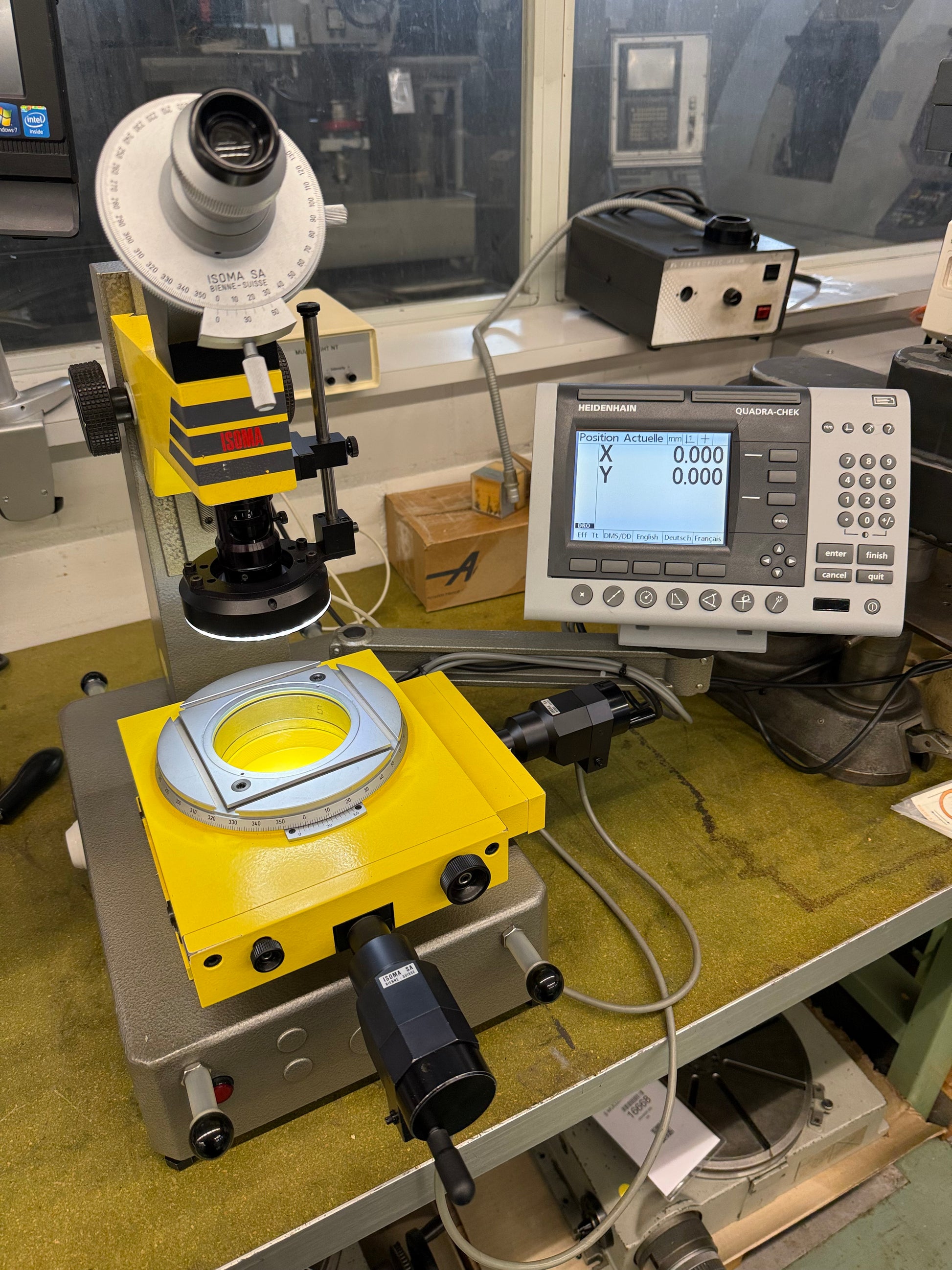

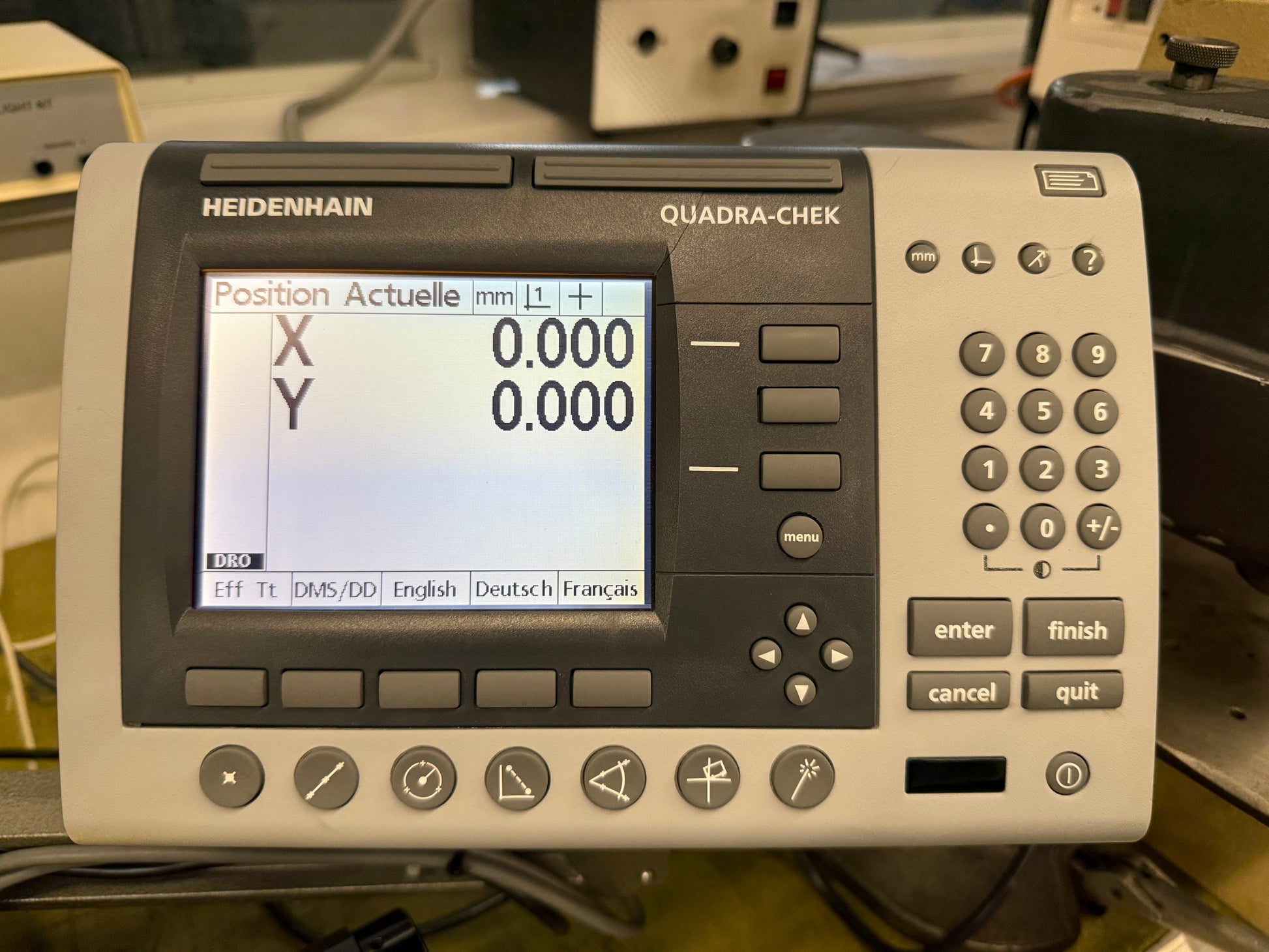

ISOMA M 113 is a Measuring microscope engineered for precision, high accuracy and reliability. Capacities: circular table Ø175 mm; magnification 7 steps 0.75×–5.00× with 360° turnable nonius; longitudinal travel 50 mm, transversal travel 50 mm; digital readout, 2 axes. Specs: 50 Hz 3x: 230 V; weight about 40 kg; overall dimensions L700×W700×H600 mm. Enables achievement of tight tolerances; typical sectors: automotive, watchmaking, machine tools, aerospace, medical
| Circulary table diameter | 175 mm |
| Magnification: | |
| number (steps) | 7 |
| from | 0.75 x |
| up to | 5.00 x |
| Nonius turnable | 360 ° |
| Digital readout number of axis: | 2 |
| Longitudinal travel | 50 |
| transversal travel | 50 |
| Voltage 50 Hz 3x | 230 Volt |
| Machine's weight about | 40 kg |
| Overall dimensions machine: | |
| Length | 700 mm |
| Width | 700 mm |
| Height | 600 mm |
