EWAG EWAMATIC LINE
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

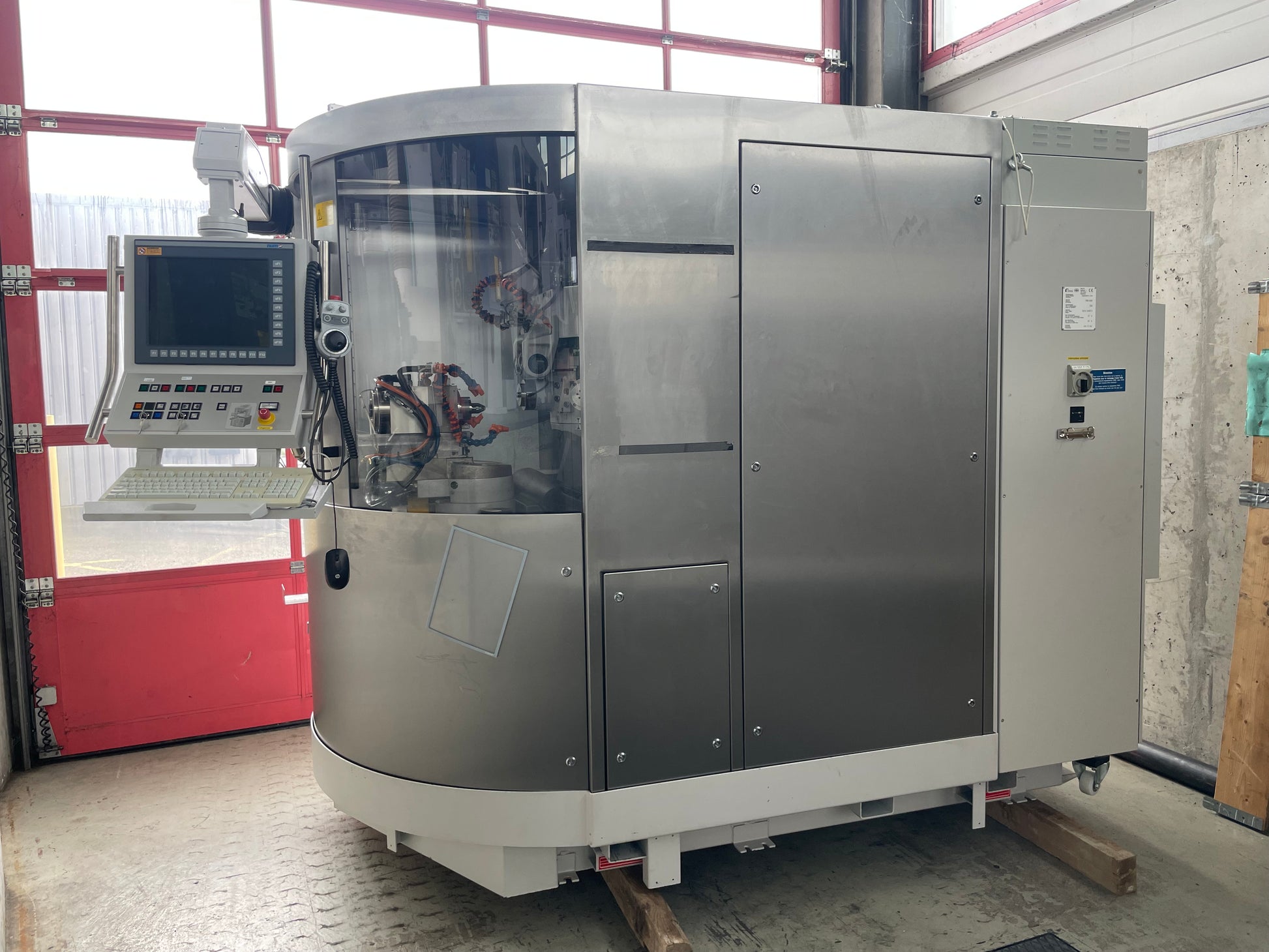

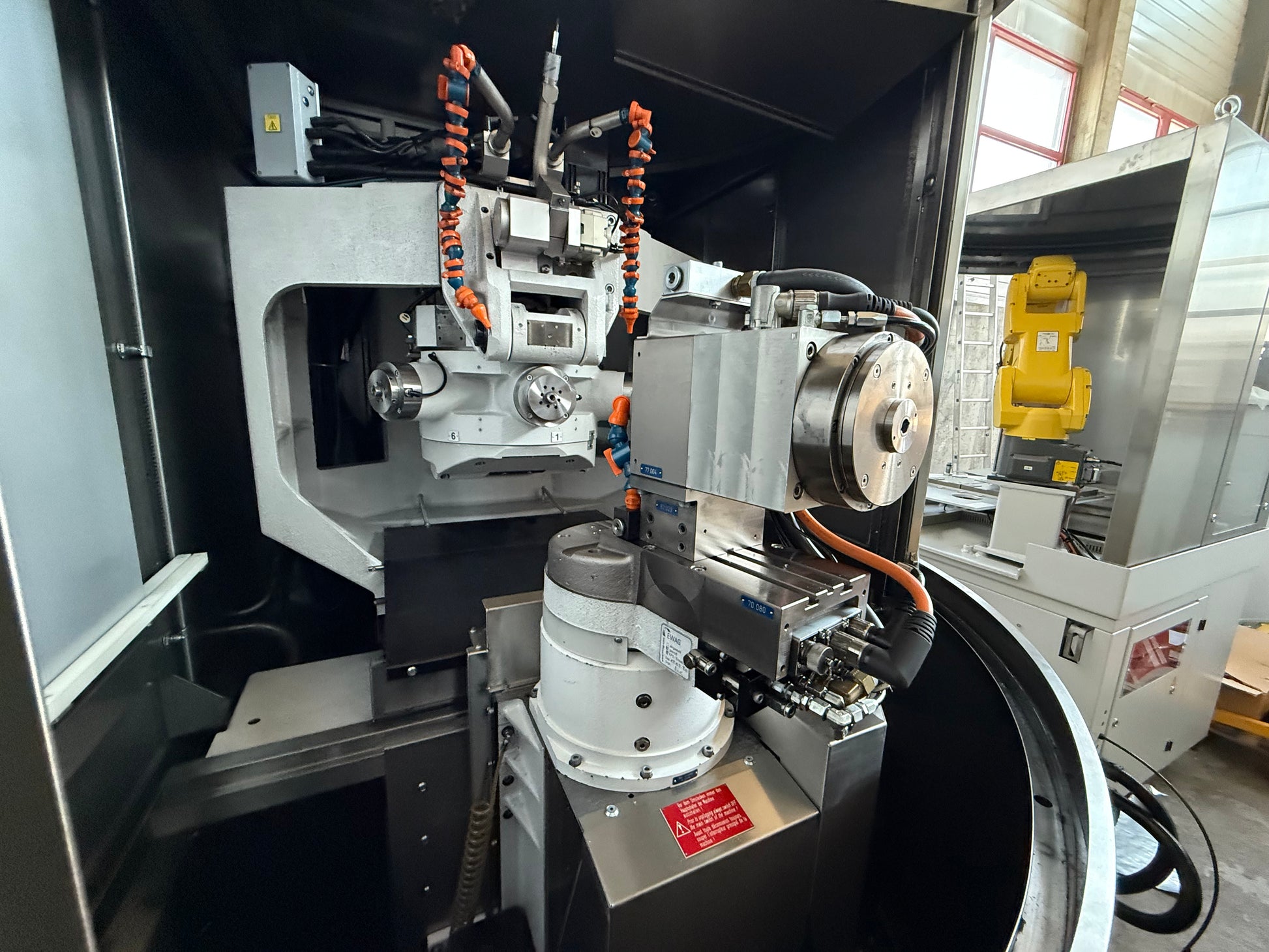

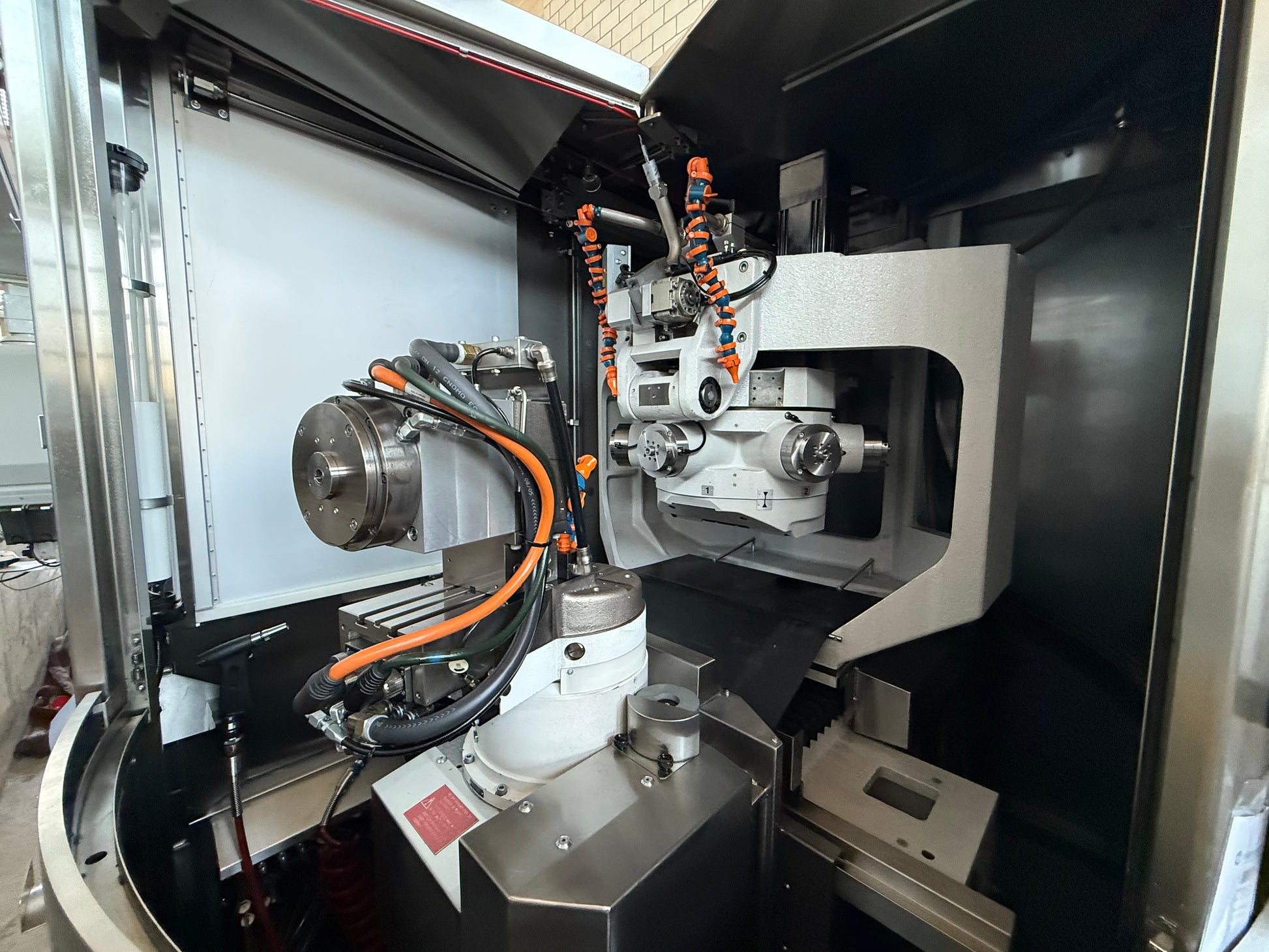

EWAG EWAMATIC LINE is a CNC tool and cutter grinder offering precision, high accuracy and reliability. 6 axes (X360×Y240×Z240 mm; B ±135°). 6 spindles, 7.5 kW spindle, 16 kVA, feeds 10 m/min, 3x400 V 50Hz, air 6 bar; weight ~4000 kg; 3400×2200×2500 mm. Equipment: Tool setter Renishaw, redressing device, oil mist extractor, loading robot Fanuc LR Mate 200iC, fire extinguishing system. Achieves tight tolerances; suited to automotive, aerospace, medical and watchmaking.

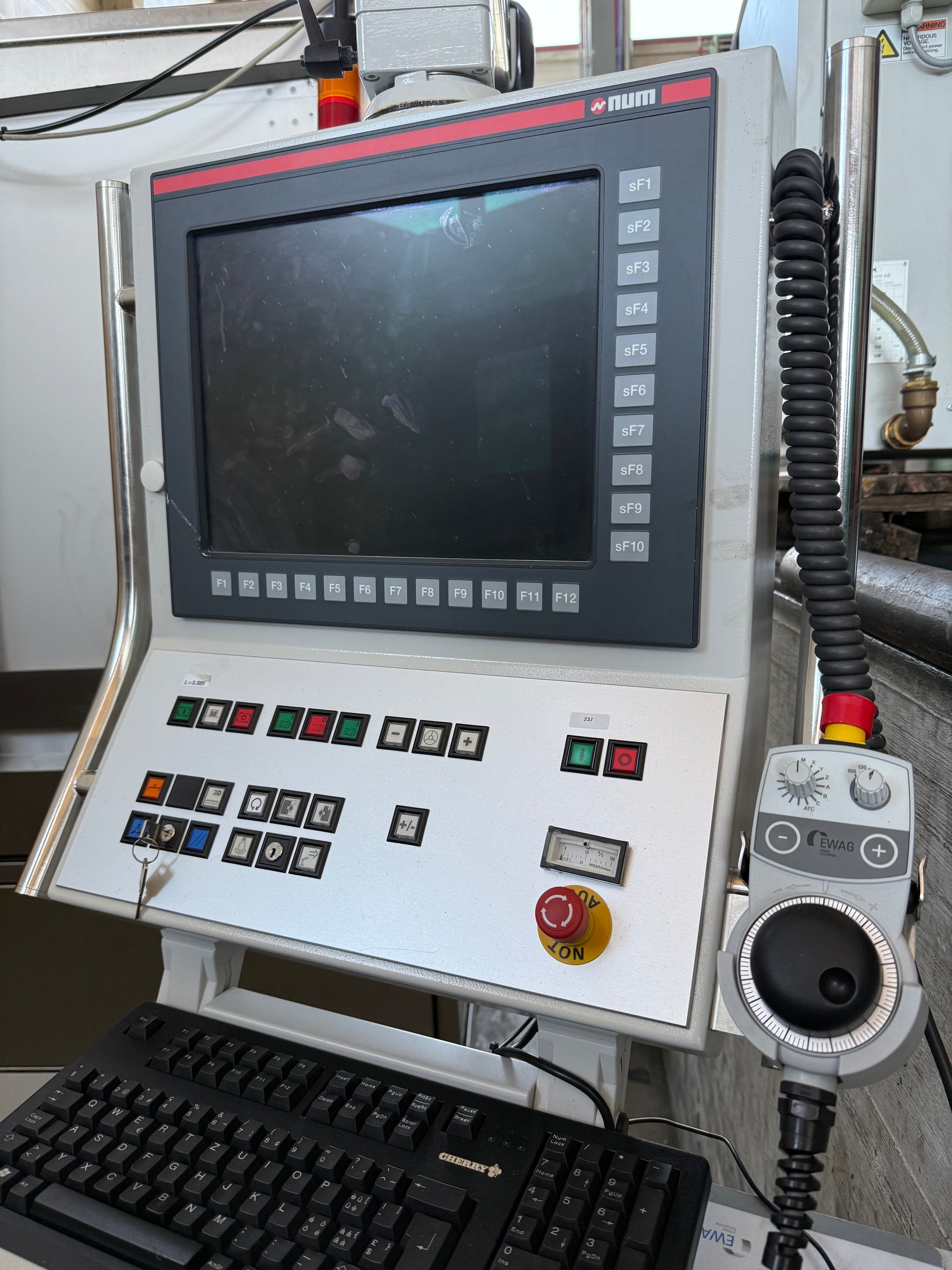

New industrial PC with Windows 10

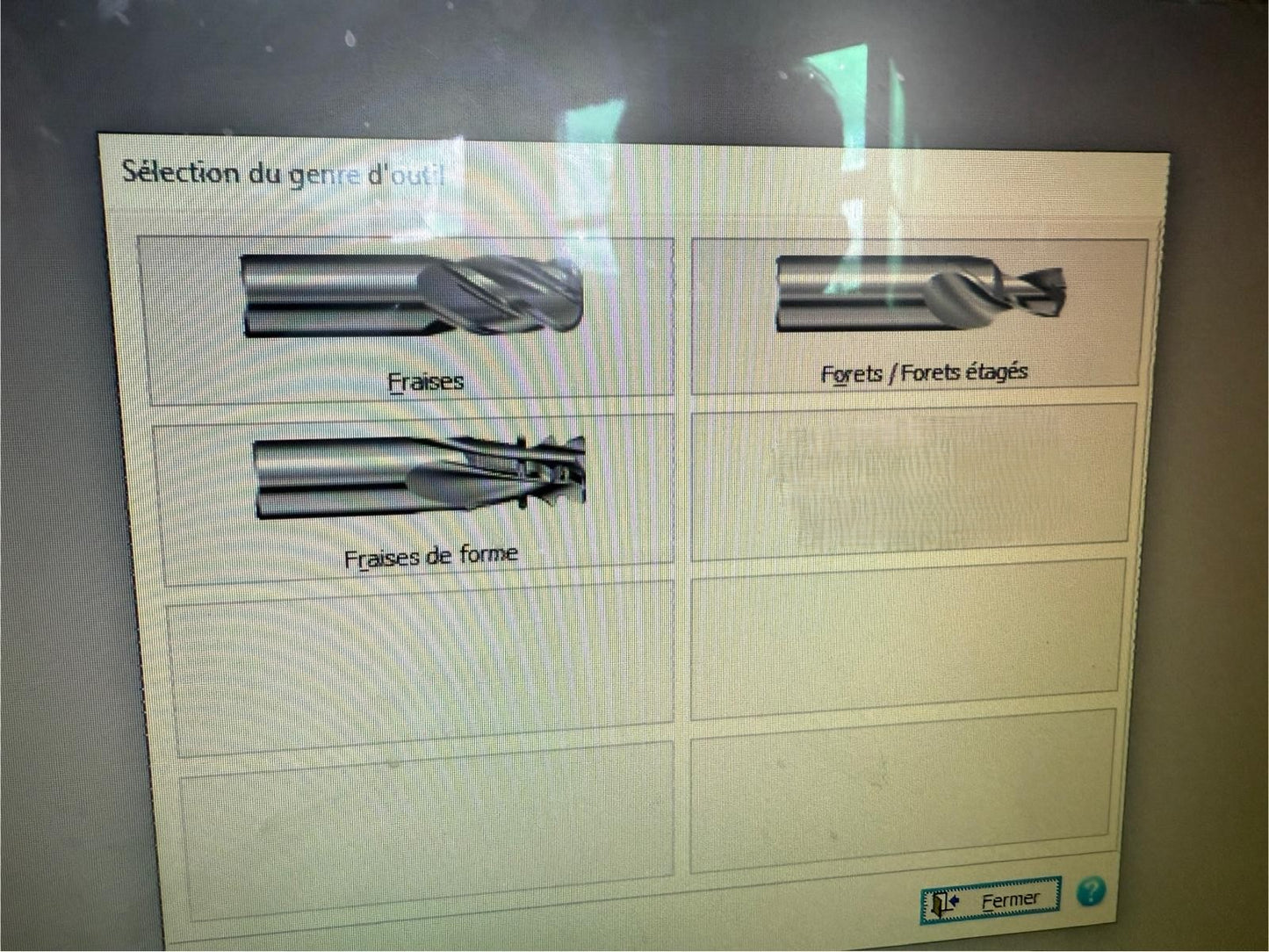

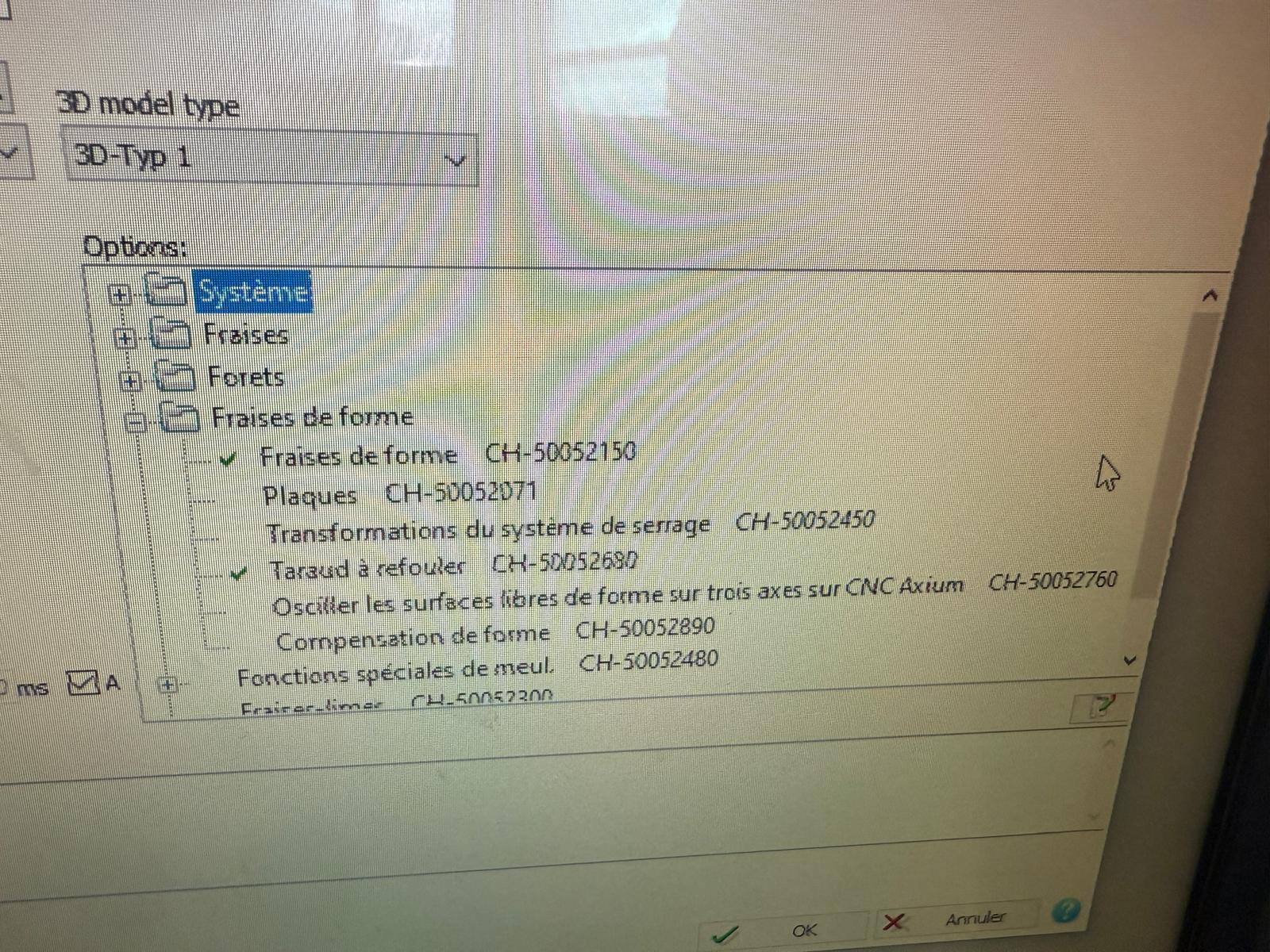

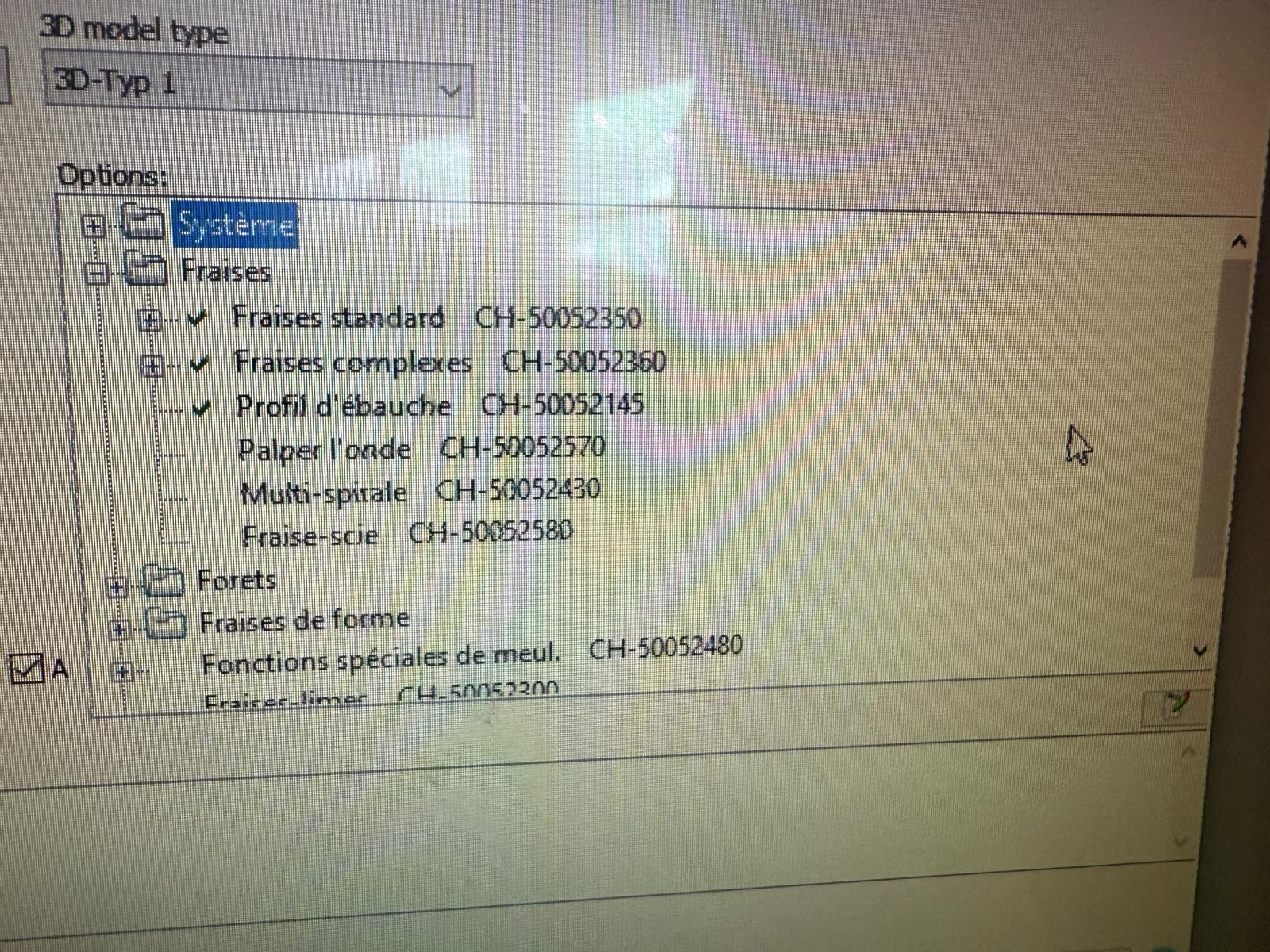

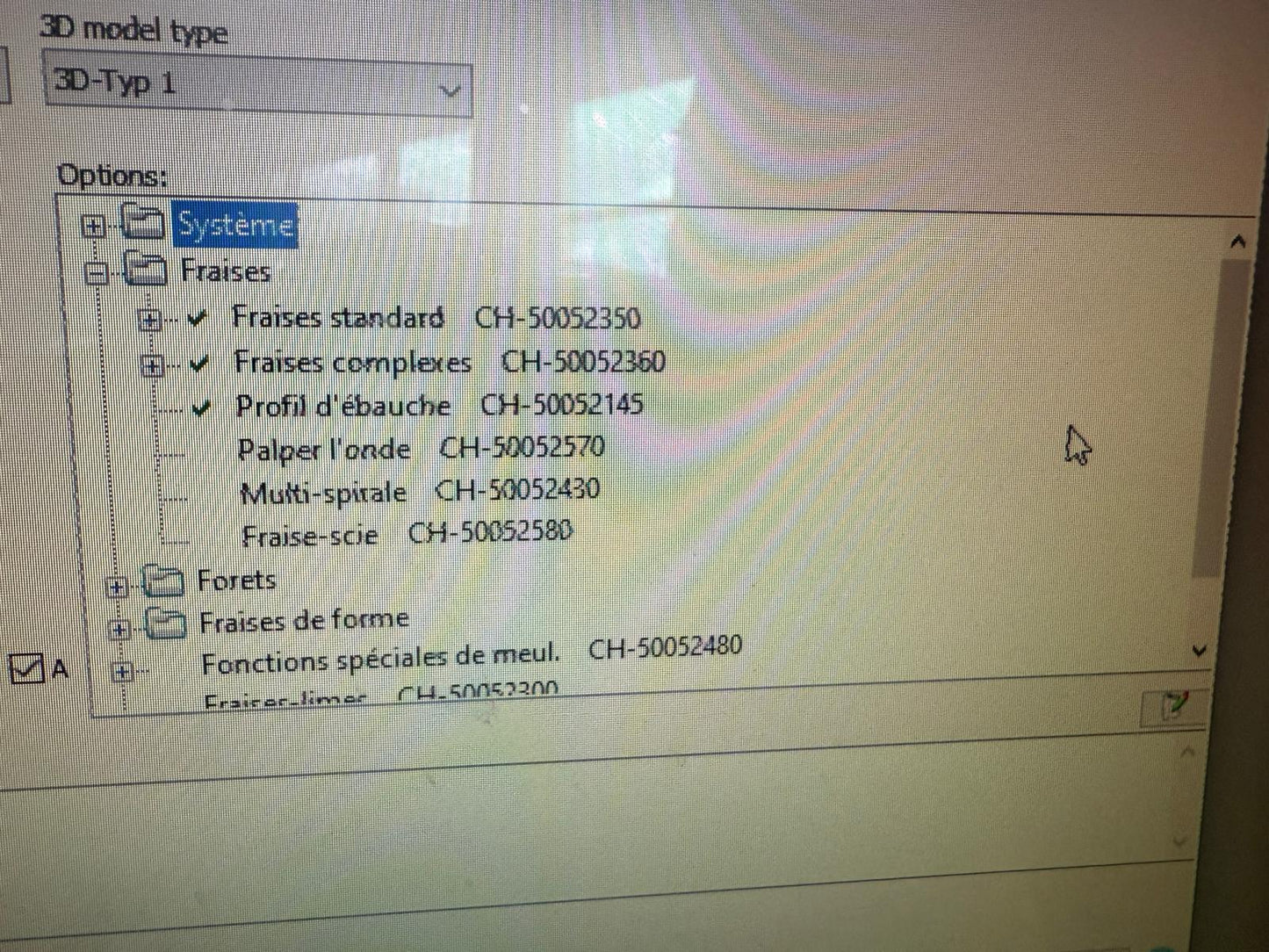

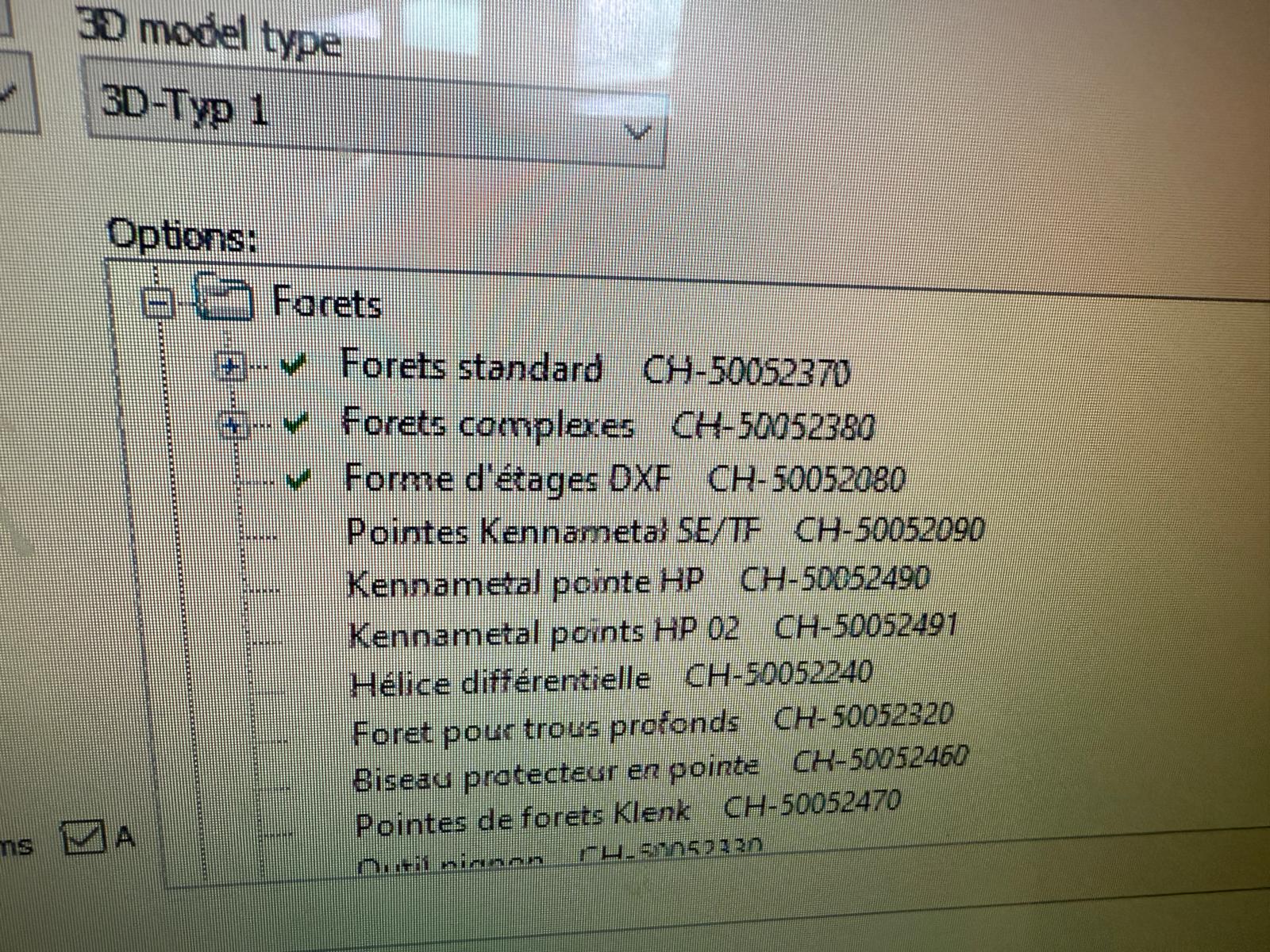

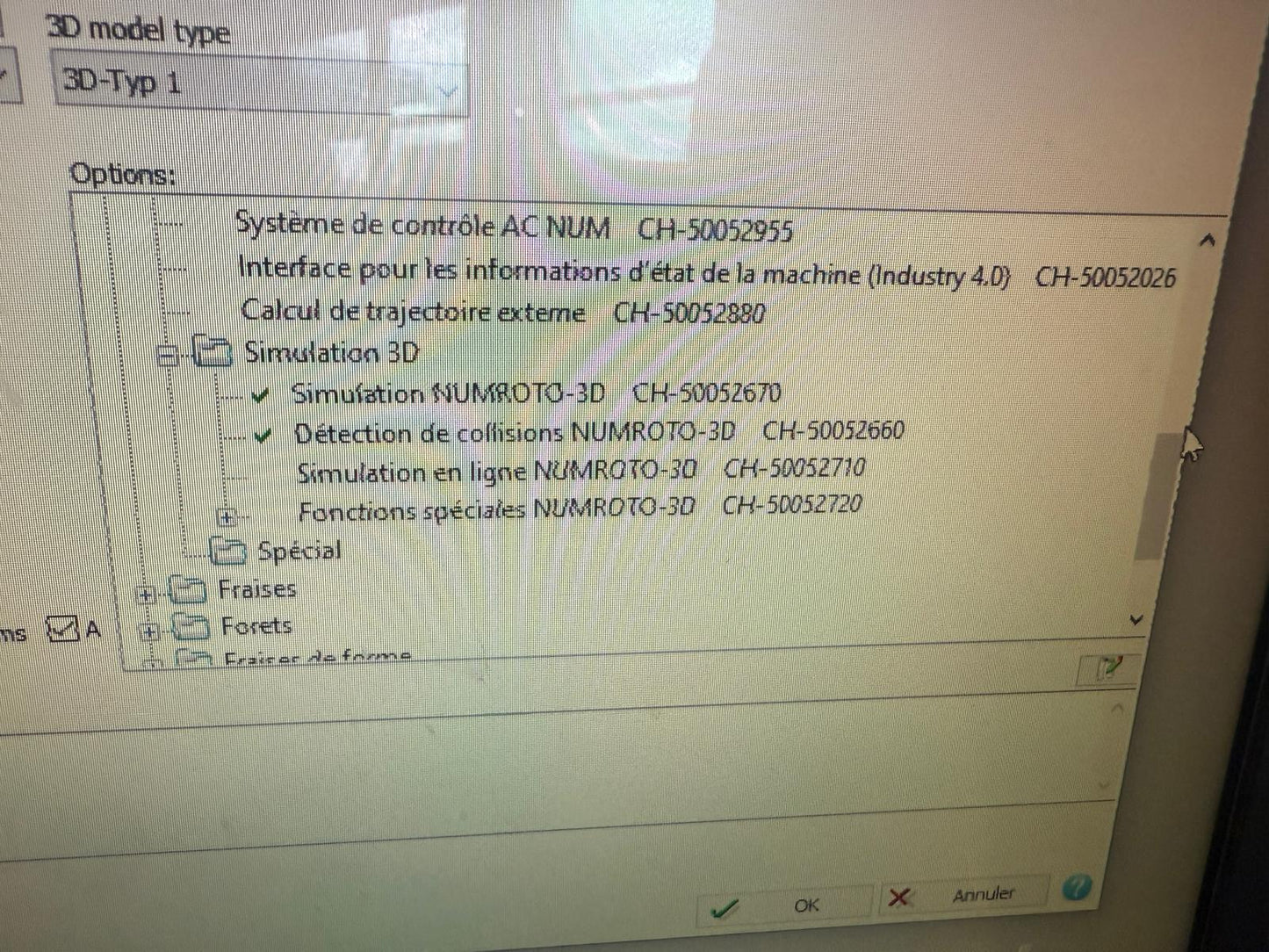

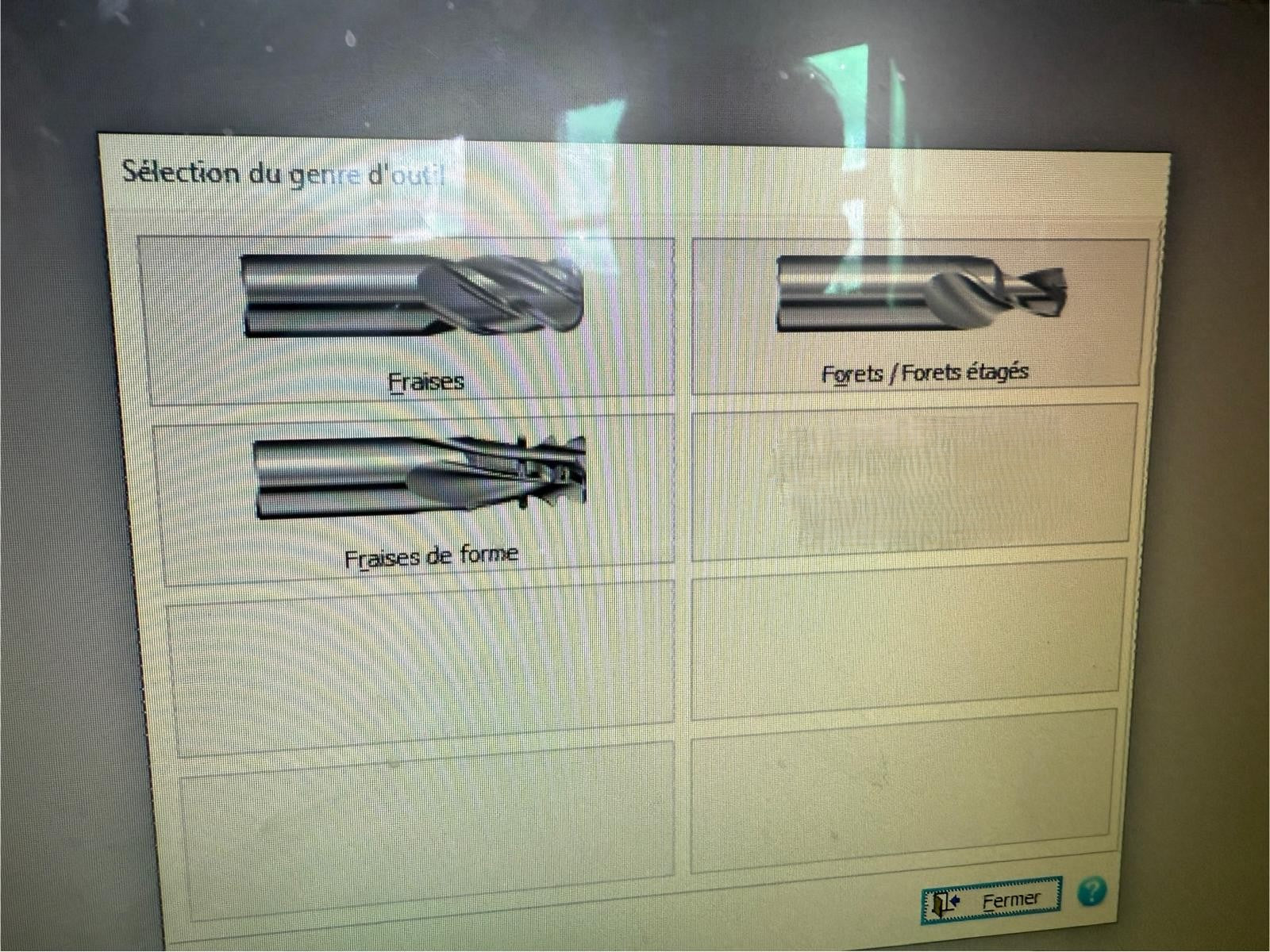

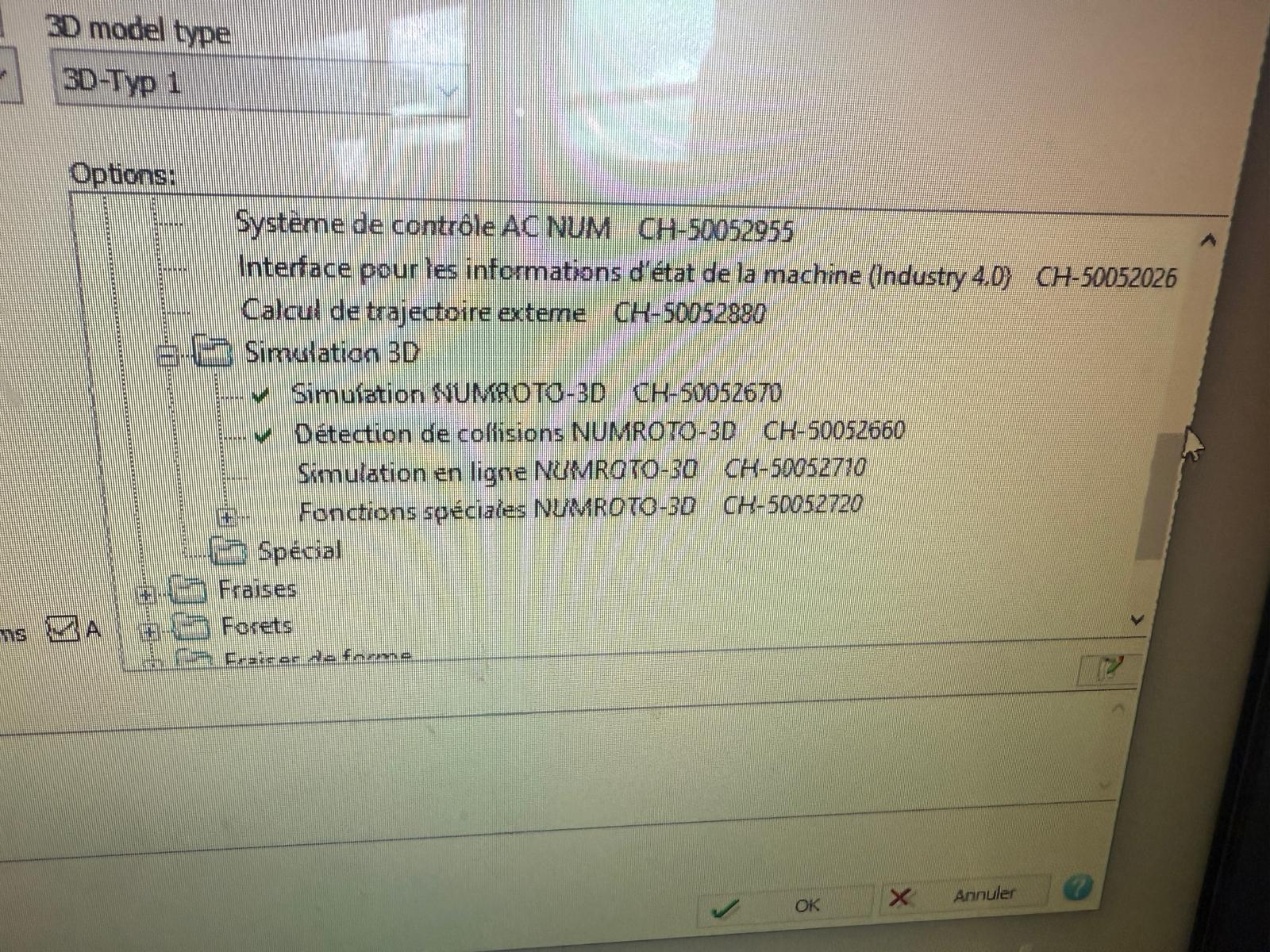

Pre-installed programmes: milling cutter, form cutter, step drill
| Number of axis total | 6 |
| X axis | 360 mm |
| Y axis | 240 mm |
| Z axis | 240 mm |
| B axis (grinding head rotation) | +/- 135 ° |

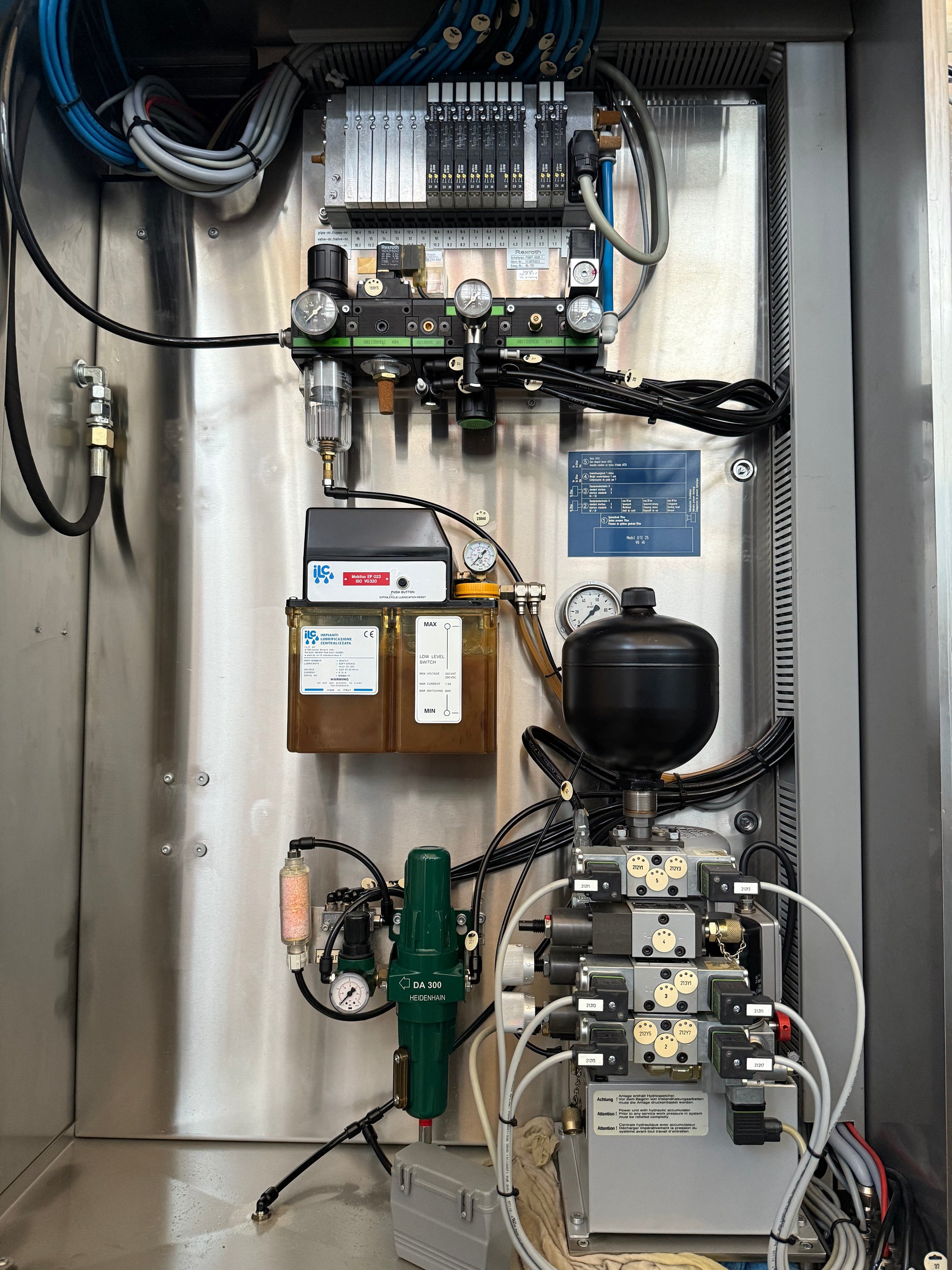

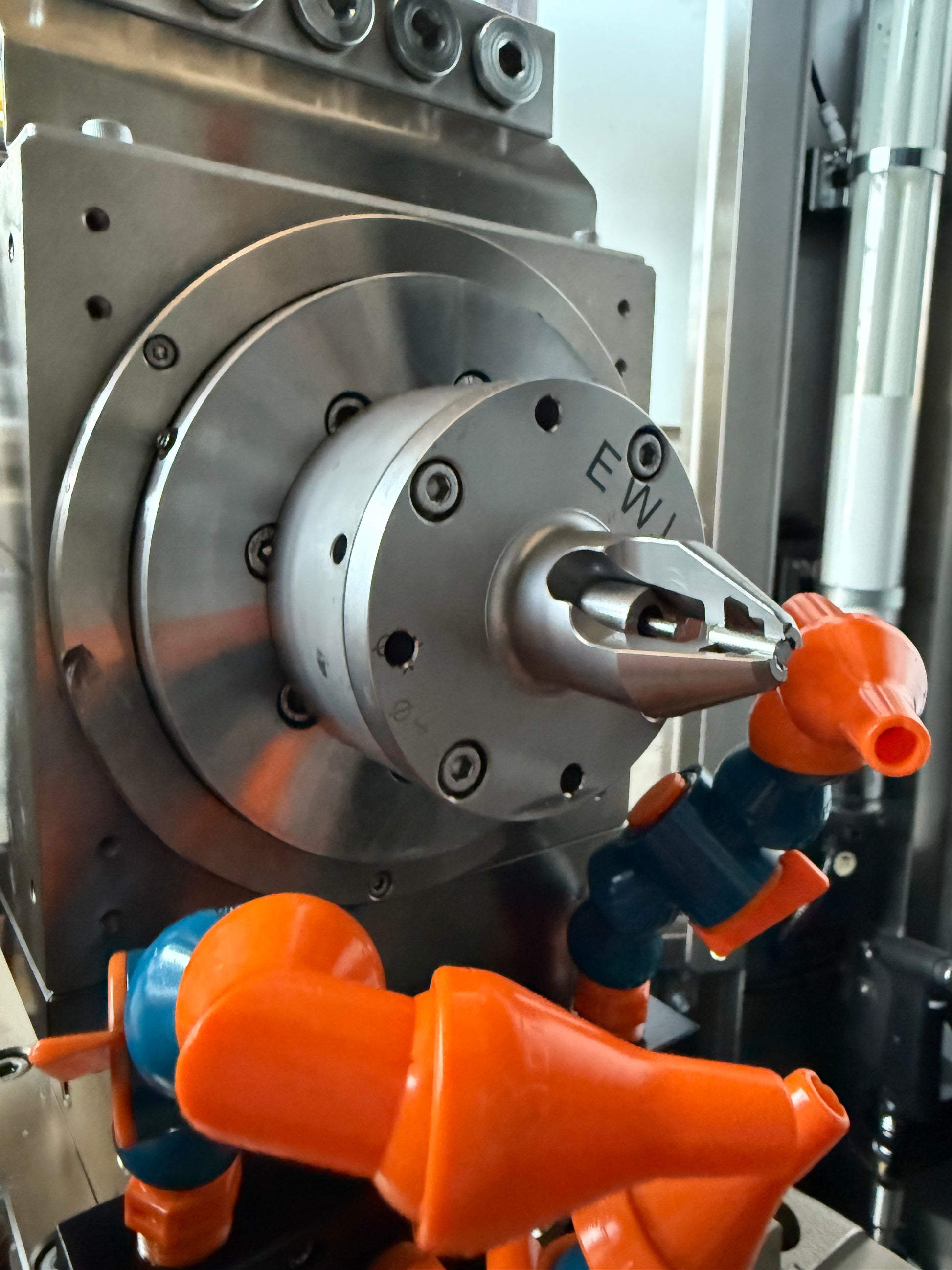

| Hydraulic clamping device | |

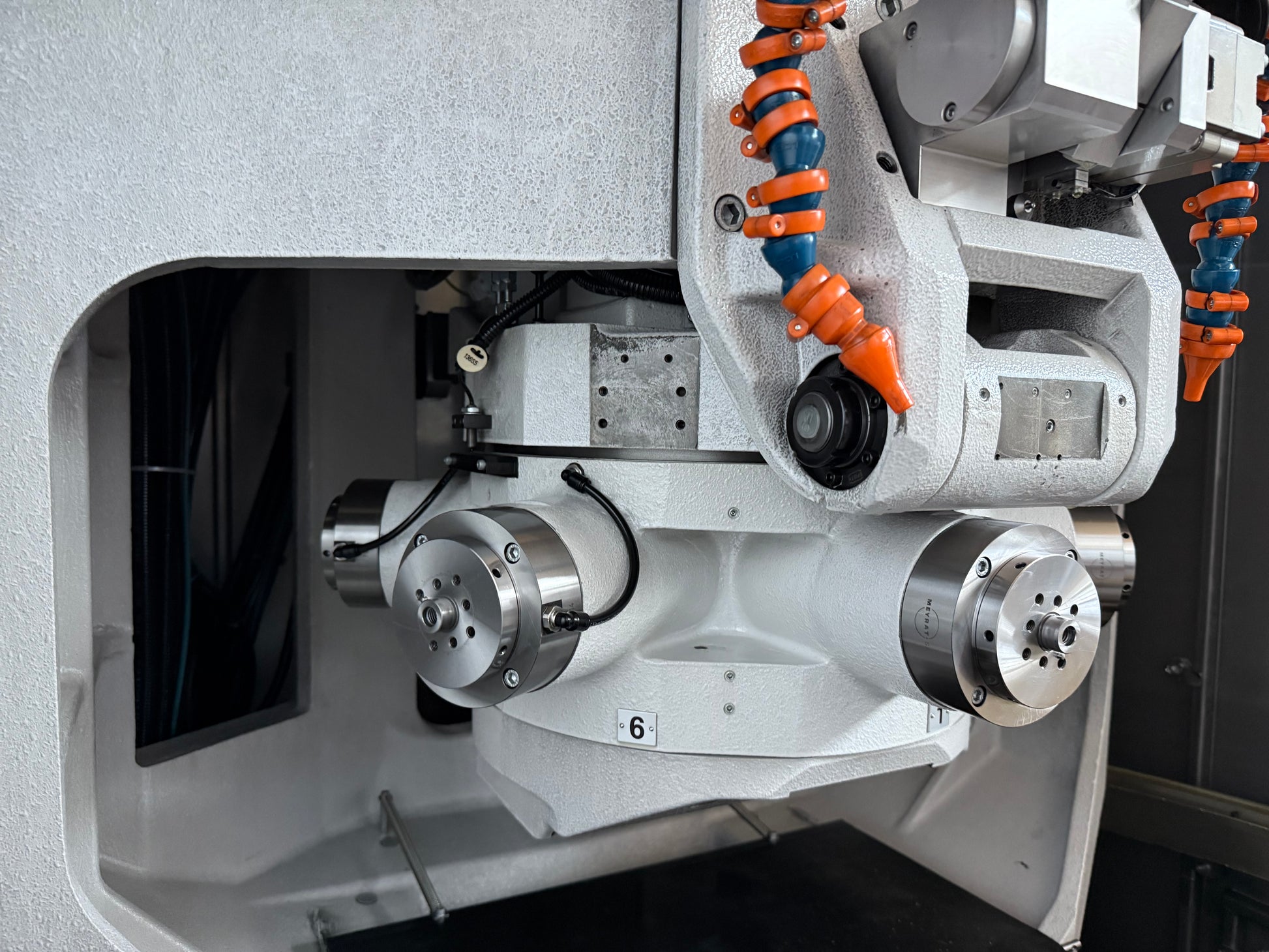

| spindles: | 6 |
| Max forwarding speed | 10 m/min |
| Max. forwarding speed cross | 10 m/min |
| Max forwarding speed vertical | 10 m/min |
| Air connect | 6 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 7.5 kW |
| Total power required | 16 kVA |
| Machine's weight about | 4000 kg |
| Length | 3400 mm |
| Width | 2200 mm |
| Height | 2500 mm |
| Various accessories: | |

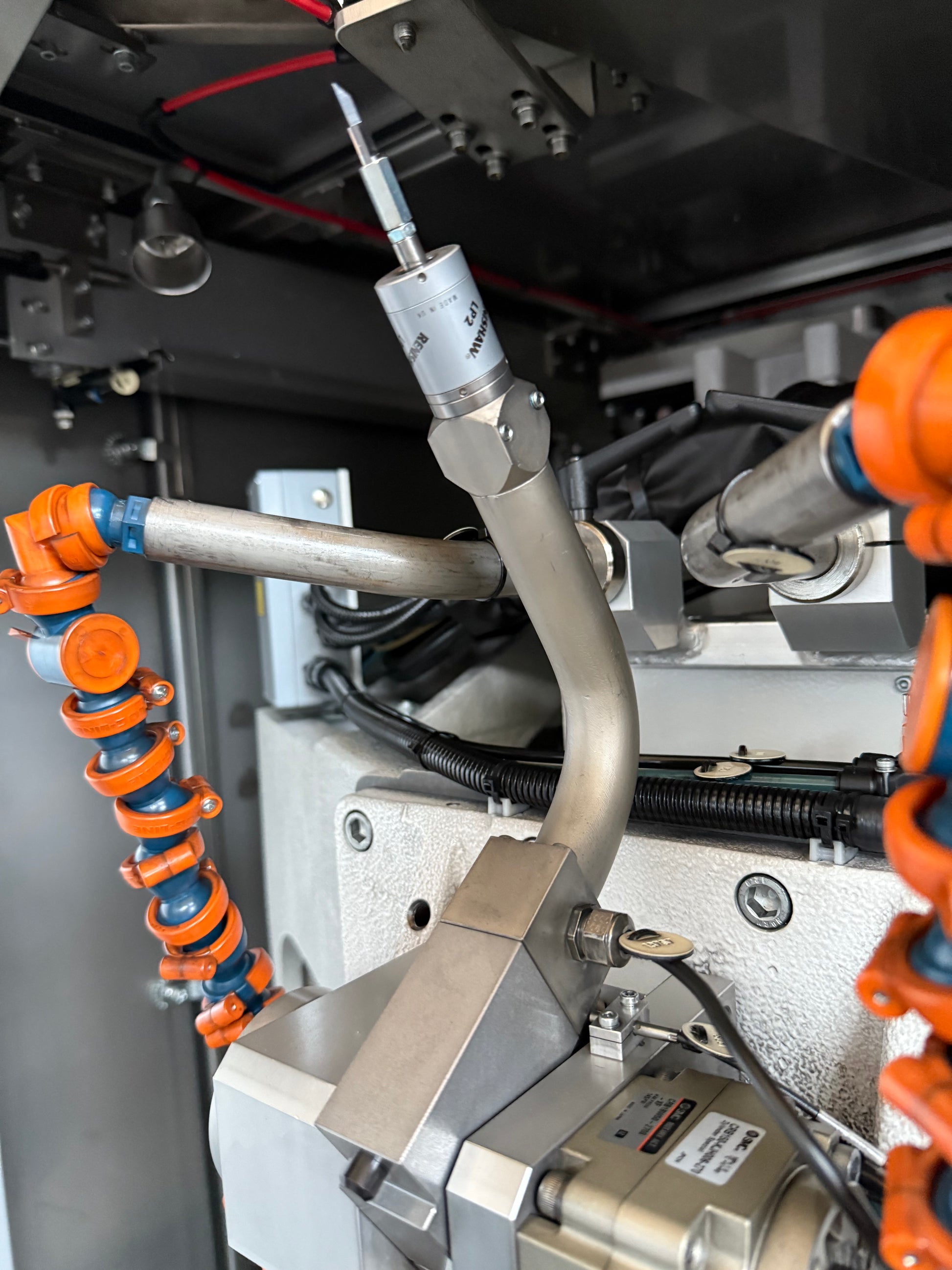

| Tool setter Renishaw | |
| Redressing device | |

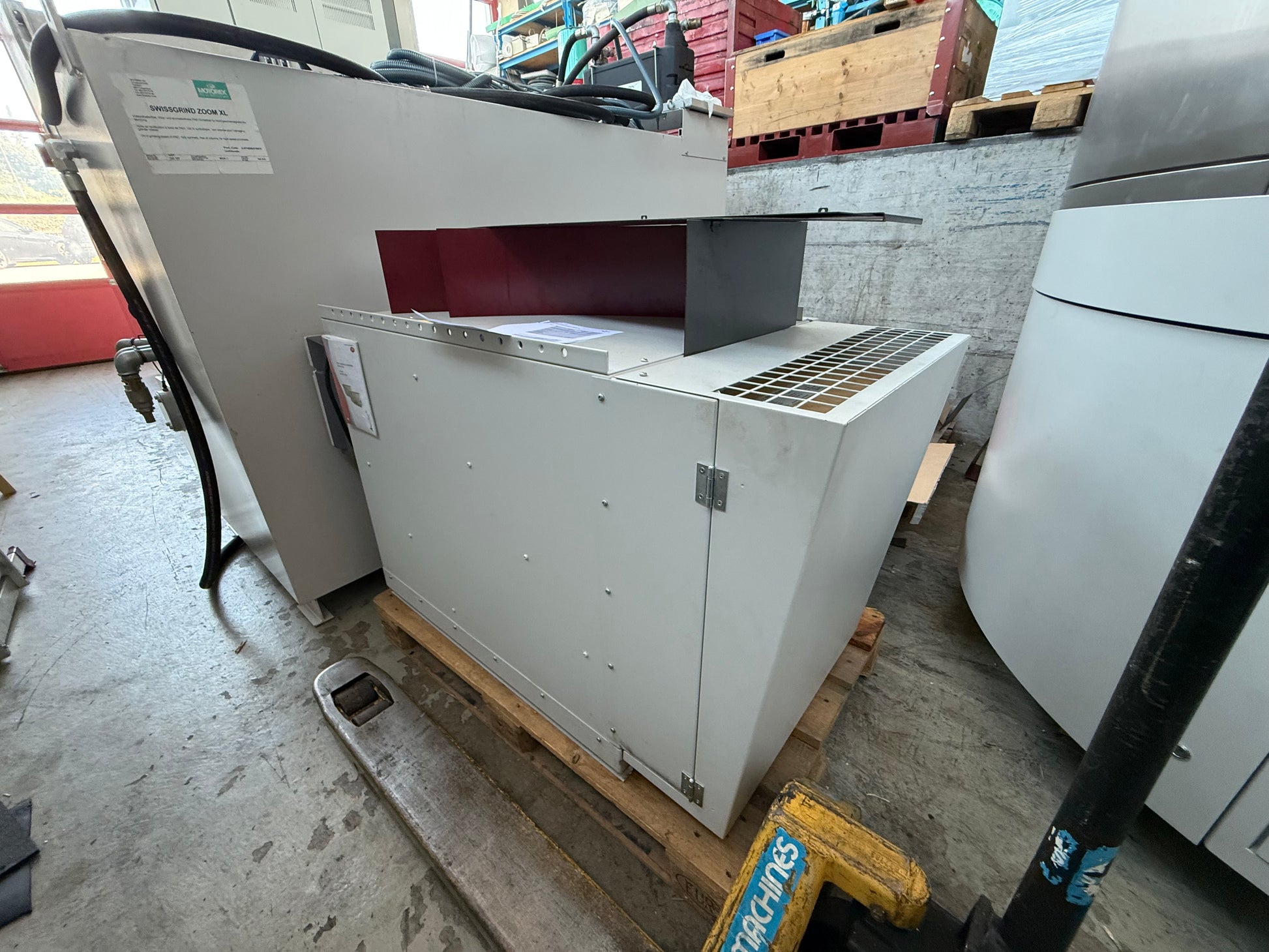

| Oil mist extractor | |

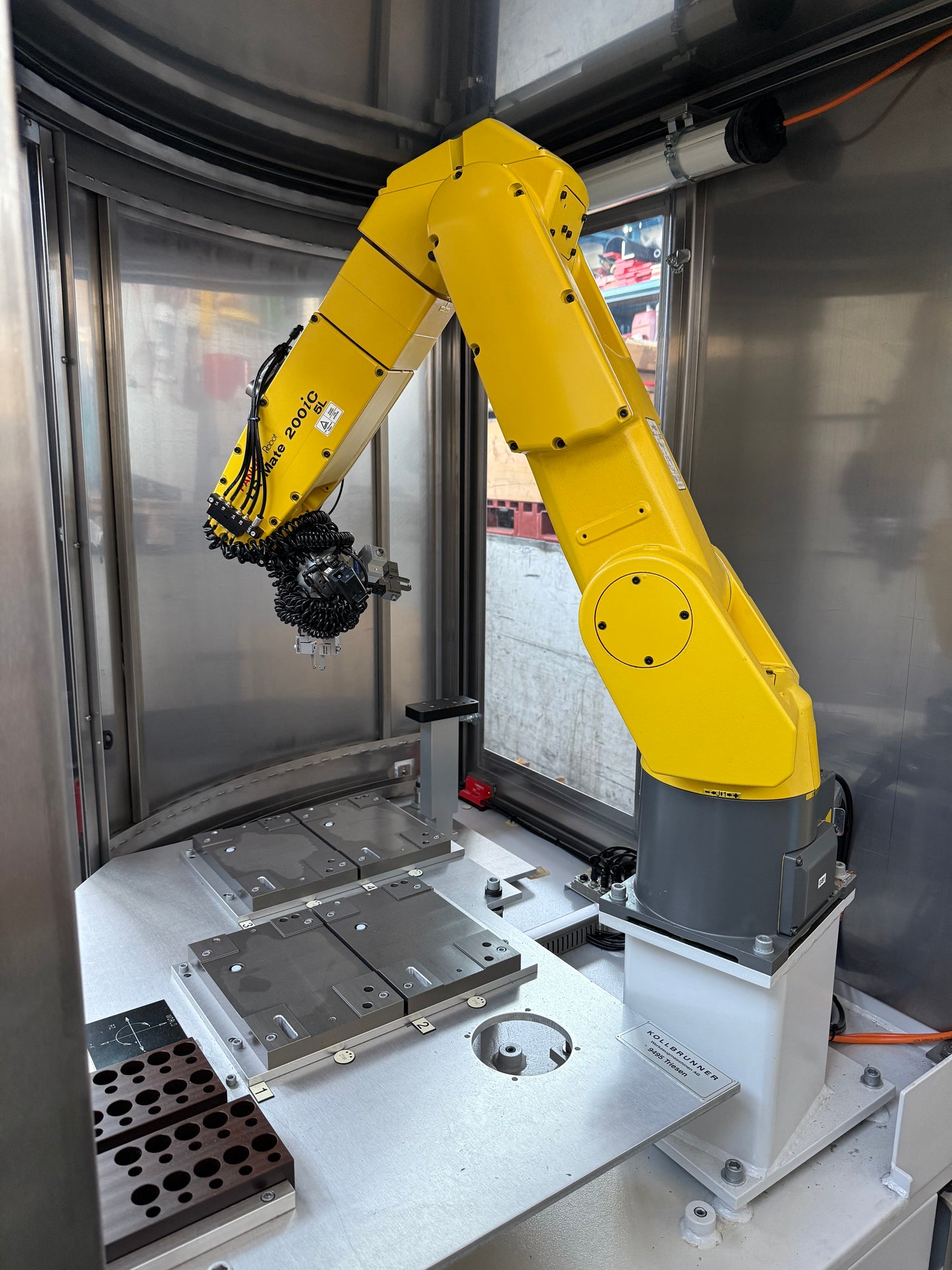

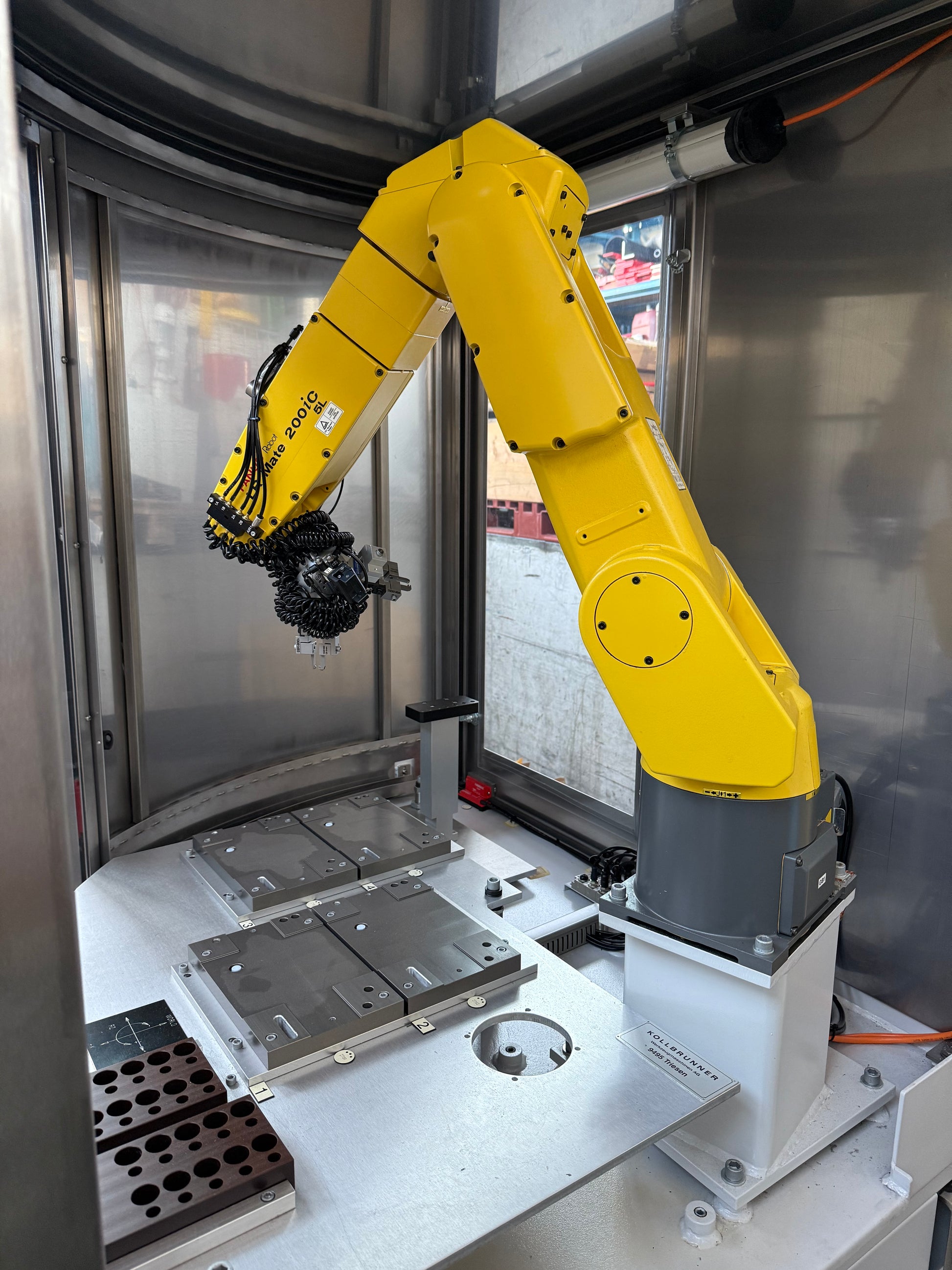

| Loading roboter | Fanuc LR Mate 200iC |

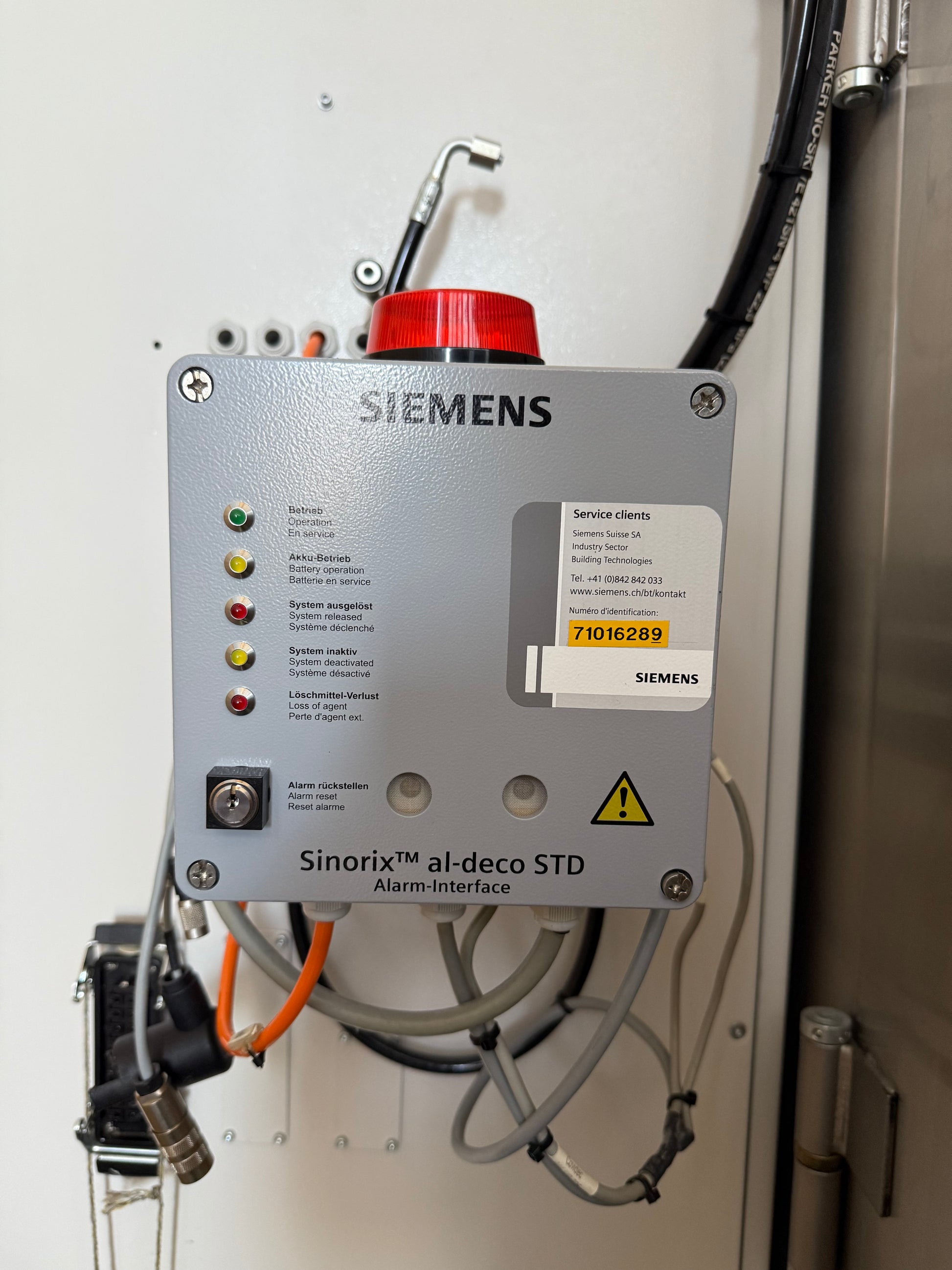

| Fire extinguishing system |
