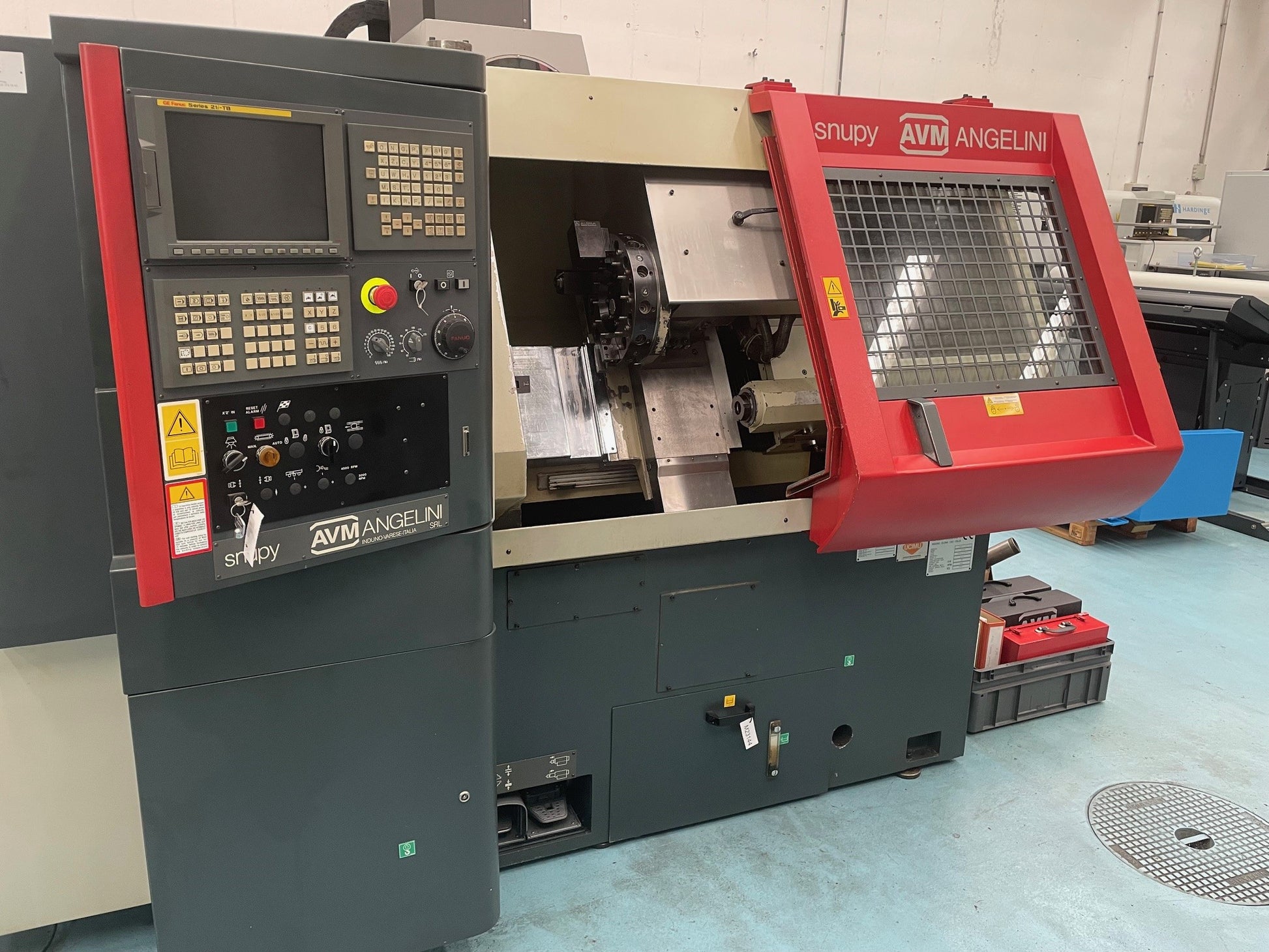

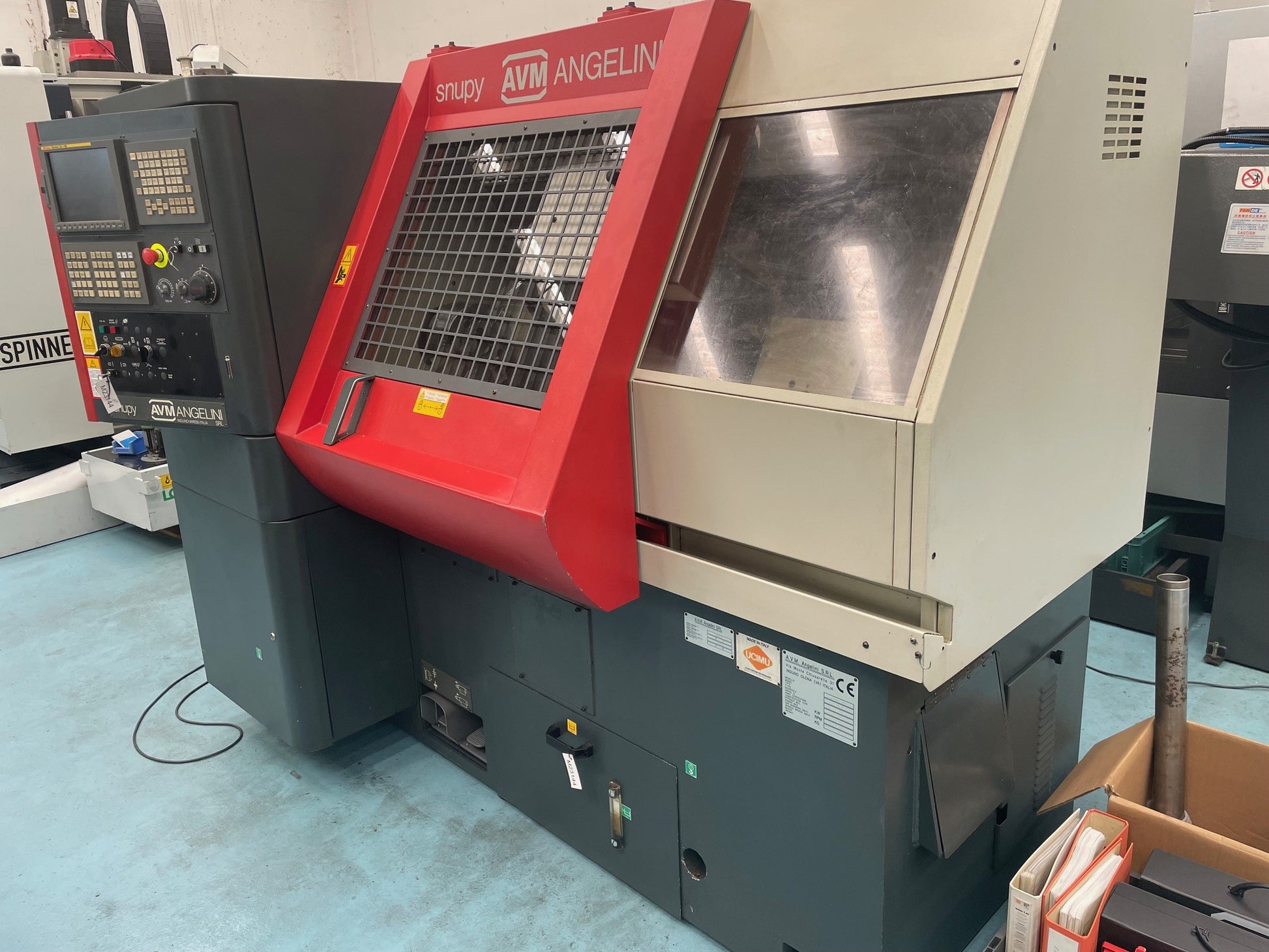

ANGELINI SNUPY is a CNC turning lathe of high precision, built for accurate and reliable machining. Centre height 190 mm, distance between centres 600 mm, swing over cross-slide 165 mm, over bed 320 mm, spindle hole 42 mm; travels Z 360 mm, X 170 mm; turret 12 positions, spindle nose VDI 30, Camlock ASA-5. Spindle Ø70 mm, stepless speeds 50–4500 t/min, spindle motor 15 kW; feeds longitudinal 1–10000 mm/min, transversal 1–6800 mm/min; voltage 3x380 V 50 Hz; weight ≈3500 kg; dimensions L2600×W1600×H1750 mm. Supplied with collet device, lamp, parts catcher and chip conveyor. Enables tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
| Number of spindles | 1 |
| Number of revolvers | 1 |
| Centre height | 190 mm |
| Distance between centres | 600 mm |
| Swing over cross-slide | 165 mm |
| Swing over bed | 320 mm |
| Spindle hole | 42 mm |
| Carriage: | |
| Longitudinal travel (Z-axis) | 360 mm |
| Longitudinal travel (X-axis) | 170 mm |

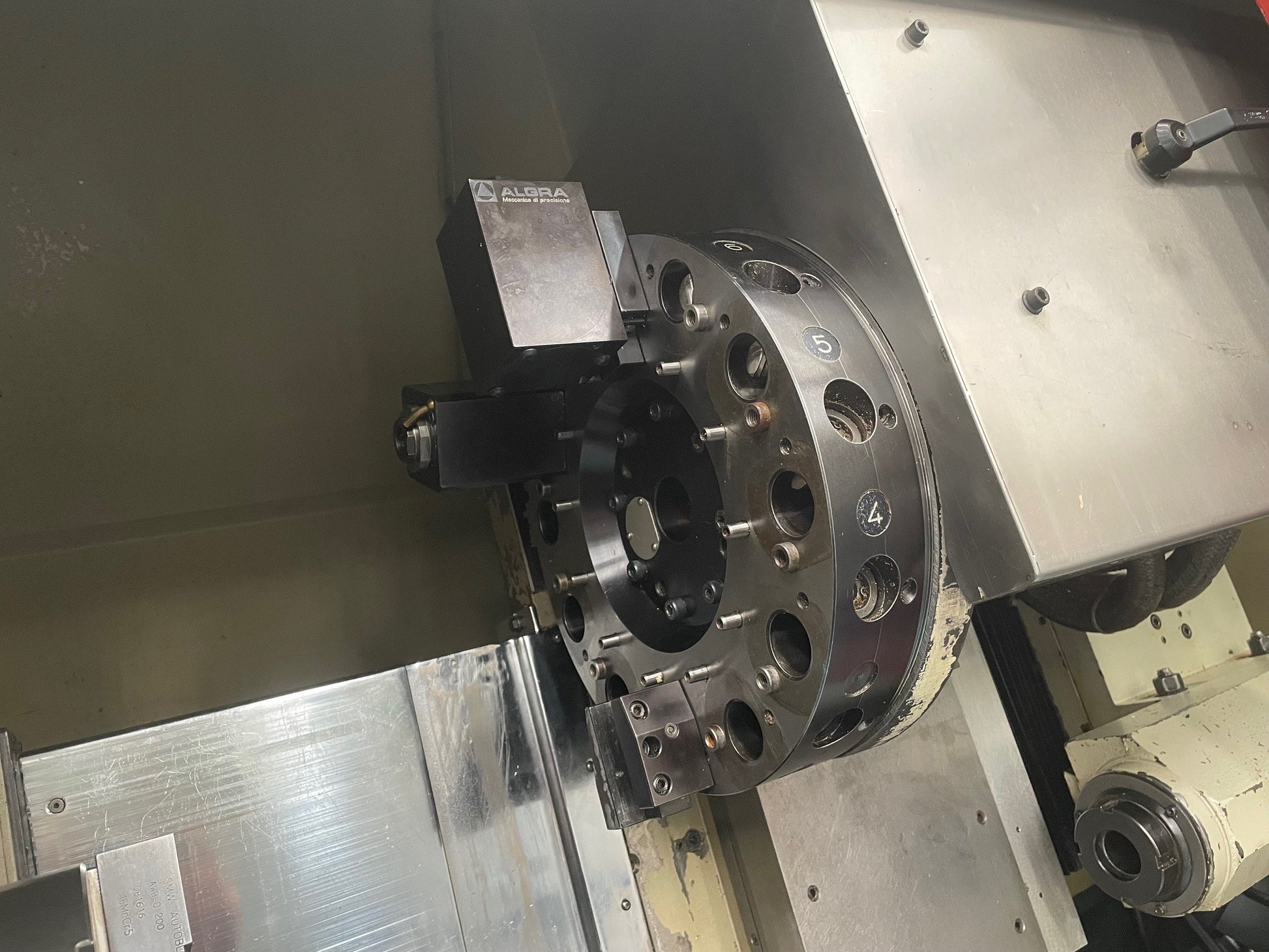

| Turret carriage: | |
| Number of positions turret 1 | 12 |
| Spindle nose: VDI | 30 |
| Taper in spindle: | |
| Camlock | ASA-5 |
| Spindle speeds: | |
| stepless | |
| from | 50 t/min |
| up to | 4500 t/min |
| Spindle diameter | 70 mm |
| Feeds: | |
| stepless | |
| longitudinal from | 1 mm/min |
| up to | 10000 mm/min |
| transversal from | 1 mm/min |
| up to | 6800 mm/min |
| Spindle motor | 15 kW |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 3500 kg |
| Overall dimensions machine: | |
| Length | 2600 mm |
| Width | 1600 mm |
| Height | 1750 mm |

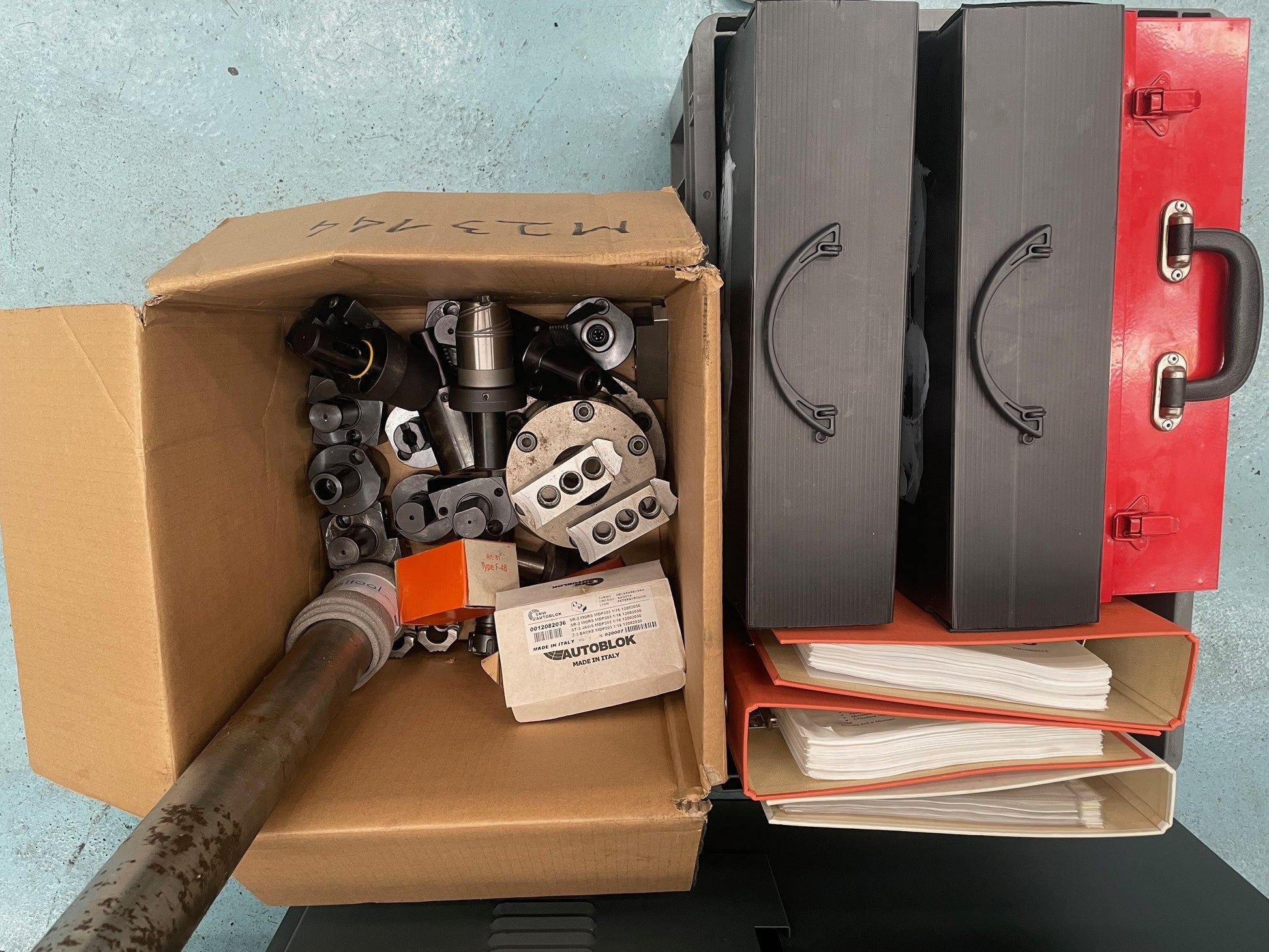

| Various accessories: | |
| Collet device | |
| Lamp | |
| Parts catcher | |
| Chip conveyor |
