AGIE CHARMILLES ROBOFORM 55
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

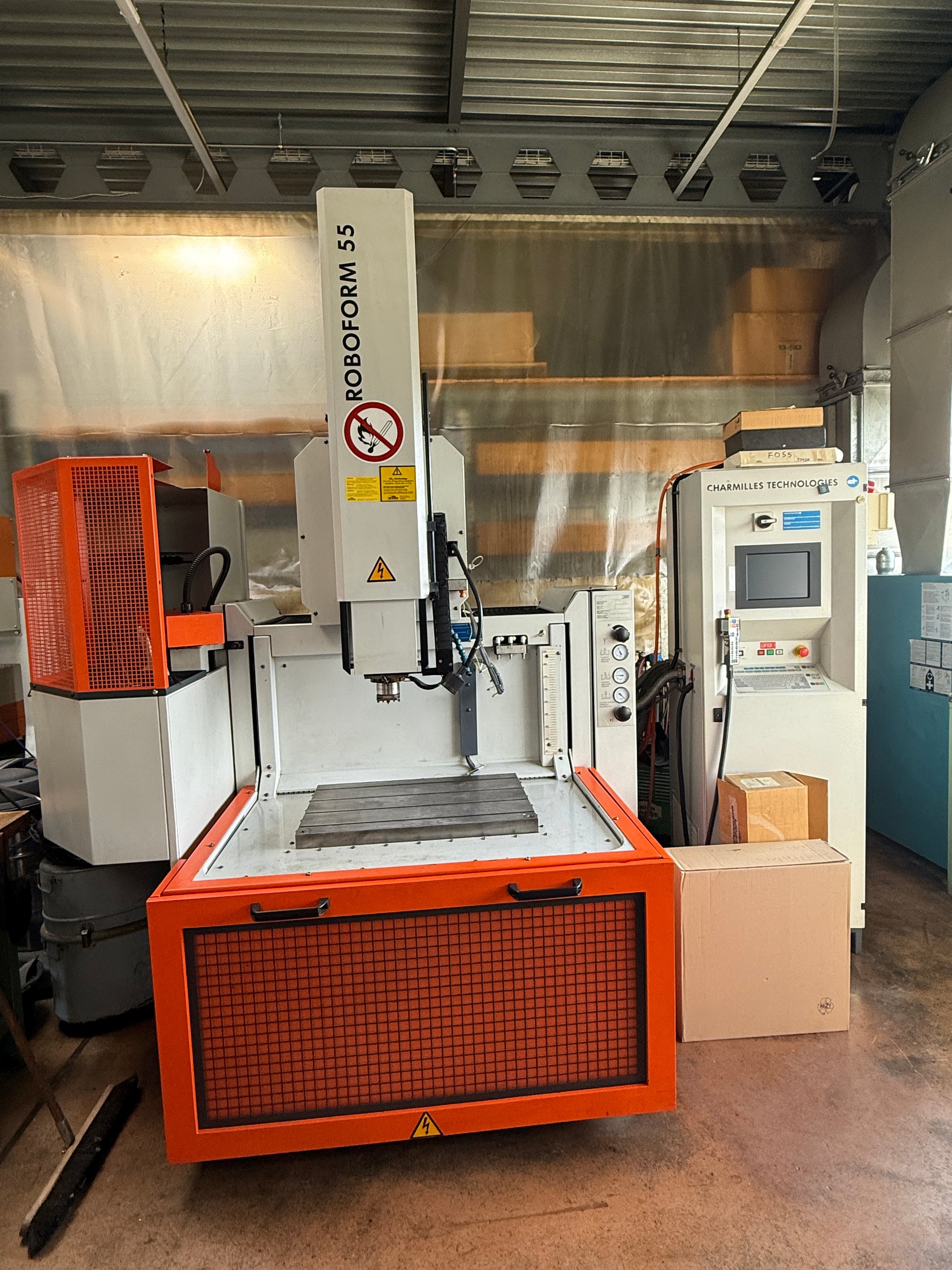

AGIE CHARMILLES ROBOFORM 55 is a spark eroder designed for high precision, excellent accuracy and reliable performance. Capacities: table 750×600 mm; workpiece max 1200×850×400 mm; table load 1600 kg; travels X 600 mm, Y 400 mm, Z 450 mm; max electrode weight 100 kg. Key specs: 50 Hz 3x 400 V supply; machine weight ≈4500 kg; overall 3150×2750×2960 mm. Equipment: EROWA tool holding, 24‑position tool changer, fire extinguishing system, lamp. Achieves tight tolerances; typical applications include molds & tooling, automotive, aerospace, medical, watchmaking.
| Table length | 750 mm |
| Table width | 600 mm |
| Dimension of the workpice: | |
| Length | 1200 mm |
| Width | 850 mm |
| Height | 400 mm |
| Table load max. | 1600 kg |
| Longitudinal traverse (X-axis) | 600 mm |
| Cross traverse (Y-axis) | 400 mm |
| Height adjustment (Z-axis) | 450 mm |
| max. electrode weight | 100 kg |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 4500 kg |
| Overall dimensions machine: | |
| Length | 3150 mm |
| Width | 2750 mm |
| Height | 2960 mm |
| Various accessories: | |
| C axis | |
| Tool holding fixture:system EROWA | |

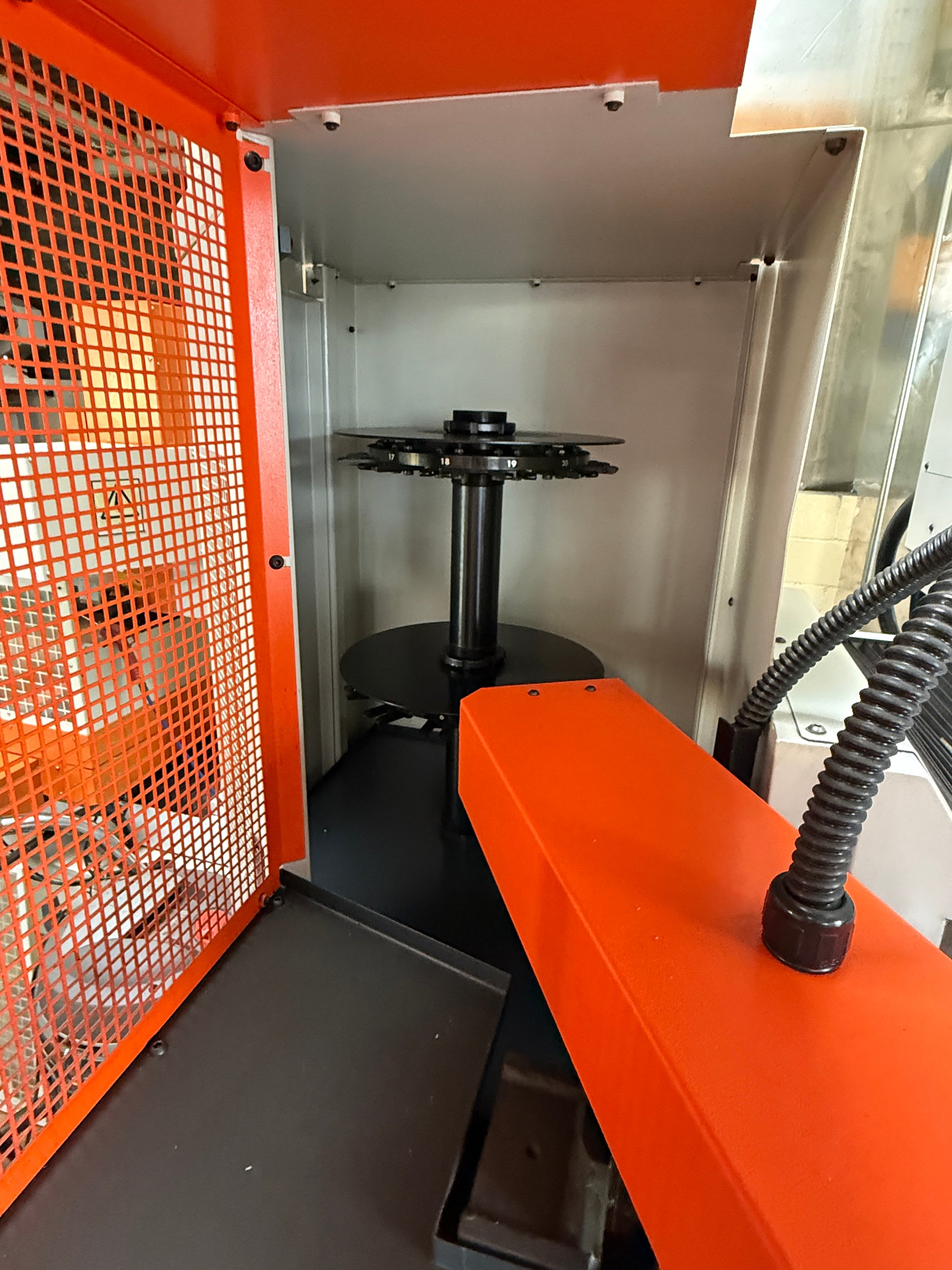

| Tool changer: (number of tools) | 24 |
| Fire extinguishing system | |
| Lamp |
