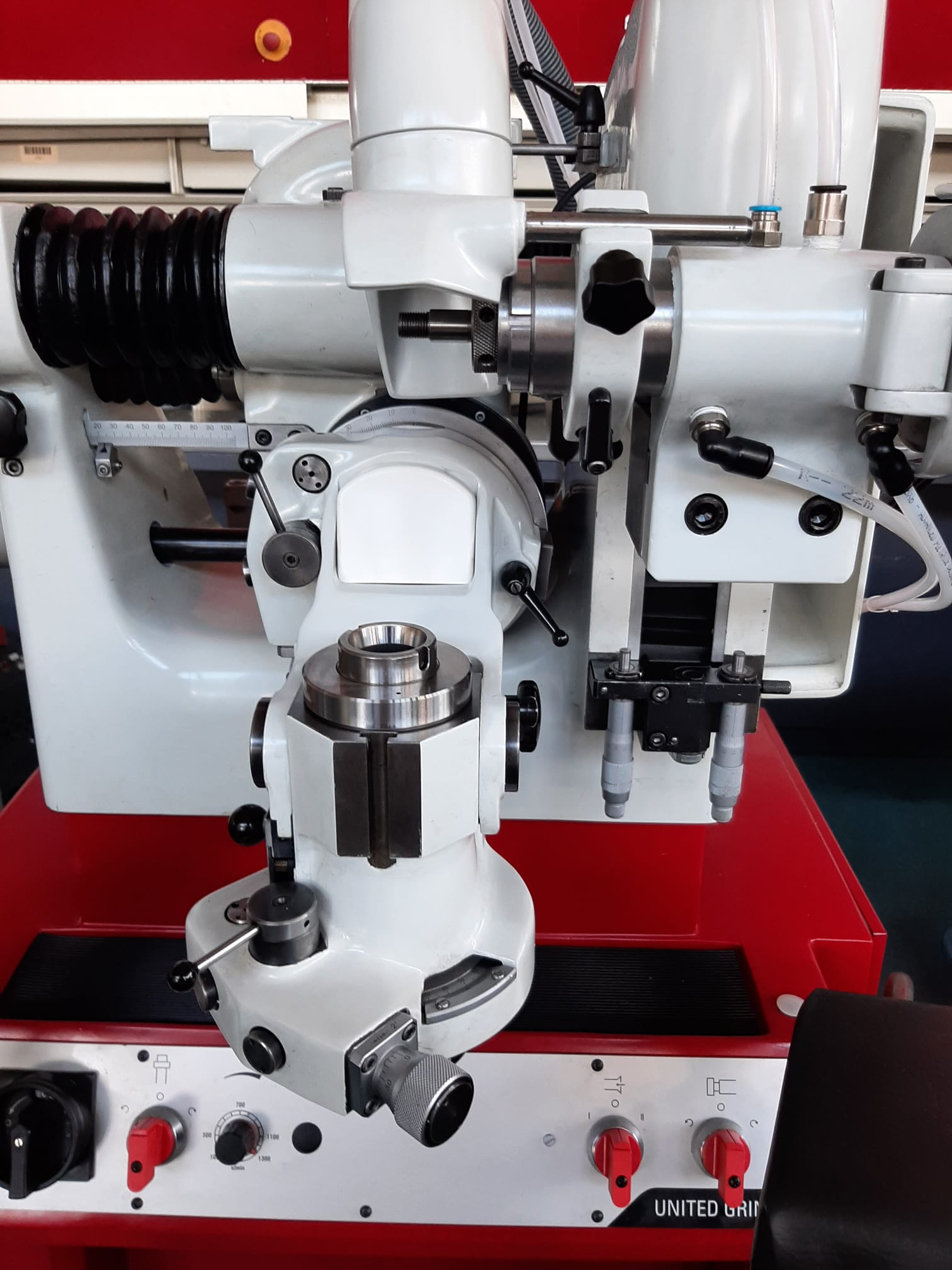

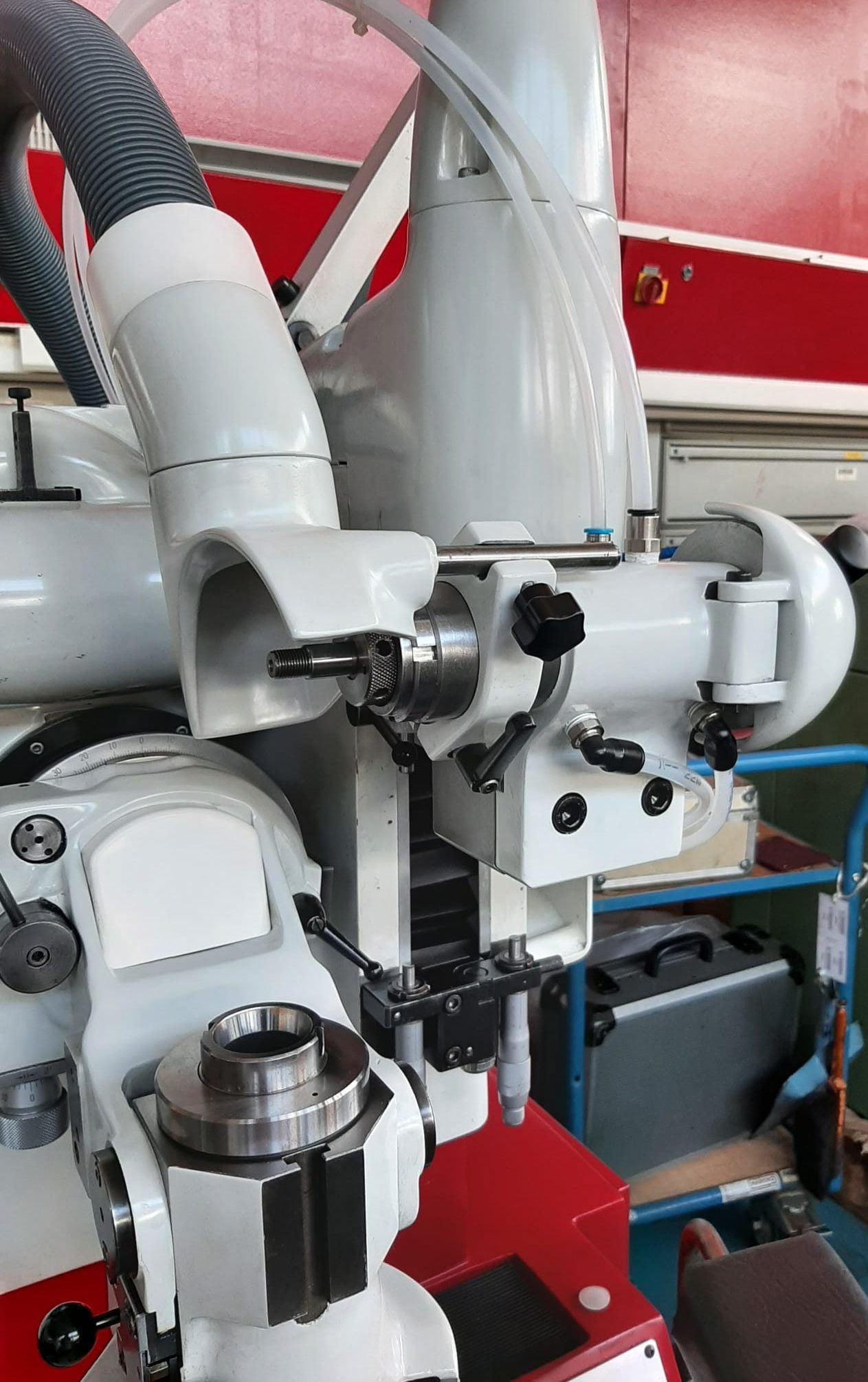

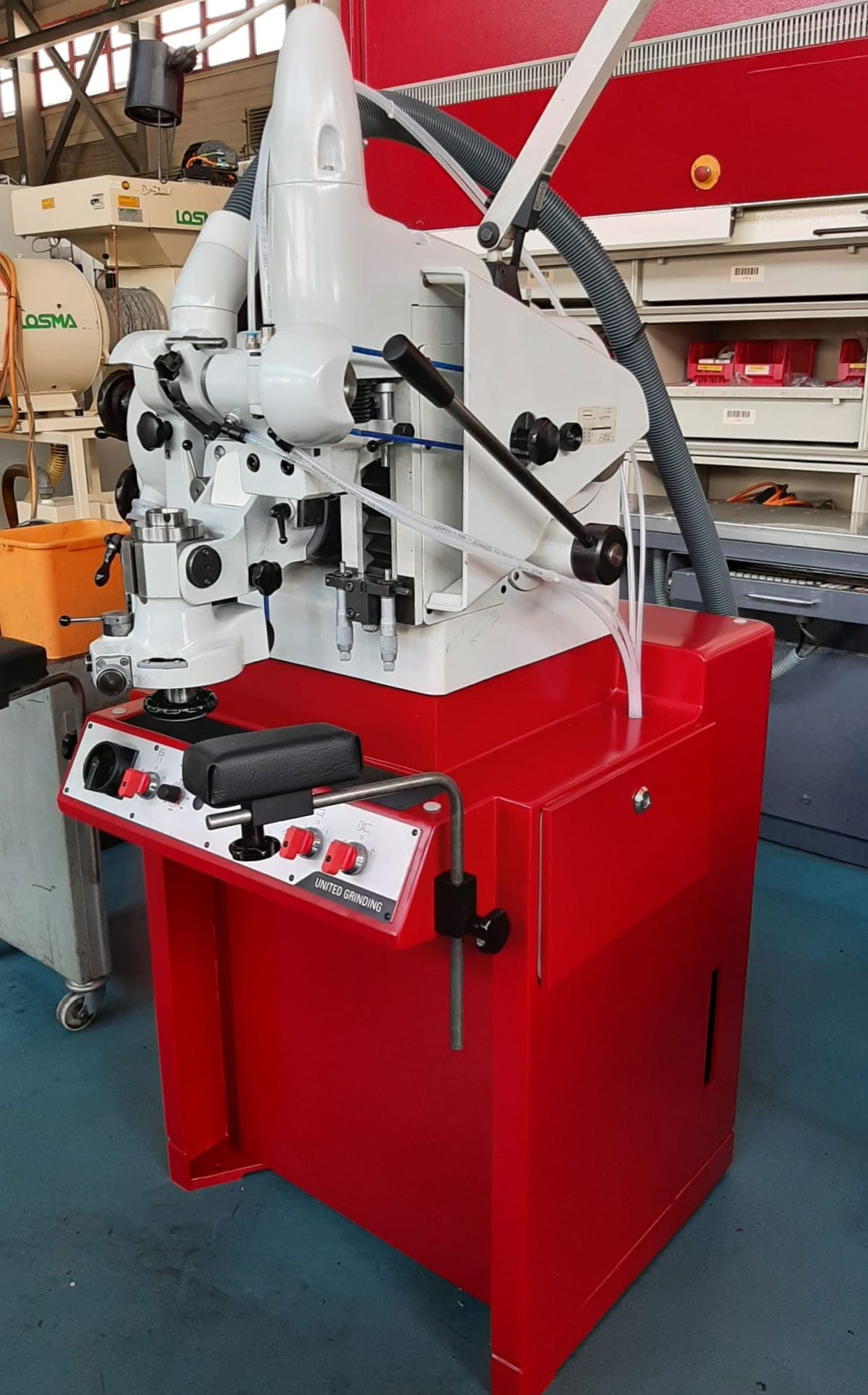

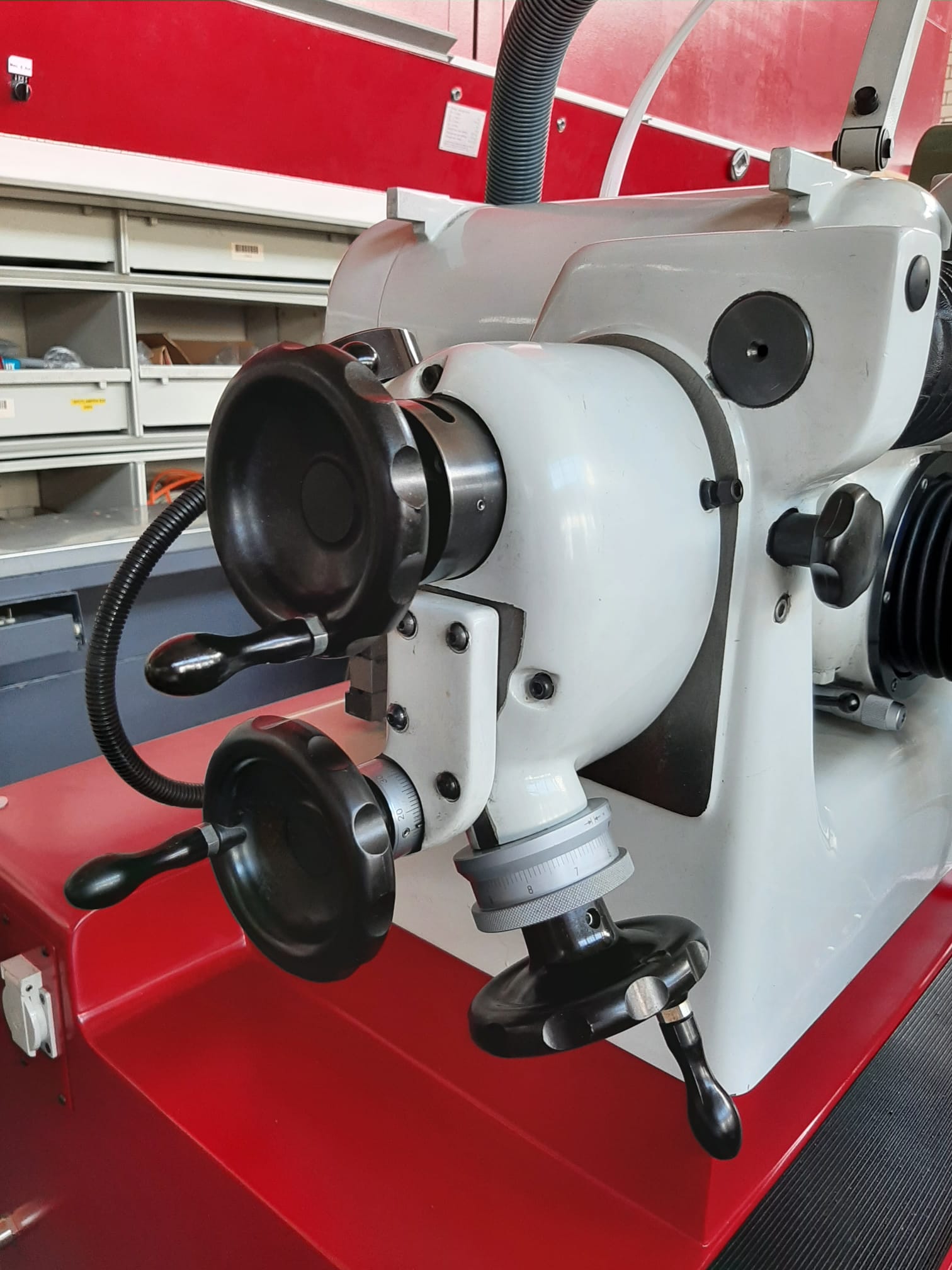

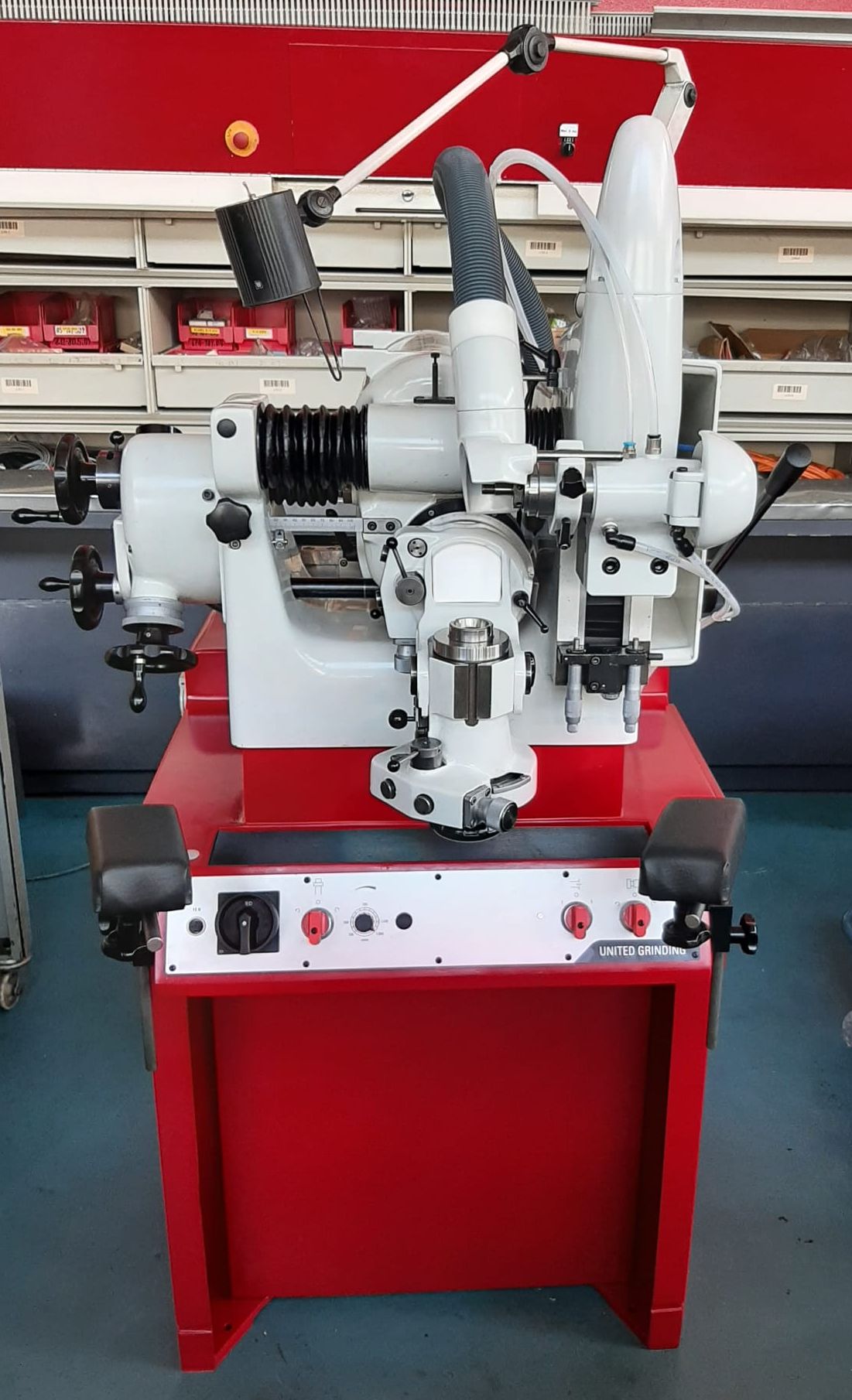

EWAG WS 11 is a Tool and cutter grinder designed for precision, high accuracy and reliability. X/Y/Z travel 100 mm; grinding-wheel Ø75 mm; A axis -135°/+30°; workspindle 100–1300 rpm; vertical head travel 100 mm; collet nose 20 W. Wheel spindle 2500–7100 rpm; 380 V 60 Hz; 0.4 CV; ~350 kg; 1000×1000×1800 mm. Accessories: set of collets, flanges, wheel arbors, lamp, Z feed unit. Achieves tight tolerances; suited to automotive, aerospace, watchmaking, medical sectors.
| X axis | 100 mm |
| Y axis | 100 mm |
| Z axis | 100 mm |
| Grinding-wheel diameter | 75 mm |
| A axis (grinding head rotaion) | -135° / +30 ° |
| Work piece spindle speed | 100 - 1300 t/min |
| Vertical adjustment of grinding head | 100 mm |
| Collet attachment | 20 W |
| Grinding spindle speeds: | |
| stepless | |
| from | 2500 t/min |
| up to | 7100 t/min |
| Voltage 60 Hz | 380 Volt |
| Grinding spindle motor | 0.4 CV |
| Machine's weight about | 350 kg |
| Overall dimensions machine: | |
| Length | 1000 mm |
| Width | 1000 mm |
| Height | 1800 mm |

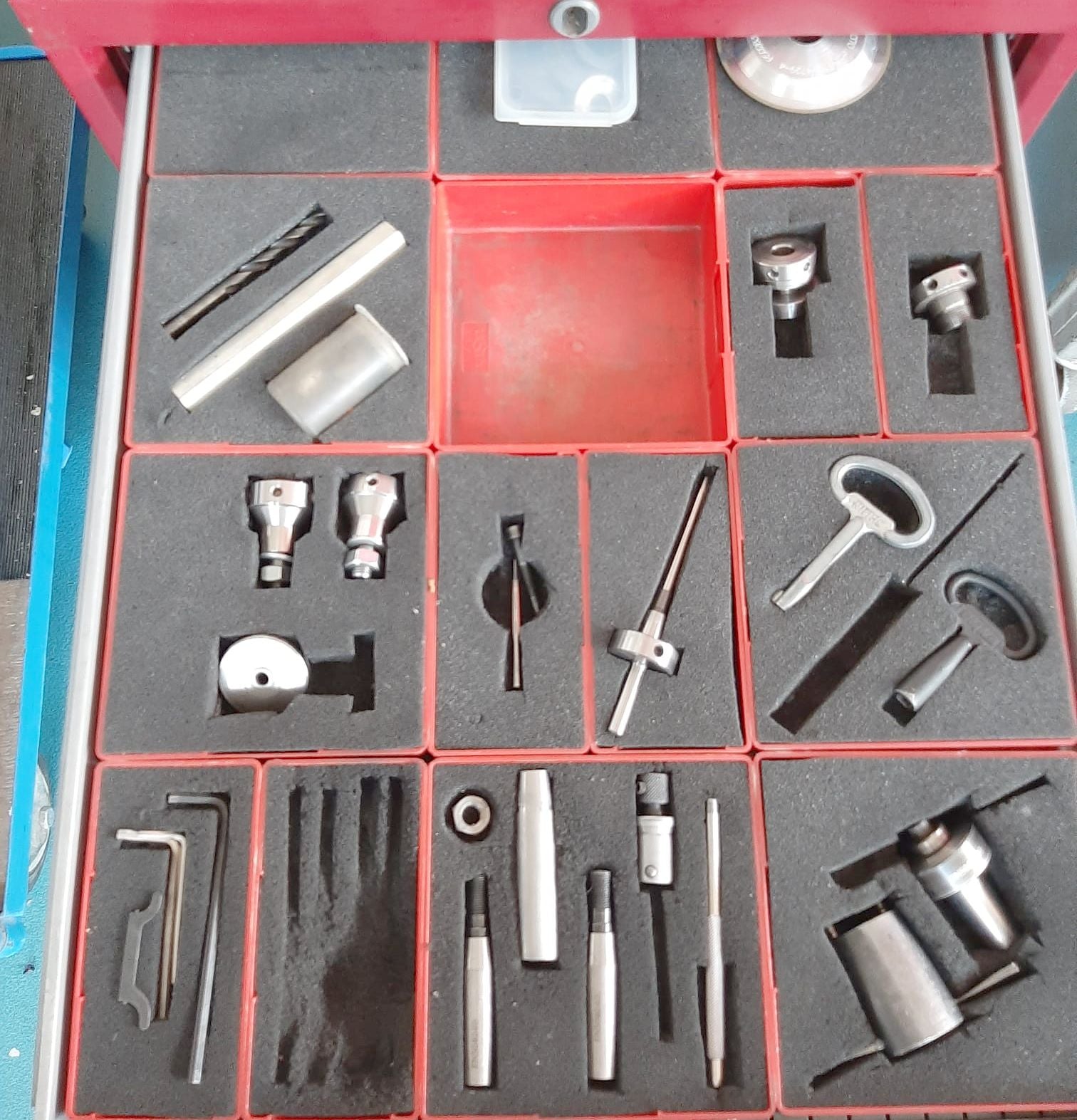

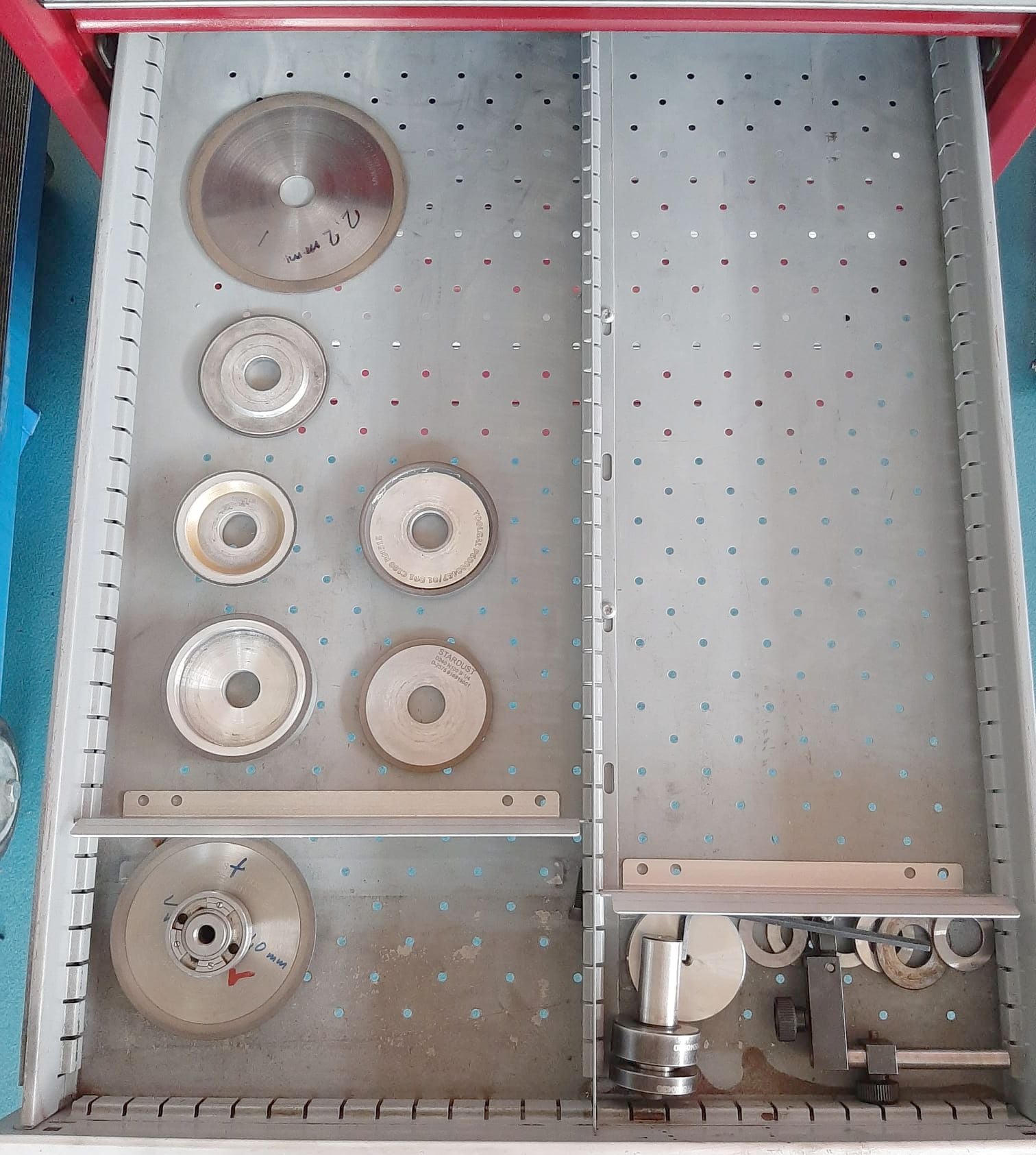

| Various accessories: | |

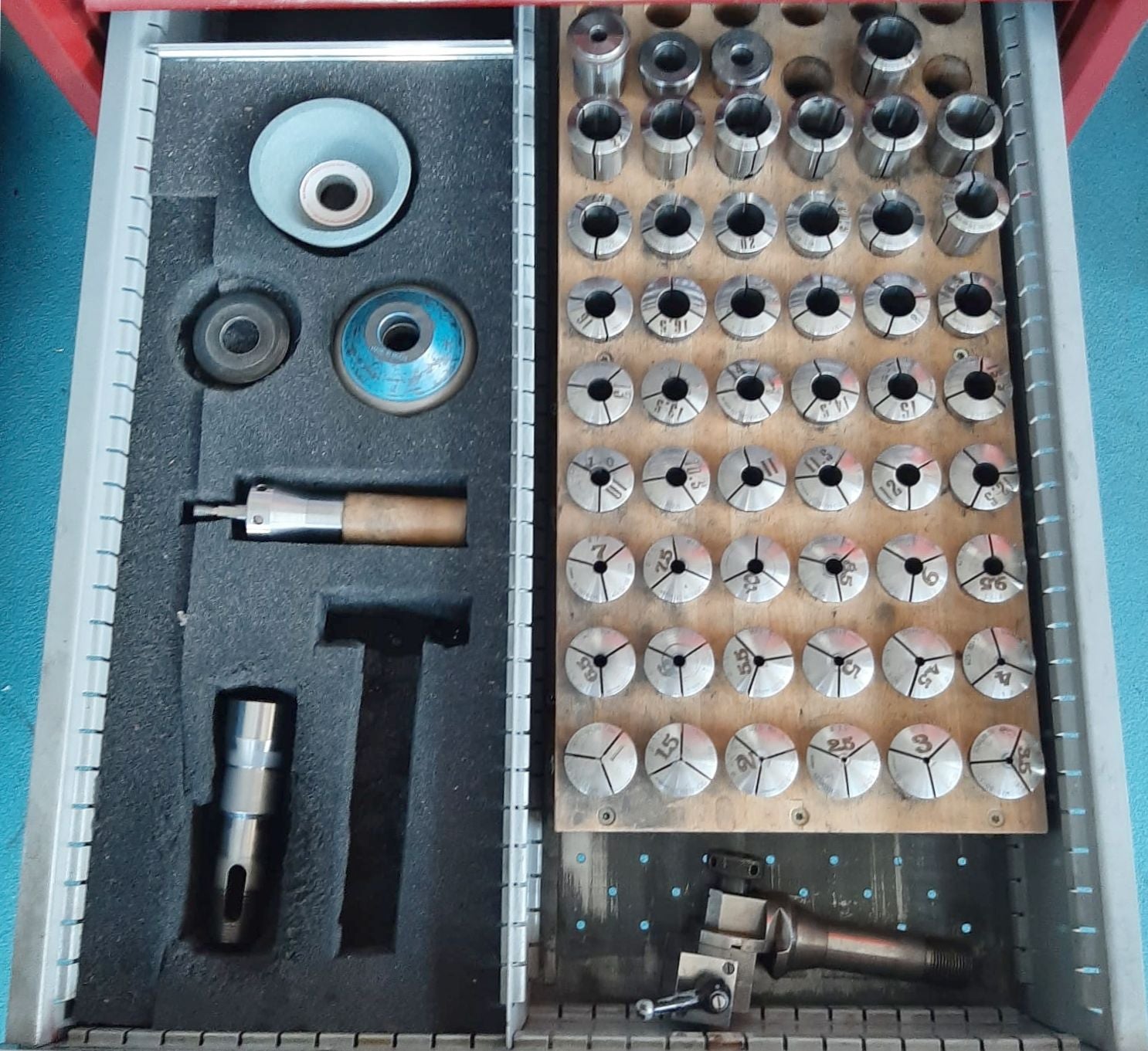

| Set of collets | |

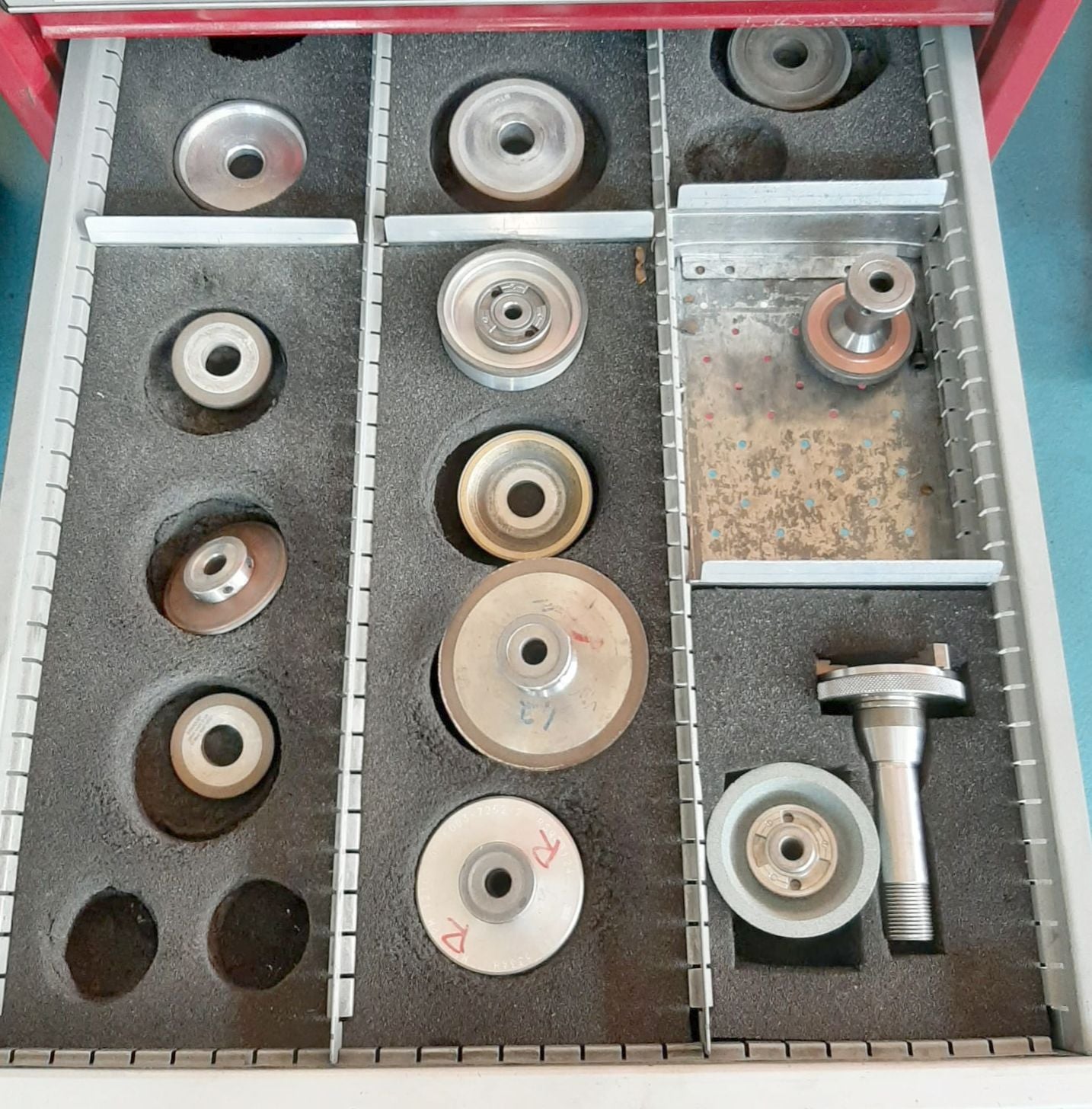

| Set of flanges | |
| Set of grinding wheel arbors | |
| Lamp | |
| Feed unit (Z-axis) | |
| Notes: | |
| Machine refurbished |
