CITIZEN CINCOM L 20
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

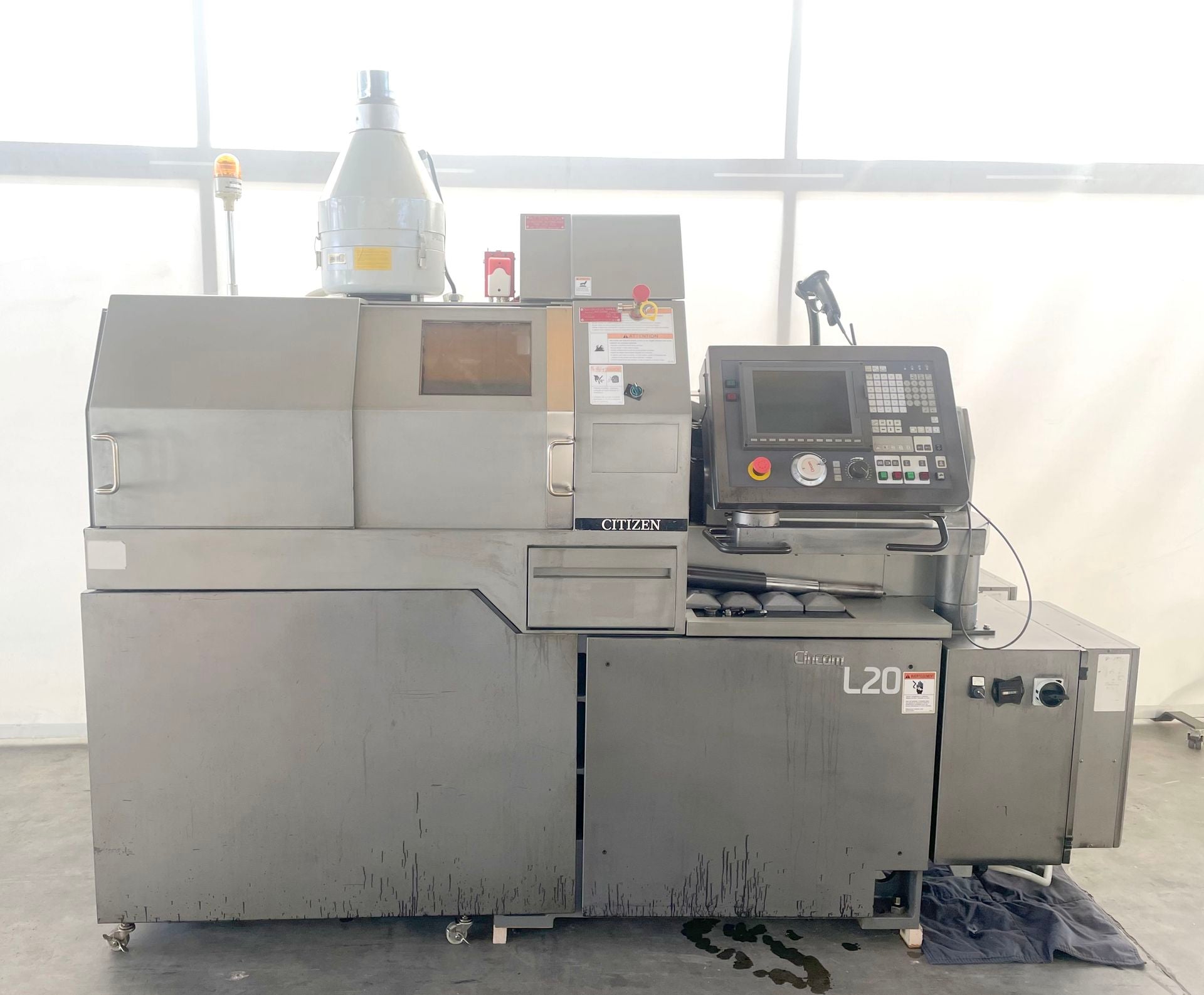

CITIZEN CINCOM L 20 is a CNC automatic lathe of high precision, accurate and reliable. Capacity: max Ø 20 mm, max length 200 mm. Specs: 2 spindles; spindle speeds 200–8000 t/min, back spindle 200–6000 t/min; 3 tool-holders, 12 tools; 5 turning, 3 drilling, 4 transverse tools; spindle 3.7 kW, back 1.5 kW; 3x380 V 50 Hz; weight ~2300 kg; dims L2050×W1085×H1800 mm. Accessory: bar feed IEMCA BOSS 332 (2011). Achieves tight tolerances; suited for automotive, watchmaking, tooling, aerospace, medical
| Number of spindles | 2 |
| Max. turning diameter | 20 mm |
| Maximum turning length | 200 mm |
| Spindle speeds: | |
| from | 200 t/min |
| up to | 8000 t/min |

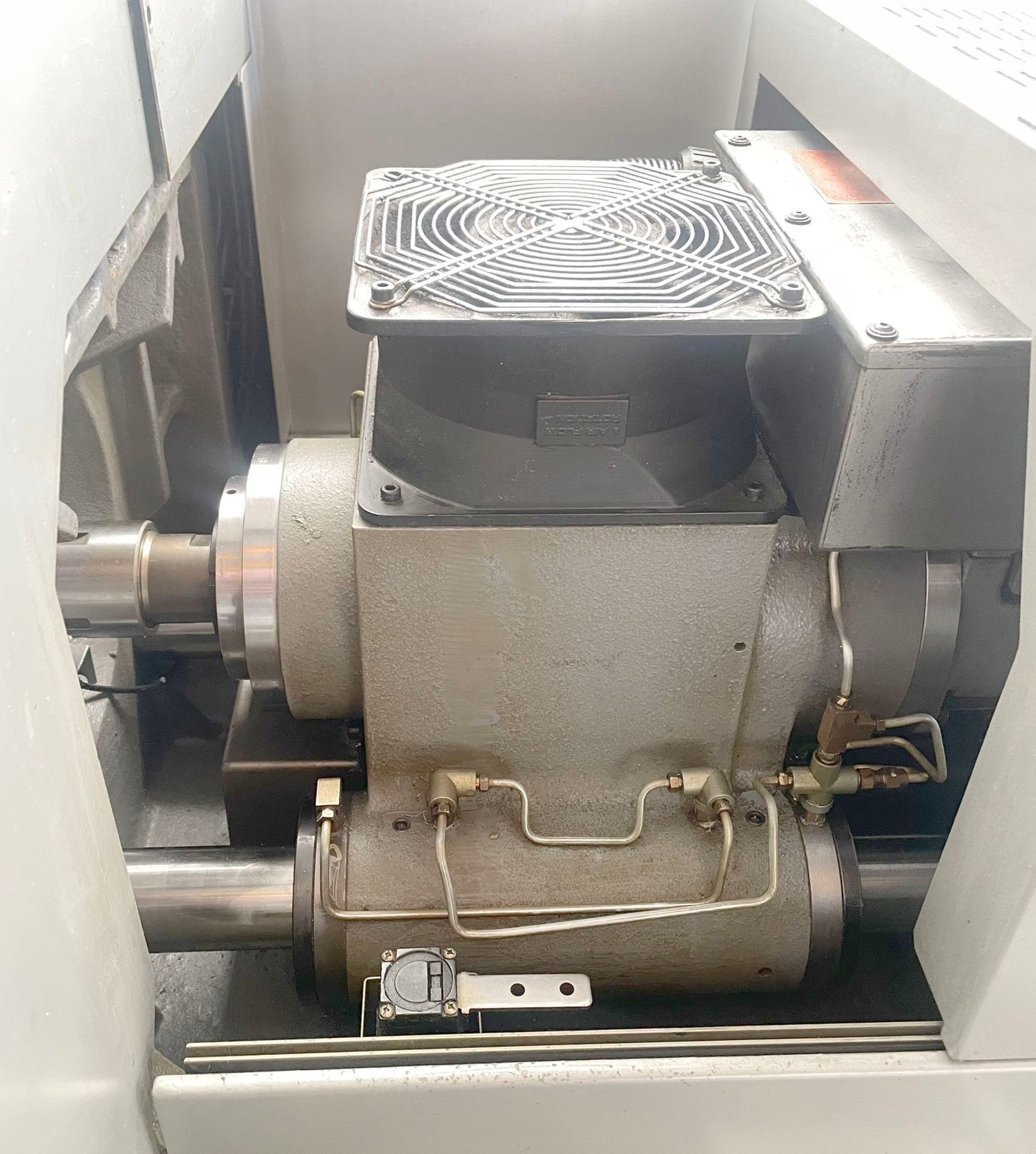

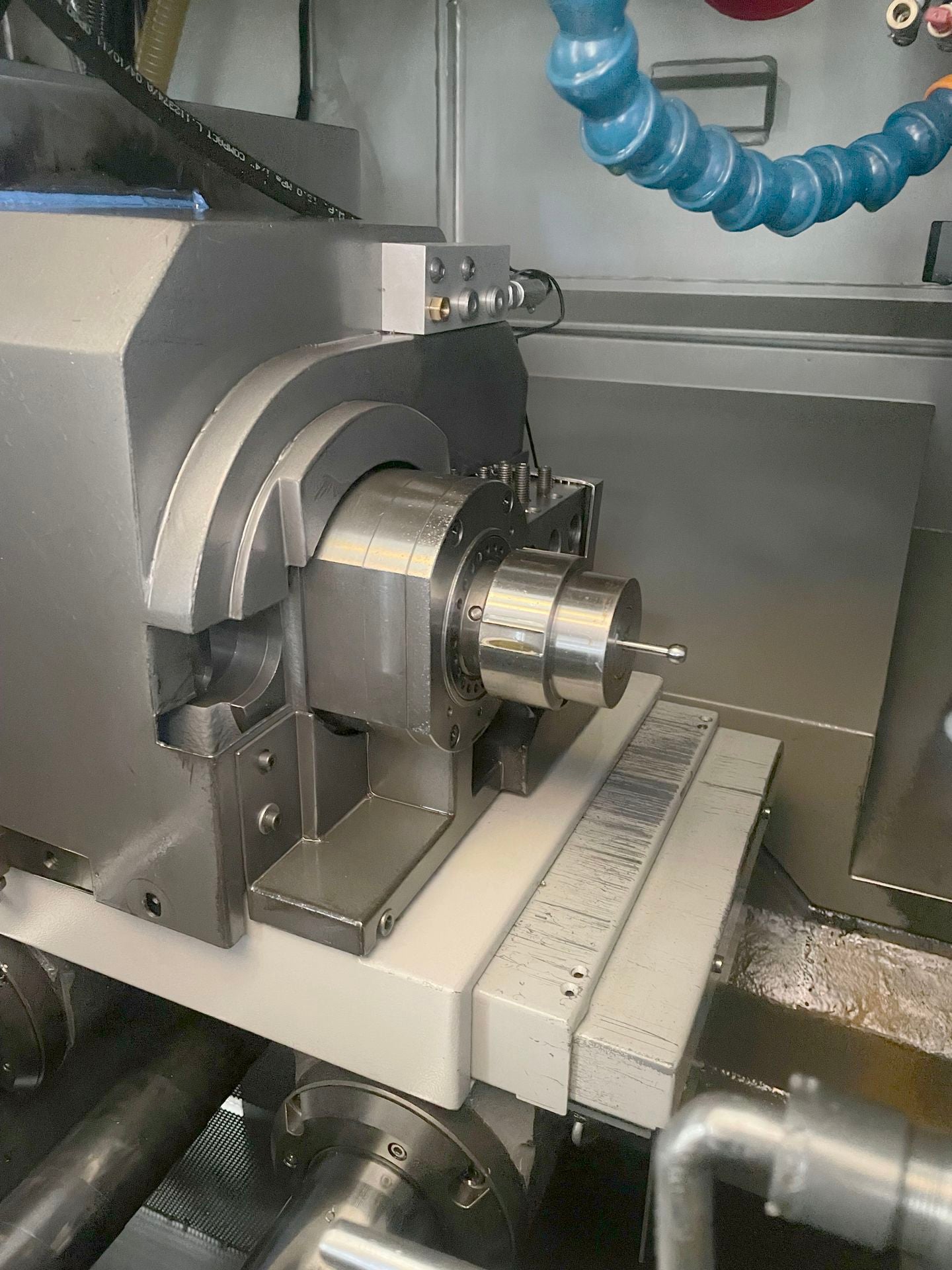

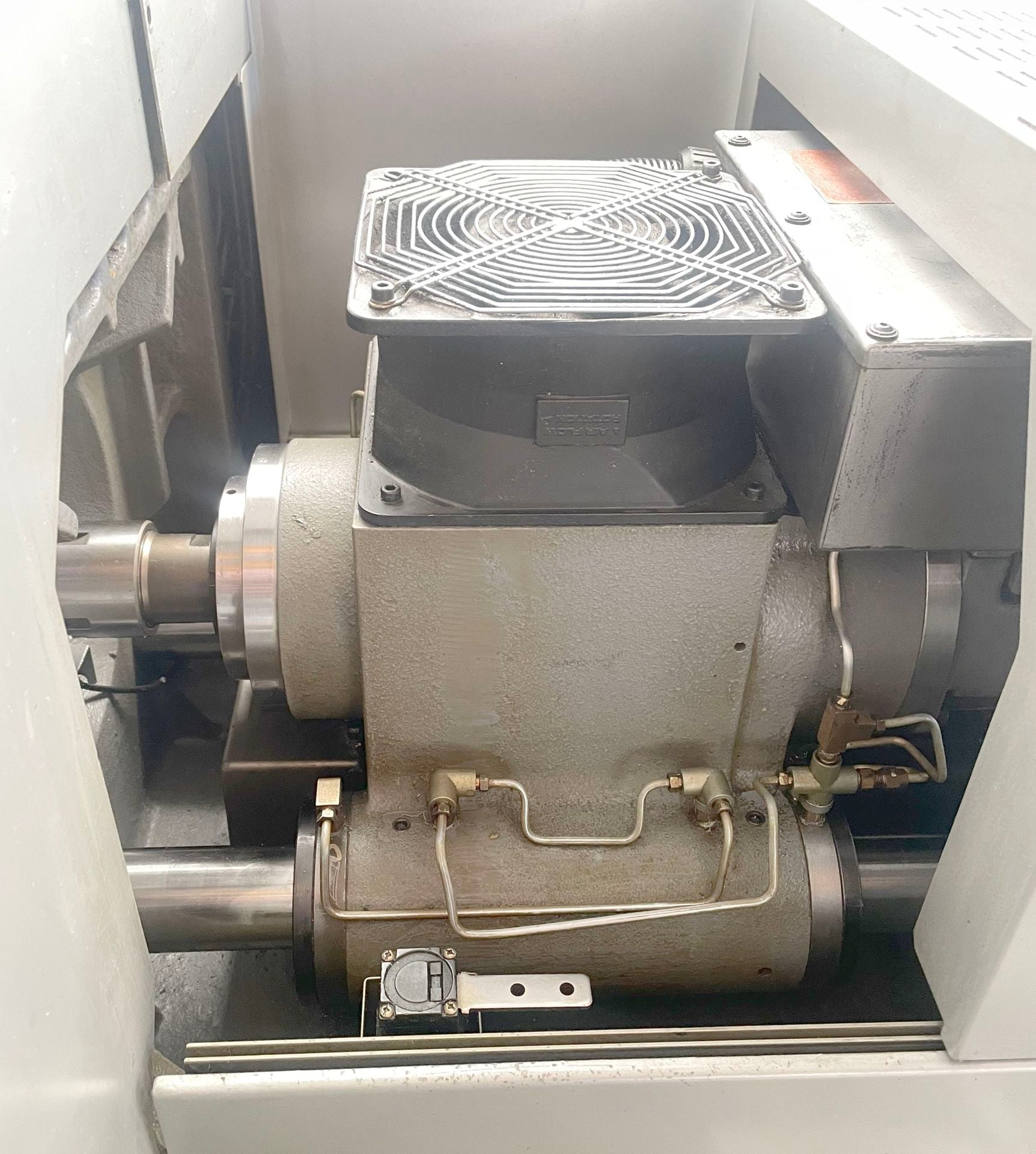

| Back spindle: | |
| speeds: | |
| from | 200 t/min |
| up to | 6000 t/min |

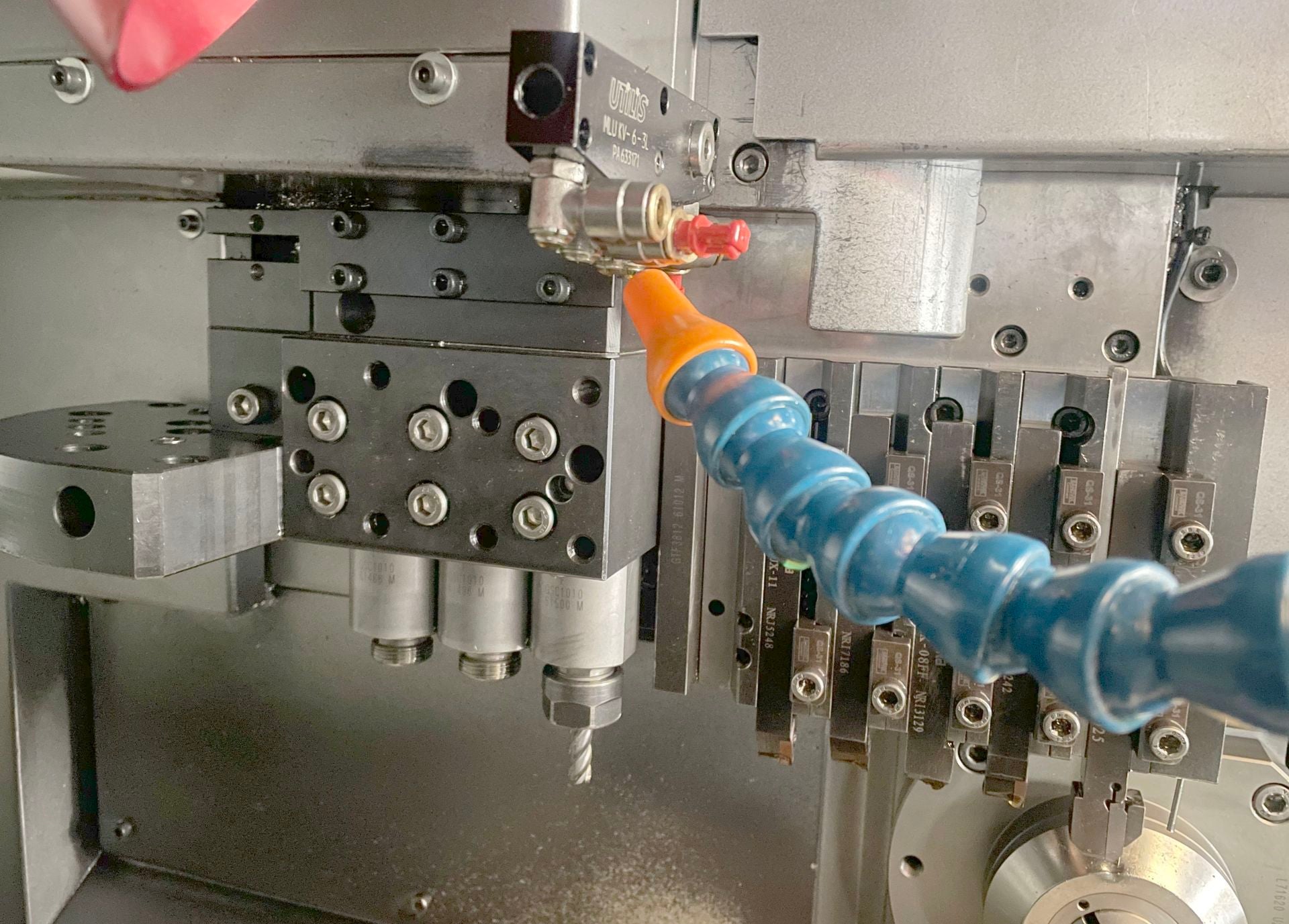

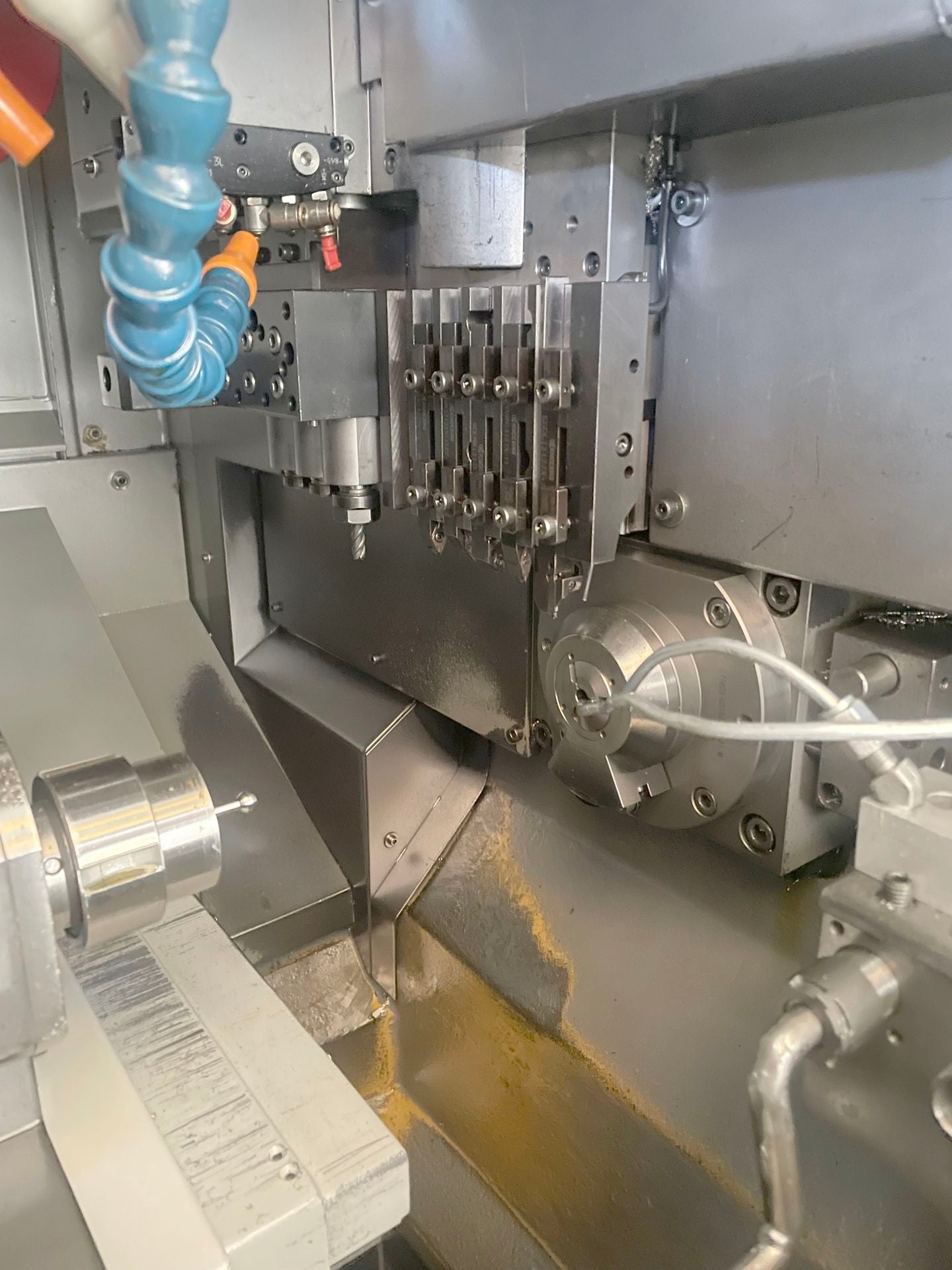

| Tool-holder: | |
| numbers | 3 |
| number of tools | 12 |
| Turning tools | 5 pce |
| Drilling tools | 3 pce |
| Transverse processing tools | 4 pce |
| Counter-operation: | |
| Drilling tools | 3 pce |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 3.7 kW |
| Power of back spindle | 1.5 kW |
| Machine's weight about | 2300 kg |
| Overall dimensions machine: | |
| Length | 2050 mm |
| Width | 1085 mm |
| Height | 1800 mm |
| Various accessories: | |

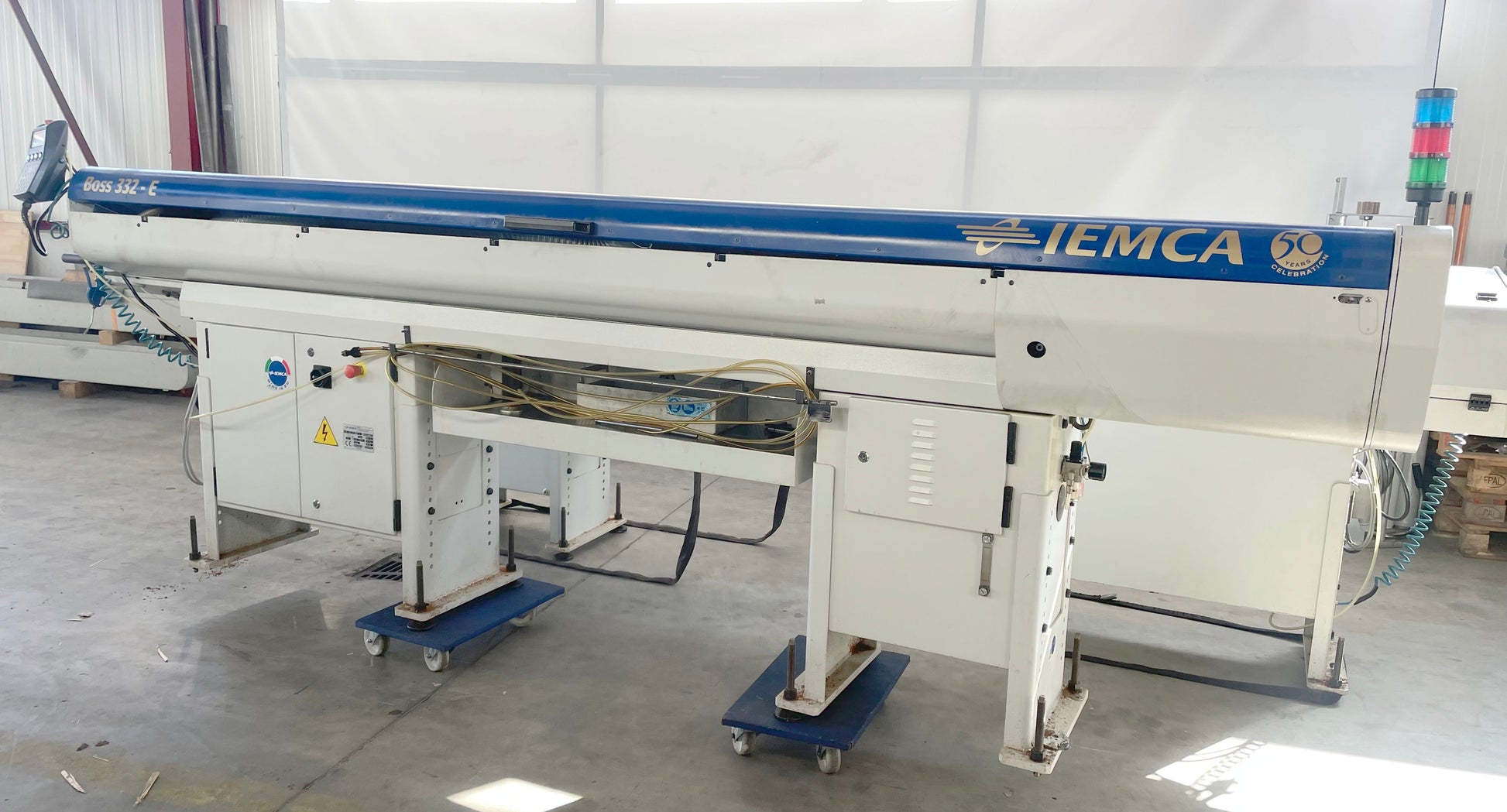

| Bar feed | |
| Manufacturer | IEMCA |
| Type | BOSS 332 |
| year of manufacture | 2011 |
