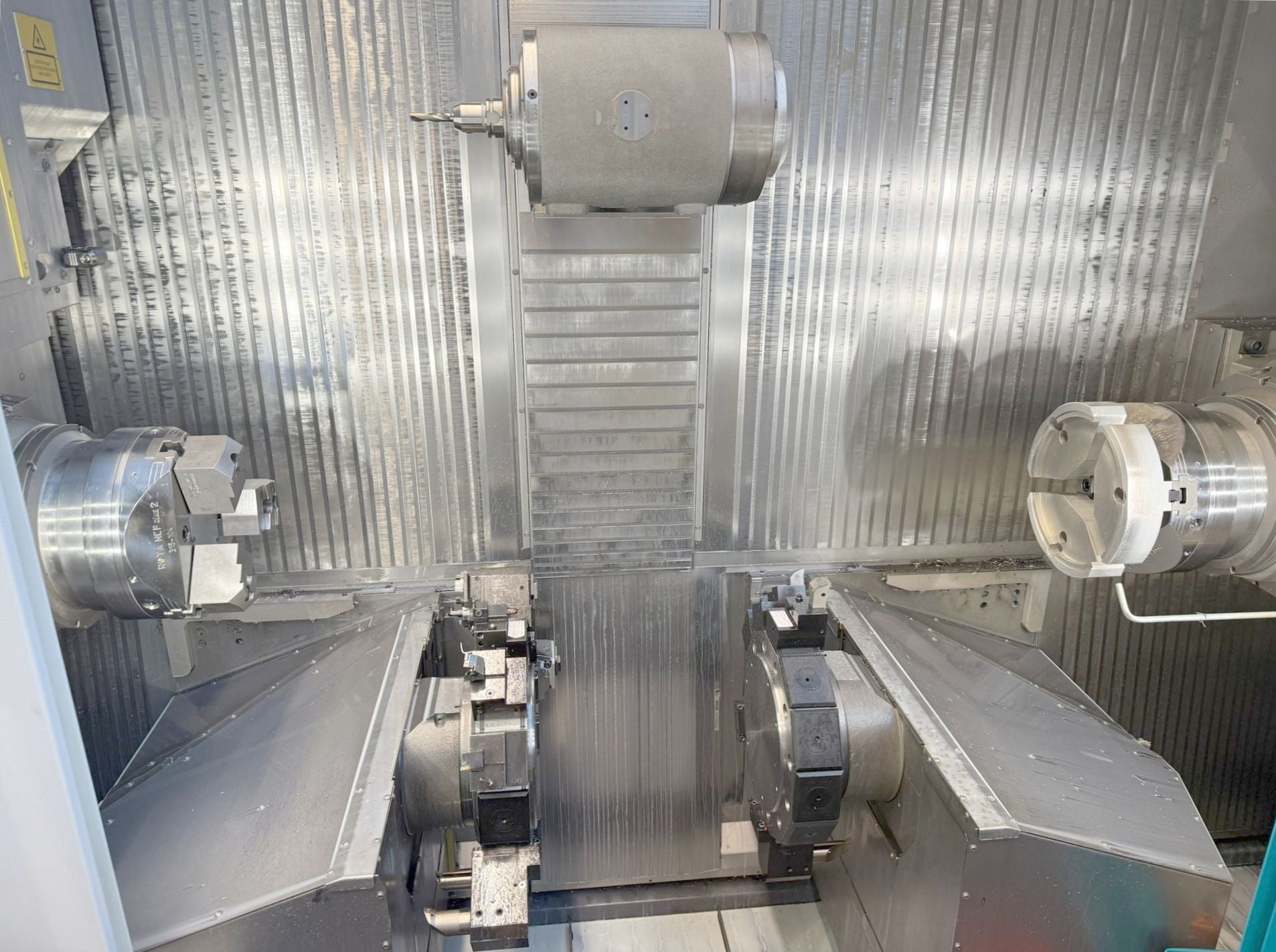

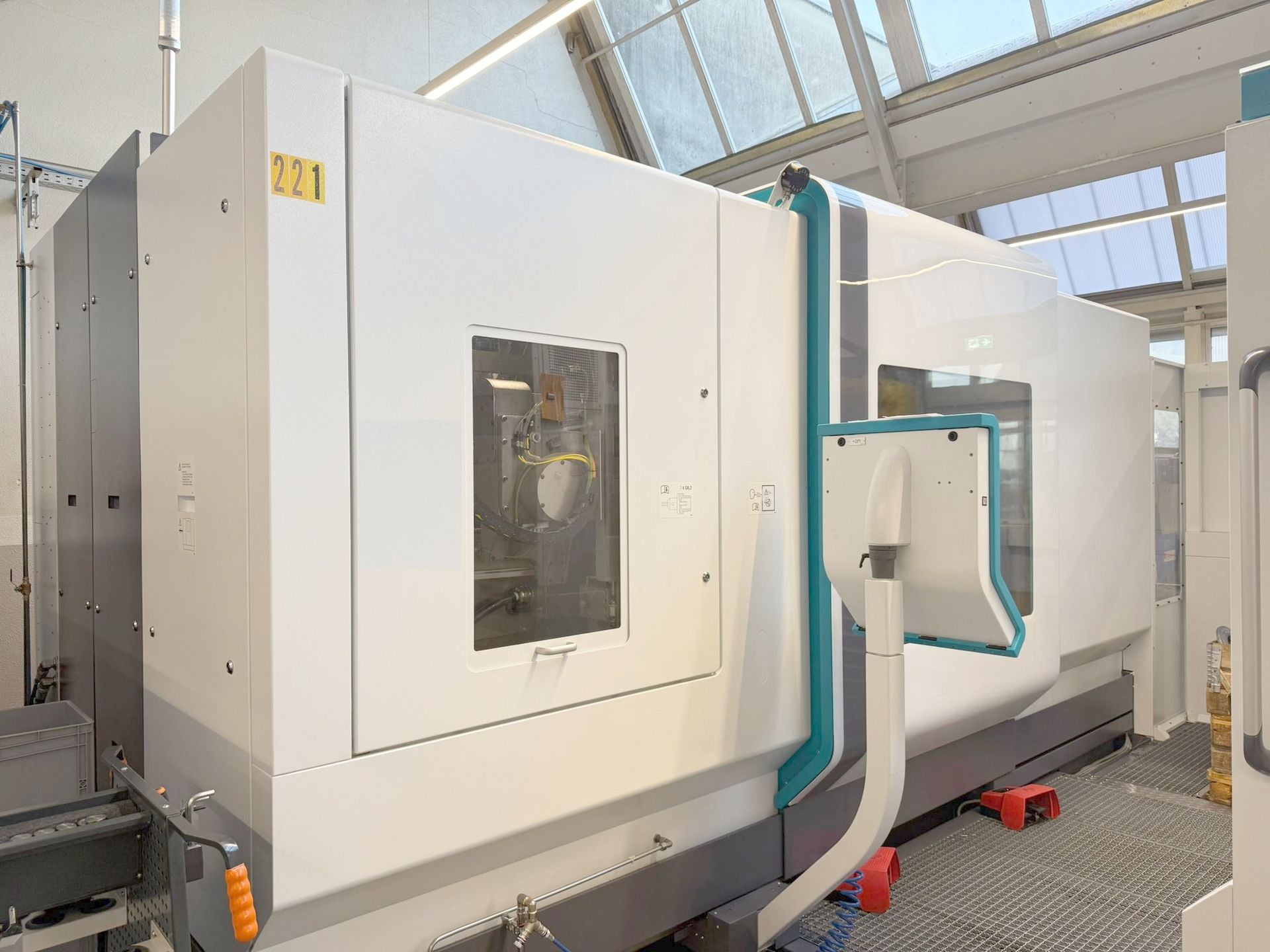

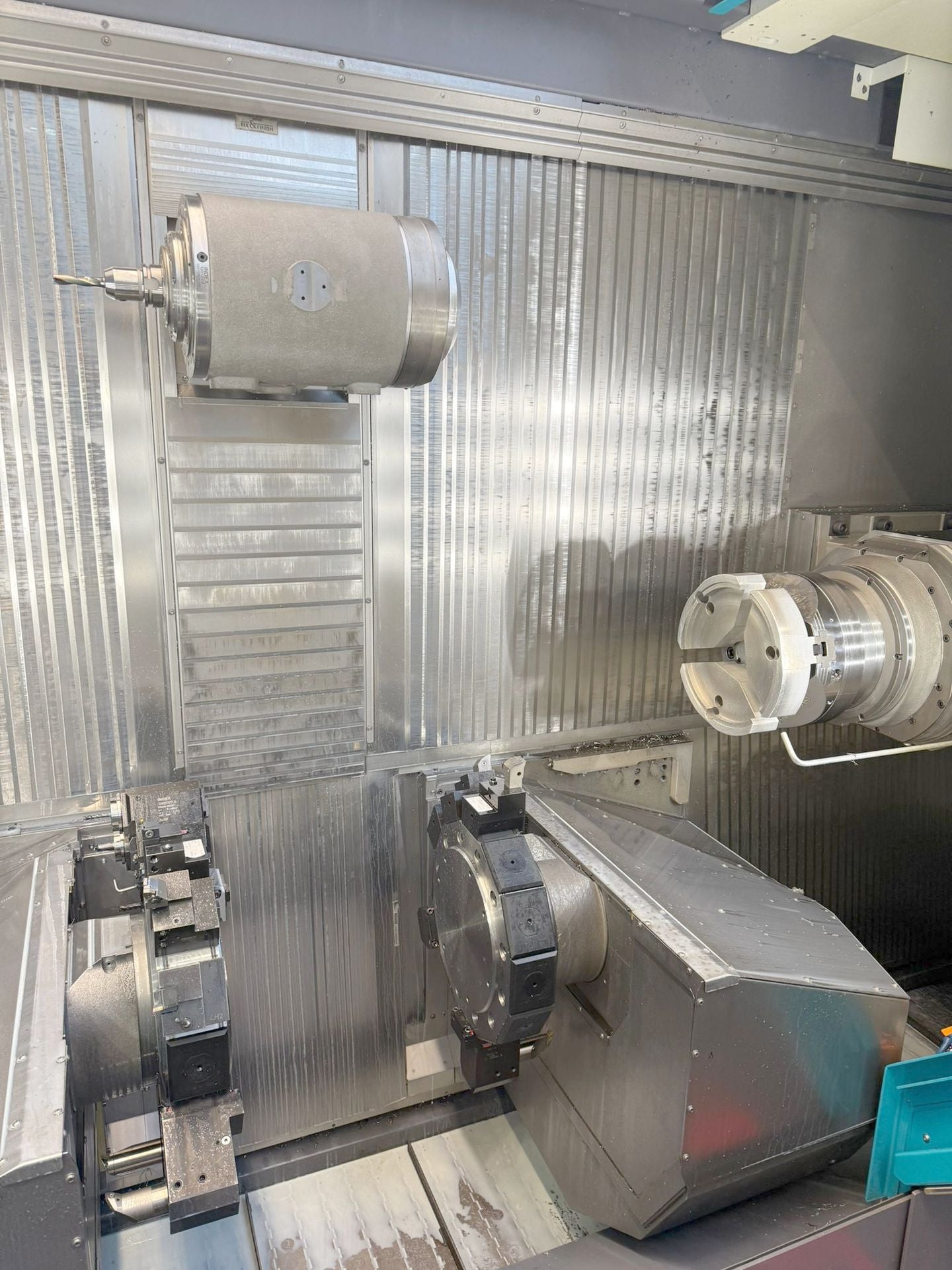

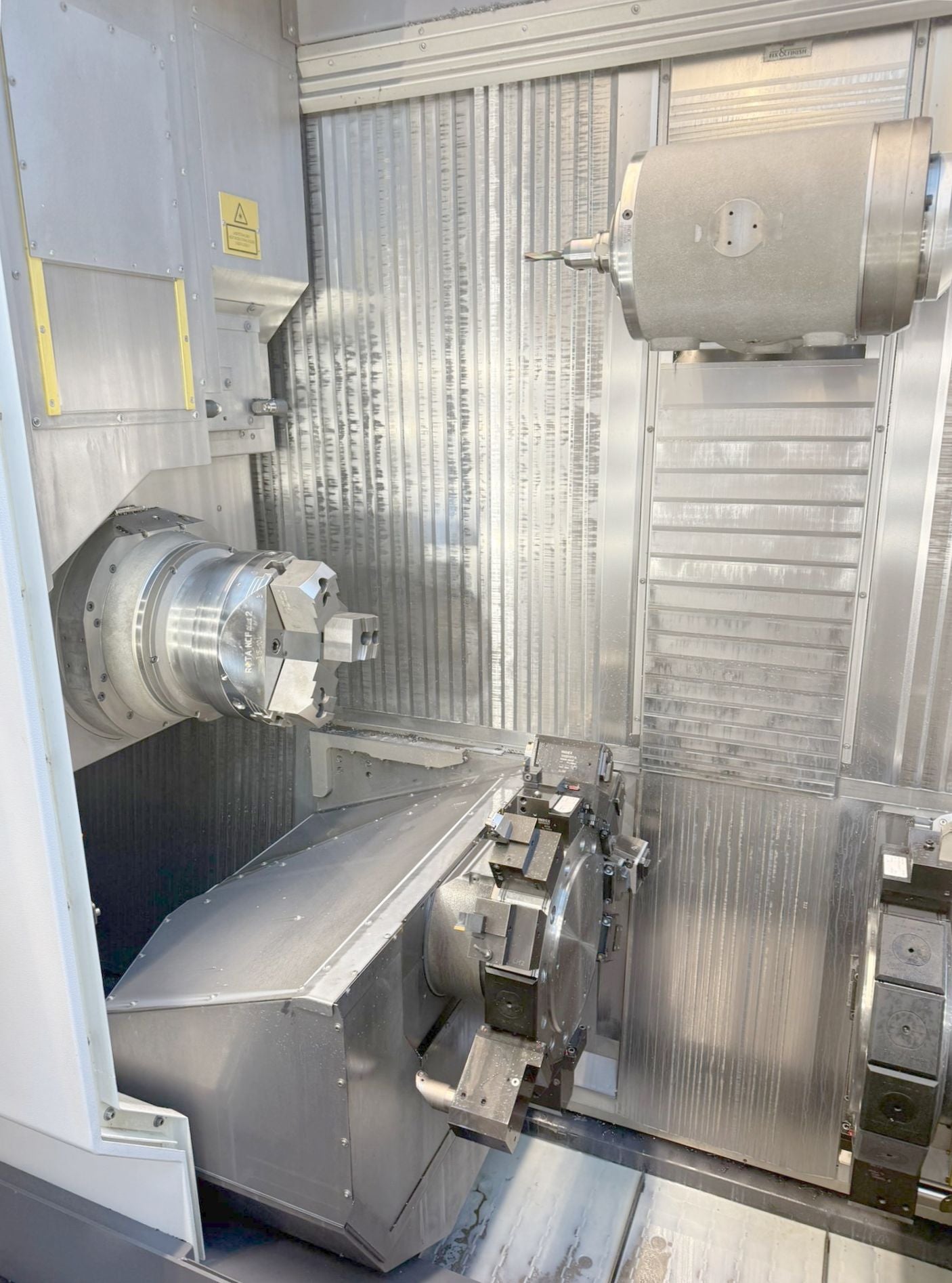

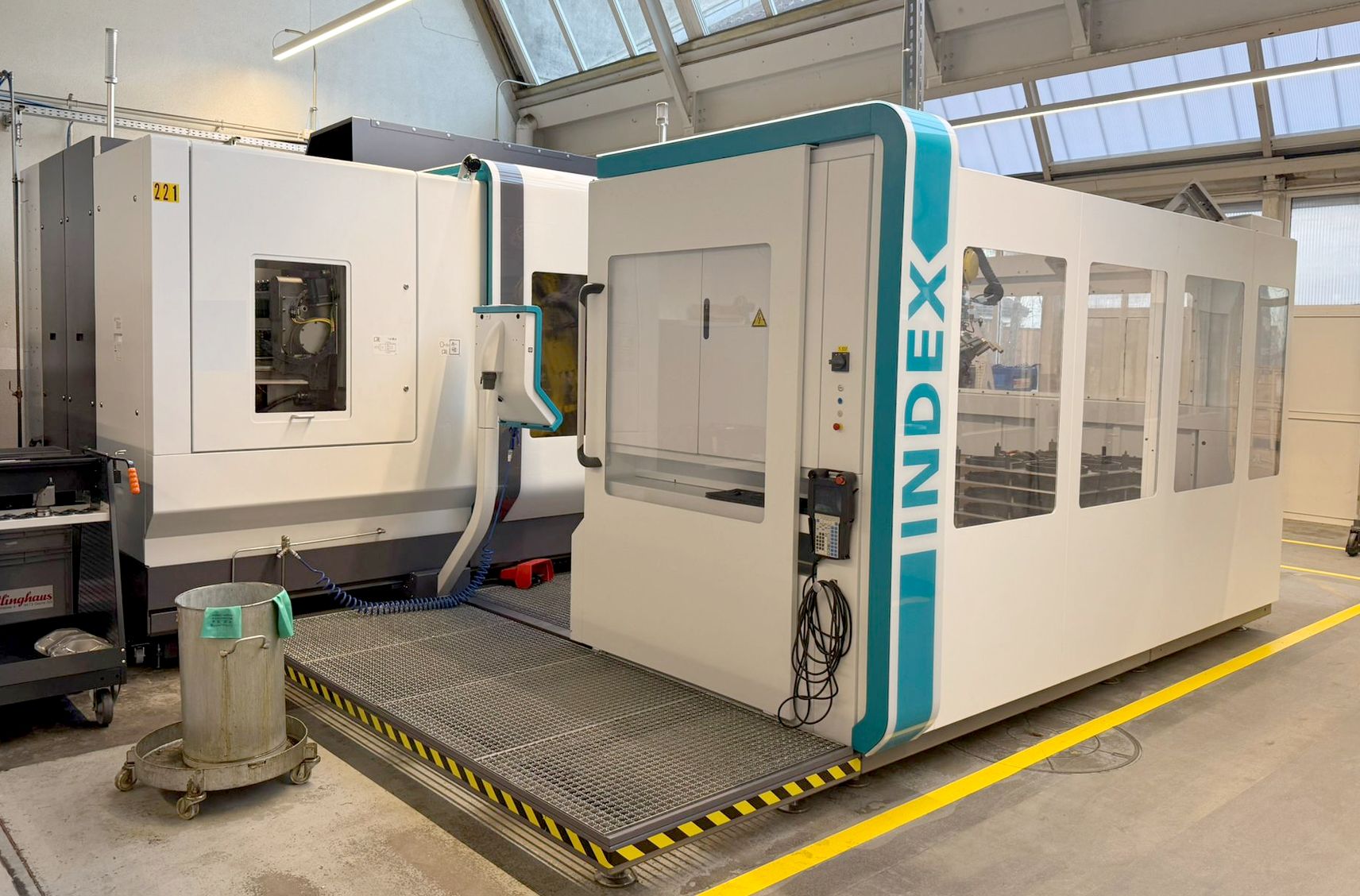

INDEX G 420 is a CNC turning-milling-drilling center of high precision, delivering superior accuracy and reliability. Features 2 turning spindles, 1 milling head, 2 turrets with 12 positions each and a 115-tool changer; spindle nose HSK‑A63. Spindle speeds up to 5400 min‑1, stepless 0–4000 min‑1; spindle power 34 kW; max torque 811 Nm; supply 3×400 V 50 Hz. Weight ≈23,000 kg; footprint L5060×W3025×H3165 mm. Loading robot: FANUC. Achieves tight tolerances; suitable for automotive, aerospace, medical, watchmaking and machine-tool sectors.
| Number of turning spindles | 2 |
| Number of milling heads | 1 |
| Number of revolvers | 2 |
| Number of positions turret 1 | 12 |
| Number of positions turret 2 | 12 |
| Driven tools turret | |
| Spindle speeds | 5400 t/min |
| Spindle nose: HSK-A | 63 |
| Tool changer: (number of tools) | 115 |
| Main spindle: | |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 4000 t/min |
| Spindle power | 34 kW |
| Torque max. | 811 Nm |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 23000 kg |
| Overall dimensions machine: | |
| Length | 5060 mm |
| Width | 3’025 mm |
| Height | 3165 mm |

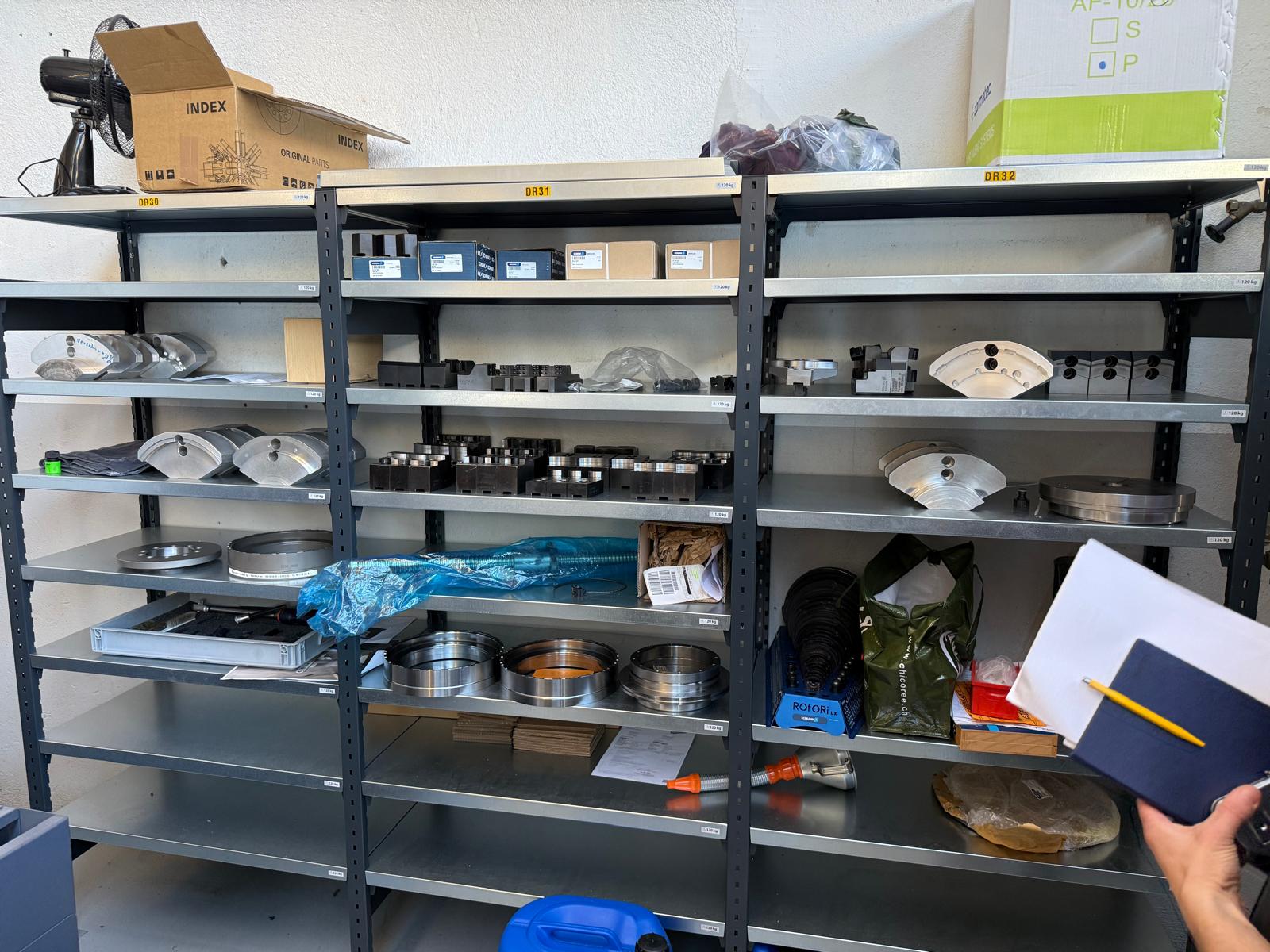

| Various accessories: | |

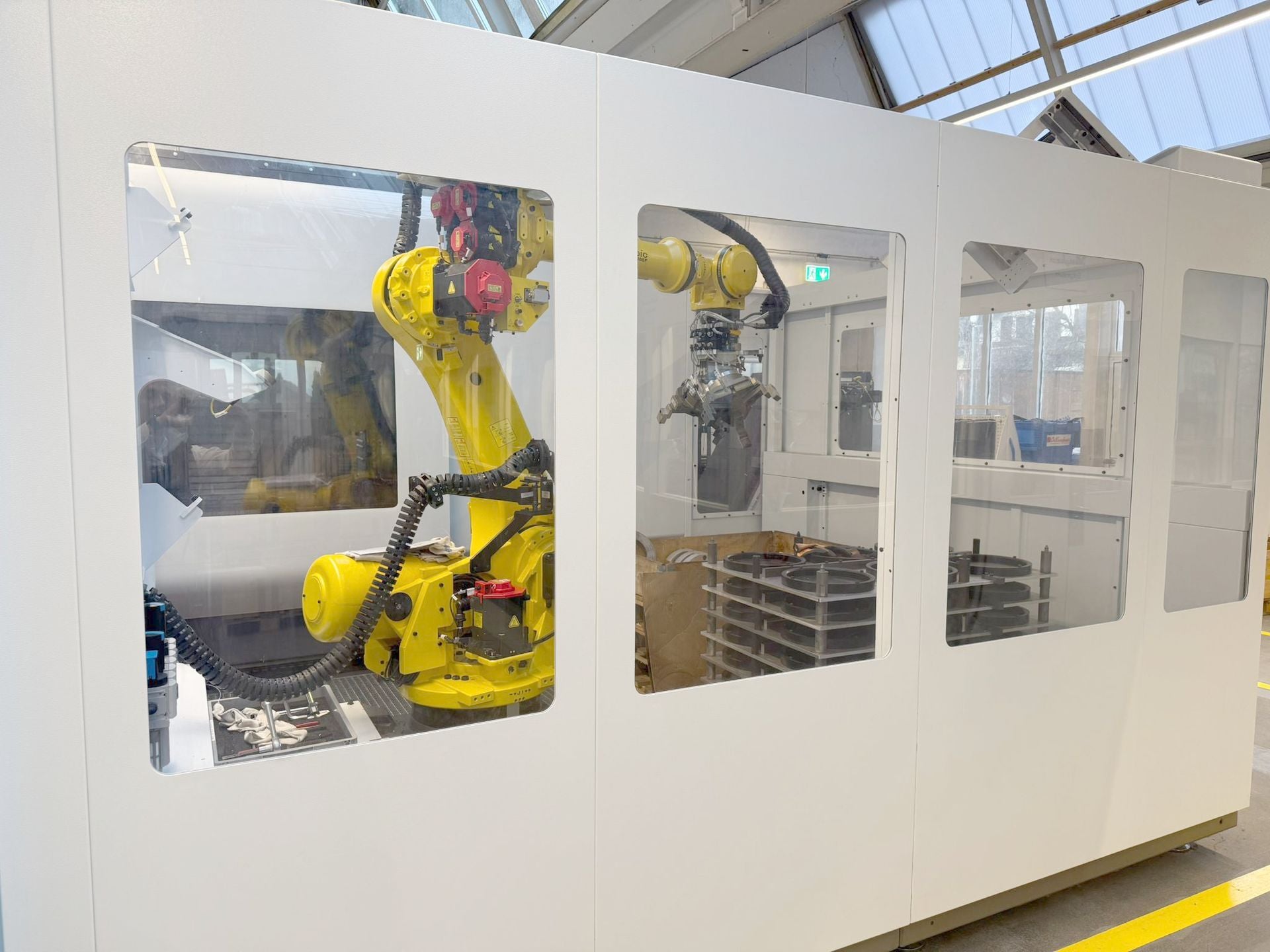

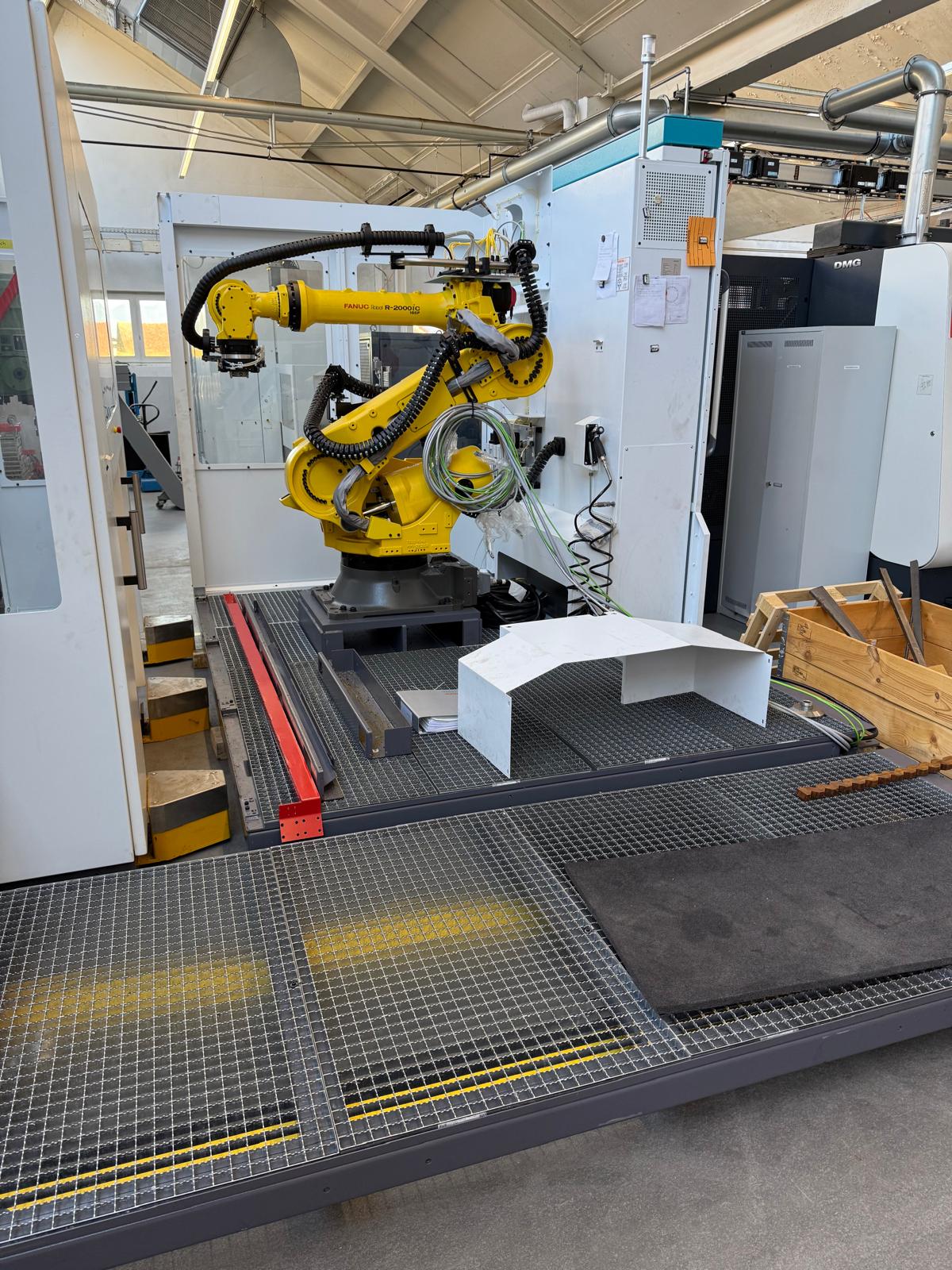

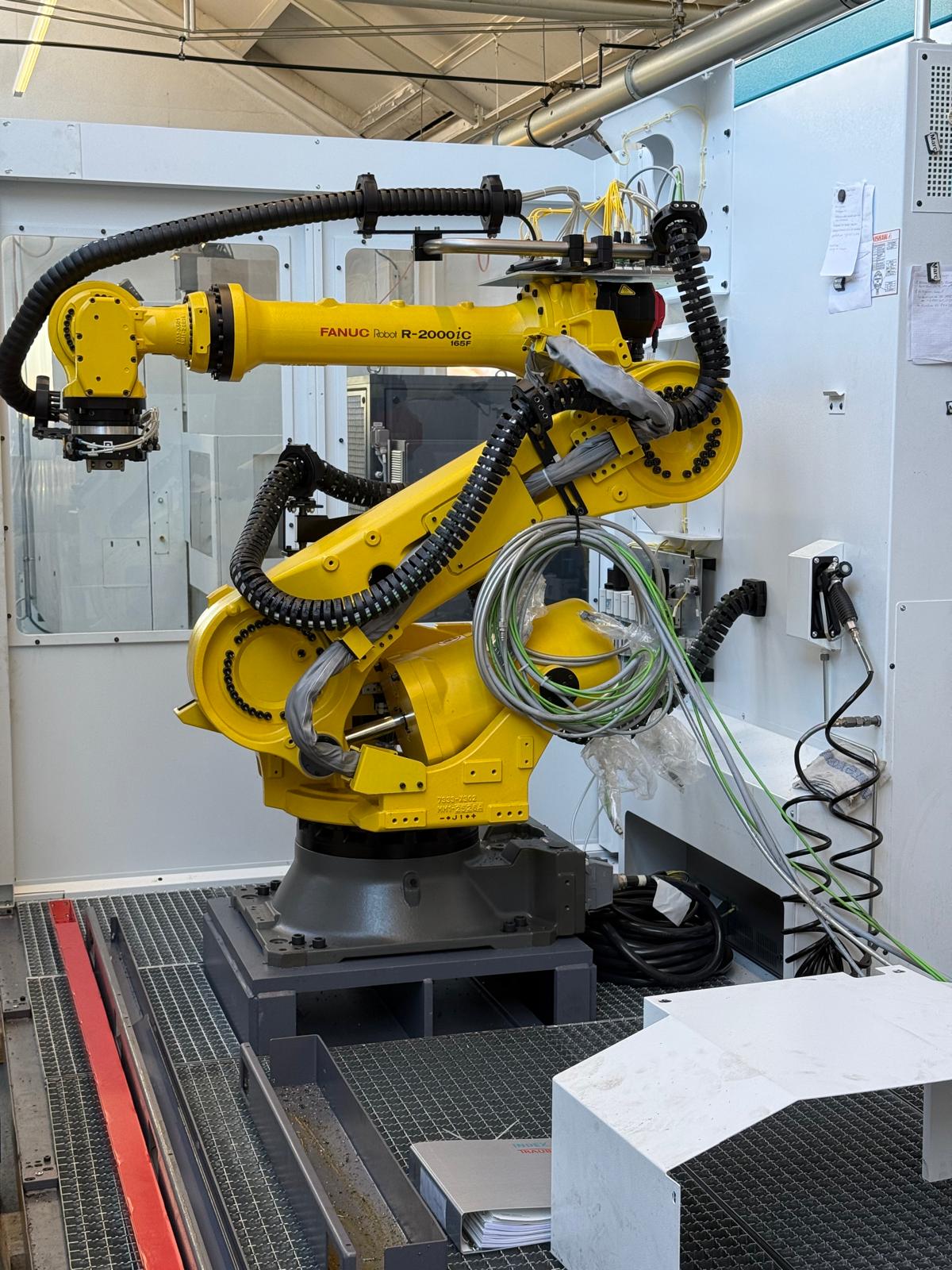

| Loading roboter | FANUC |
