| Number of axis total | 5 |
| Max. grinding wheel diamter | 160 mm |
| Taper in spindle | 50 ISO |
| Axial motion: | |
| Crosswise | 360 mm |
| Longitudinal | 240 mm |
| Vertical | 360 mm |
| B axis (grinding head rotation) | 470 ° |
| Resolution | 0.001 ° |
| Work piece spindle speed | 1000 t/min |
| C axis (spindle,resolution) | 0.001 ° |
| Grinding spindle speeds: | |
| stepless | |
| from | 1000 t/min |
| up to | 9000 t/min |
| Spindle motor | 6 / 8 kW |
| Rapid traverse: | 10 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Grinding spindle motor | 3.7 kW |
| Total power required | 10 kVA |
| Machine's weight about | 2750 kg |
| Overall dimensions machine: | |
| Length | 2050 mm |
| Width | 1945 mm |
| Height | 2040 mm |
| Various accessories: | |

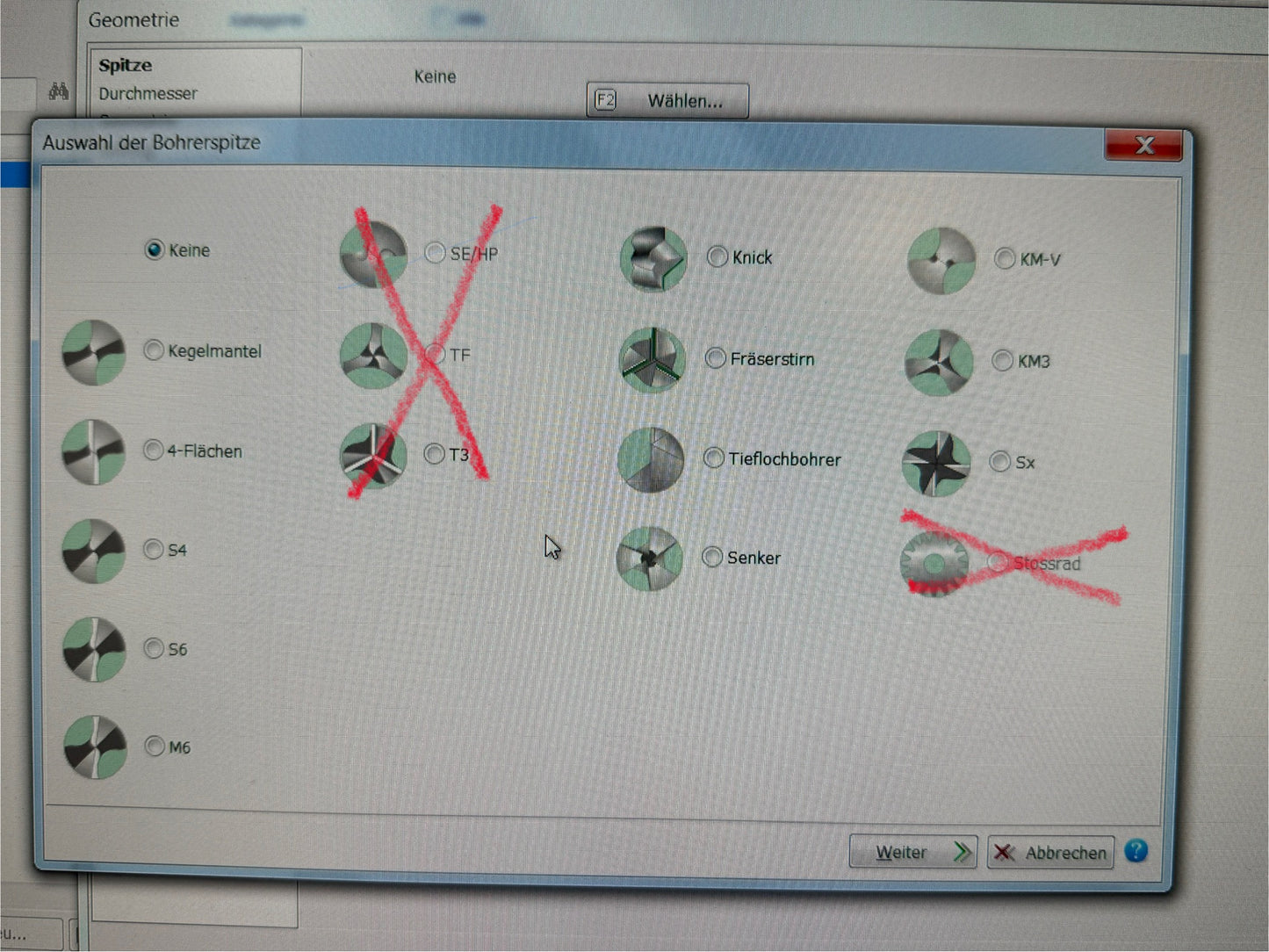

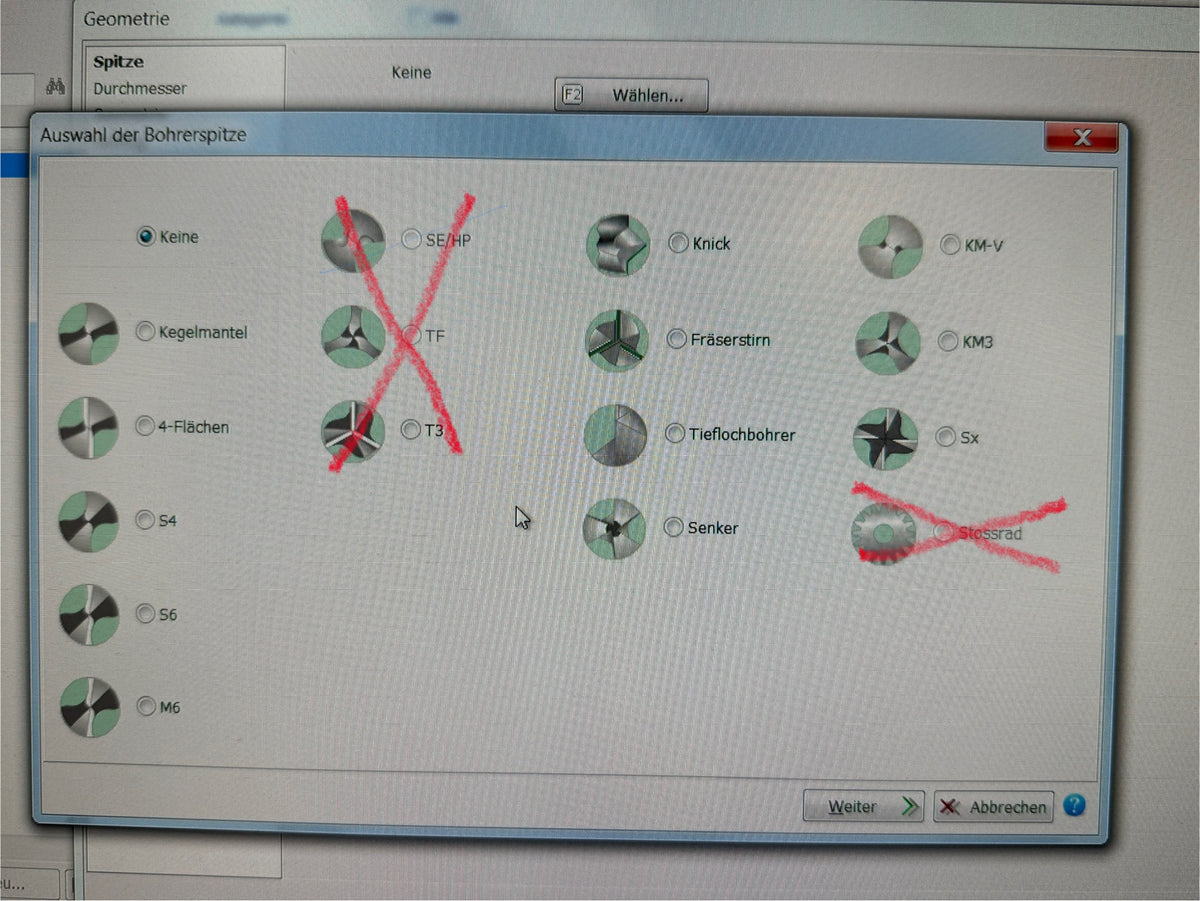

| PC system | |
| 3D measuring feeler gauge | |
| Handwheel electroinic | |
| Switch cabinet Air conditioner |
