023091 - QUASER MK603SP/12B
Download technical sheet (PDF)
Message us on WhatsApp
| Number of tables | |
| Table length | 1050 mm |
| Table width | 550 mm |
| Table load max. | 300 kg |
| Longitudinal travel (X-axis) | 1020 mm |
| Transversal travel (y-axis) | 610 mm |
| Vertical travel (z axis) | 600 mm |
| Dimension of the workpice: | |
| Height | 350 mm |
| Diameter | 1630 mm |
| Tool magazine number of tool places | 48 |
| Tool diameter | 75 mm |
| Diameter with free adjacent pockets | 125 mm |
| Tool lenght | 300 mm |
| Max. tool-weight | 7 kg |
| Time of tool changing | 2.5 s |
| Average chip-to-chip time | 6 s |
| Spindle nose: ISO | 40 |
| Pull-Studs | DIN 69871 |
| Distance from vertical | |
| spindle to table | 130-730 mm |
| Spindle diameter | 70 mm |
| Spindle speeds: | |
| stepless | |
| from | 80 t/min |
| up to | 1200 t/min |
| Torque max. | 192 Nm |
| Feed range | 20000 mm/min |
| Feeds: | 36 |
| Air connect | 6-8 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 30 / 22 kW |
| Total power required | 45 kVA |
| Machine's weight about | 12000 kg |
| Length | 4650 mm |
| Width | 2930 mm |
| Height | 3300 mm |
| Various accessories: | |
| Coolant system | 400 l |
| Coolant through spindle (cts) | 20 bar |
| Chip conveyor | |
| Handwheel electroinic | |

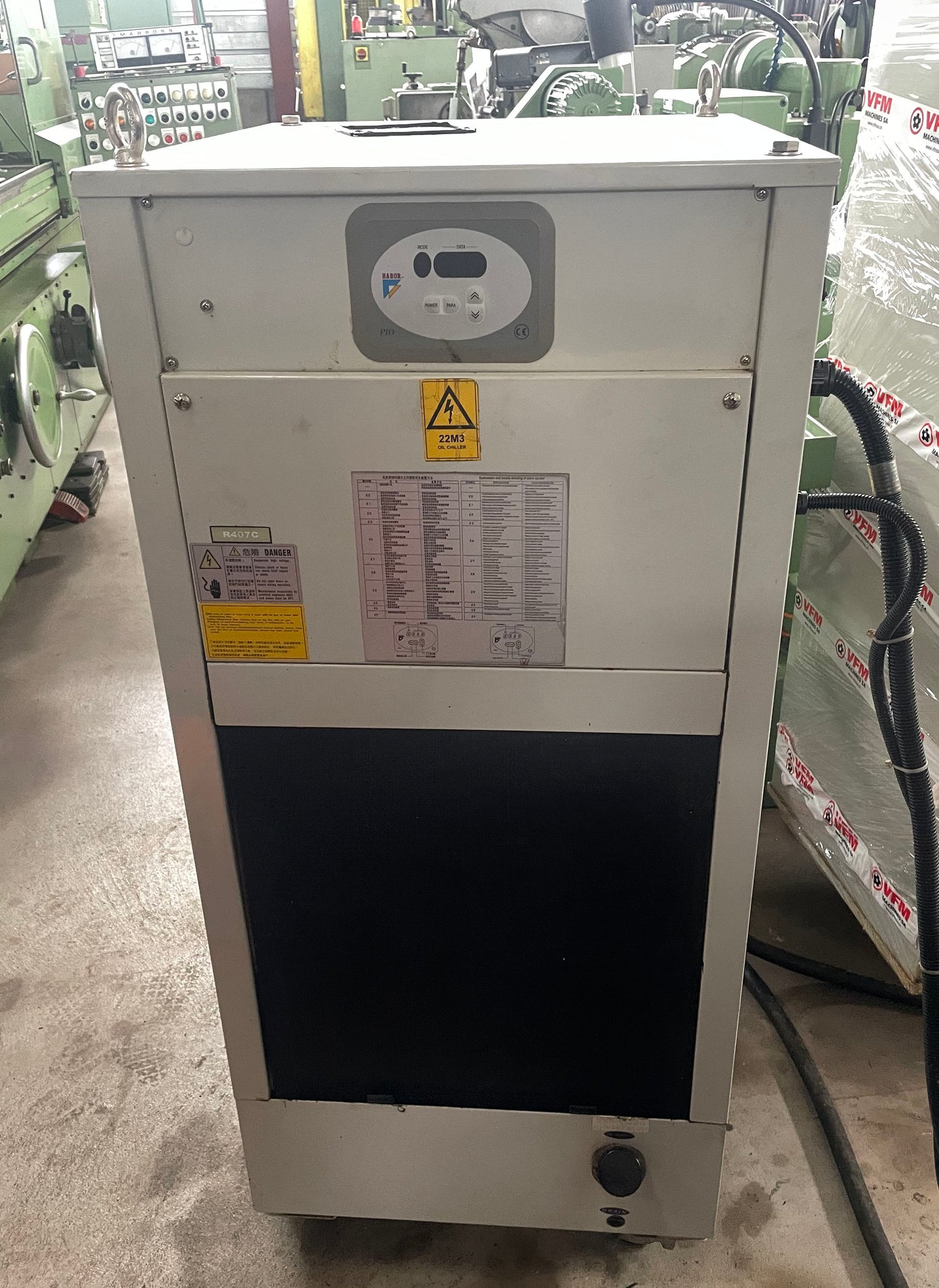

| Spindle oil cooler | |
| Interface serial port RS 232 | |
| Interface Ethernet |
