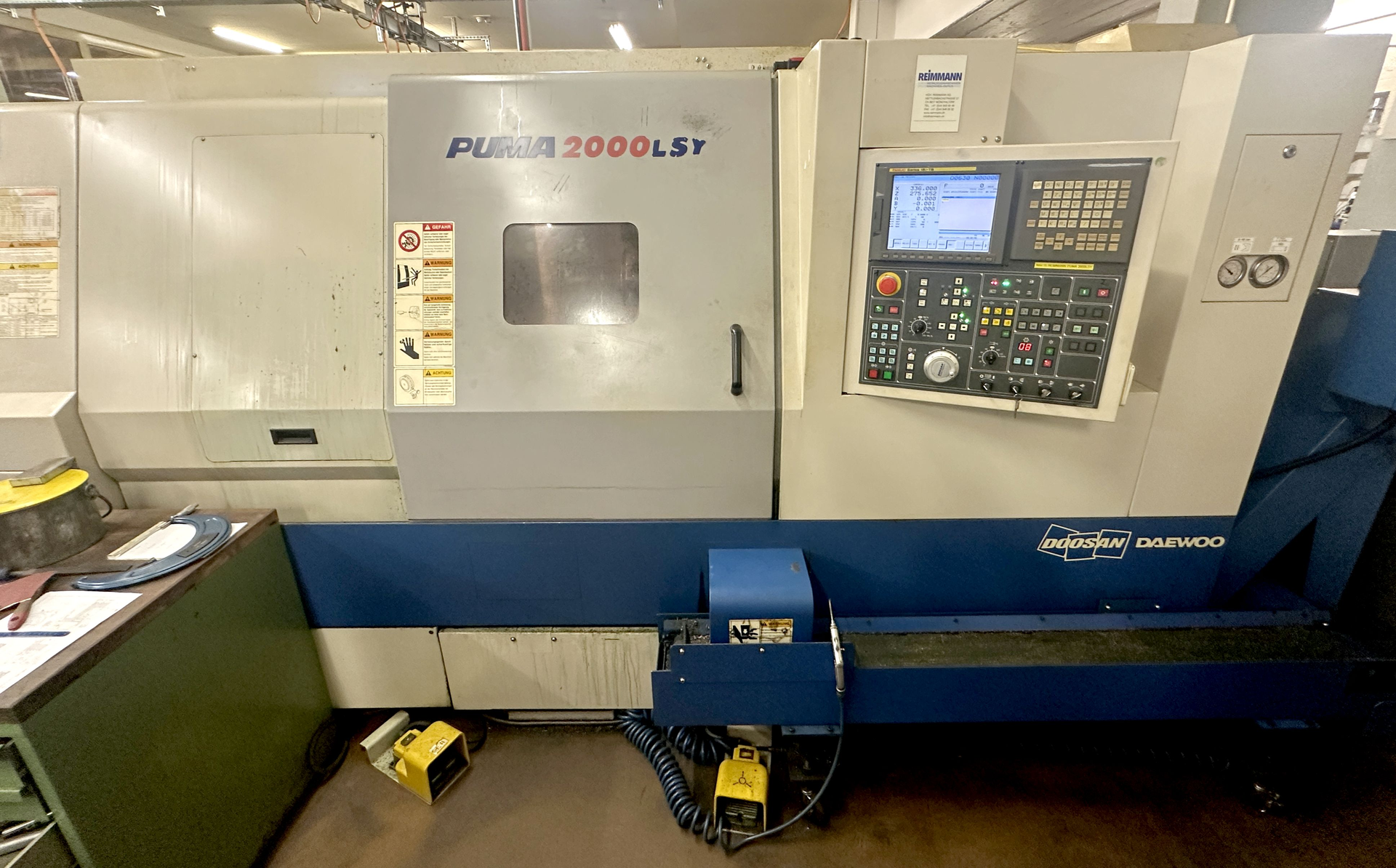

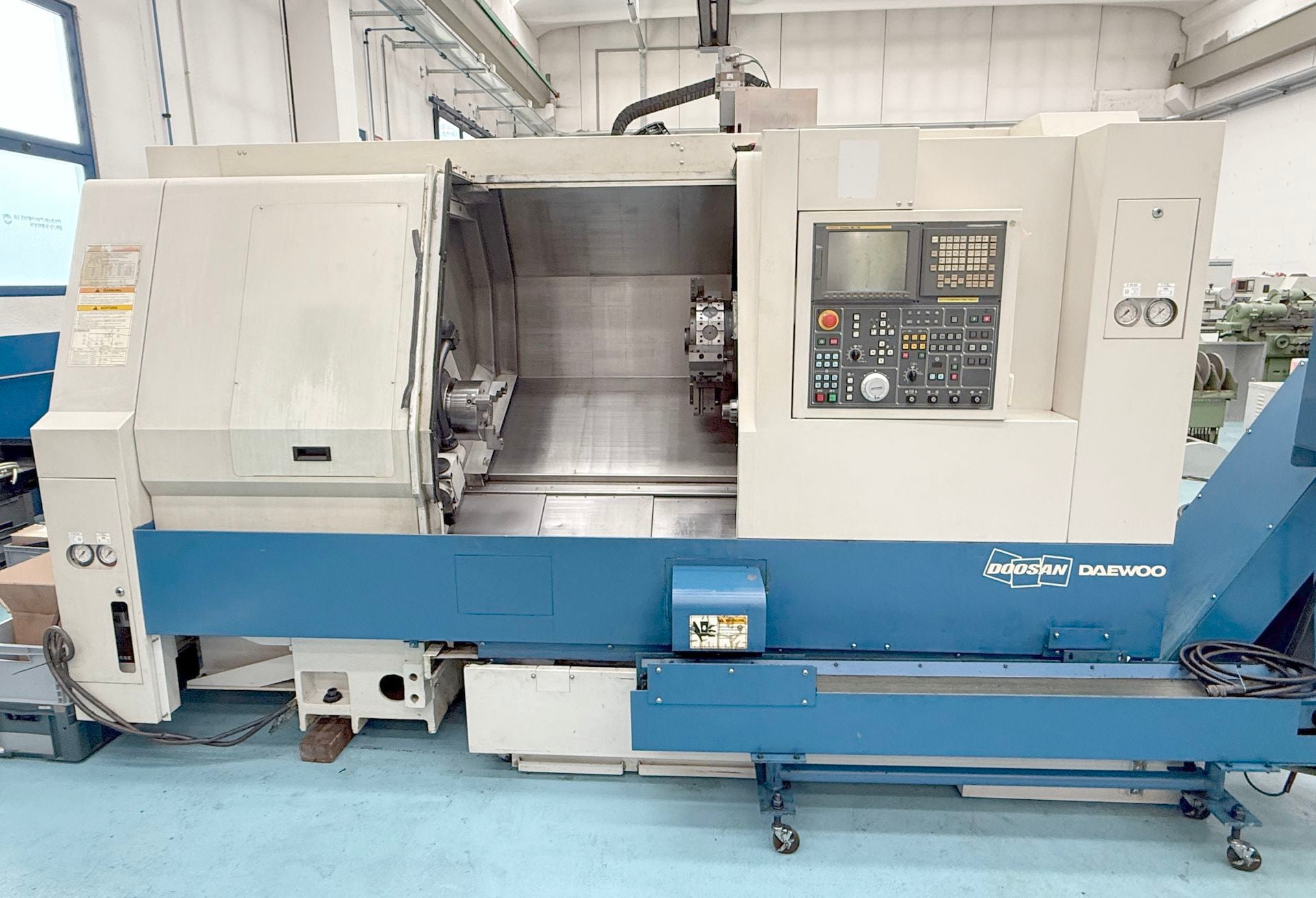

DOOSAN PUMA 2000 LSY
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
DOOSAN PUMA 2000 LSY is a CNC turning lathe engineered for high‑precision machining with excellent accuracy and reliability. Working capacities: swing over cross‑slide 600 mm, swing over bed 750 mm, max turning Ø 540 mm, turning length 1520 mm, spindle hole 86 mm, bar Ø 76 mm, chuck Ø 255 mm. Key specs: turret BMT 65P with 12 positions and 12 driven tools, mobile tool magazine 80 stations, spindle speeds 40–4000 rpm, C‑axis stepless up to 3500 rpm, milling units Capto C6 up to 10000 rpm, spindle motor 22/26 kW, supply 50 Hz 3x 400 V, total power 85 kVA, machine weight approx. 15,500 kg, footprint L 5500 (tot. approx. 7300) x W 2565 x H 2600 mm. Accessories: travelling steady hydr. SLU 3.1 Ø20–165 mm, coolant 1.5 bar (+ option 6 bar), paper filtration, chip conveyor, tool break control, set of toolholders ≈70x CAPTO C6. Delivers tight tolerances; suited to automotive, aerospace, machine building and medical sectors.
| Swing diameter over bed | 600 mm |
| Swing diameter over carriage | 550 mm |
| Max. turning diameter | 330 mm |
| Spindle hole | 86 mm |
| Maximum turning length | 760 mm |
| Bar passage | 65 mm |
| Clamping chuck diameter | 255 mm |
| Travels: | |
| Longitudinal travel (Z-axis) | 830 mm |
| Transversal strocke (X axis) | 250 mm |
| Transversal travel (y-axis) | 100 (+50 / -50) mm |
| Rapid traverse X | 20 m/min |
| Rapid traverse Y | 7.5 m/min |
| Rapid traverse Z | 24 m/min |
| Turret carriage: | |

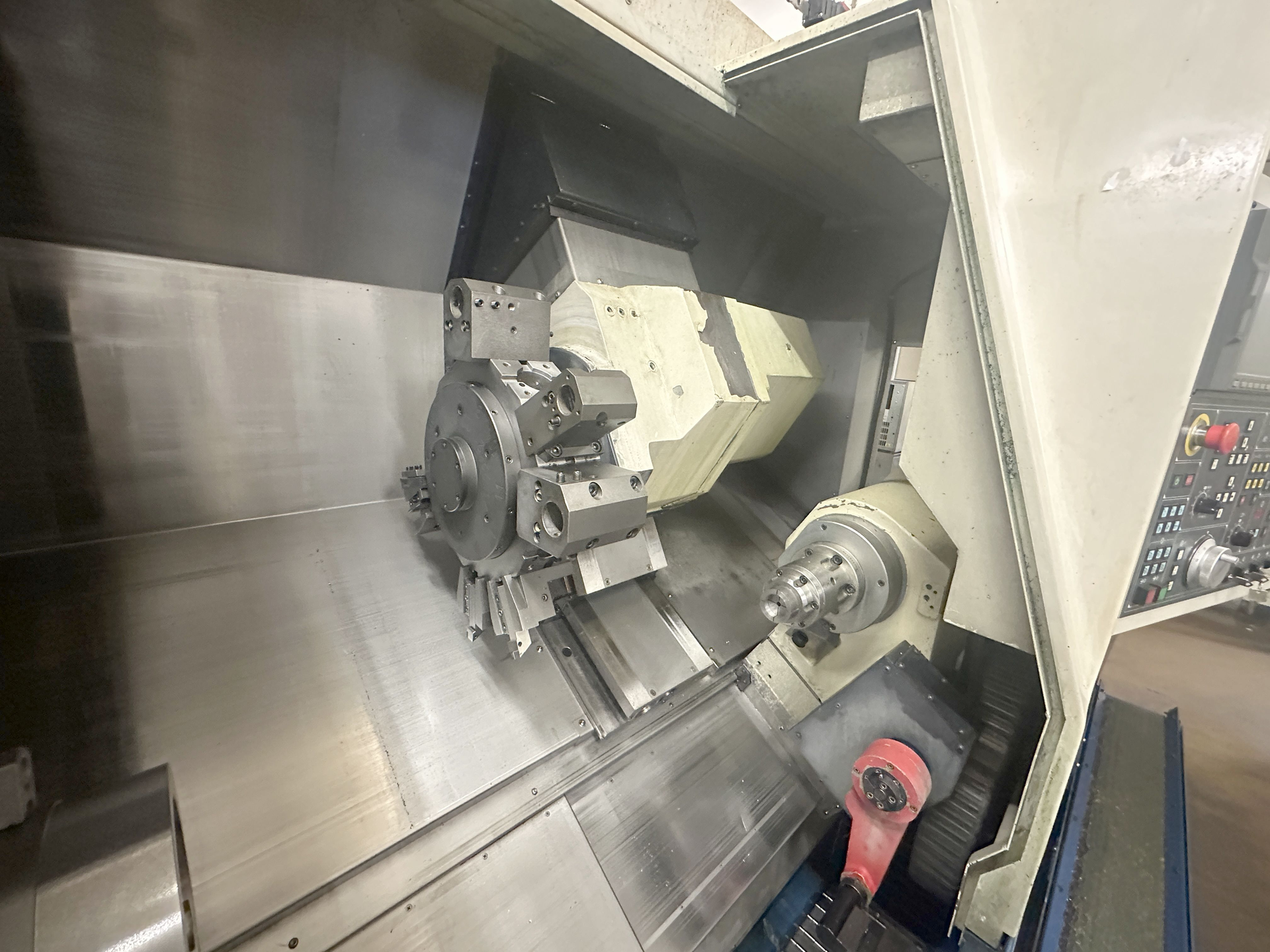

| Type | BMT 65P |
| Number of positions turret 1 | 12 |
| Driven tools turret 1 | 12 |
| Spindle speeds | 6000 t/min |
| Power of driven tools | 2.2 / 3.7 kW |

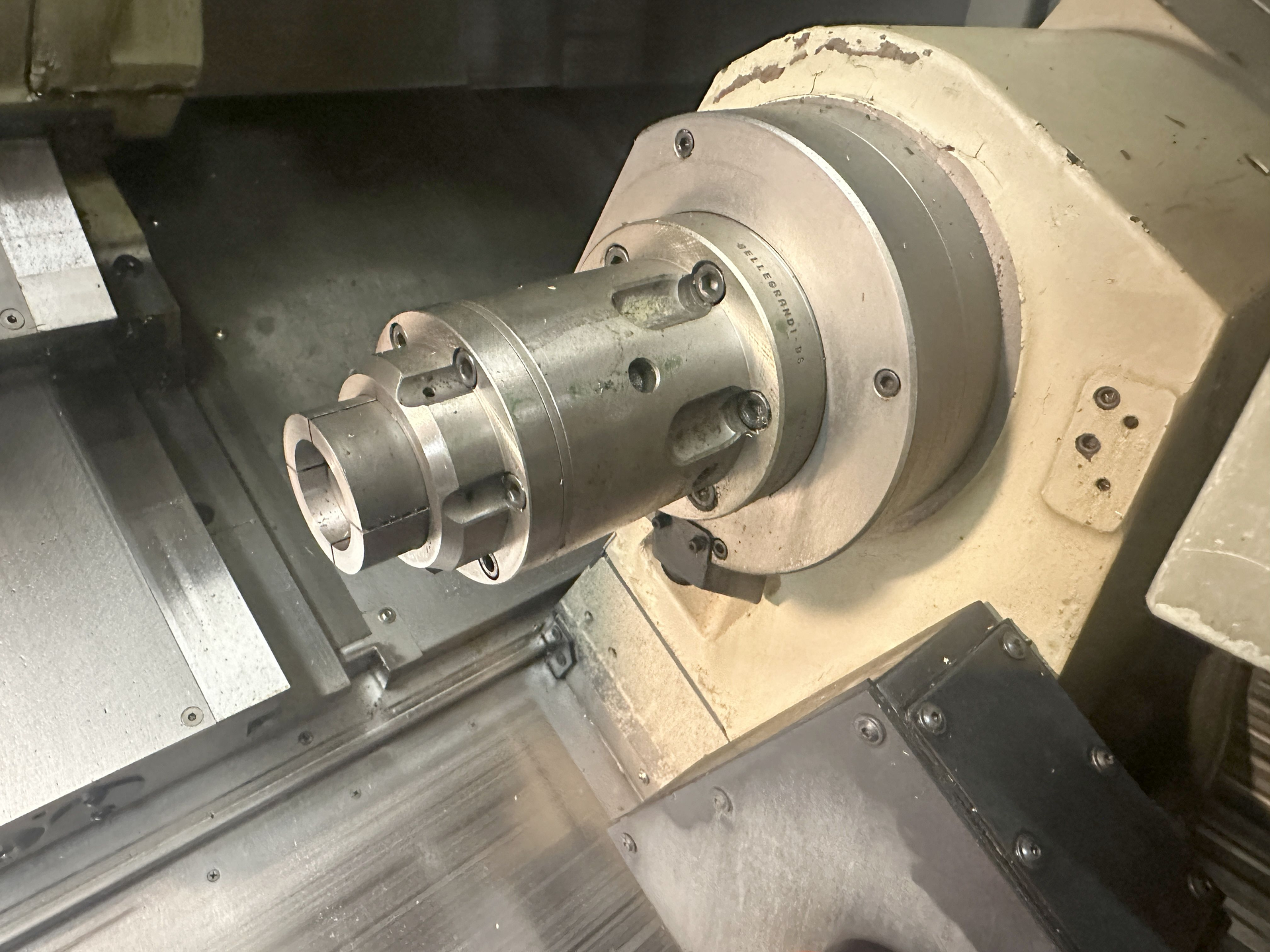

| Main spindle: | |
| Taper in spindle: | |
| Camlock | A2-6 |
| Spindle speeds: | |
| stepless | |
| up to | 4500 t/min |

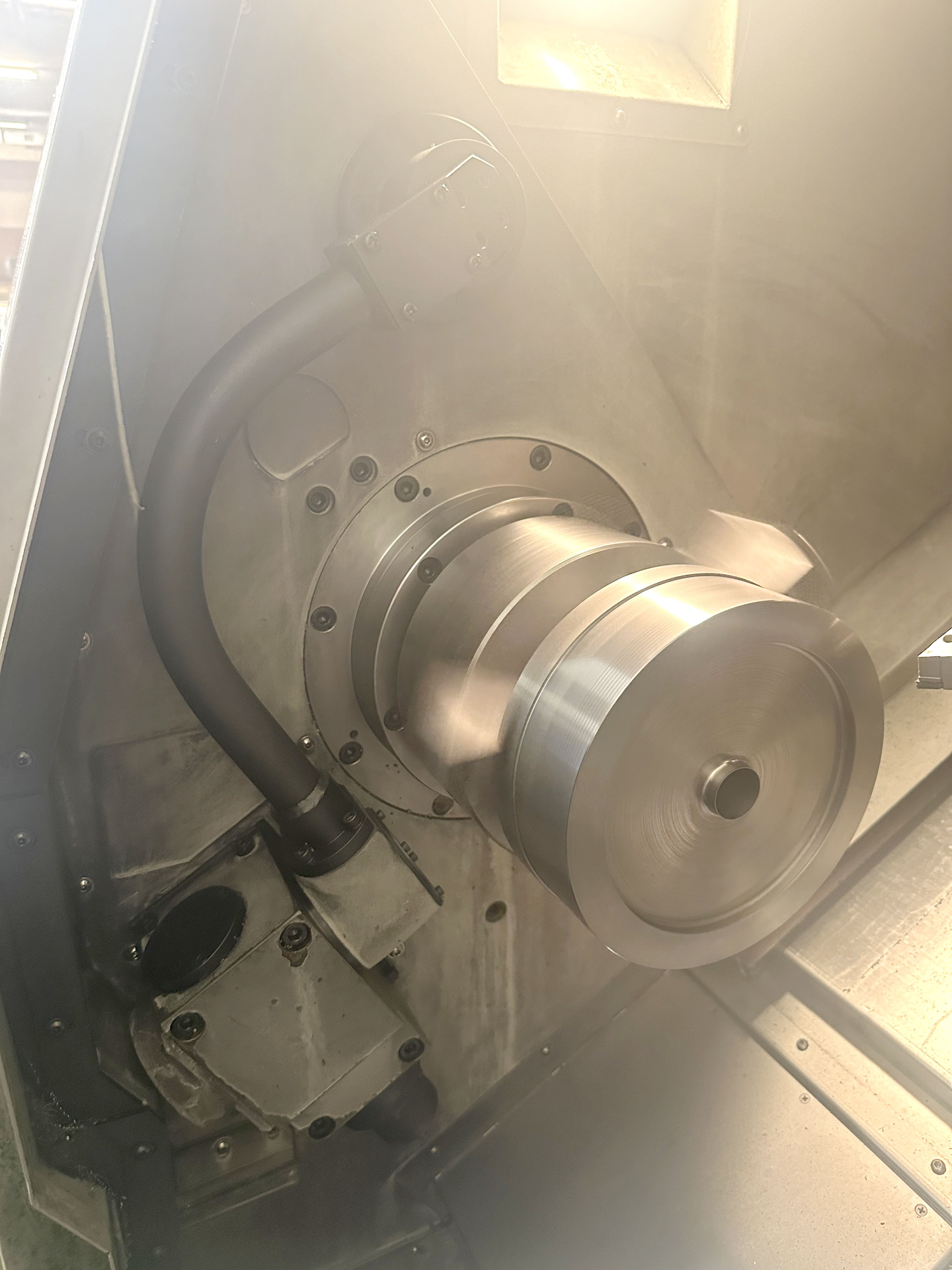

| Back spindle: | |
| max. speed | 6000 t/min |
| Power of back spindle | 5.5 / 7.5 kW |
| Milling units: | Capto C6 |
| Spindle motor | 11 / 15 kW |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 85 kVA |
| Machine's weight about | 5350 kg |
| Overall dimensions machine: | |
| Length | 3500 mm |
| Width | 1700 mm |
| Height | 2060 mm |
| Various accessories: | |

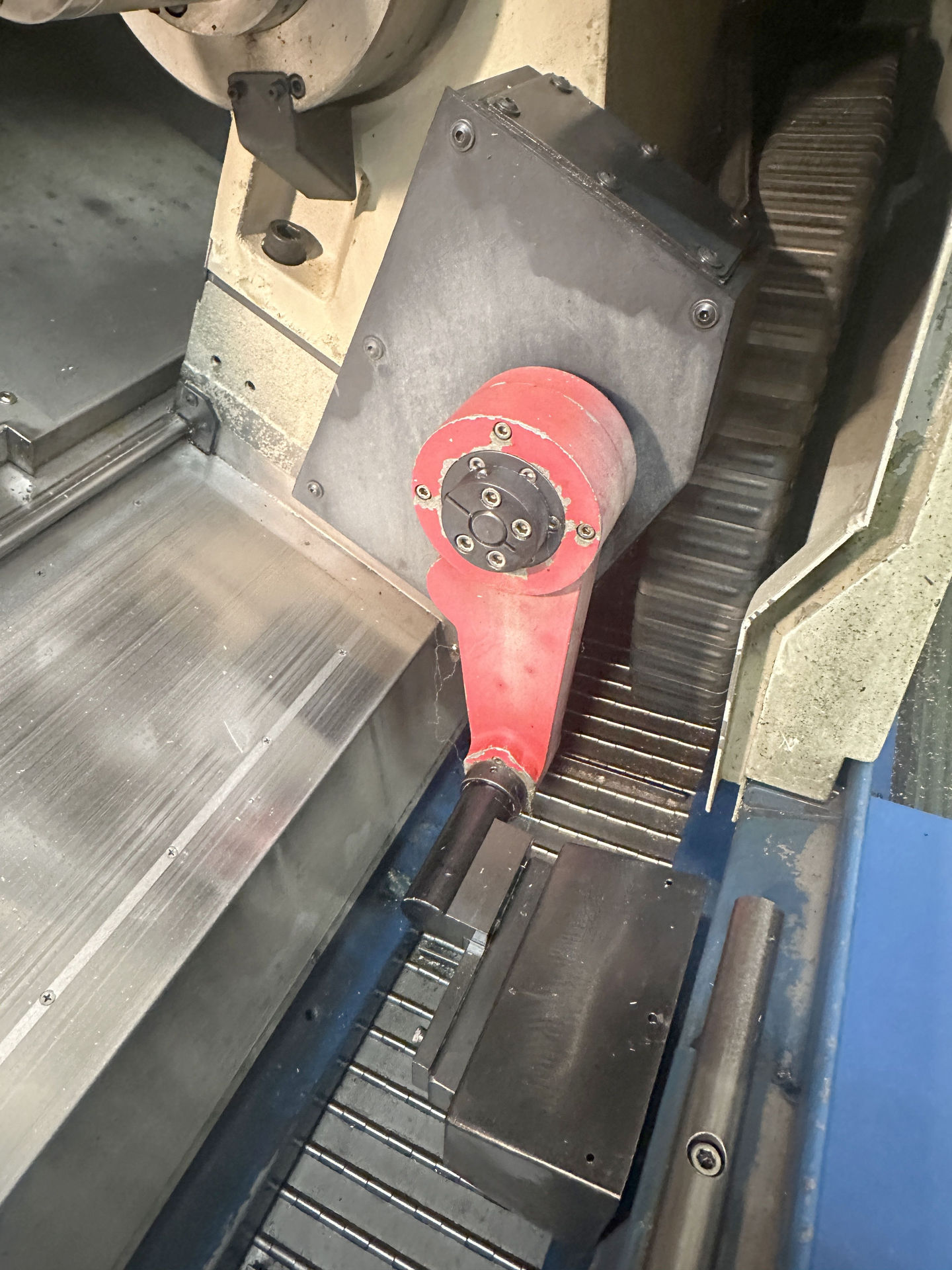

| Travelling steady | hydr. SLU 3.1 Ø20 - 165 mm |
| Coolant system | 12 bar / 23 l/min |
| Paper filtration system | |
| Y axis | |
| Tool break control | |

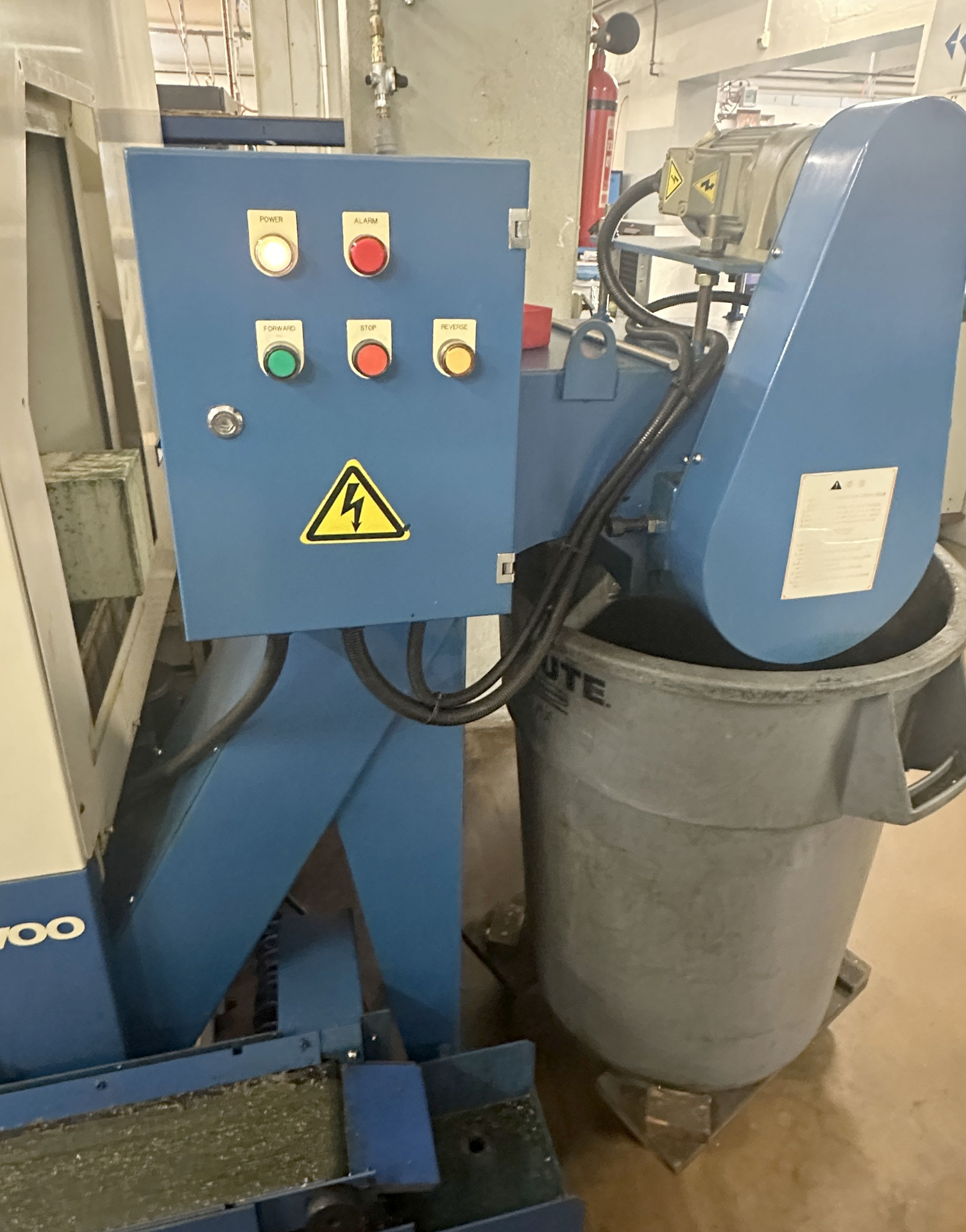

| Chip conveyor | |
| Set of toolholders | ca 70x CAPTO C6 |
