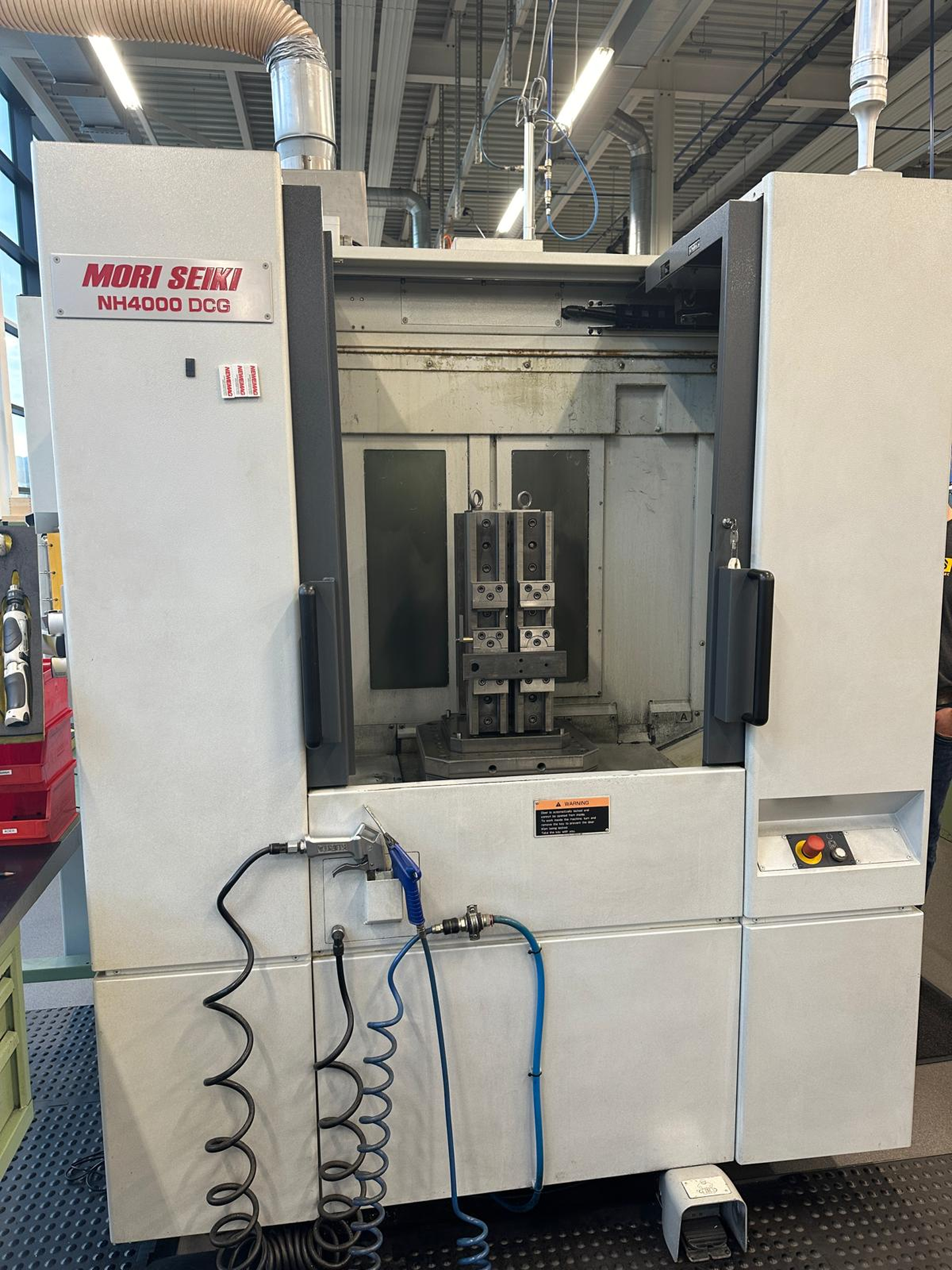

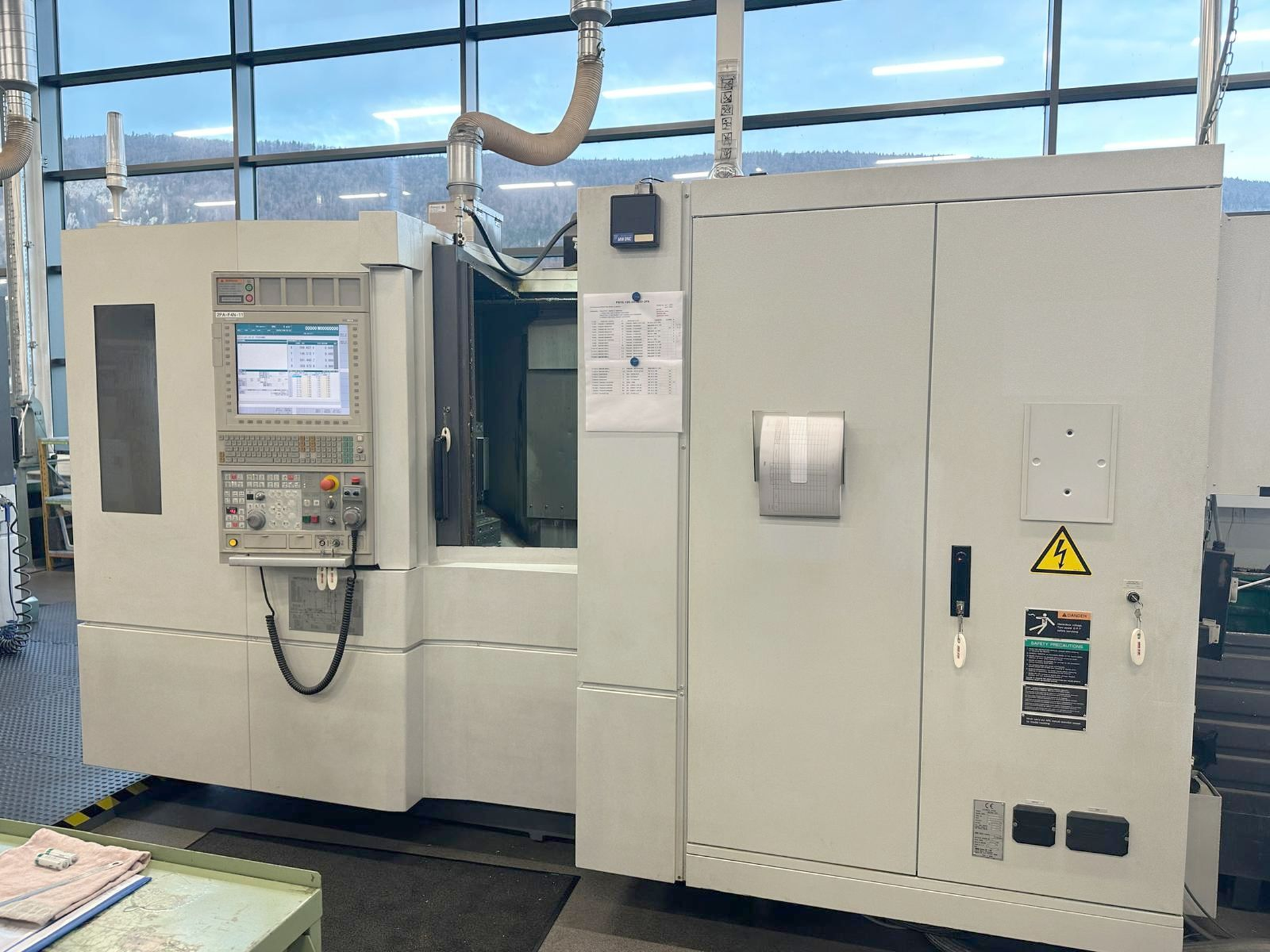

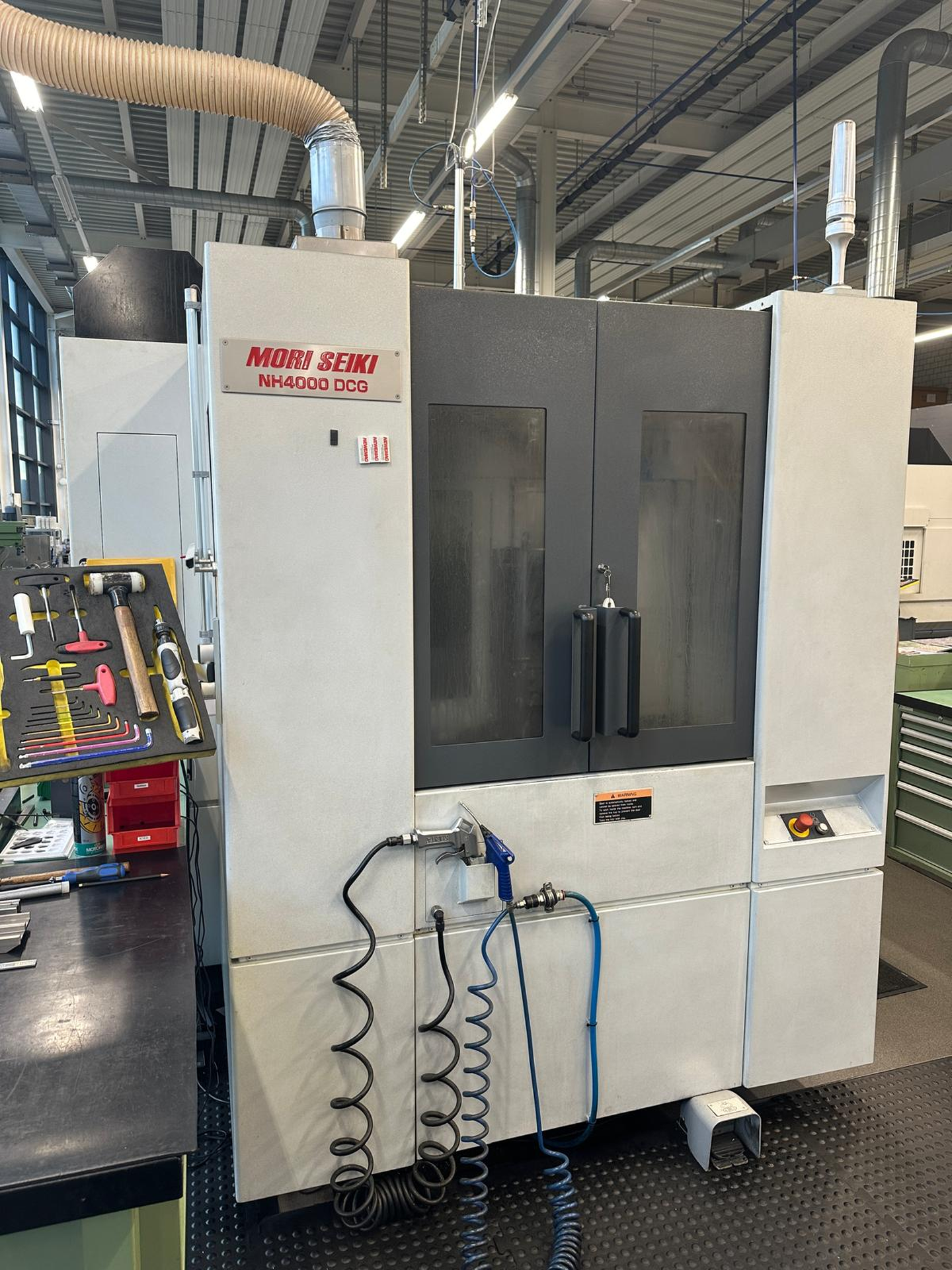

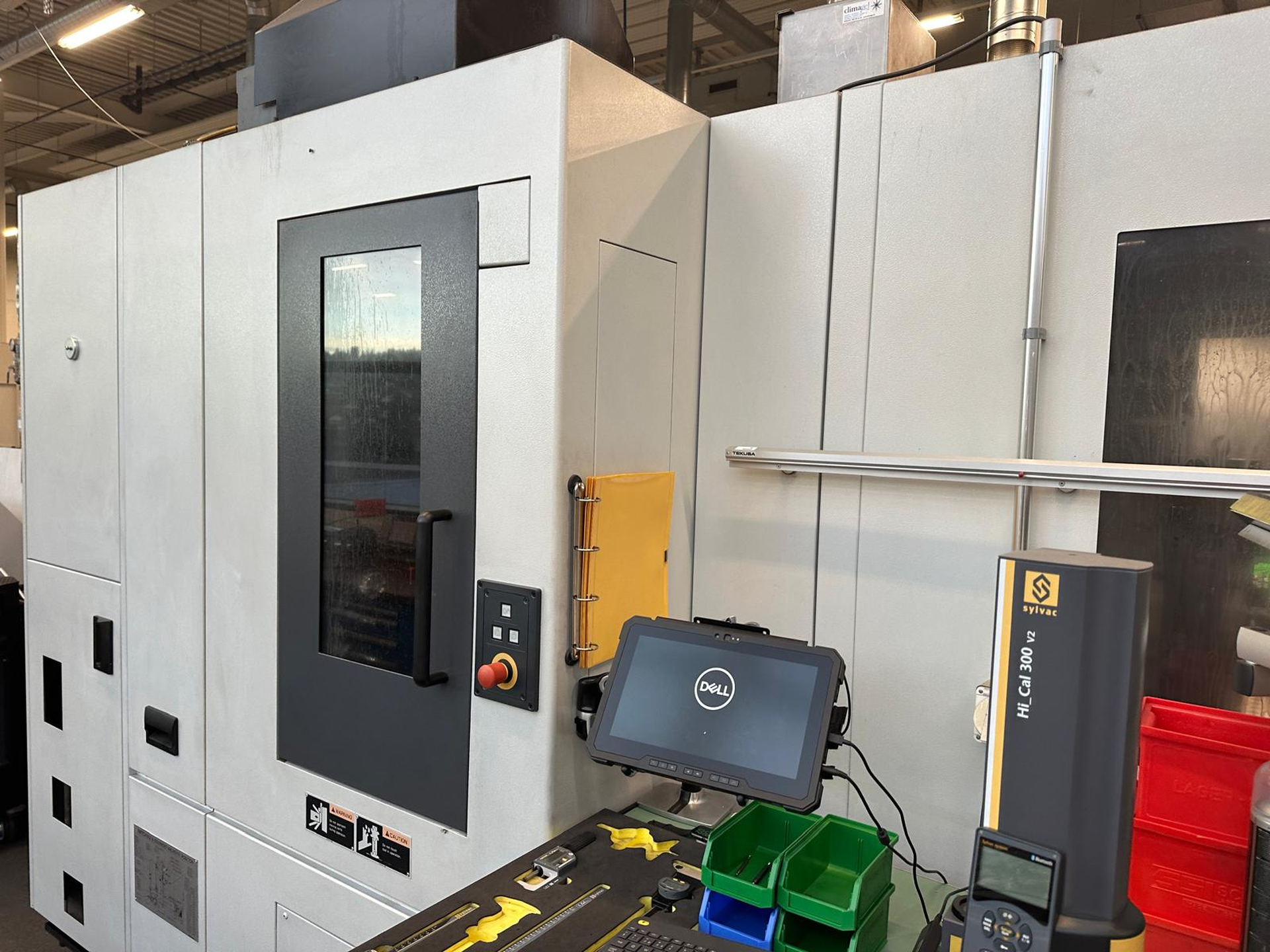

MORI SEIKI NH 4000 DCG
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
MORI SEIKI NH 4000 DCG is a Horizontal machining center by MORI SEIKI designed to deliver precision, high accuracy and operational reliability. Working capacities (travels, diameters, workpiece lengths) are not provided. Main technical specifications (spindle speeds, feed rates, power supply, dimensions, weight) are not provided. Accessory and equipment details are not specified. Built to achieve tight tolerances, suitable for automotive, aerospace, medical, watchmaking and machine tool applications
| Longitudinal travel (X-axis) | 560 mm |
| Transversal travel (y-axis) | 560 mm |
| Vertical travel (z axis) | 630 mm |
| Dimension of the workpice: | |
| Height | 900 mm |
| Diameter | 630 mm |
| Table load max. | 400 kg |
| Maximum workpiece weight | to |

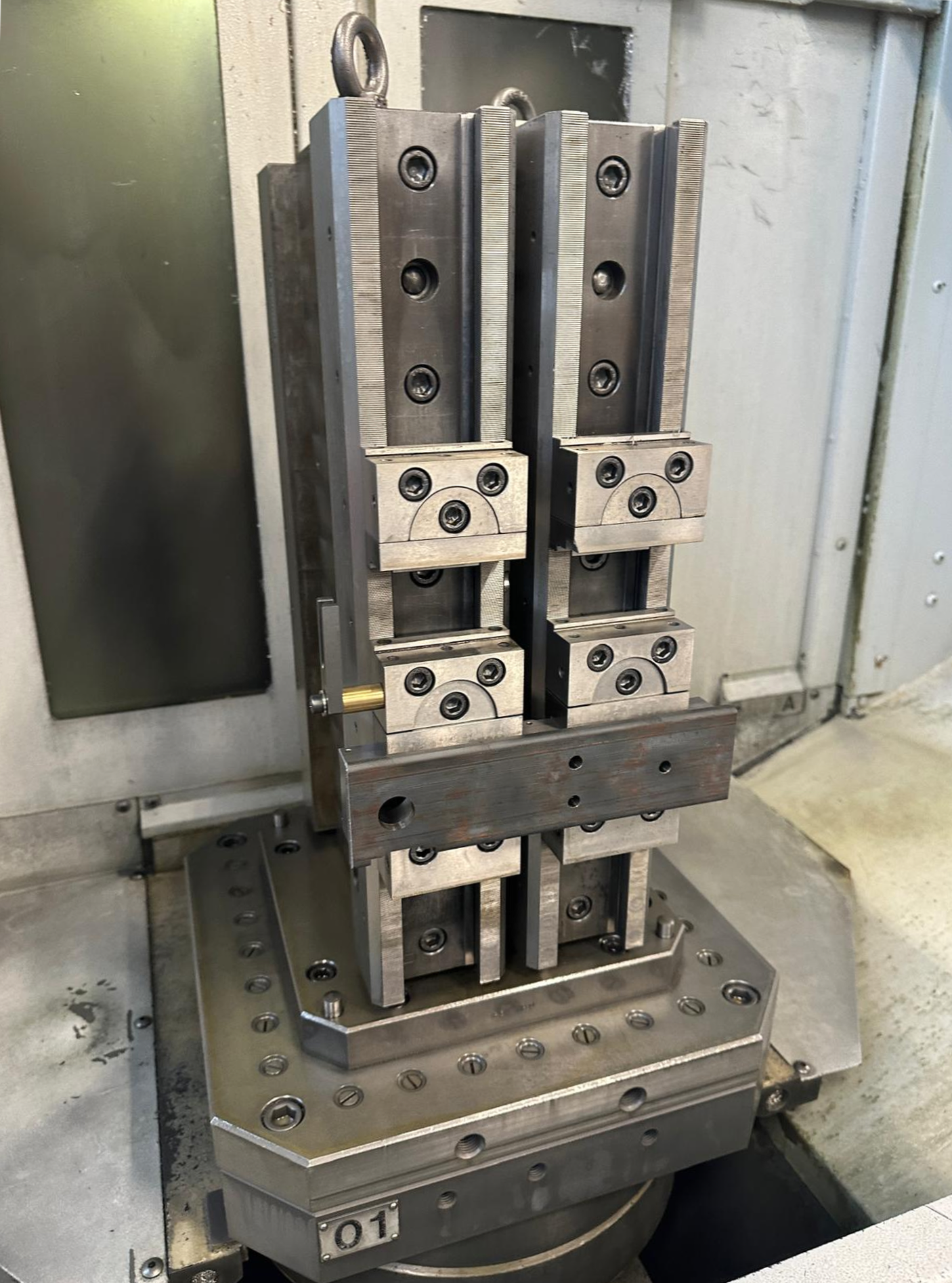

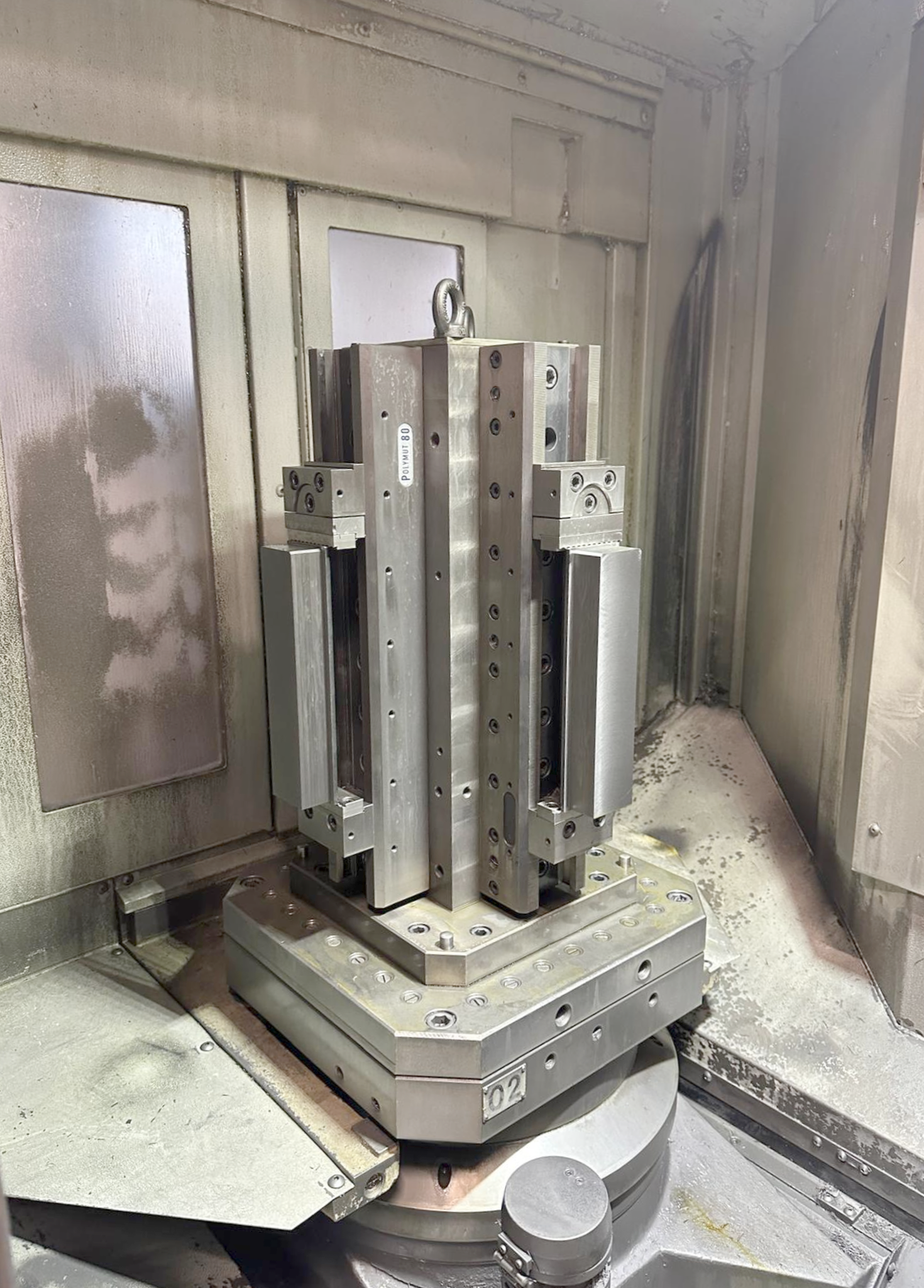

| Pallets: | |
| numbers | 2 |
| Length | 400 mm |
| Width | 400 mm |
| Time of changing palets | 6 s |
| Tool magazine number of tool places | 60 |

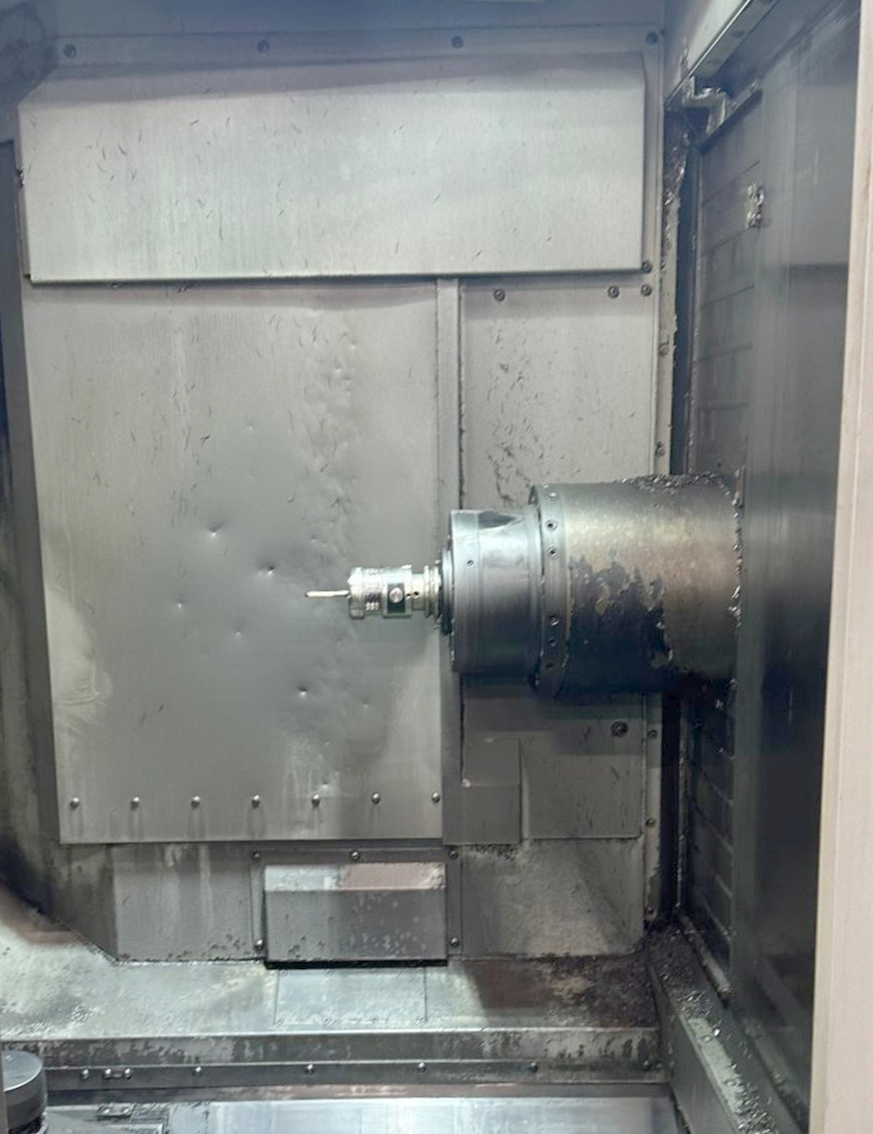

| Spindle nose: BT | 40 |
| Spindle speeds: | |
| up to | 14000 t/min |
| Rapid traverse: | 50 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 9600 kg |
| Overall dimensions machine: | |
| Length | 4004 mm |
| Width | 2400 mm |
| Height | 2711 mm |
| Various accessories: | |

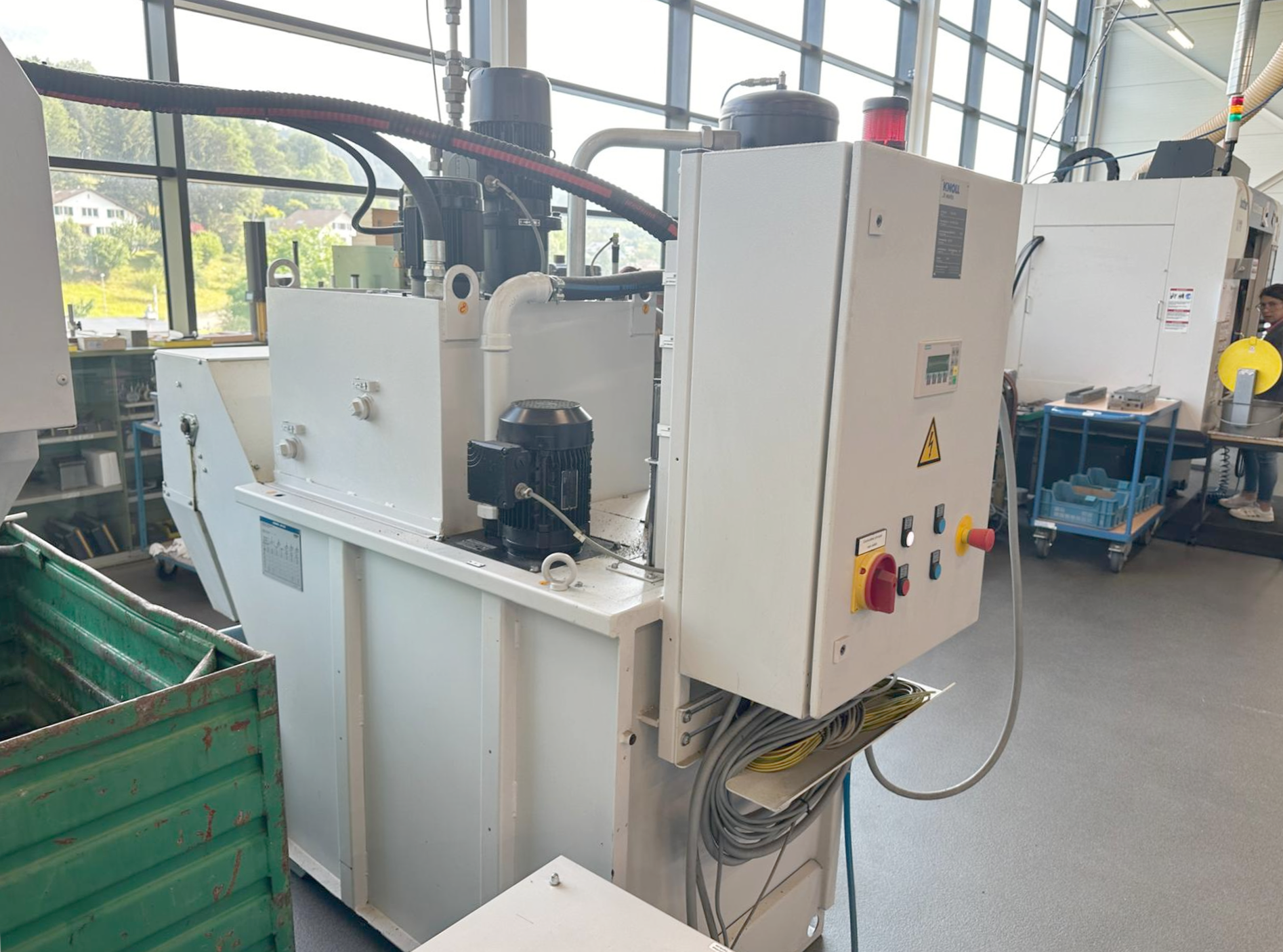

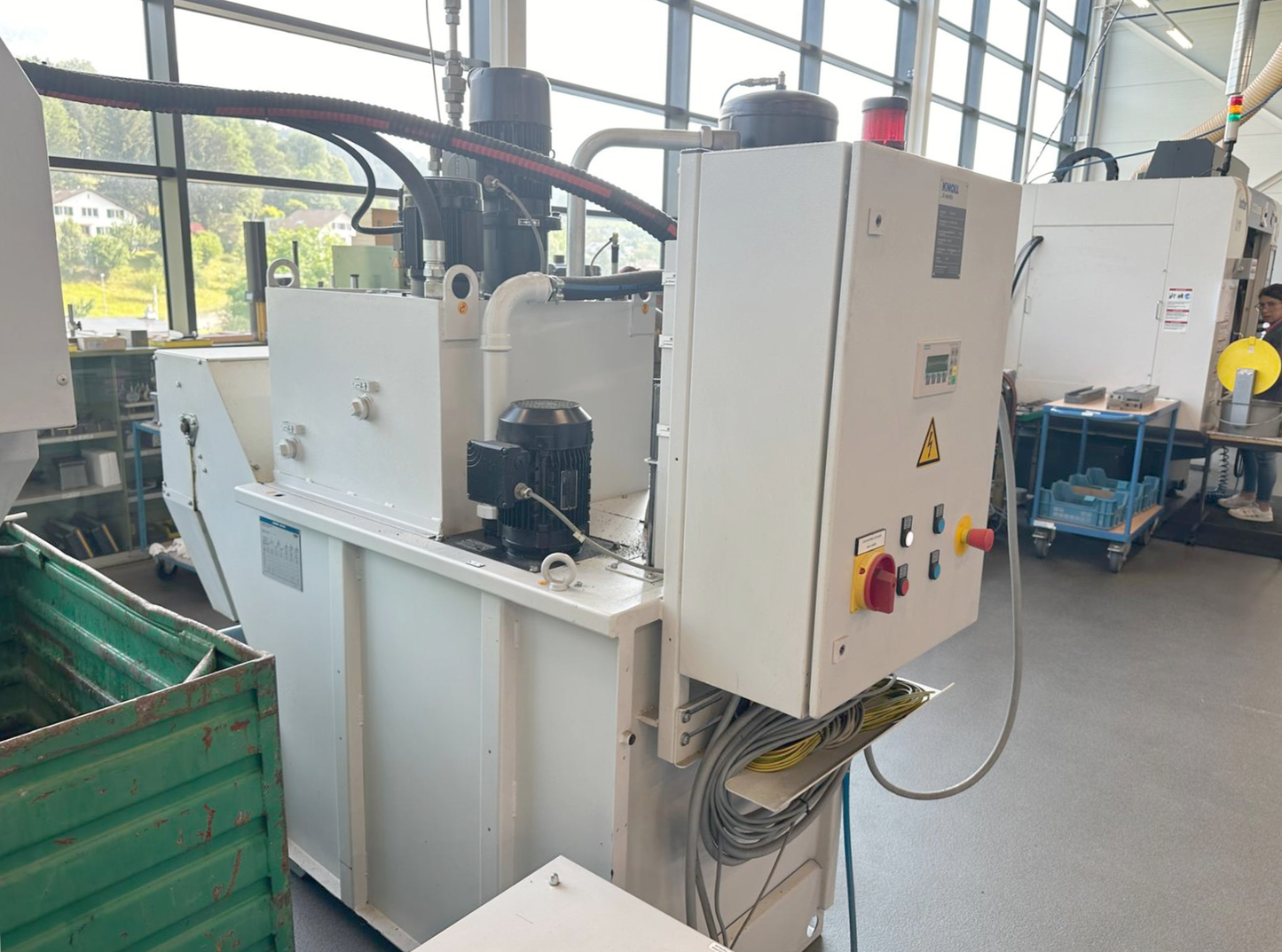

| Coolant system | |

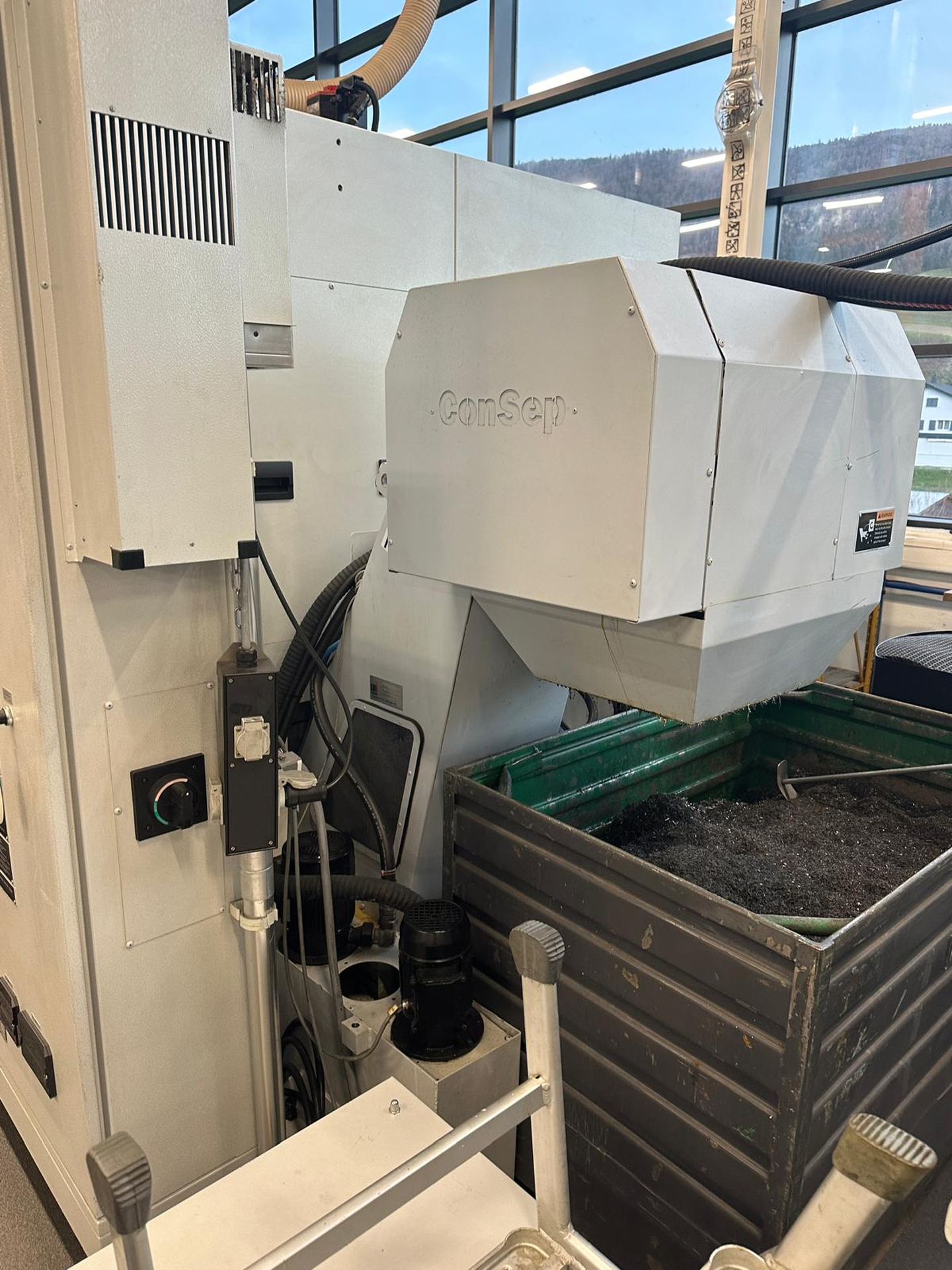

| Chip conveyor | |
| 2-way pallet changer | |
| Handwheel electroinic | |
| Lamp | |
| Oil mist extractor | |
| Blow gun | |
| Rinsing Guns |
