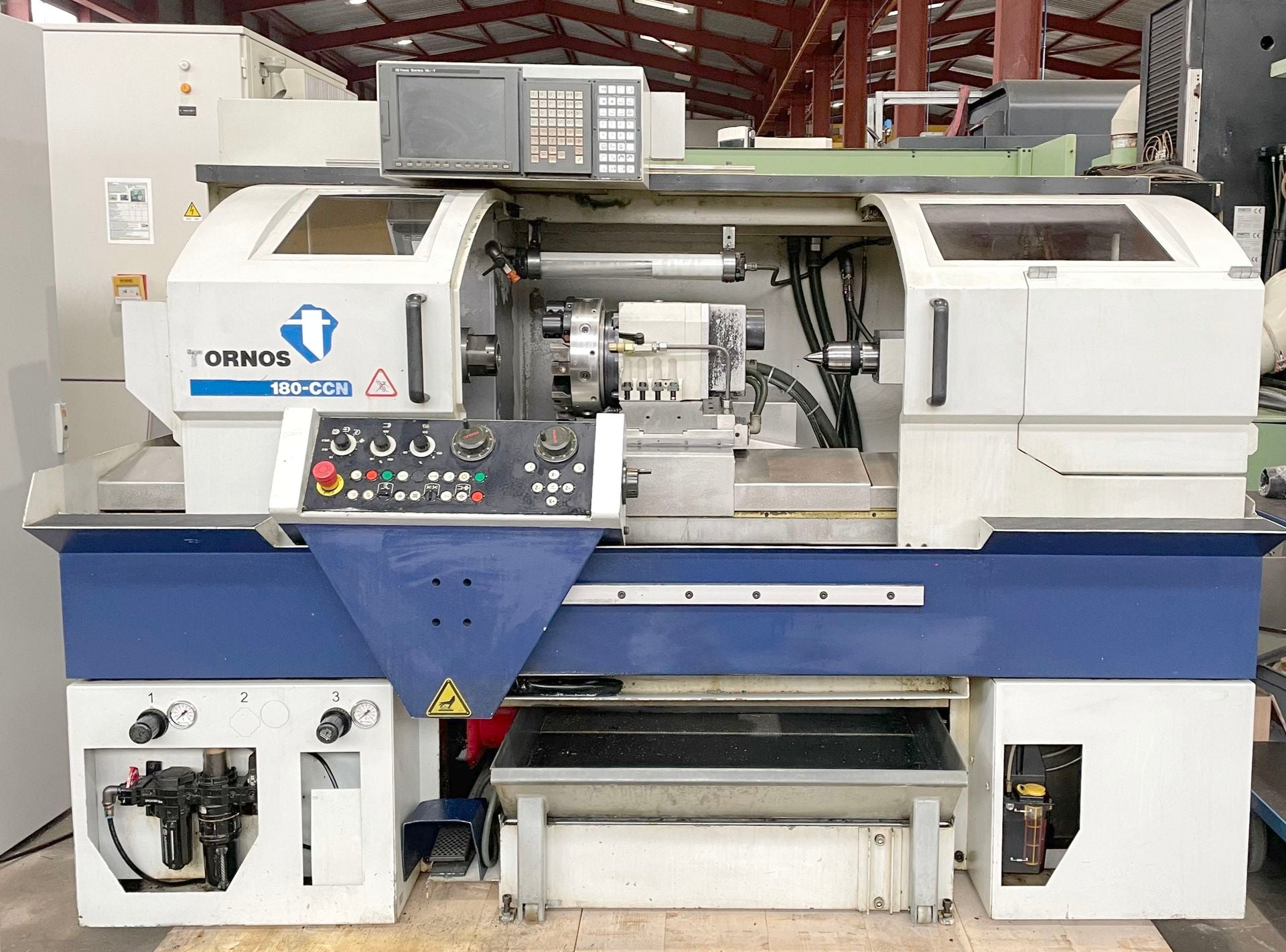

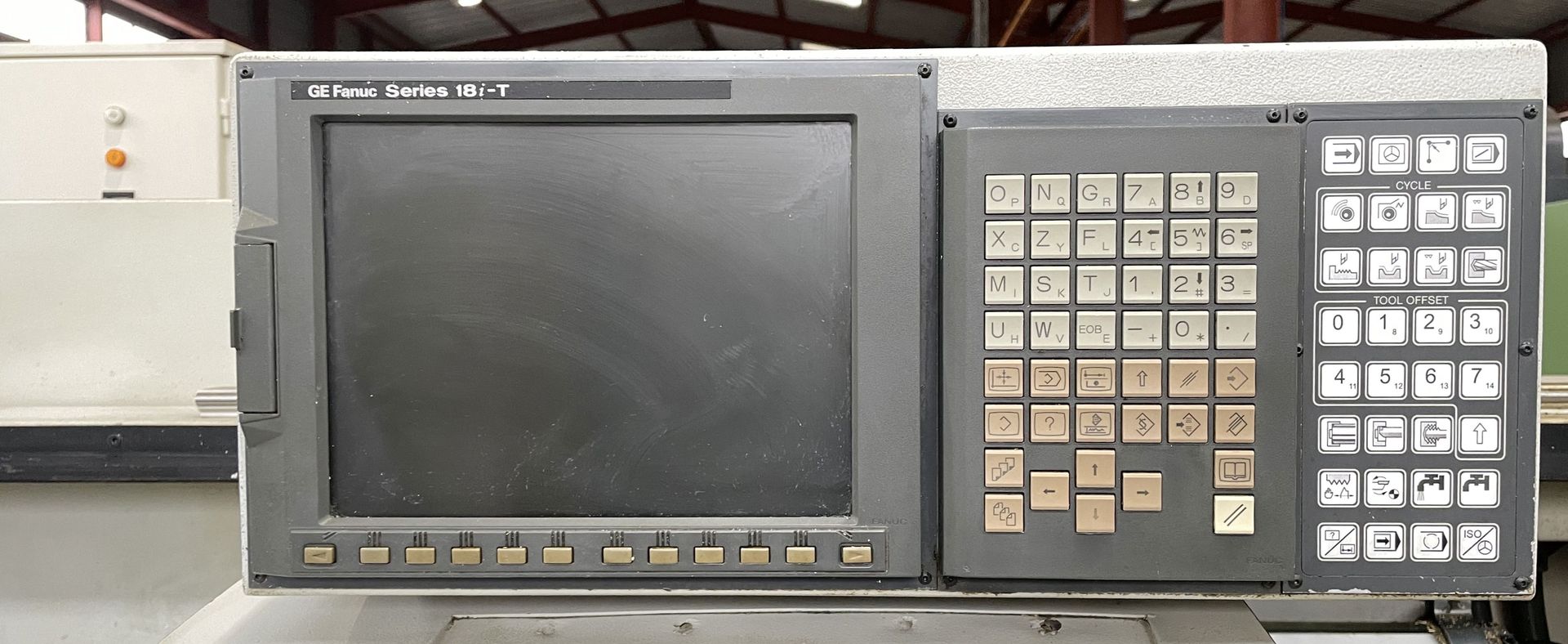

SCHAUBLIN 180 CCN R-TM is a high-performance CNC turning lathe designed for precision, high accuracy and reliability. Working capacities: centre height 275 mm, distance between centres 600 mm, swing over cross-slide 150 mm, swing over bed 600 mm, turning length 610 mm; Z travel 600 mm, X travel 460 mm. Main technical specs: stepless spindle speeds up to 4000 rpm, feeds up to 5000 mm/min, rapid traverse 8/10 m/min, spindle motor 15/18.5 kW, 3×380 V 50 Hz; machine weight ≈2400 kg; overall dimensions 2500×2500×1800 mm. Key equipment: DUPLOMATIC turret (1) with 12 positions, 6 fixed and 6 driven tools; toolholder 20×20 mm VDI 30, Camlock A2-6, internal spindle bore 60 mm, collet interfaces B32/B45/F48/F66, collet bores 24/36/42 mm. Enables tight tolerances; typical applications include automotive, watchmaking, machine tools, aerospace and medical.

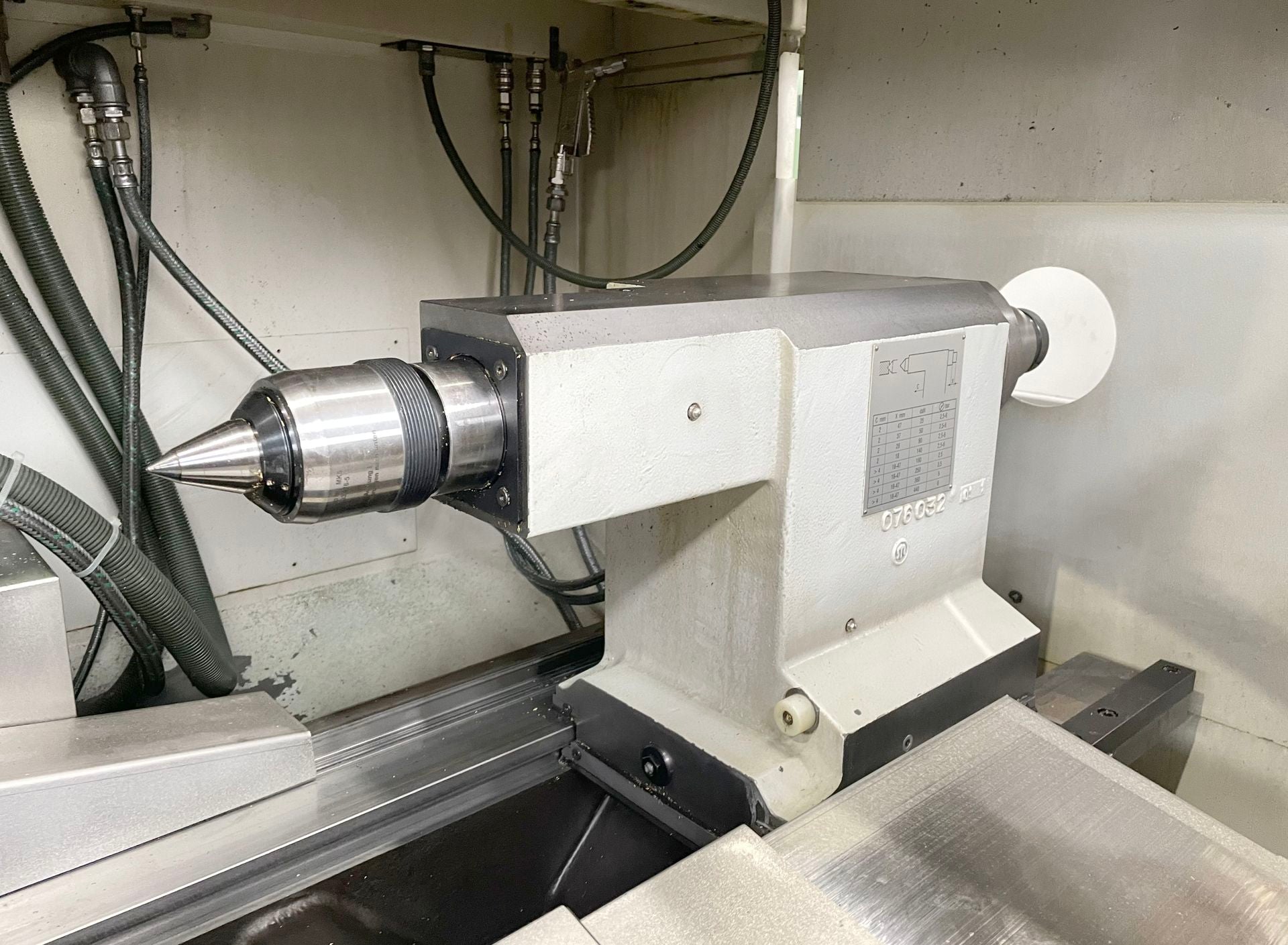

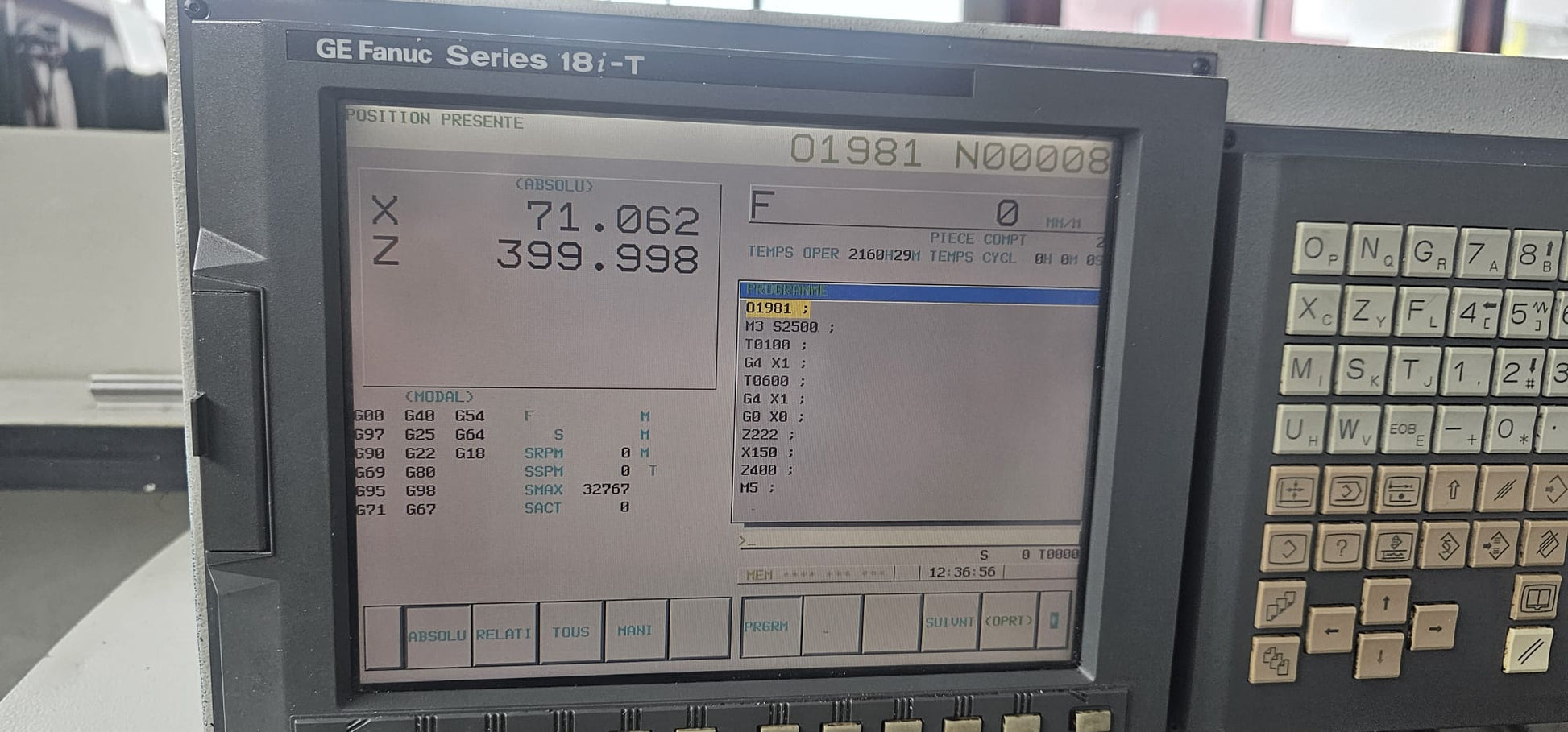

| Centre height | 275 mm |
| Distance between centres | 600 mm |
| Swing over cross-slide | 150 mm |
| Swing over bed | 600 mm |
| Turning length | 610 mm |
| Carriage: | |
| Longitudinal travel (Z-axis) | 600 mm |
| Transversal strocke (X axis) | 460 mm |
| Resolution | mm |

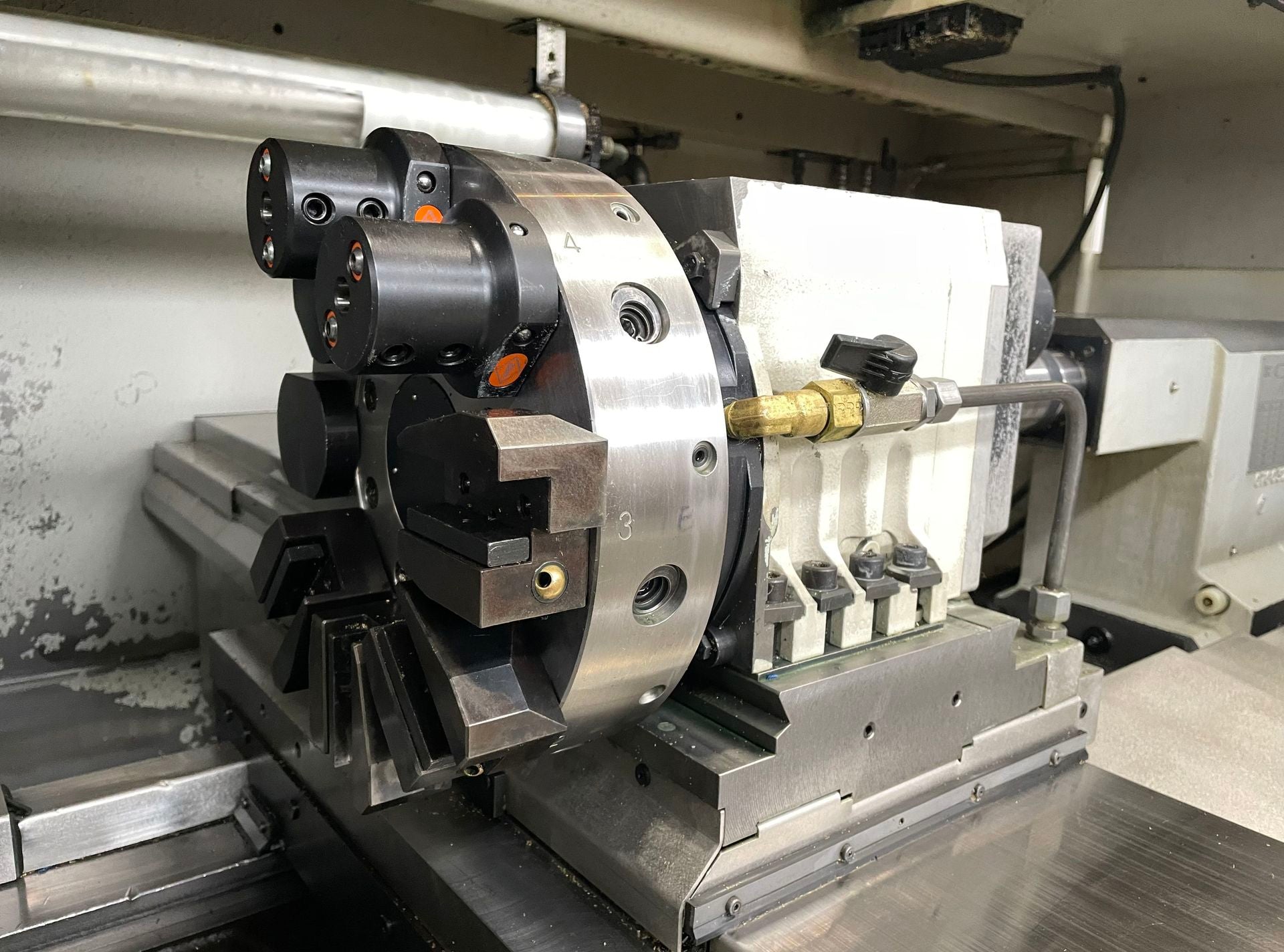

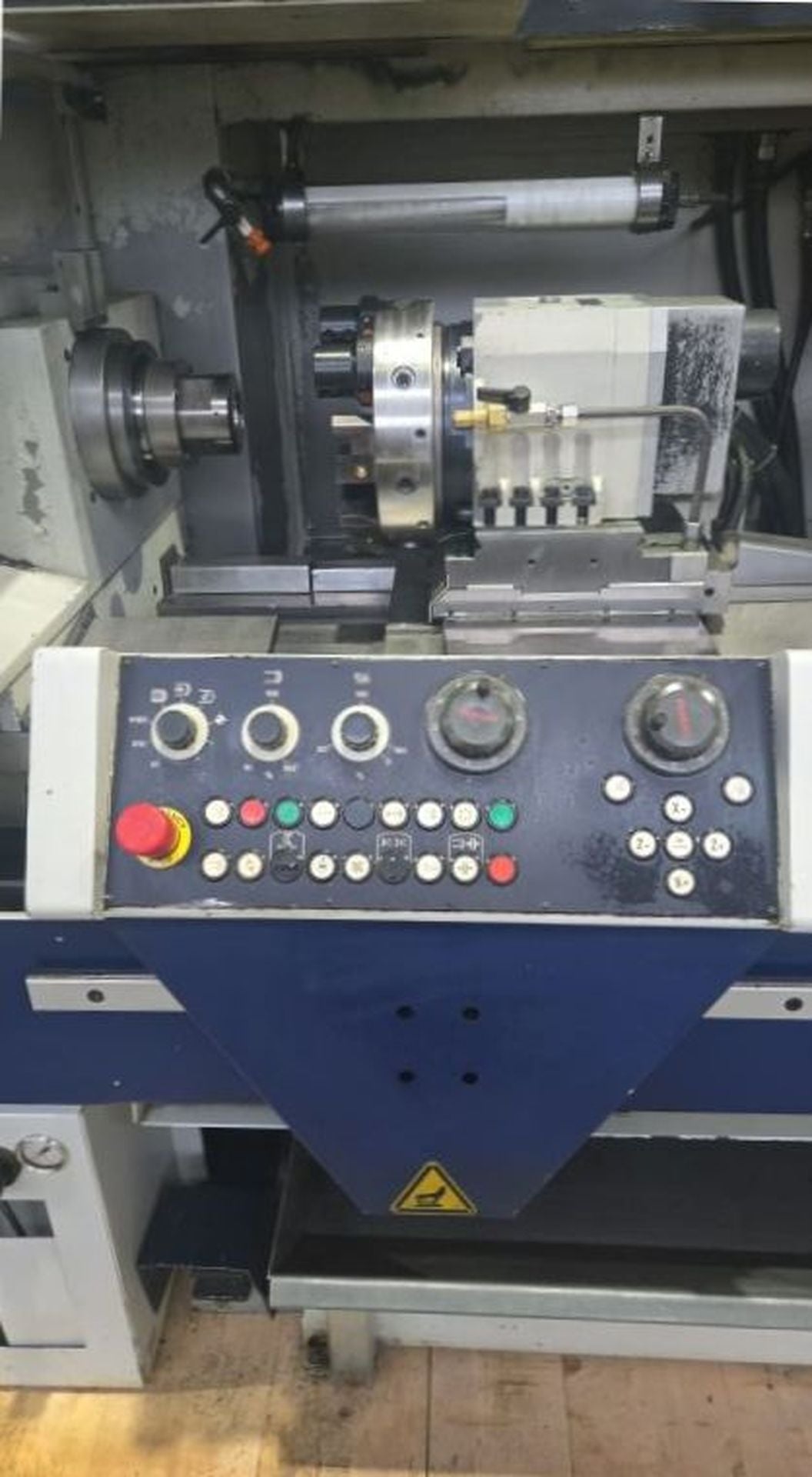

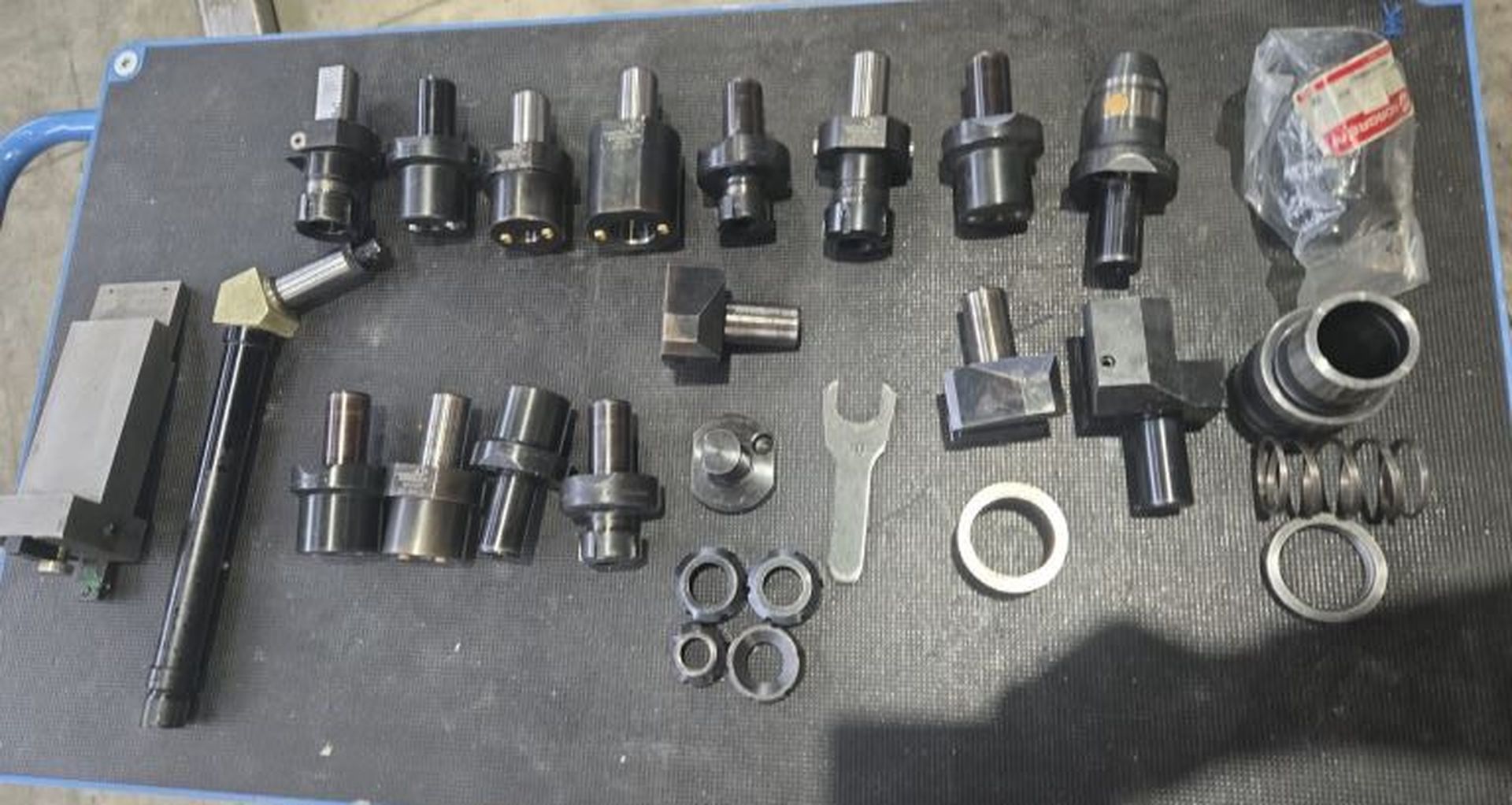

| Turret slide: number | 1 "DUPLOMATIC" |
| Number of positions turret 1 | 12 |
| Fixed tools turret 1 | 6 |
| Driven tools turret 1 | 6 |
| Inner cone diameter | 20 x 20 mm |
| Inner cone DIN | VDI 30 |
| Taper in spindle: | |

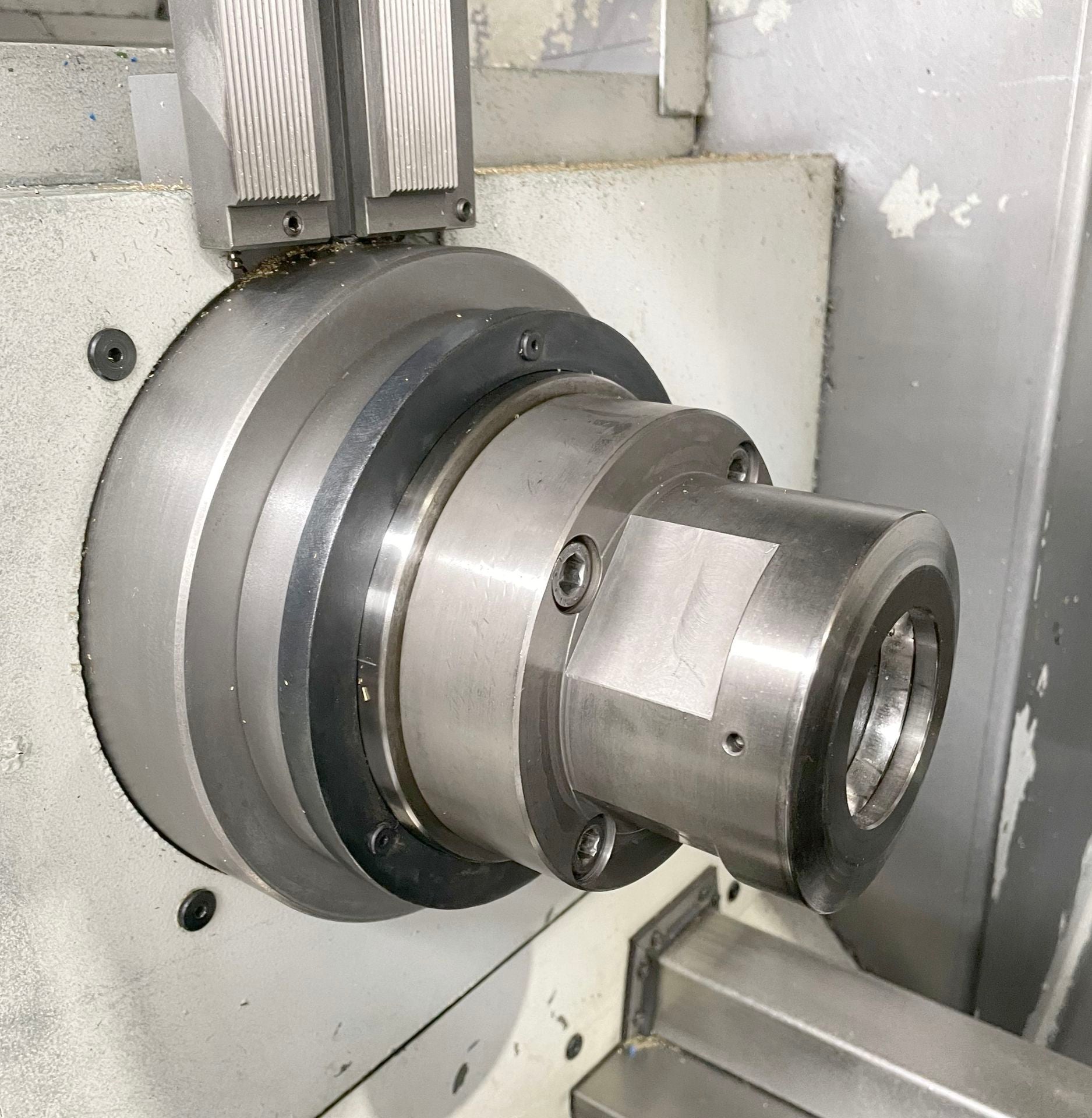

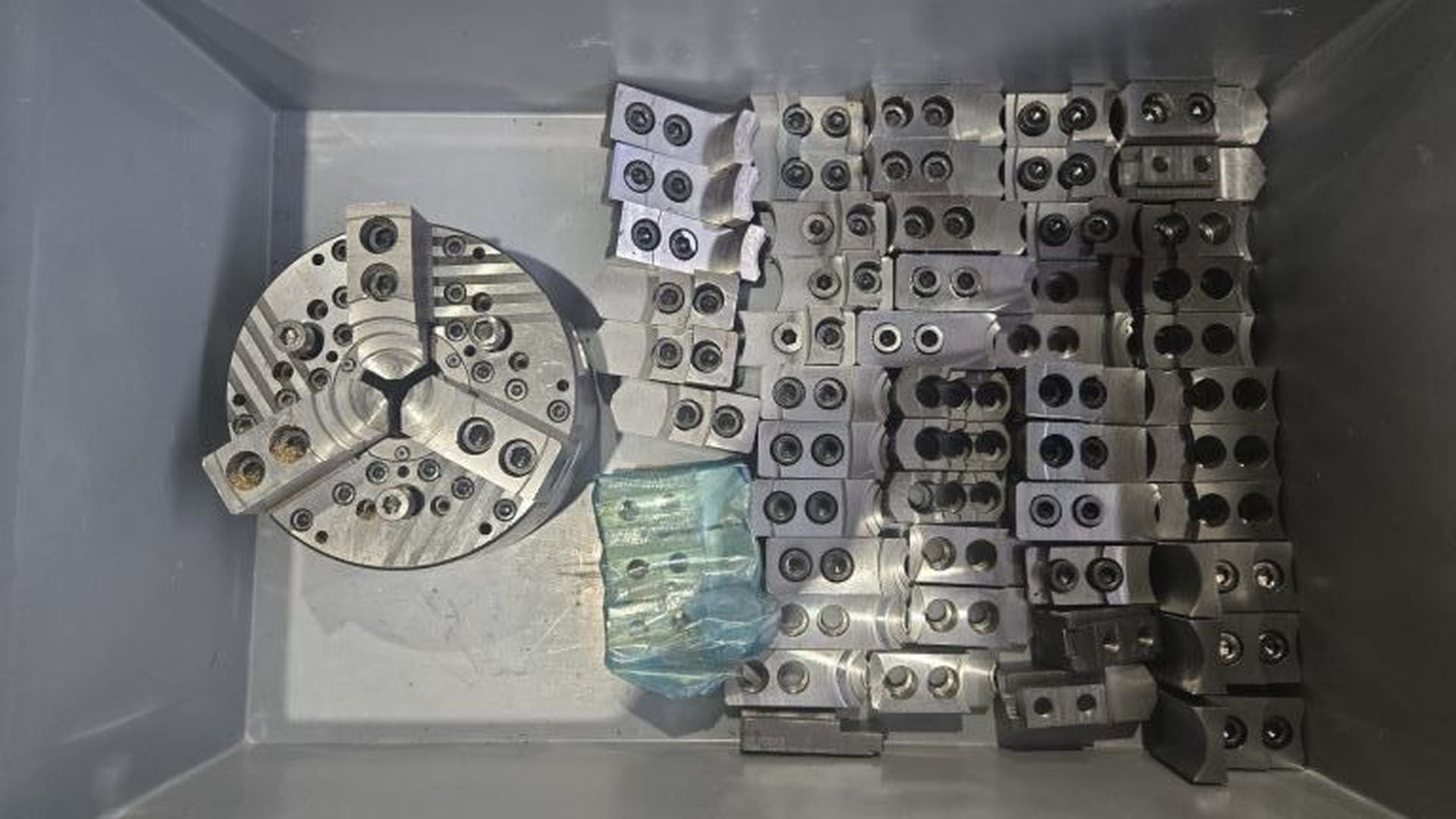

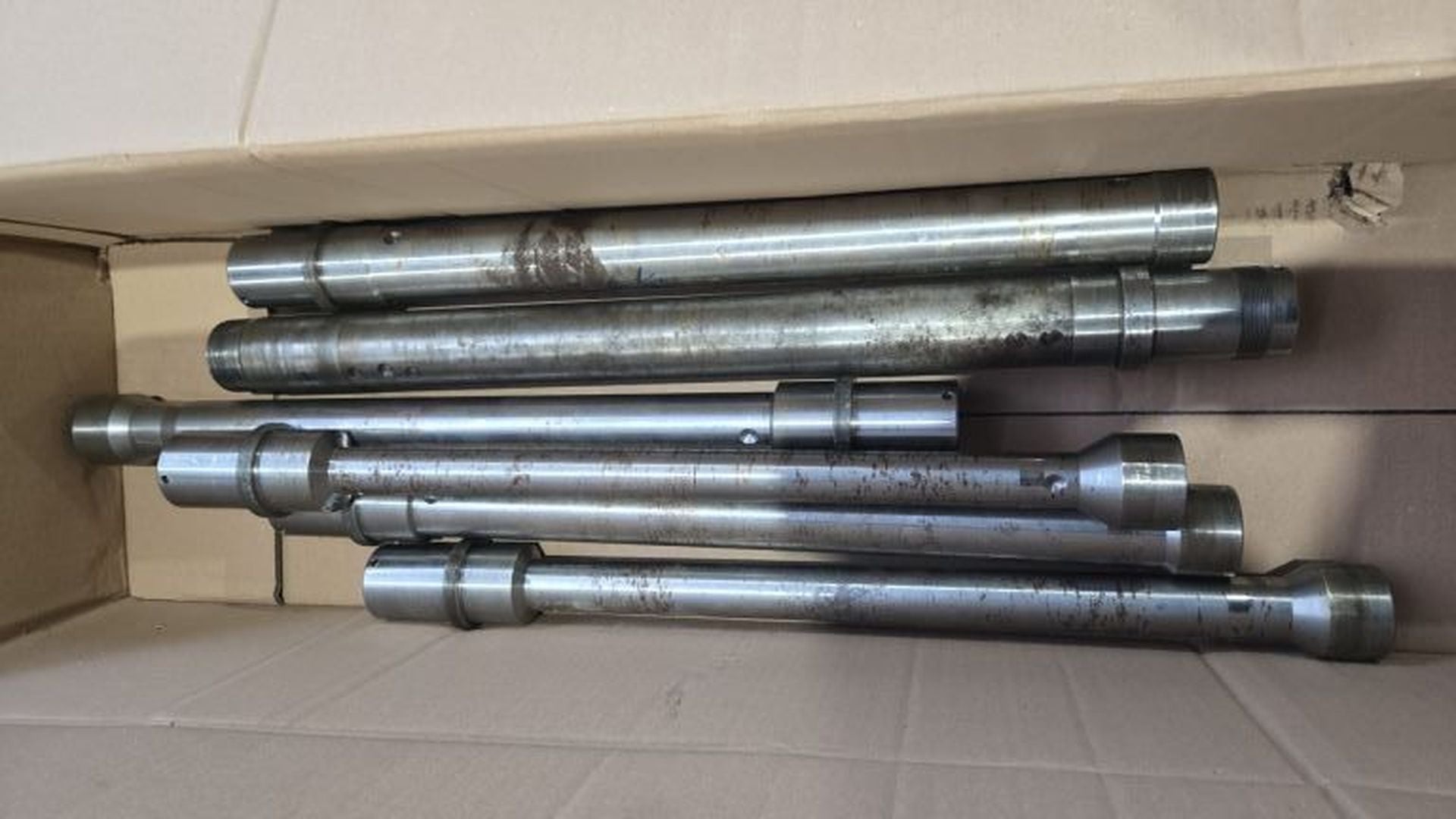

| Camlock | A2-6 |
| Inner taper type | B 32 / B 45 / F 48 |
| Collet bore | 24 / 36 / 42 mm |
| C axis | |
| Spindle speeds: | |
| stepless | |
| up to | 4000 t/min |
| Inner taper type | F66 |
| Internal spindle diameter | 60 mm |
| Feeds: | |
| stepless | |
| longitudinal from | mm/min |
| up to | 5000 mm/min |
| transversal from | mm/min |
| up to | 5000 mm/min |
| Rapid traverse: | 8 / 10 m/min |
| Spindle motor | 15 / 18.5 kW |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 2400 kg |
| Overall dimensions machine: | |
| Length | 2500 mm |
| Width | 2500 mm |
| Height | 1800 mm |
