HAUSER S 50 L CNC 400
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

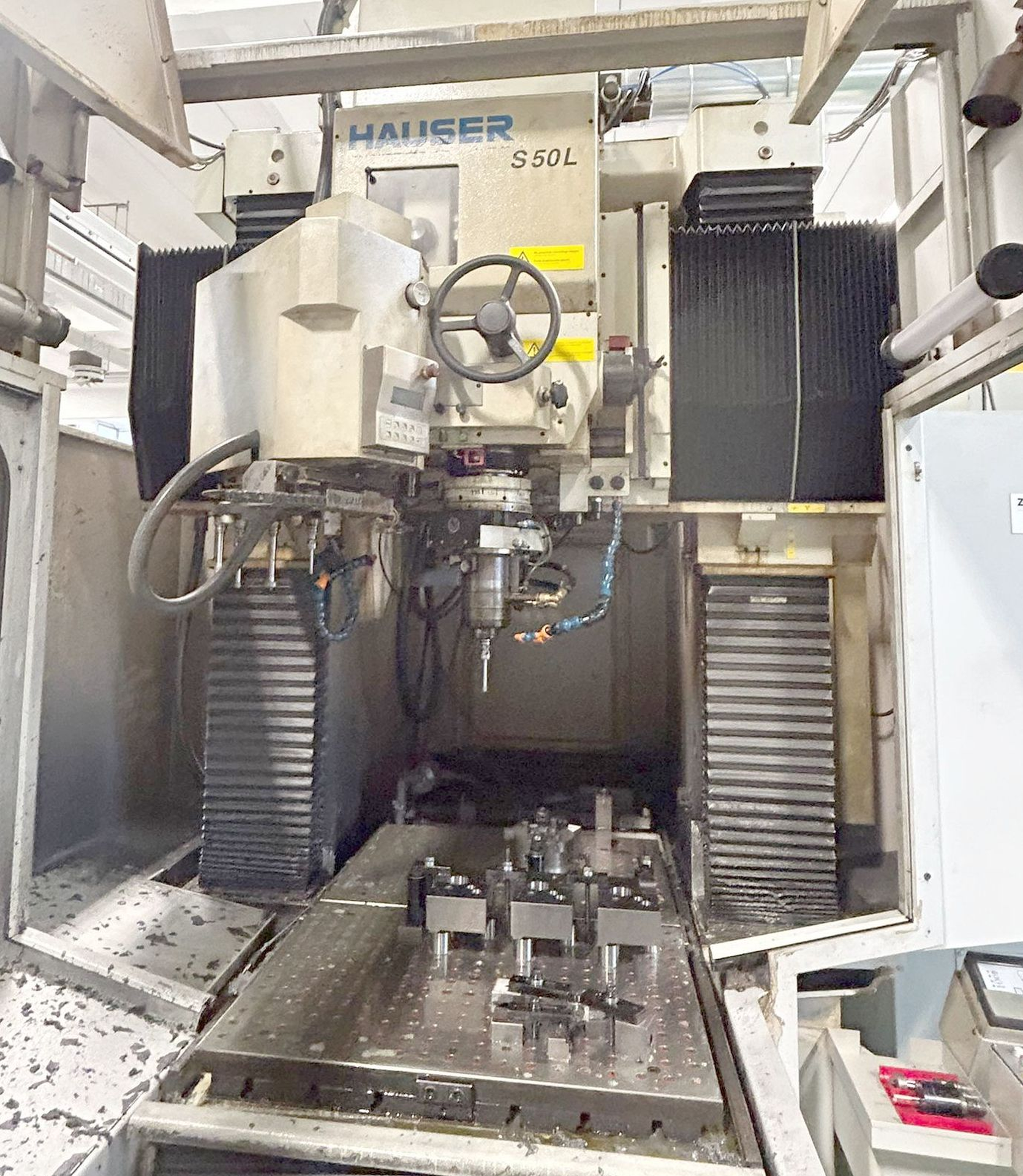

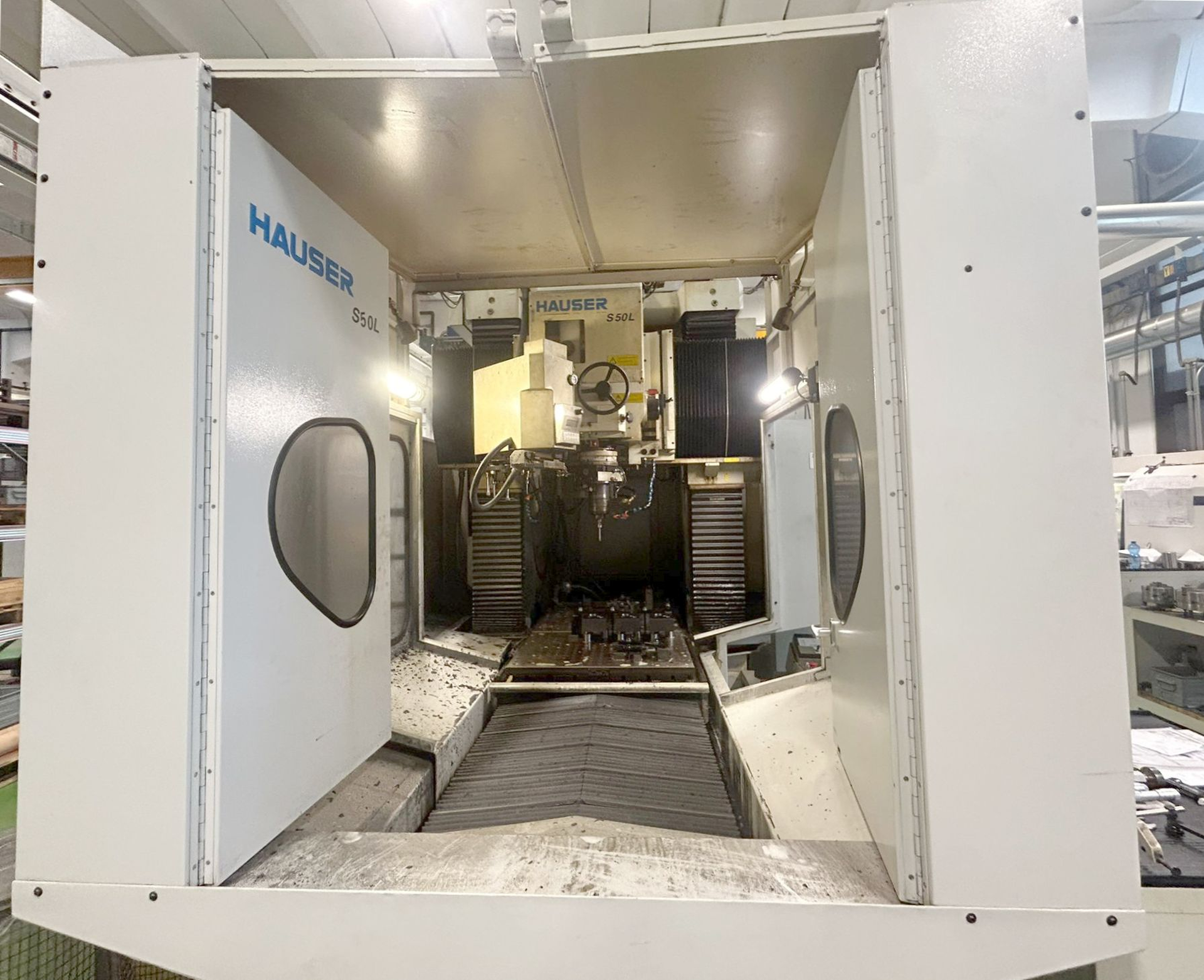

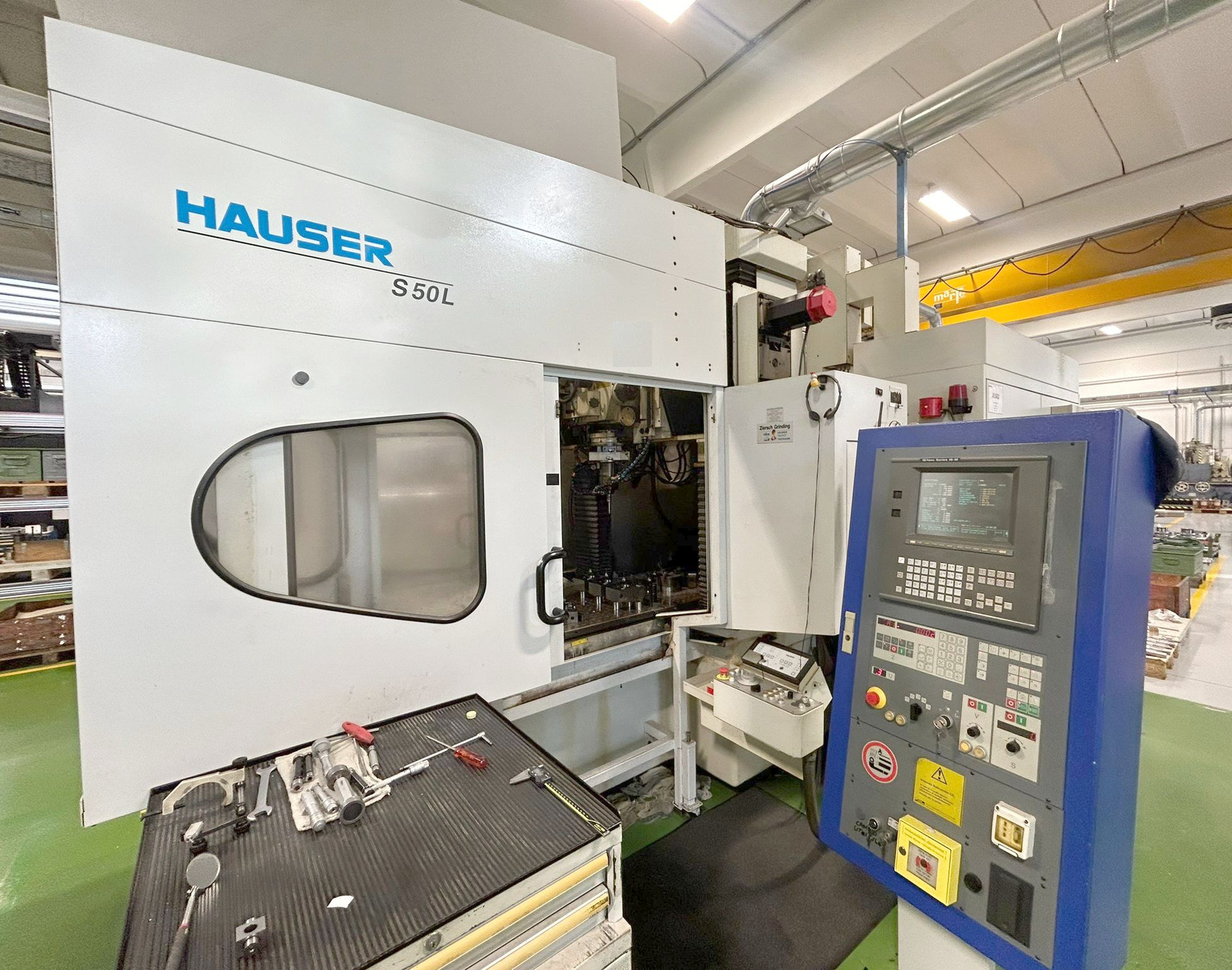

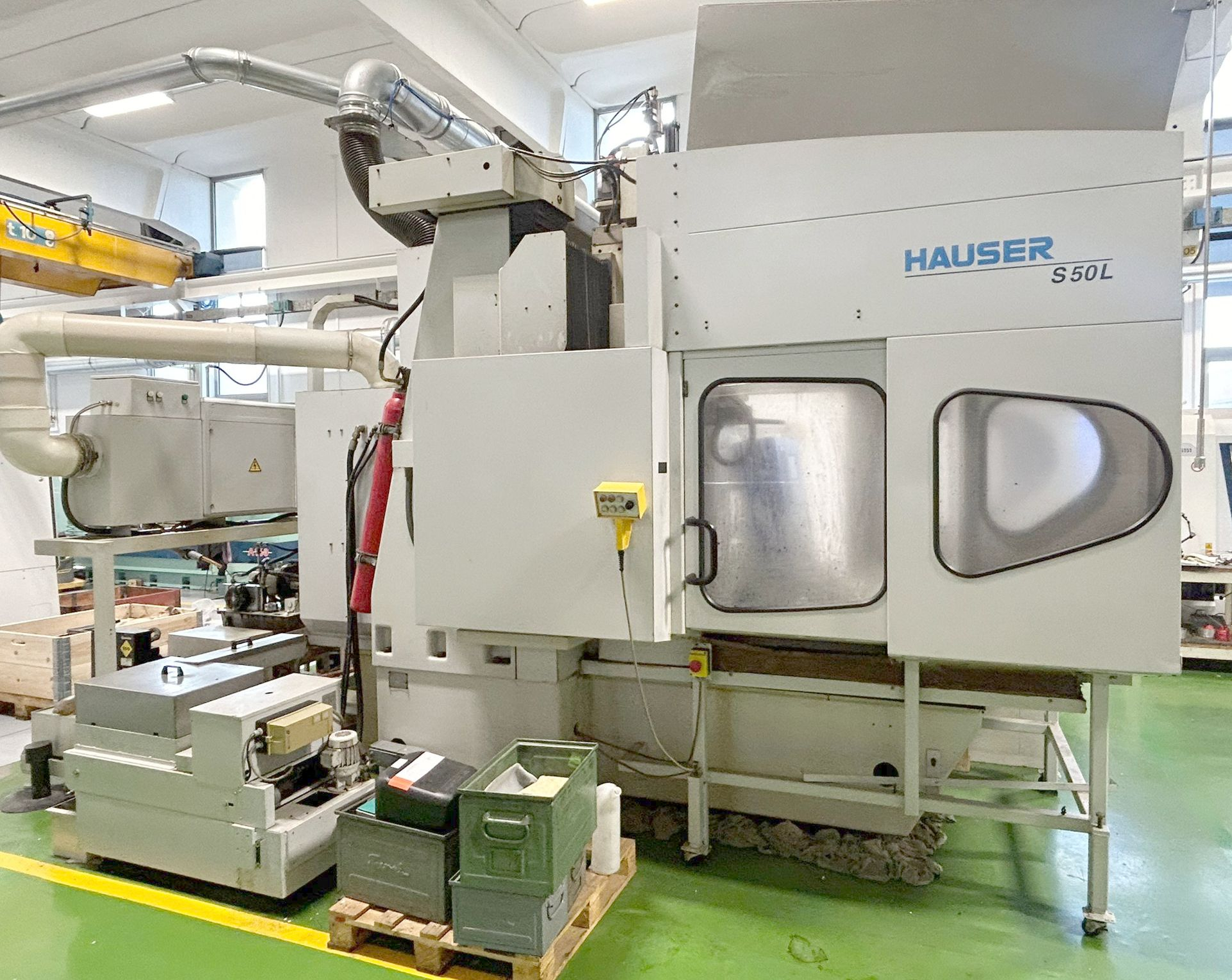

HAUSER S 50 L CNC 400 is a CNC jig grinder of high precision, providing accuracy and reliability. 2 columns; table 1320 mm; travels X/Y/Z 1200/600/635 mm; clearances 750/950 mm; max grinding Ø 230 mm (360 with plate); taper to 16°. C‑axis 5–300 t/min; spindle 9,000–80,000 t/min (air turbine 160,000). Voltage 3×380 V 50 Hz; 9 kVA; weight ≈6300 kg; size 3000×2500×2870 mm. Accessories: paper filtration, MSS, fire extinguishing system, oil mist extractor. Achieves tight tolerances; typical sectors: automotive, watchmaking, toolmaking, aerospace, medical.
| 2 columns execution | |
| Table length | 1320 mm |
| Longitudinal travel (X-axis) | 1200 mm |
| Transversal travel (y-axis) | 600 mm |
| Travel of the vertical slide | 635 mm |
| Passage from grinding motor to table | 750 mm |
| Max. grinding diameter | 230 mm |
| with display-plate | 360 mm |
| Passage between the columns | 950 mm |
| Max. angle with taper grinding: | |
| up to | 16 ° |
| Planetary motion speeds: c axis | |
| stepless | |
| from | 5 t/min |
| up to | 300 t/min |
| Possible grinding-spindle speeds: | |
| stepless | |
| from | 9000 t/min |
| up to | 80000 t/min |
| With air-turbine max. | 160000 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Total power required | 9 kVA |
| Machine's weight about | 6300 kg |
| Overall dimensions machine: | |
| Length | 3000 mm |
| Width | 2500 mm |
| Height | 2870 mm |

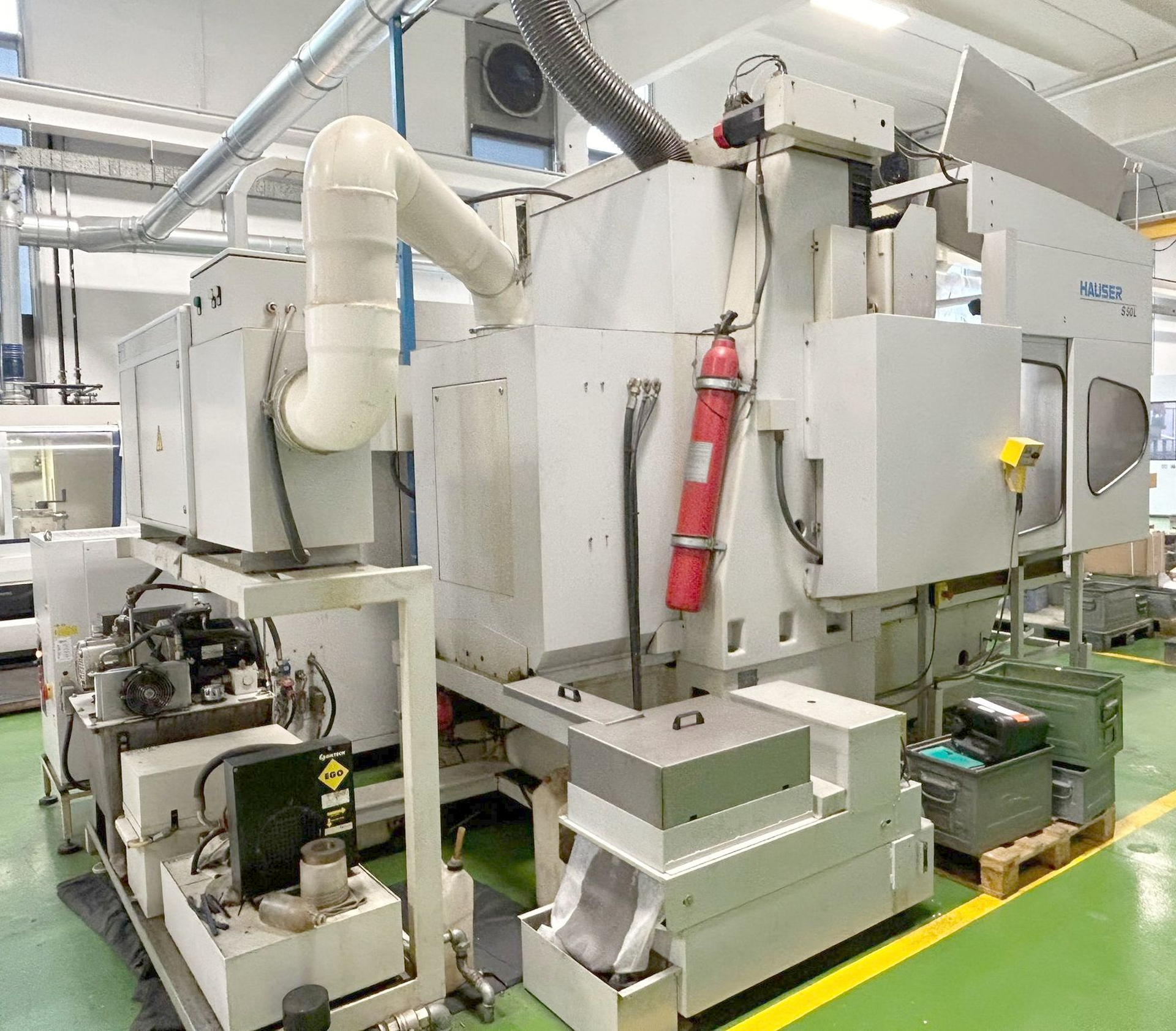

| Various accessories: | |
| Paper filtration system | |
| MSS Multi-Sensoric-System | |
| Fire extinguishing system | |
| Oil mist extractor |
