JAKOBSEN SJ 1026
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

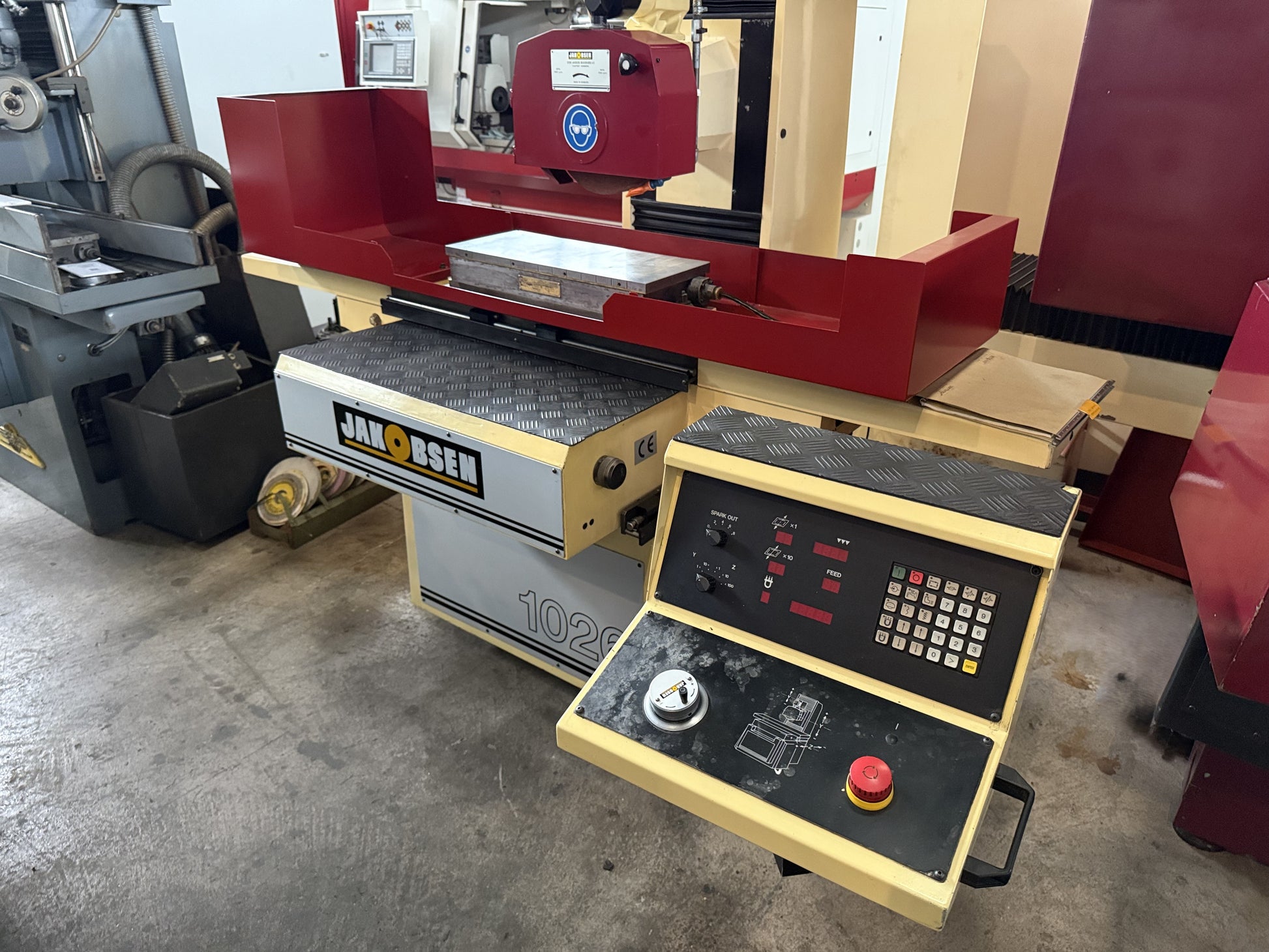

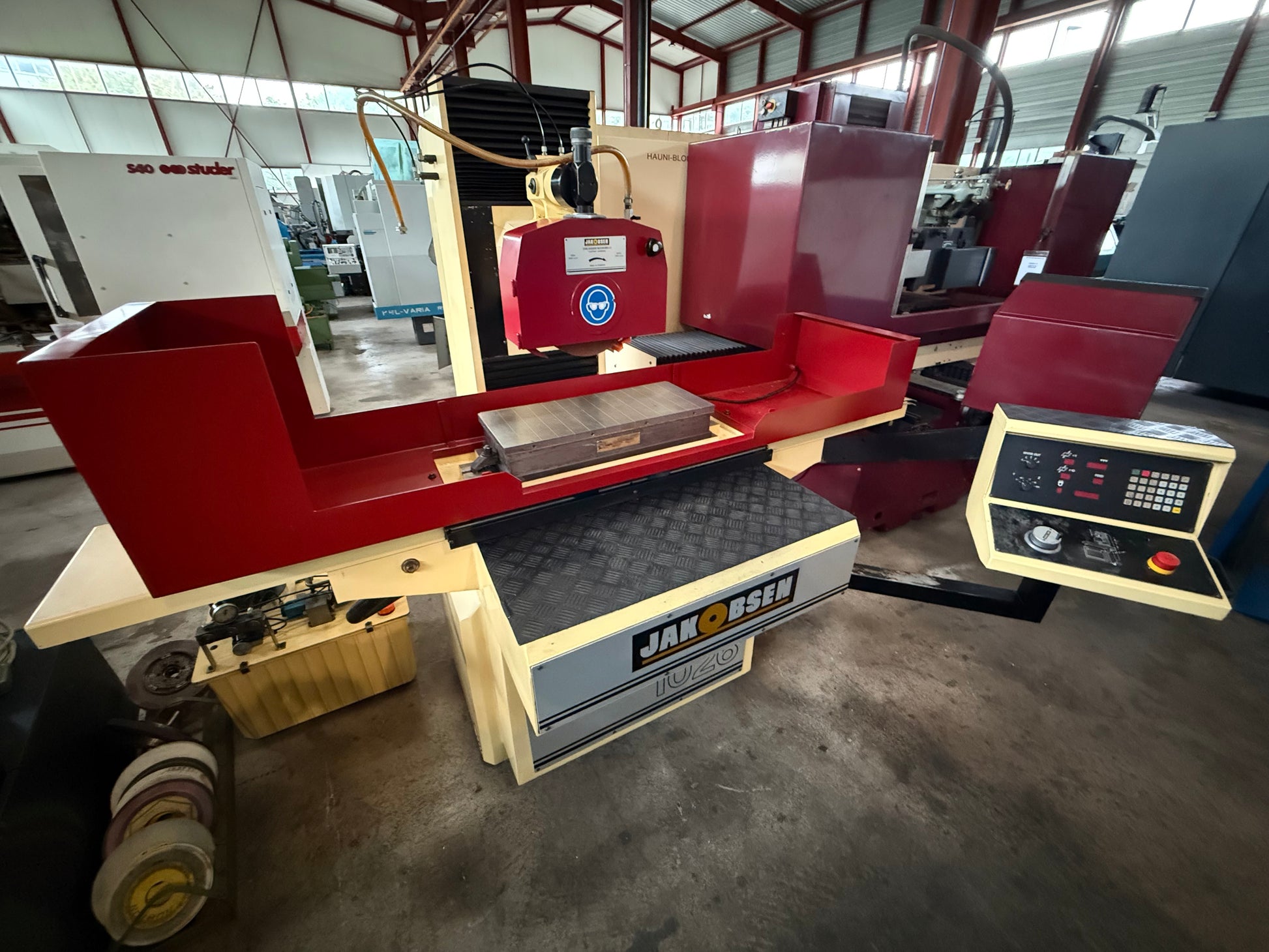

JAKOBSEN SJ 1026 is a Surface grinder engineered for precision, high accuracy and reliable performance. Working capacities: table length 800 mm, table width 250 mm, grinding length 800 mm, grinding width 300 mm, max distance table to spindle centreline 550 mm; longitudinal travel (X) 900 mm, transversal travel (Y) 310 mm. Key specs: grinding wheel Ø 350 mm, width 40 mm, bore 127 mm, wheel speeds from 1400 t/min; grinding spindle motor 4 kW; voltage 3x 380 V 50 Hz; total power 6.6 kW; machine weight ~1800 kg; overall L3350×W1870×H1900 mm. Accessories: paper filtration system, grinding wheel with flange, balancing arbor and support. Enables tight tolerances; suitable for automotive, aerospace, machine tools, medical and watchmaking sectors.
| Table length | 800 mm |
| Table width | 250 mm |
| Grinding length | 800 mm |
| Grinding width | 300 mm |
| Max. distance from table | |
| to spindle-centreline | 550 mm |
| Longitudinal travel (X-axis) | 900 mm |
| Transversal travel (y axis) | 310 mm |
| Automatic cross-feed: | |
| stepless | |
| up to | 6 m/min |
| from | 2 mm |
| up to | 30 mm |
| Table speeds: | |
| stepless | |
| from | 0 m/min |
| up to | 30 m/min |
| Automatic vertical feed: | |
| from | mm |
| up to | mm |
| Diameter of grinding wheel | 350 mm |
| Width of the grinding wheel | 40 mm |
| Wheel int. diameter | 127 mm |
| Grinding wheel speeds: | |
| from | 1400 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Grinding spindle motor | 4 kW |
| Total power required | 6.6 kW |
| Machine's weight about | 1800 kg |
| Overall dimensions machine: | |
| Length | 3350 mm |
| Width | 1870 mm |
| Height | 1900 mm |
| Various accessories: | |
| Paper filtration system | |

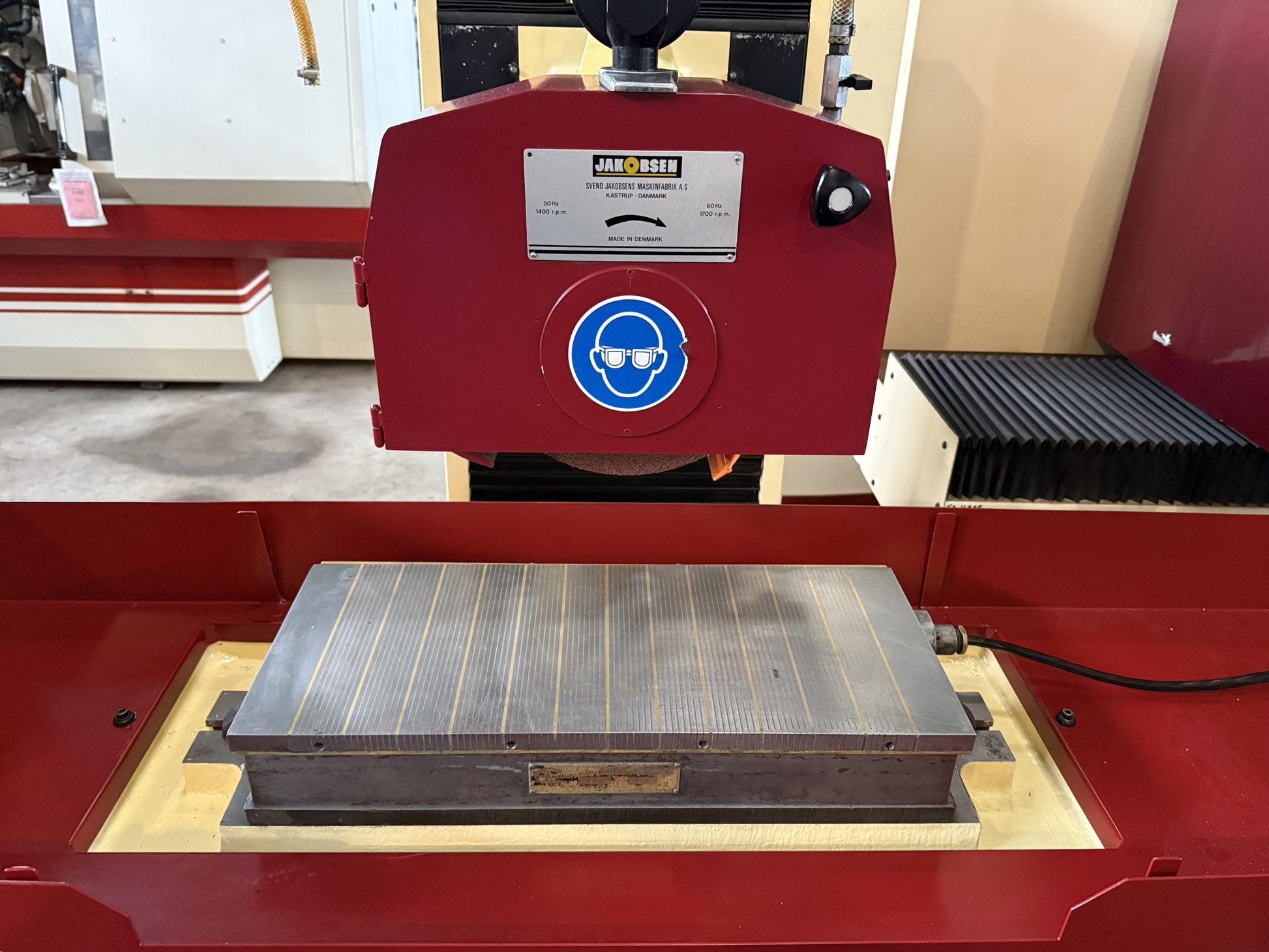

| Magnetic plate: | |
| Length | 600 mm |
| Width | 255 mm |
| Grinding wheel with flange | |
| Balancing arbor | |
| Balancing support |
