WALDRICH COBURG 30-10 S 4035
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

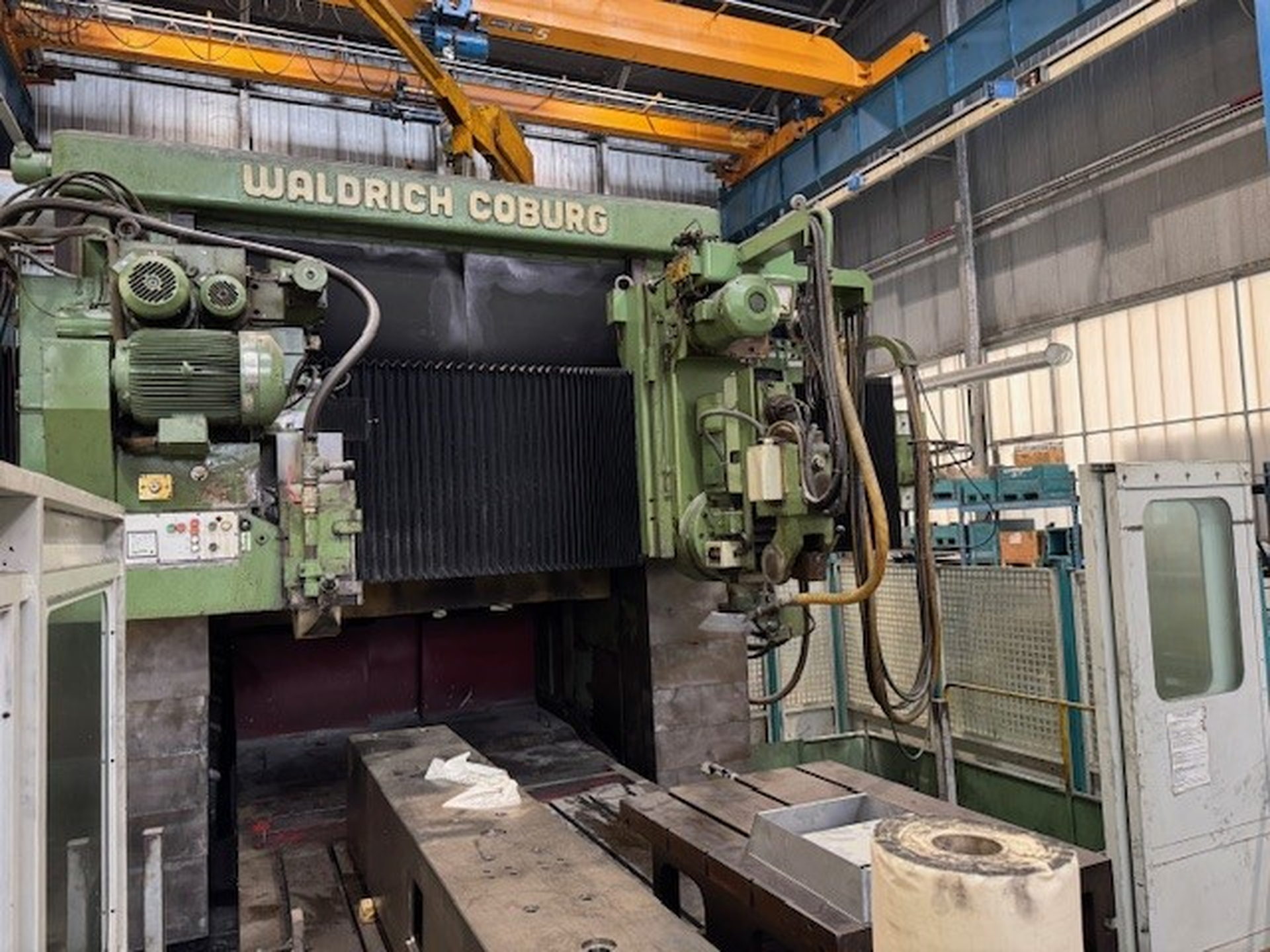

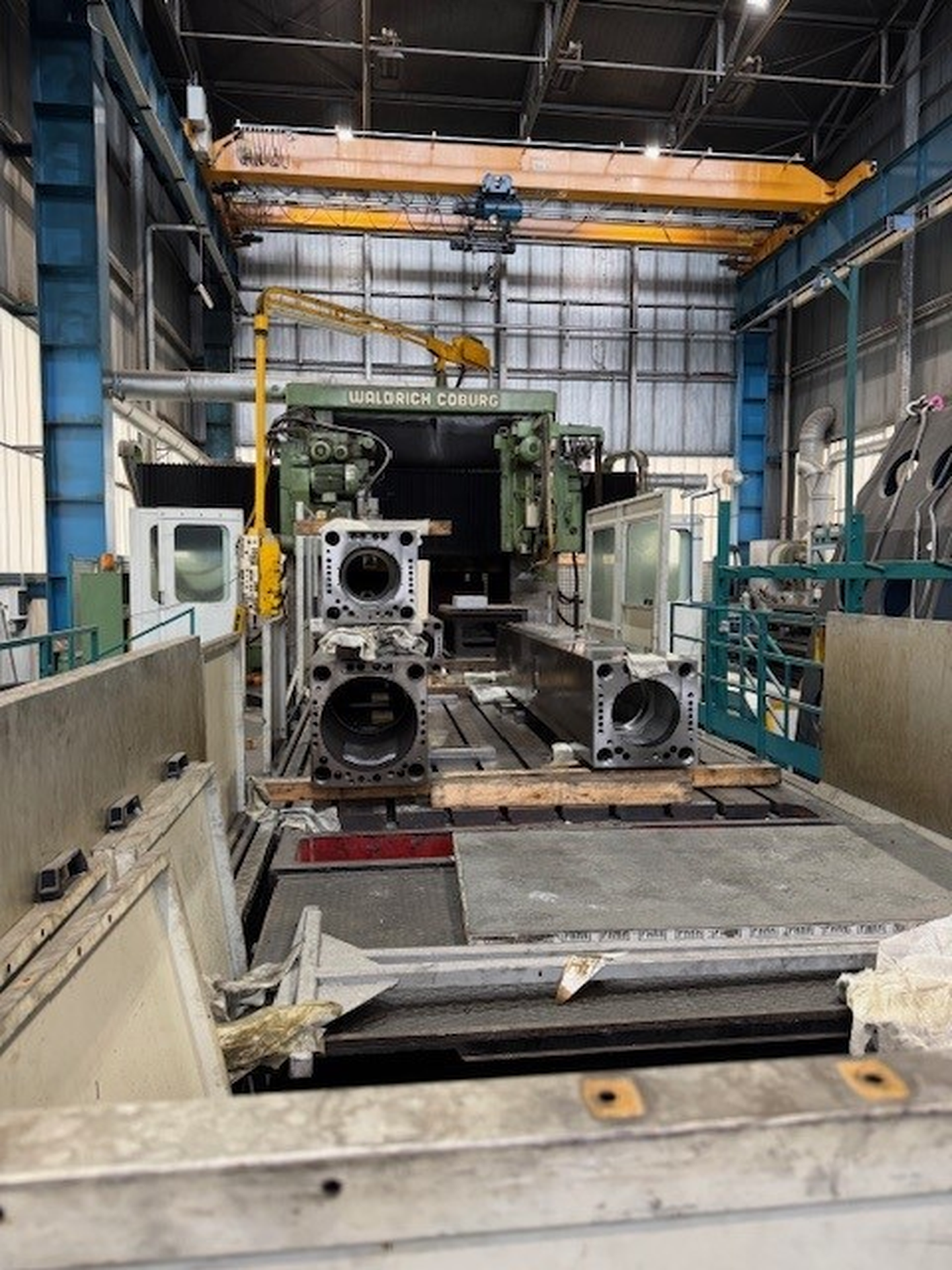

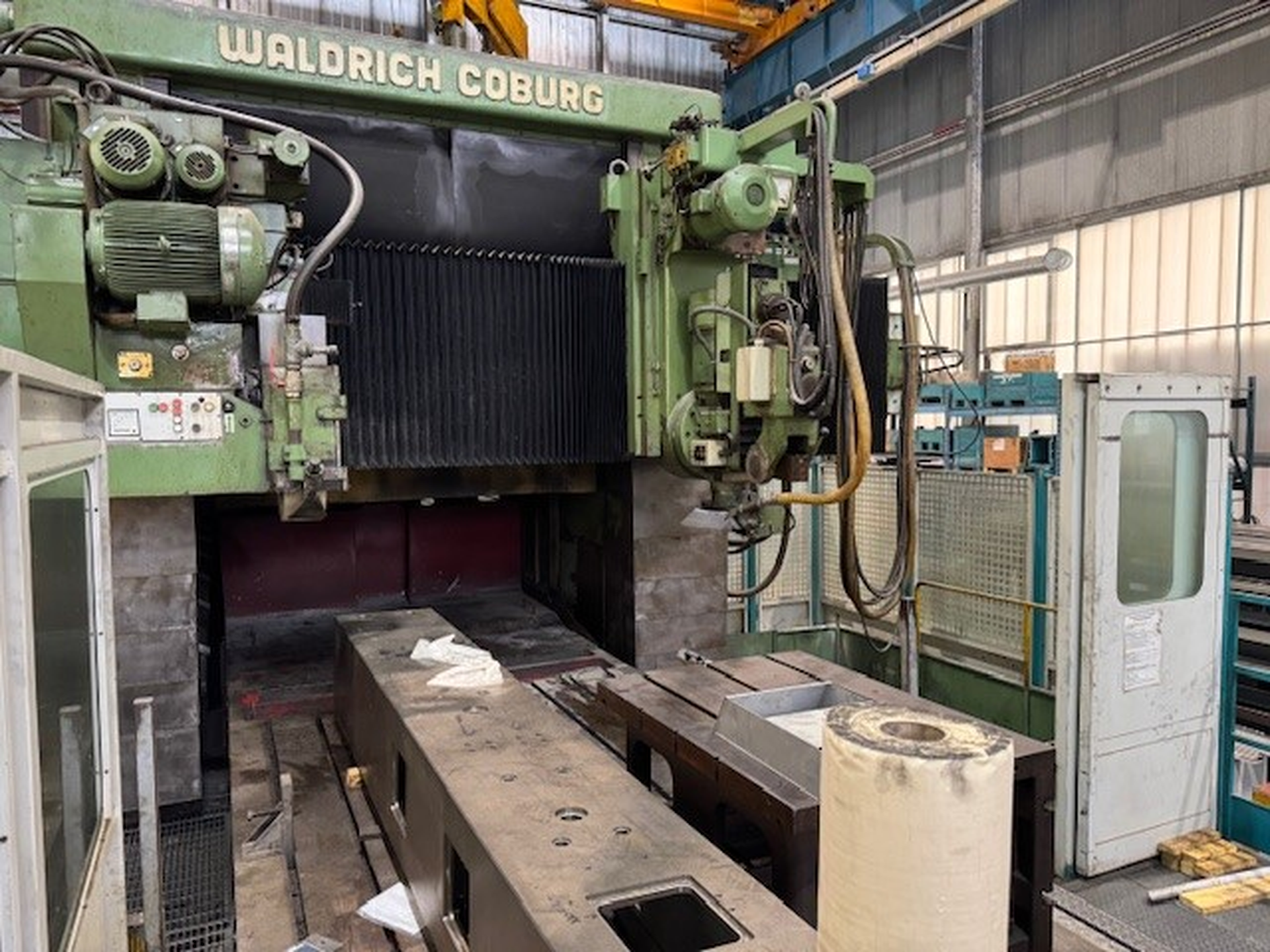

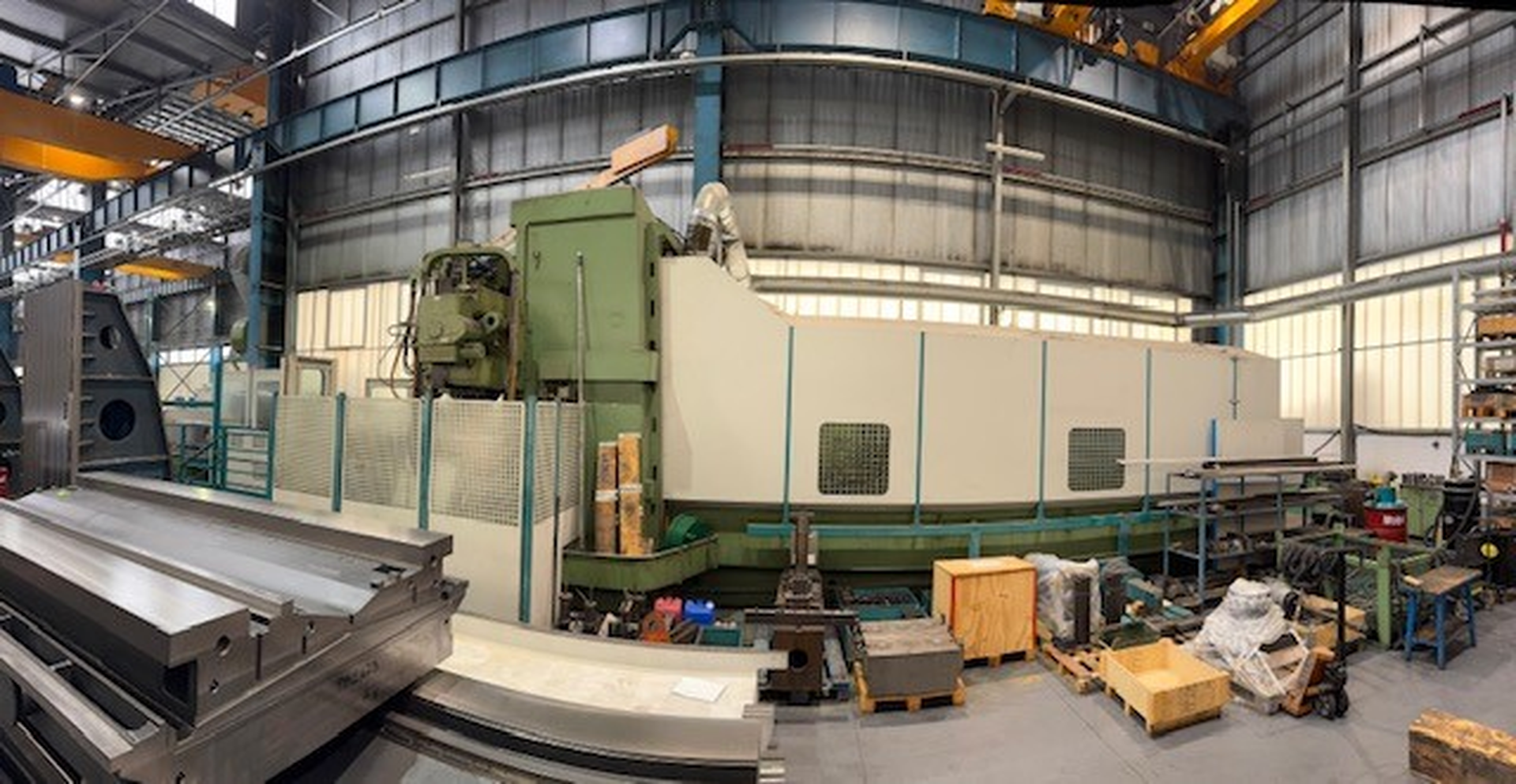

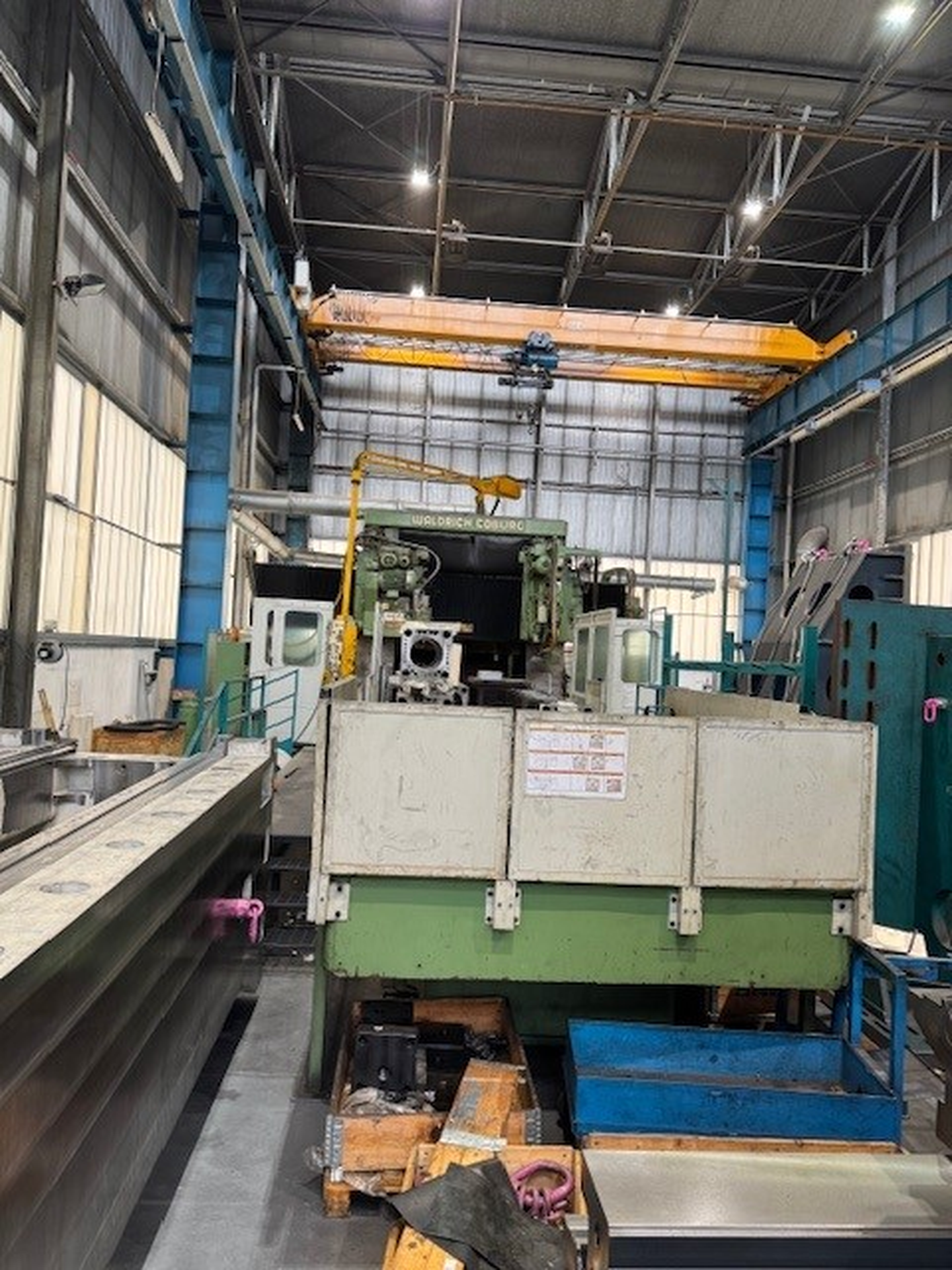

WALDRICH COBURG 30-10 S 4035 is a slideway grinding machine of high precision, accurate and reliable. Capacities: table 8000 mm, grinding length 7000 mm, width 2200 mm, table load 20000 kg, column gap 2290 mm. P30: wheel Ø630×150 mm (930 rpm); U10: Ø500×60 mm, 1100–3500 rpm stepless, 110°. Power 10 CV, grinding spindle 30 CV. Size 15050×5600×4500 mm. Ensures tight tolerances; applications: automotive, machine tools, aerospace and precision components.
| Table length | 8000 mm |
| Grinding length | 7000 mm |
| Grinding width | 2200 mm |
| Table load max. | 20000 kg |
| Distance between columns | 2290 mm |

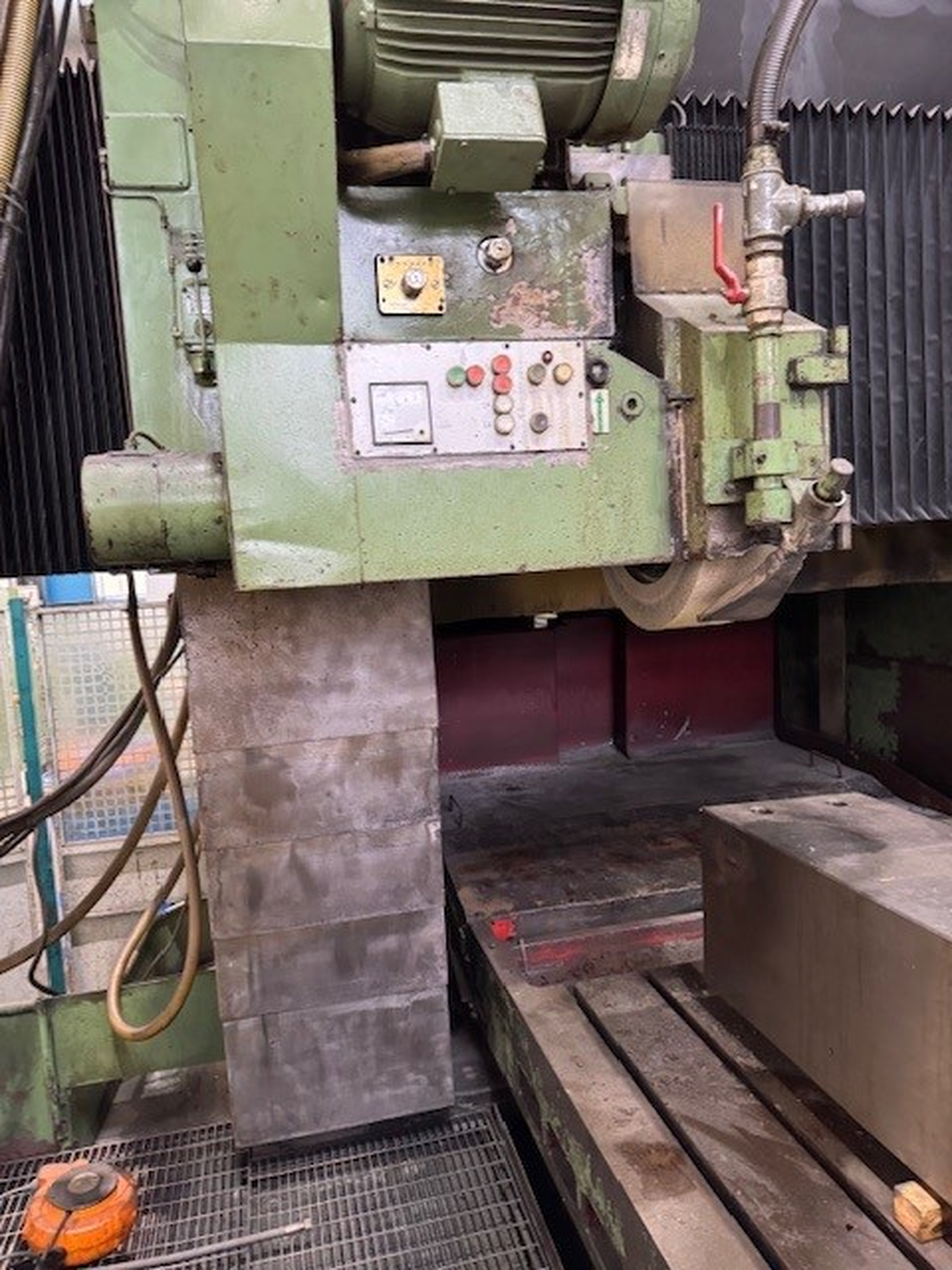

| Tangential grinding head: | P30 |
| Diameter of grinding wheel | 630 mm |
| Width of the grinding wheel | 150 mm |
| Grinding wheel speeds fix | 930 t/min |

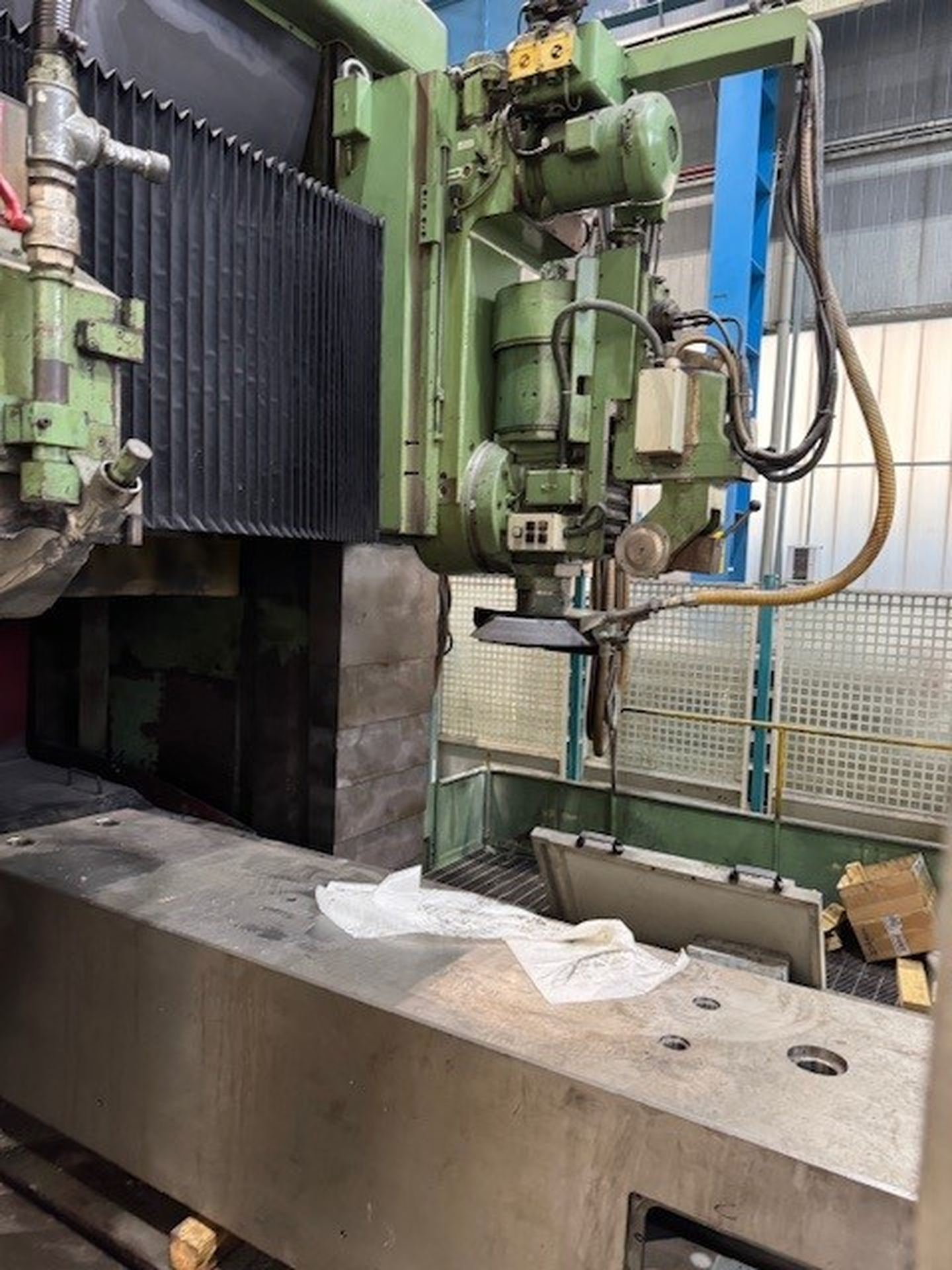

| Universal grinding head | U10 |
| Diameter of grinding wheel | 500 mm |
| Width of the grinding wheel | 60 mm |
| Grinding wheel speeds: | |
| stepless | |
| from | 1100 t/min |
| up to | 3500 t/min |
| Indexing Range | 110 ° |
| Power | 10 CV |
| Grinding spindle motor | 30 CV |
| Overall dimensions machine: | |
| Length | 15050 mm |
| Width | 5600 mm |
| Height | 4500 mm |
