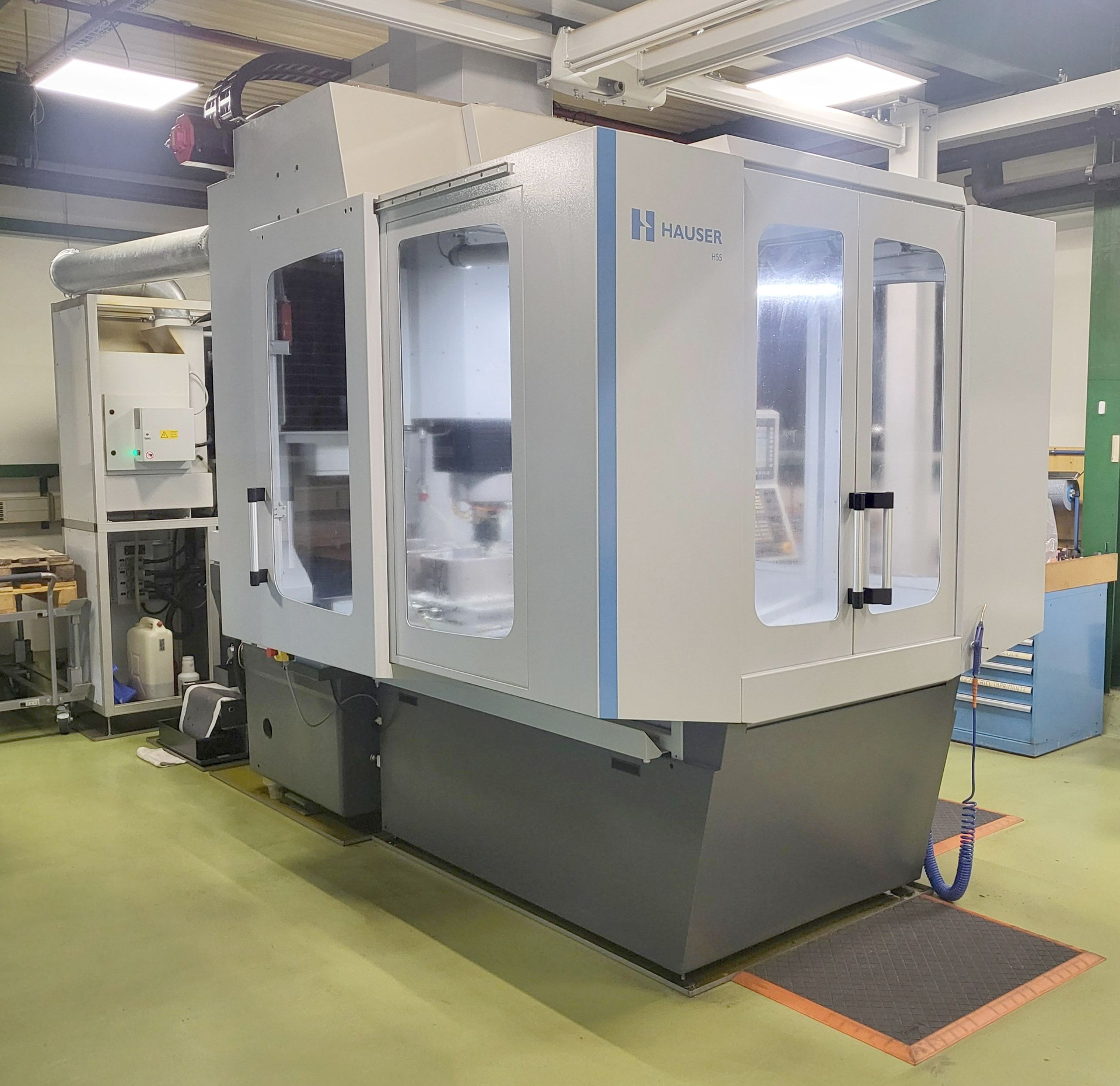

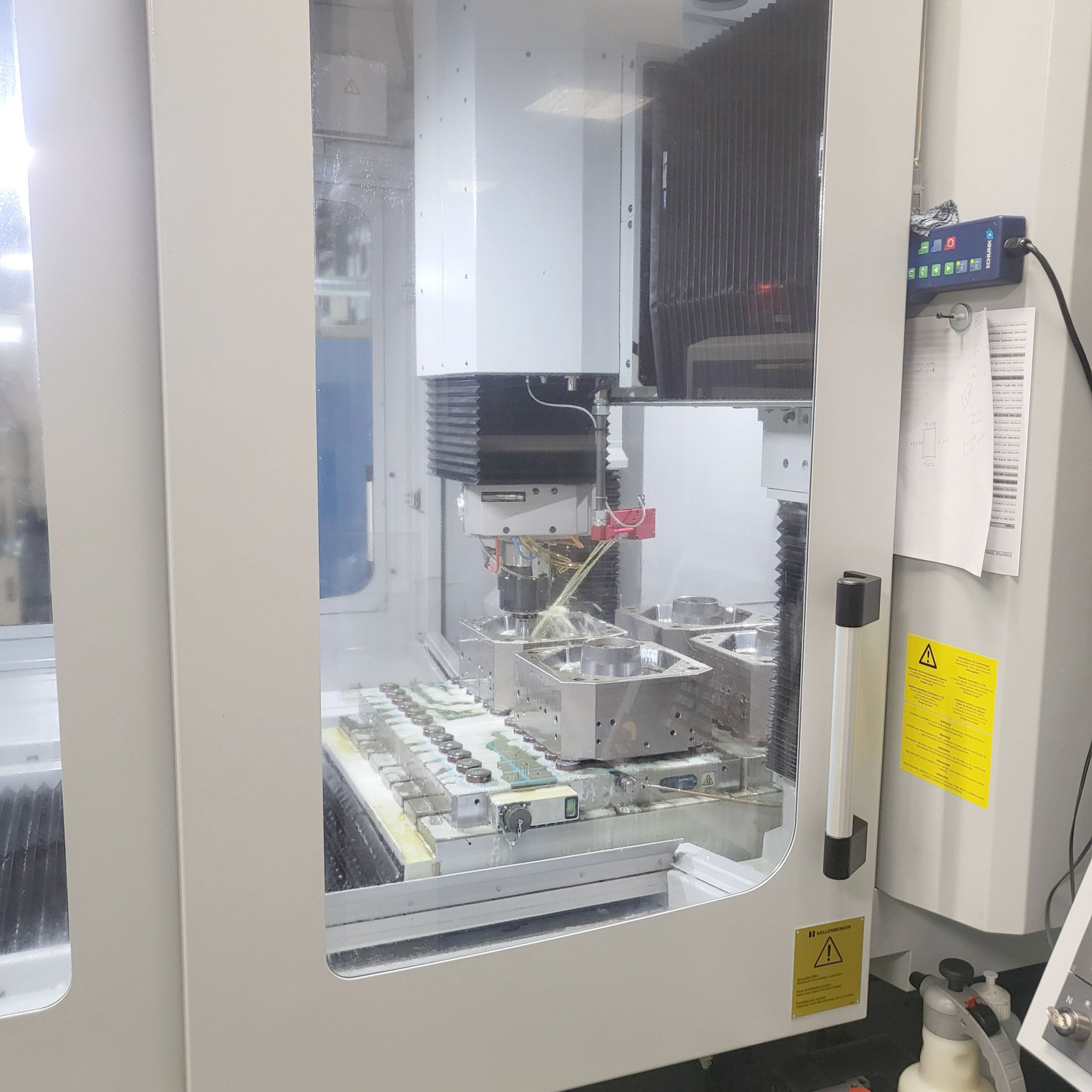

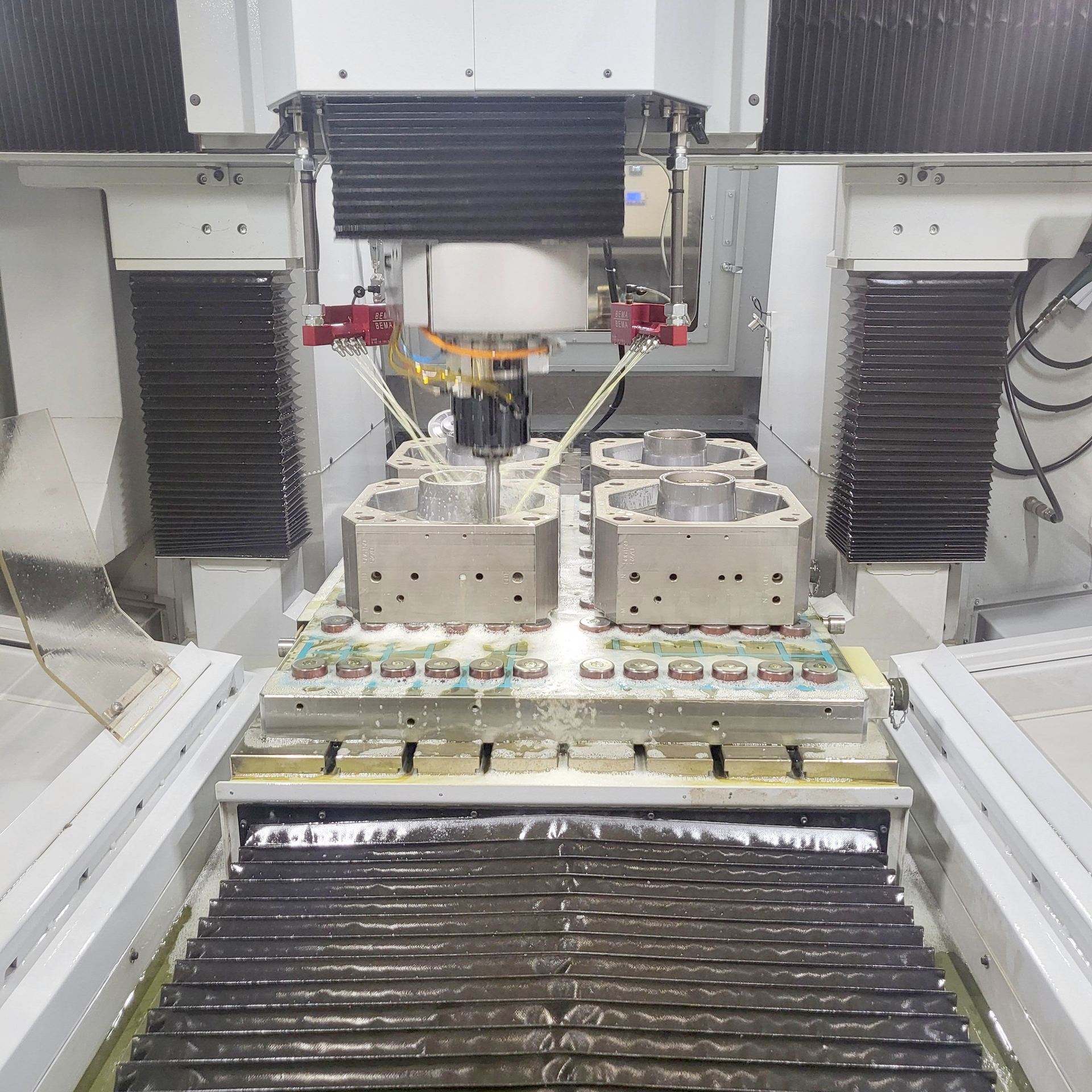

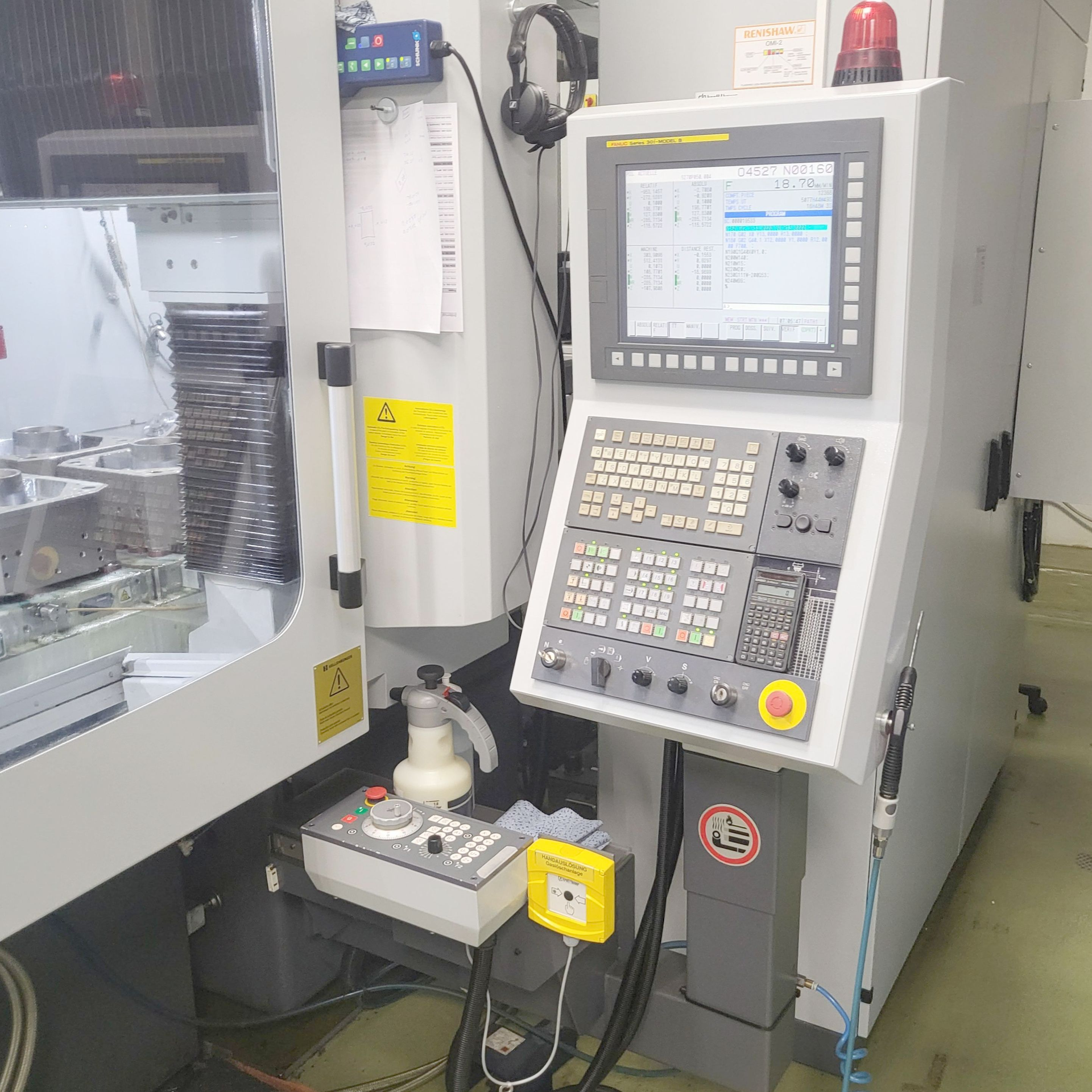

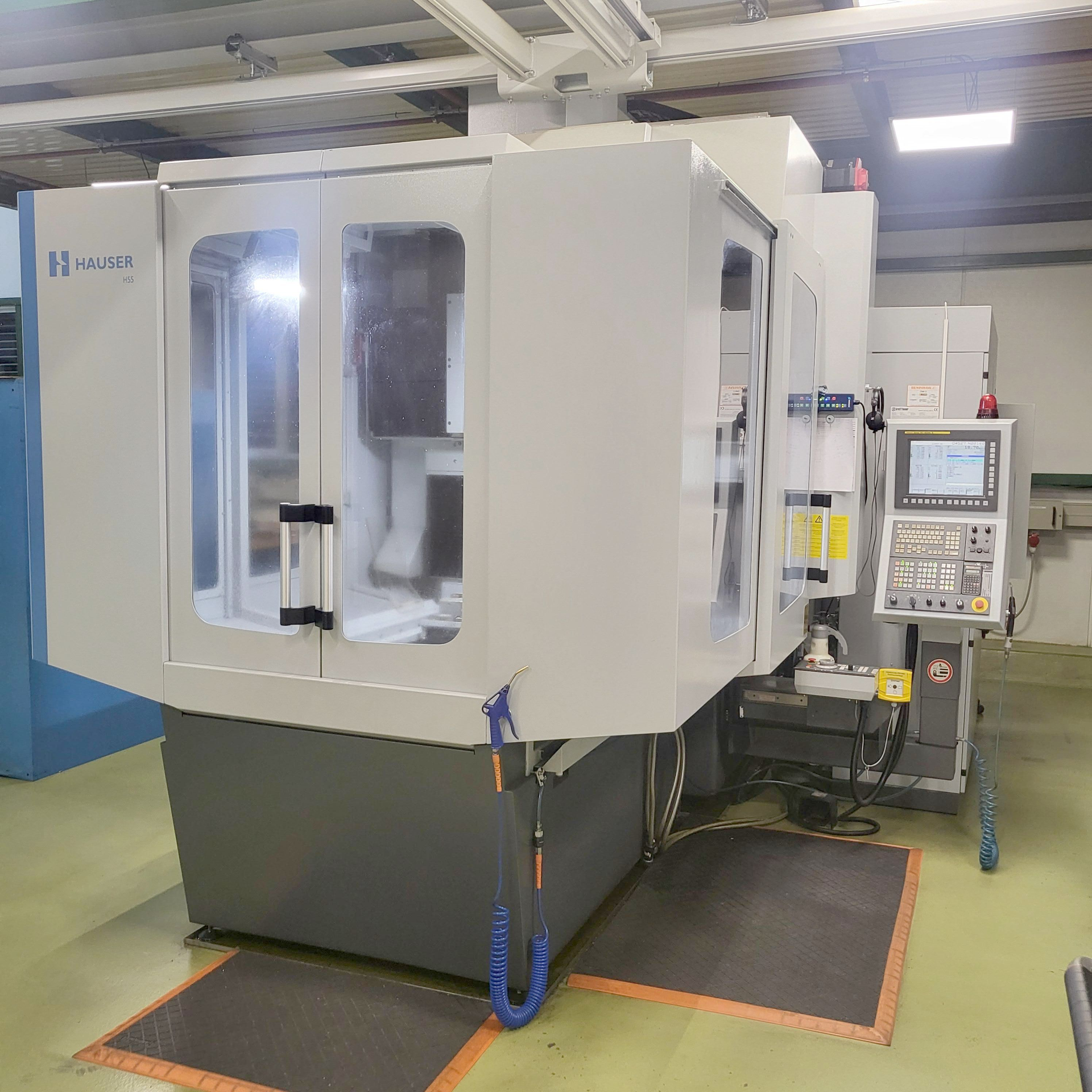

HAUSER H55-400 is a CNC jig grinder delivering precision, high accuracy and reliability. Capacities: table 1440x860 mm, 7 T-slots 14 mm, table load 800 kg; travels X1300, Y800, W635 mm; spindle–table clearance 0–710 mm; max grinding Ø 230 mm (360 mm with plate); column span 970 mm; taper up to 16°. Specs: grinding spindle 9,000–70,000 rpm (HSK25); Z stroke 170 mm, 5 Hz, stroke speed 1–14,000 mm/min; feeds X/Y 0–2 m/min, W 0–2000 mm/min; air 6–10 bar; power 3x400V 50Hz, 9 kW; weight ~7000 kg; size 3900x2460x3000 mm. Accessories: coolant system with paper band filter, programmable nozzle, redressing device for ceramic cup wheels, Renishaw probe, MSS, fire extinguishing, oil-mist extractor, HI-CUT. Achieves tight tolerances; typical sectors: automotive, watchmaking, toolmaking, aerospace, medical
| Table: | |
| Table length | 1440 mm |
| Table width | 860 mm |
| T-channel width | 14 mm |
| Number of spline | 7 |
| Table load max. | 800 kg |
| Carriage: | |
| Longitudinal travel (X-axis) | 1300 mm |
| Transversal travel (y-axis) | 800 mm |
| Verticla travel (W-axis) | 635 mm |
| Passage from grinding motor to table | 0 - 710 mm |
| Max. grinding diameter | 230 mm |
| with display-plate | 360 mm |
| Passage between the columns | 970 mm |
| Max. angle with taper grinding: | |
| up to | 16 ° |
| Stroke speed Z-Axis: | |
| Alternating stroke mouvement, infinitely adjust. | |
| from Vmin. | 1 mm/min |
| up to Vmax. | 14000 mm/min |
| Stroke frequency Z | 5 Hz |
| Stroke length Z, infinitely adjustable | 170 mm |
| Radiale fine feed U-axis up to | 6 mm |
| Planetary motion speeds: c axis | |
| stepless | |
| from | 5 t/min |
| up to | 300 t/min |
| Possible grinding-spindle speeds: | |
| from | 9000 t/min |
| up to | 70000 t/min |
| Taper in spindle | HSK 25 |
| Feeds: | |
| X axis | 0 - 2 m/min |
| Y axis | 0 - 2 m/min |
| W axis | 0 - 2000 mm/min |
| Air connect | 6 - 10 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 9 kW |
| Machine's weight about | 7000 kg |
| Overall dimensions machine: | |
| Length | 3900 mm |
| Width | 2460 mm |
| Height | 3000 mm |
| Various accessories: | |

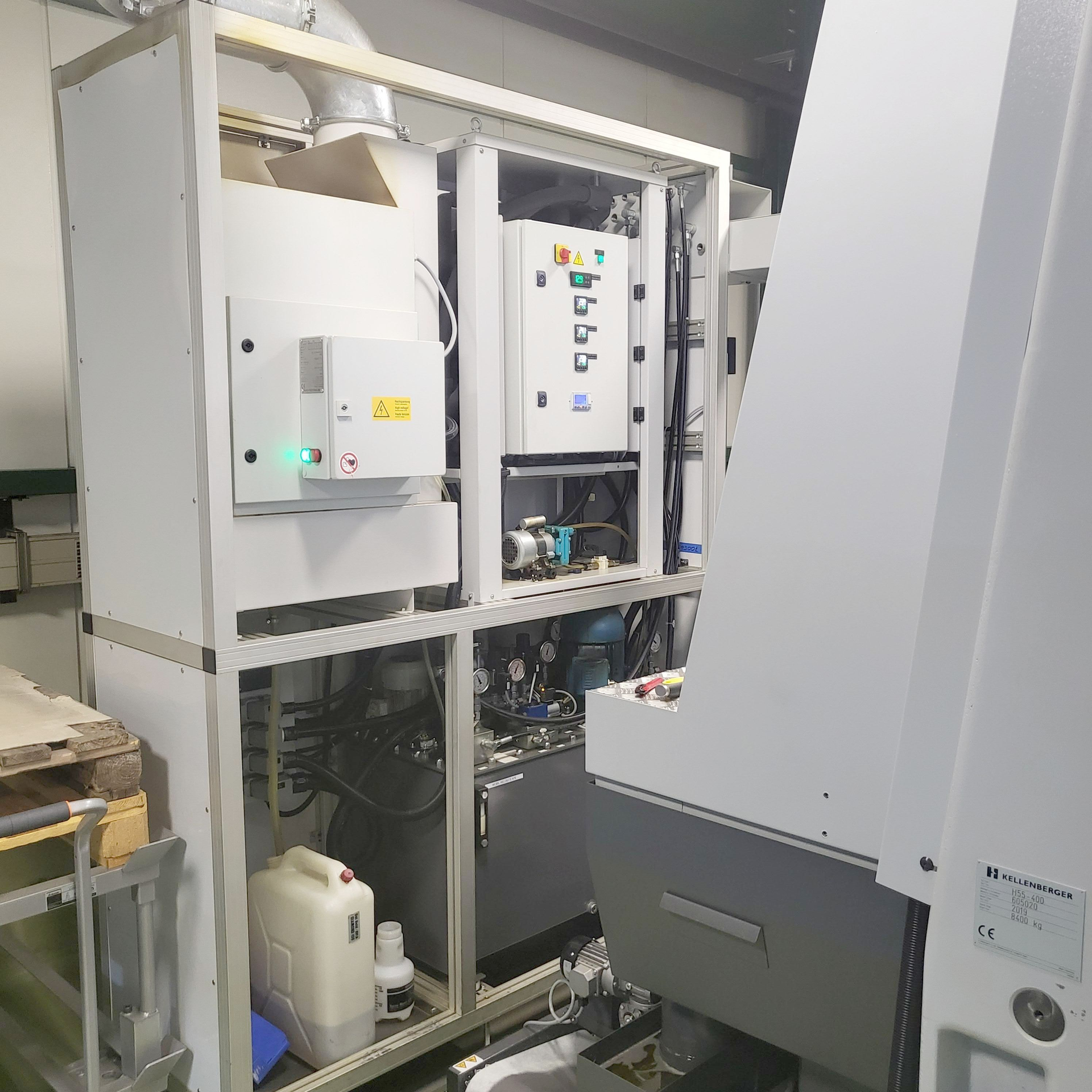

| Coolant system with paper band filter | |
| Programmable coolant nozzle | |
| Redressing device for ceramic bound cup grind. | |
| Lamp | |
| Feeler Renishaw | |
| MSS Multi-Sensoric-System | |

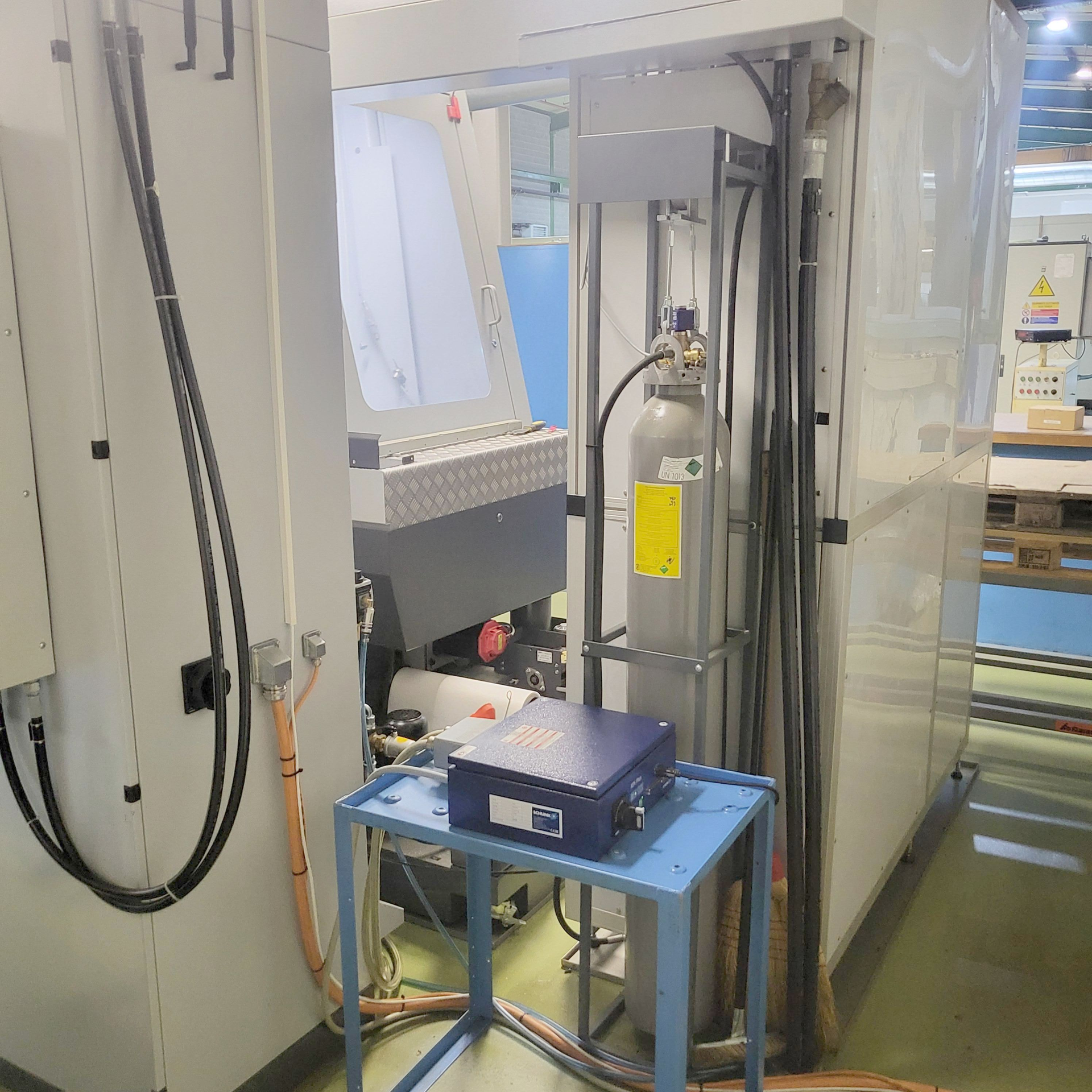

| Fire extinguishing system | |
| Oil mist extractor | |
| HI-CUT Coolant system |
