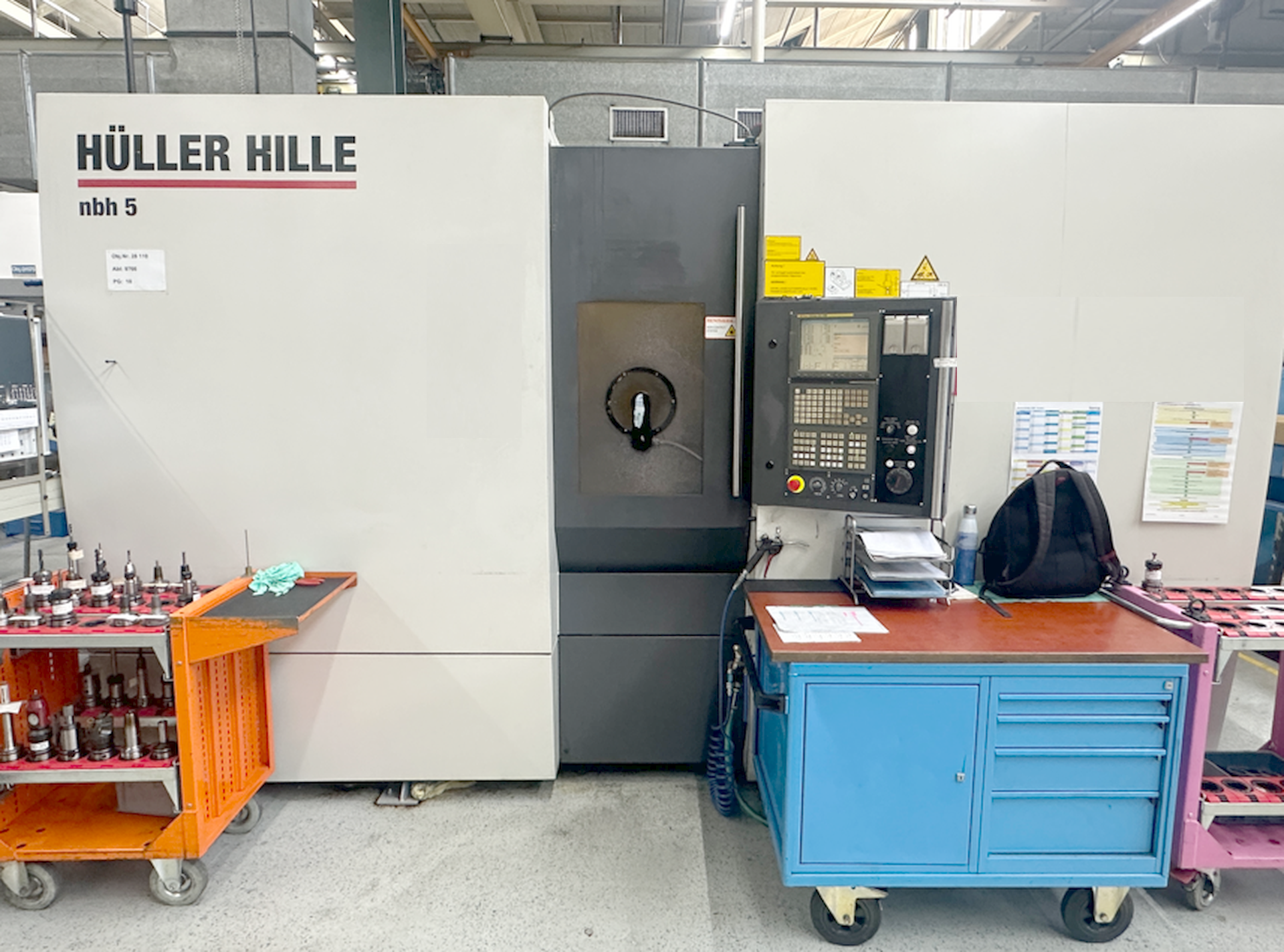

023041 - HÜLLER HILLE BLUESTAR 5
Download technical sheet (PDF)
Message us on WhatsApp
| Number of axis total | 4 |
| Longitudinal travel (X-axis) | 700 mm |
| Transversal travel (y-axis) | 630 mm |
| Vertical travel (z axis) | 700 mm |
| Dimension of the workpice: | |
| Length | 750 mm |
| Width | 700 mm |

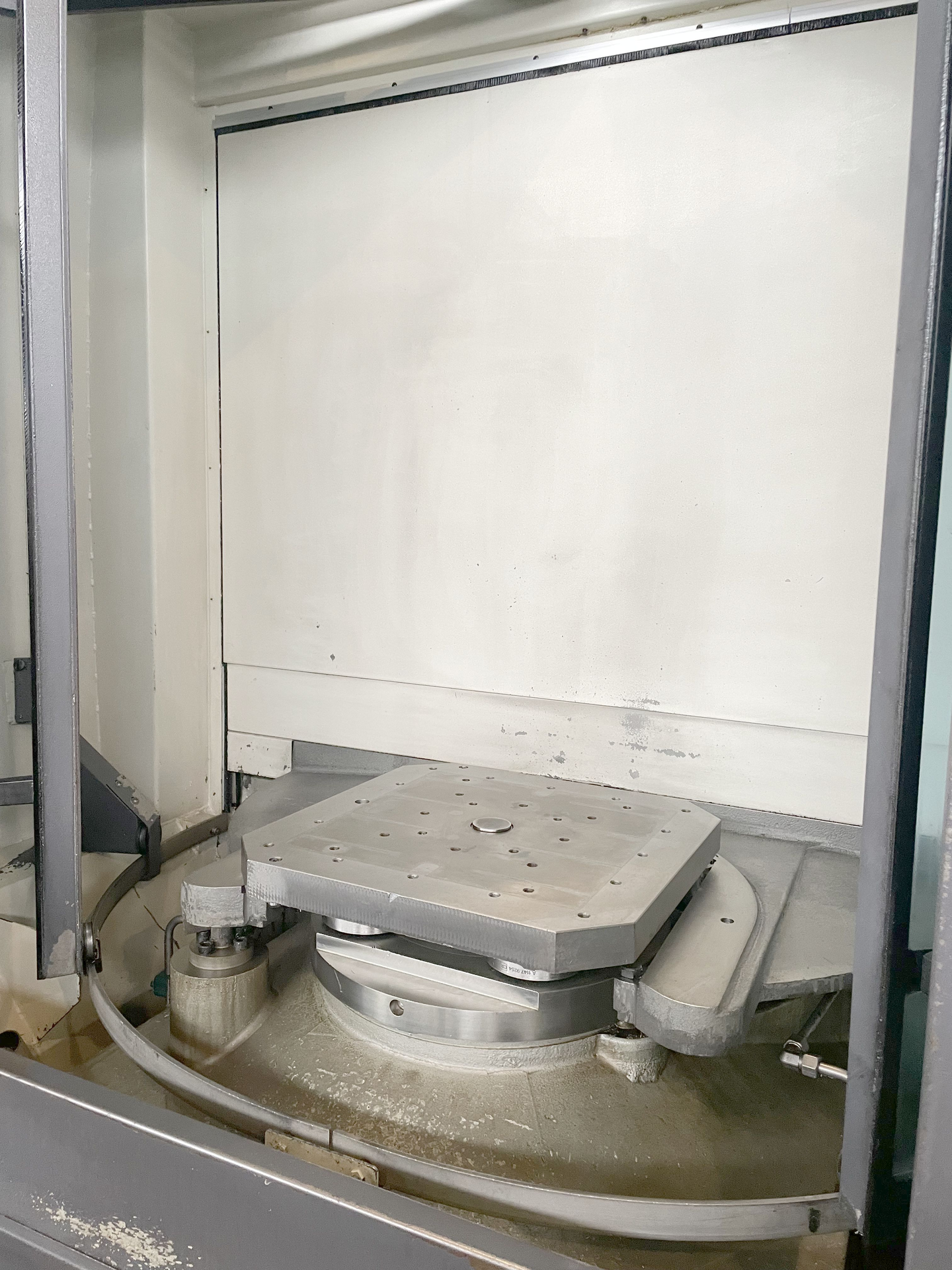

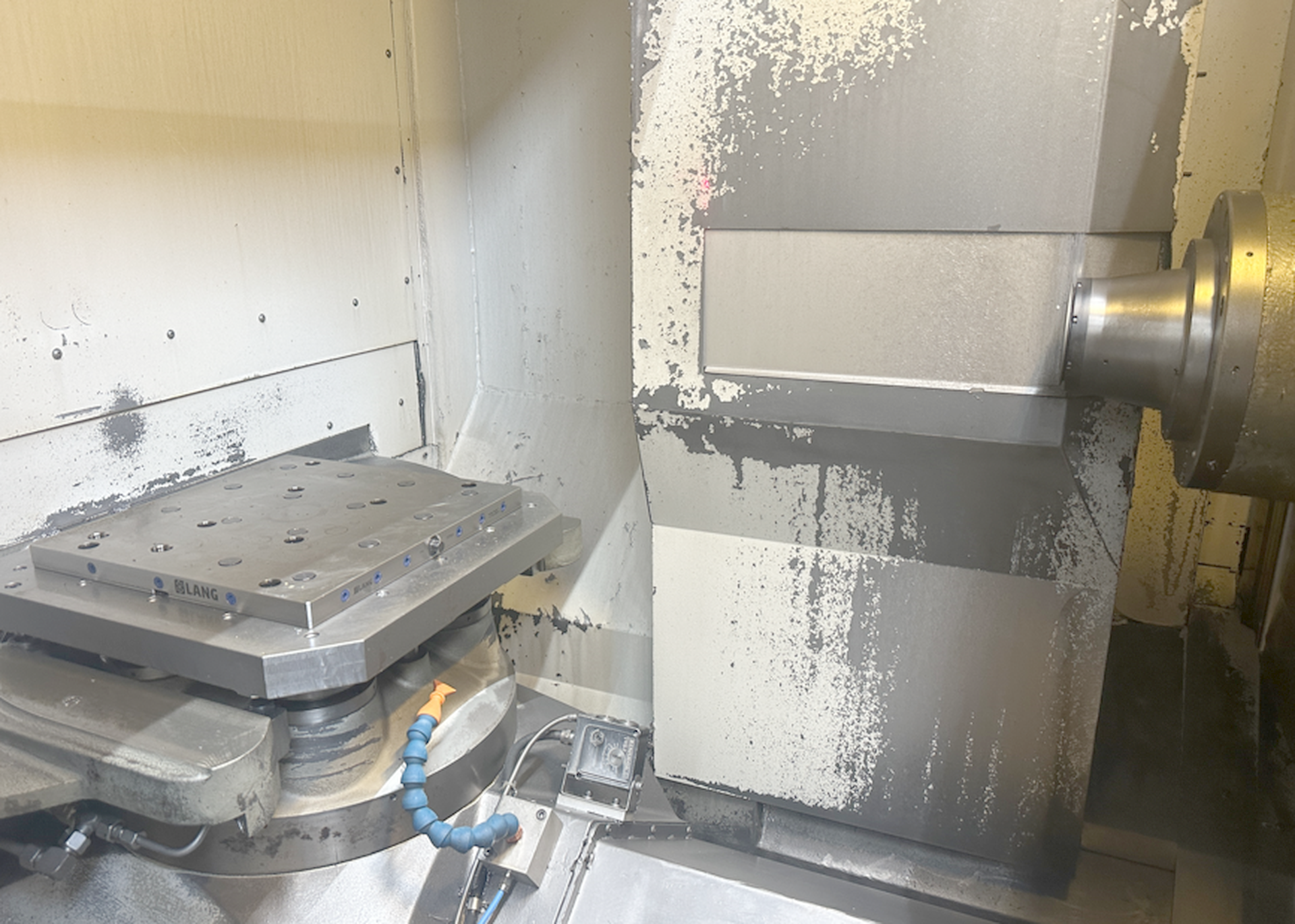

| Table load max. | 500 kg |
| Table divisions (B) | 0.001 ° |
| Table speed | 30 t/min |
| Holding torque A-axis | 4000 Nm |
| Tilting moment | 8000 Nm |
| Pallets: | |
| Length | 500 mm |
| Width | 500 mm |
| Pallet weight | 150 kg |
| Time of changing palets | 7 s |
| Transport weight | 500 kg |

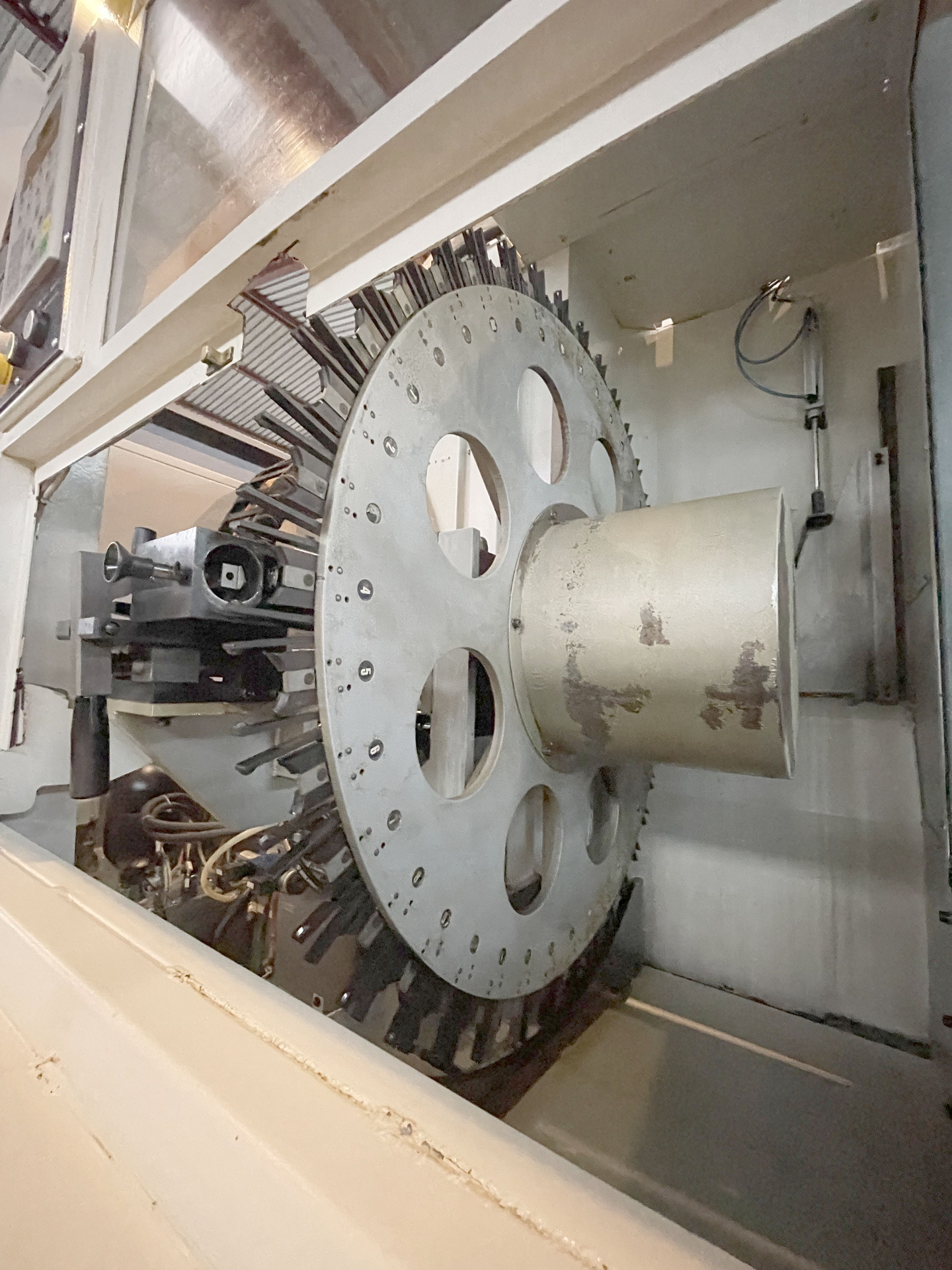

| Tool changer: | |
| Number of tools | 40 |
| Tool diameter max. | 80 mm |
| Diameter with free adjacent pockets | 150 mm |
| Tool lenght | 350 mm |
| Max. tool-weight | 10 kg |
| Time of tool changing | 2.5 - 4.5 s |
| Average chip-to-chip time | 4 s |

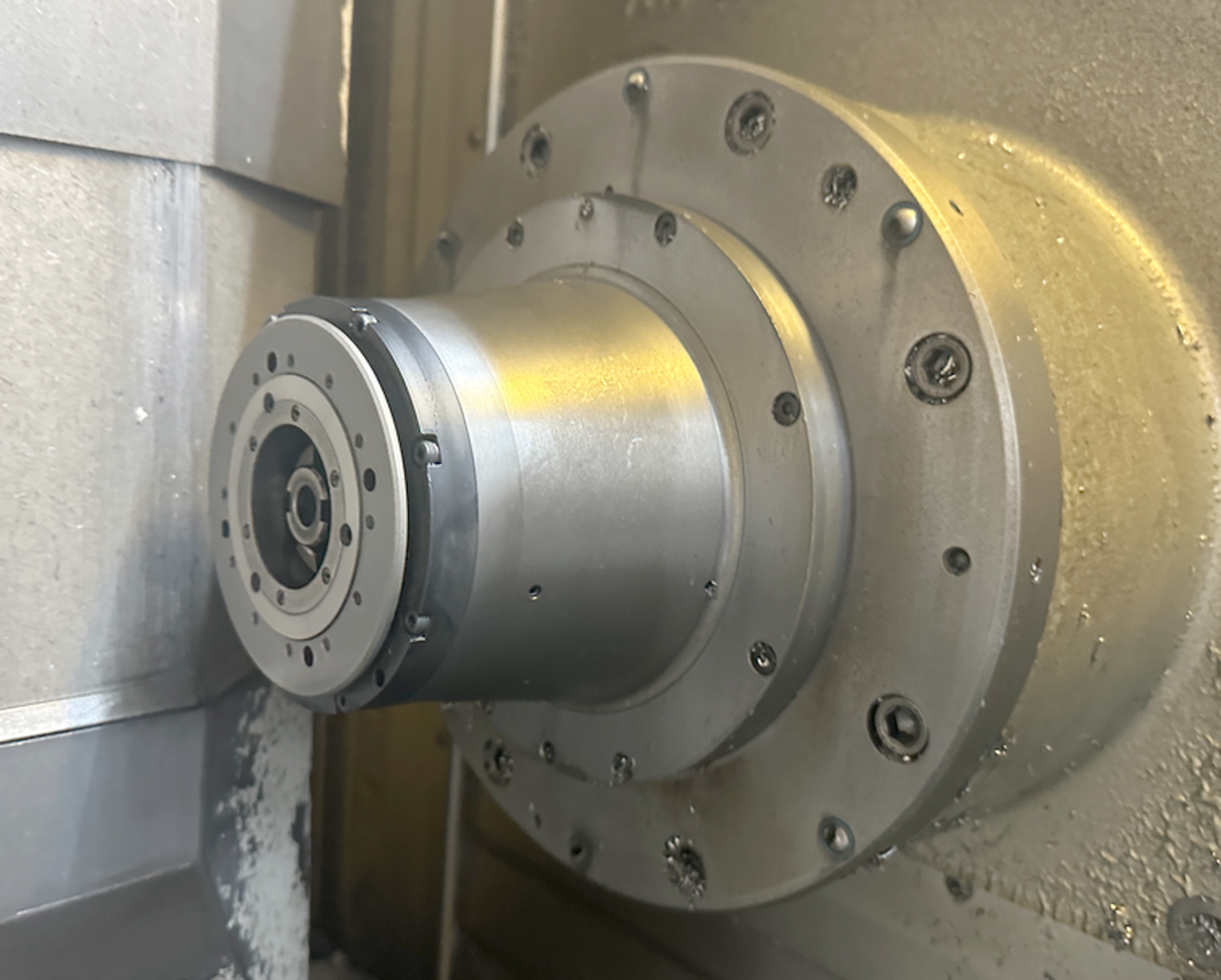

| Spindle nose: HSK-A | 63 |
| Spindle speeds: | |
| stepless | |
| from | 1 t/min |
| up to | 10000 t/min |
| Feed range | 1 - 50000 mm/min |
| Rapid traverse: | 50 m/min |
| Acceleration | 7 m/s |
| Max. Feed force | 5000 N |
| Air connect | 6 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 30 / 18 kW |
| Torque max. | 202 Nm |
| Total power required | 27 kVA |
| Machine's weight about | 12500 kg |
| Overall dimensions machine: | |
| Length | 4000 mm |
| Width | 3000 mm |
| Height | 3000 mm |
| Various accessories: | |
| Direct measuring system | |

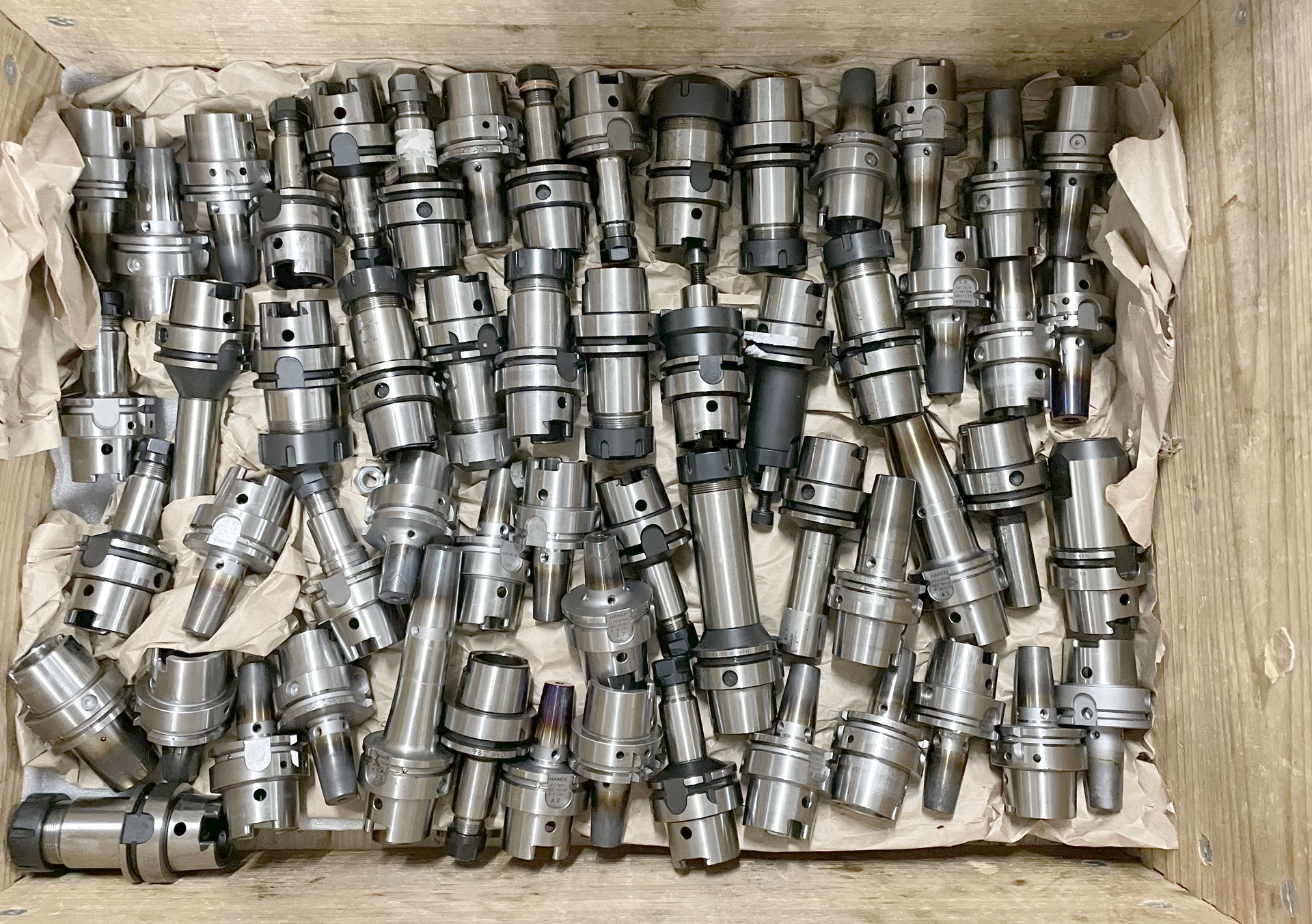

| Set of toolholders | |
| Coolant system | |

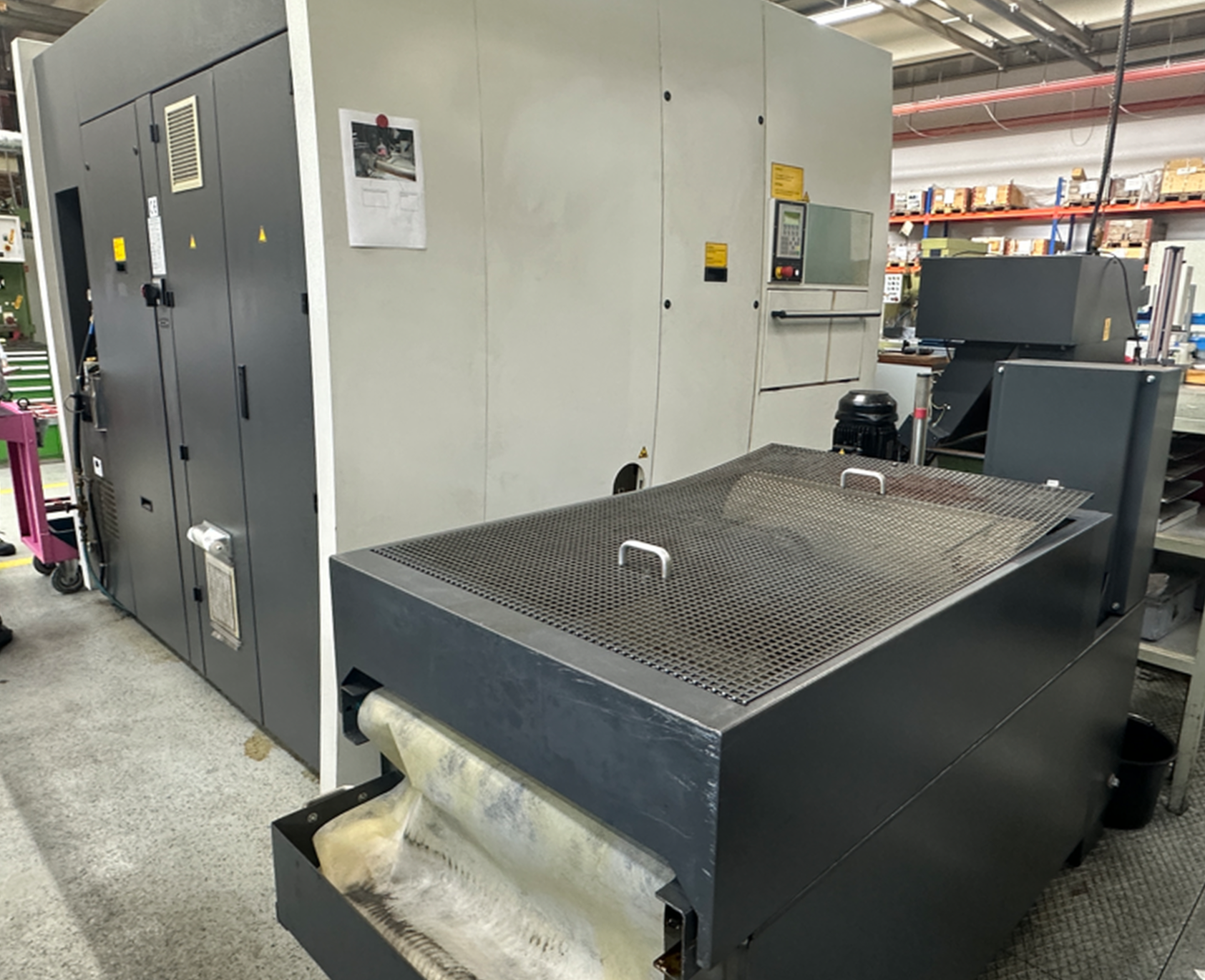

| Paper filtration system | |
| Chip conveyor | |
| Rotating viewing window |
