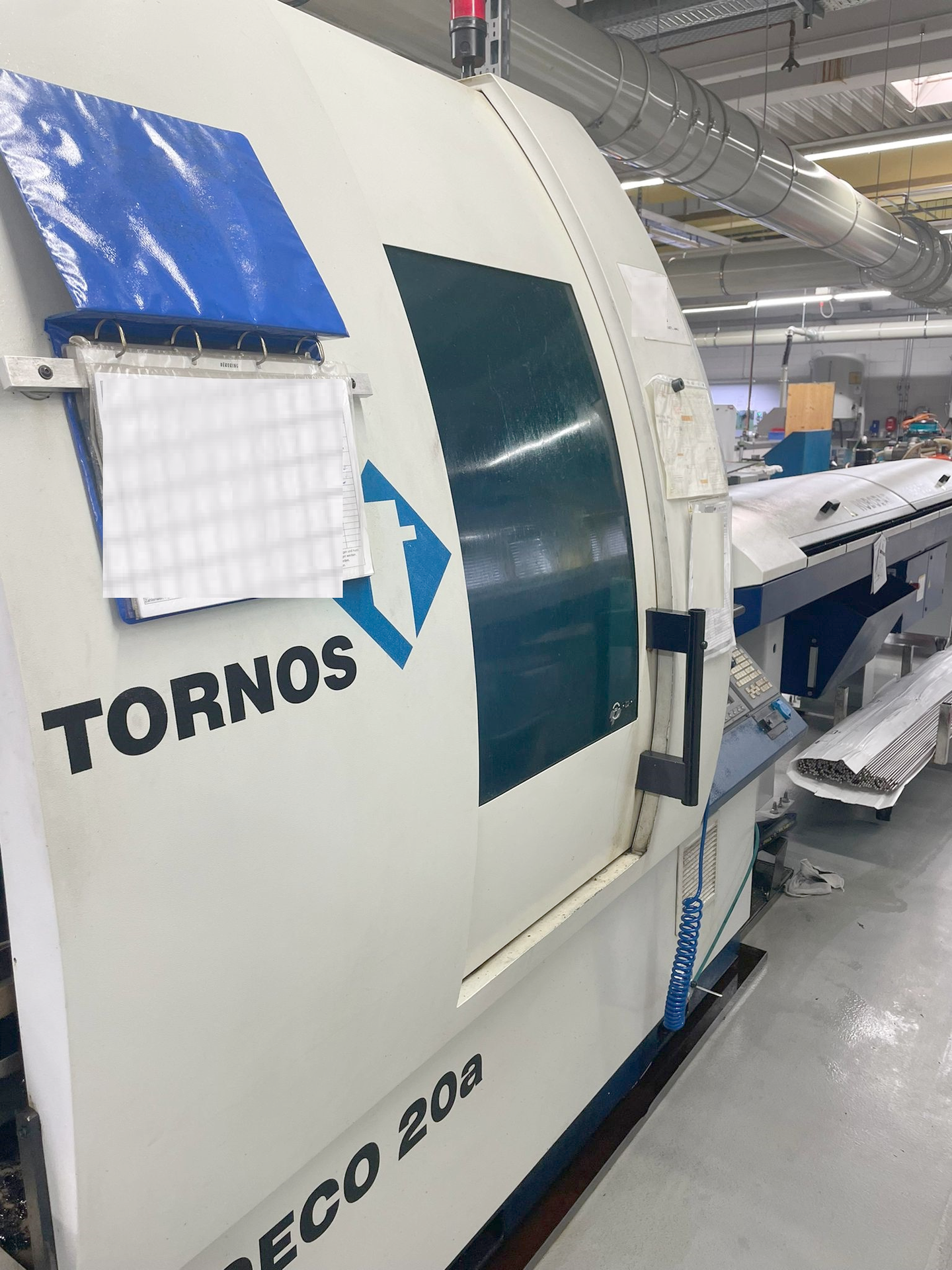

TORNOS DECO 2000/20a
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
TORNOS DECO 2000/20a is a CNC automatic lathe engineered for precision, high accuracy and reliability. Capacities: internal spindle diameter 20 mm; stepless spindle speeds up to 10000 t/min; driven tool speeds 8000 t/min; total 10 axes; independent carriages (X1-Y1, X2-Y2) with 5 positions each; 4 driven tools; back spindle 3; C‑axis resolution 0.1°. Main specs: voltage 50 Hz 3x 380-420 V; spindle motor 2.2 kW; total power 11 kVA; weight ~3000 kg; dimensions L2950×W1100×H2300 mm. Accessory: bar feeder ROBOBAR SBF 532. Delivers tight tolerances; typical applications: automotive, watchmaking, tooling, aerospace, medical
| Number of axis total | 10 |
| Internal spindle diameter | 20 mm |
| Spindle speeds: | |
| stepless | |
| up to | 10000 t/min |
| Independent carriage: | (X1-Y1) |
| Number of positions | 5 |
| number of driven tools | 4 |
| Independent carriage: | (X2-Y2) |
| Number of positions | 5 |
| Back spindle: | 3 |
| speeds: | |
| up to | 10000 t/min |
| Spindle speeds (turning tools) | 8000 t/min |
| C axis (spindle,resolution) | 0.1 ° |
| Voltage 50 Hz 3x | 380-420 Volt |
| Spindle motor | 2.2 kW |
| Total power required | 11 kVA |
| Machine's weight about | 3000 kg |
| Overall dimensions machine: | |
| Length | 2950 mm |
| Width | 1100 mm |
| Height | 2300 mm |
| Various accessories: | |

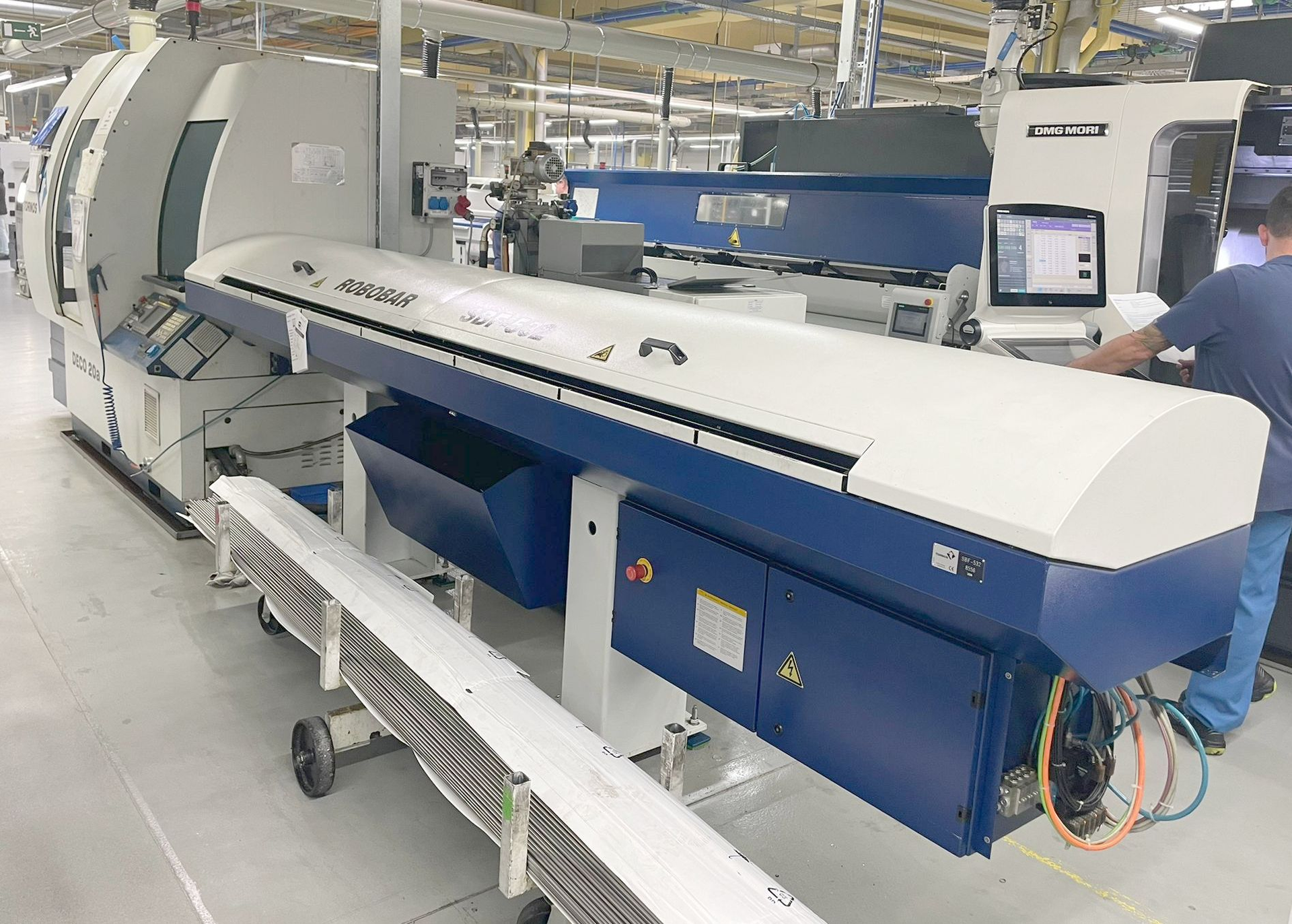

| Bar feeder | ROBOBAR SBF 532 |

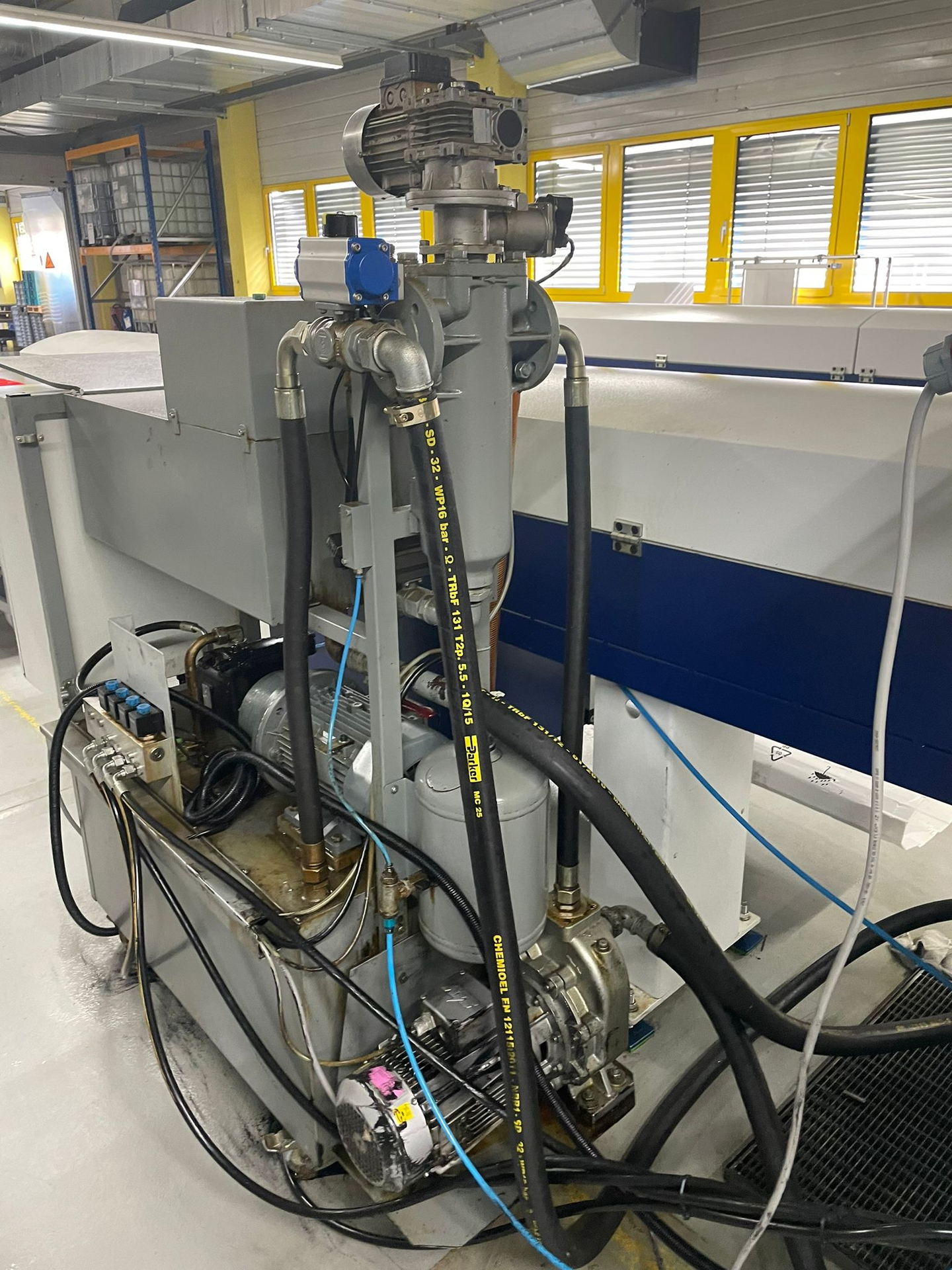

| Coolant system |
