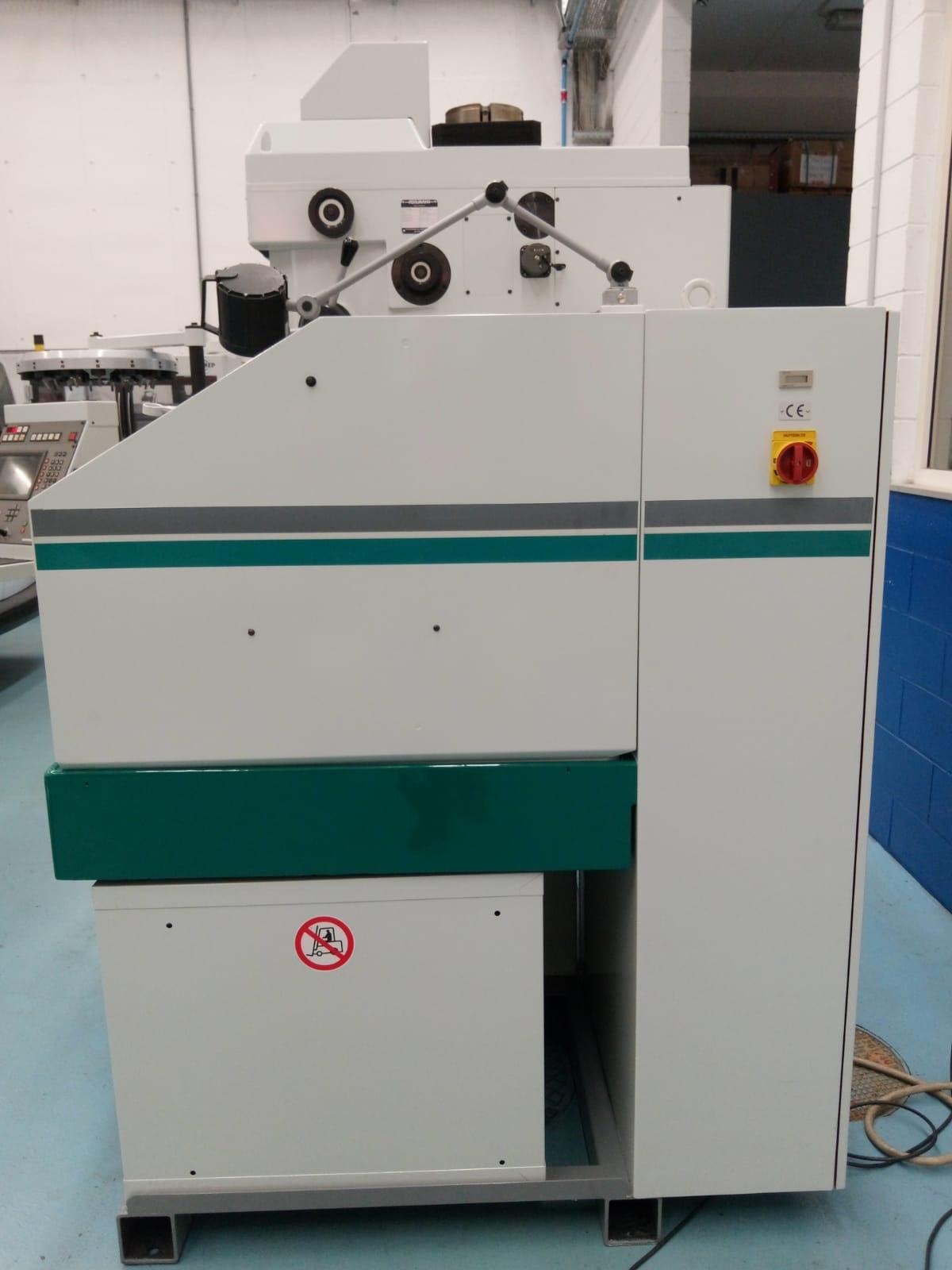

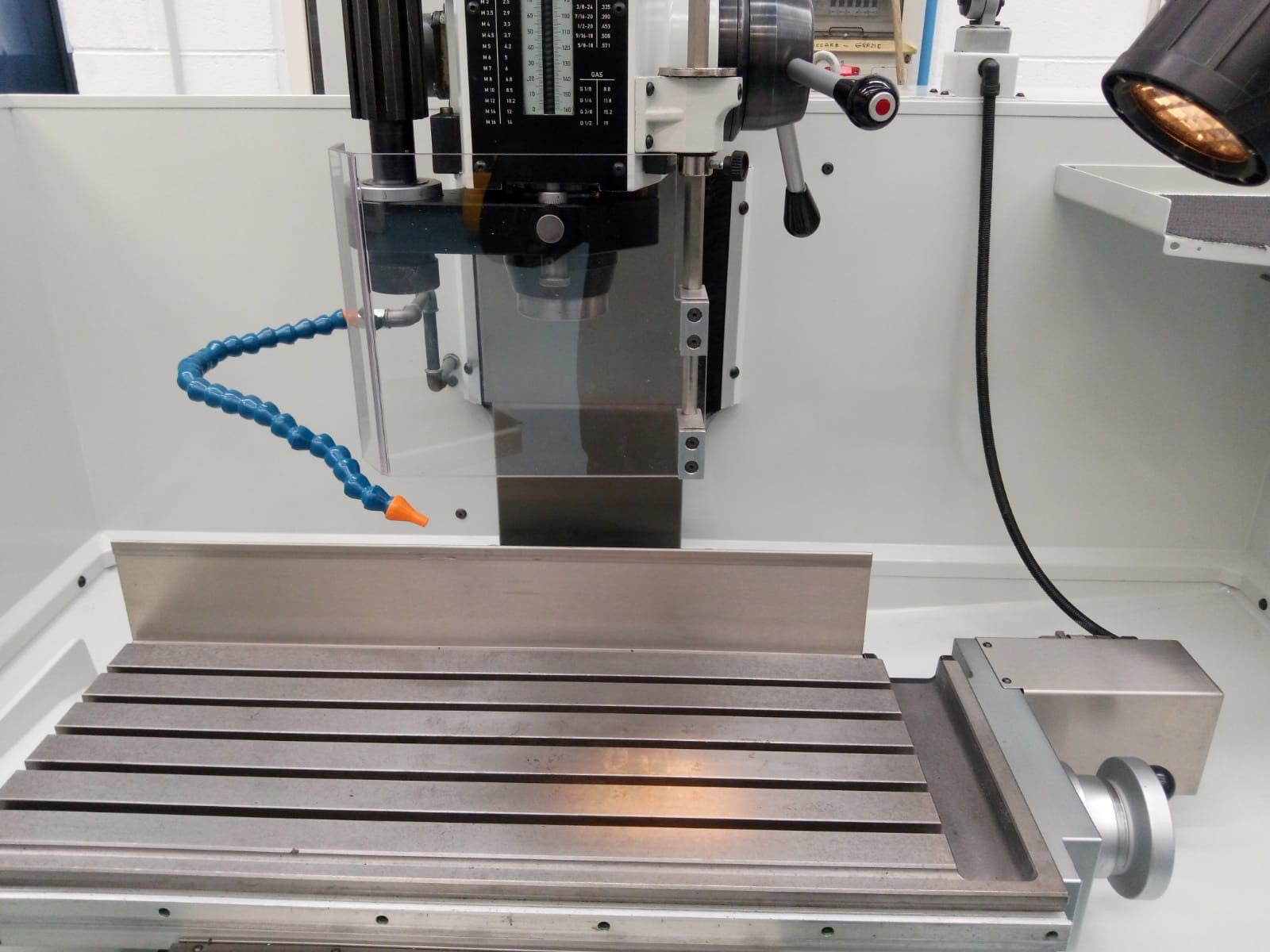

FEHLMANN PICOMAX 54
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

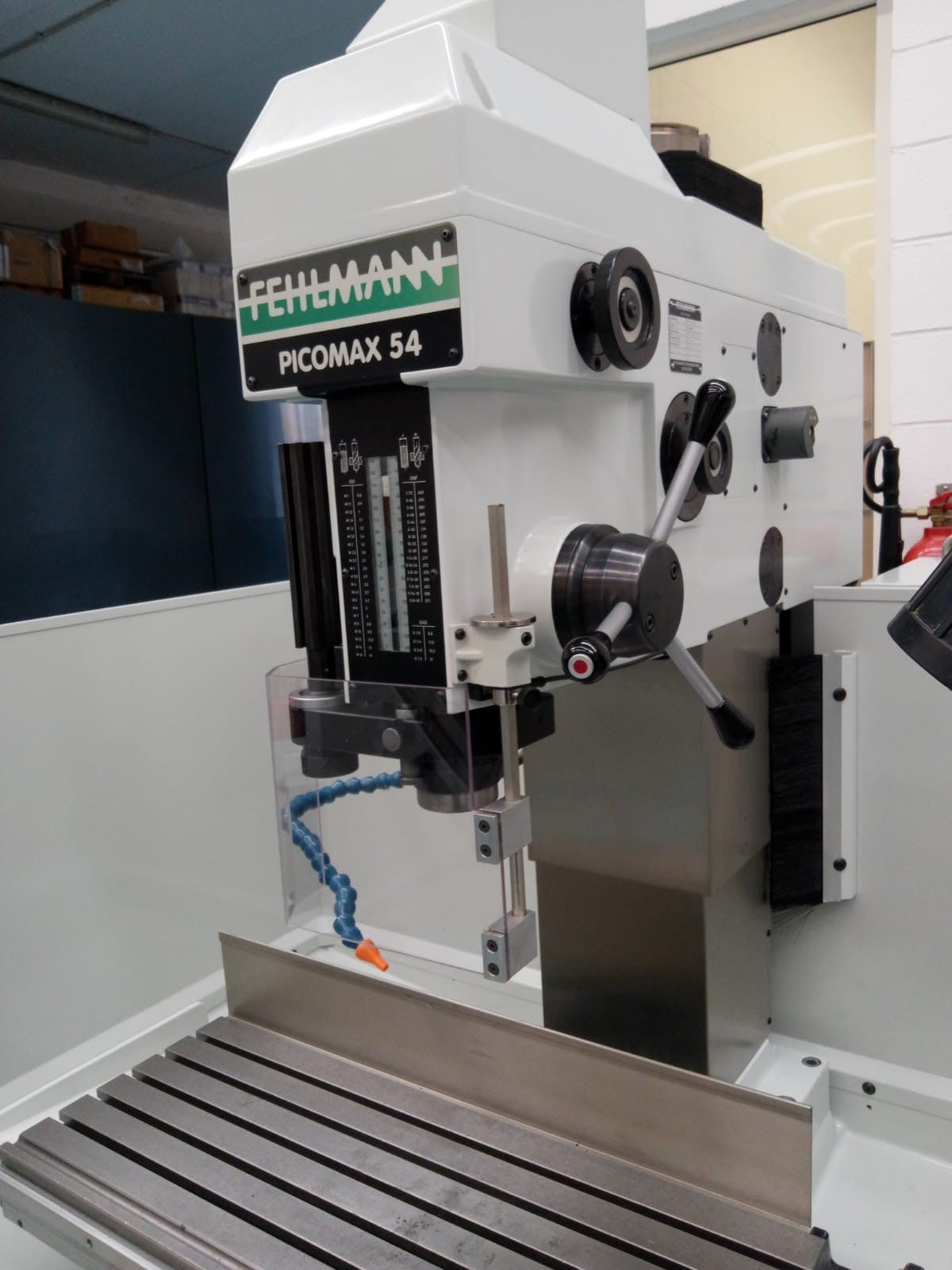

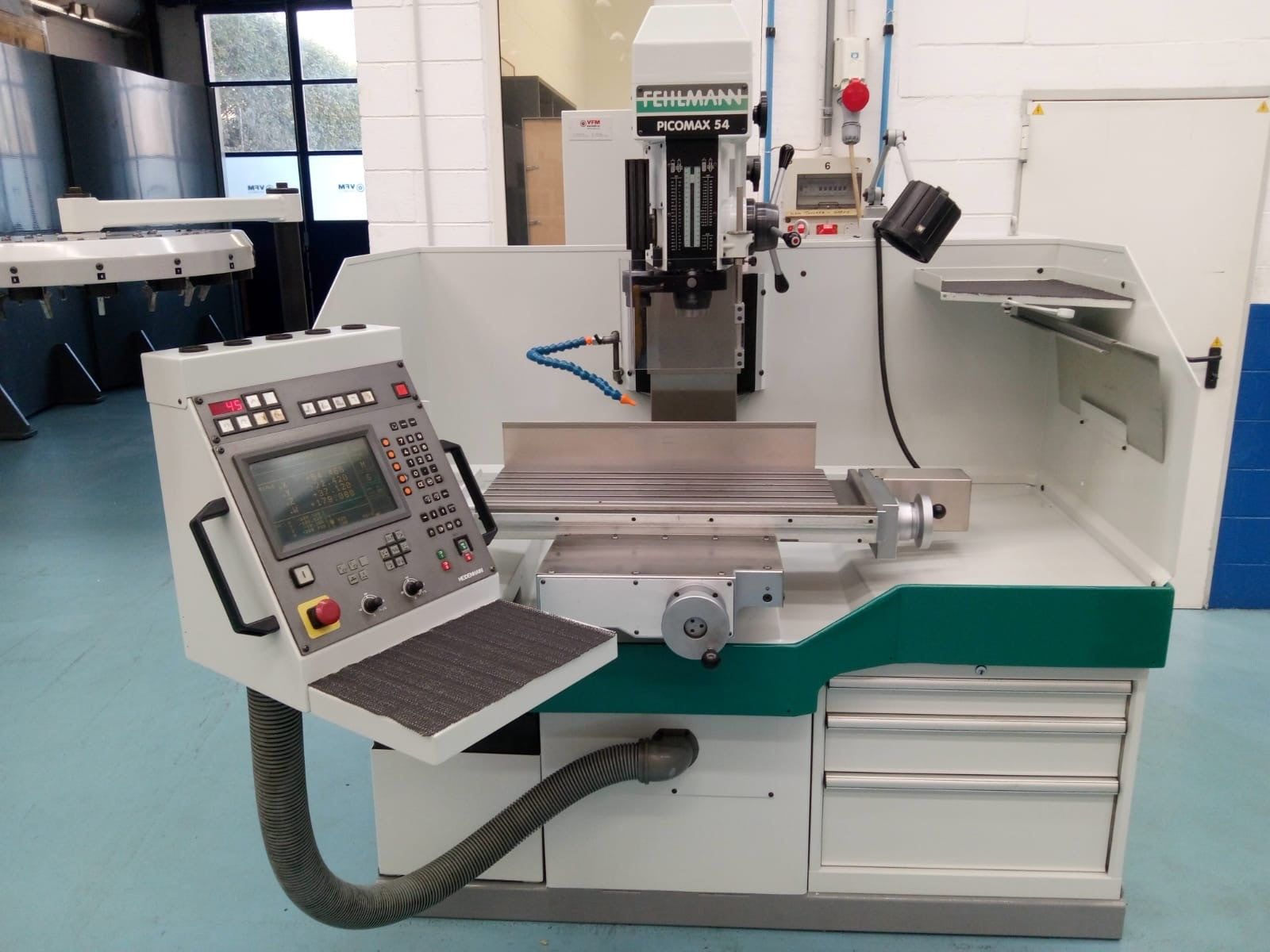

FEHLMANN PICOMAX 54 is a CNC milling machine, built for precision machining with high accuracy and reliability. Capacities: drill in steel 28 mm, thread cutting M24, milling 100 cm3/min, spindle stroke 160 mm; table 880×320 mm, table–spindle 0–610 mm; travels X 500 mm, Y 260 mm, Z 480 mm. Specs: stepless spindle speeds 50–7100 rpm, spindle power 8 kW, total power 10 kW, supply 3x 400 V 50 Hz; feeds X/Y 1–2000 mm/min, Z 10–1200 mm/min, W 500–2000 mm/min; weight ≈895 kg, size 2200×1800×2400 mm. Accessories: set of drill chucks, tool storage, lamp, set of toolholders. Achieves tight tolerances for watchmaking, automotive, aerospace, medical and general machine-tool use.
| Drill capacity in steel | 28 mm |
| Threat cutting in steel M | 24 |
| Milling capacity | 100 cm3/min |
| Spindle stroke | 160 mm |
| Spindle speeds :stepless | |
| from | 50 t/min |
| up to | 7100 t/min |
| Table length | 880 mm |
| Table width | 320 mm |
| Min. distance from table to spindle | 0 mm |
| Max. distance from table to spindle | 610 mm |
| Longitudinal travel | 500 mm |
| Transversal travel | 260 mm |
| Vertical travel | 480 mm |
| Feeds: | |
| X axis | 1 - 2000 mm/min |
| Y axis | 1 - 2000 mm/min |
| Z axis | 10 - 1200 mm/min |
| W axis | 500 - 2000 mm/min |
| Table load max. | 300 kg |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 8 kW |
| Total power required | 10 kW |
| Machine's weight about | 895 kg |
| Overall dimensions machine: | |
| Length | 2200 mm |
| Width | 1800 mm |
| Height | 2400 mm |
| Various accessories: | |
| Set of drill chucks | |

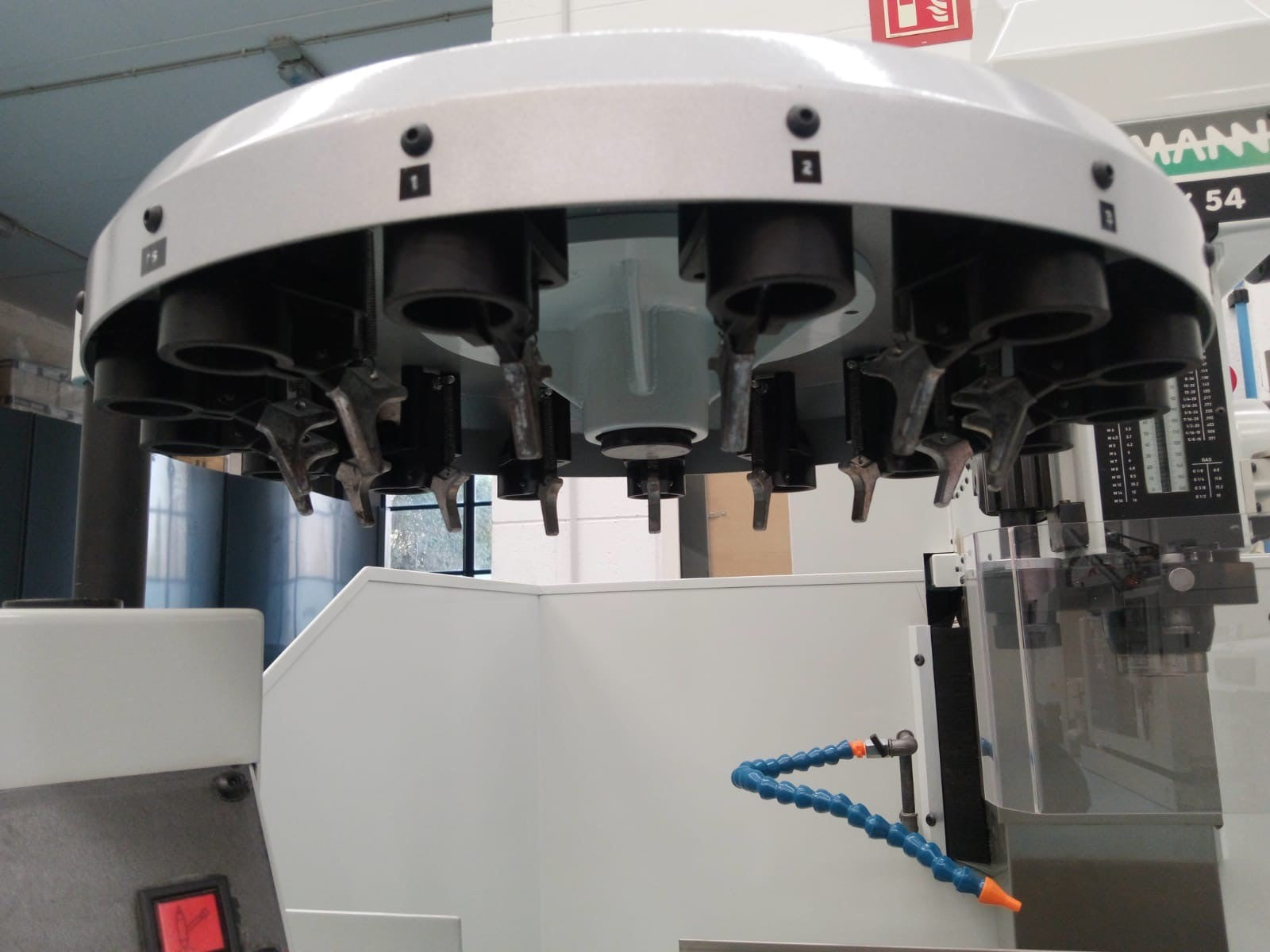

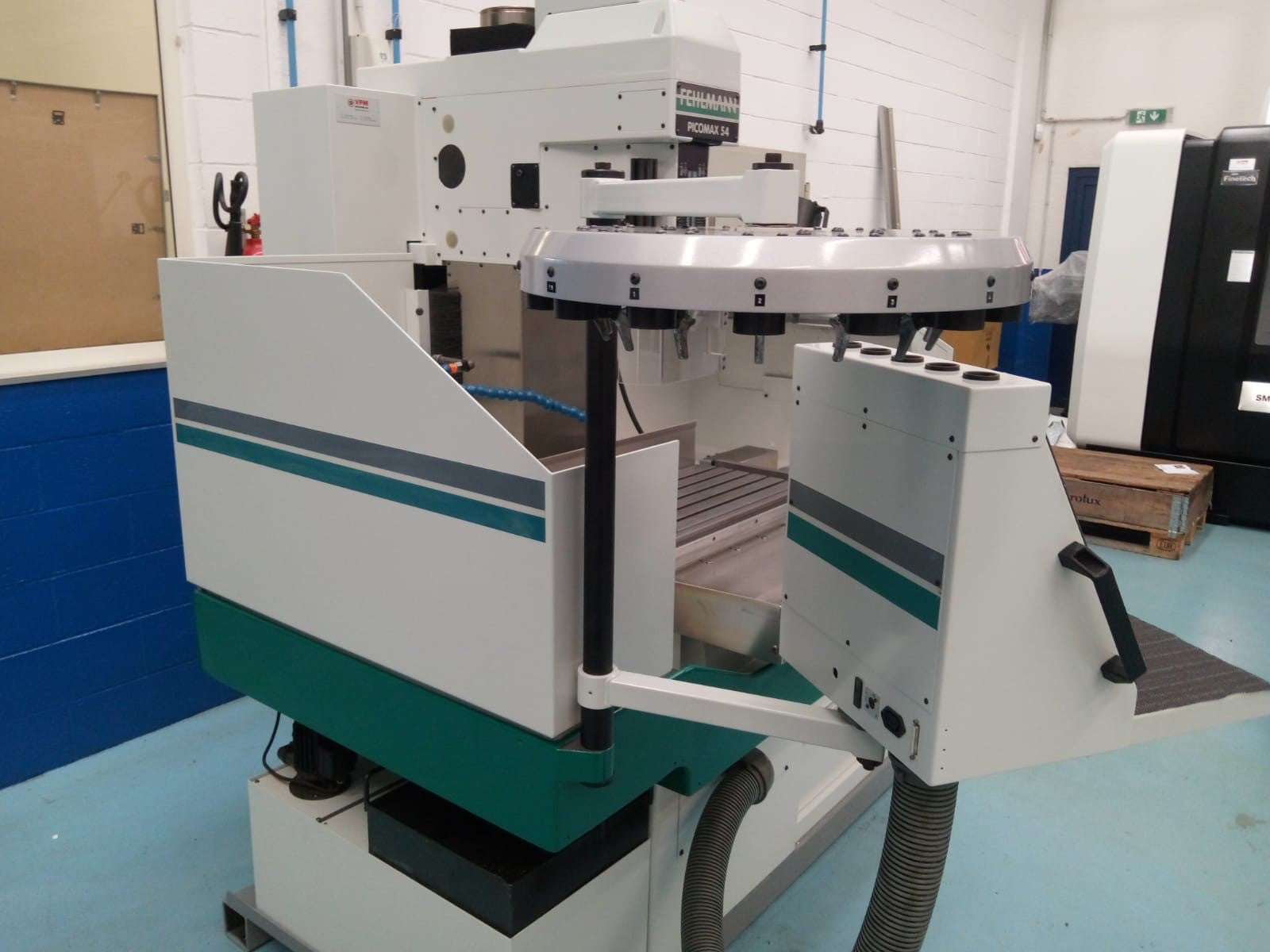

| Tool storage | |
| Lamp | |

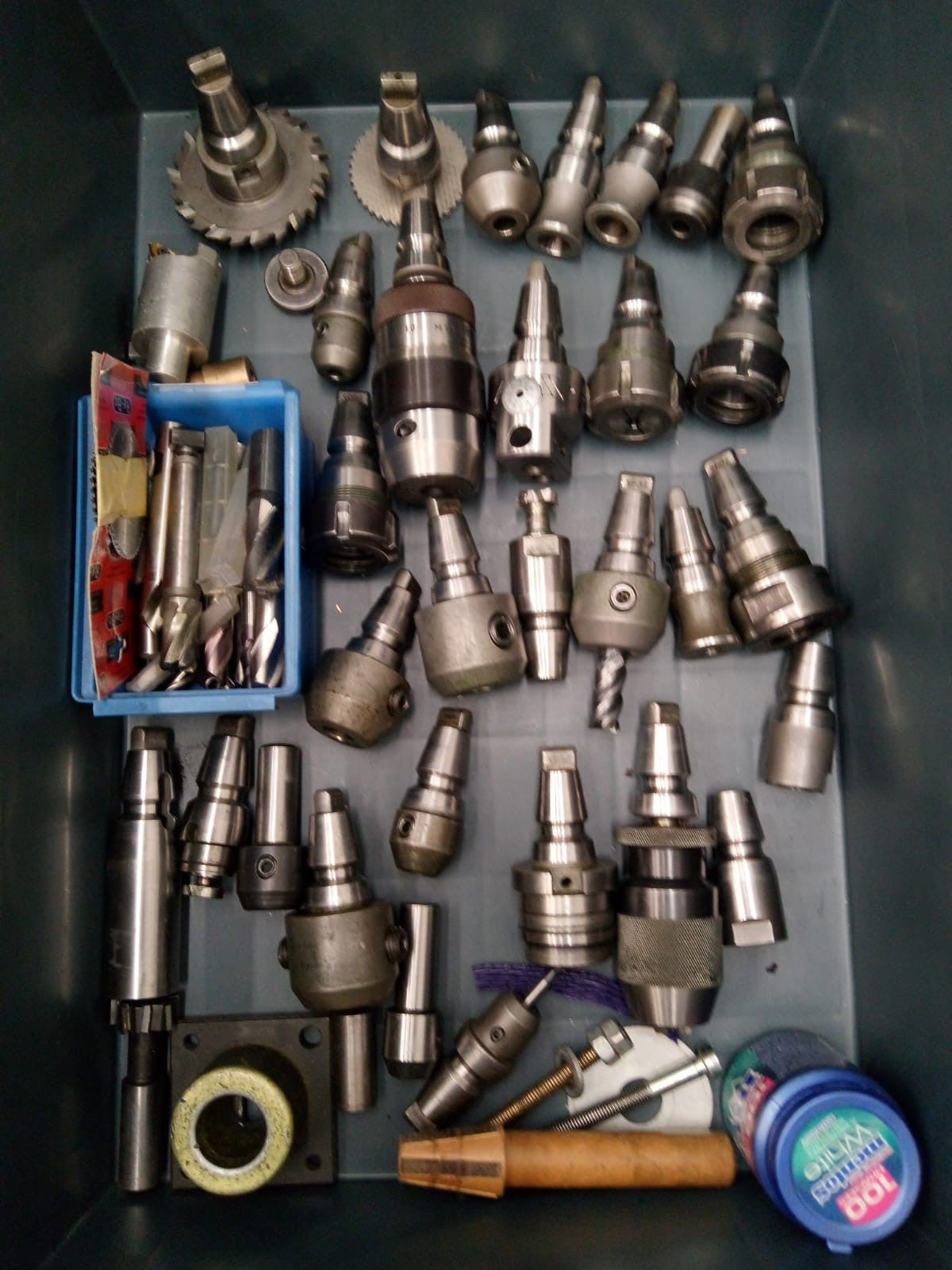

| Set of toolholders |
