HUGI MS 600
Type: MS 600
Manufacturer: HUGI
Stock: 023005
Download technical sheet (PDF)

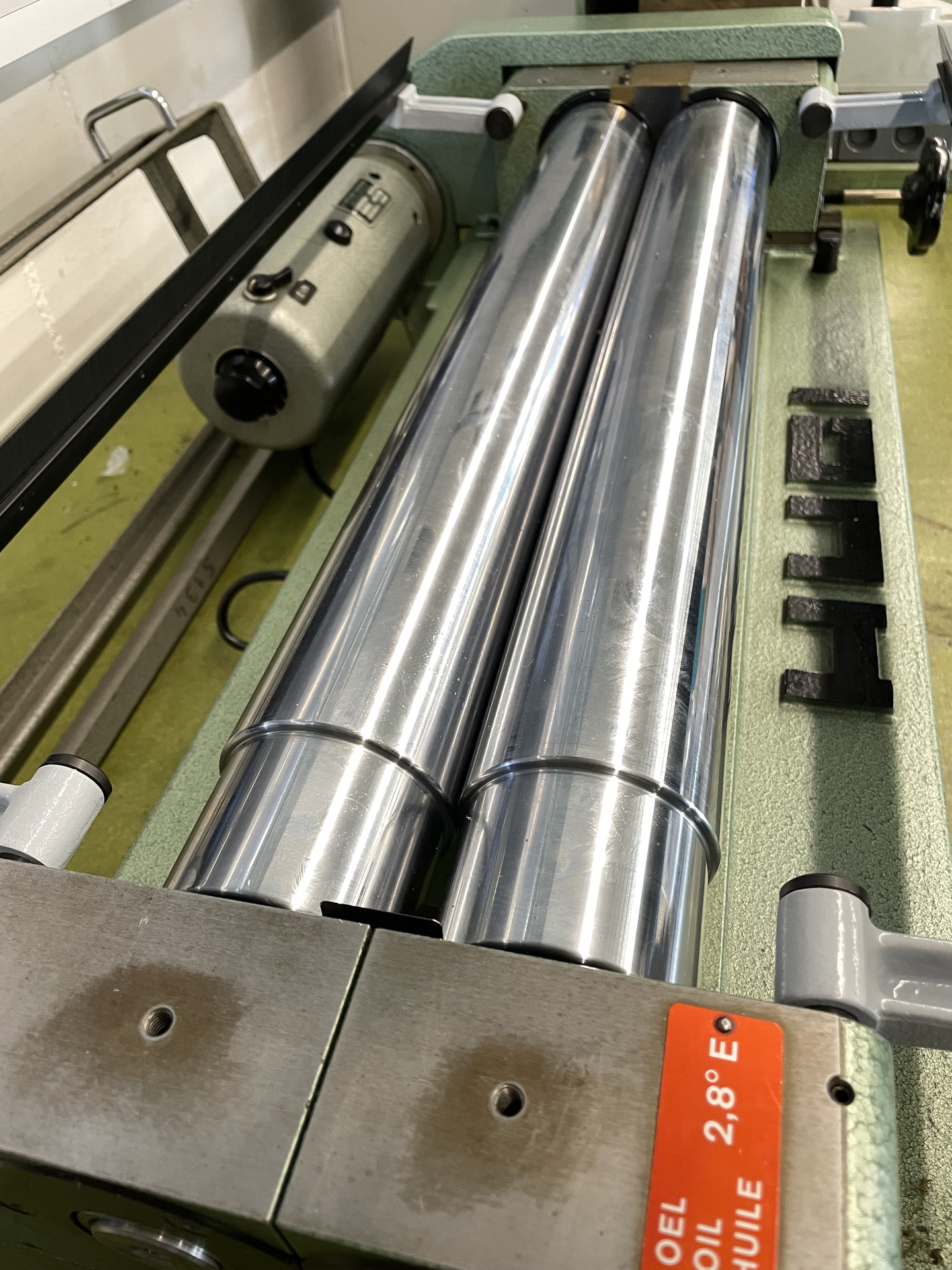

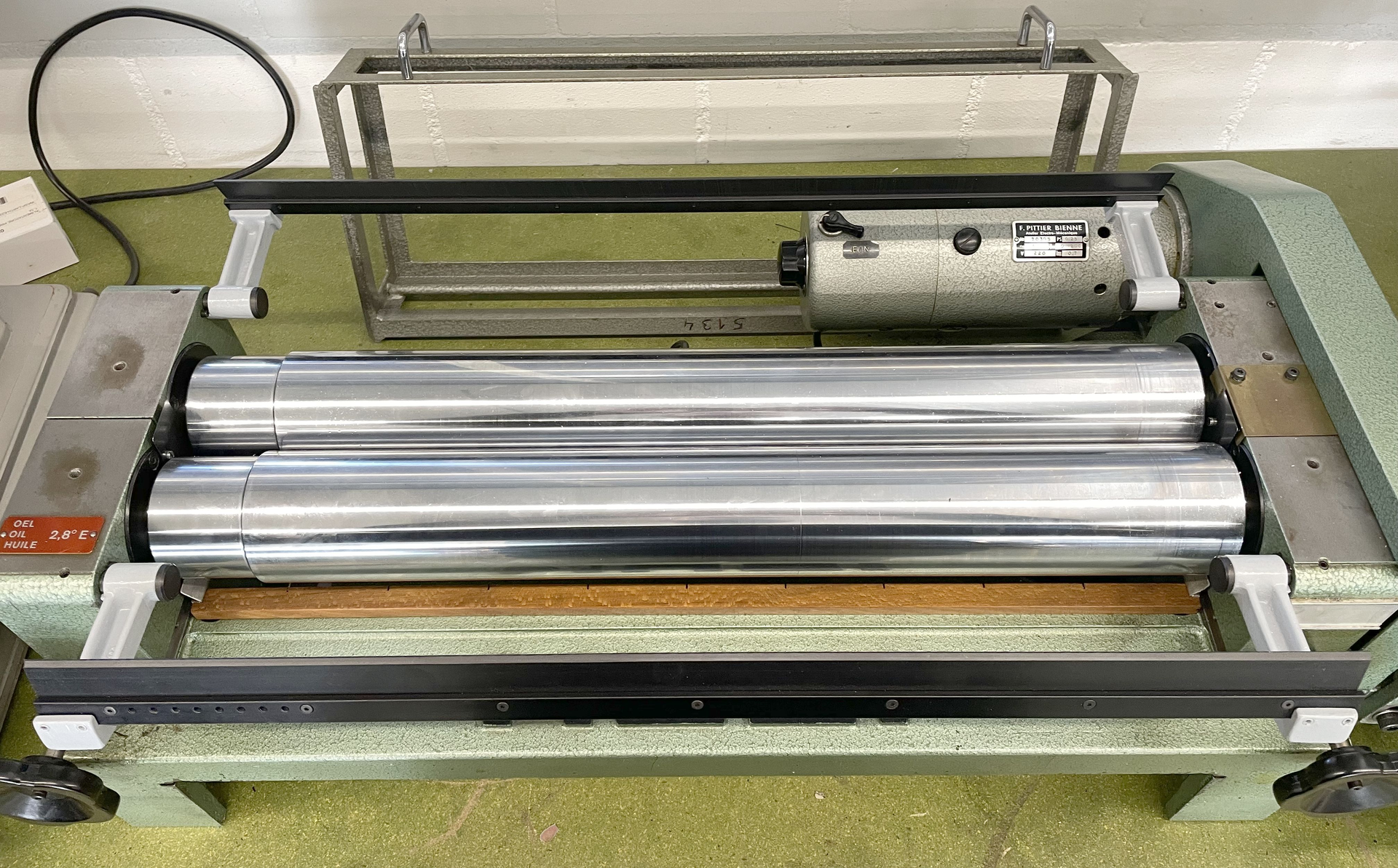

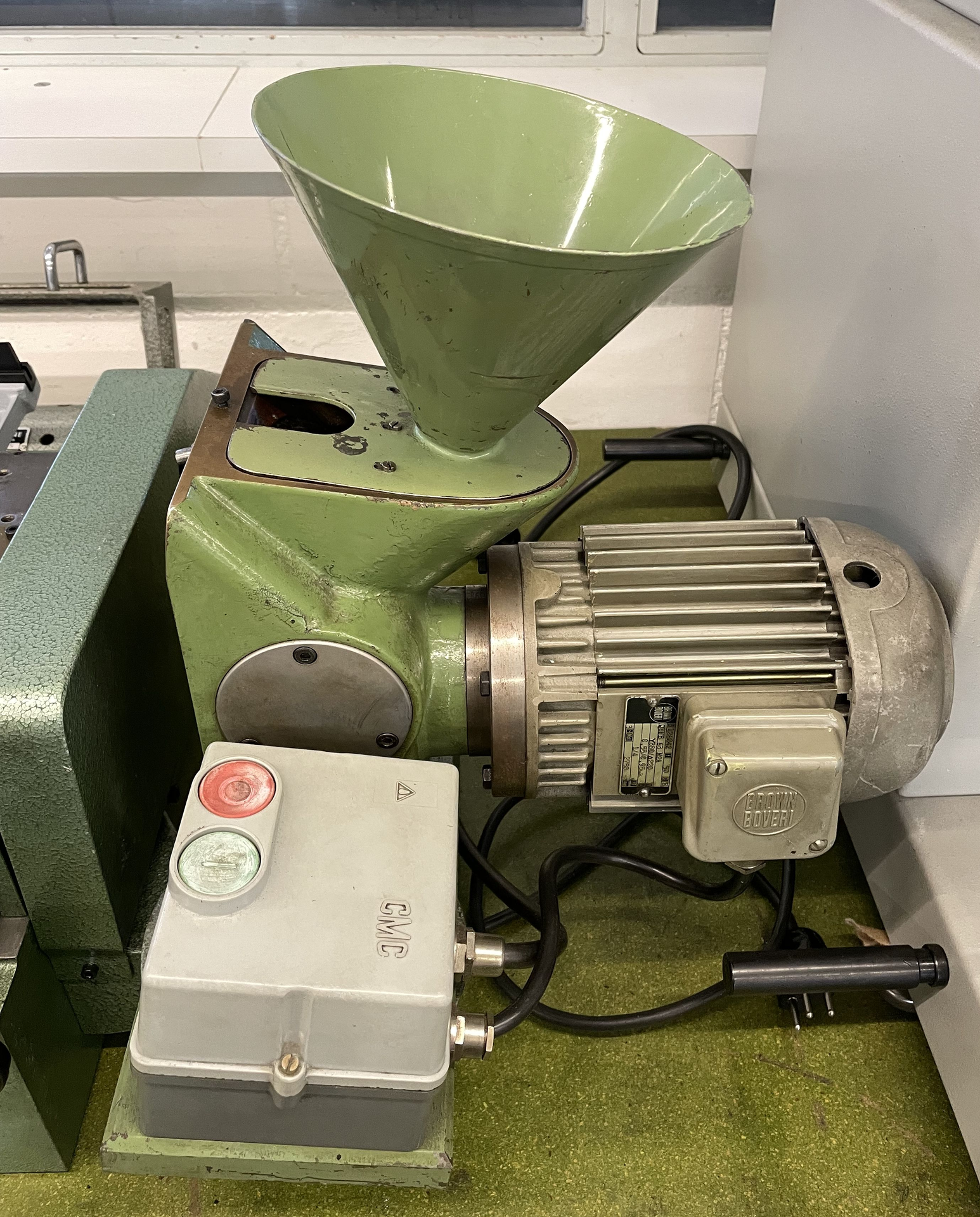

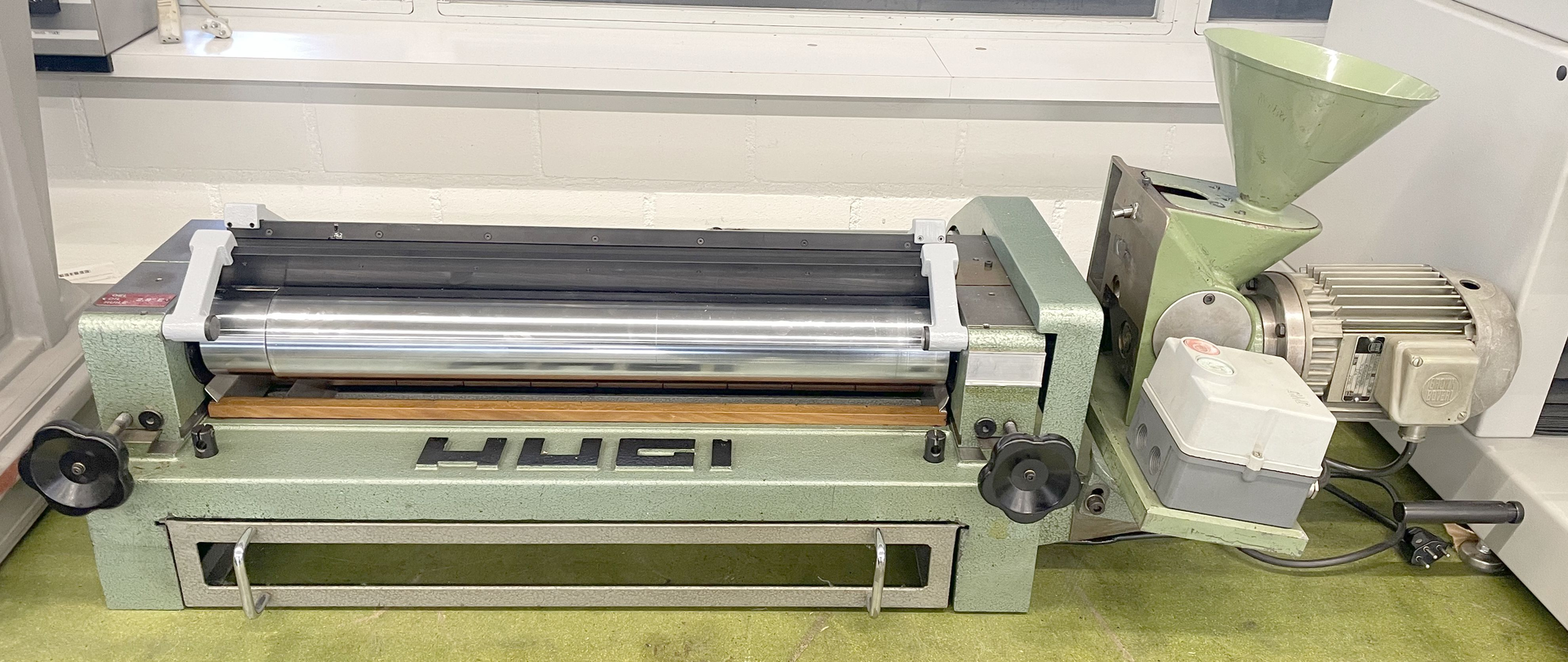

HUGI MS 600 is a Part sorting machine by HUGI designed for sorting with precision, high accuracy and reliable performance. Measuring range 0–15 mm; roll diameter 76 mm; roller length 600 mm. Voltage 50 Hz 3x 220 V; motor 0.30 kW; weight approx. 130 kg; dimensions L1000×W500×H400 mm. Provides repeatability to achieve tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace and medical sectors.

Measuring range 0 - 15 mm
Roll diameter 76 mm
Roller length 600 mm
Voltage 50 Hz 3x 220 Volt
Driving motor (motor power) 0.30 kW
Machine's weight about 130 kg
Overall dimensions machine:
   Length 1000 mm
   Width 500 mm
   Height 400 mm
